Ratcheting Crimper, 10-22 AWG - Insulated Terminals

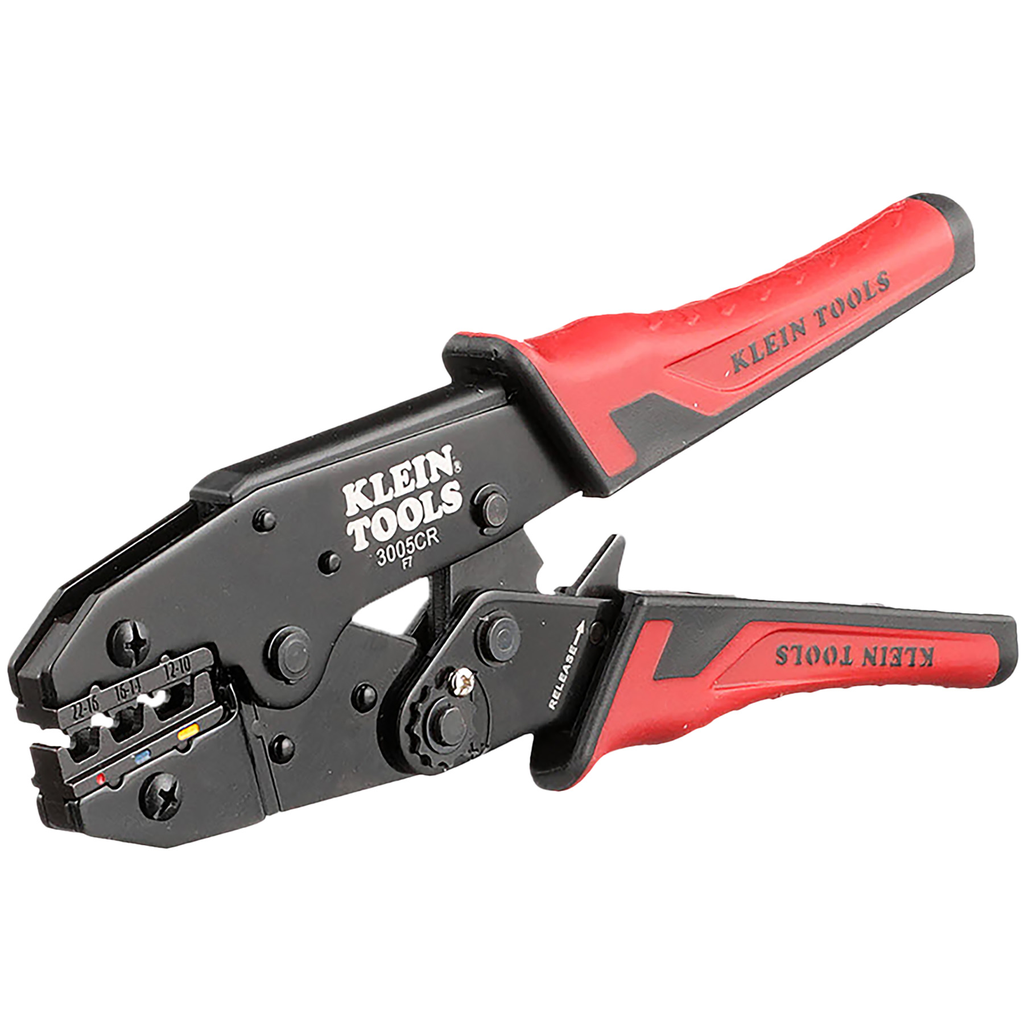

The full-cycle Ratcheting Crimper crimps 10-22 AWG insulated wire terminals. This tool features three crimping cavities in one tool with color-coded wire markings for three size ranges of insulated terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time. Compound lever-action of narrow-span handles puts more crimping power into each squeeze. Comfort grips help reduce hand fatigue.

Features

• Unique cavity design provides consistent crimp from either side of the tool
• Dial adjusts the amount of force applied to the crimp

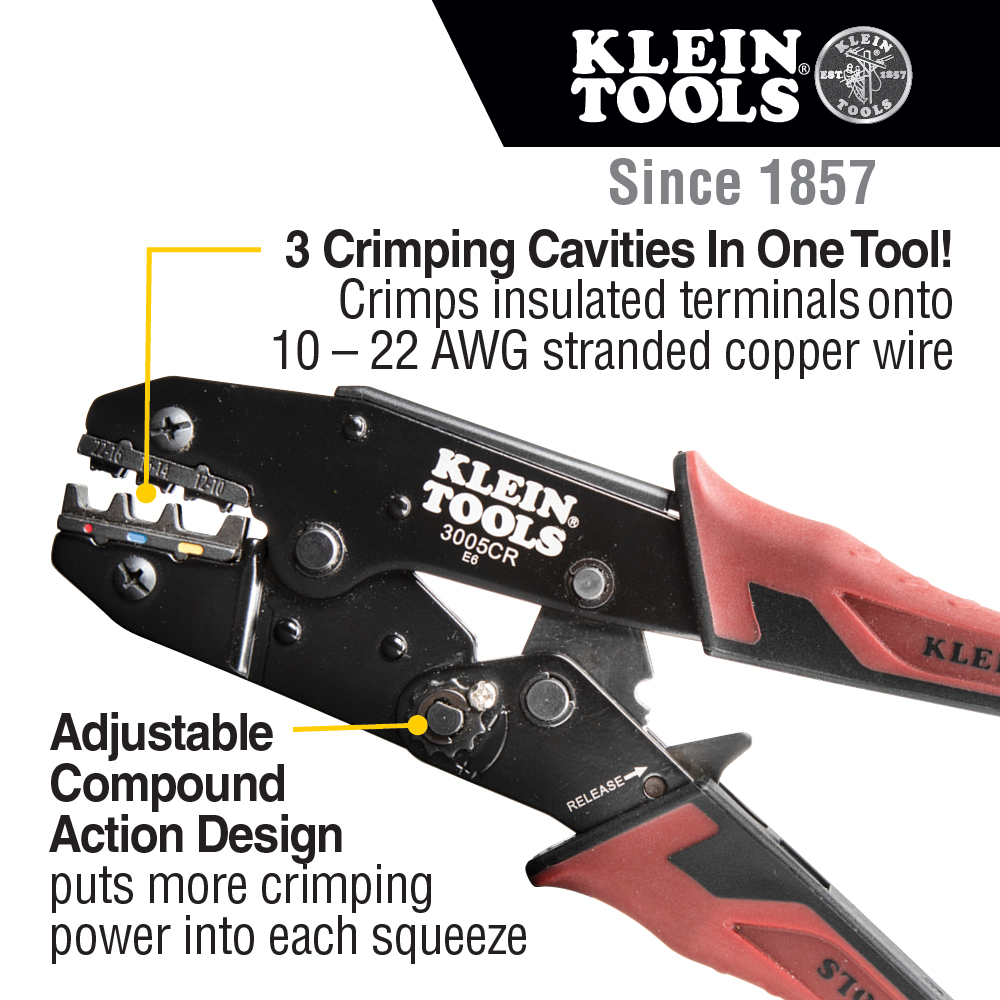

• Three crimping cavities in one tool: 22–16 AWG (Red), 16–14 AWG (Blue) and 12–10 AWG (Yellow) terminals
• Crimps insulated terminals onto 10-22 AWG stranded copper wire
• Adjustable compound action design puts more crimping power into each squeeze
• Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
• 3 Crimping Cavities
• Dual-material molded grips provide added comfort

Warnings

• Always wear approved eye protection.
• NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

Specifications

• Handle Finish: Dual-Material
• Overall Height (cm): 0.2
• Type: Ratcheting Crimper
• Weight (kg): 0.6
• Width: 3.0400 in
• Connector Type: Insulated
• Application: Wire Crimping
• Handle Color: Red, Black
• Material: Steel
• Weight: 1.1880 lbs
• Overall Length (Inch): 9
• Overall Length (cm): 22.9
• Overall Width (Inch): 3
• Overall Width (cm): 7.6
• Height: 0.8700 in
• Cable Size: Front Cavity - 22-16 AWG Insulated Terminals; Mid Cavity - 16-14 AWG Insulated Terminals; Rear Cavity - 12-10 AWG Insulated Terminals
• Overall Height (Inch): 0.09
• Depth: 8.9400 in
• Weight (lb): 1.3
