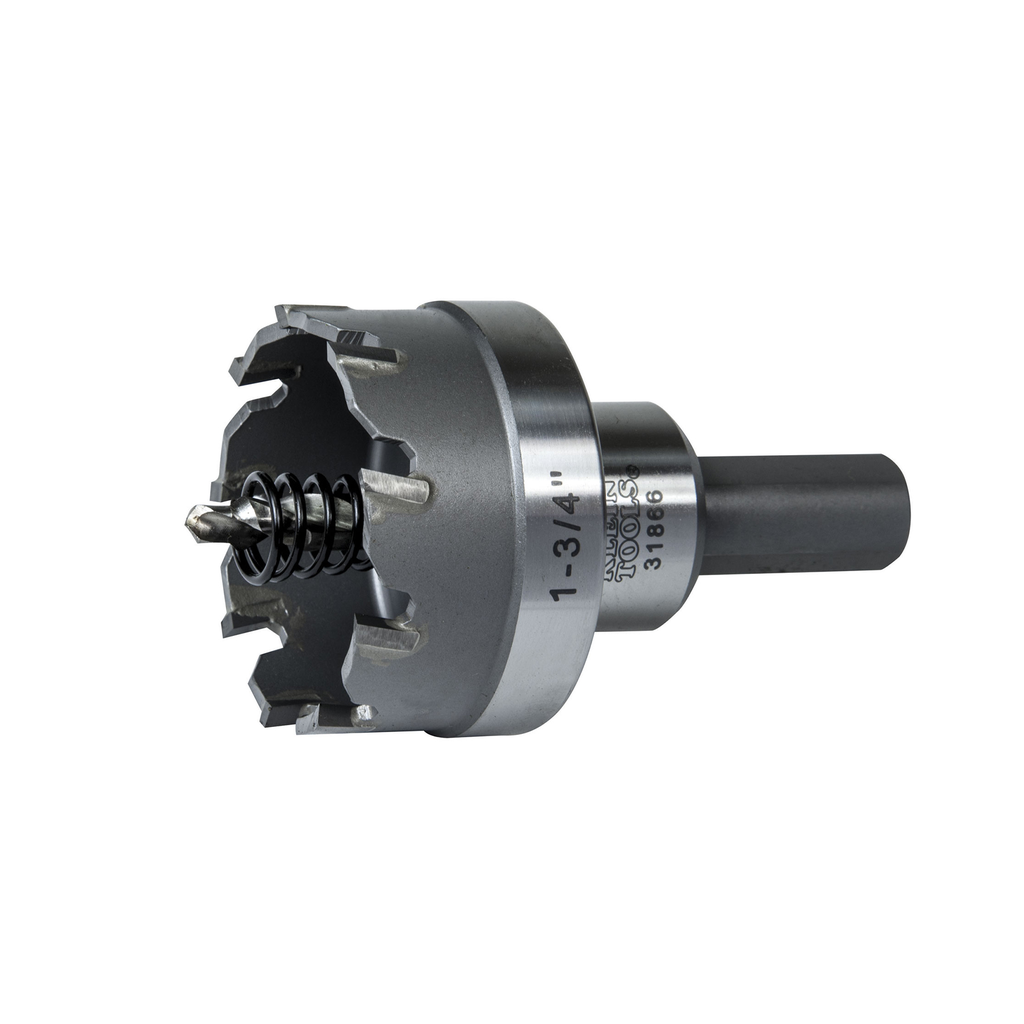

Carbide Hole Cutter, 1-3/4-Inch

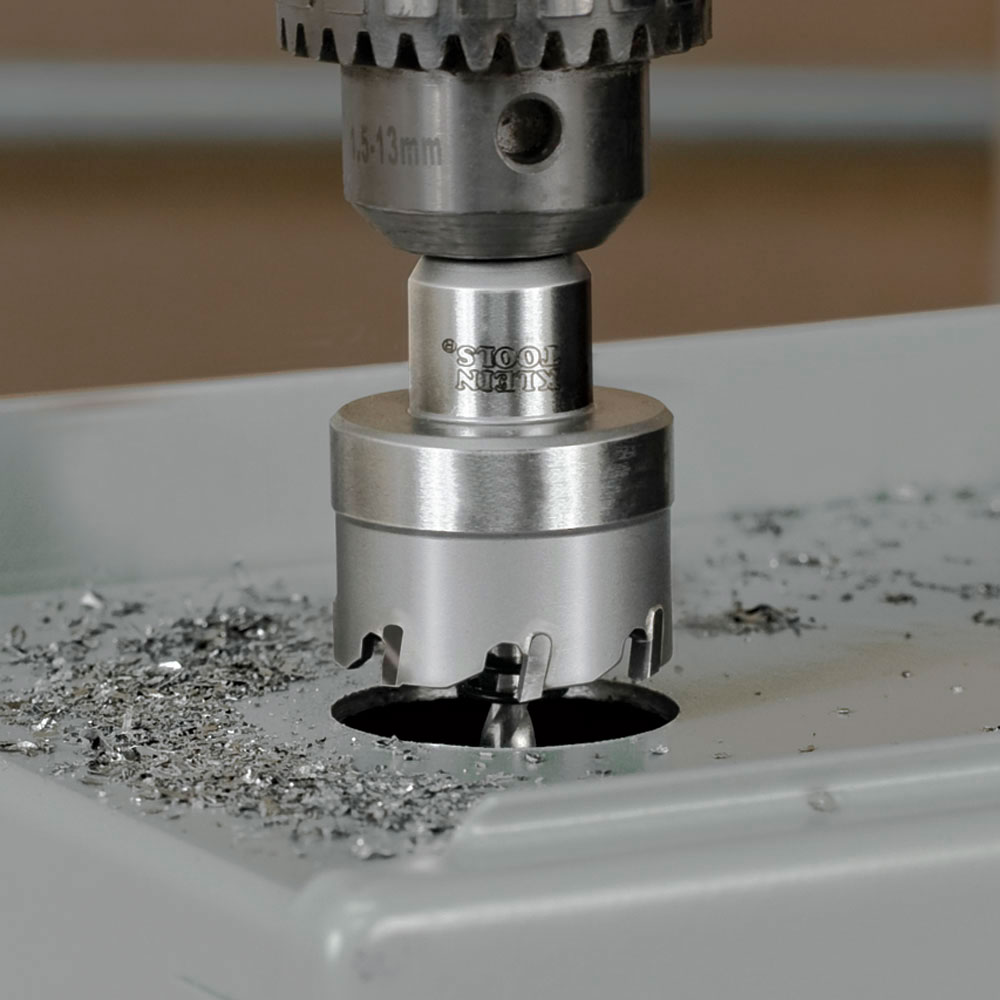

This carbide hole cutter cuts quick, precise holes in a variety of materials. Integrated flange prevents the operator from drilling beyond the sheet metal. Split point pilot drill bit prevents bit walking.

Features

• Heavy duty, durable carbide hole cutters for long life

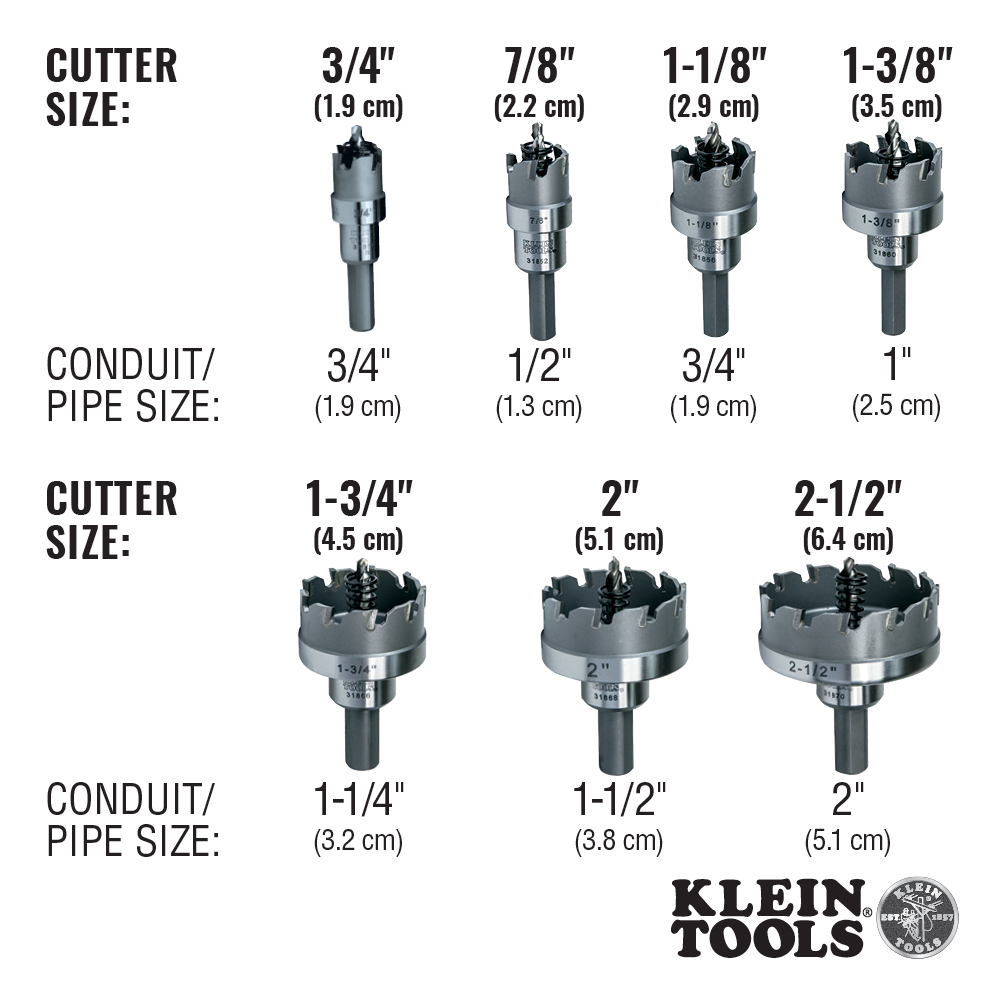

• Conduit and pipe sizes: 1-1/4-Inch (3.2 cm)
• Cuts quick, precise holes in stainless steel, mild steel, iron, copper and brass sheet up to 3/16-Inch (0.5 cm) thick
• Uses replacement pilot bit 31874

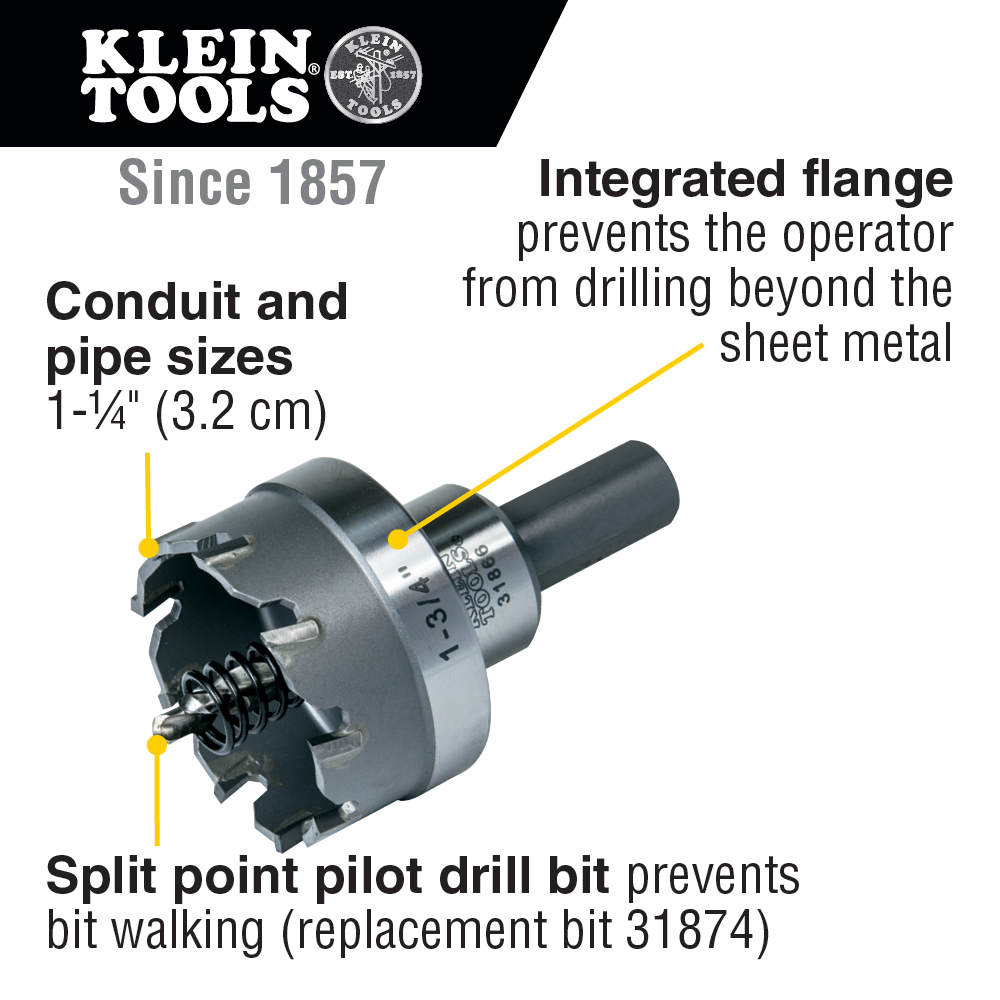

• Split point pilot drill bit prevents bit walking

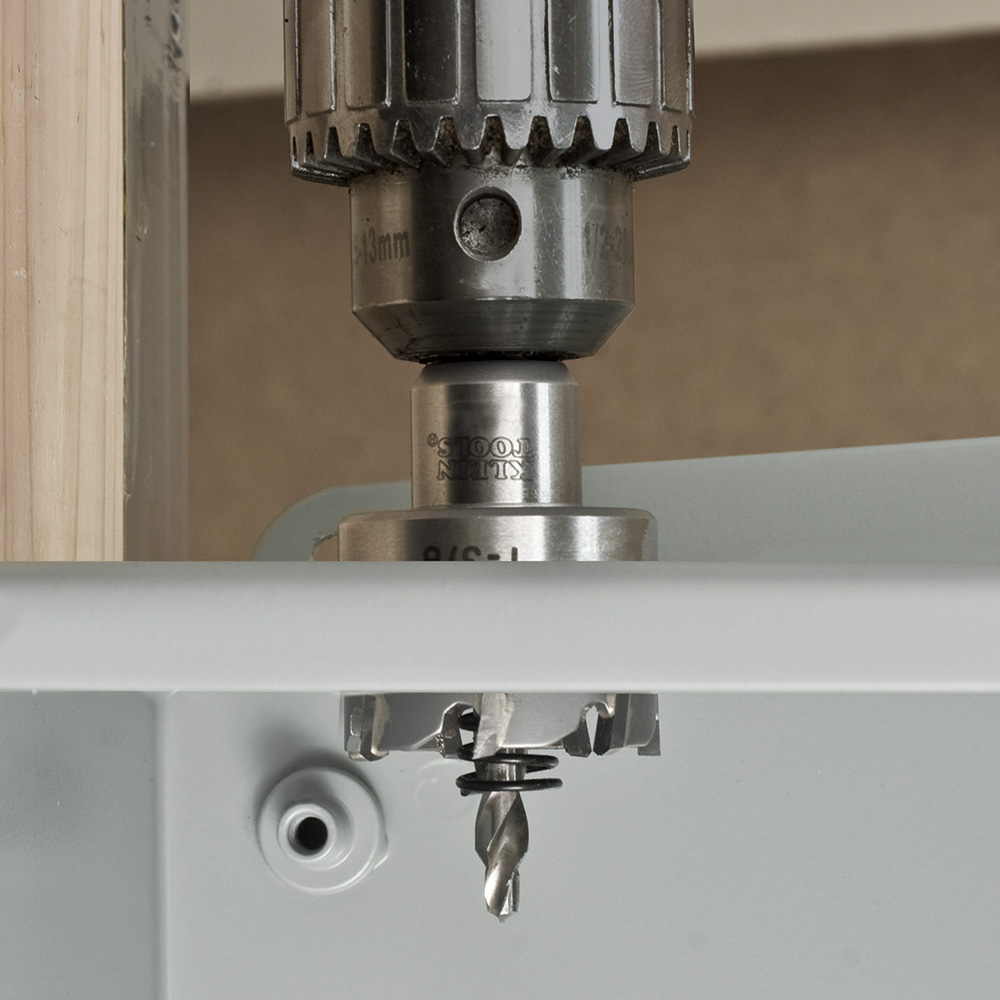

• Integrated flange prevents the operator from drilling beyond the sheet metal

Warnings

• Always ensure that you and persons in the vicinity wear approved eye protection.

Specifications

• Conduit Sizes: 1.25" (3.2 cm)
• Weight (oz): 11.2
• Shank Size: 3/8" (1 cm)
• Weight: 0.7000 lbs
• Hole Diameter: 1-3/4" (4.5 cm)
• Application: Cutting Holes in Stainless Steel, Mild Steel, Iron, Copper, and Brass
• Width: 3.1880 in
• Height: 3.1880 in
• Depth: 4.3000 in
