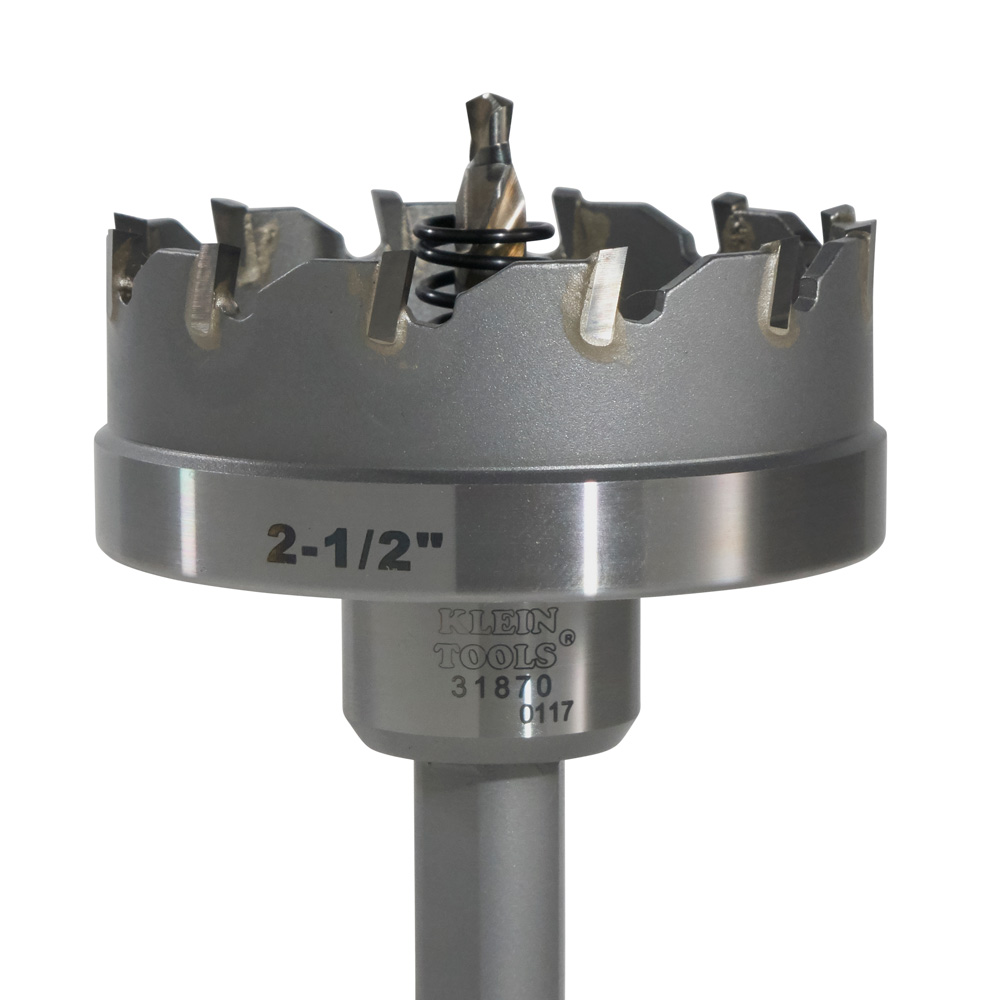

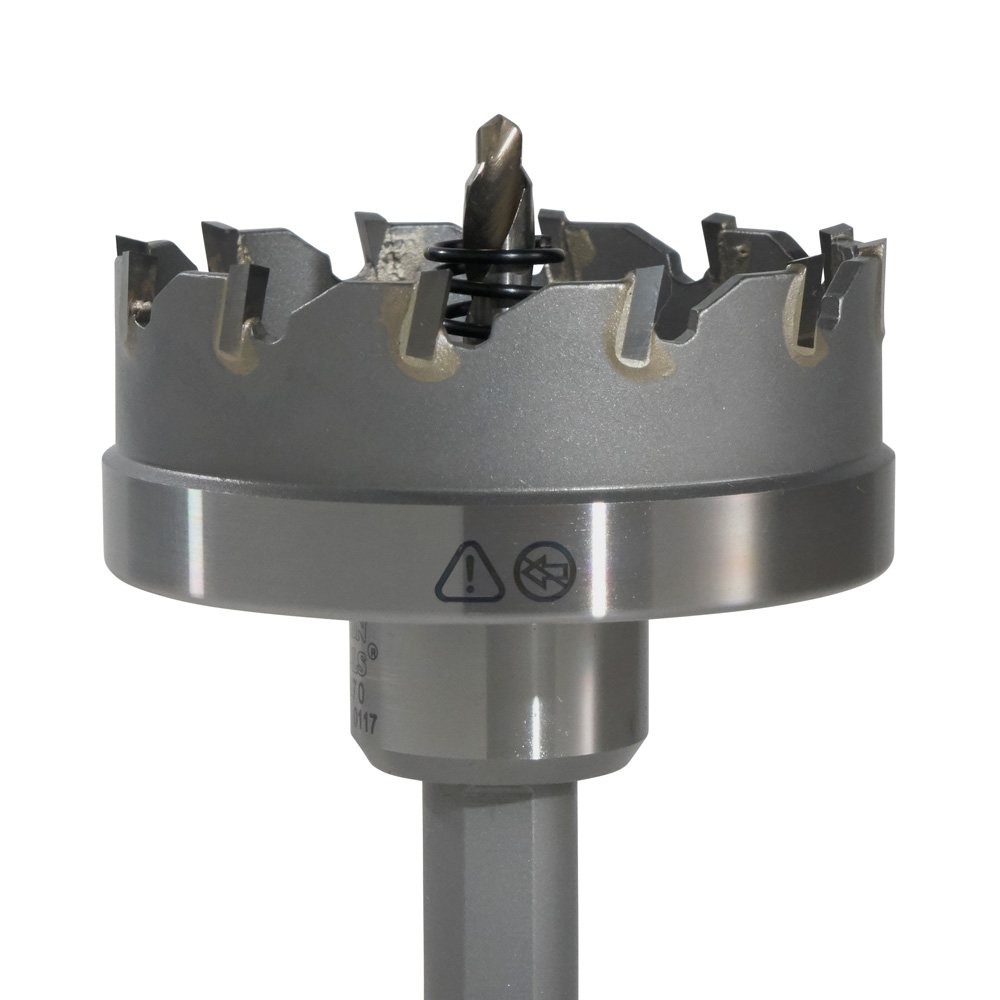

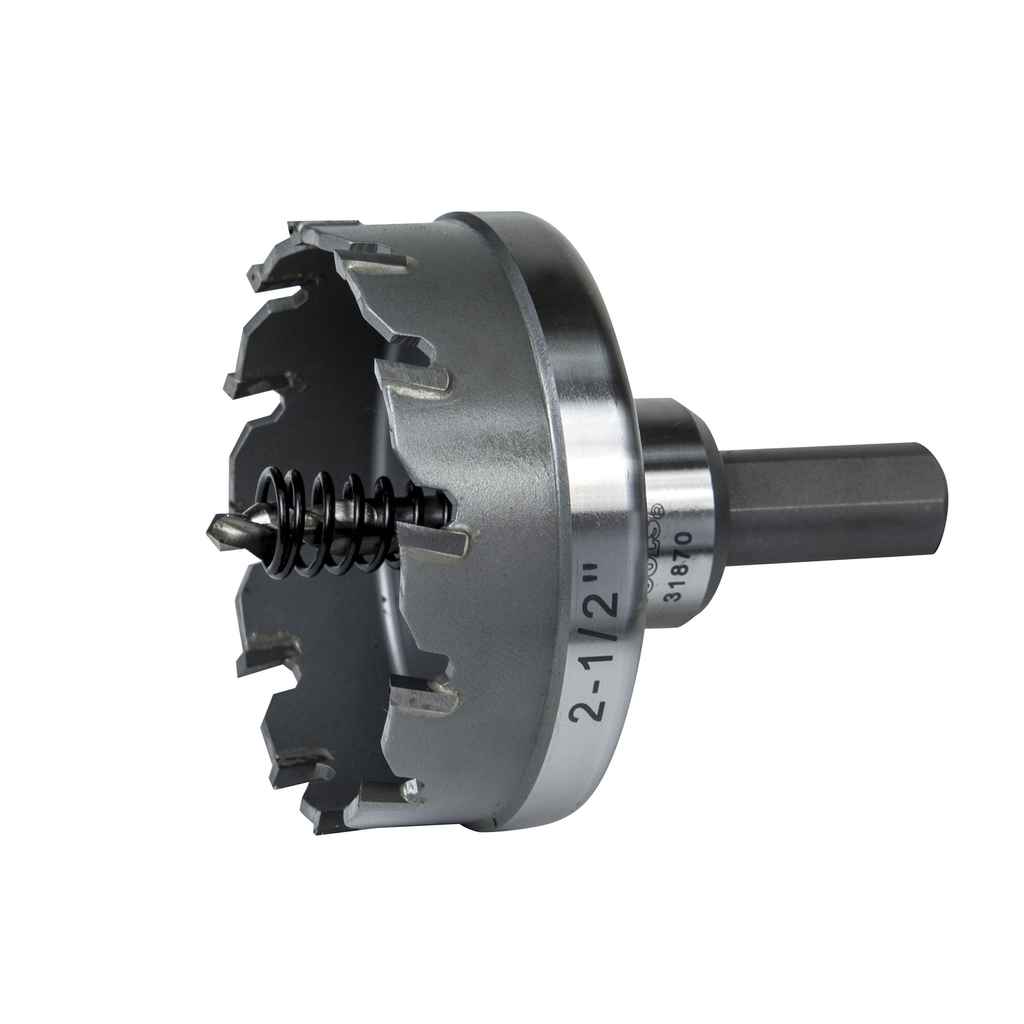

Carbide Hole Cutter, 2-1/2-Inch

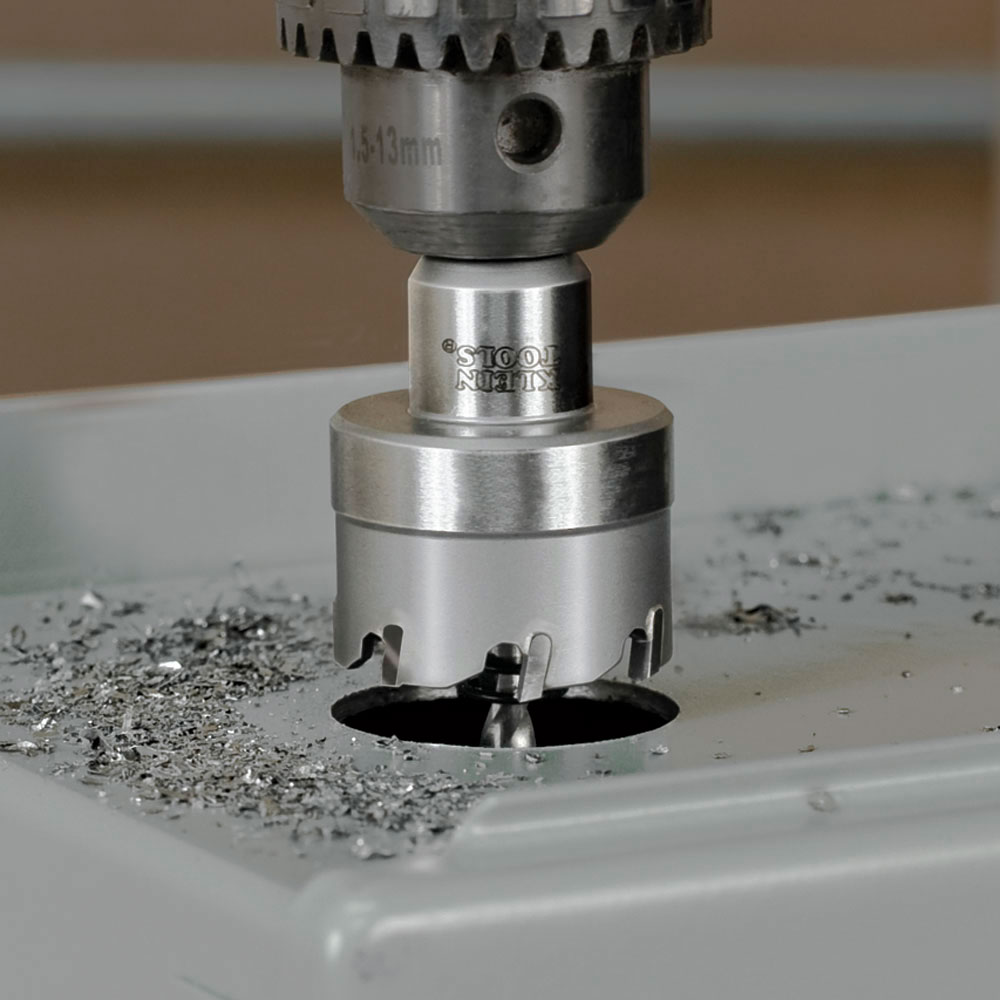

This carbide hole cutter cuts quick, precise holes in a variety of materials. Integrated flange prevents the operator from drilling beyond the sheet metal. Split point pilot drill bit prevents bit walking.

Features

• Heavy duty, durable carbide hole cutters for long life

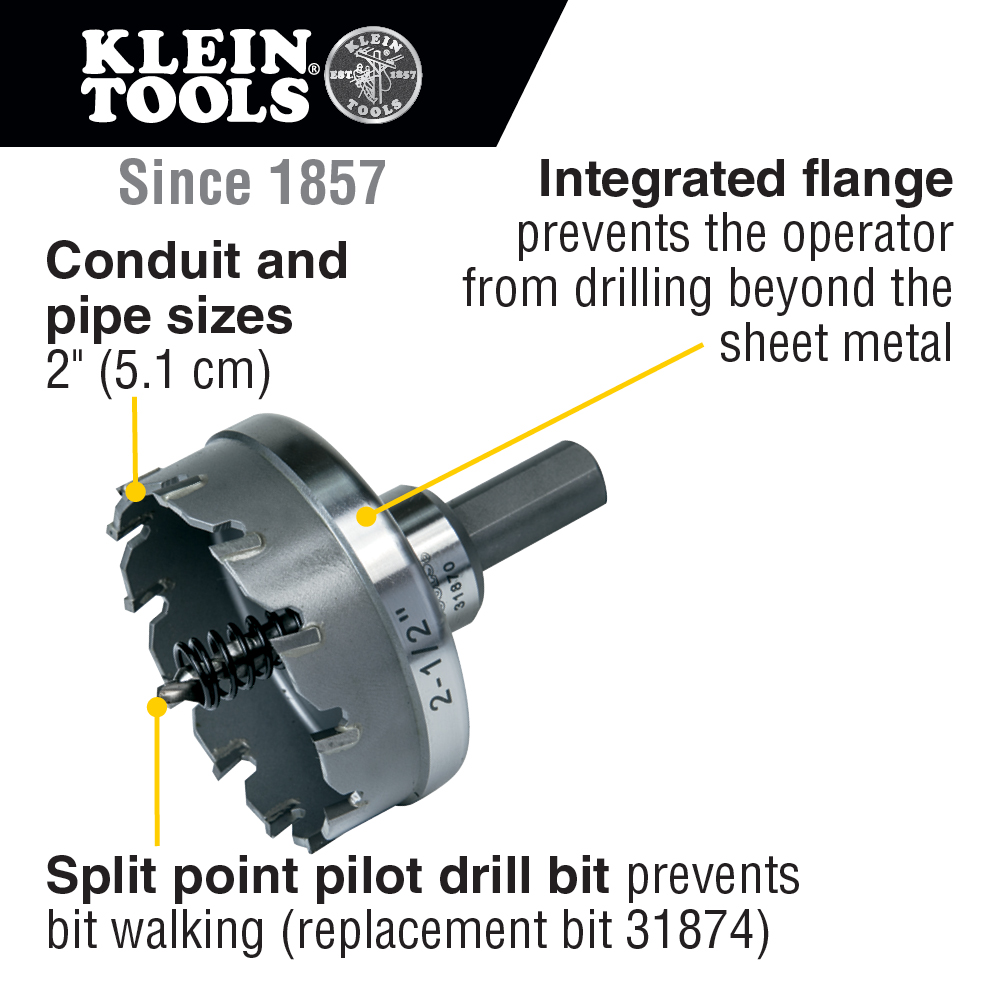

• Split point pilot drill bit prevents bit walking
• Cuts quick, precise holes in stainless steel, mild steel, iron, copper and brass sheet up to 3/16-Inch (0.5 cm) thick

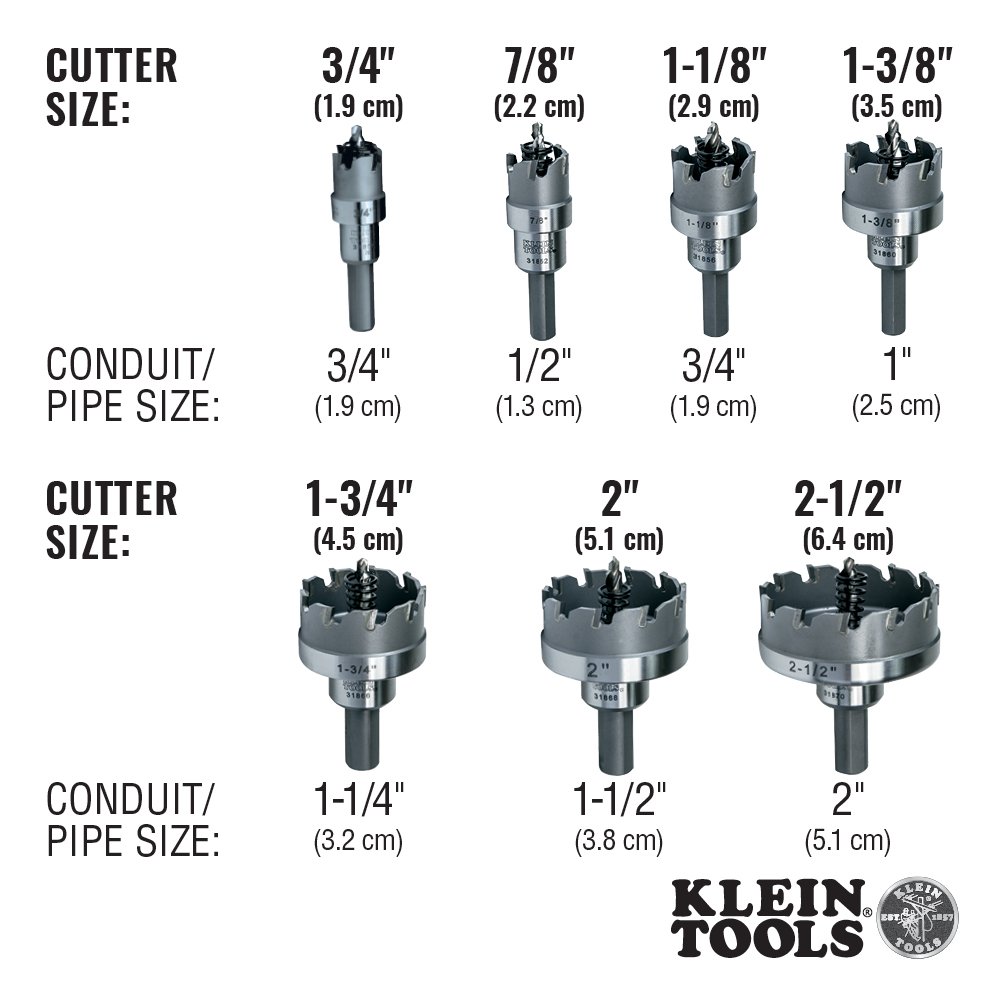

• Conduit and pipe sizes: 2-Inch (5.1 cm)

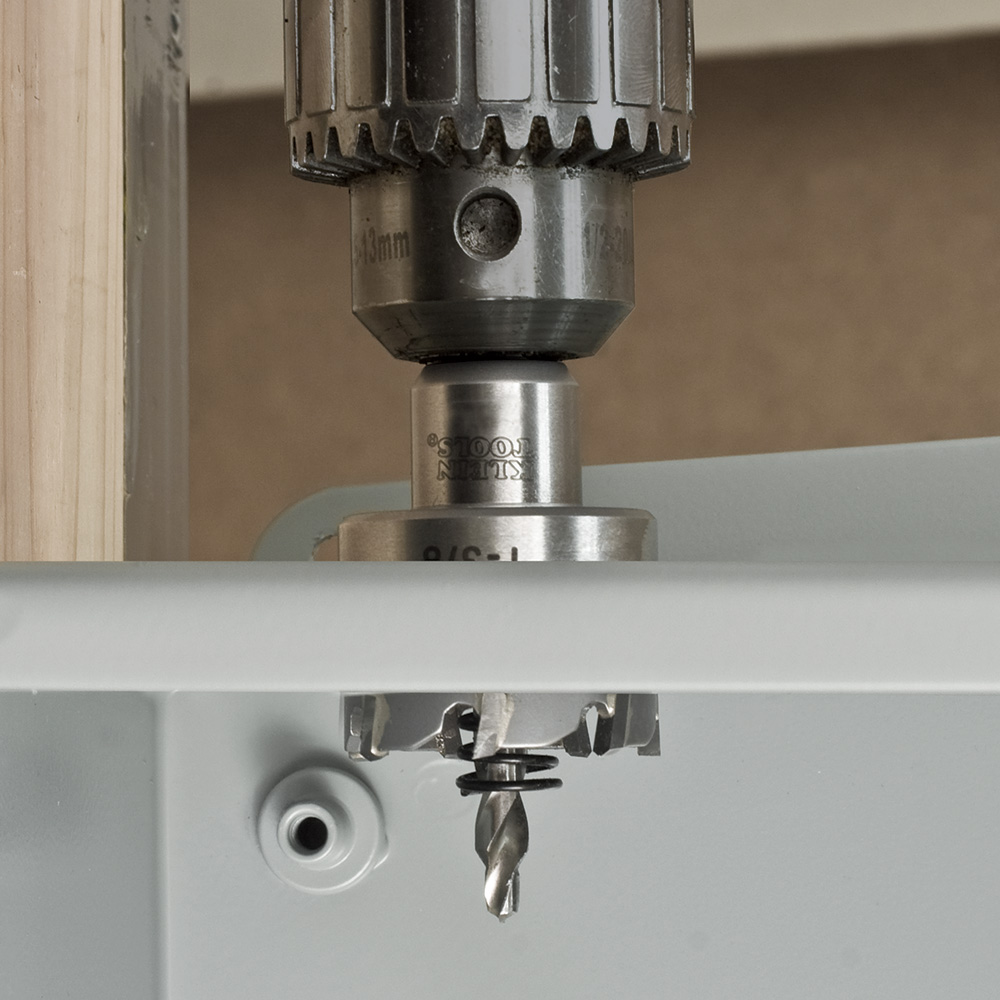

• Integrated flange prevents the operator from drilling beyond the sheet metal
• Uses replacement pilot bit 31874

Warnings

• Always ensure that you and persons in the vicinity wear approved eye protection.

Specifications

• Height: 3.1880 in
• Hole Diameter: 2-1/2" (6.4 cm)
• Width: 3.1880 in
• Shank Size: 3/8" (1 cm)
• Depth: 3.3000 in
• Application: Cutting Holes in Stainless Steel, Mild Steel, Iron, Copper, and Brass
• Weight (oz): 15.2
• Conduit Sizes: 2" (5.1 cm)
• Weight: 0.9500 lbs
