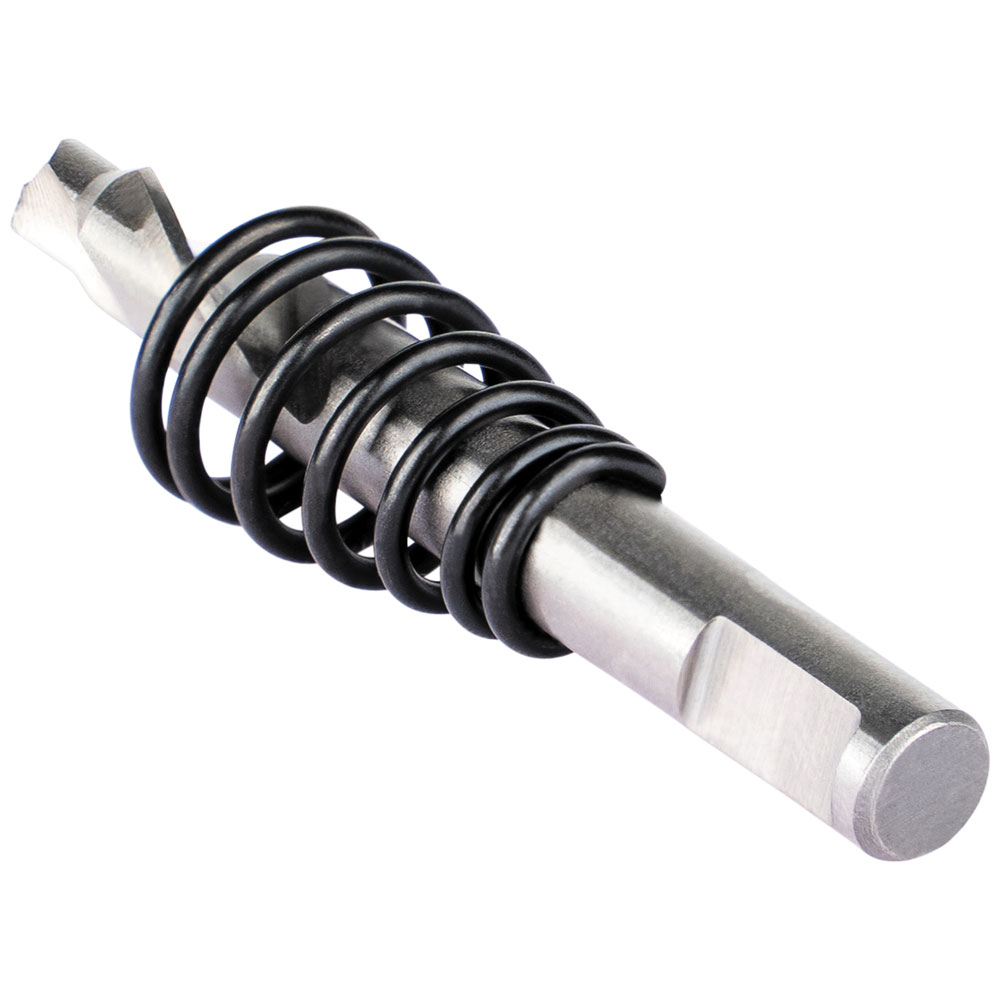

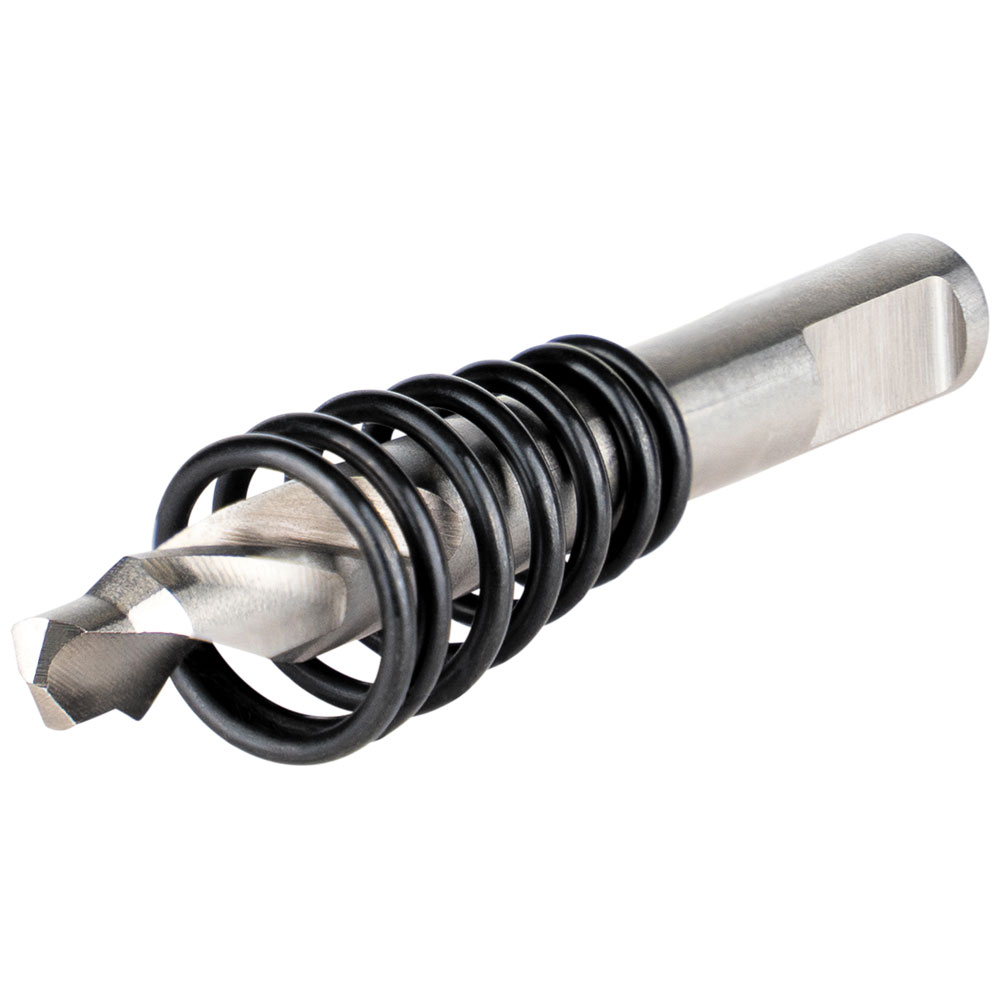

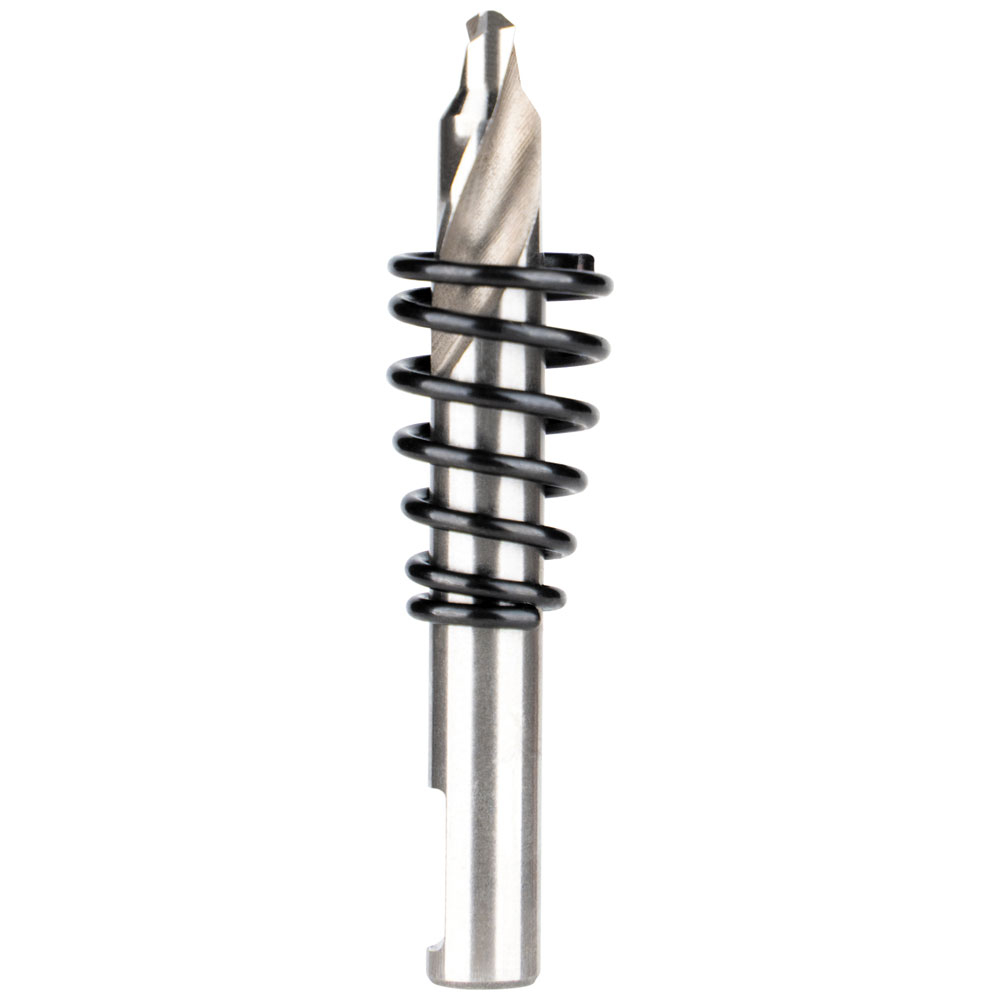

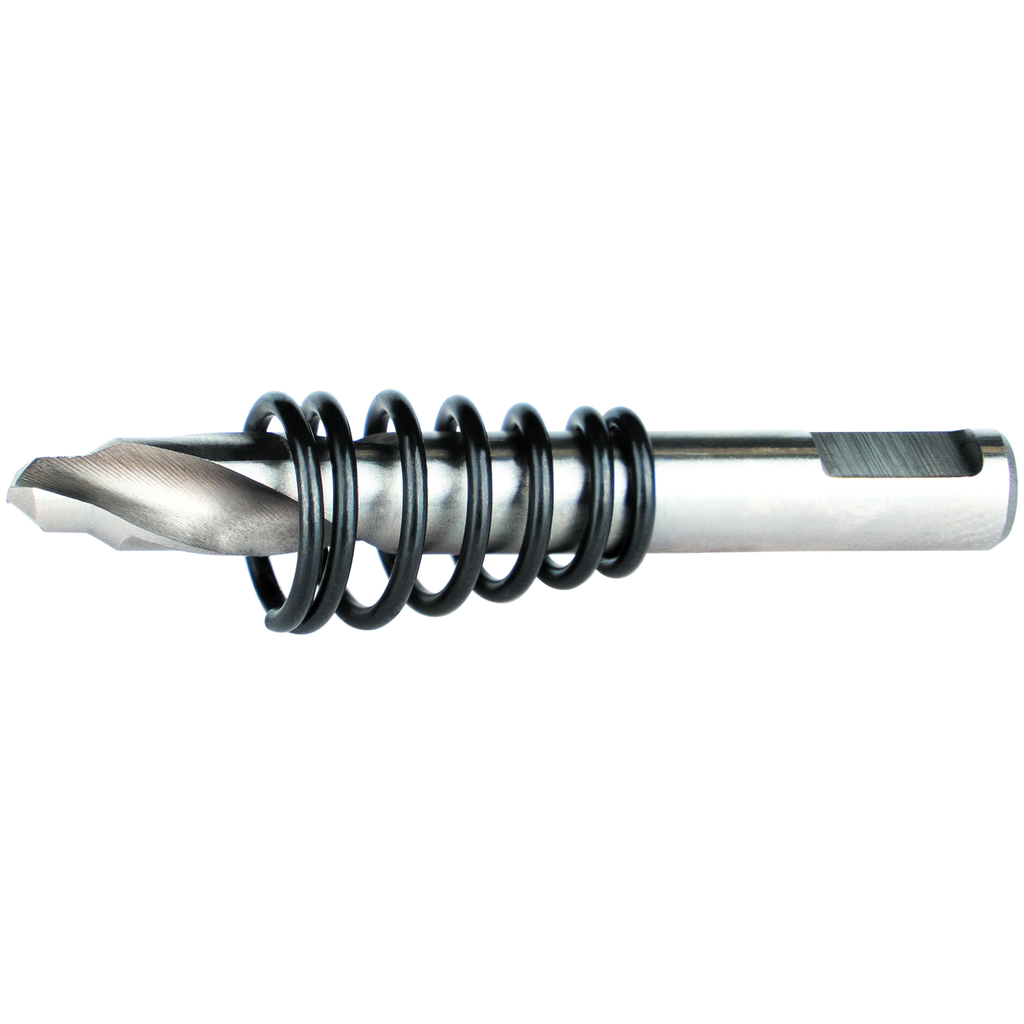

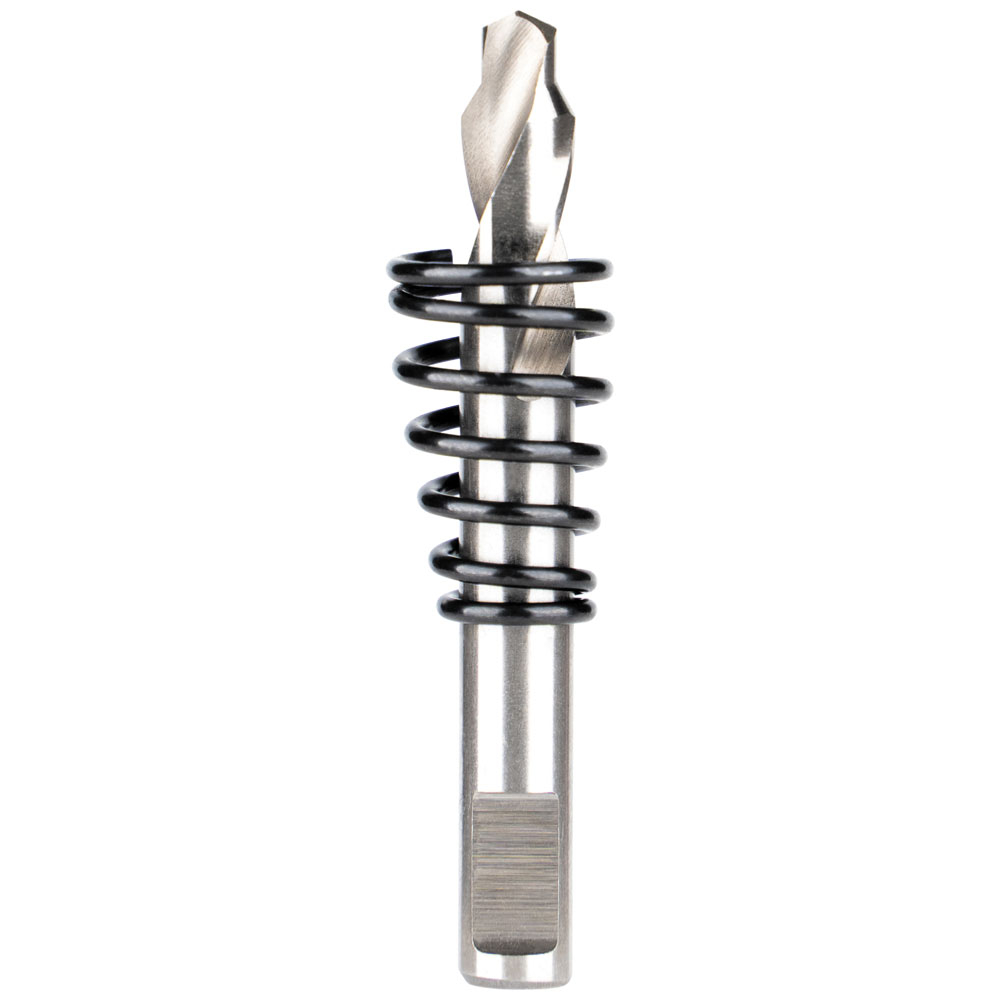

Replacement Hole Cutter Pilot Bit

This replacement hole cutter pilot bit cuts quick, precise holes in a variety of materials. Smooth start bit provides greater control. The replacement bit works with Klein carbide hole cutter products.

Features

• Cuts quick, precise holes in stainless steel, mild steel, iron, copper and brass sheet up to 3/16-Inch (5 mm) thick
• Split point pilot drill bit prevents bit walking
• Integrated flange prevents the operator from drilling beyond the sheet metal
• For use with Klein carbide hole cutter products
• Split Point Pilot Drill Bit (118°) and Integrated Flange

Warnings

• Always ensure that you and persons in the vicinity wear approved eye protection.

Specifications

• Weight: 0.0500 lbs
• Depth: 3.5000 in
• Tip Type: Split Point Pilot Drill Bit
• Type: Hole Cutter Pilot Bit
• Application: Cuts Holes in Stainless Steel, Mild Steel, Iron, Copper and Brass Sheet up to 3/16" (0.5 cm) Thick
• Width: 0.2500 in
• Tip Size: 5/32" (4 mm)
• Height: 0.2500 in
• Overall Length: 1.96" (5 cm)
• Shank Size: 0 .234" (0.6 cm)
• Material: High Speed Steel
