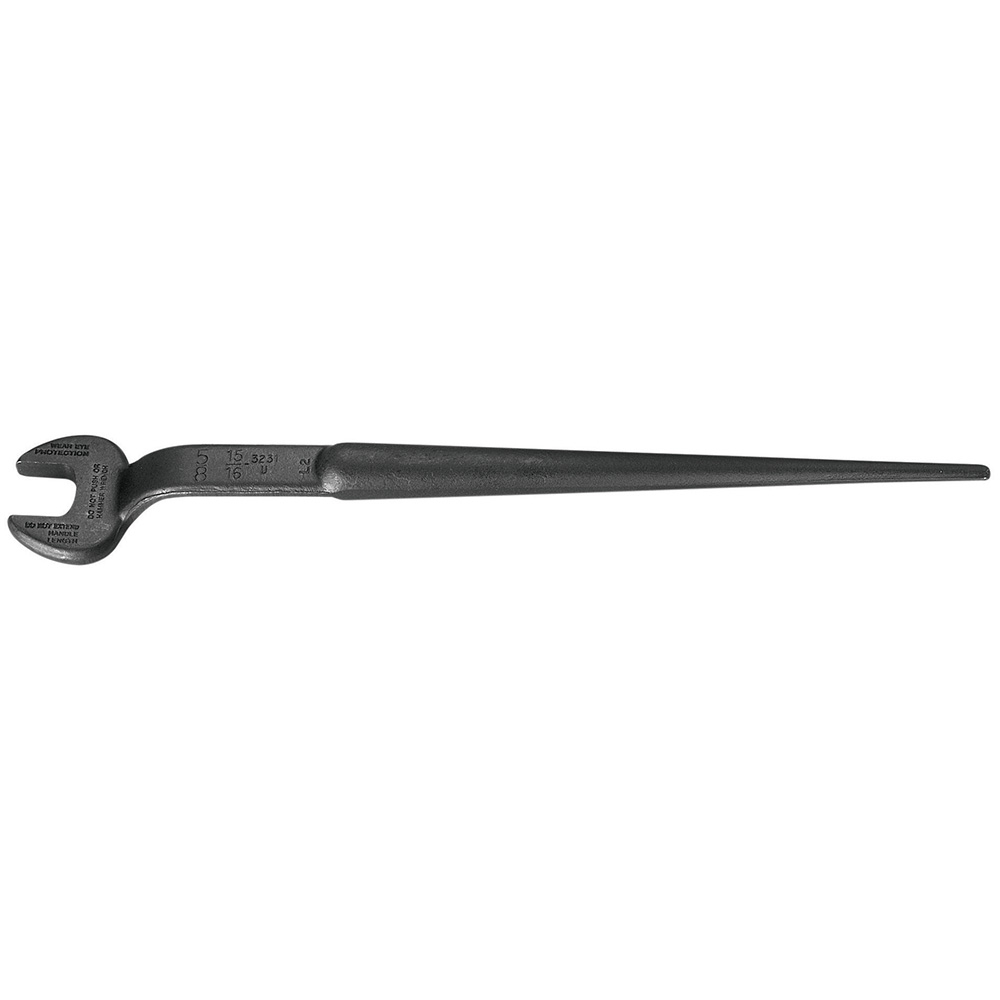

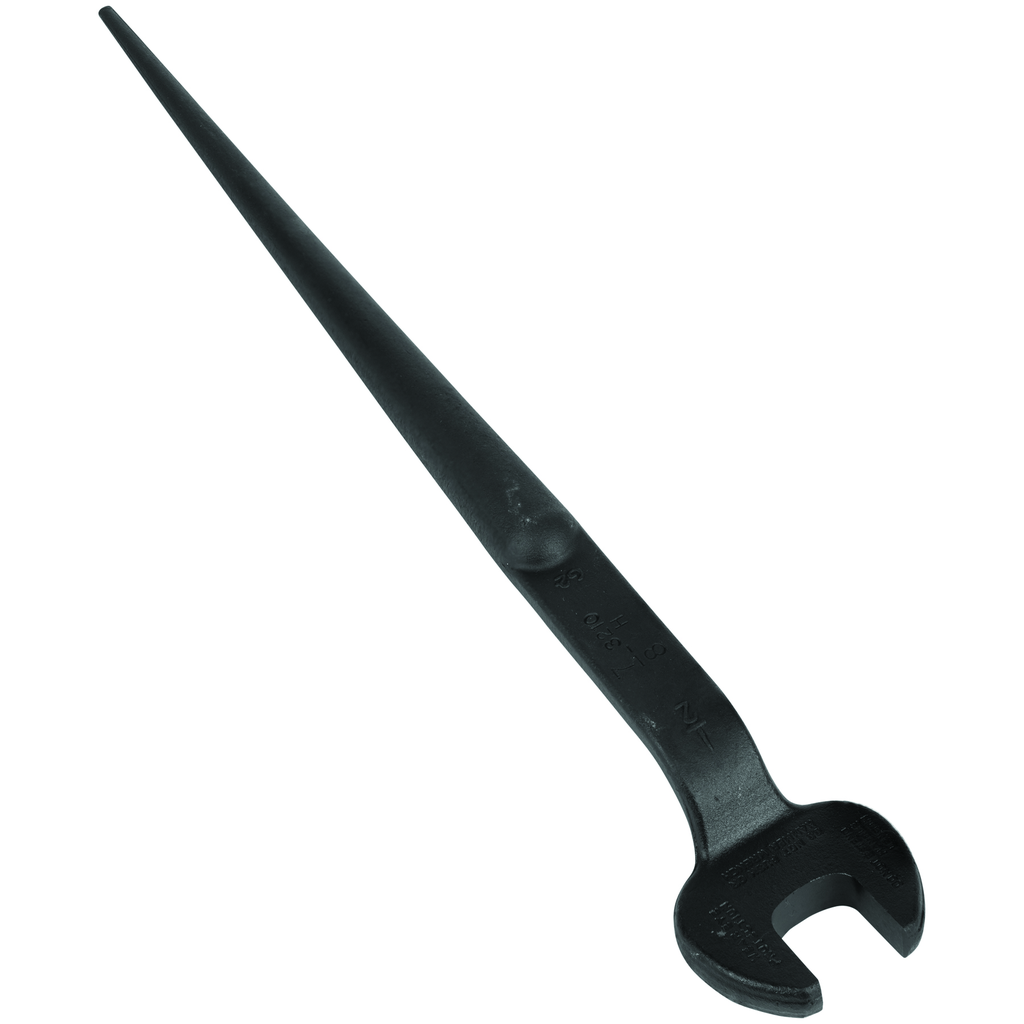

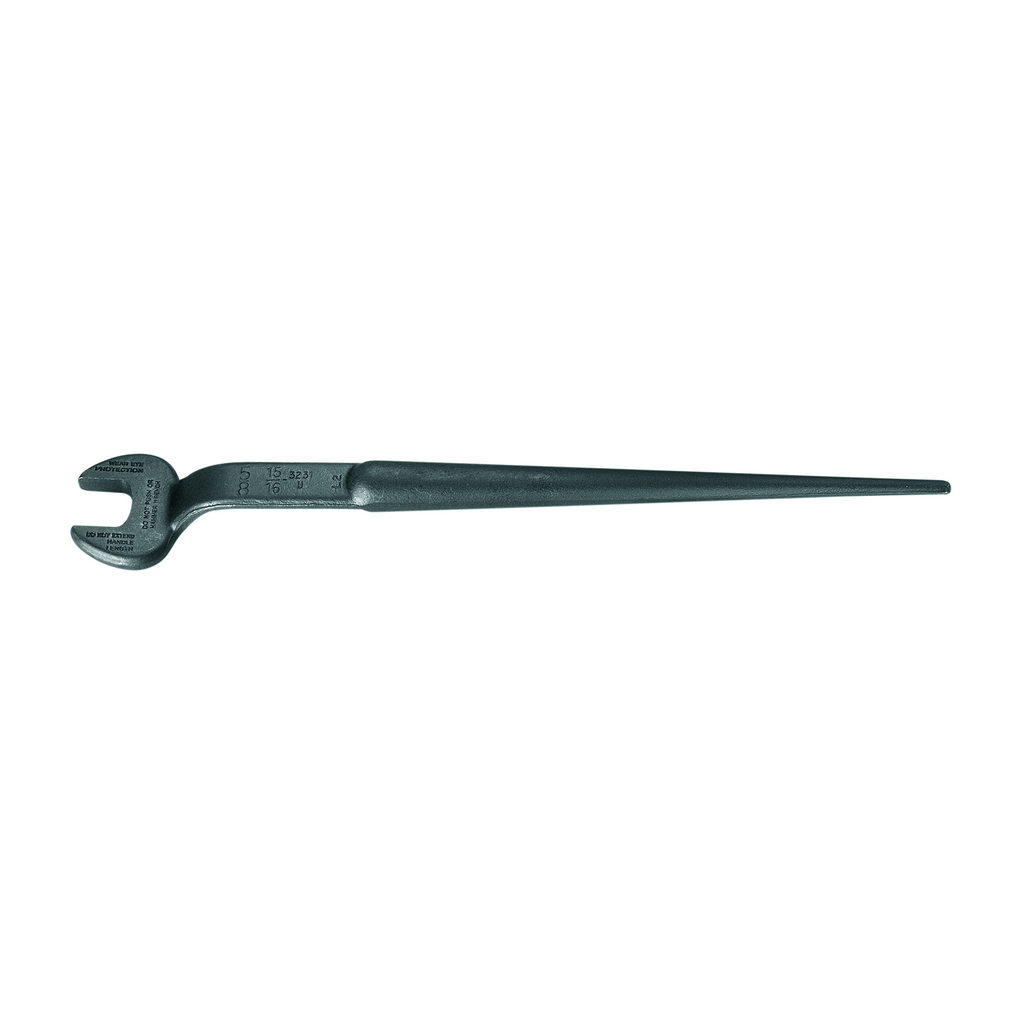

Spud Wrench 7/8-Inch Nominal Opening for Heavy Nut

Forged from select alloy steel, the Klein Tools 7/8-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. It's designed for use with 1/2-Inch bolts and U.S. heavy nut types. The extra-duty head area gives maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.

Features

• Extra-large hub area works on larger diameter holes better than other wrenches
• American Bridge design
• Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
• Forged from select alloy steel to withstand high-leverage and heavy loads
• Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
• Extra heavy-duty head area gives maximum strength and durability

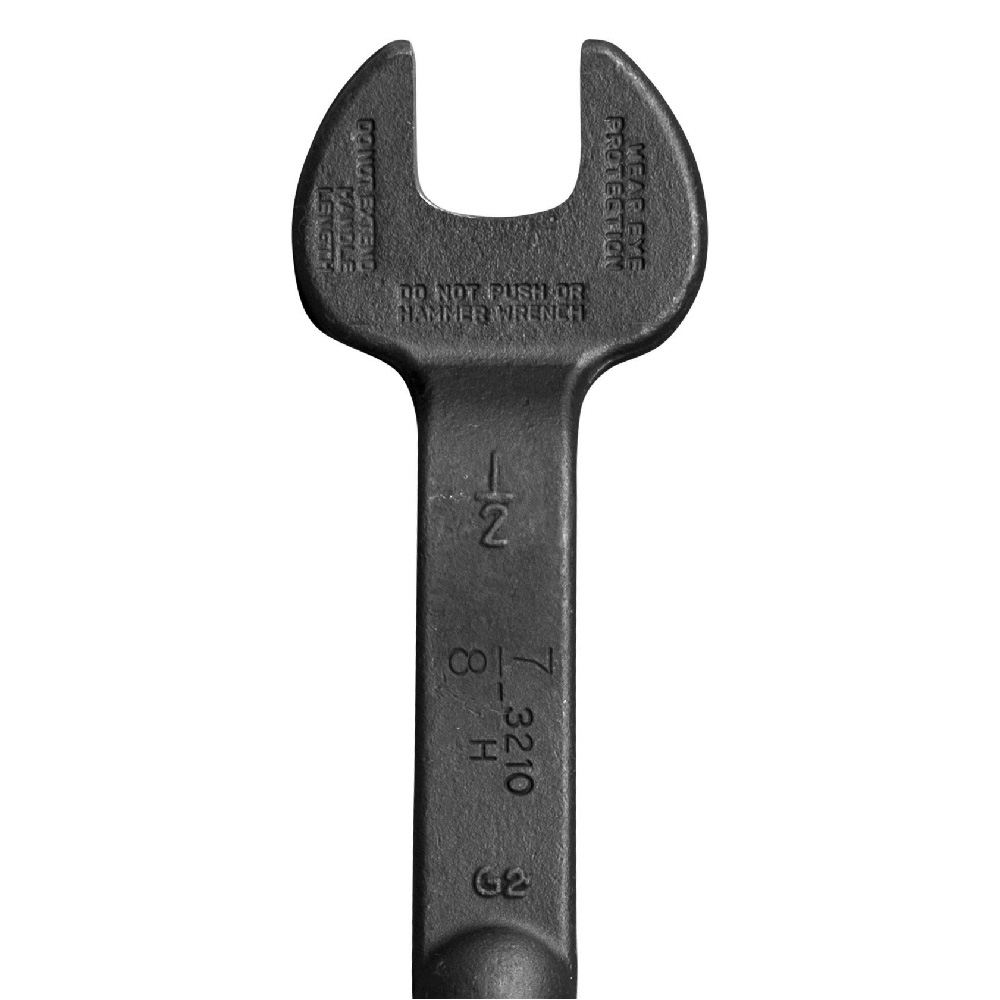

• Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
• Extra Heavy-Duty Head for Maximum Strength

Warnings

• Do NOT extend handle length.
• Always wear approved eye protection.
• Do NOT push or hammer wrench.

• Nominal Opening: 7/8 in. (2.2 cm)
• Bolt Size: 1/2 in. (1.3 cm)
• Heavy Nut Size: 1/2 in. (1.3 cm)
• Regular Nut Size: 9/16 in. (1.4 cm)
• Offset Angle: 60°
• Material: Alloy Steel
• Overall Length: 14.75 in. (37.5 cm)
• Overall Width: 2.25 in. (5.7 cm)
• Overall Height: 1 in. (2.54 cm)
• Head Width: 2.25 in. (5.7 cm)
• Weight: 1.36 lb
• Finish: Black Oxide with Rust Preventative
• Taper Diameter: 7/8 in. to 3/16 in. (2.2 to 0.5 cm)
• Nut Type: U.S. Regular and Heavy
• Size Name: 1/2-Inch
• Application: Connecting Steel Members
• Country of Origin: United States
• Type: Spud Wrench
• Configuration: 7/8 to 3/16-Inch Taper
• Depth: 14.75 in.
• Width: 2.25 in.
