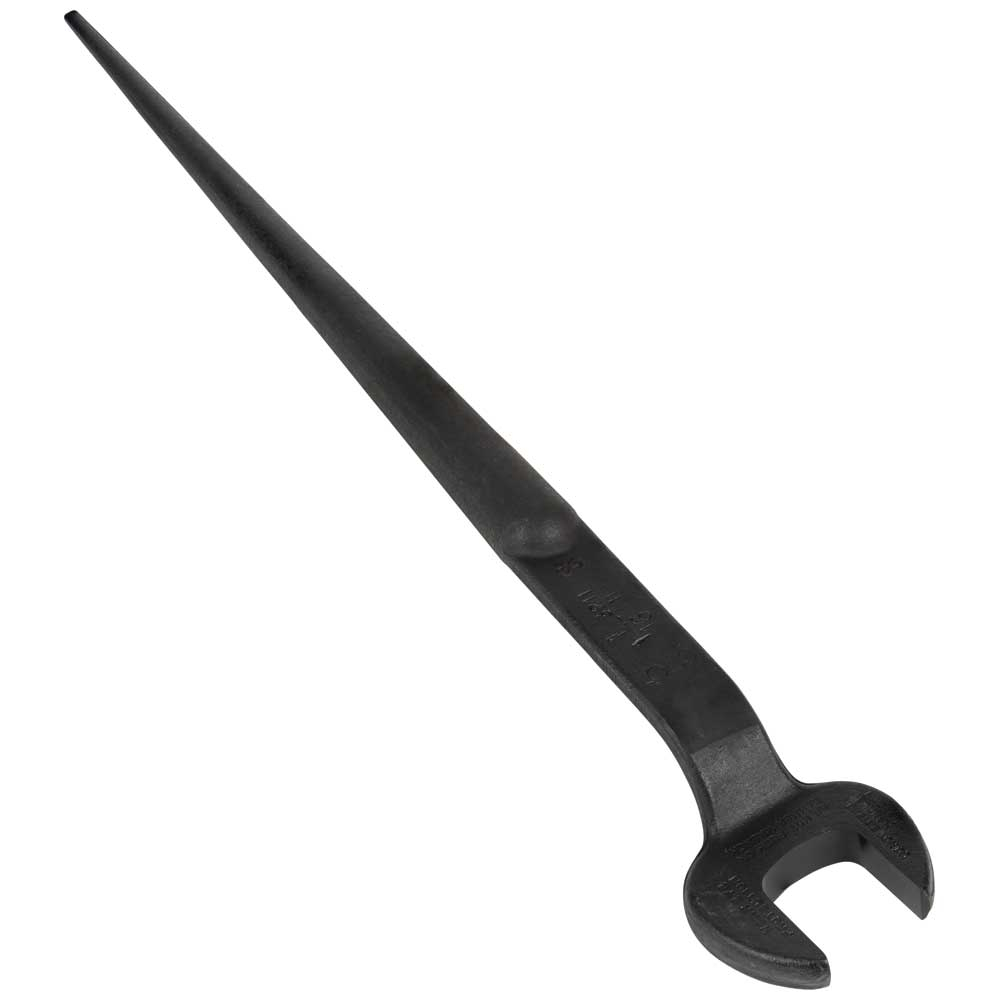

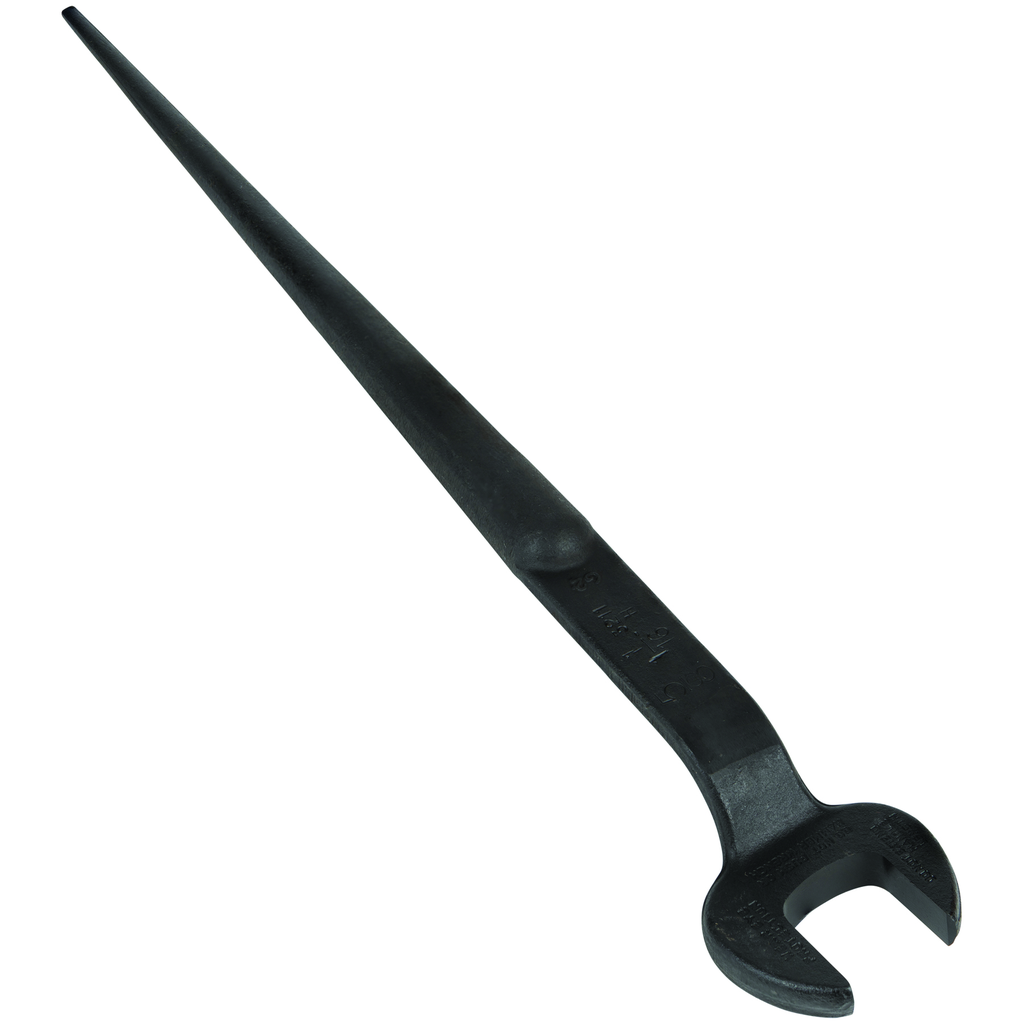

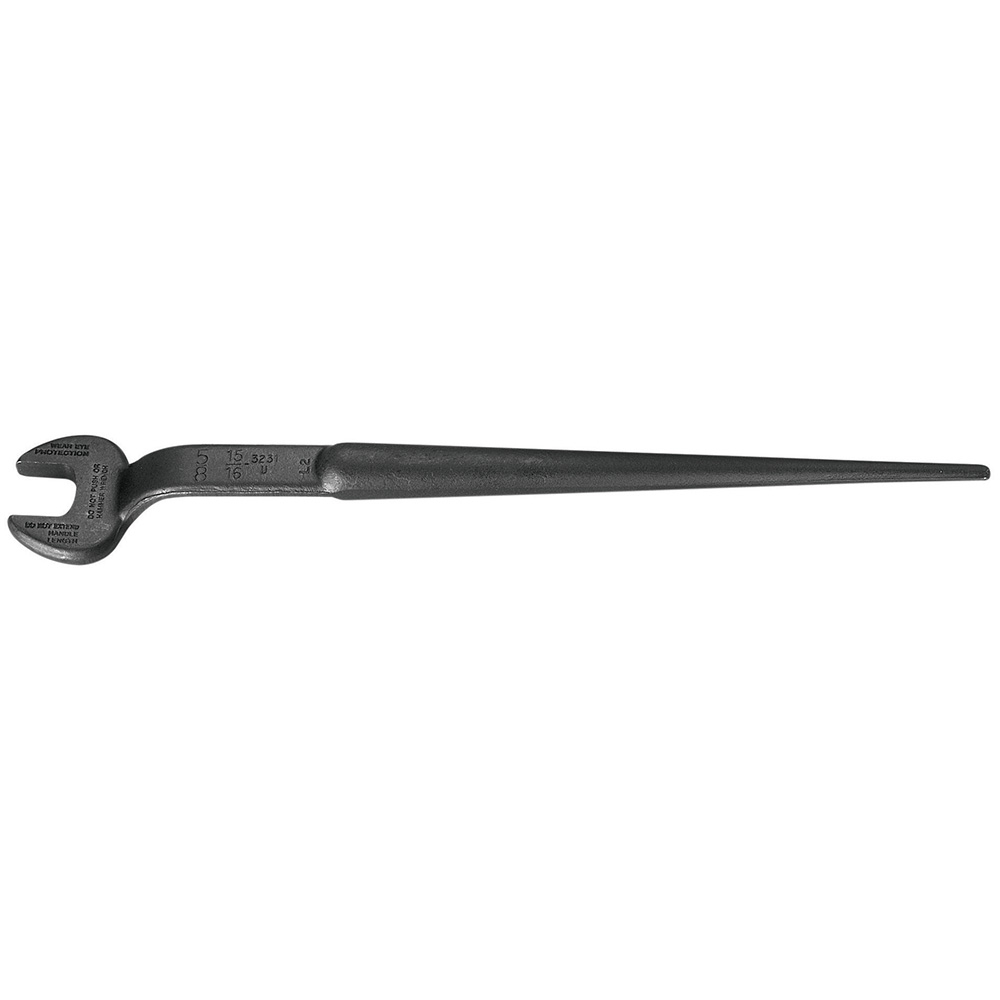

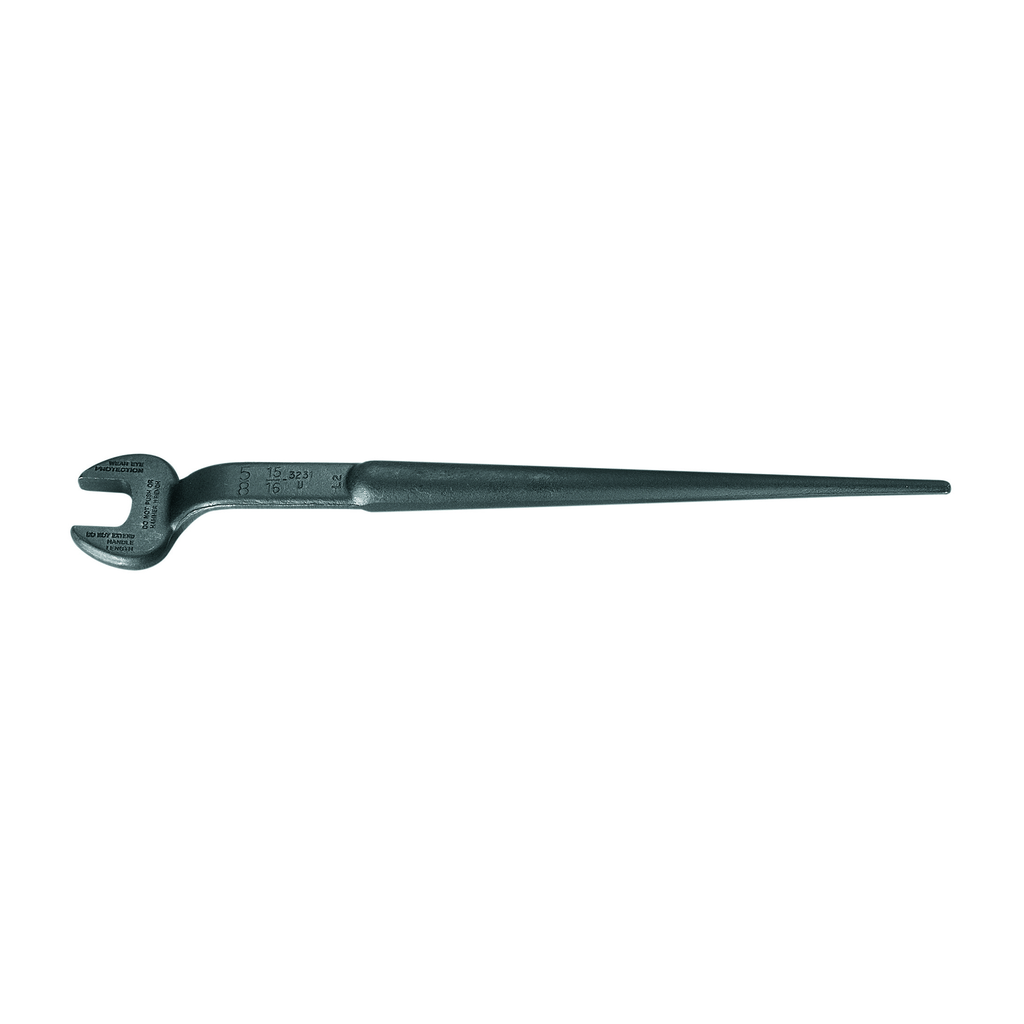

Spud Wrench 1-1/16 Nominal Opening for Heavy Nut

Forged from select alloy steel, the Klein Tools 1-1/16-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. It's designed for use with 5/8-Inch bolts and U.S. heavy nut types. The extra-duty head area gives maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.

Features

• Extra heavy-duty head area gives maximum strength and durability
• Extra-large hub area works on larger diameter holes better than other wrenches
• Extra Heavy-Duty Head for Maximum Strength

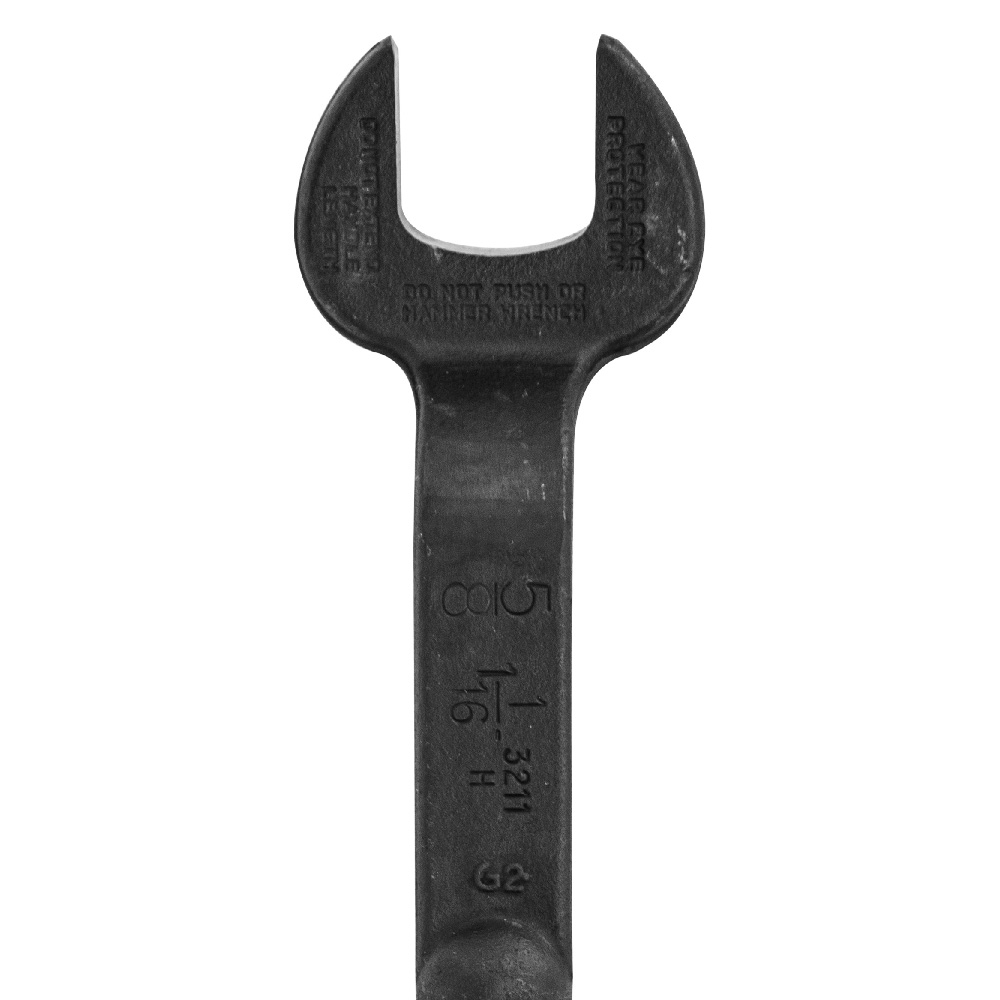

• Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification

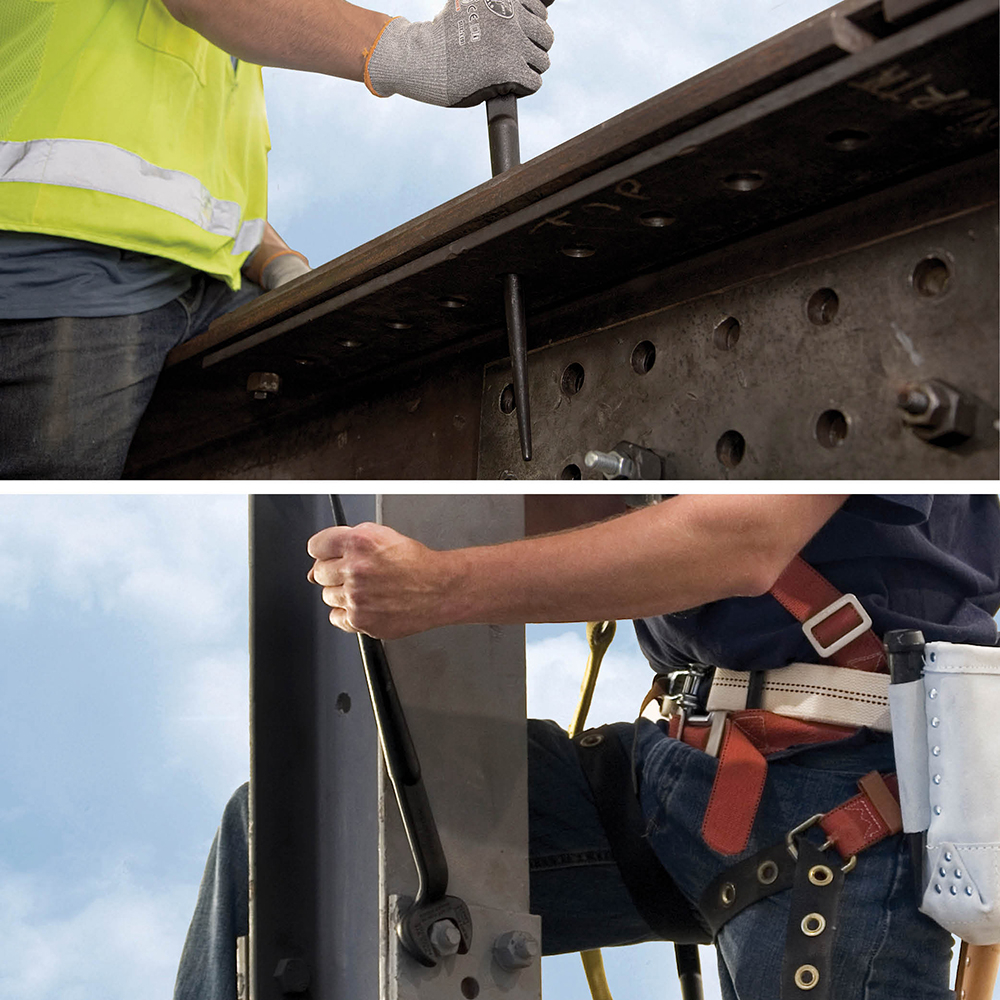

• Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
• Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
• American Bridge design
• Forged from select alloy steel to withstand high-leverage and heavy loads

Warnings

• Always wear approved eye protection.
• Do NOT extend handle length.
• Do NOT push or hammer wrench.

• Nominal Opening: 1-1/16 in (2.7 cm)
• Heavy Nut Size: 5/8 in (1.6 cm)
• Bolt Size: 5/8 in (1.6 cm)
• Taper Diameter: 7/8 to 3/16 in (2.2 to 0.5 cm)
• Offset Angle: 60°

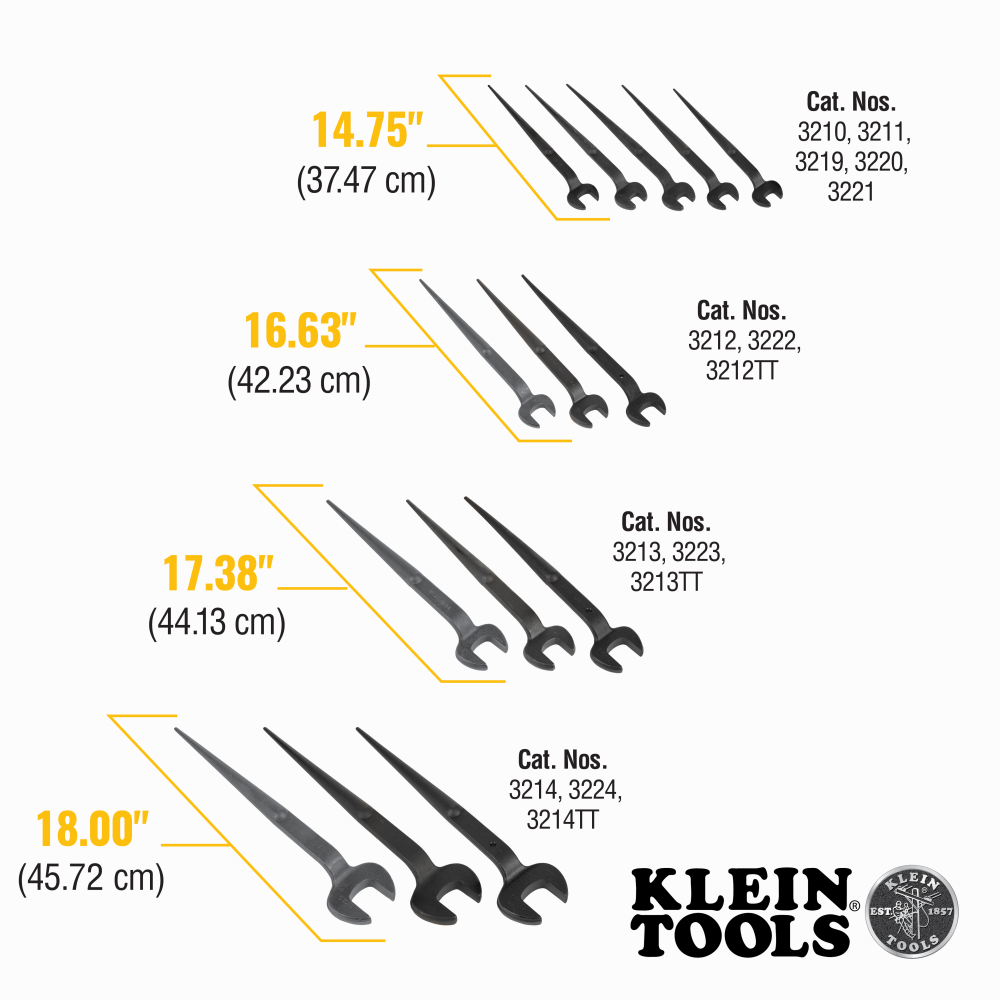

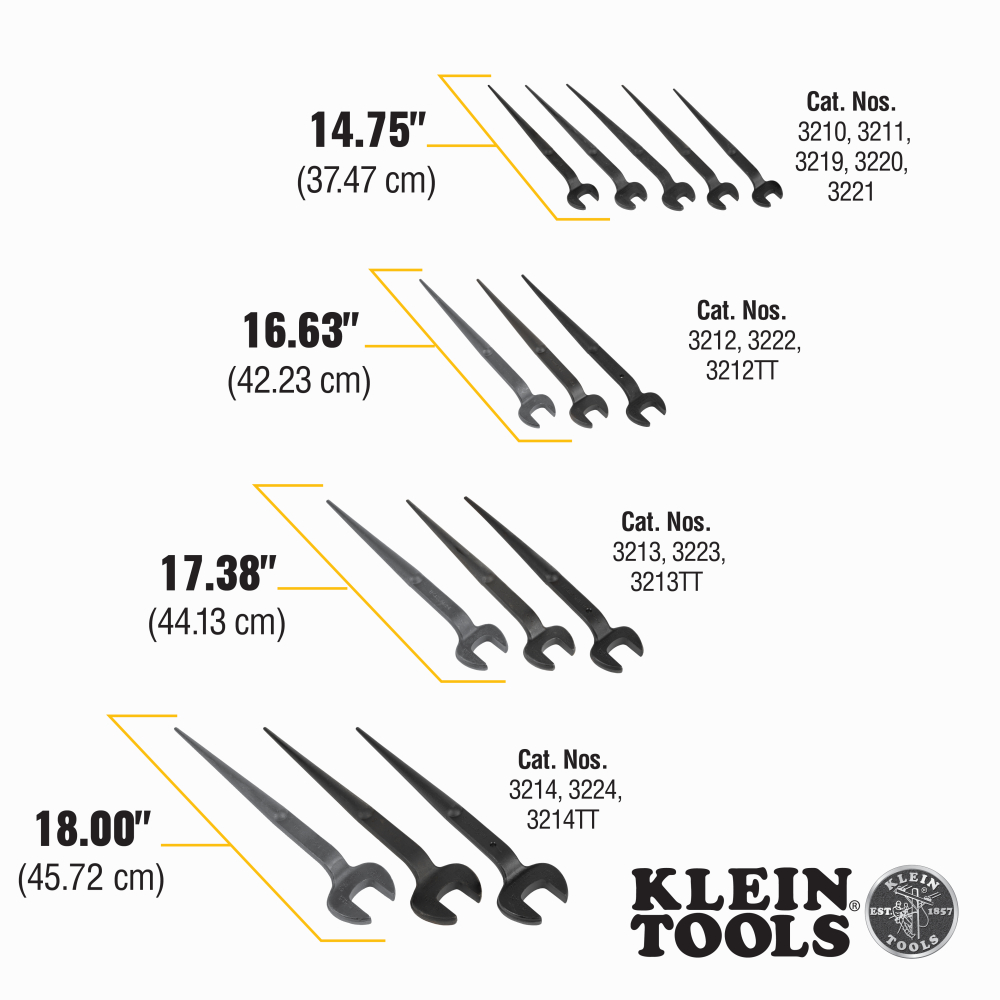

• Overall Length: 14.75 in (37.5 cm)
• Overall Height: 1 in (2.54 cm)
• Overall Width: 2.25 in (5.7 cm)
• Head Width: 2.25 in (5.7 cm)
• Height: 1 in
• Depth: 14.75 in
• Width: 2.25 in
• Weight: 1.3 lb
• Material: Alloy Steel
• Finish: Black Oxide with Rust Preventative
• Country of Origin: United States

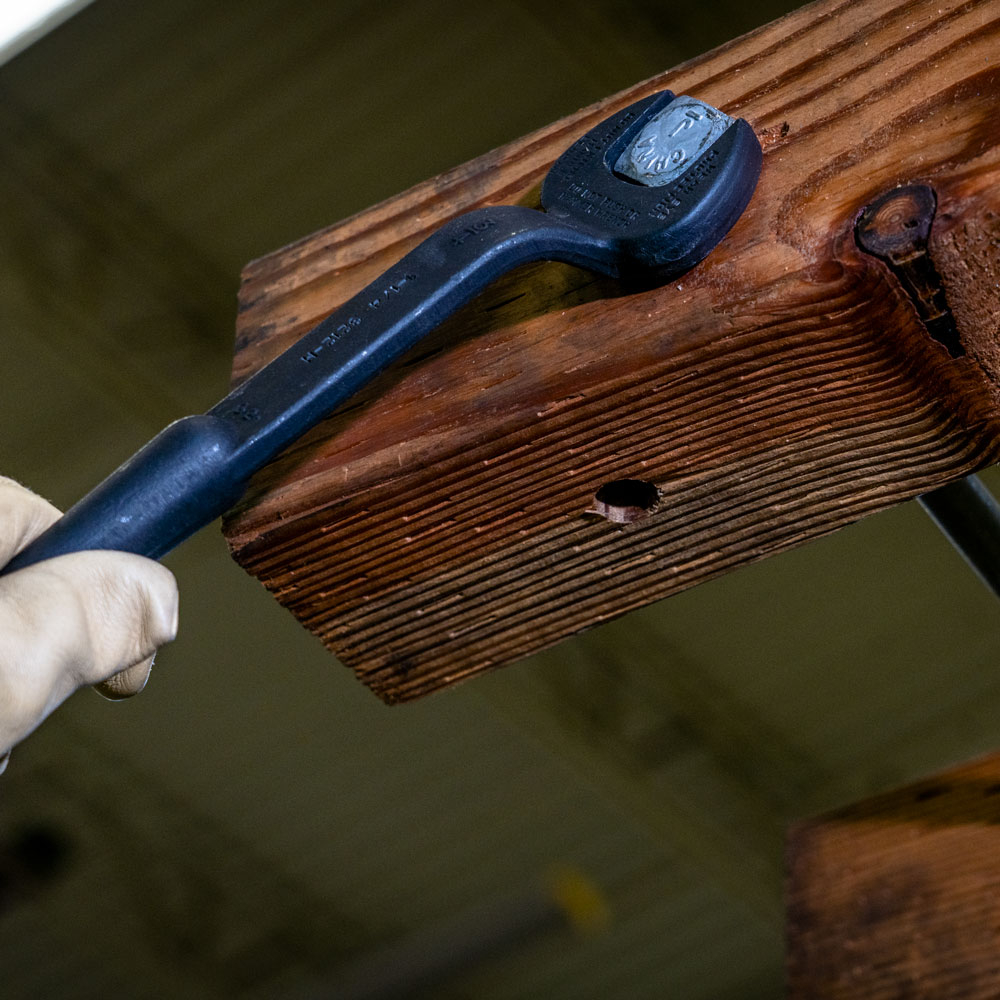

• Application: Connecting Steel Members
• Style Name: 7/8 to 3/16-Inch Taper
• Configuration: 7/8 to 3/16-Inch Taper
• Type: Spud Wrench
• Nut Type: U.S. Heavy
• Size Name: 5/8-Inch
