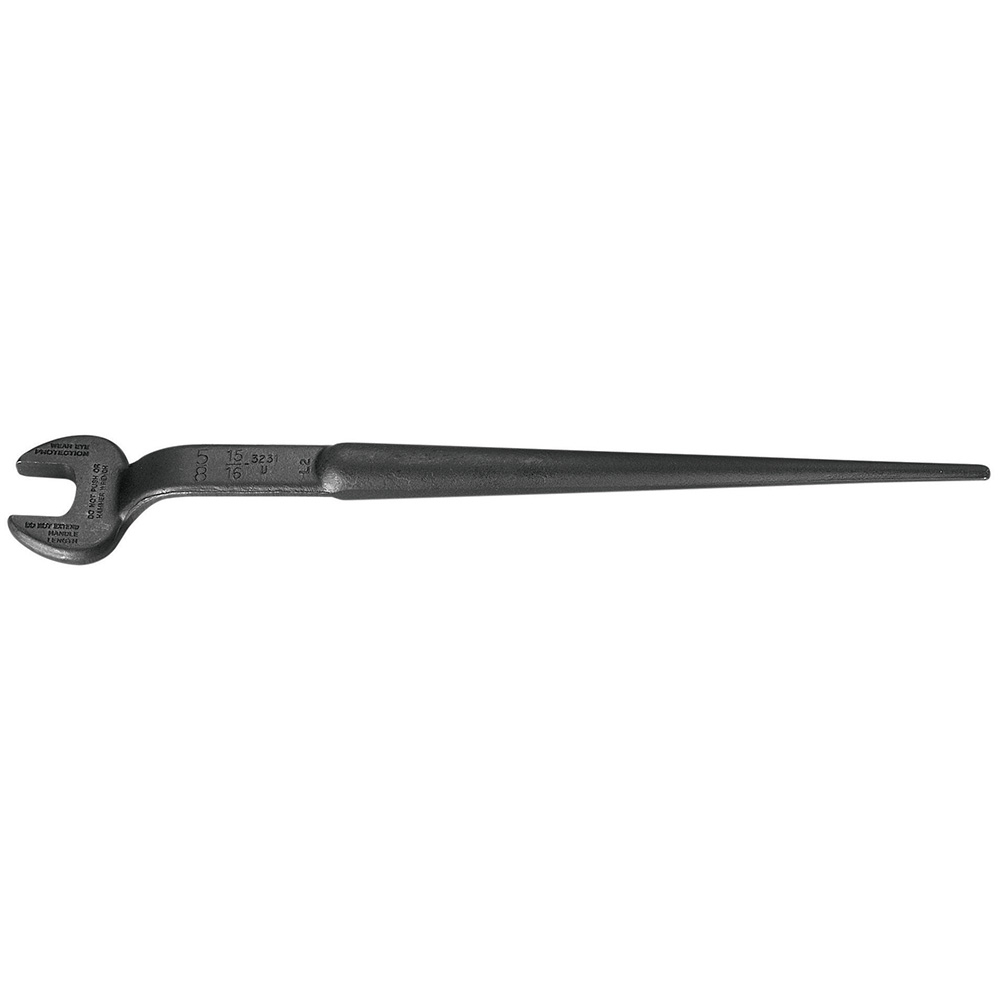

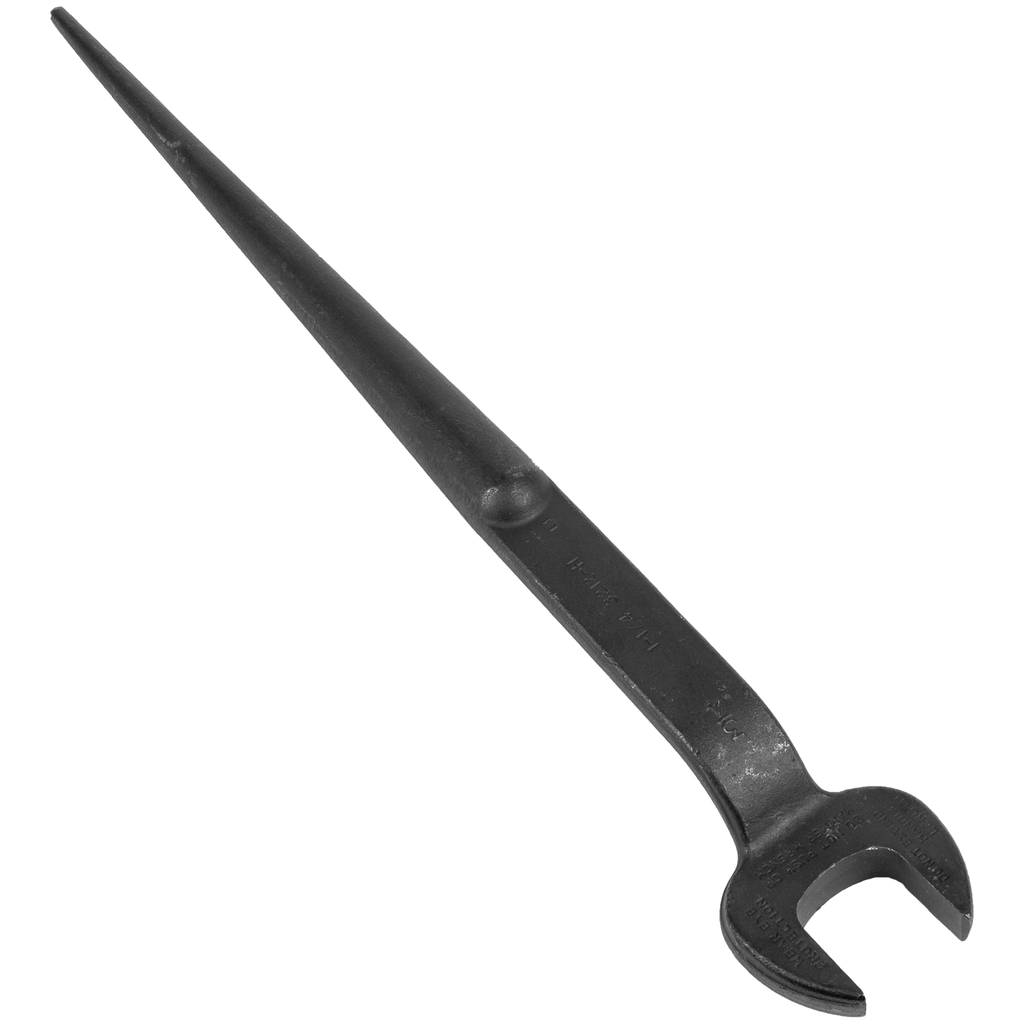

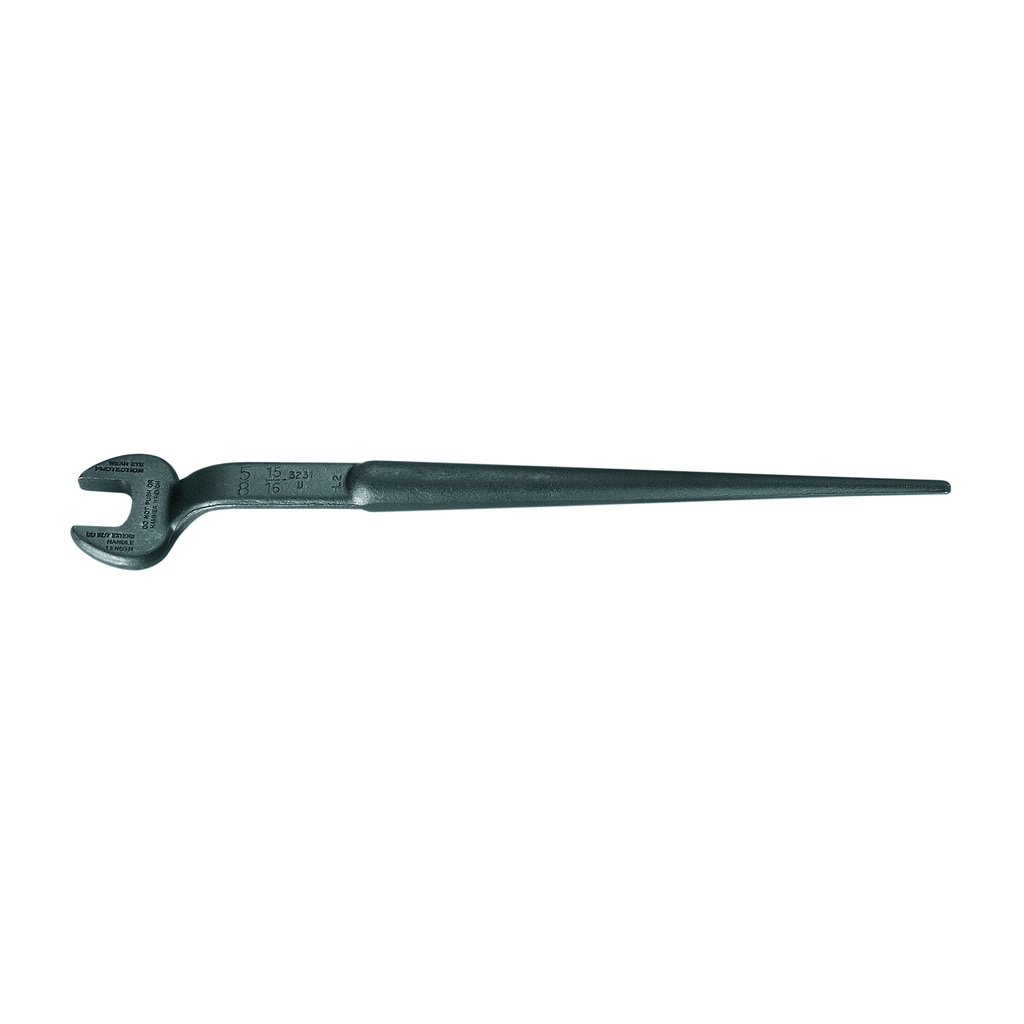

Spud Wrench 1-1/4-Inch Nominal Opening for Heavy Nut

The Klein Tools 1-1/4-Inch Nominal Opening Alloy Steel Heavy-Nut Spud Wrench is forged from select alloy steel to withstand high-leverage and heavy loads. This wrench features an extra-heavy-duty head area to provide excellent strength. The catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification.

Features

• Extra Heavy-Duty Head for Maximum Strength
• Extra-large hub area works on larger diameter holes better than other wrenches

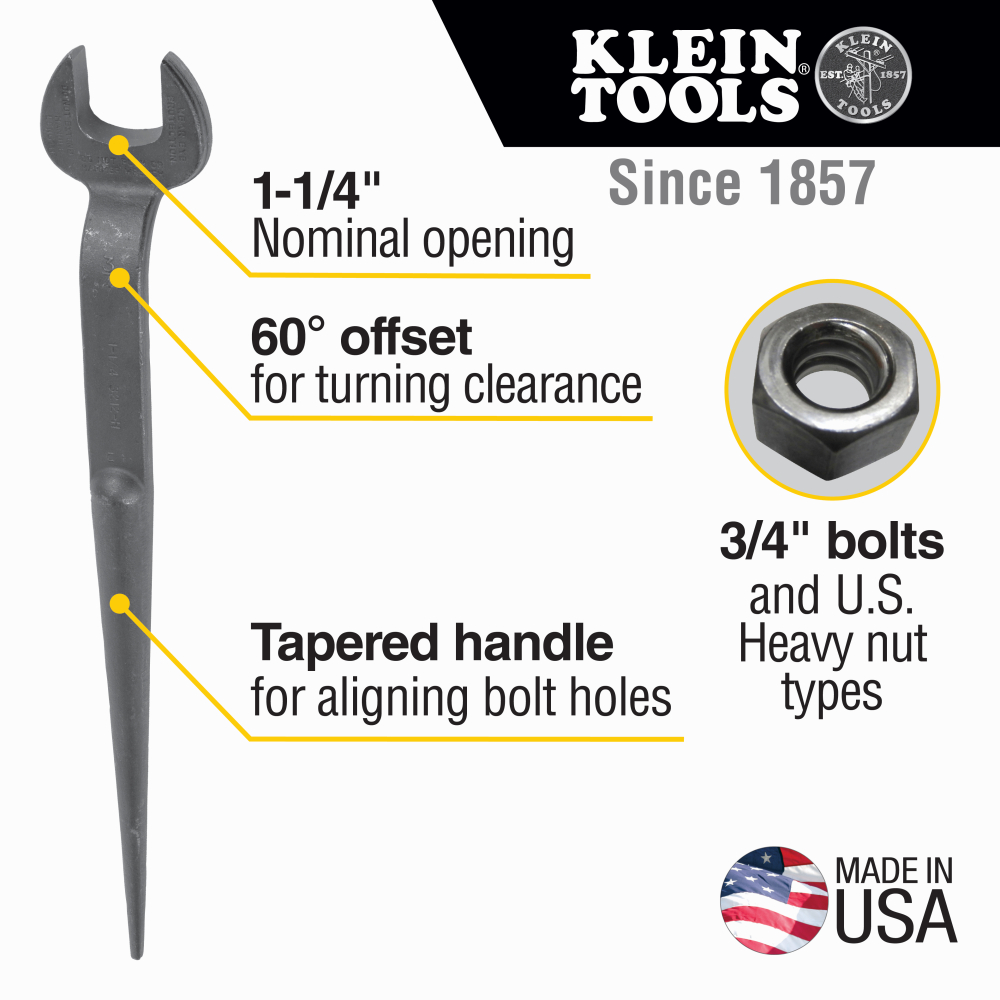

• Nominal Opening: 1-1/4-Inch (31.8 mm)
• Extra heavy-duty head area gives maximum strength and durability
• American Bridge design

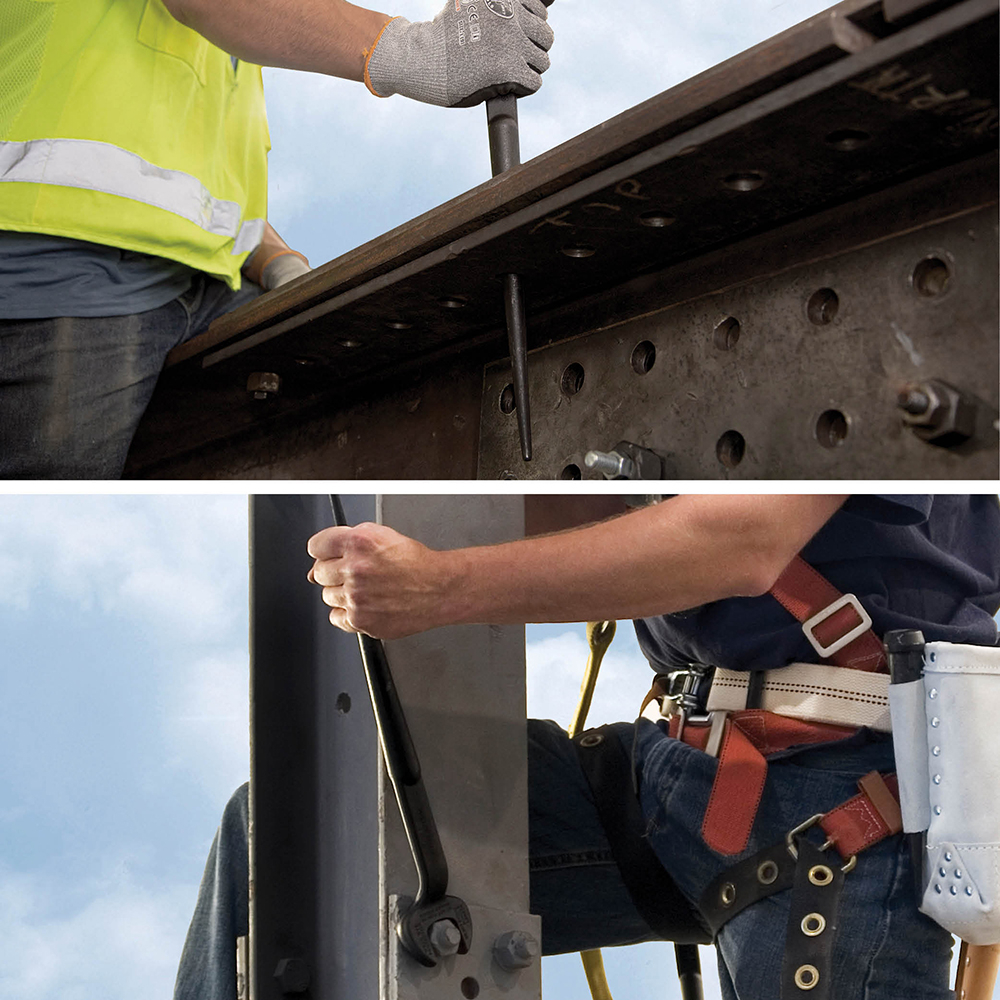

• Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
• Forged from select alloy steel to withstand high-leverage and heavy loads

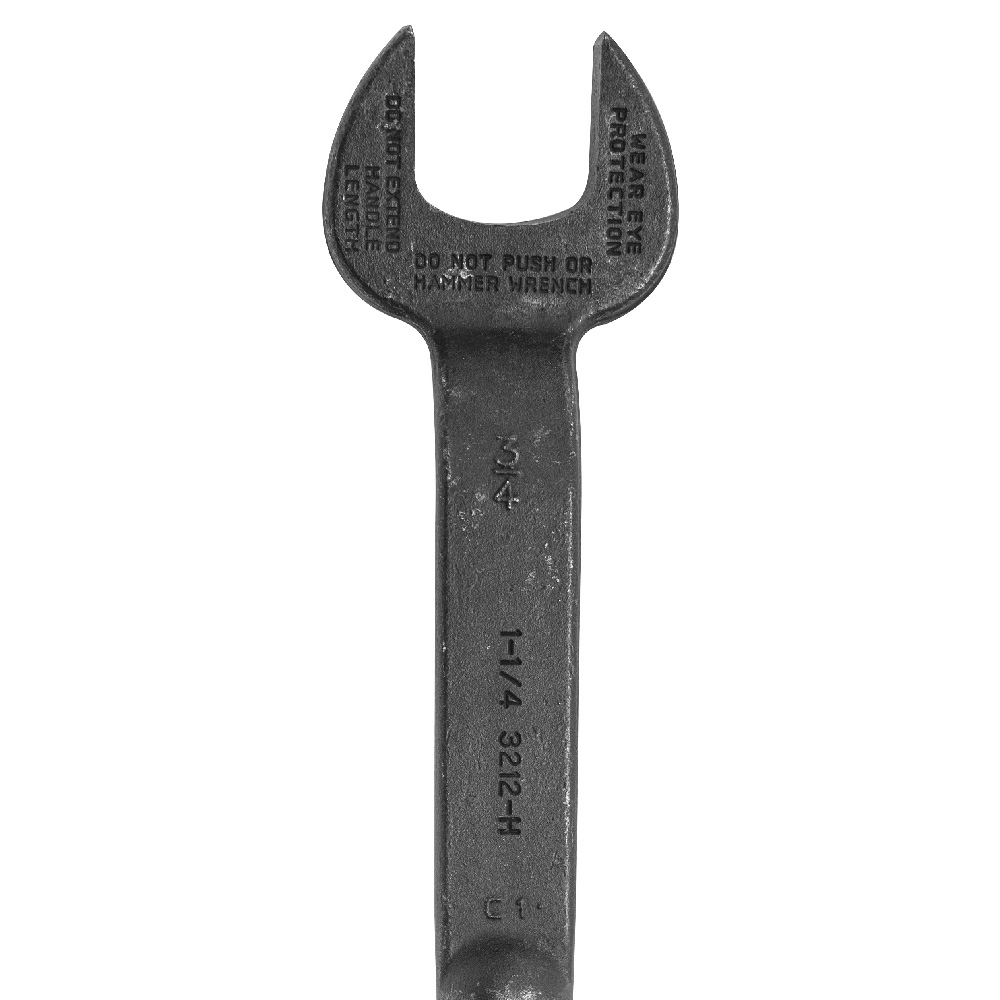

• Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
• Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads

Warnings

• Do NOT push or hammer wrench.
• Always wear approved eye protection.
• Do NOT extend handle length.

• Type: Spud Wrench

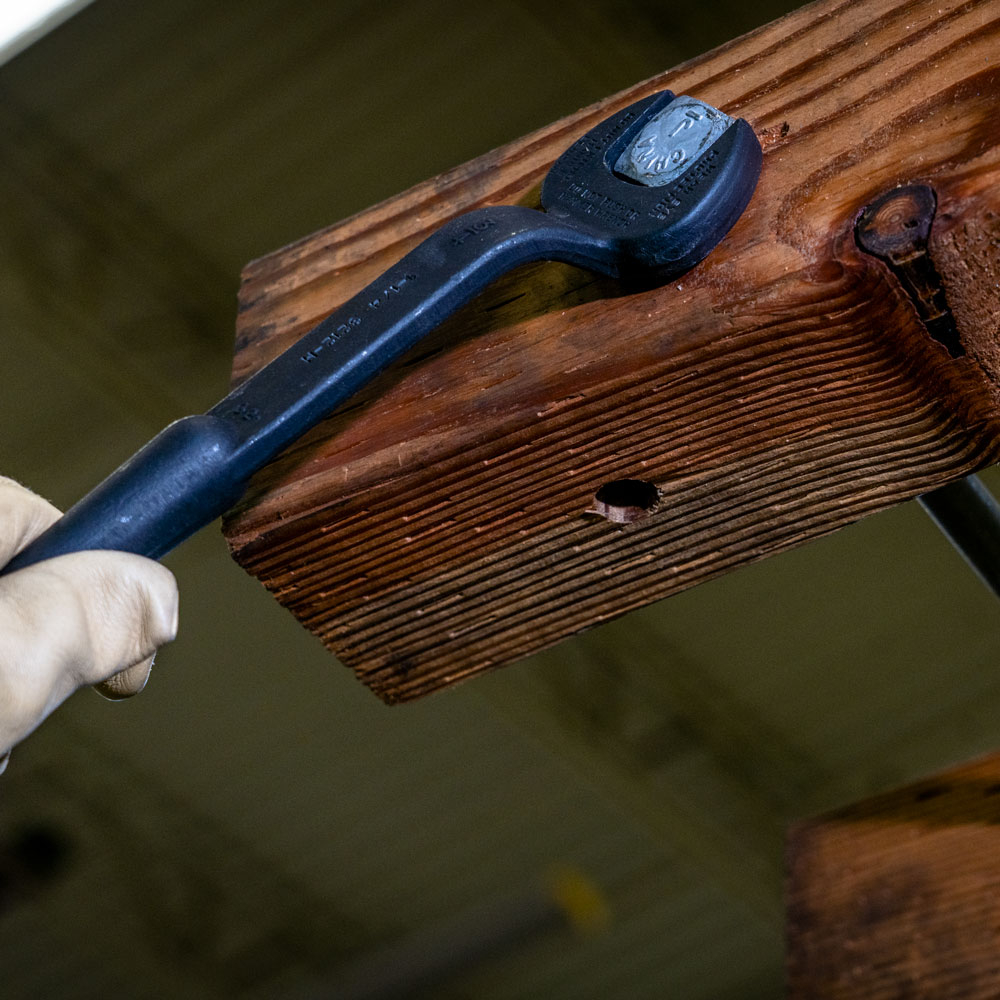

• Application: Connecting Steel Members

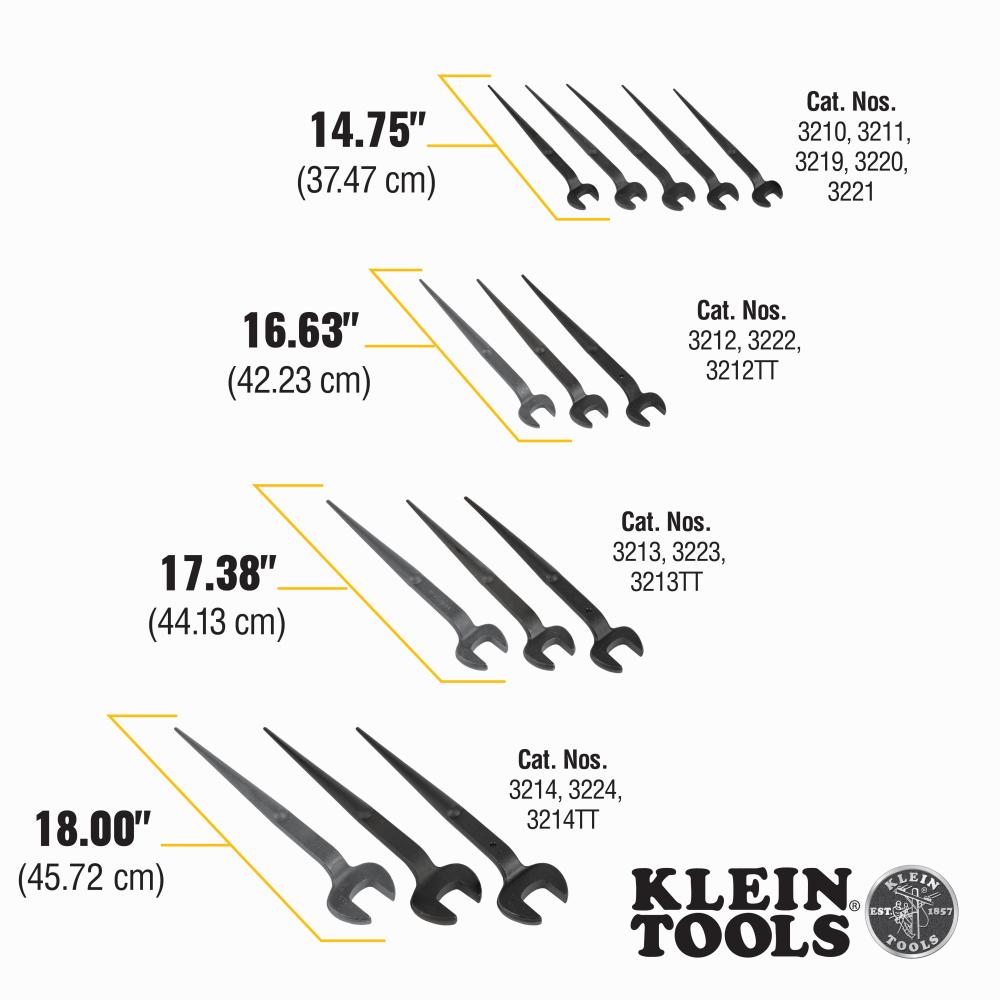

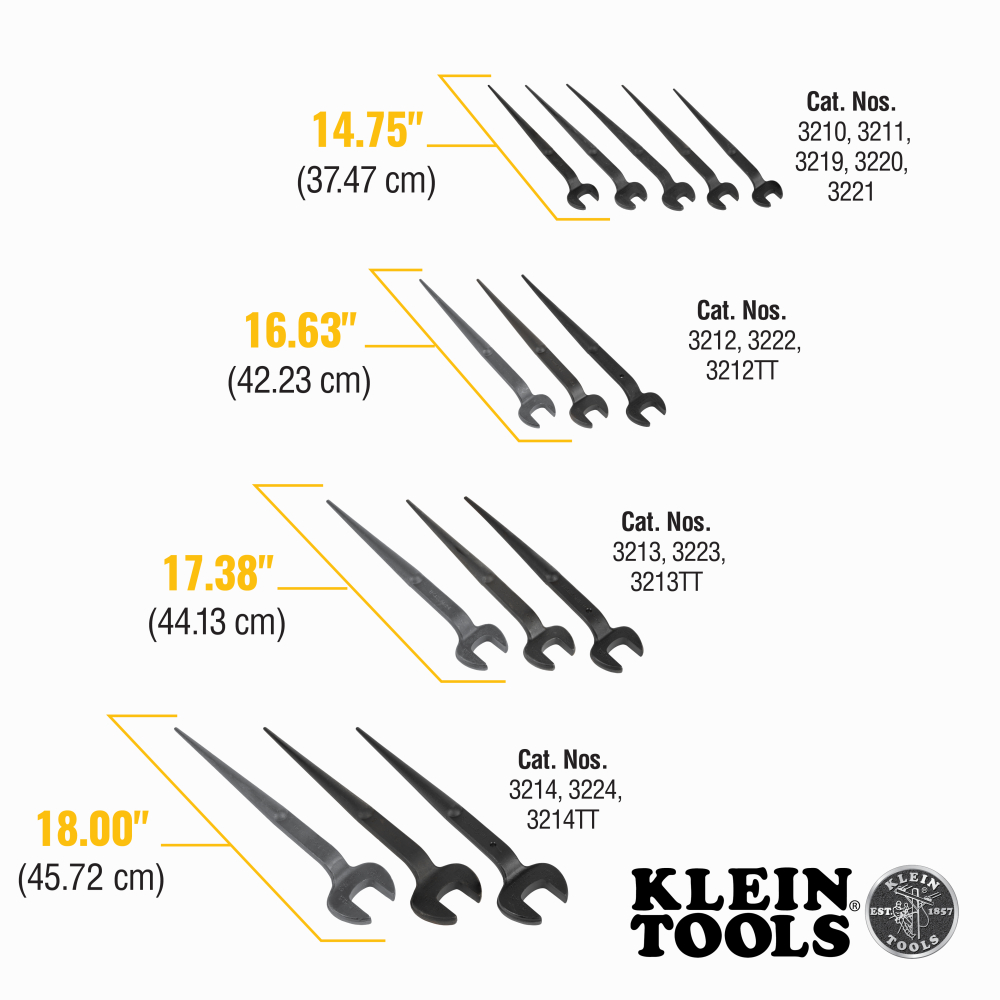

• Overall Length: 16.625 in (42.2 cm)
• Overall Height: 1 in (2.54 cm)
• Overall Width: 2.5 in (6.4 cm)
• Material: Alloy Steel
• Finish: Black Oxide with Rust Preventative
• Nut Type: U.S. Heavy
• Heavy Nut Size: 3/4 in (1.9 cm)
• Nominal Opening: 1-1/4 in (3.2 cm)
• Head Width: 2.5 in (6.4 cm)
• Taper Diameter: 1 in to 1/4 in (2.5 to 0.6 cm)
• Offset Angle: 60°
• Weight: 1.98 lbs
• Country of Origin: United States
