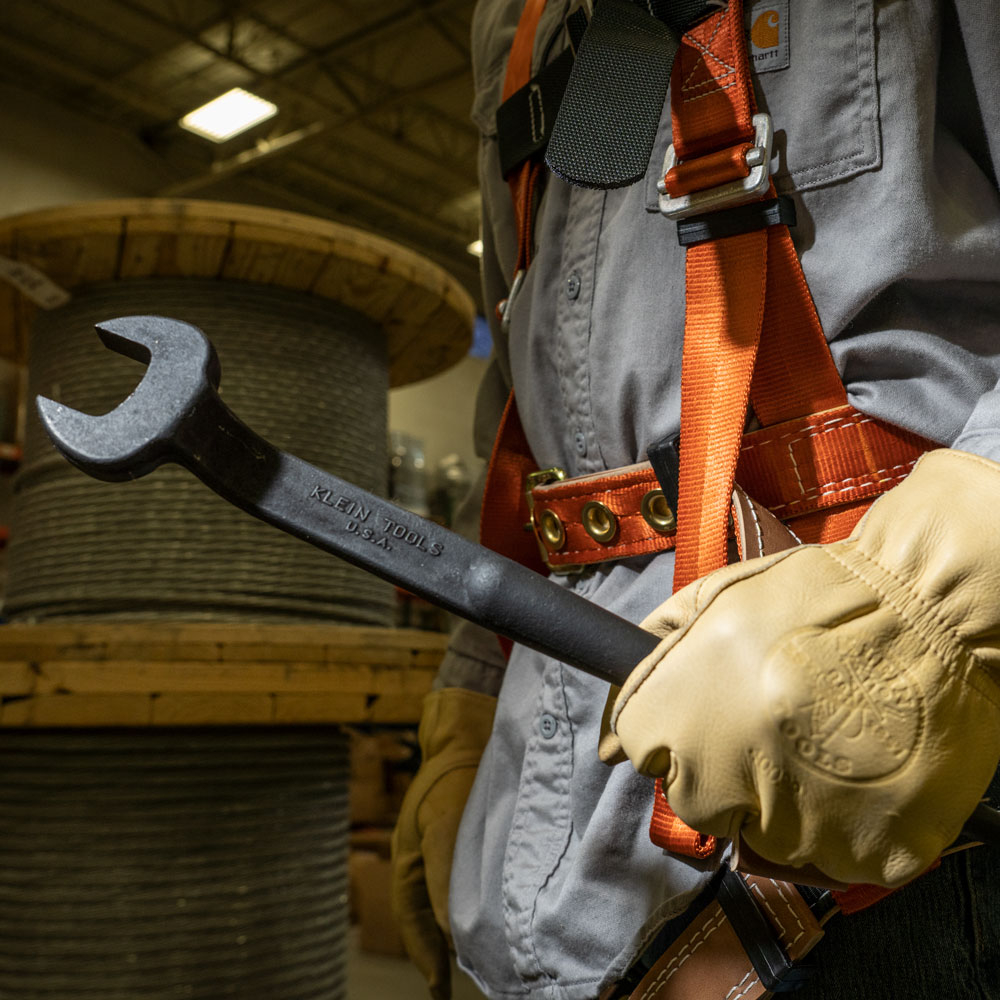

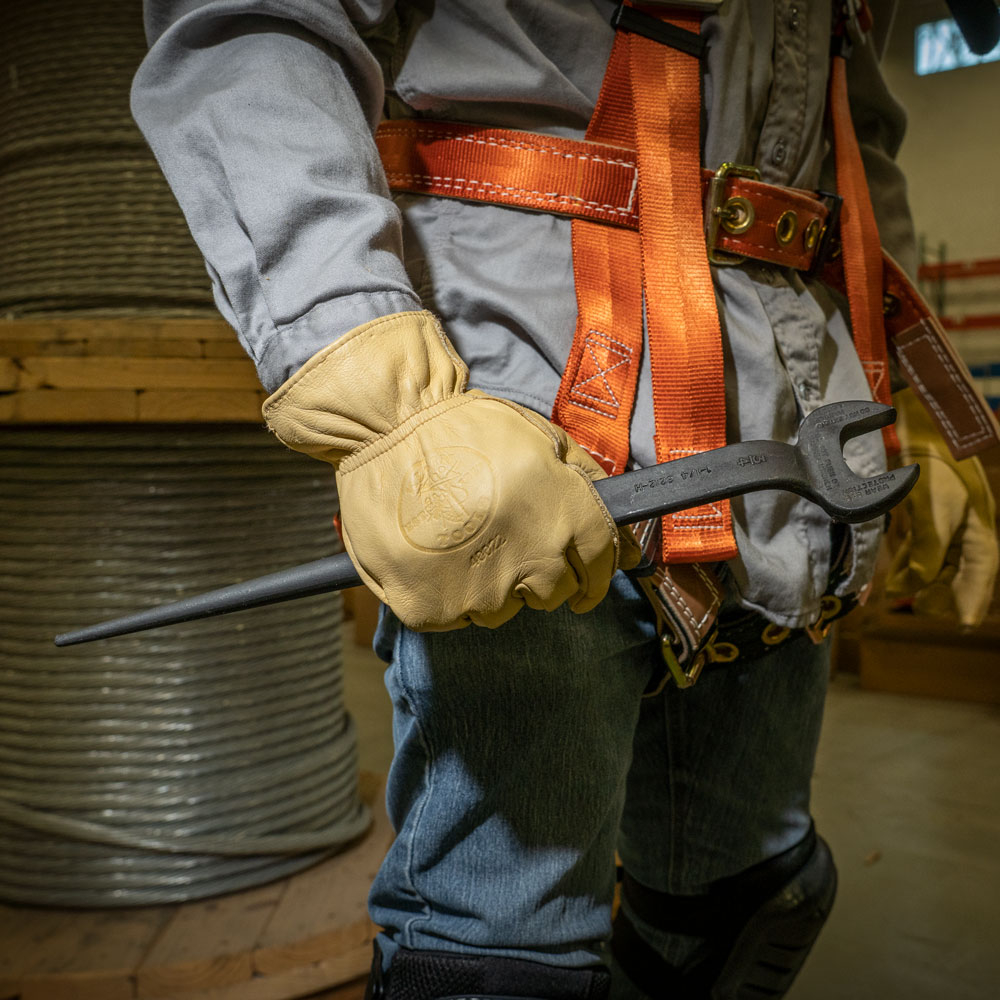

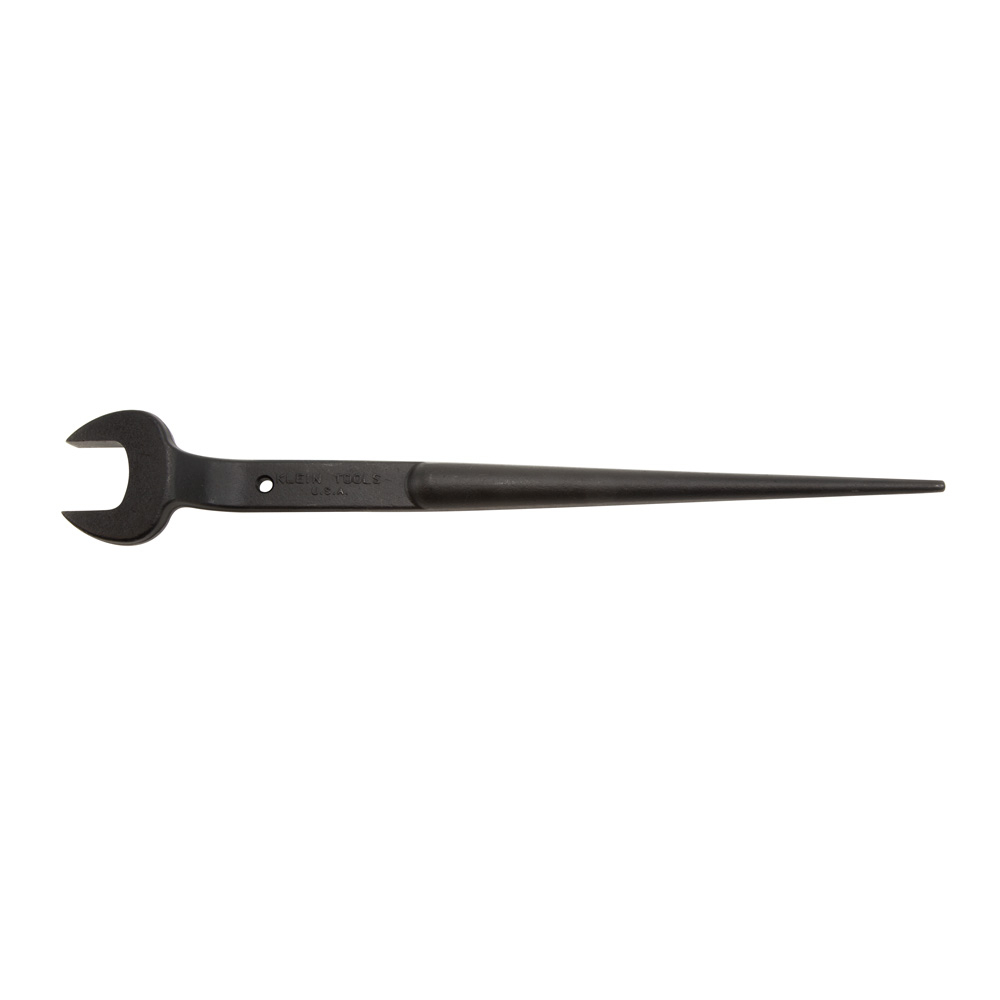

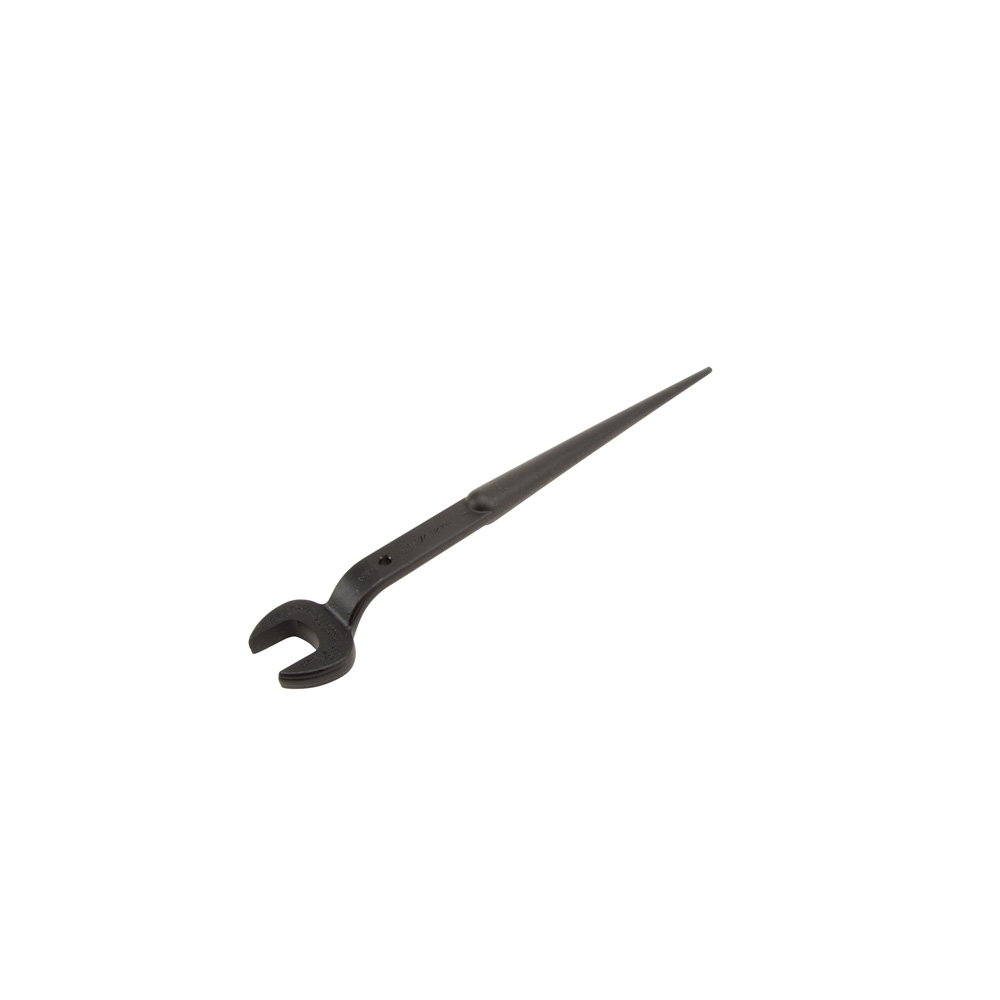

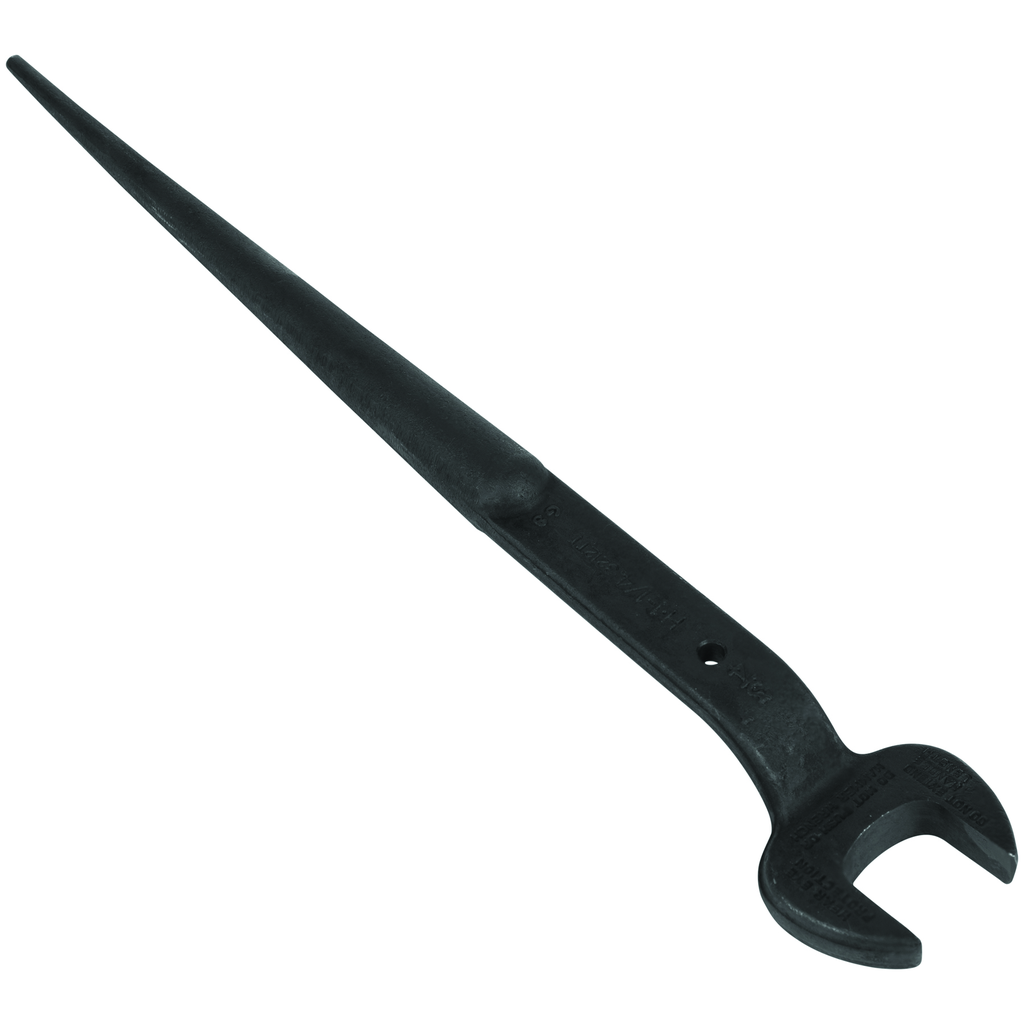

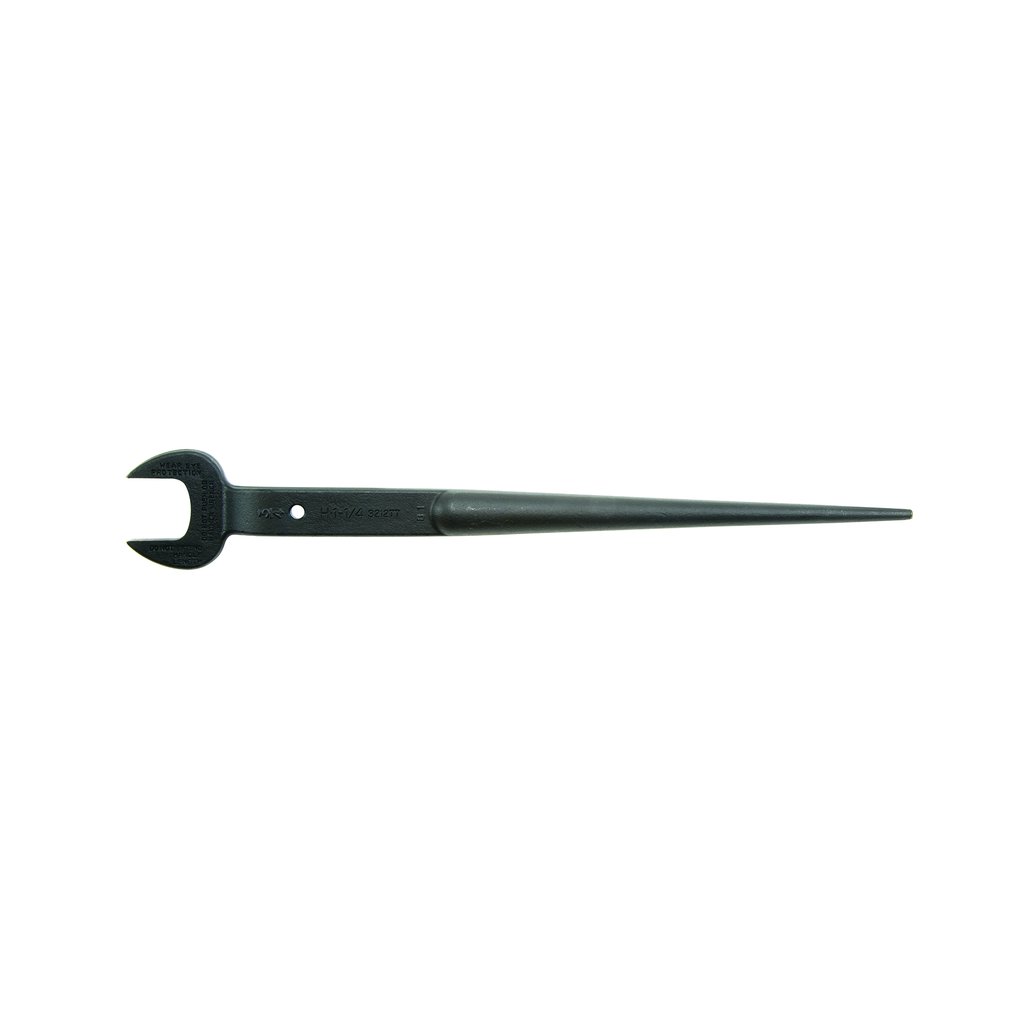

Spud Wrench, 1-1/4-Inch Nominal Opening with Tether Hole

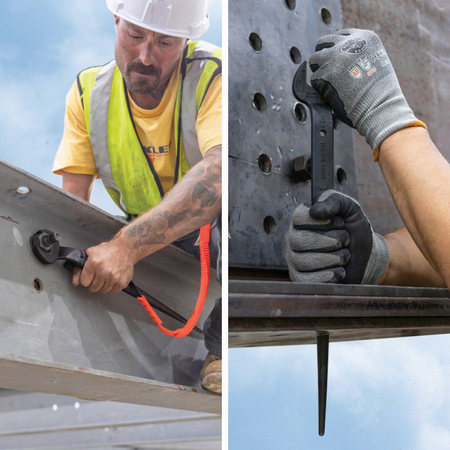

Forged from select alloy steel, Klein Tools' 1-1/4-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. For use with 3/4-Inch bolts and U.S. heavy nut types, the extra heavy-duty head area provides maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes. Includes a built-in hole so tool can be tethered when working at height.

Features

• Forged from select alloy steel to withstand high-leverage and heavy loads

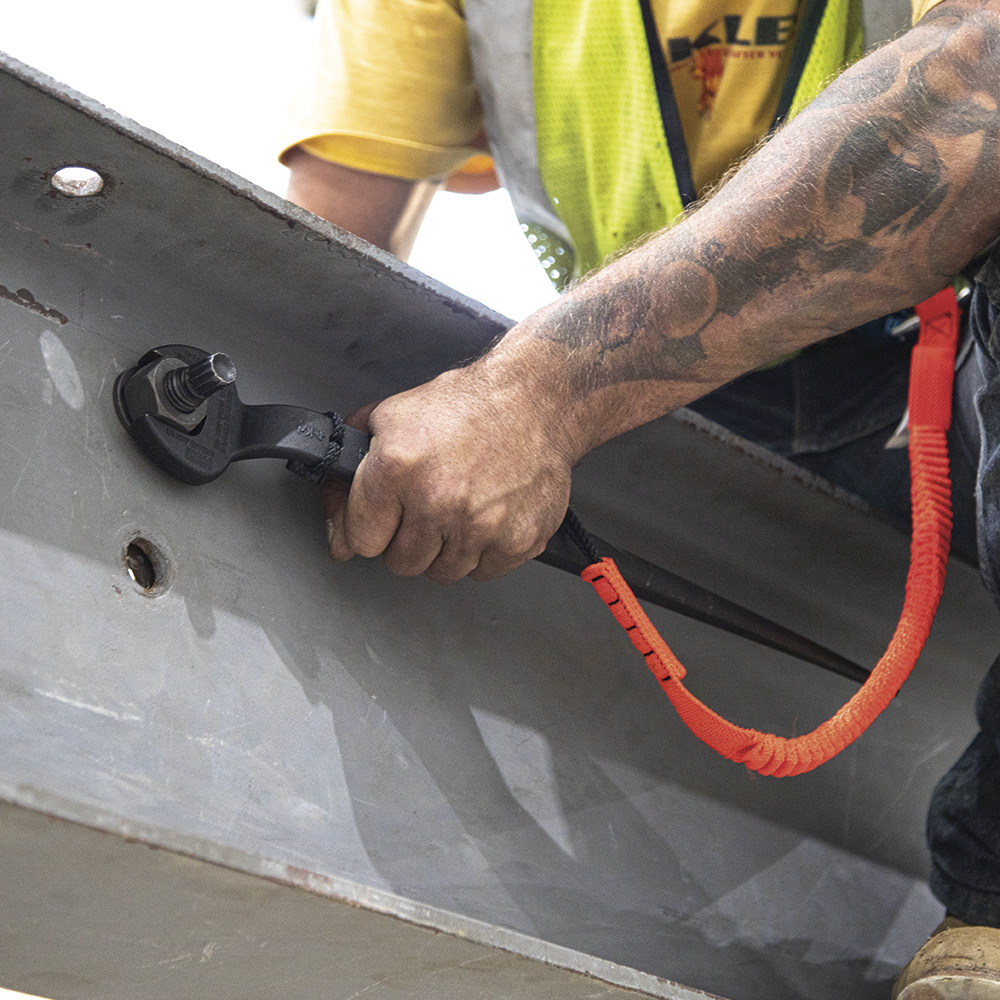

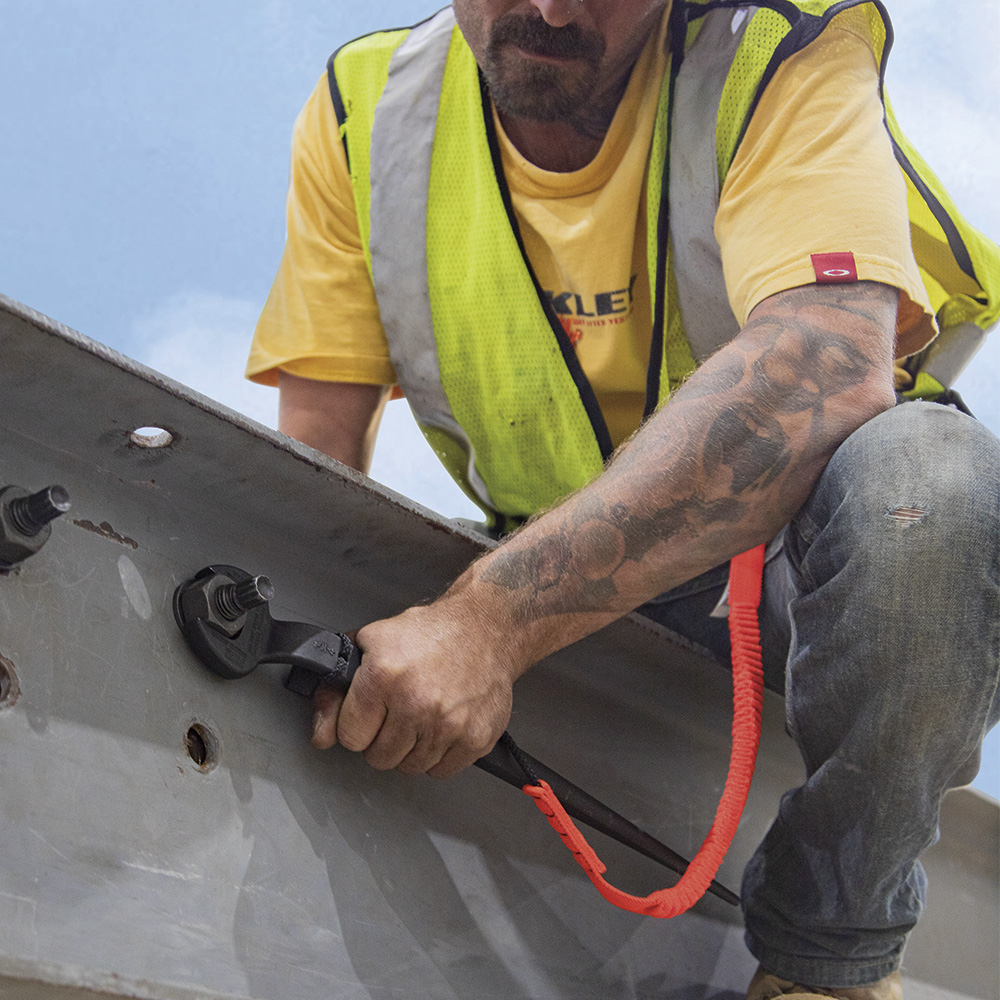

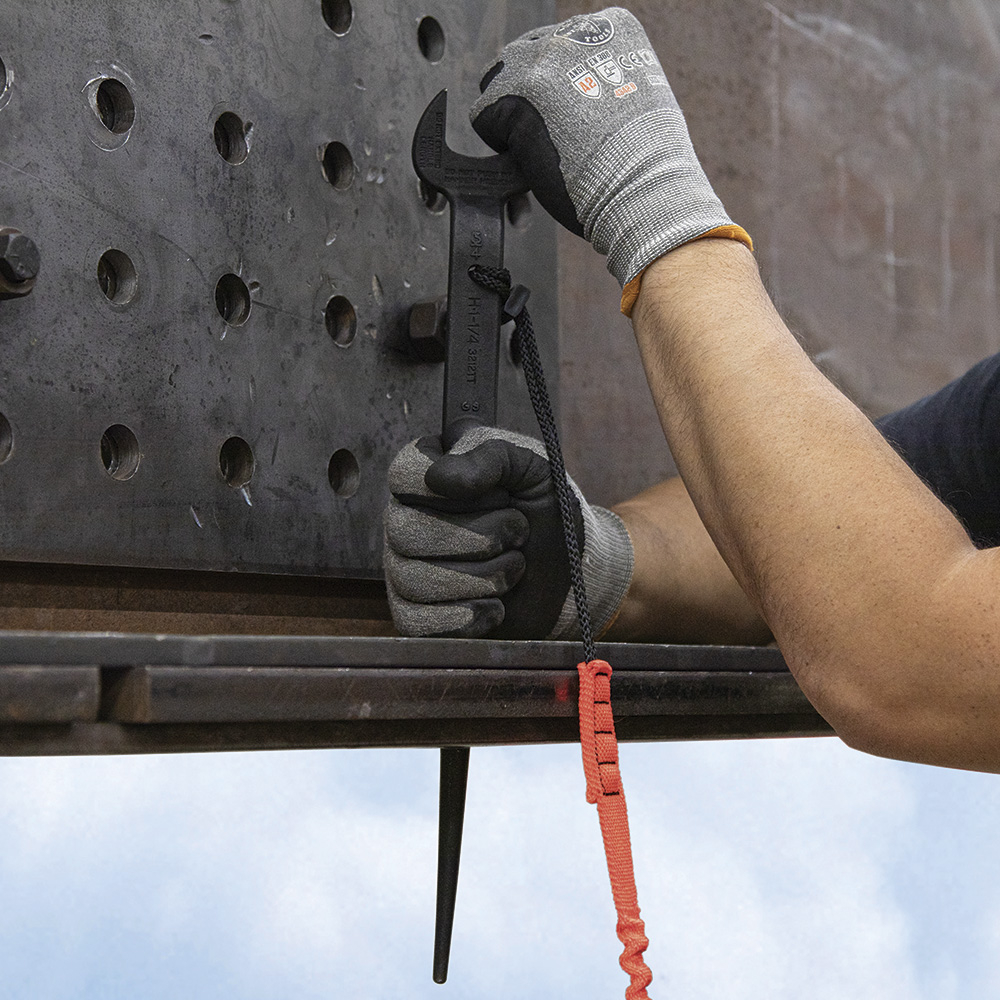

• Hole for Tethering
• Extra-large hub area works on larger diameter holes better than other wrenches

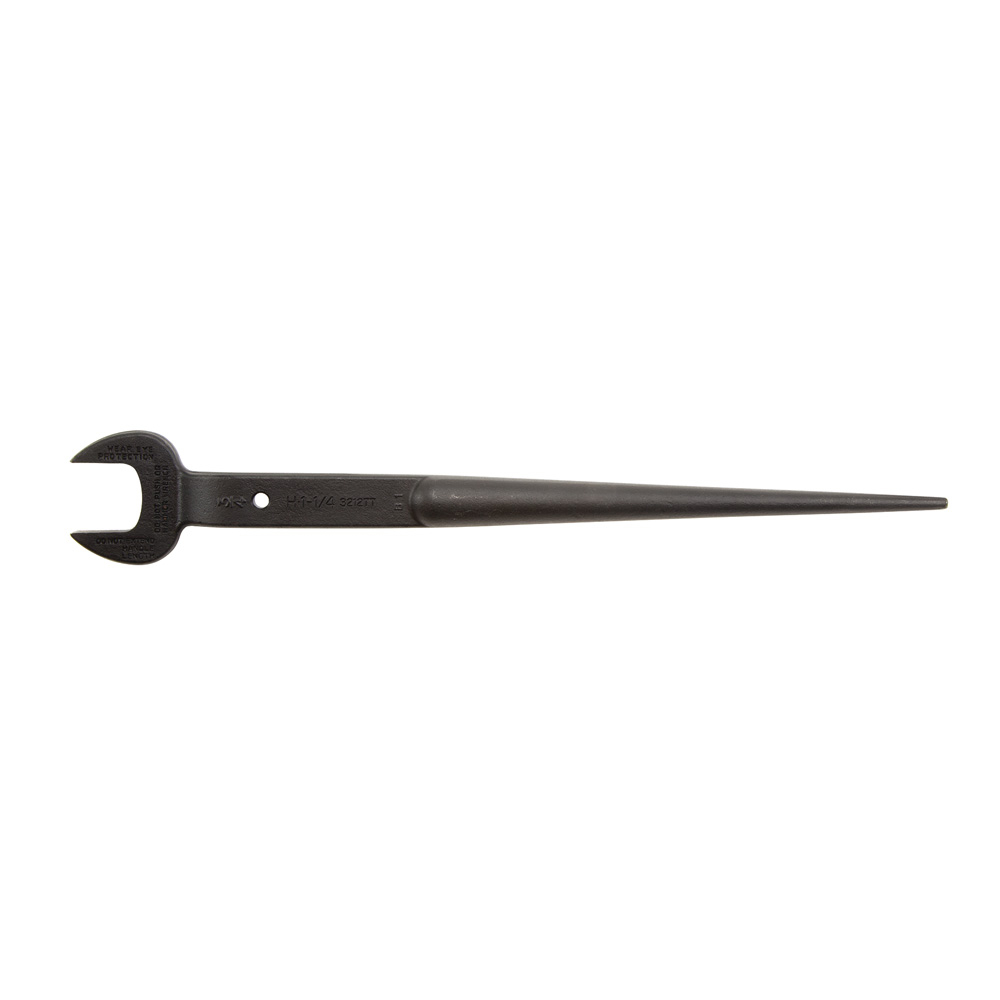

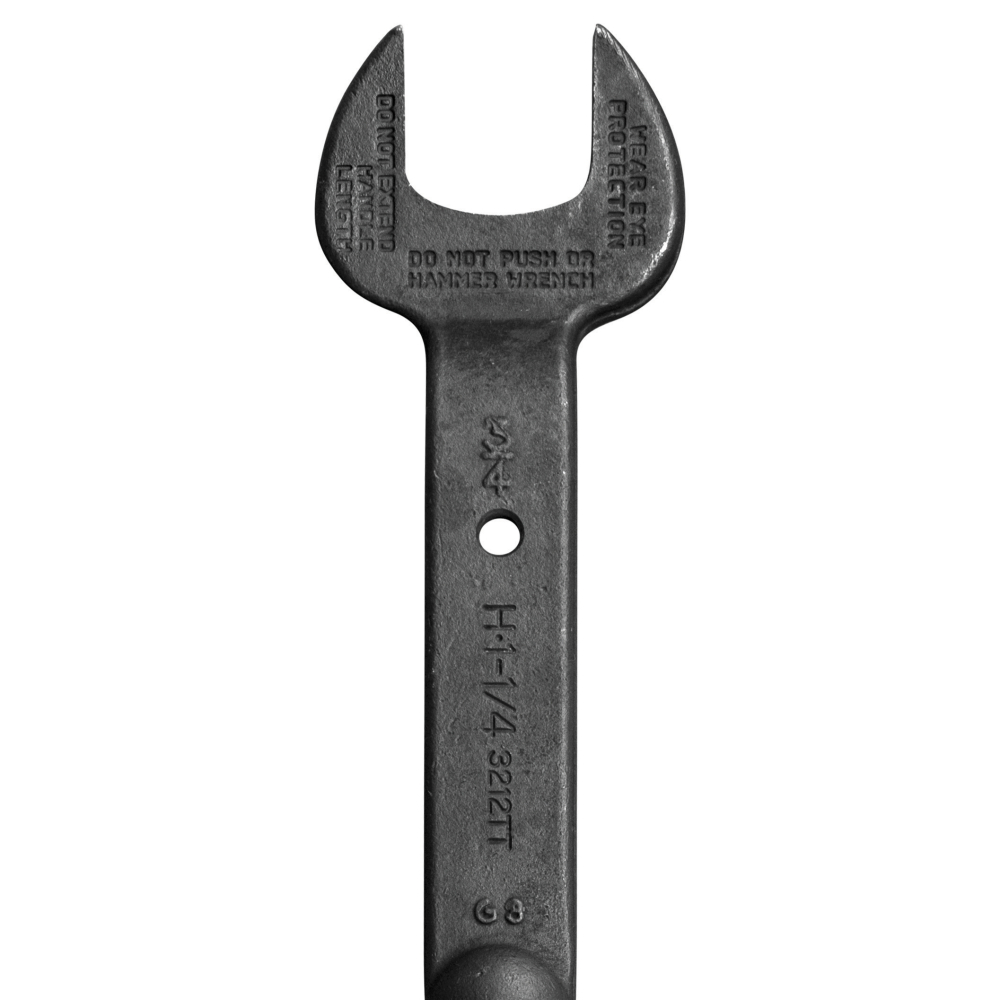

• Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
• Tether not included
• Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
• Extra Heavy-Duty Head for Maximum Strength
• Cross-hole with no sharp edges for tethering

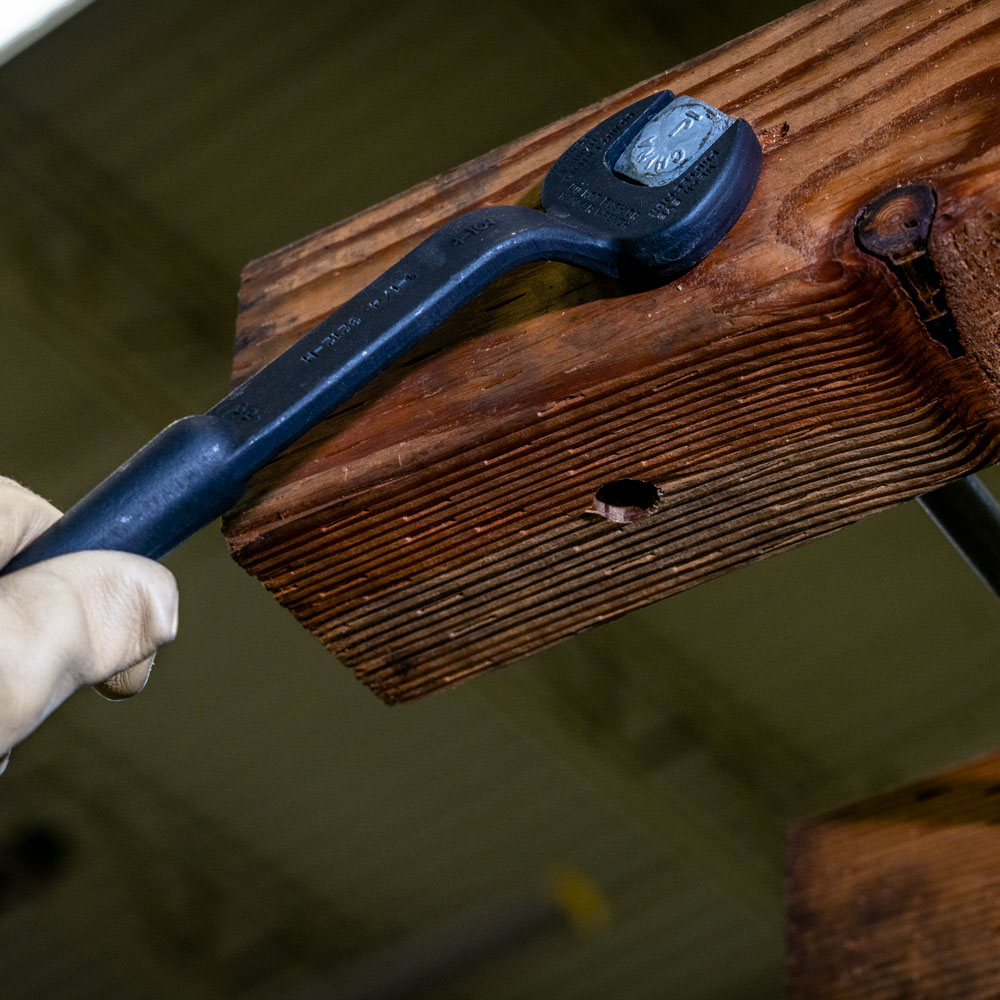

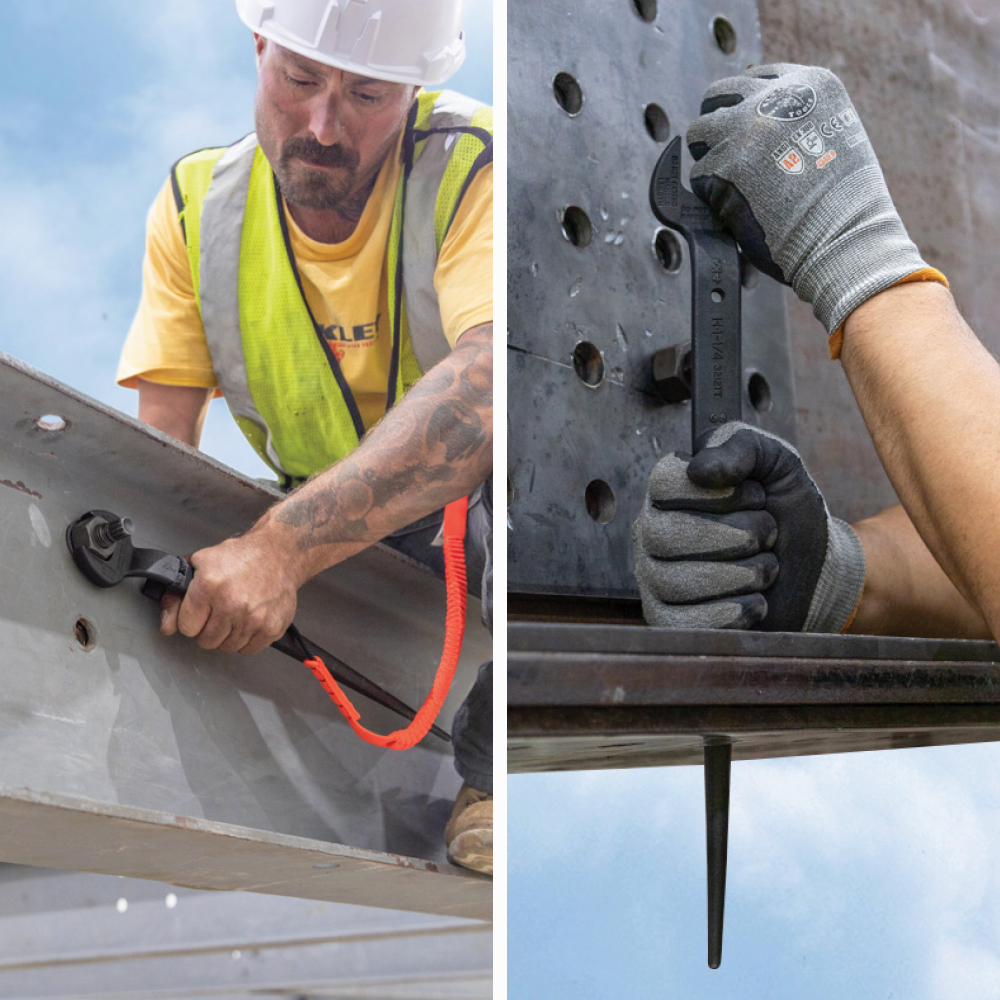

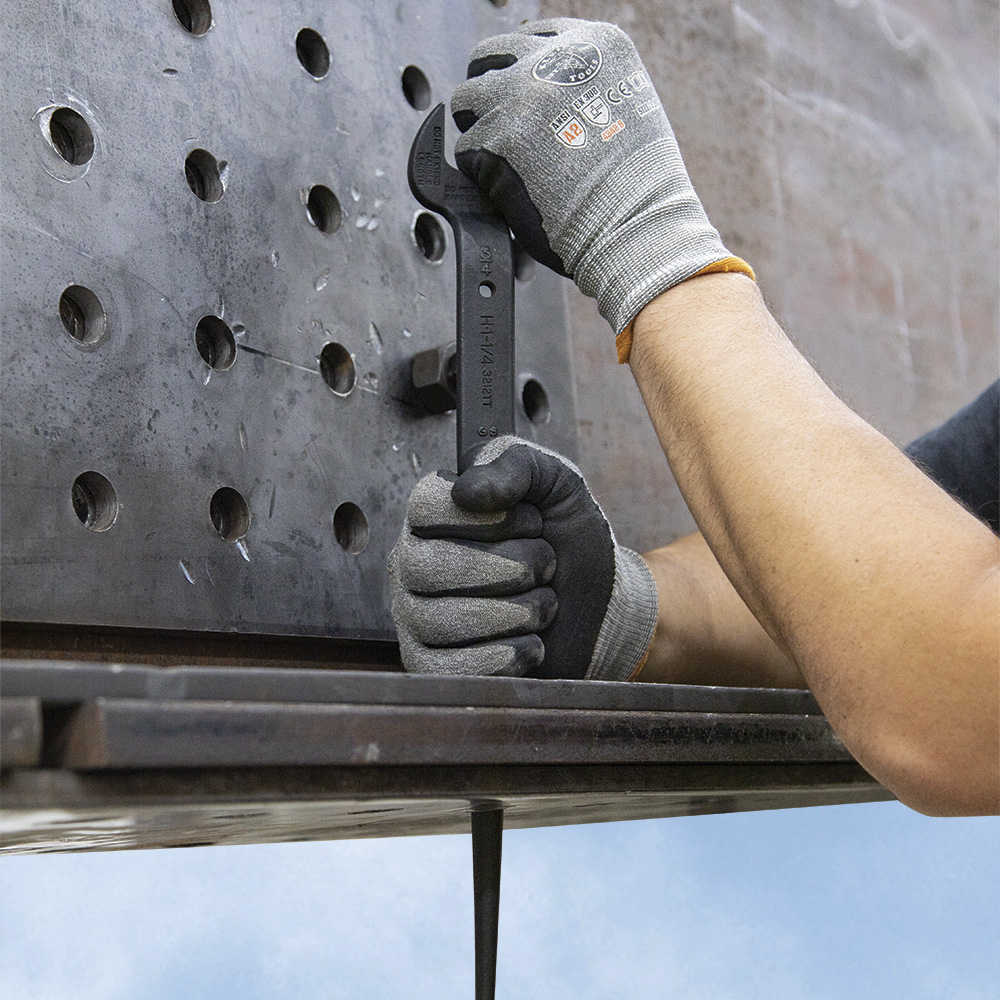

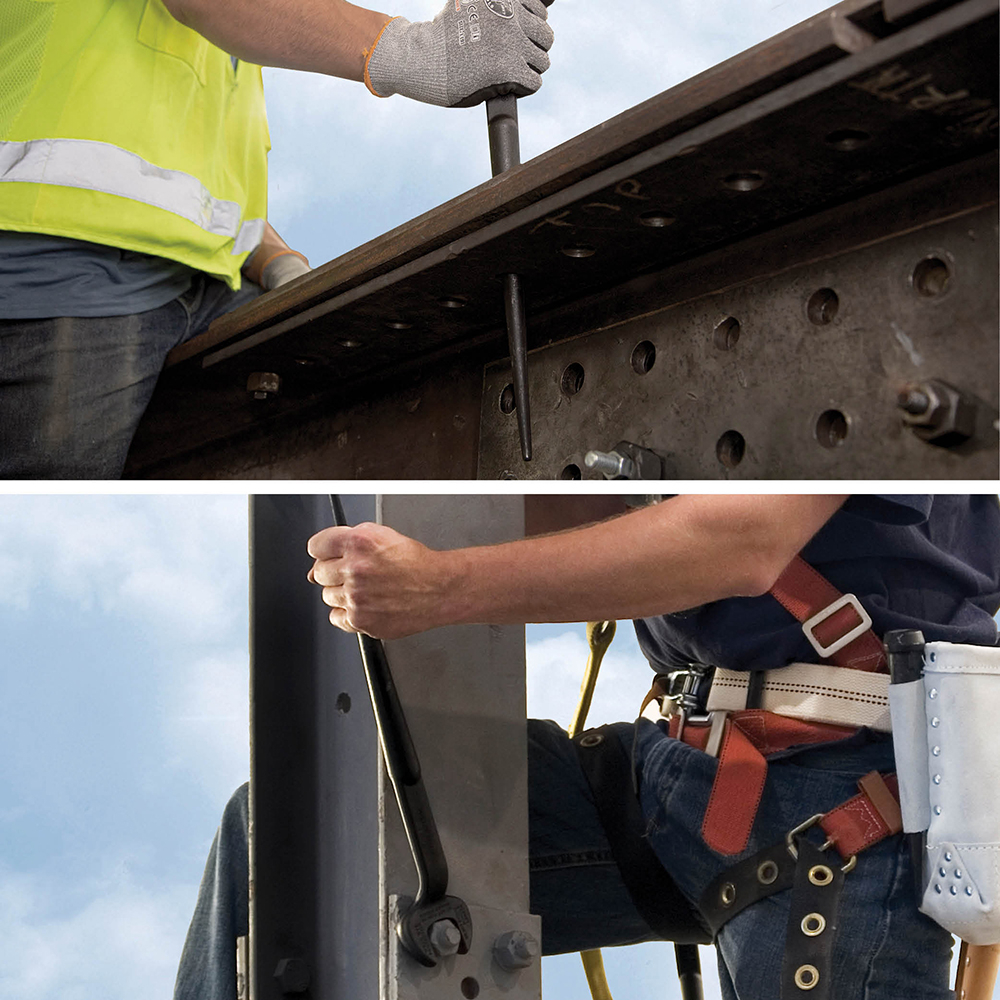

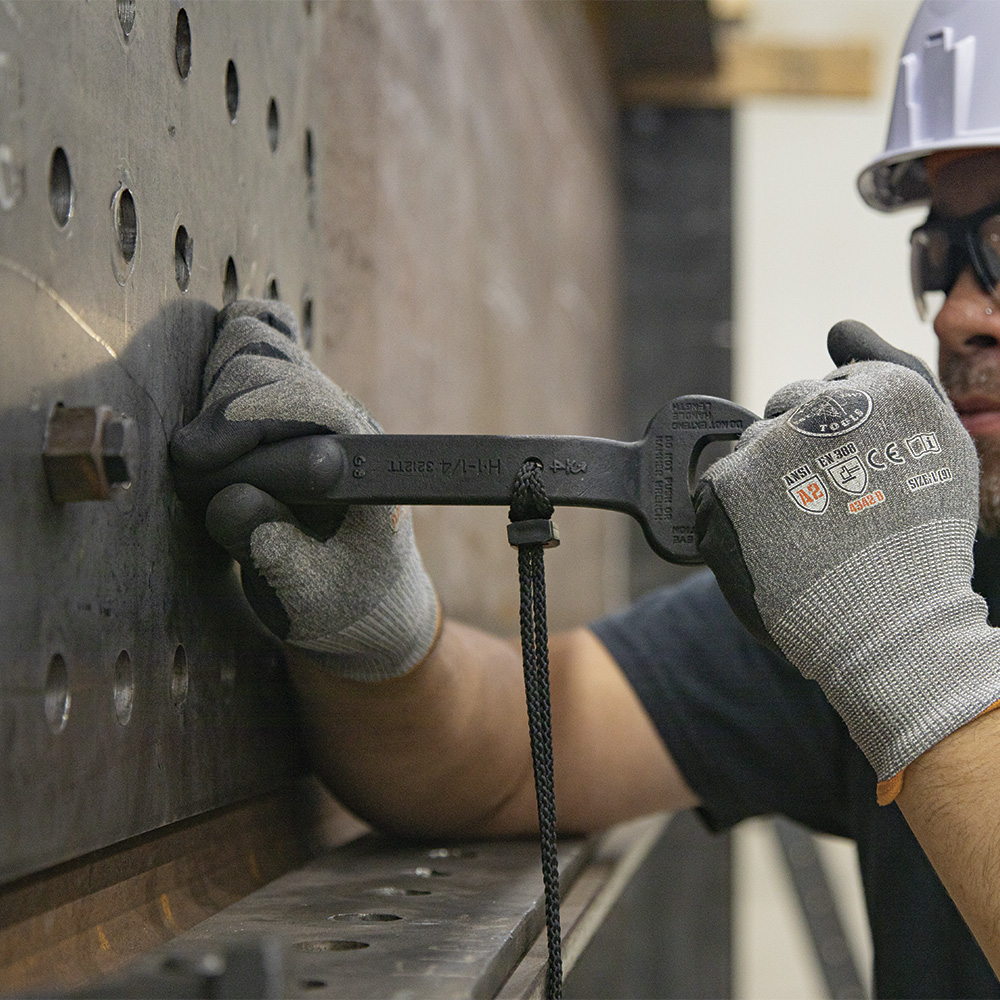

• Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
• American Bridge design

Warnings

• Always wear approved eye protection.
• Do NOT push or hammer wrench.
• Do NOT extend handle length.

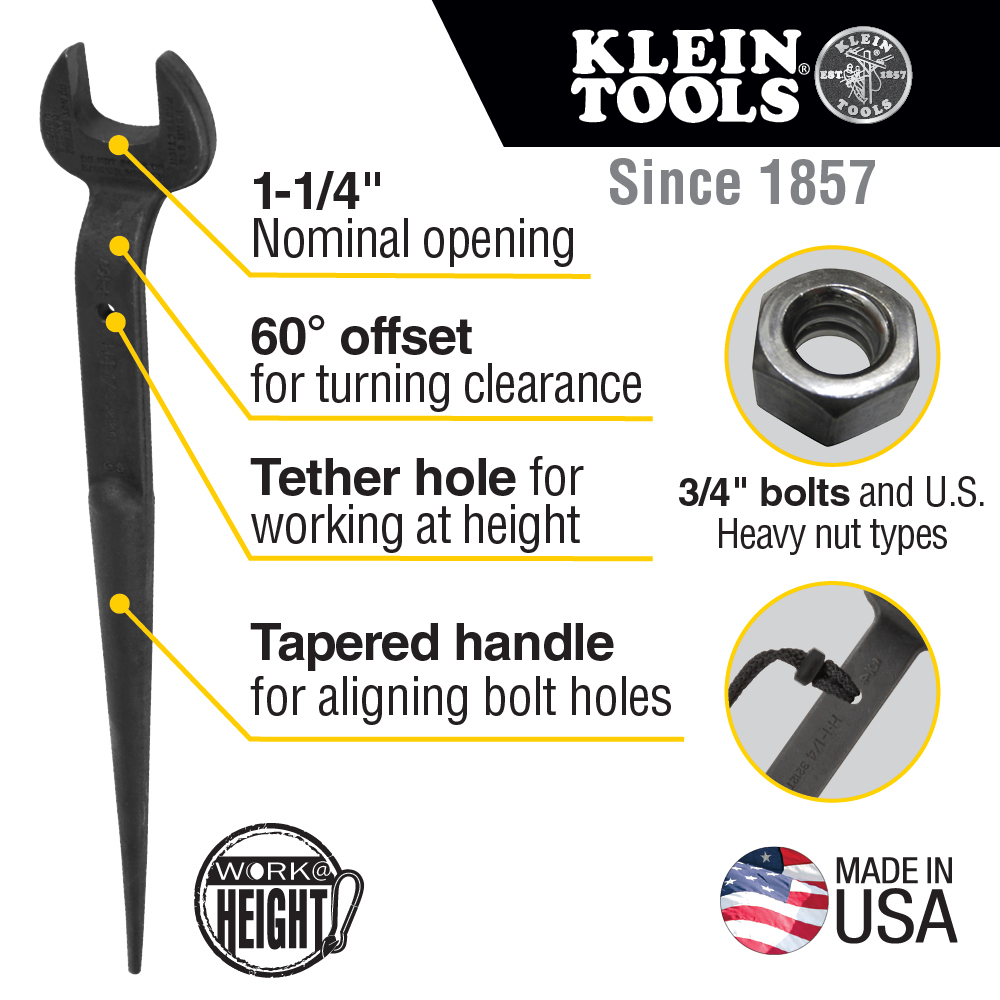

• Nominal Opening: 1-1/4 in (3.2 cm)
• Bolt Size: 3/4 in (1.9 cm)
• Nut Type: U.S. Heavy
• Material: Alloy Steel

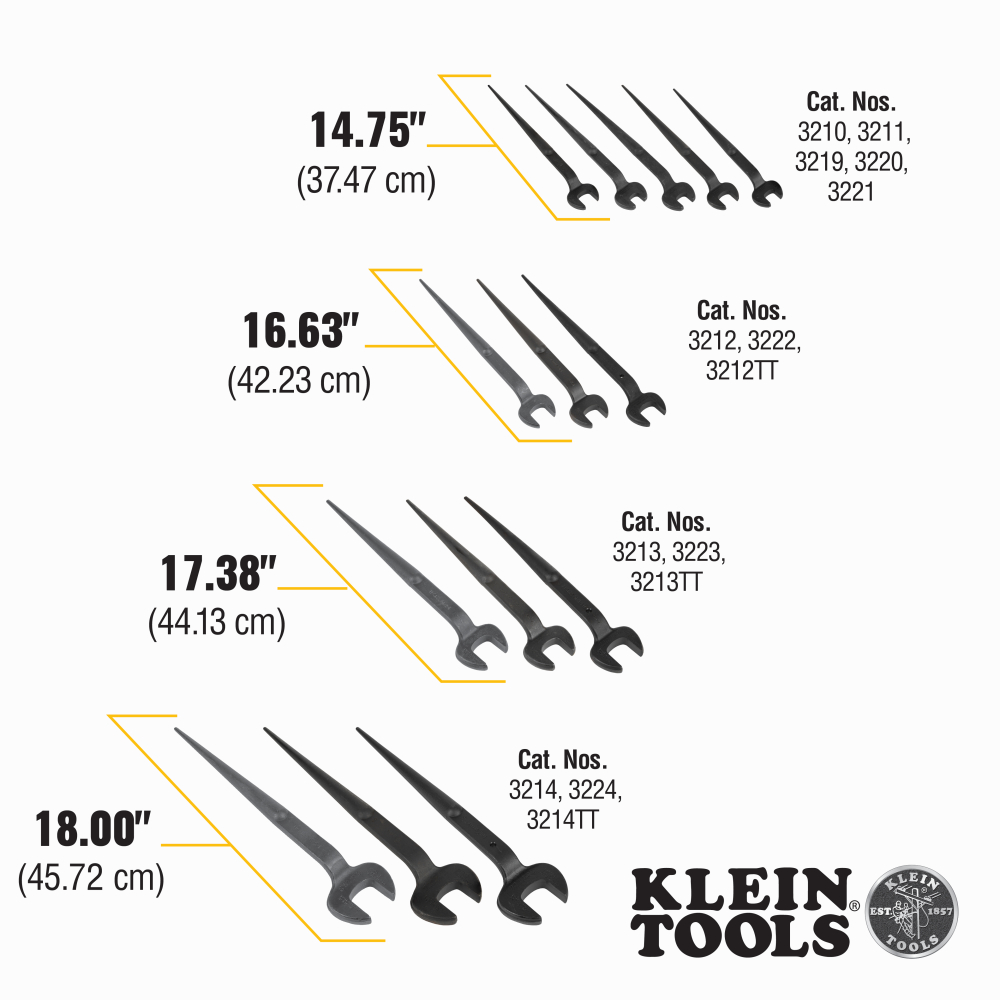

• Overall Length: 16.625 in (42.2 cm)
• Overall Width: 2.5 in (6.4 cm)
• Head Width: 2.5 in (6.4 cm)
• Overall Height: 1 in (2.54 cm)
• Taper Diameter: 1 to 1/4 in (2.5 to 0.6 cm)

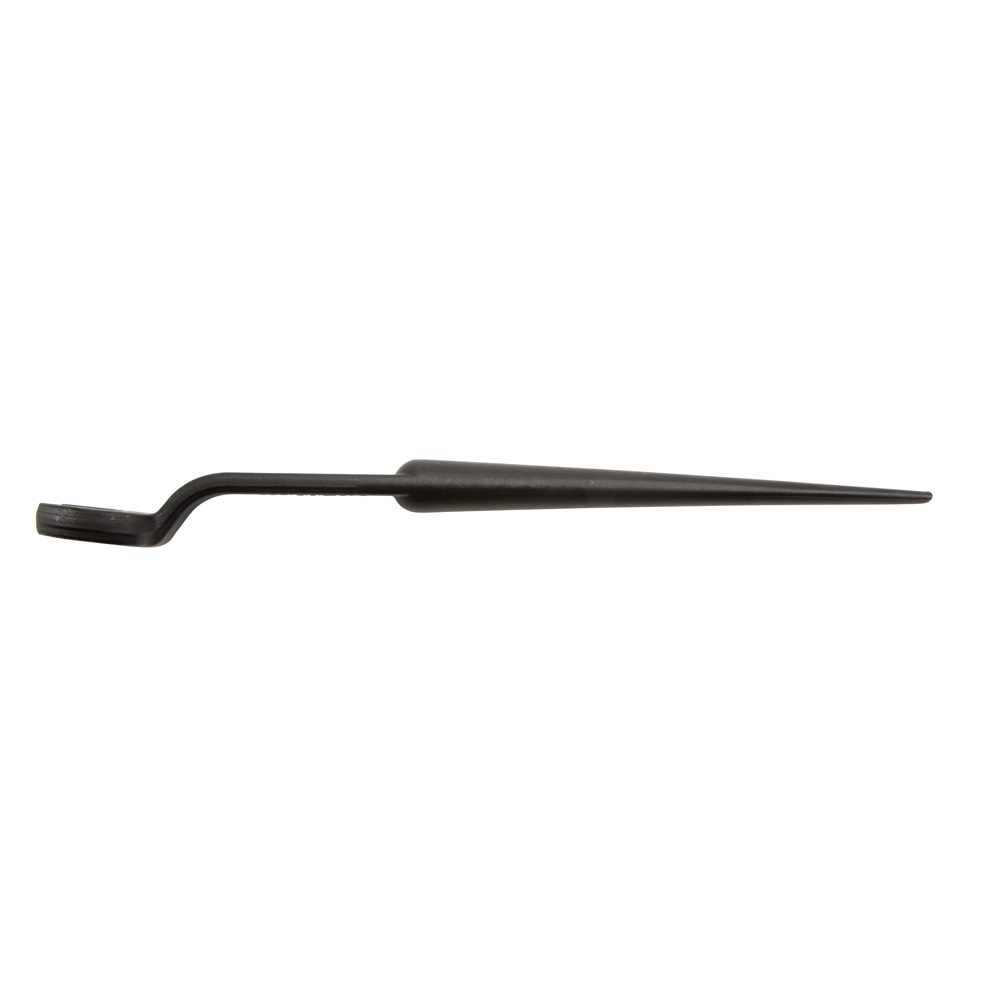

• Offset Angle: 60°
• Weight: 1.98 lbs
• Finish: Black Oxide with Rust Preventative
• Type: Spud Wrench
• Size Name: 3/4-Inch
• Style Name: Tetherable
• Origin: United States
