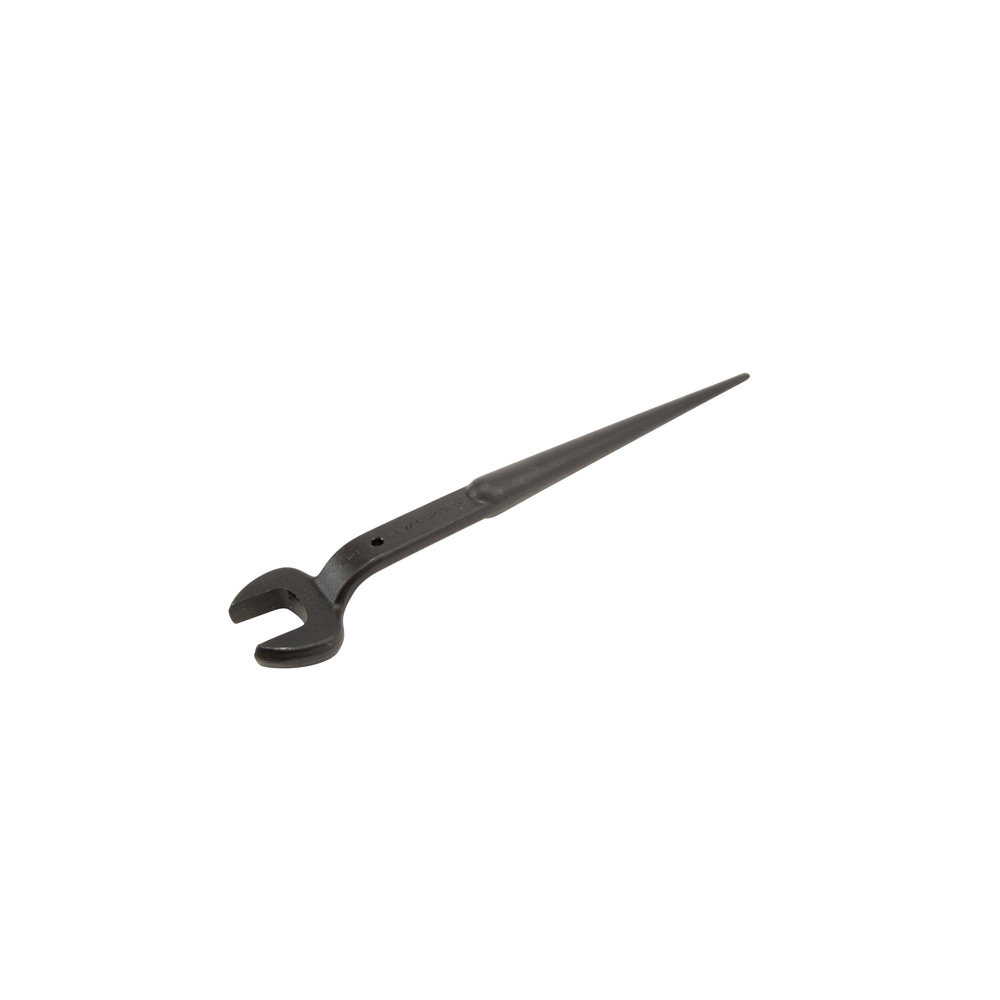

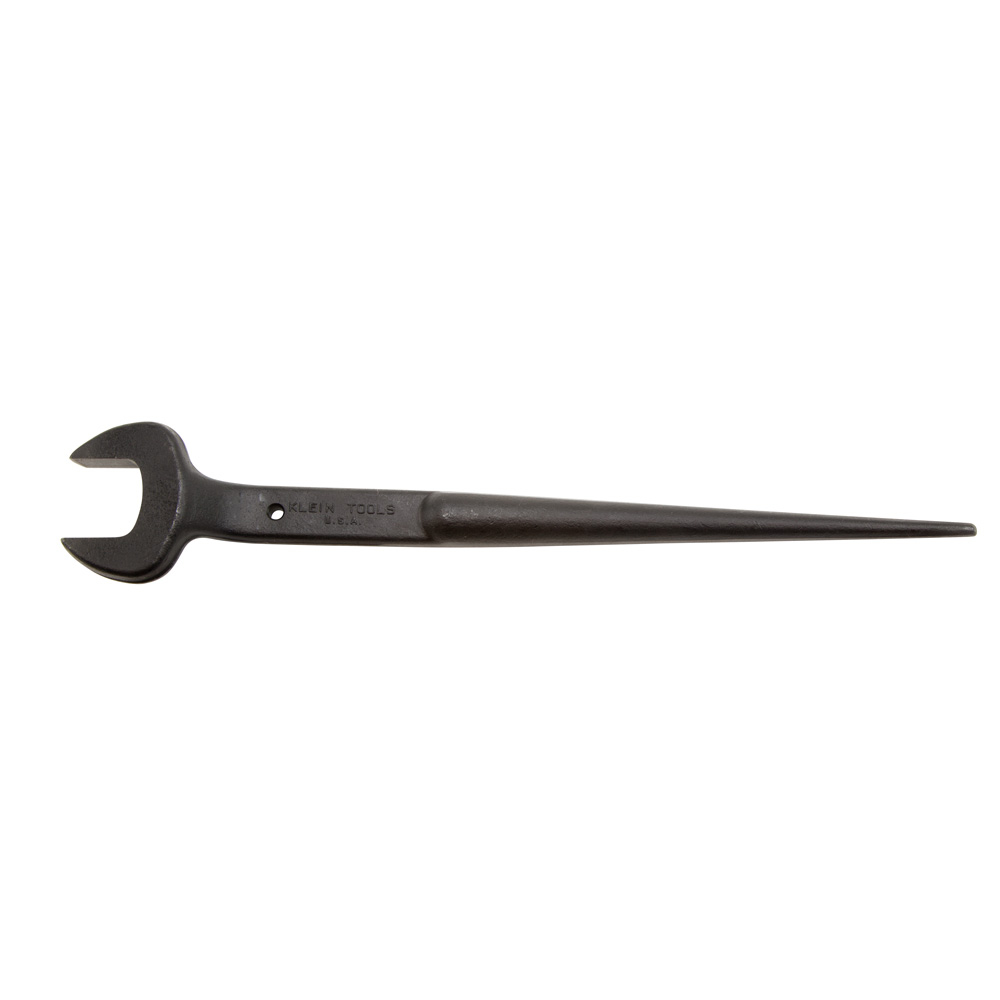

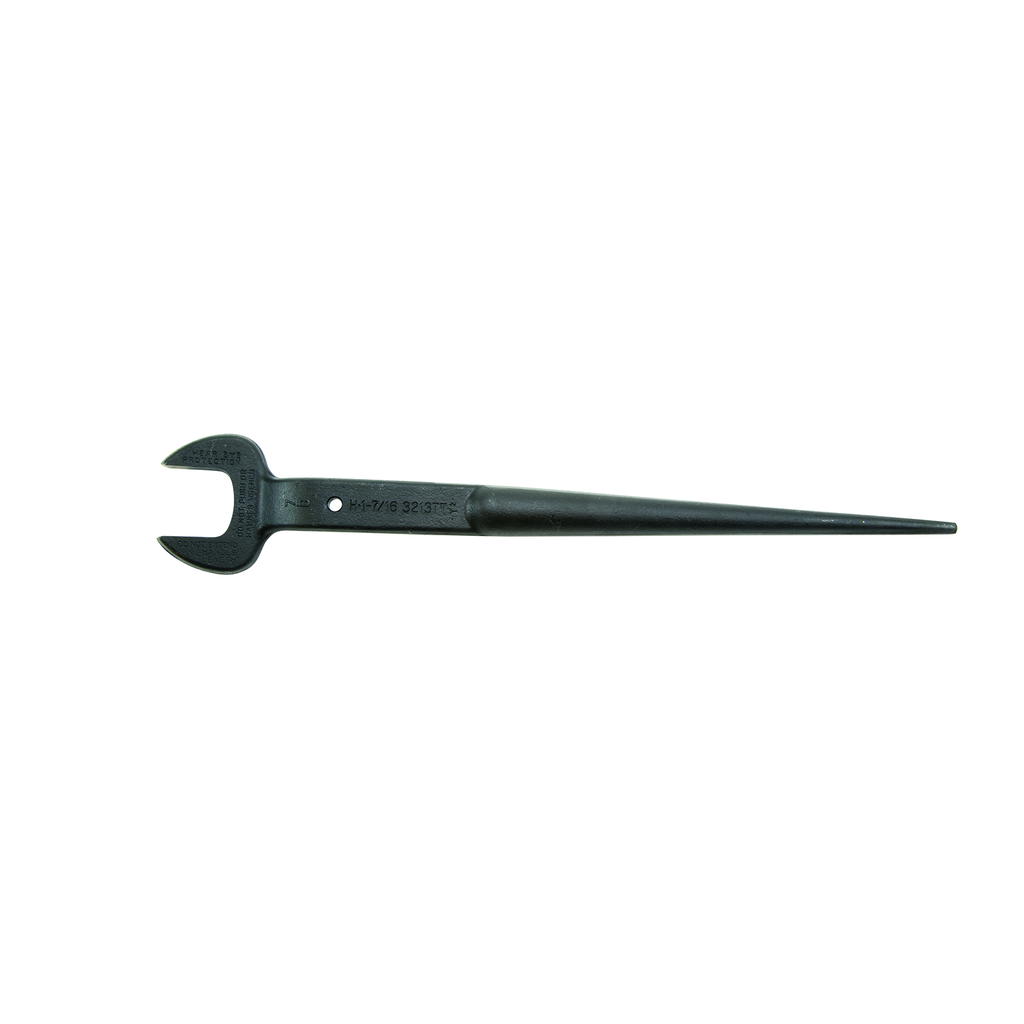

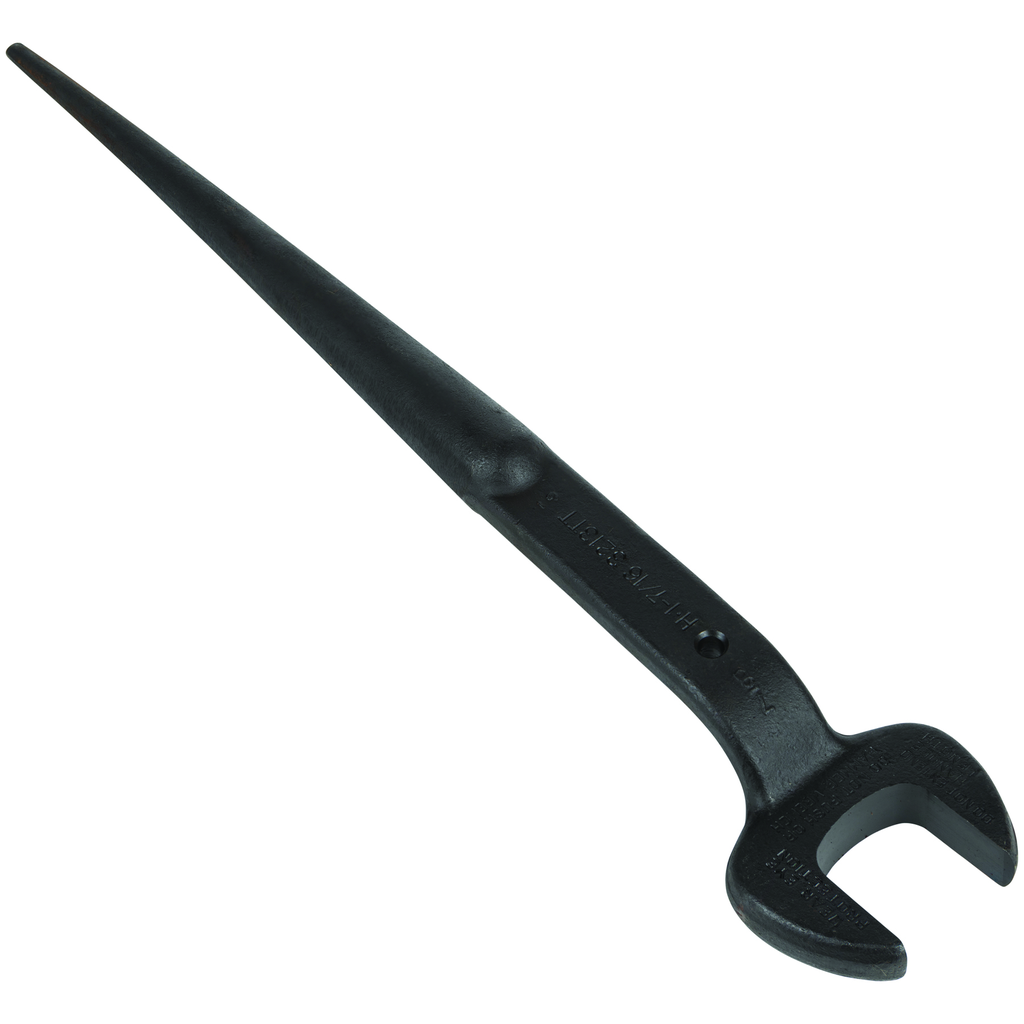

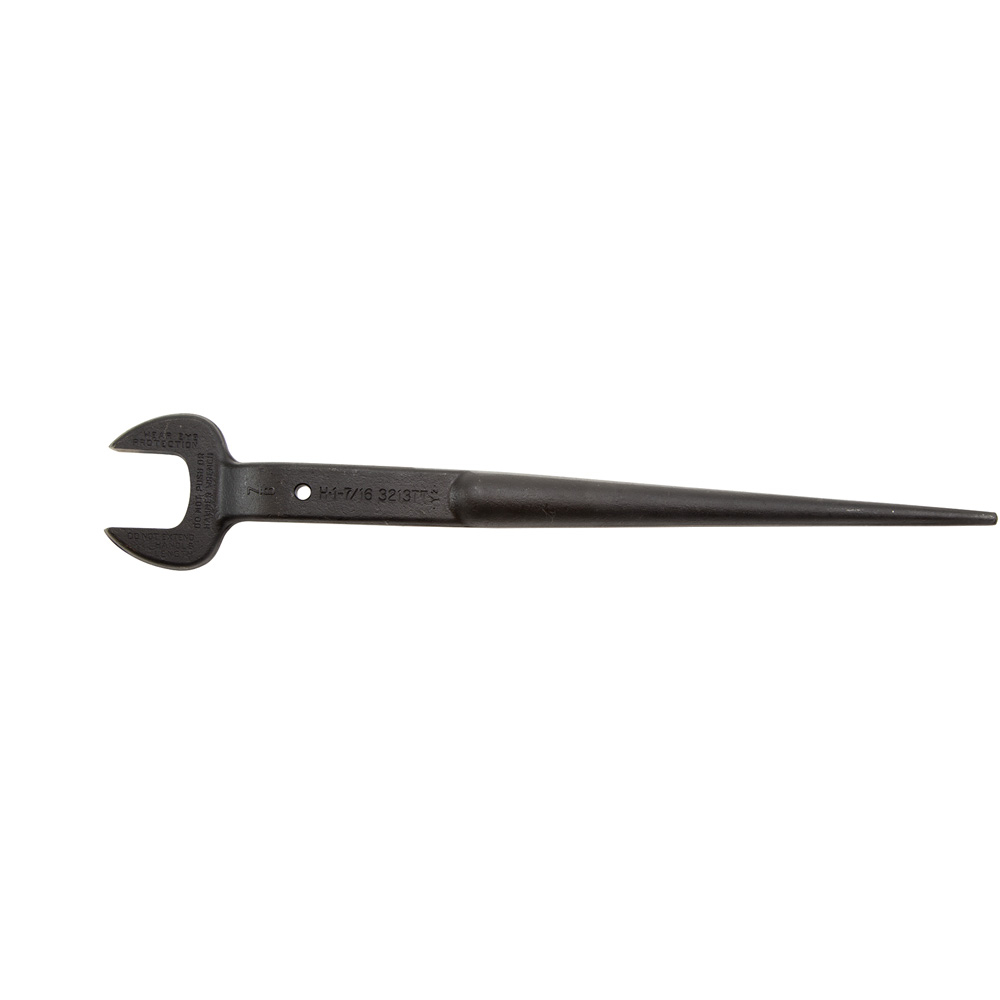

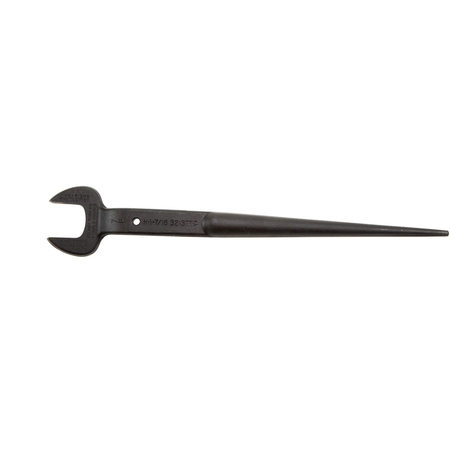

Spud Wrench, 1-7/16-Inch Nominal Opening with Tether Hole

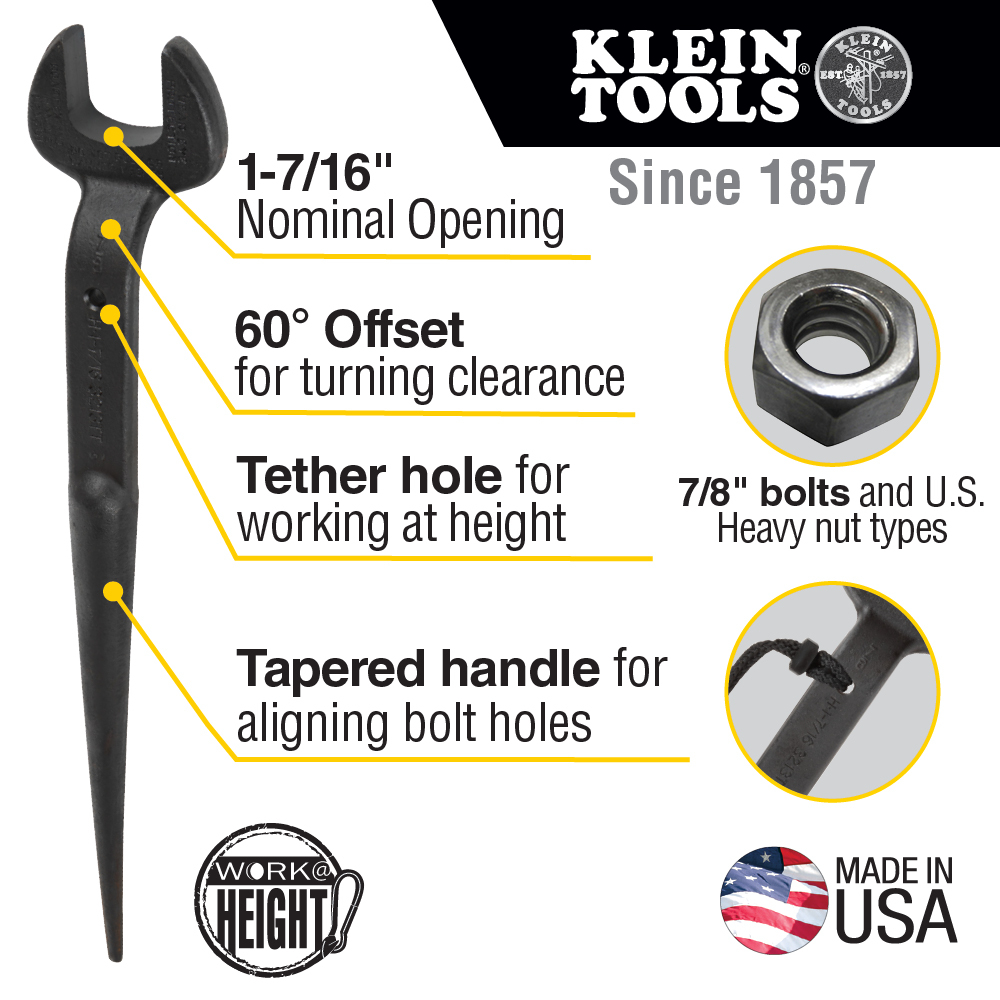

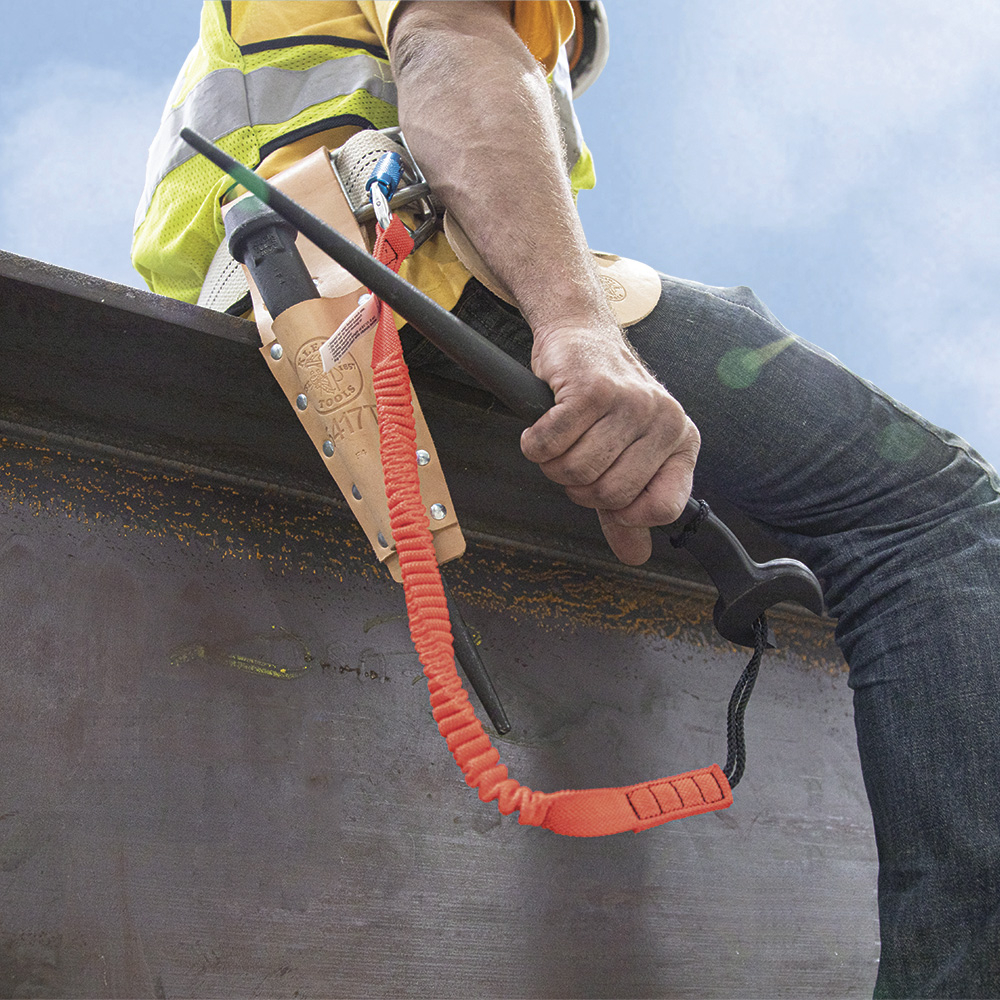

Forged from select alloy steel, Klein Tools' 1-7/16-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. For use with 7/8-Inch bolts and U.S. heavy nut types, the extra heavy-duty head area provides maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes. Includes a built-in hole so tool can be tethered when working at height.

Features

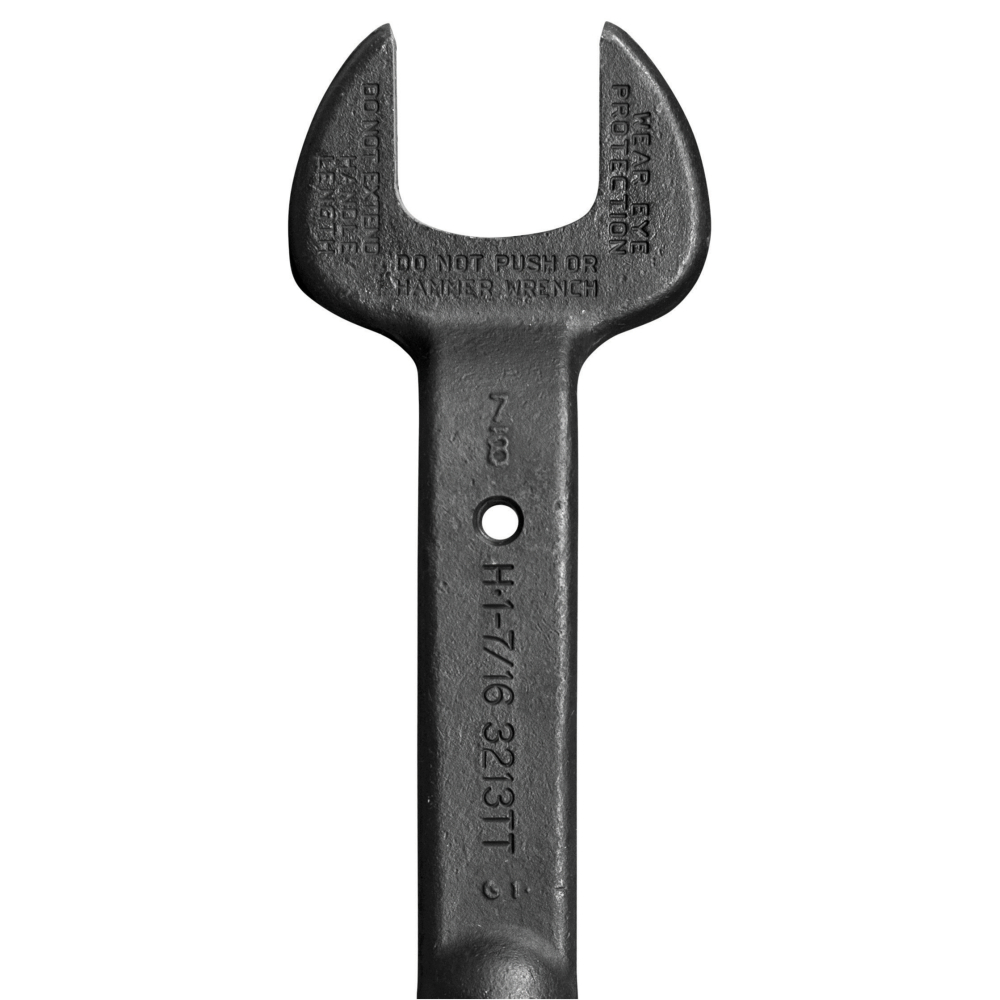

• Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
• American Bridge design
• Cross-hole with no sharp edges for tethering
• Forged from select alloy steel to withstand high-leverage and heavy loads

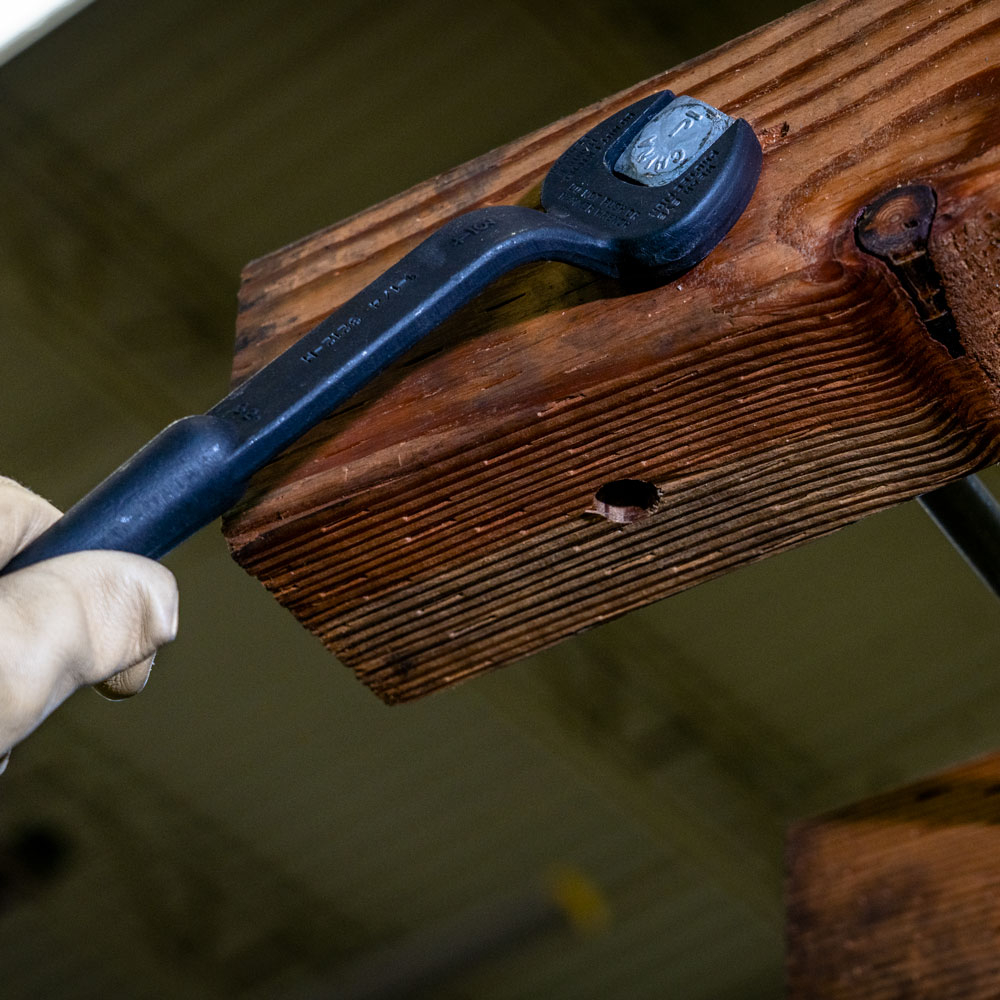

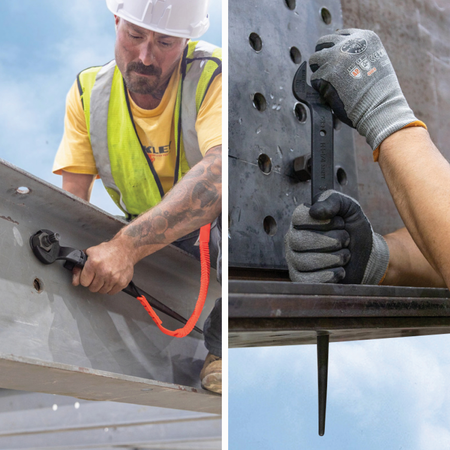

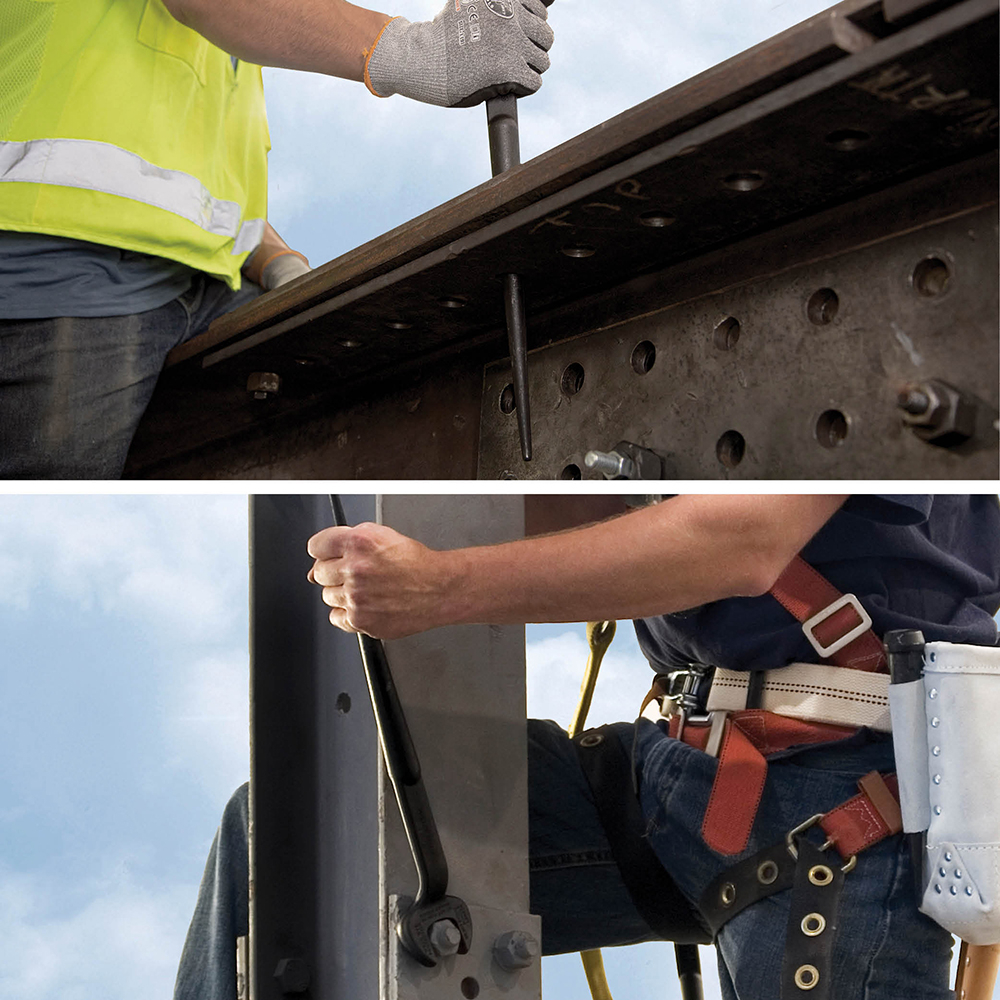

• Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
• Extra Heavy-Duty Head for Maximum Strength
• Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
• Extra-large hub area works on larger diameter holes better than other wrenches

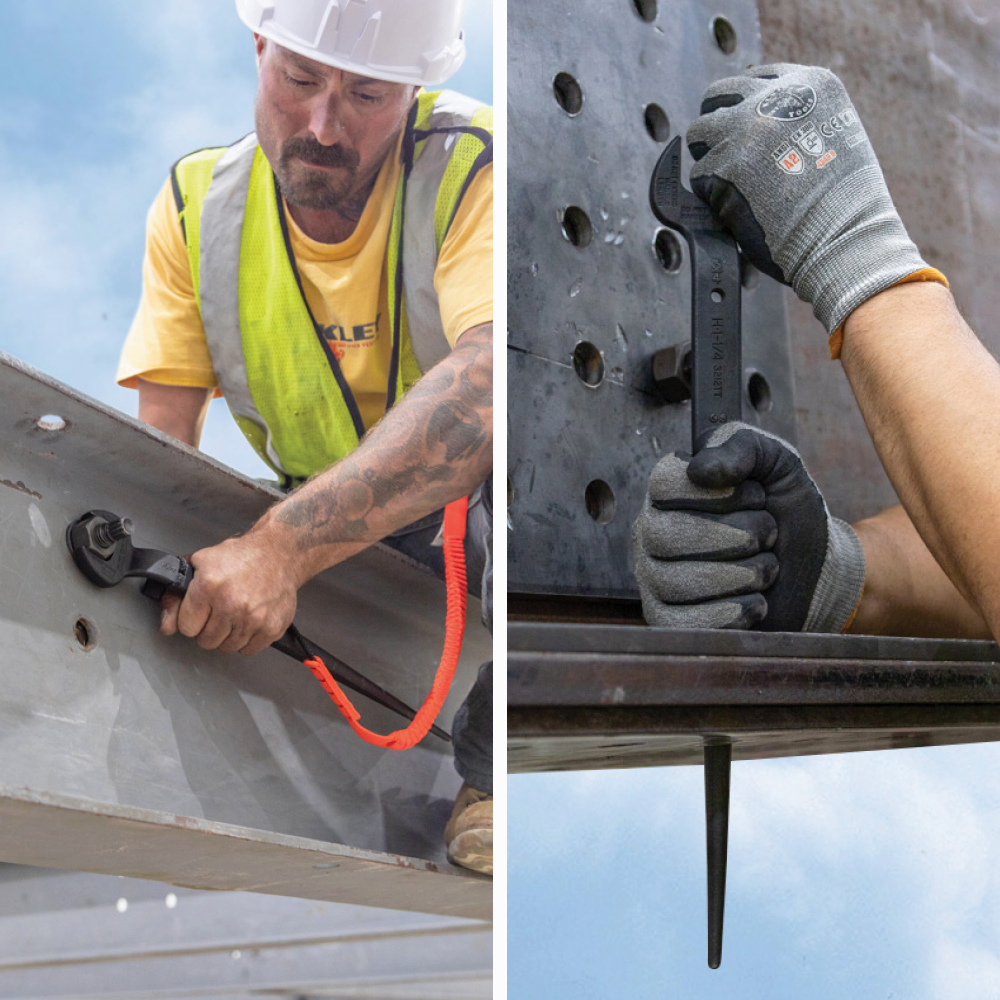

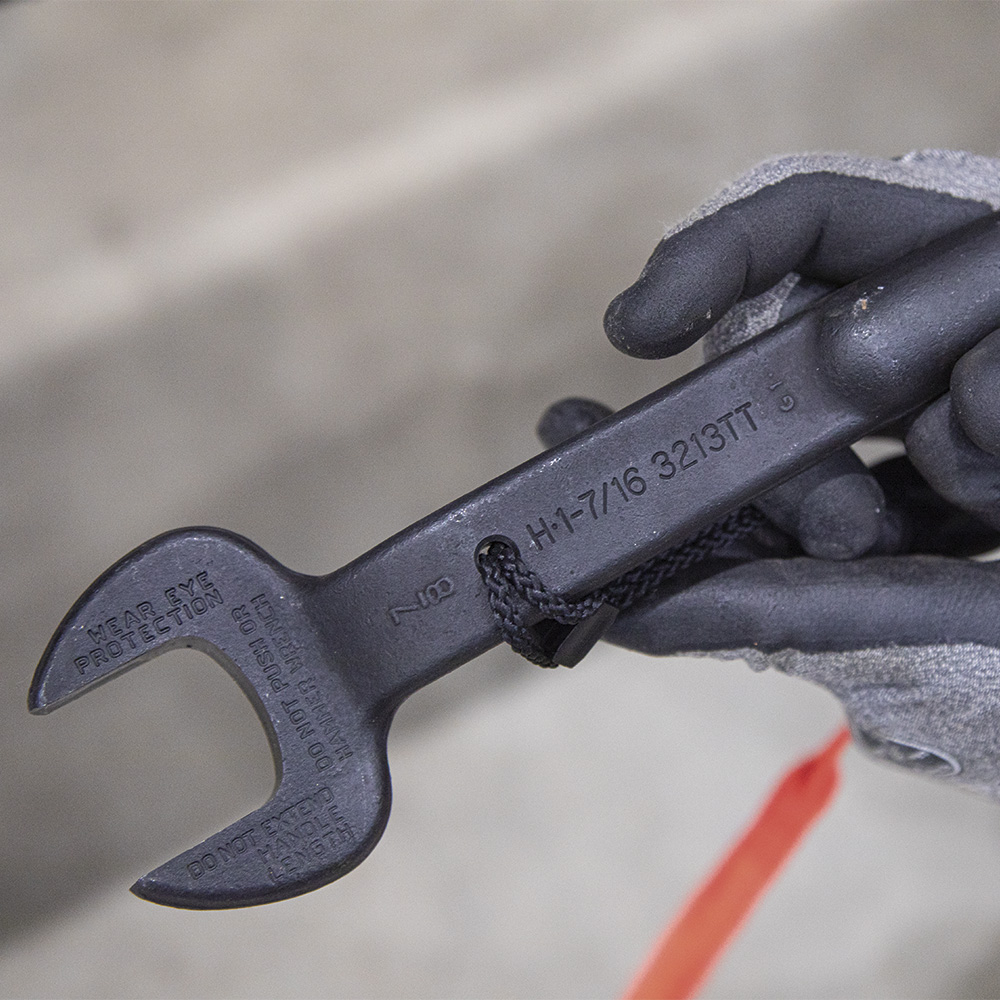

• Hole for Tethering
• Tether not included

Warnings

• Do NOT extend handle length.
• Always wear approved eye protection.
• Do NOT push or hammer wrench.

• Nominal Opening: 1-7/16 in (3.7 cm)
• Bolt Size: 7/8 in (2.2 cm)
• Overall Width: 3 in (7.6 cm)
• Head Width: 3 in (7.6 cm)
• Overall Height: 1 in (2.54 cm)

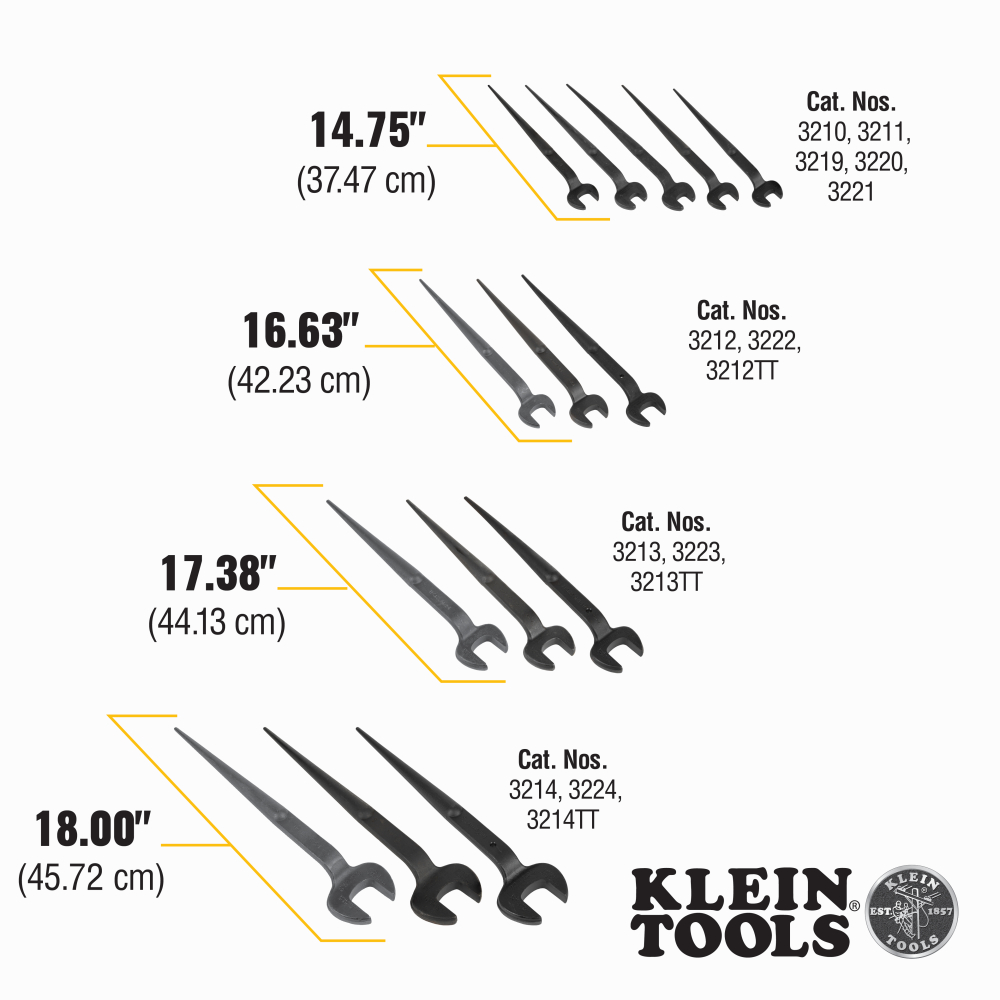

• Overall Length: 17.375 in (44.1 cm)
• Weight: 2.72 lbs
• Material: Alloy Steel
• Finish: Black Oxide with Rust Preventative

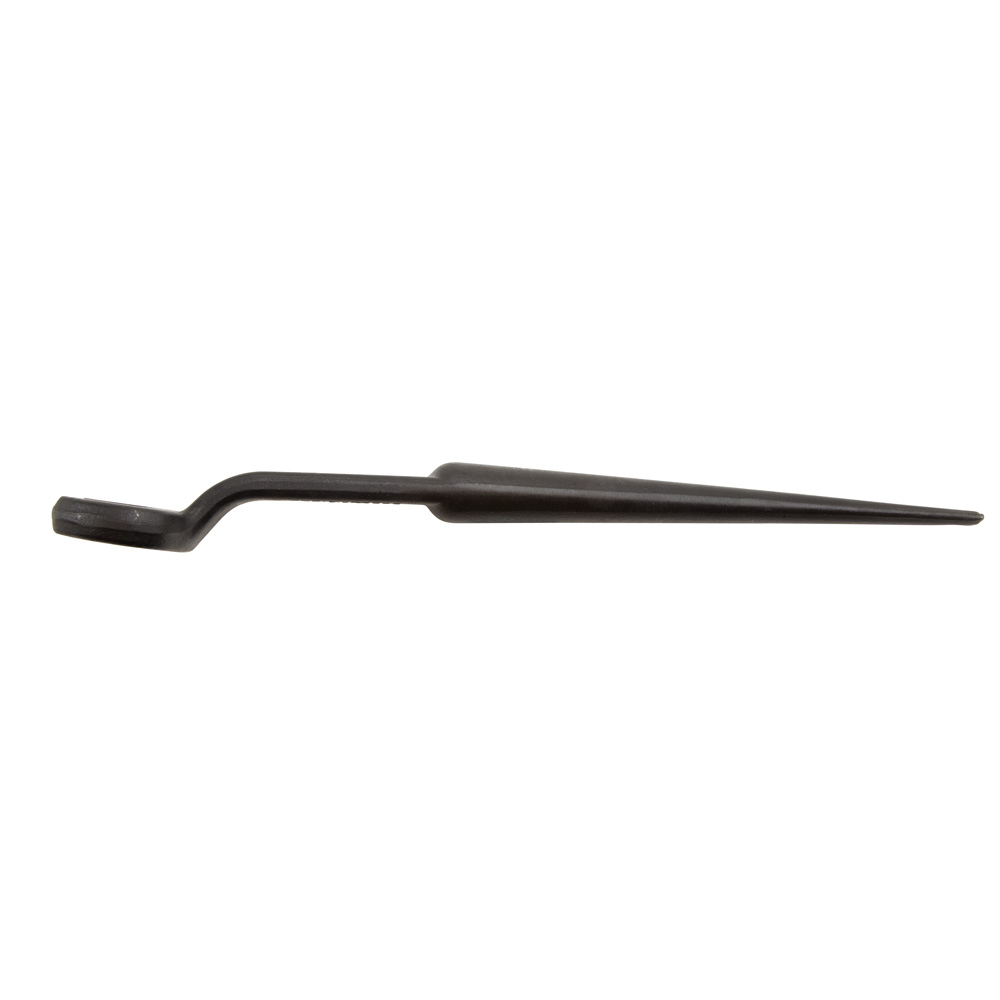

• Offset Angle: 60°
• Taper Diameter: 1-1/8 to 9/32 in (2.9 to 0.7 cm)
• Nut Type: U.S. Heavy
• Type: Spud Wrench
• Style Name: Tetherable
• Tether Hole: Yes
• Heavy Nut Size: 7/8 in (2.2 cm)
• Size Name: 7/8-Inch
• Country of Origin: United States
