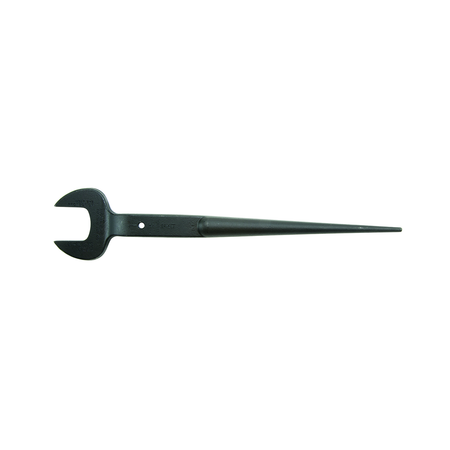

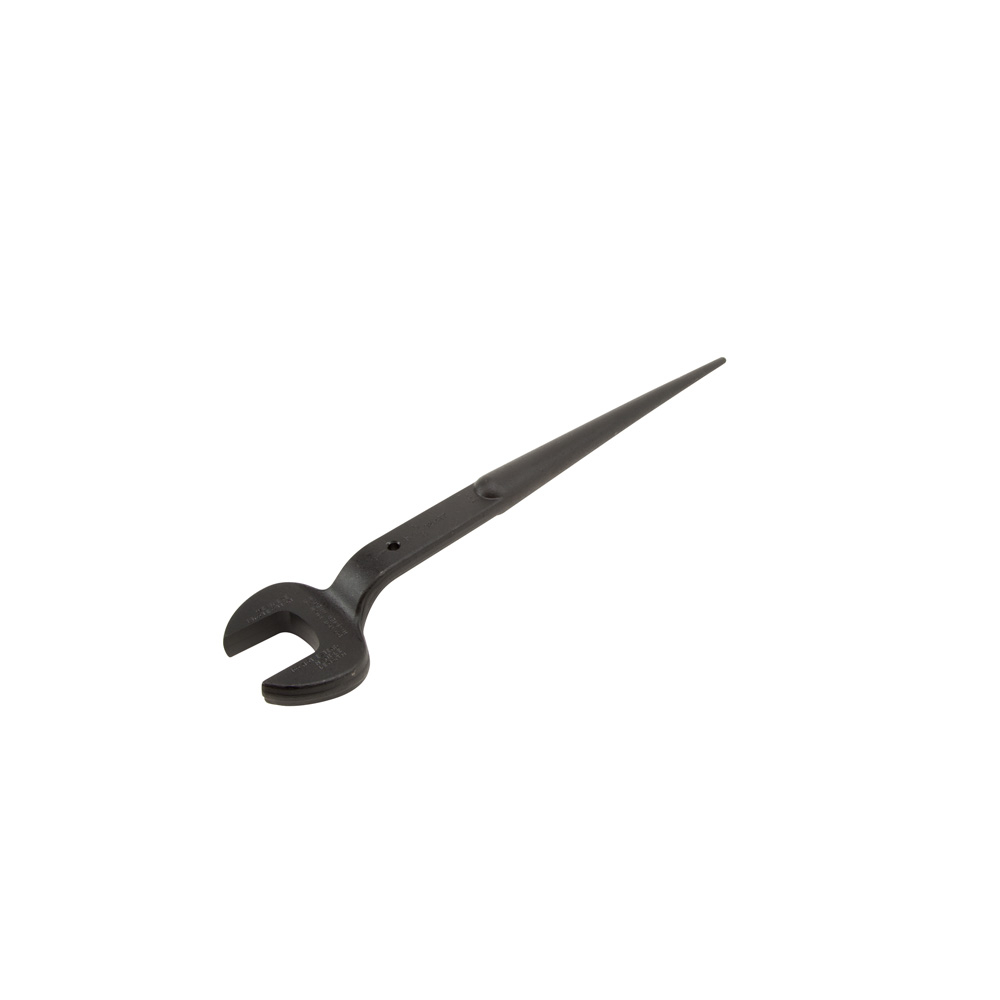

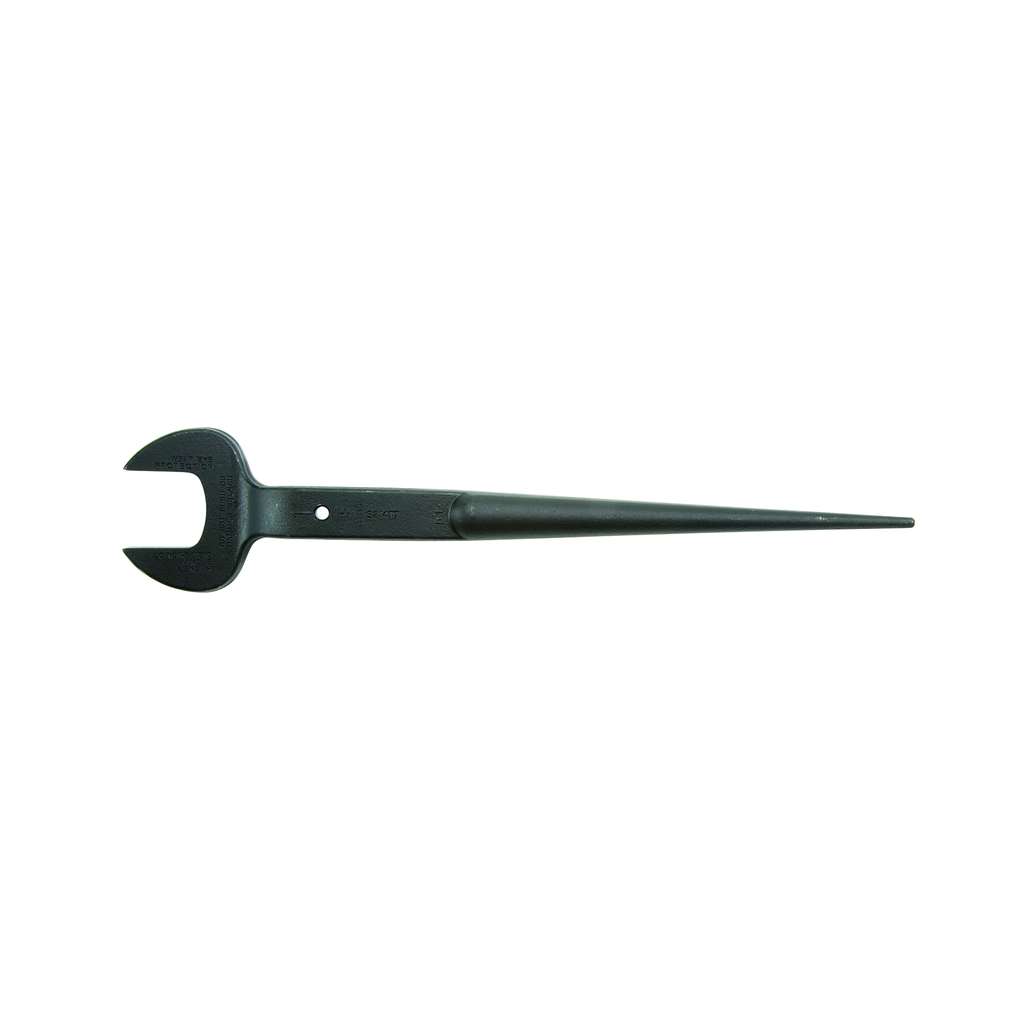

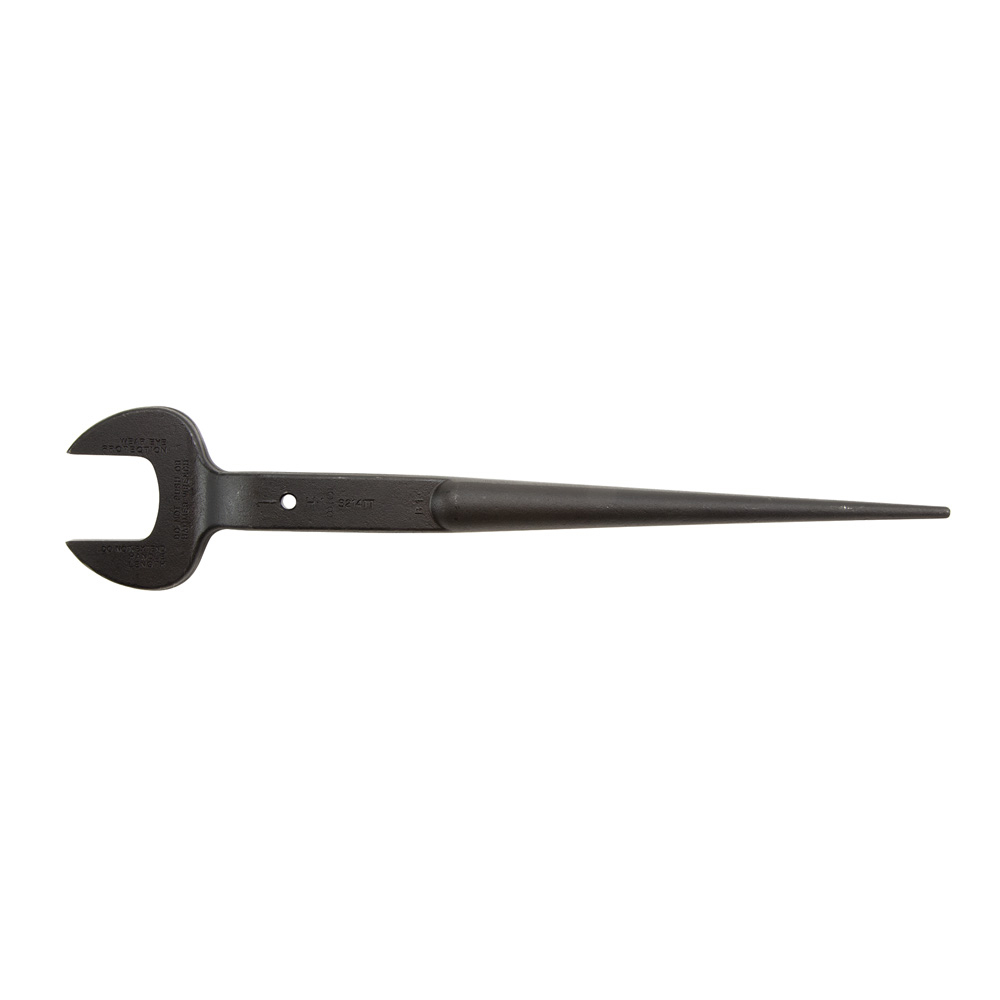

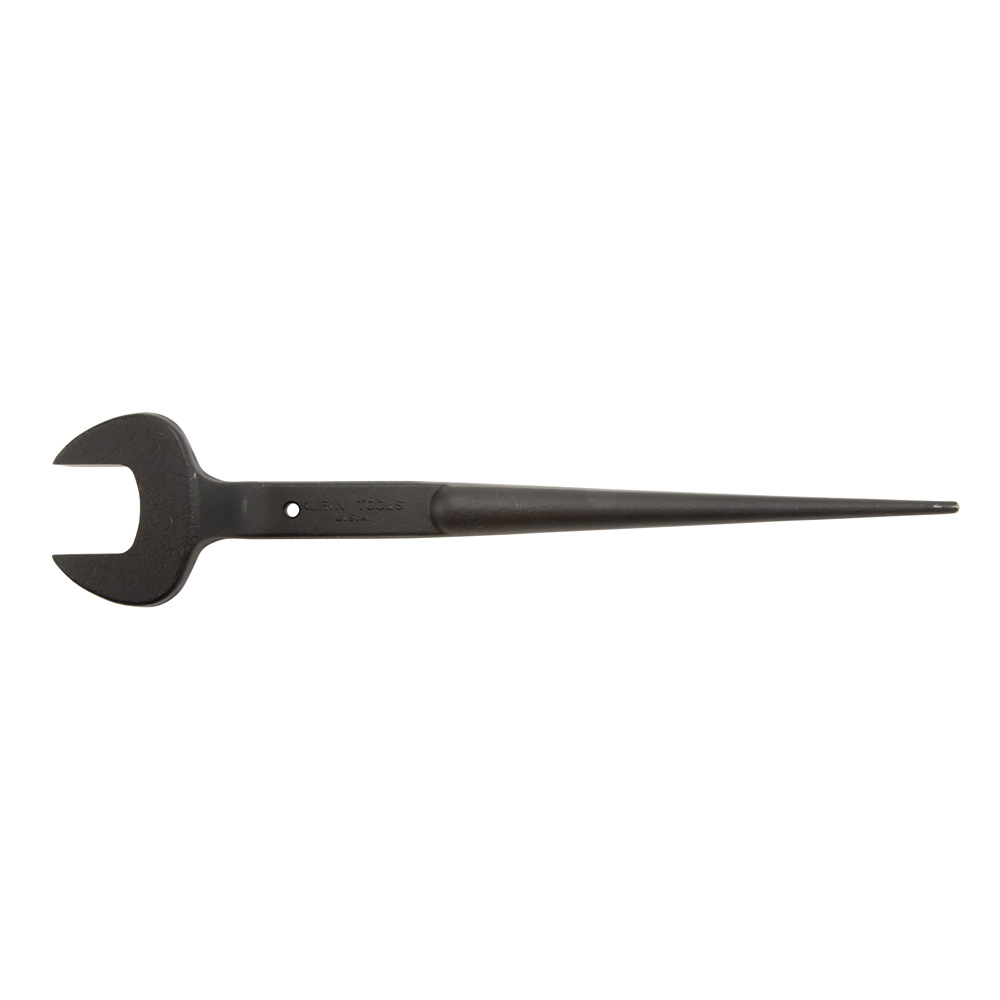

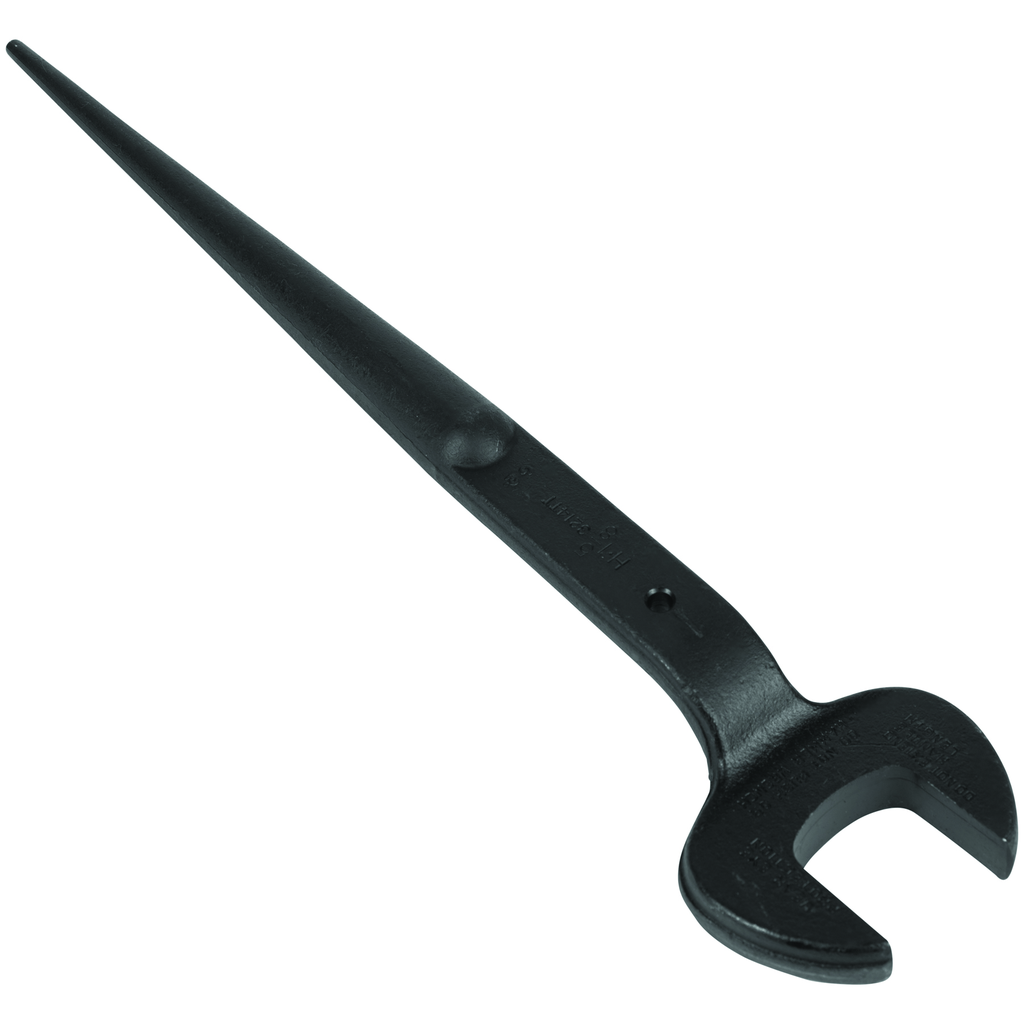

Spud Wrench, 1-5/8-Inch Nominal Opening with Tether Hole

Forged from select alloy steel, Klein Tools' 1-5/8-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. For use with 1-Inch bolts and U.S. heavy nut types, the extra heavy-duty head area provides maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes. Includes a built-in hole so tool can be tethered when working at height.

Warnings

• Always wear approved eye protection.
• Do NOT extend handle length.
• Do NOT push or hammer wrench.

Features

• Forged from select alloy steel to withstand high-leverage and heavy loads
• Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
• Tether not included

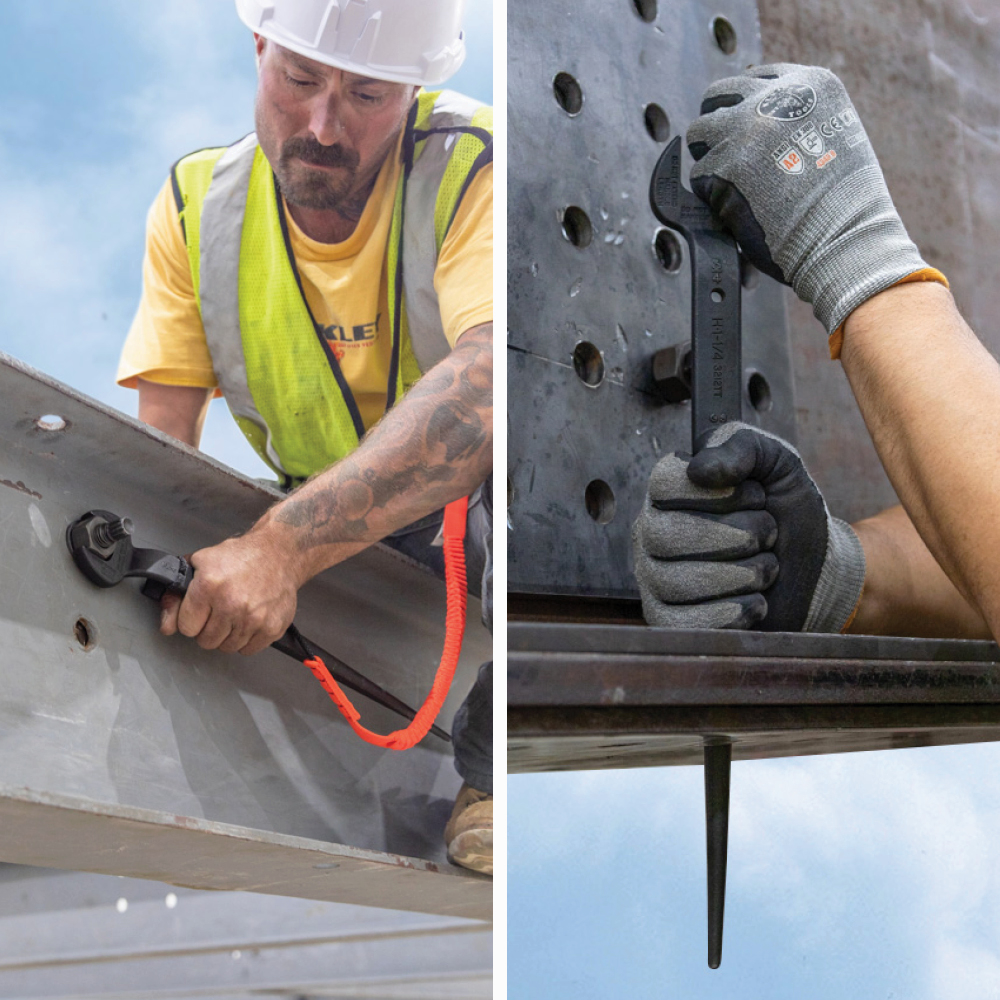

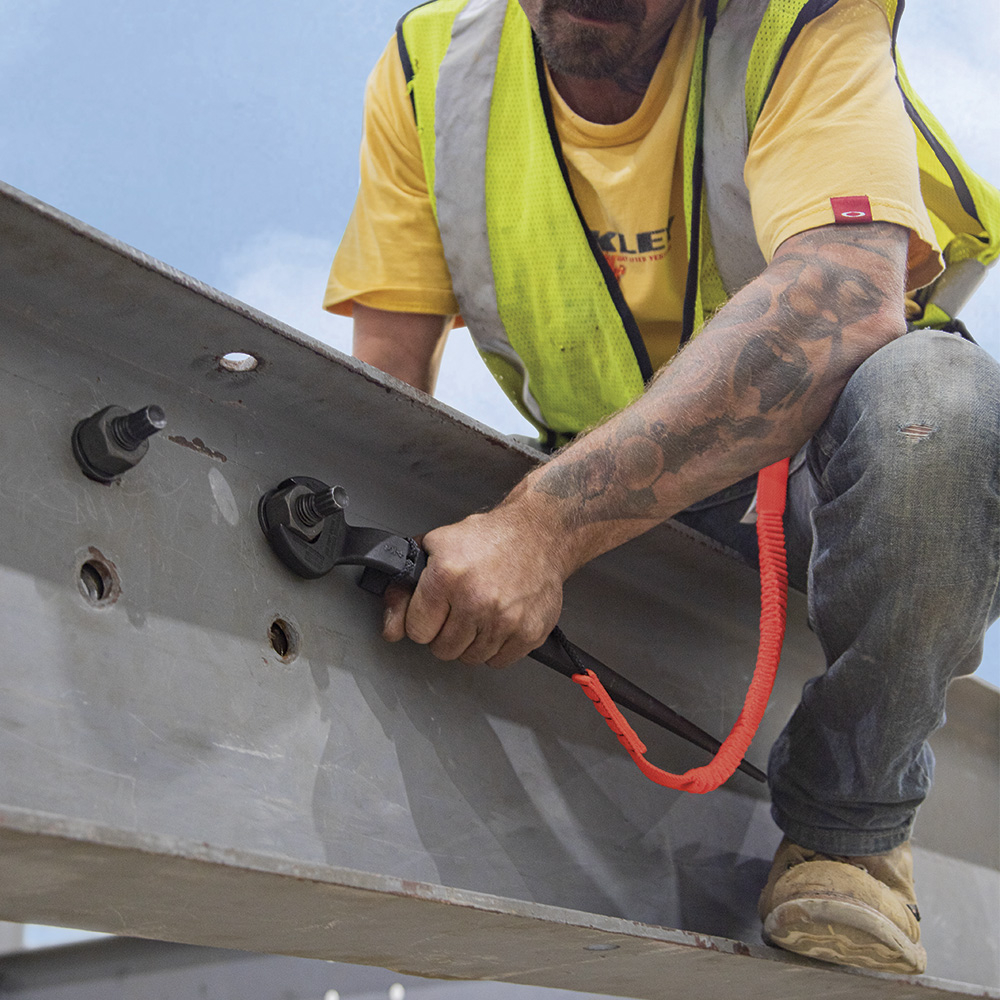

• Hole for Tethering

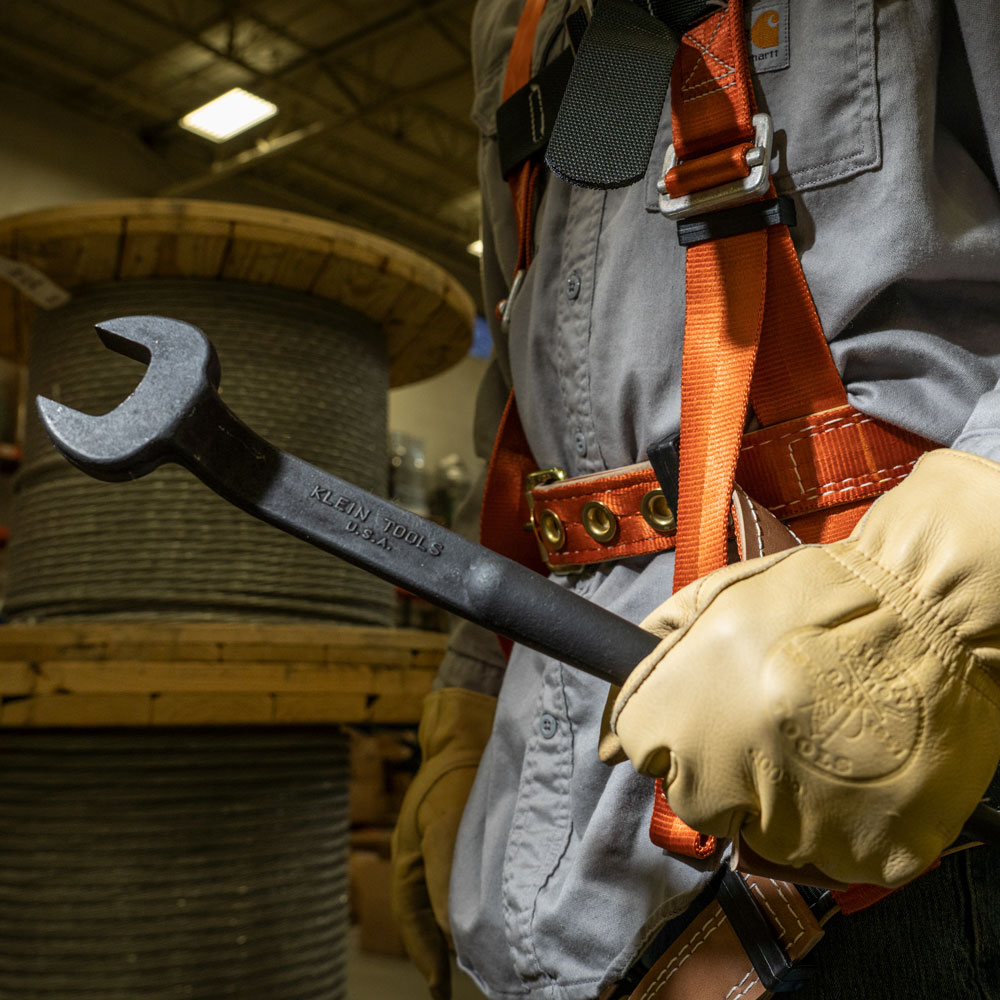

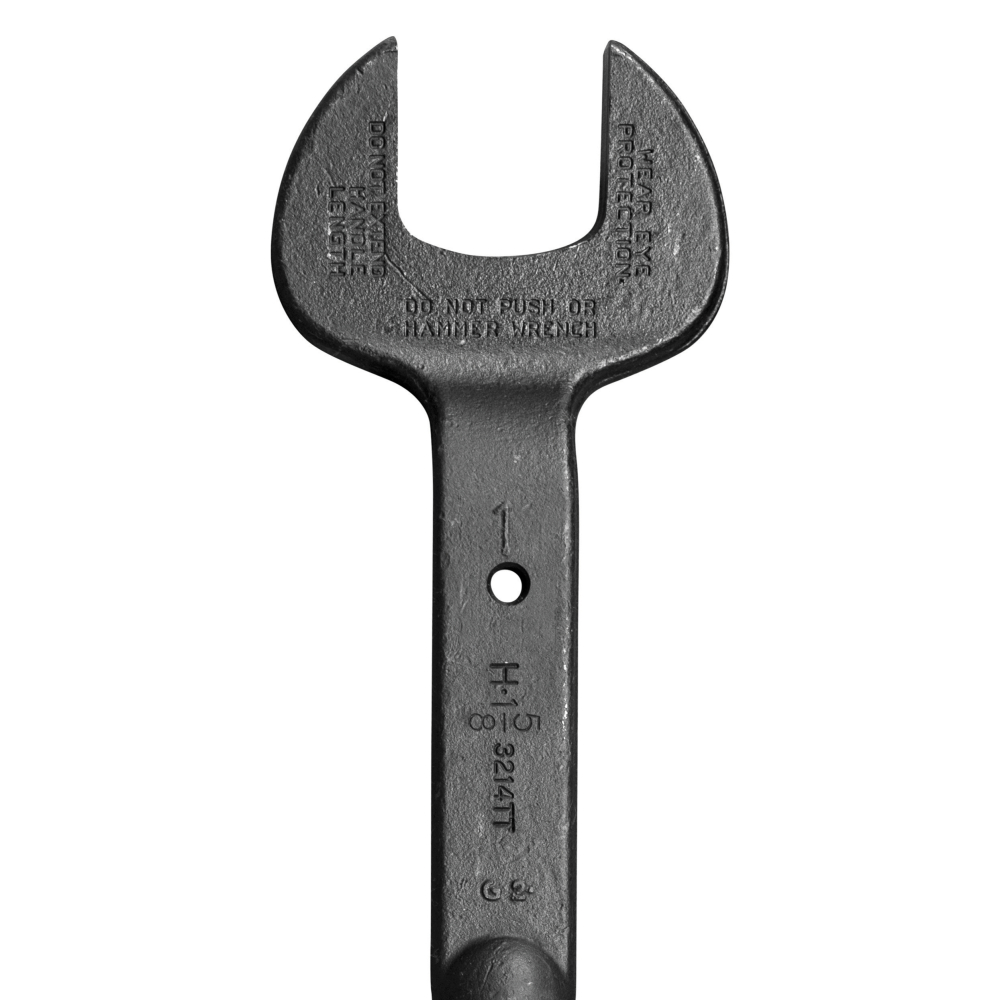

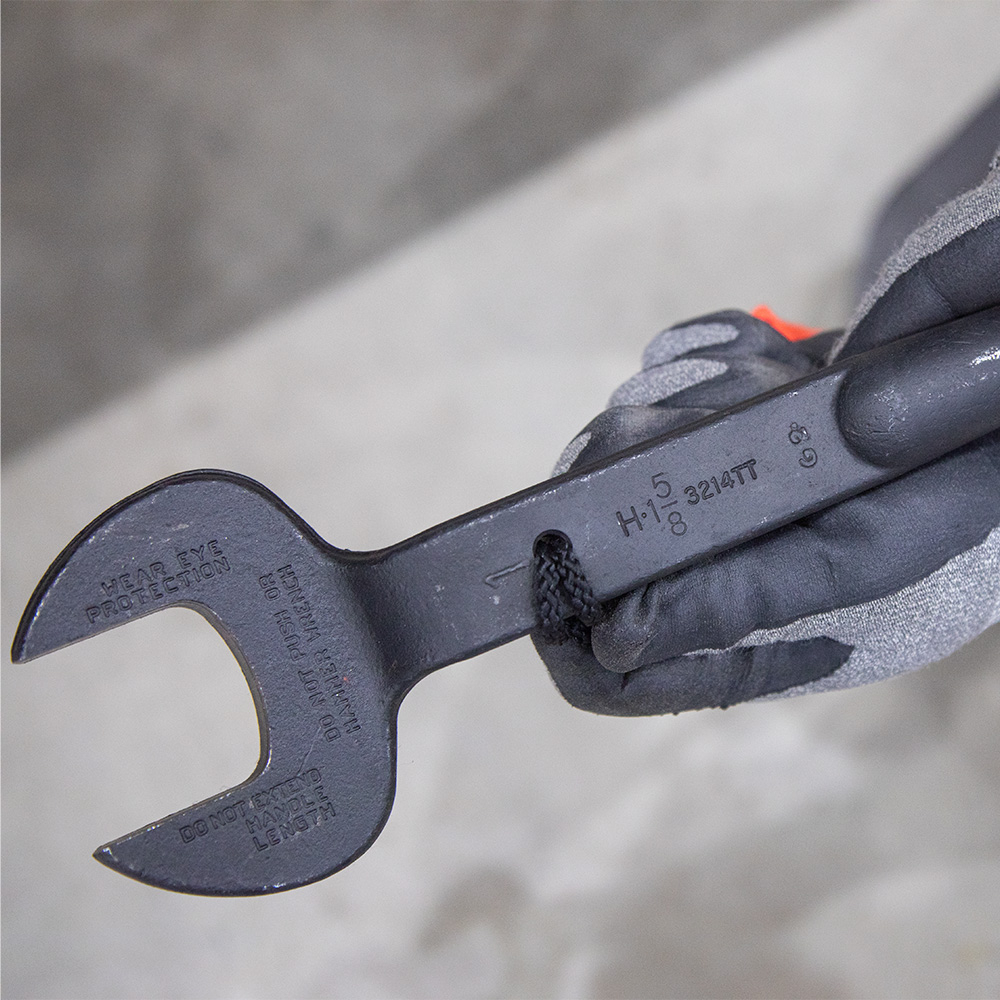

• Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
• American Bridge design
• Extra-large hub area works on larger diameter holes better than other wrenches
• Extra Heavy-Duty Head for Maximum Strength

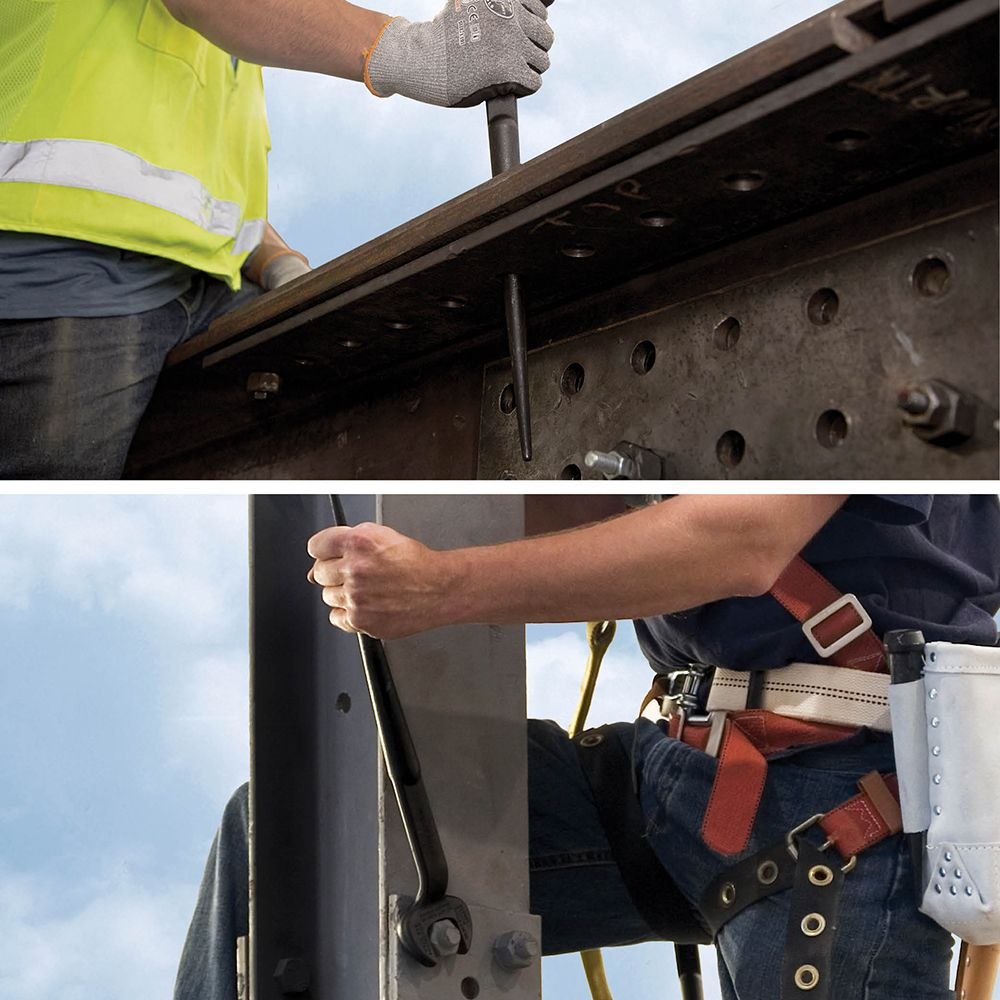

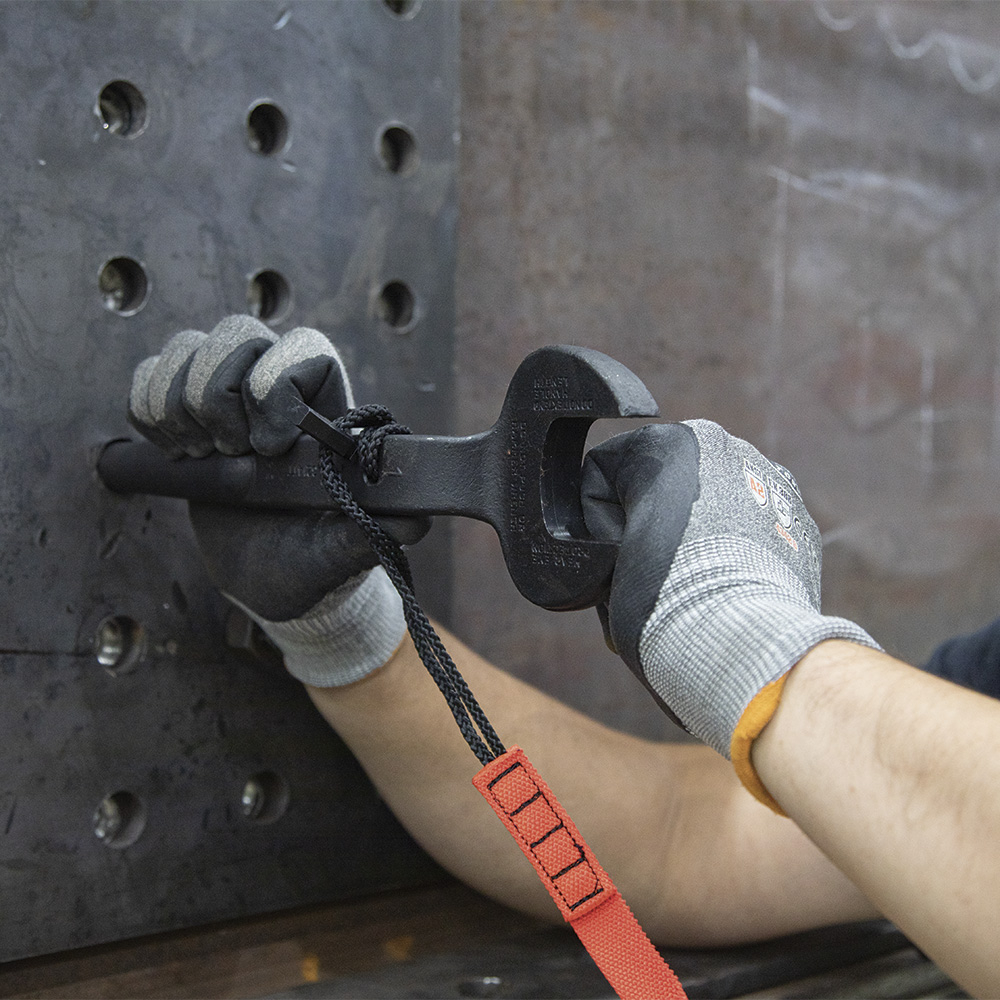

• Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding

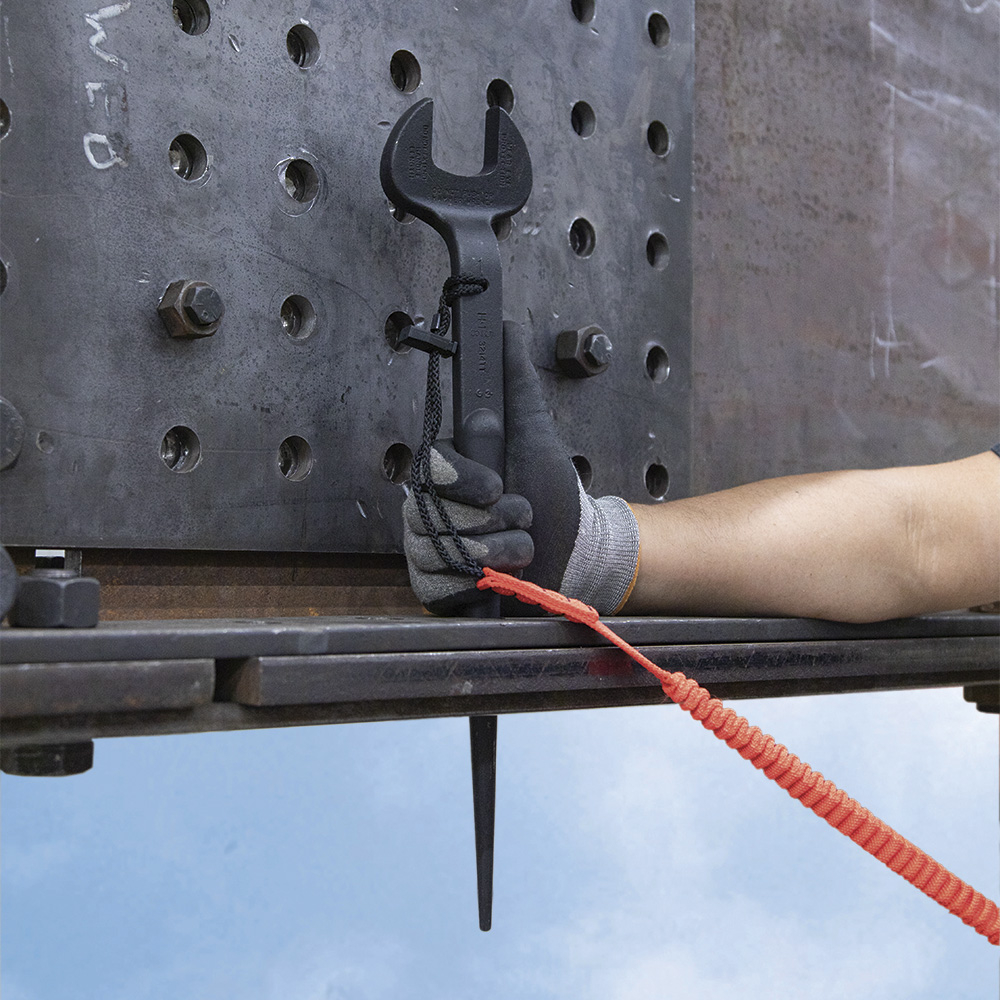

• Cross-hole with no sharp edges for tethering

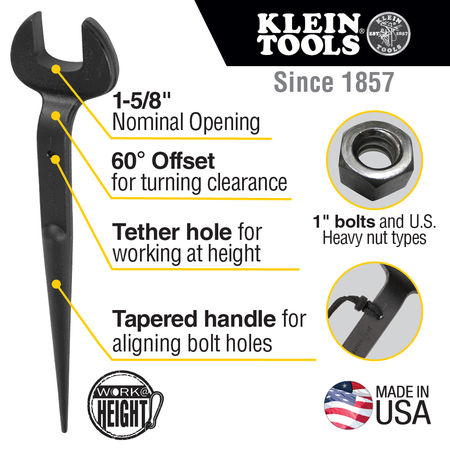

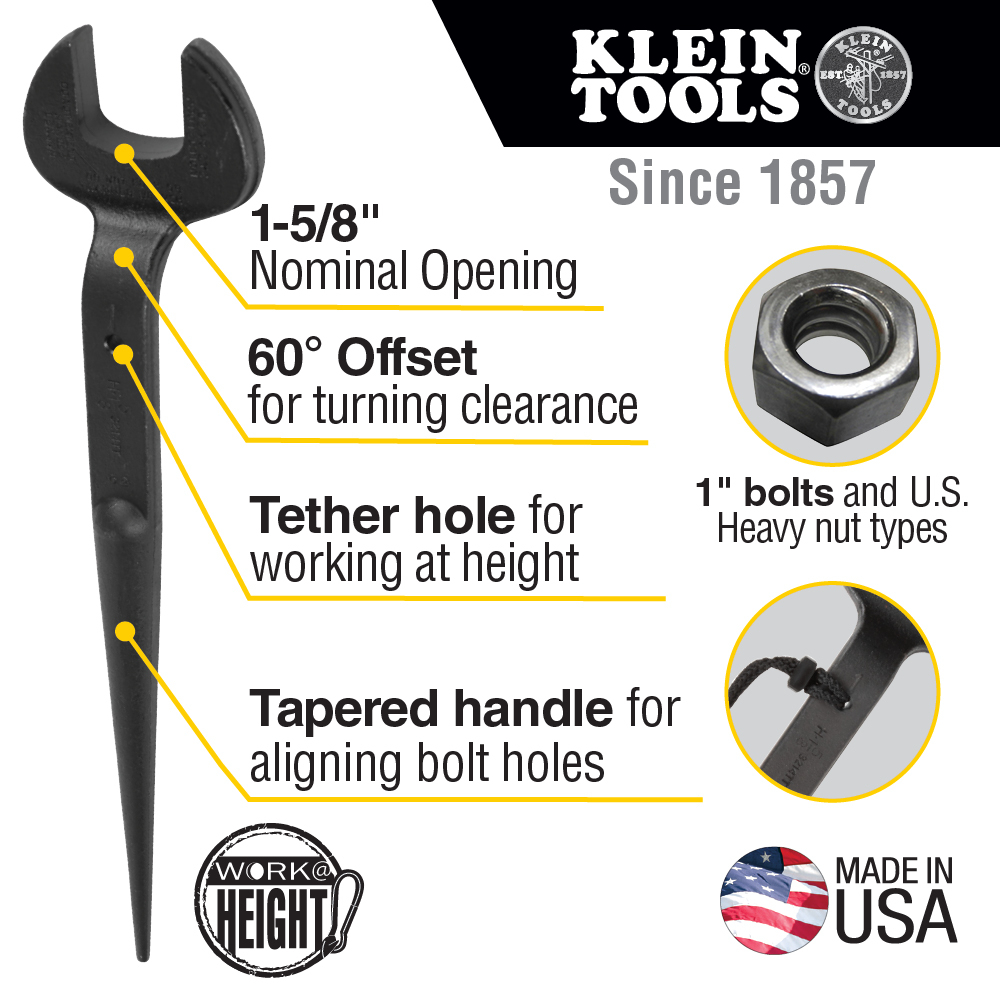

• Nominal Opening: 1-5/8 in (4.1 cm)
• Bolt Size: 1 in (2.5 cm)

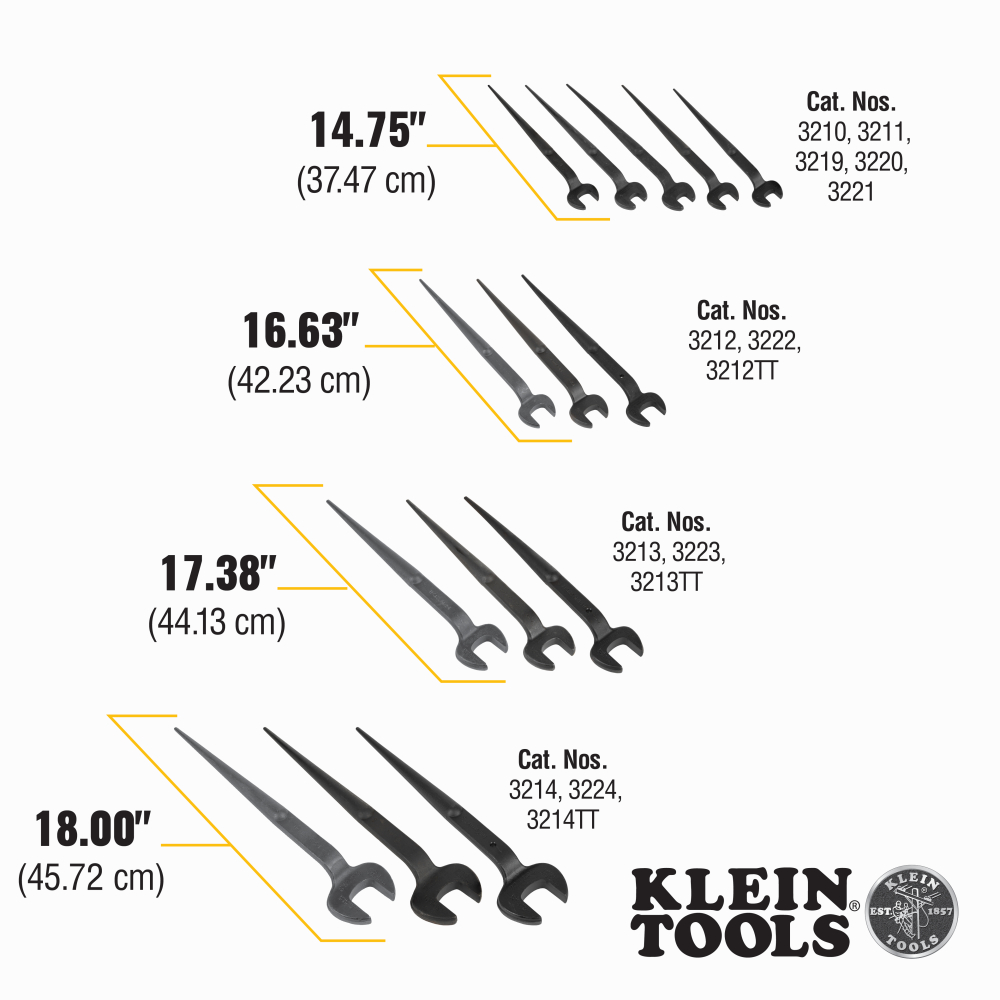

• Overall Length: 18 in (45.7 cm)
• Depth: 18 in
• Overall Width: 3.6 in (9.1 cm)
• Head Width: 3.625 in (9.2 cm)
• Width: 3.625 in
• Height: 1 in
• Overall Height: 1 in (2.54 cm)

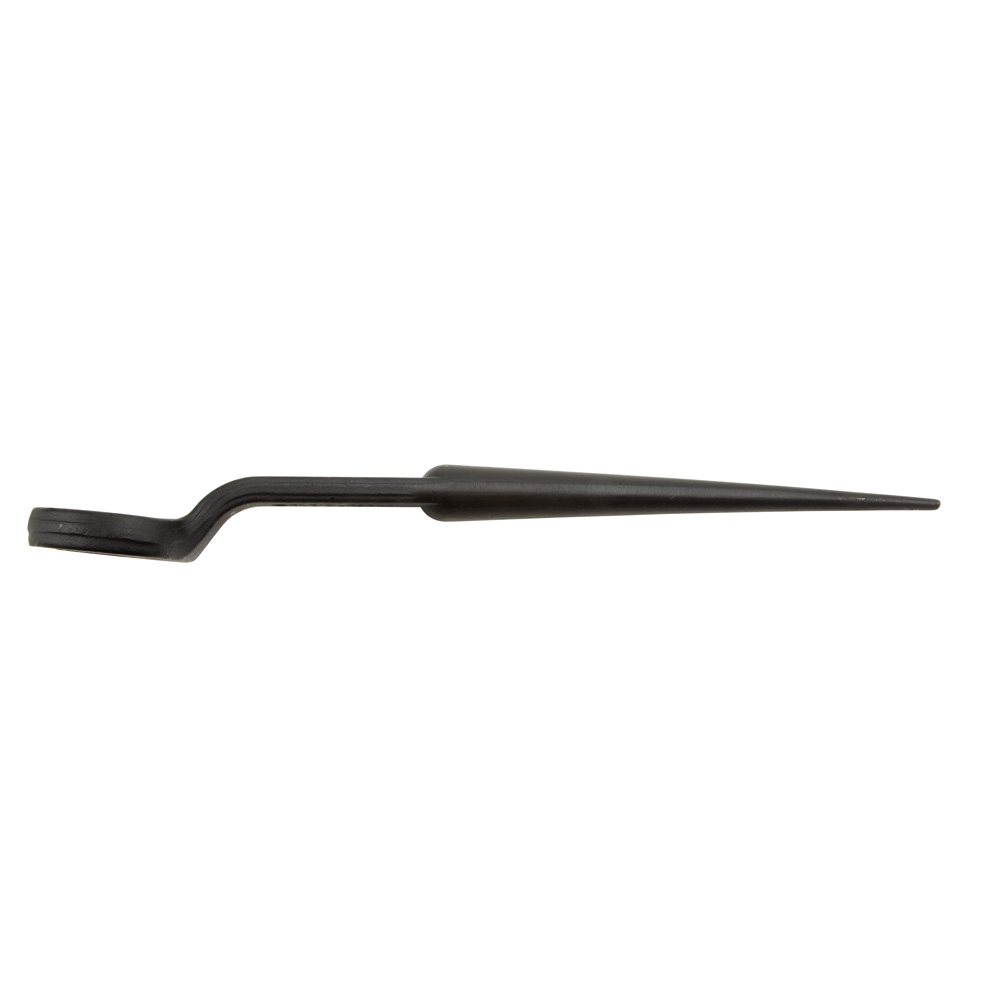

• Offset Angle: 60°
• Taper Diameter: 1-1/8 in to 1/4 in (2.9 to 0.6 cm)
• Weight: 3.36 lbs
• Material: Alloy Steel
• Finish: Black Oxide with Rust Preventative
• Nut Type: U.S. Heavy
• Country of Origin: United States
• Type: Spud Wrench

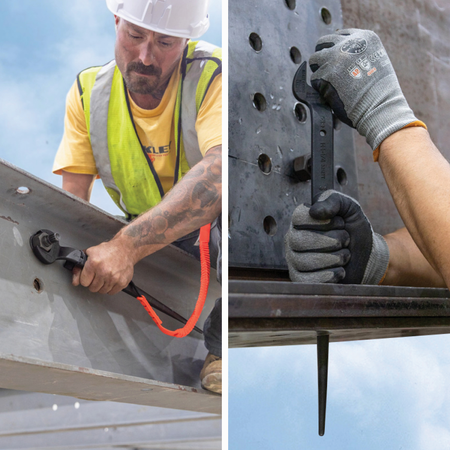

• Application: Connecting Steel Members
• Size Name: 1-Inch
• Style Name: Tetherable
• Design: American Bridge
• Handle: Continuous taper for lining up bolt holes
• Head: Extra heavy-duty for maximum strength
• Extra Feature: Extra-large hub area for larger hole diameters
