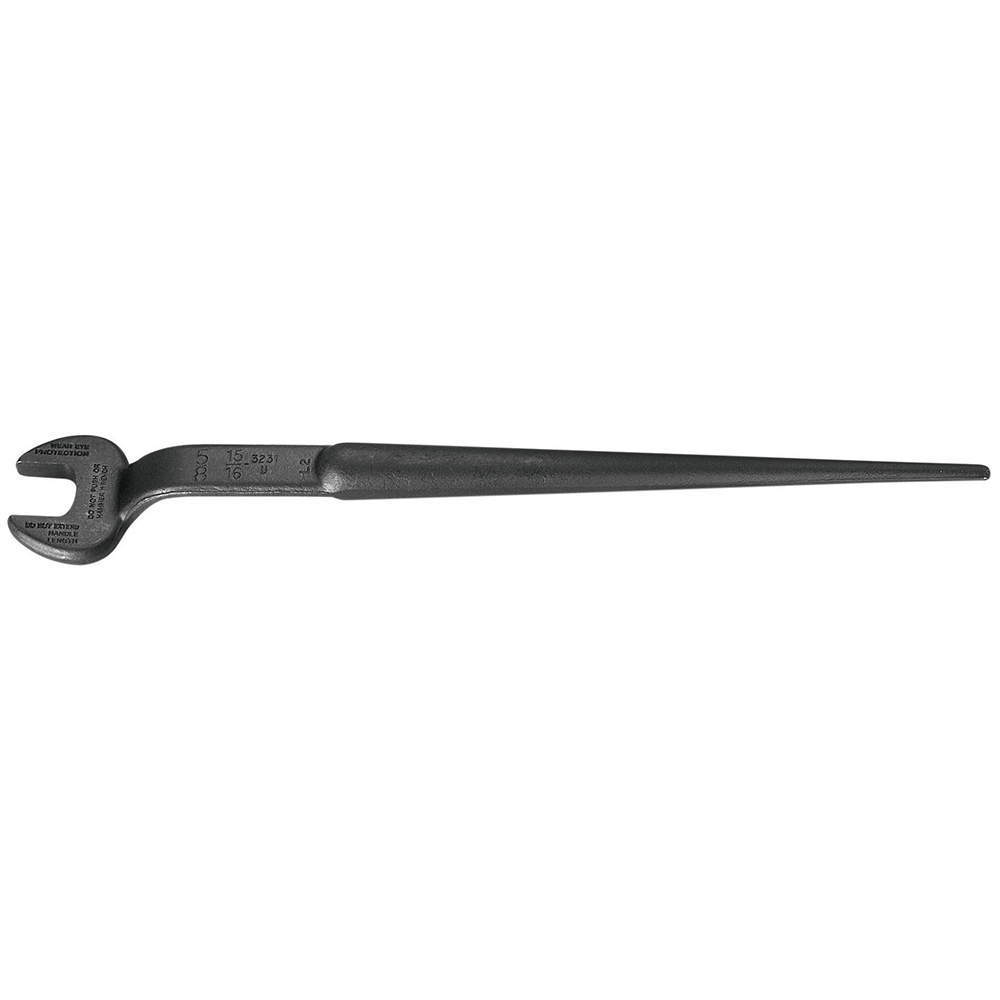

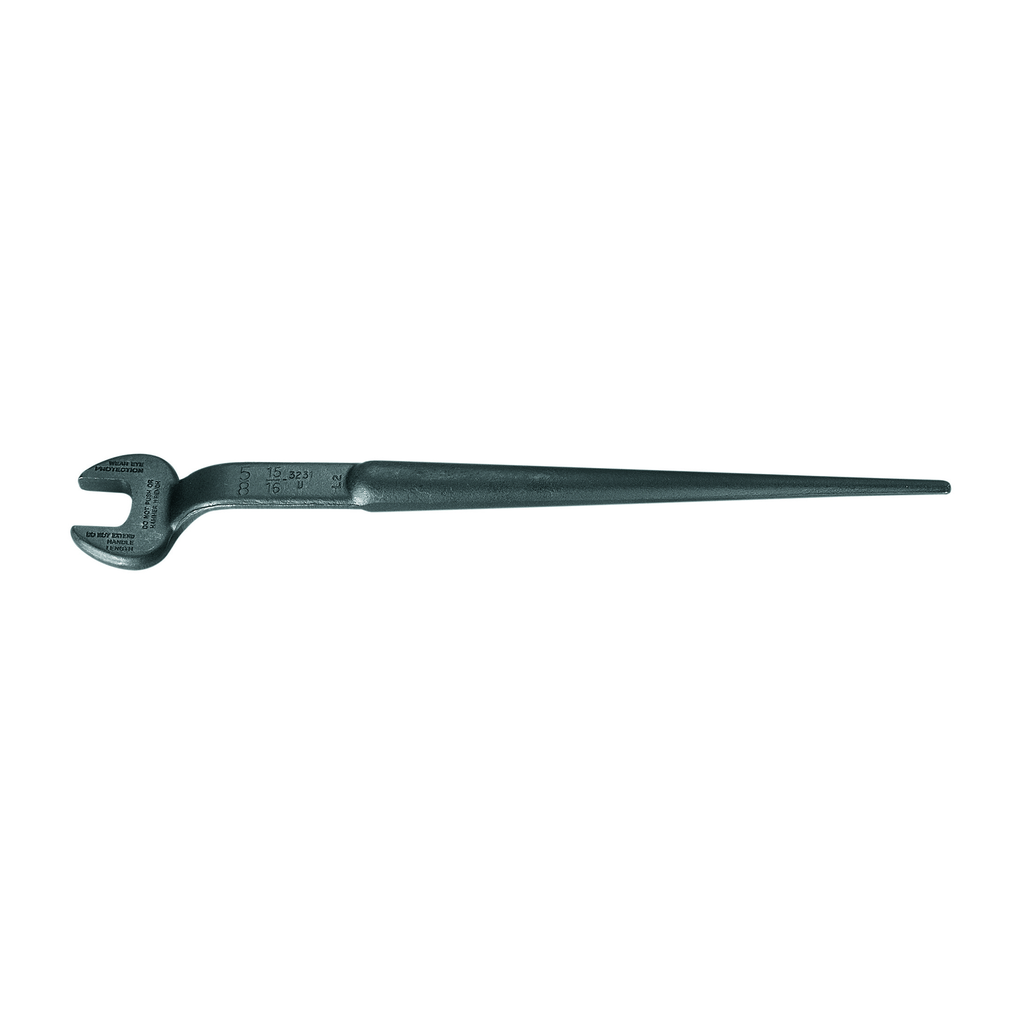

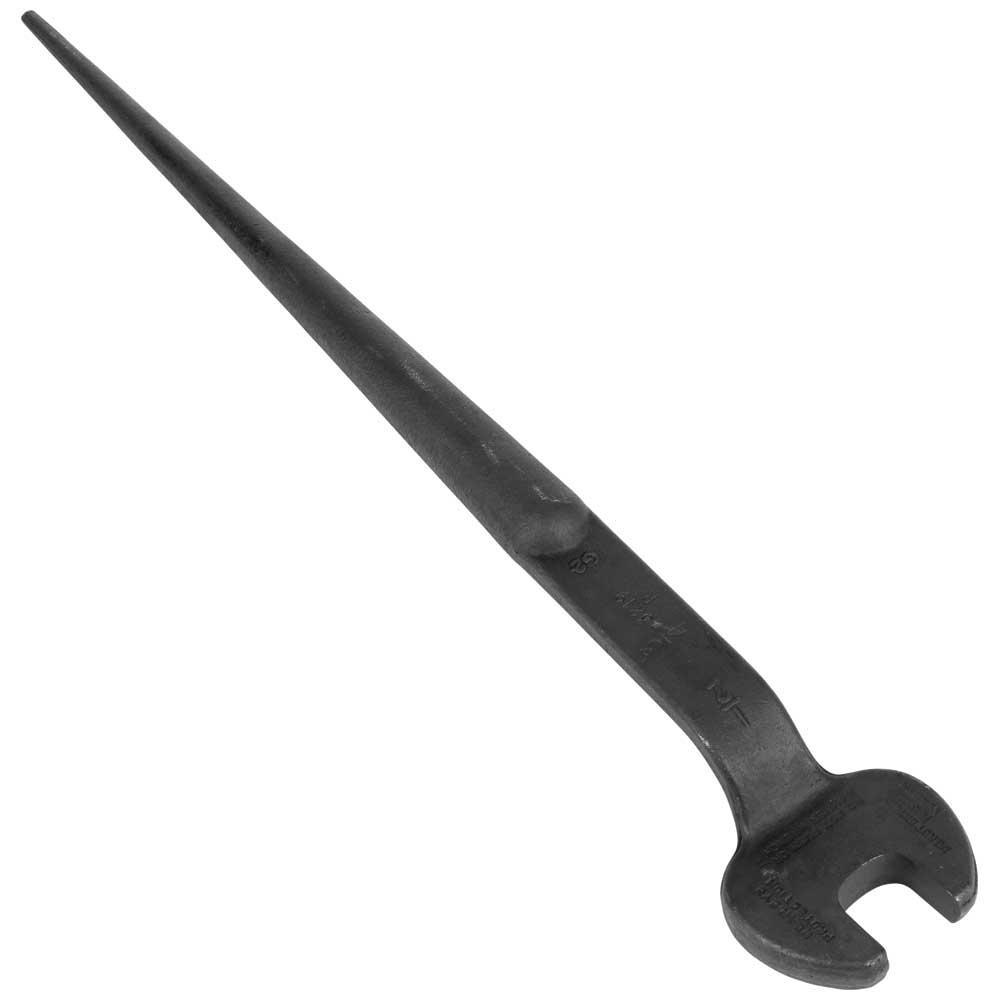

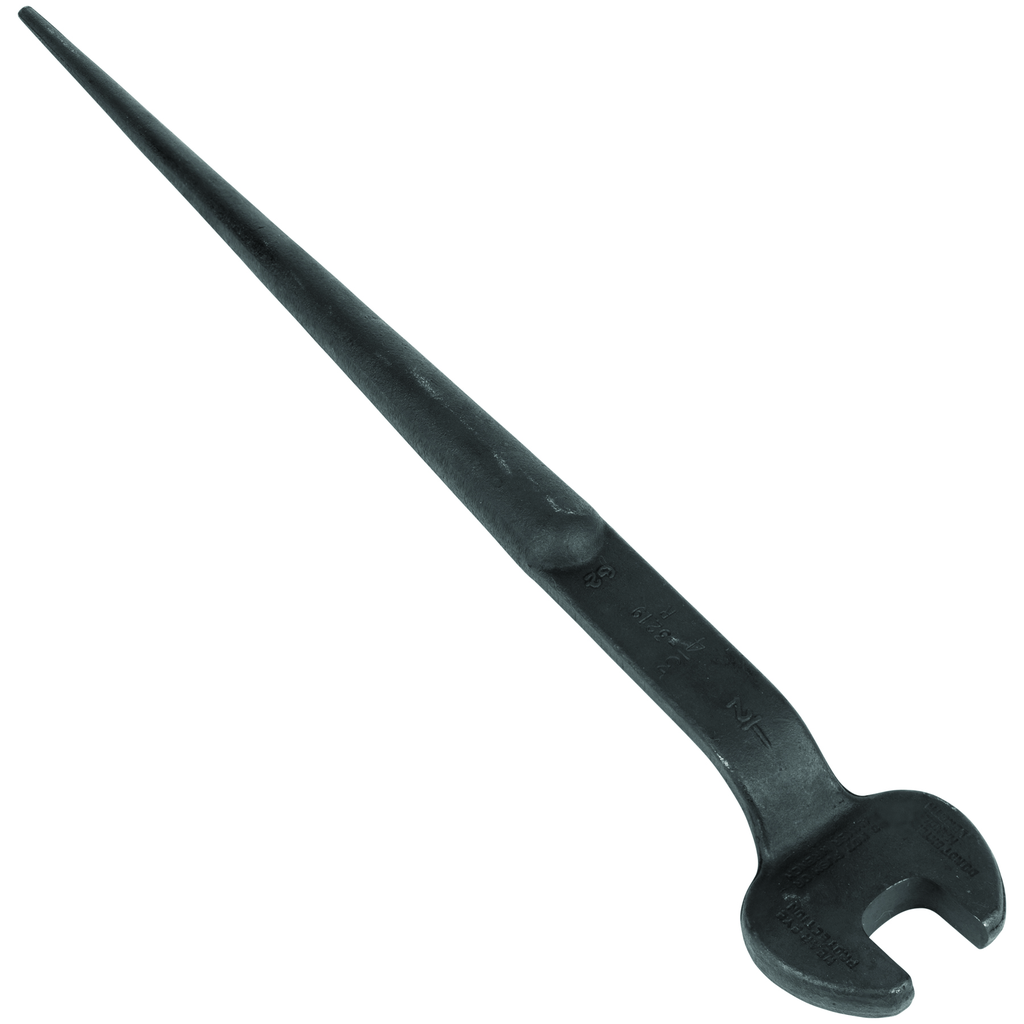

Spud Wrench, 3/4-Inch Nominal Opening for Regular Nut

Forged from select alloy steel, the Klein Tools 3/4-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. It's designed for use with 1/2-Inch bolts and U.S. regular nut types. The extra-duty head area gives maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.

Features

• Forged from select alloy steel to withstand high-leverage and heavy loads
• Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads

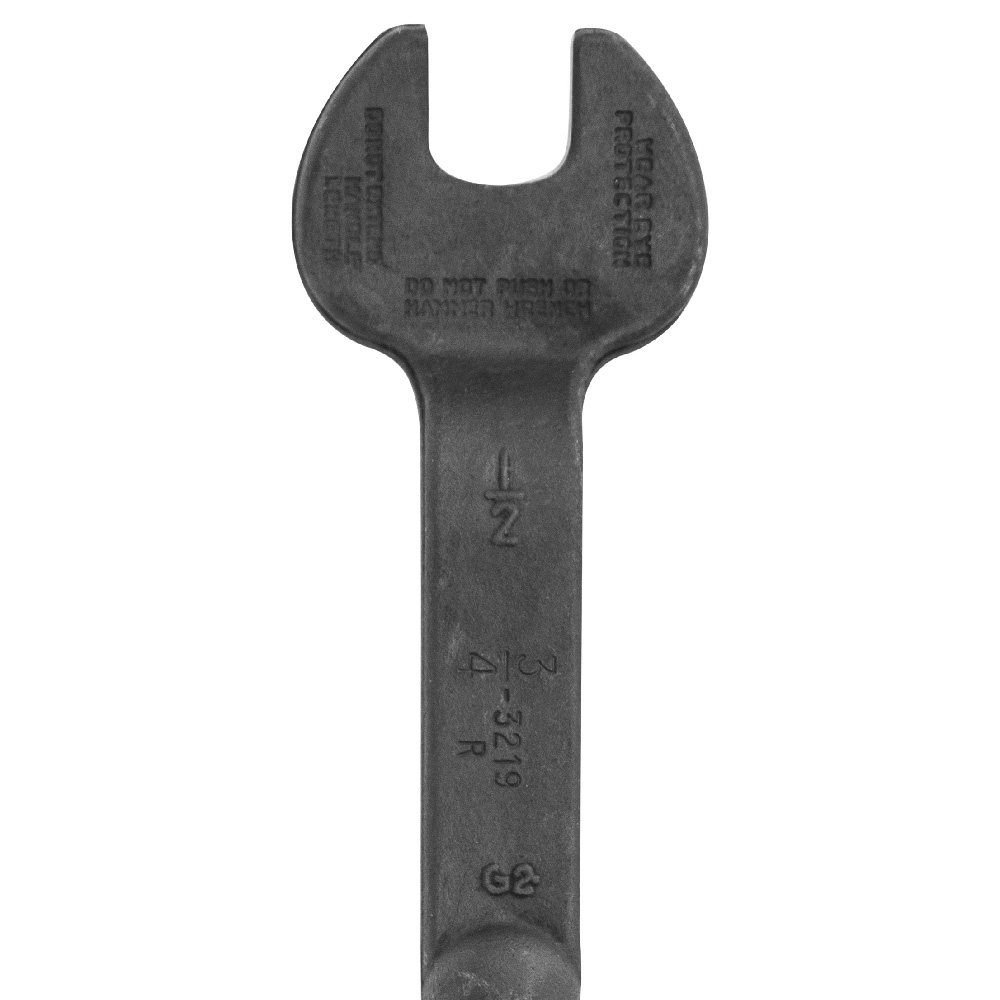

• Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
• Made in USA
• American Bridge design
• Extra-large hub area works on larger diameter holes better than other wrenches
• Extra heavy-duty head area gives maximum strength and durability

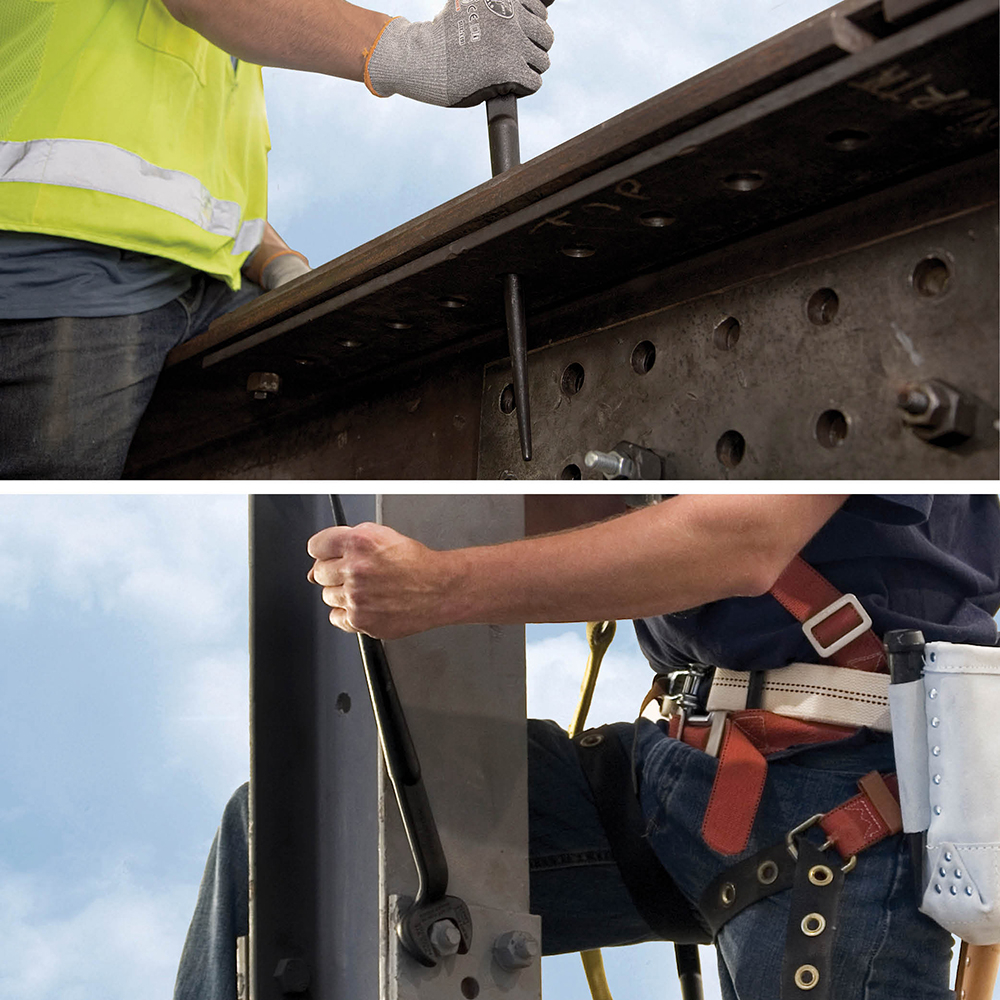

• Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding

Warnings

• Do NOT push or hammer wrench.
• Always wear approved eye protection.
• Do NOT extend handle length.

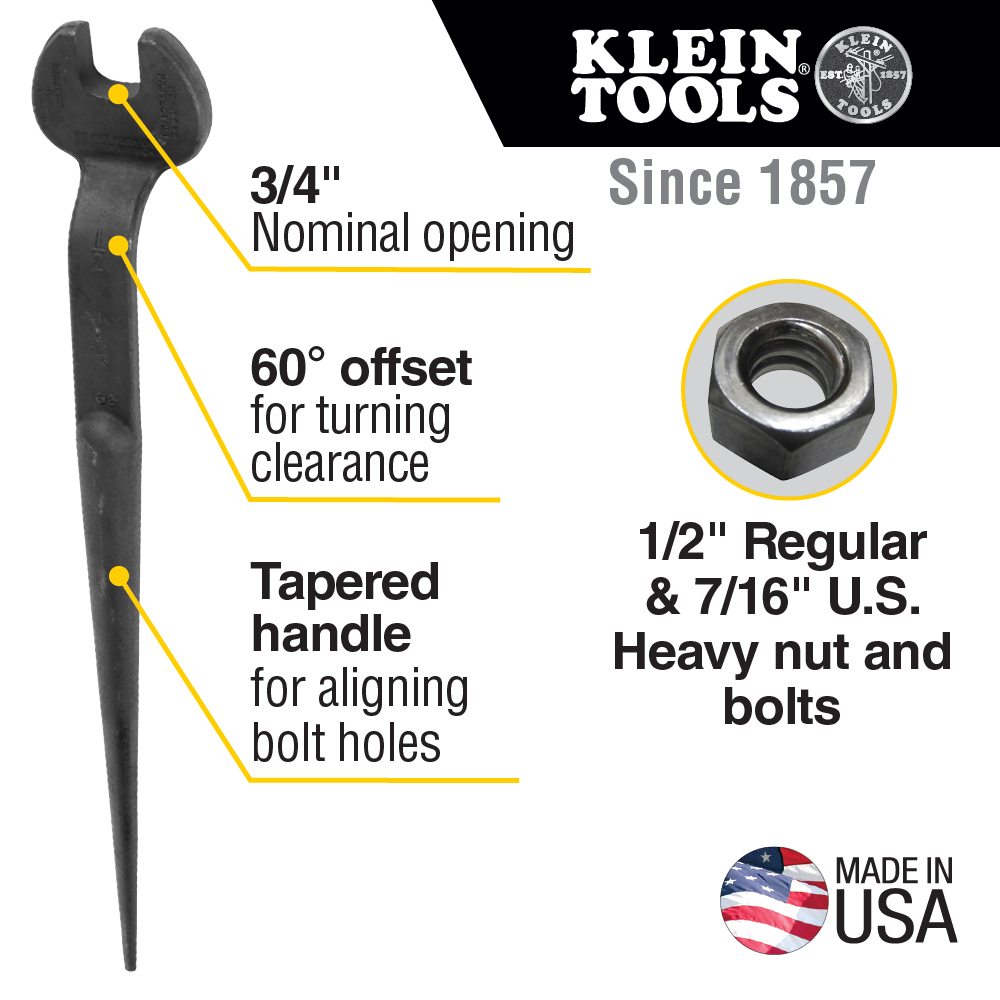

• Offset Angle: 60°
• Taper Diameter: 7/8 in x 1/2 in (2.2 to 1.3 cm)
• Nominal Opening: 3/4 in (1.9 cm)
• Bolt Size: 1/2 in (1.3 cm)
• Heavy Nut Size: 7/16 in (1.11 cm)
• Regular Nut Size: 1/2 in (1.3 cm)
• Square Nut Size: 7/16 in (1.1 cm)

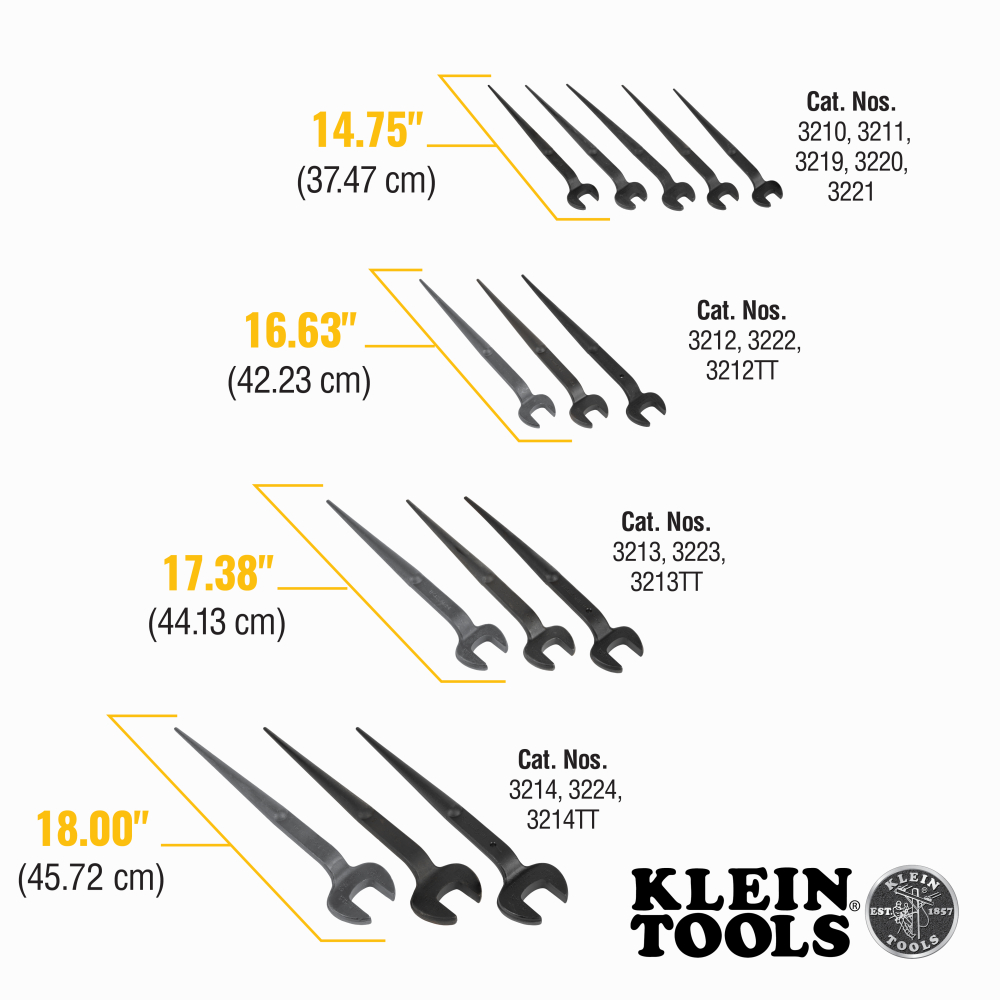

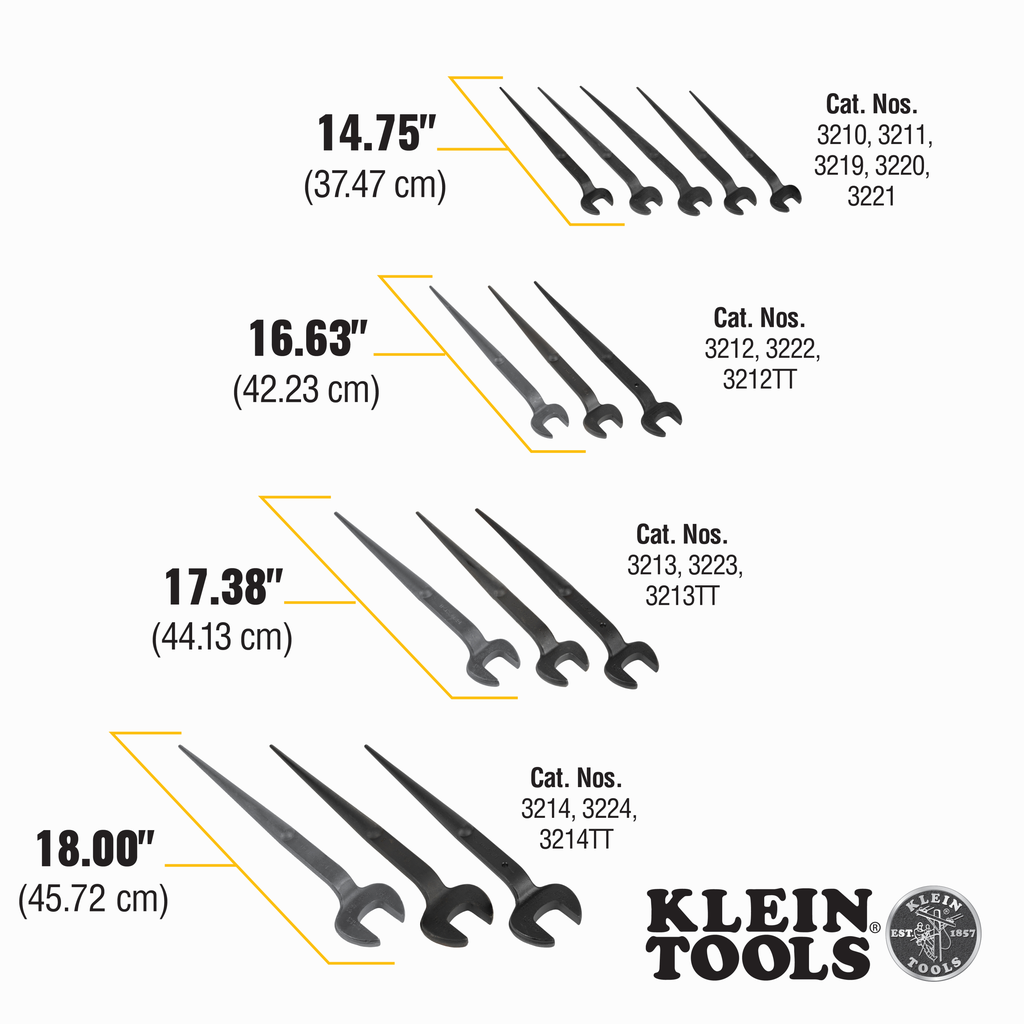

• Overall Length: 14.75 in (37.5 cm)
• Overall Width: 2.25 in (5.7 cm)
• Overall Height: 1 in (2.54 cm)
• Weight: 1.36 lb
• Material: Alloy Steel
• Finish: Black Oxide with Rust Preventative
• Nut Type: U.S. Regular and Heavy
• Head Width: 2.25 in (5.7 cm)
• Configuration: 7/8 to 1/2-Inch Taper
• Type: Spud Wrench

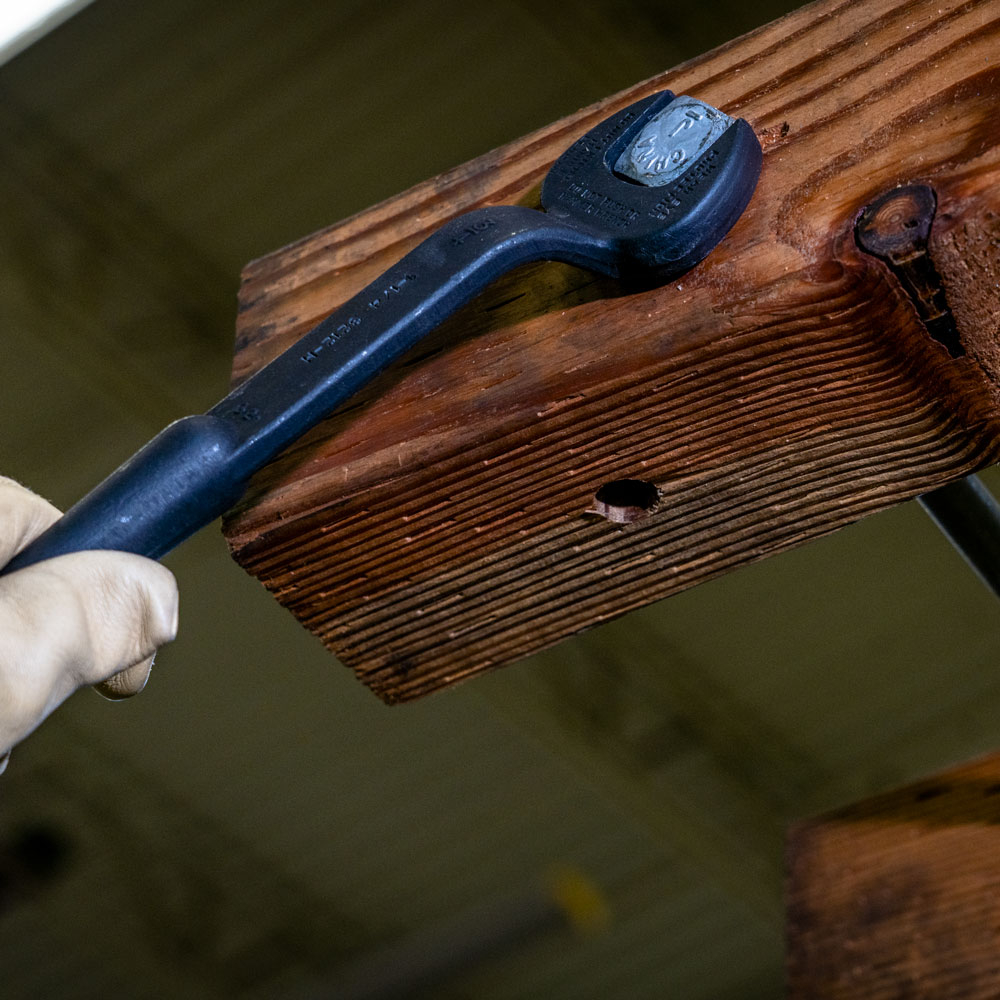

• Application: Connecting Steel Members
• Size Name: 1/2-Inch
• Style Name: 7/8 to 1/2-Inch Taper
• Country of Origin: United States
