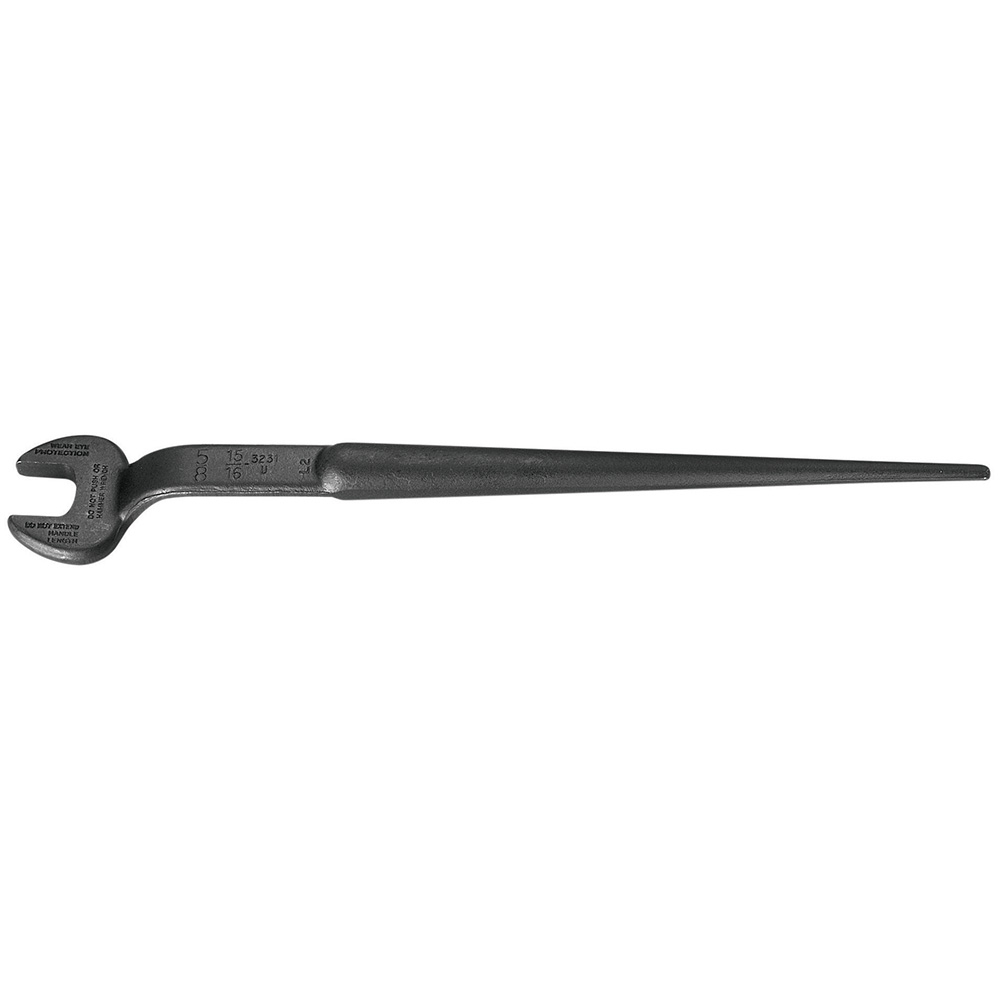

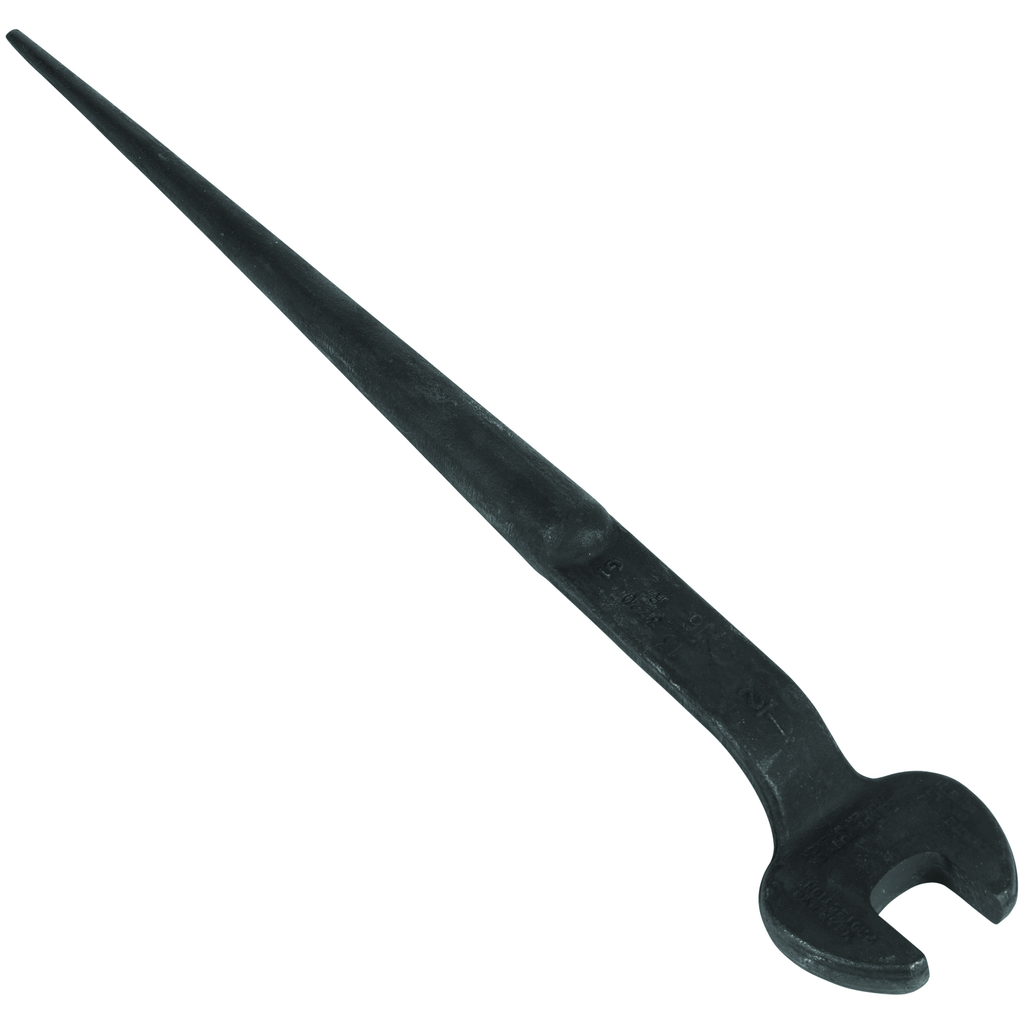

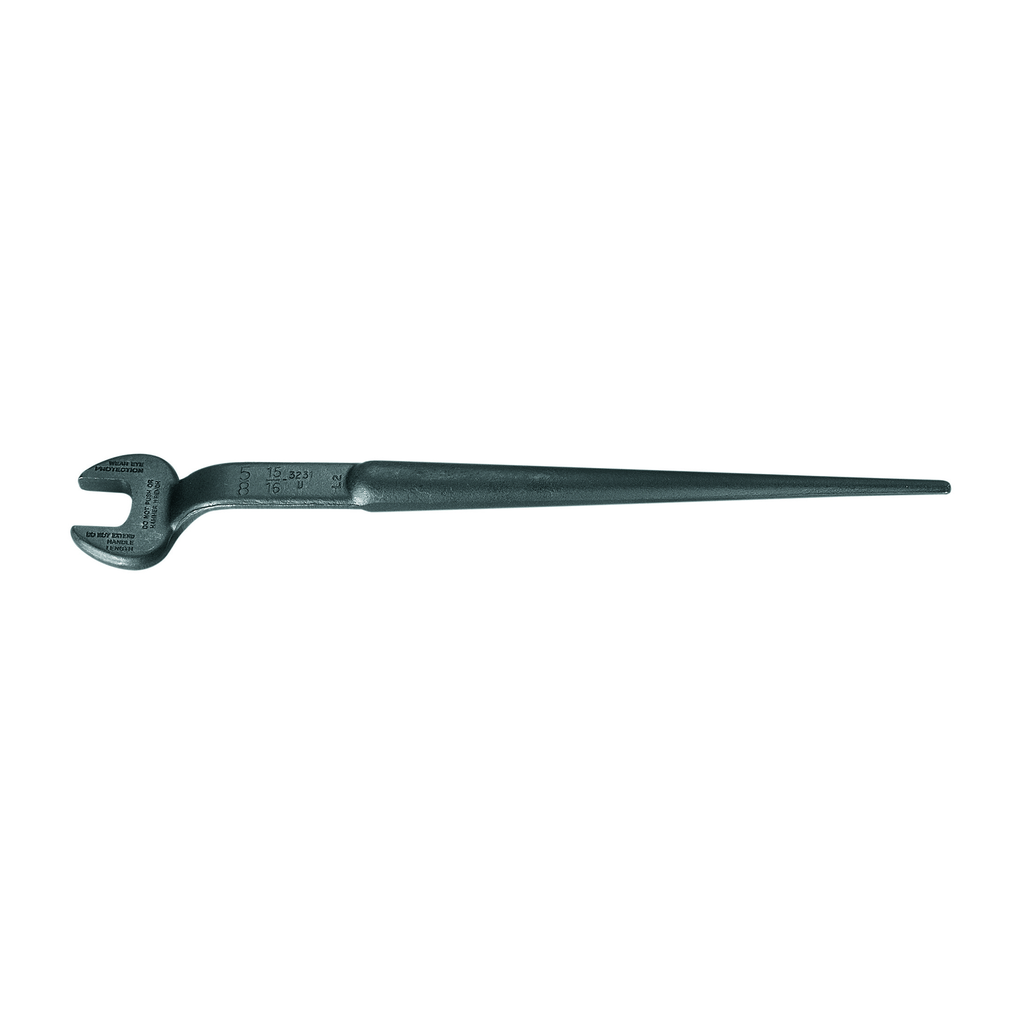

Spud Wrench, 13/16-Inch Nominal Opening for Regular Nut

Forged from select alloy steel, the Klein Tools 13/16-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. It's designed for use with 1/2-Inch bolts and U.S. regular nut types. The extra-duty head area gives maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.

Warnings

• Do NOT push or hammer wrench.
• Always wear approved eye protection.
• Do NOT extend handle length.

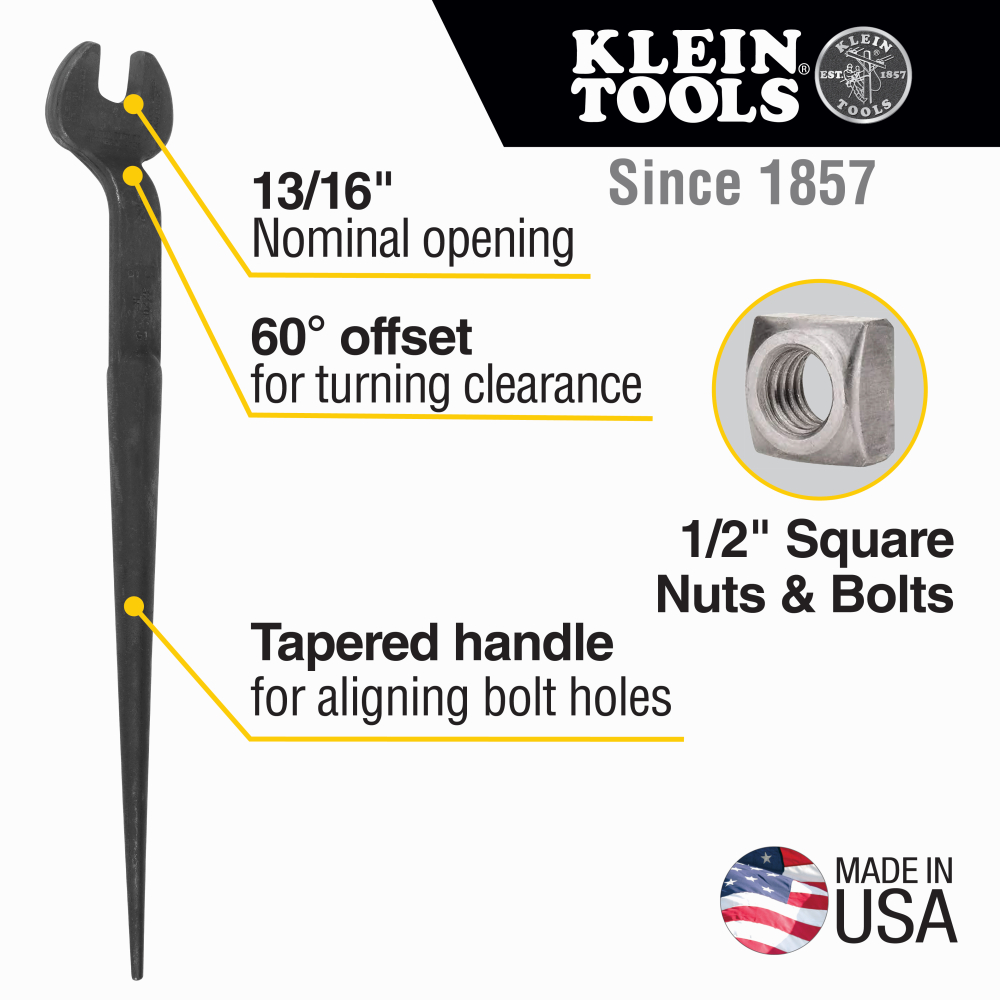

Features

• American Bridge design
• Made in USA
• Extra heavy-duty head area gives maximum strength and durability

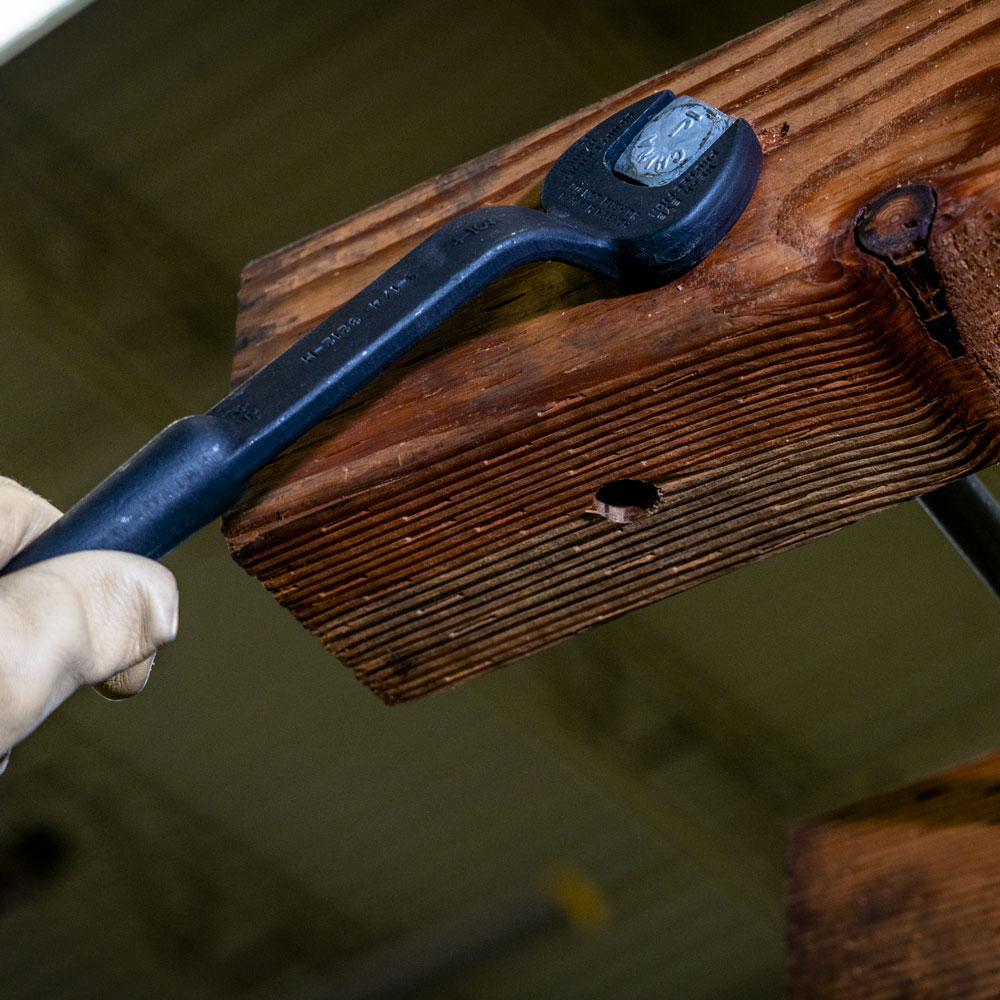

• Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
• Extra-large hub area works on larger diameter holes better than other wrenches
• Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads

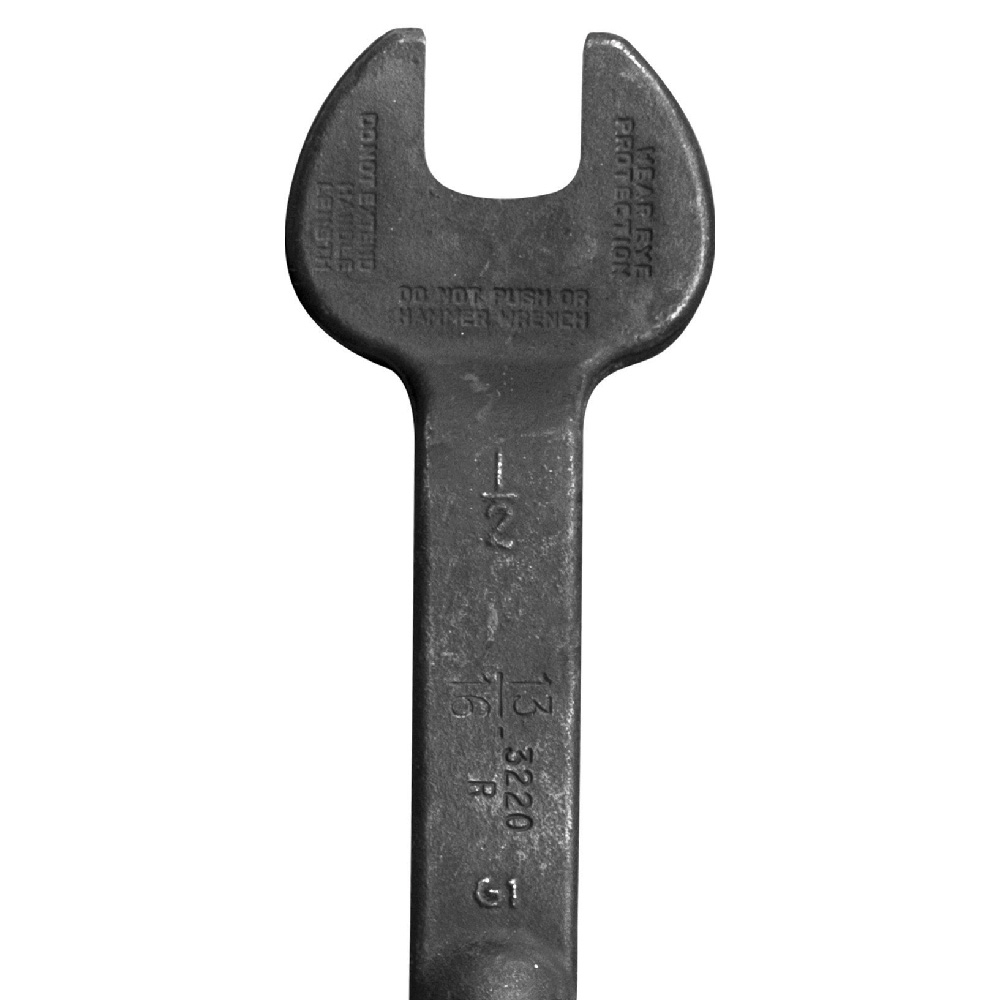

• Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
• Forged from select alloy steel to withstand high-leverage and heavy loads

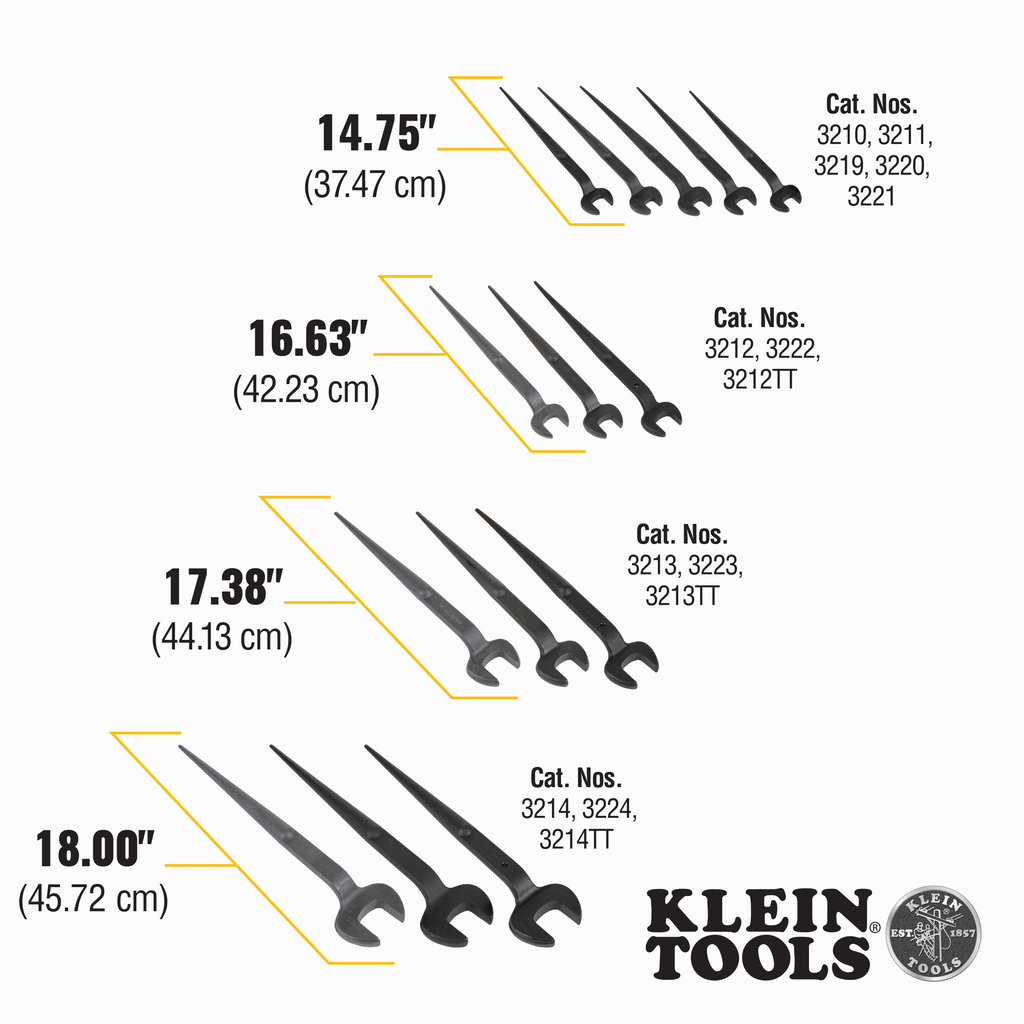

• Overall Length: 14.75 in (37.5 cm)
• Weight: 1.35 lb
• Nominal Opening: 13/16 in (2.1 cm)
• Bolt Size: 1/2 in (1.3 cm)
• Square Nut Size: 1/2 in (1.3 cm)
• Nut Type: U.S. Regular
• Head Width: 2.25 in (5.7 cm)
• Overall Width: 2.25 in (5.7 cm)
• Overall Height: 1 in (2.54 cm)
• Offset Angle: 60°
• Taper Diameter: 7/8 in to 3/16 in (2.2 to 0.5 cm)
• Material: Alloy Steel
• Finish: Black Oxide with Rust Preventative
• Type: Spud Wrench
• Application: Connecting Steel Members
• Configuration: 7/8 to 3/16-Inch Taper
• Size Name: 1/2-Inch
• Country of Origin: USA
