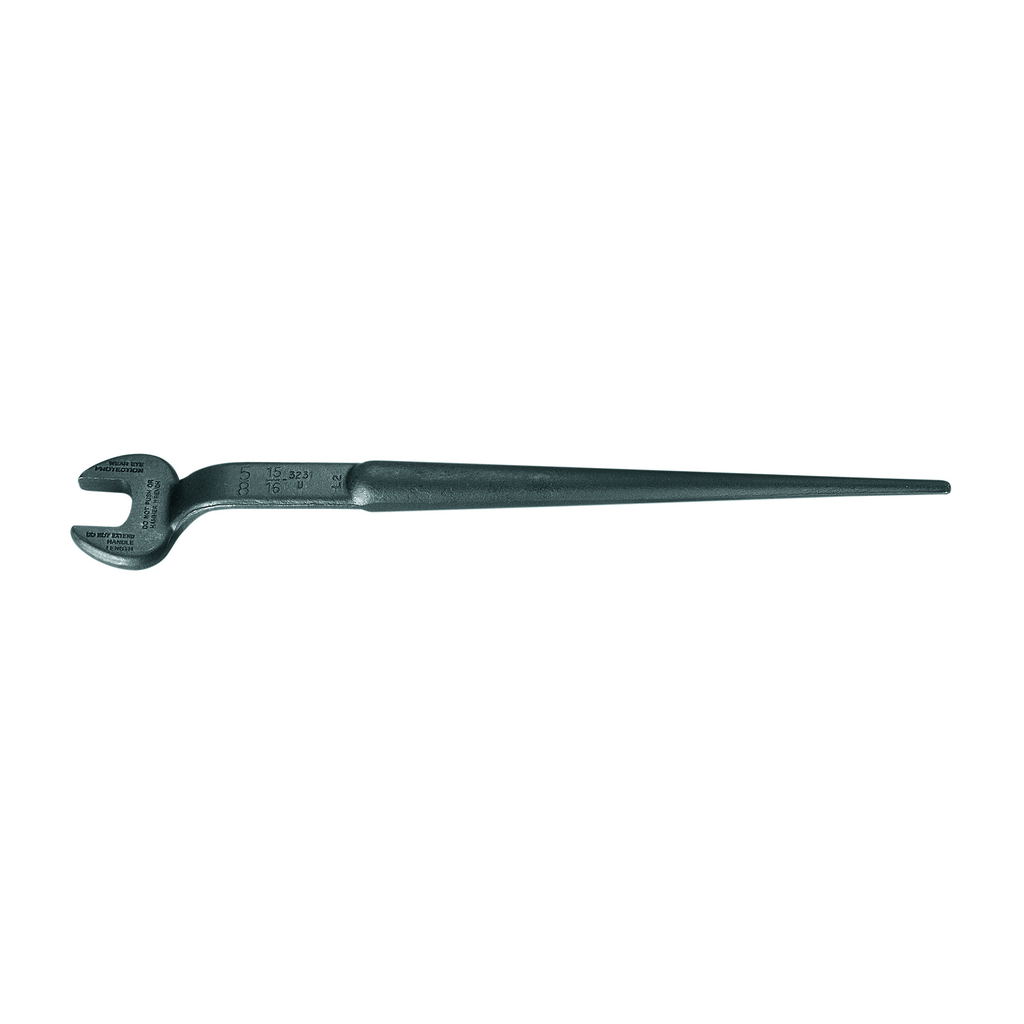

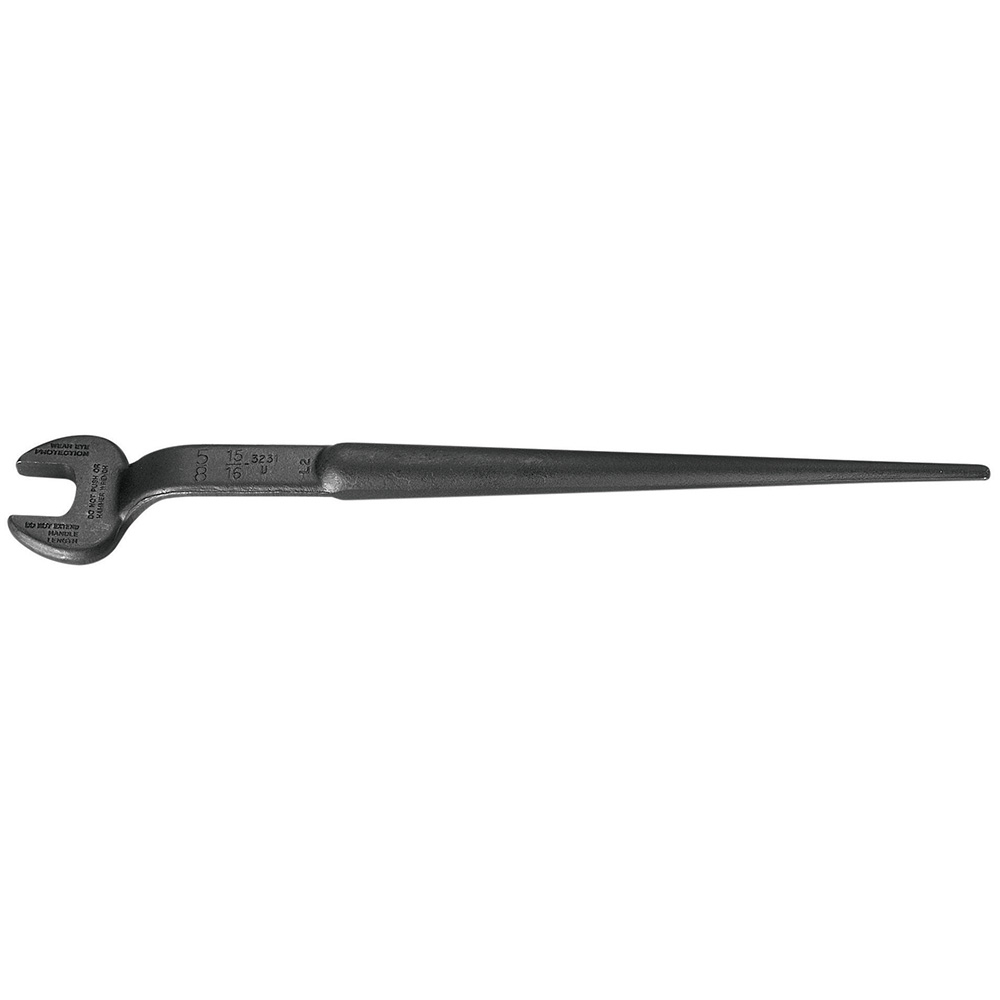

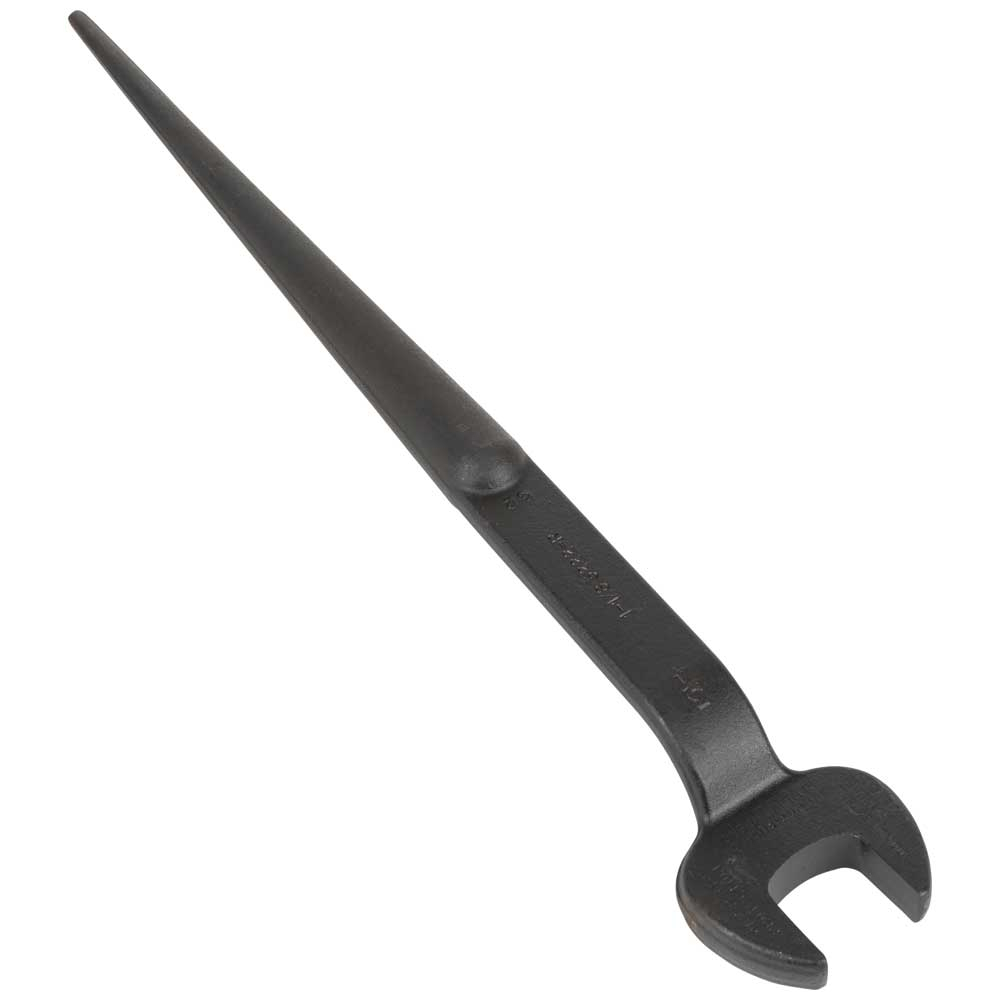

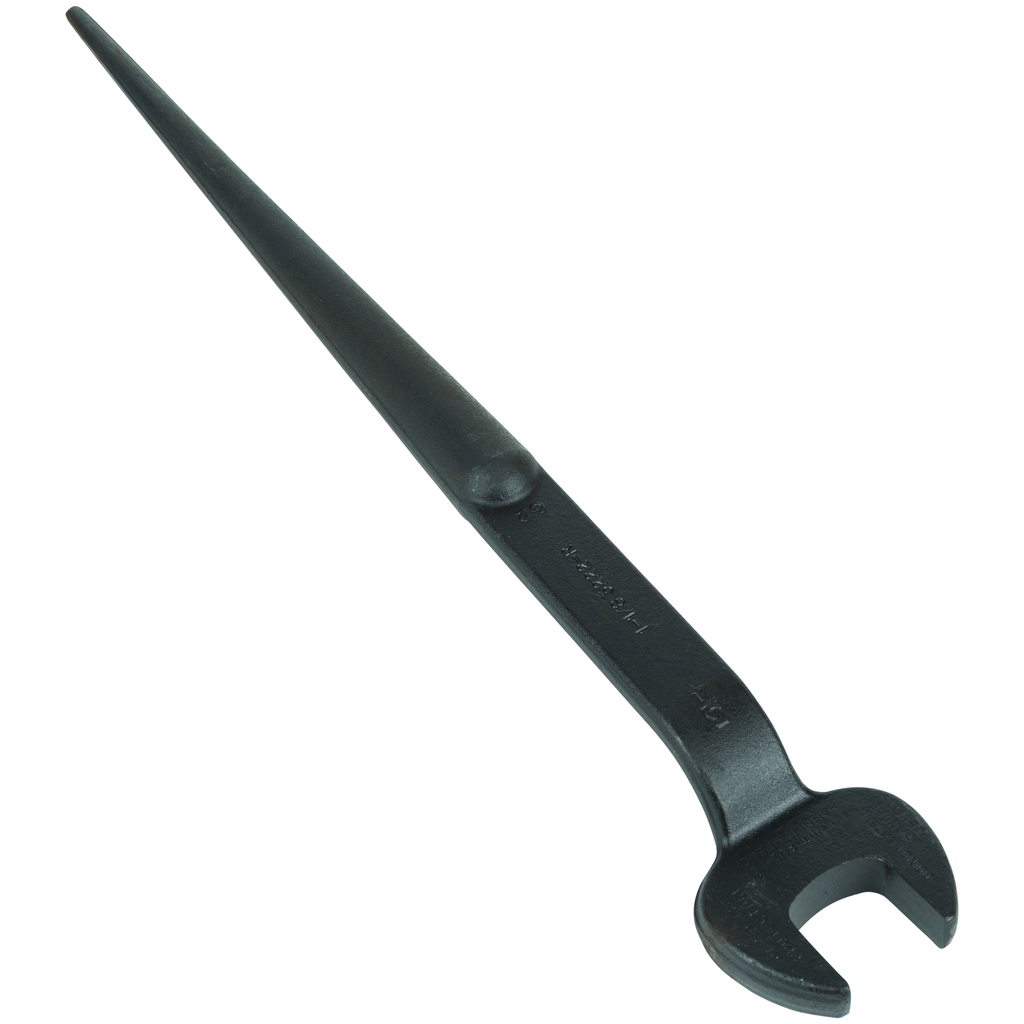

Spud Wrench, 1-1/8-Inch Nominal Opening for Regular Nut

Forged from select alloy steel, Klein Tools' 1-1/8-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. For use with 3/4-Inch bolts and U.S. regular nut types, the extra-duty head area provides maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.

Features

• Extra-large hub area works on larger diameter holes better than other wrenches
• Nominal Opening: 1-1/8-Inch (28.6 mm)

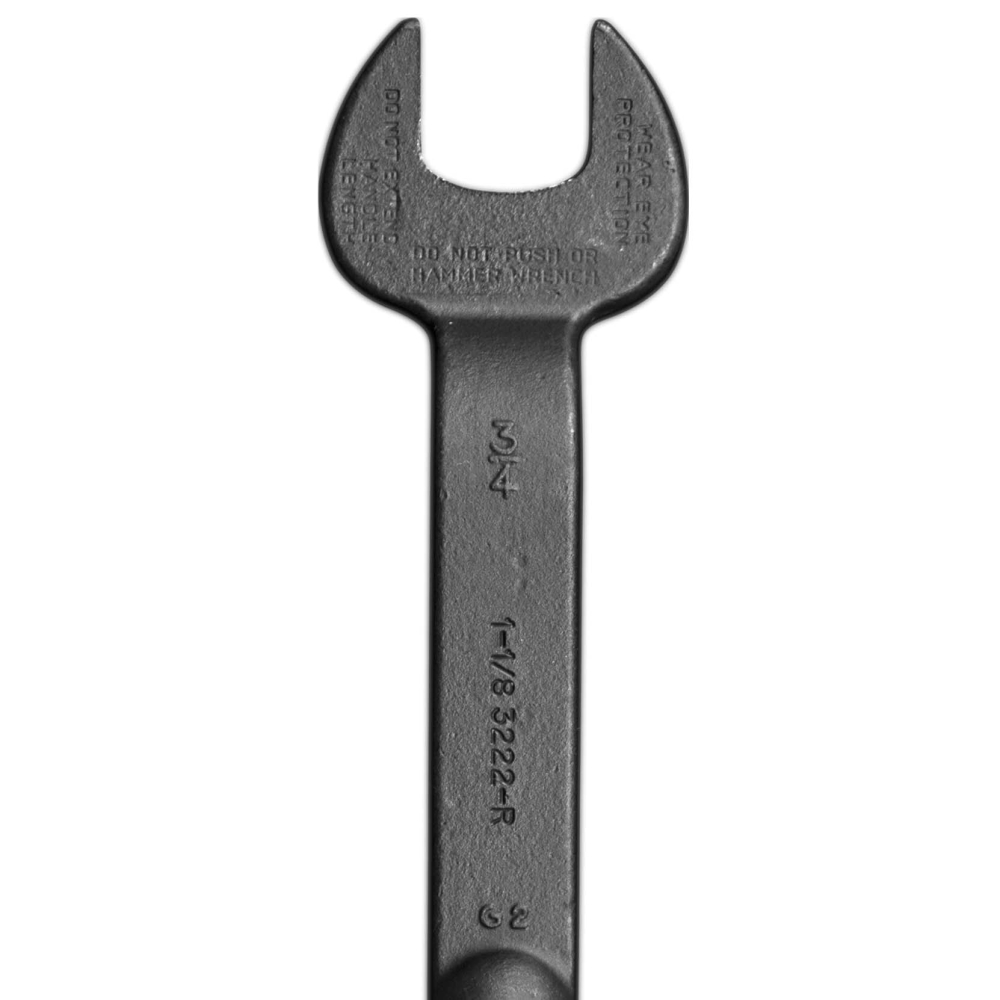

• Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
• Forged from select alloy steel to withstand high-leverage and heavy loads

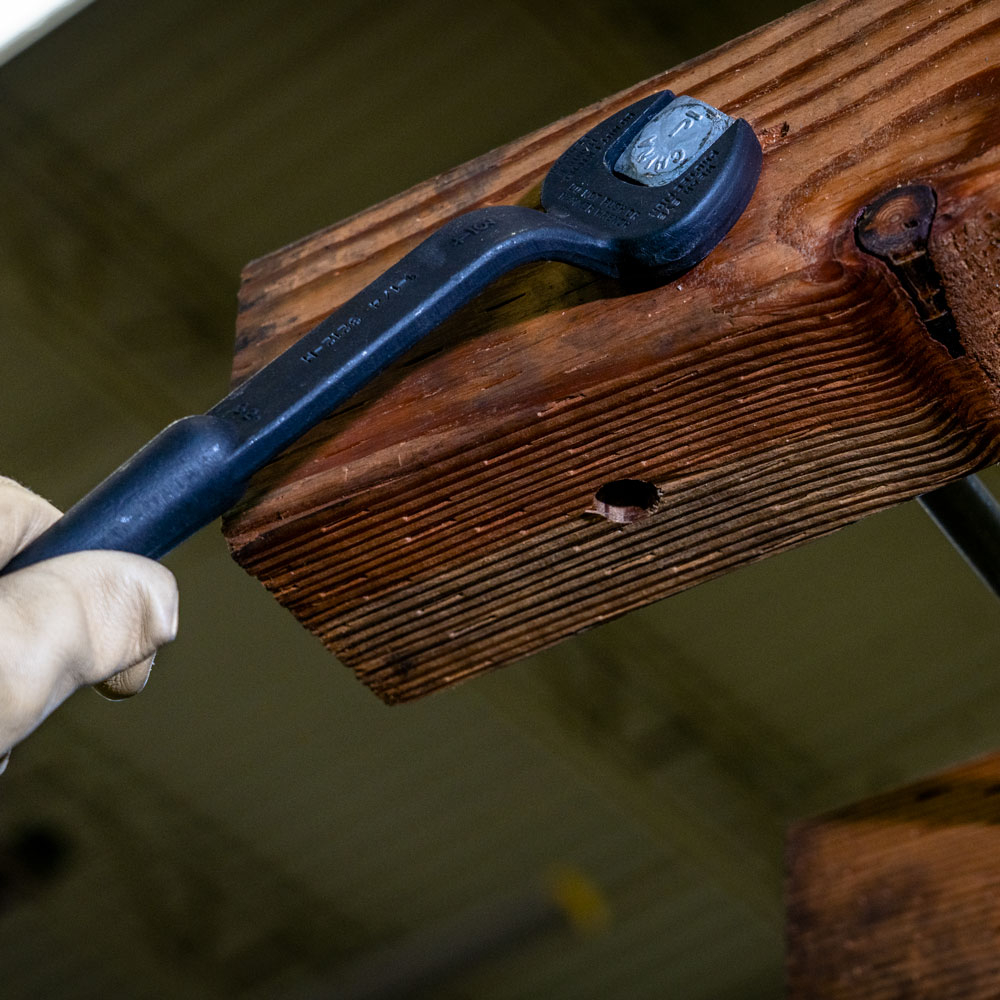

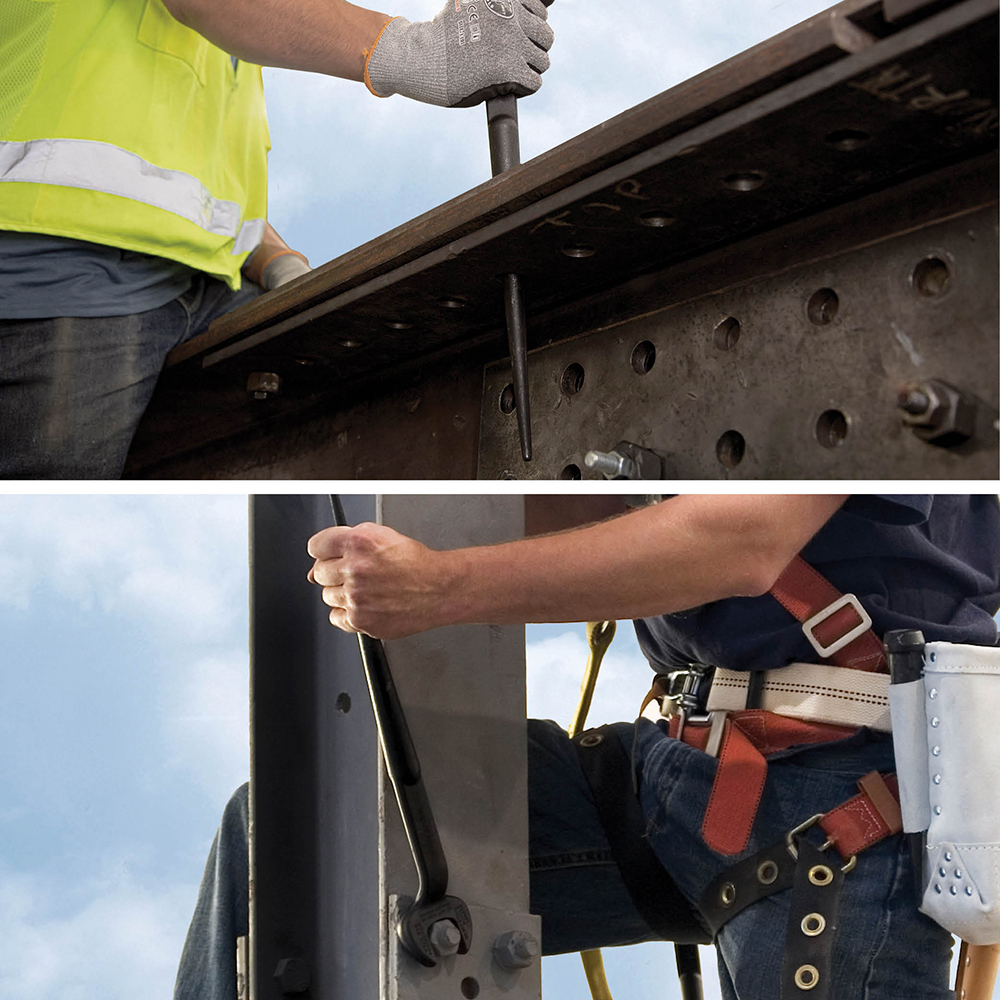

• Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
• Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
• Extra heavy-duty head area gives maximum strength and durability
• Made in USA
• American Bridge design

Warnings

• Always wear approved eye protection.
• Do NOT push or hammer wrench.
• Do NOT extend handle length.

• Material: Alloy Steel
• Taper Diameter: 1" to 1/4" (2.5 to 0.6 cm)

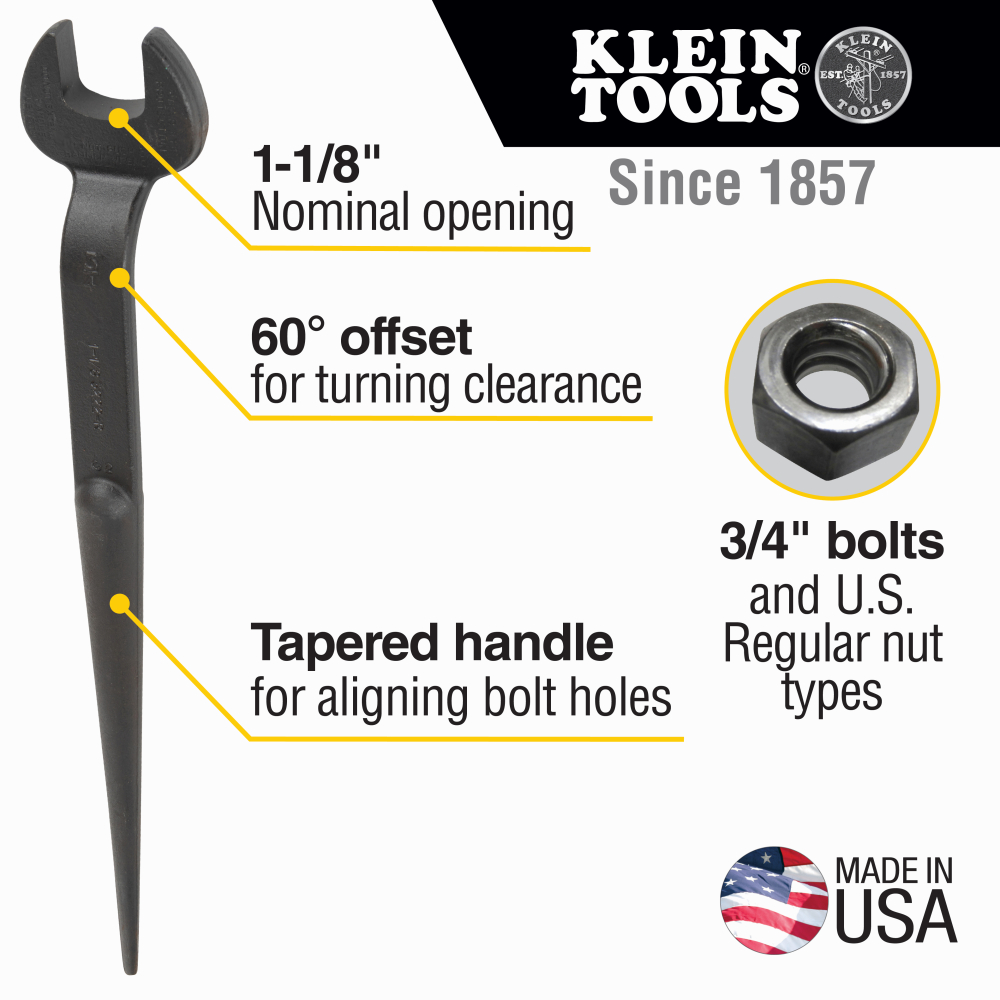

• Nominal Opening: 1-1/8" (2.9 cm)
• Offset Angle: 60°
• Weight: 2.0000 lbs

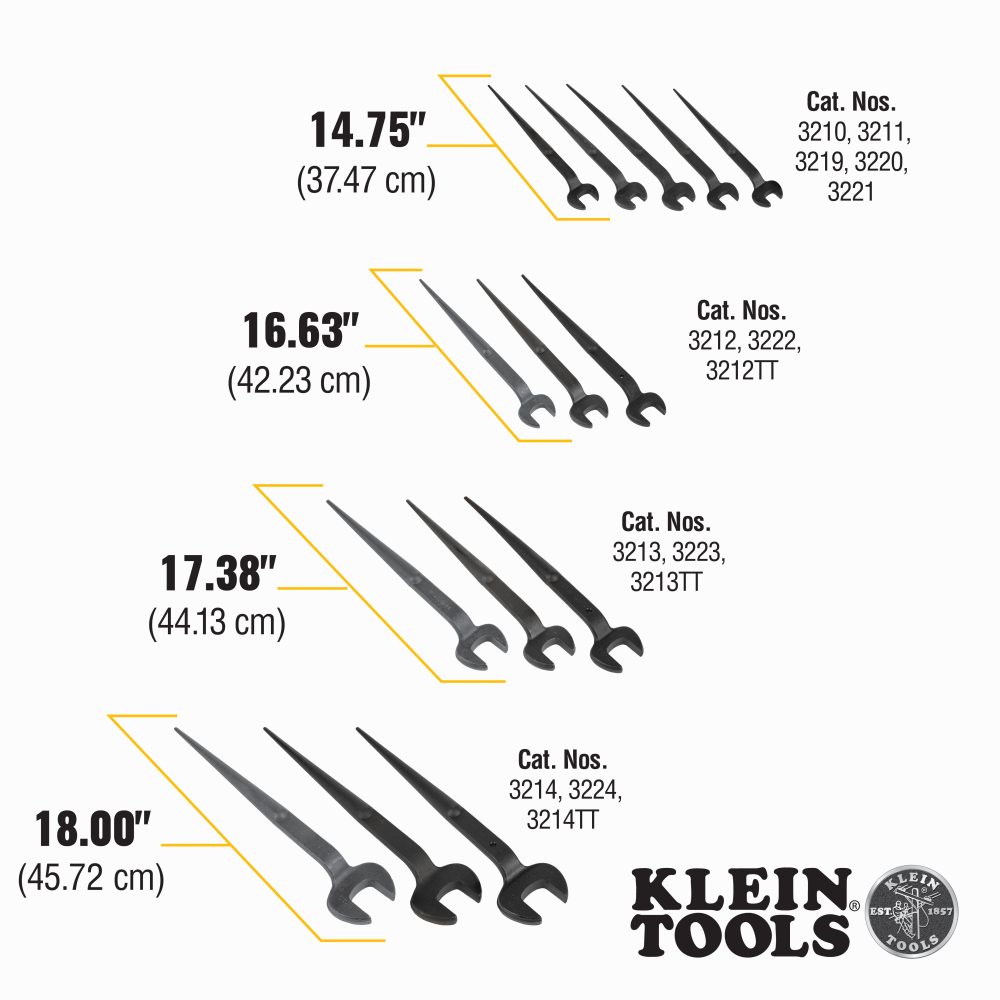

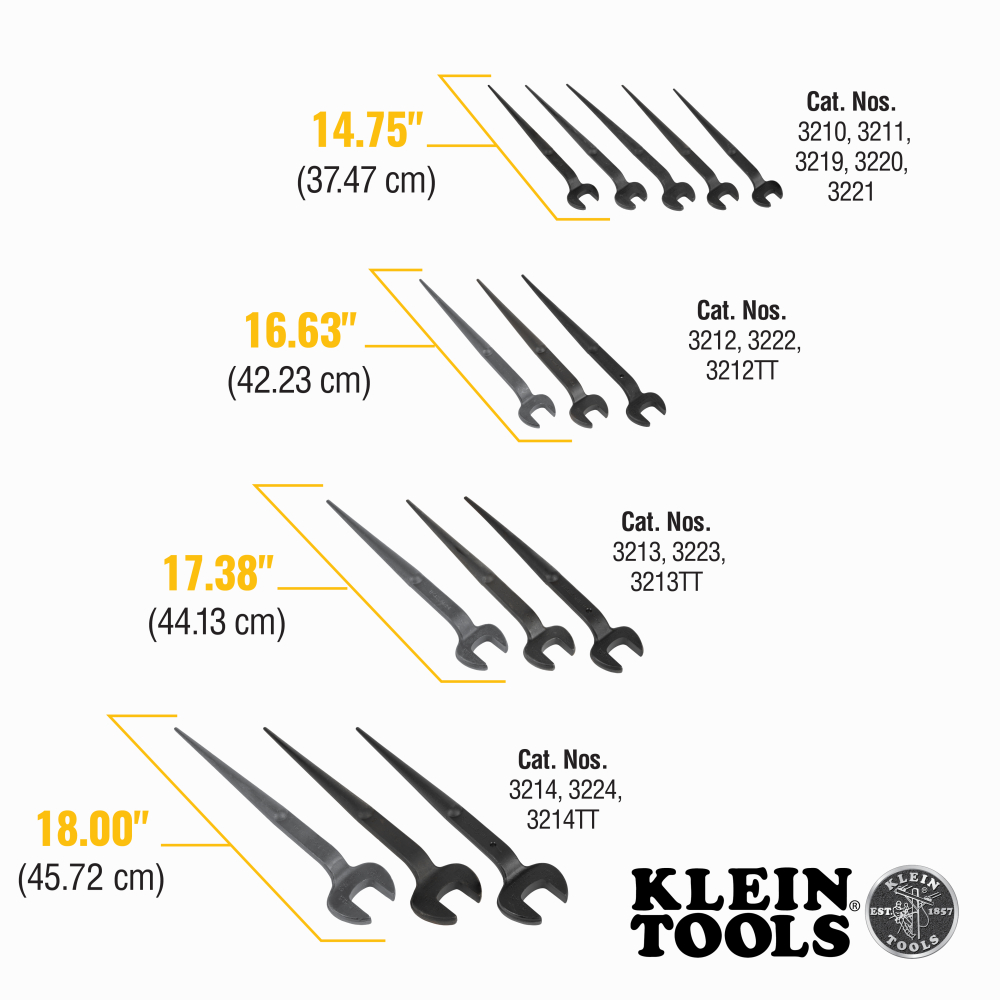

• Overall Length: 16.625" (42.2 cm)
• Overall Width: 2.5" (6.4 cm)
• Overall Height: 1" (2.54 cm)
• Nut Type: U.S. Regular
• Finish: Black Oxide with Rust Preventative
• Size Name: 3/4-Inch
• Type: Spud Wrench
• Application: Connecting Steel Members
• Bolt Size: 3/4" (1.9 cm)
• Square Nut Size: 3/4" (1.9 cm)
• Regular Nut Size: 3/4" (1.9 cm)
• Head Width: 2.5" (6.4 cm)
• Depth: 16.625"
• Country of Origin: United States
• Configuration: 1 to 1/4-Inch Taper
• Style Name: 1 to 1/4-Inch Taper
