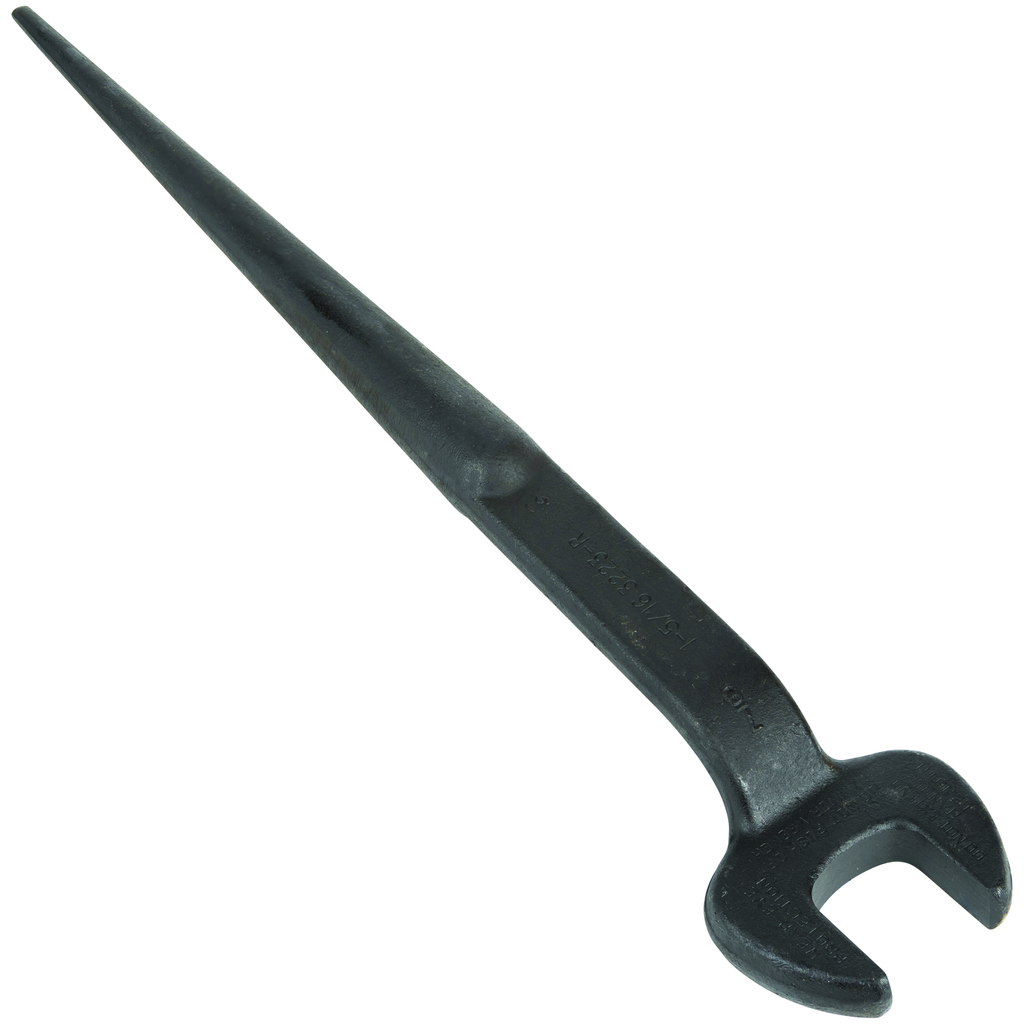

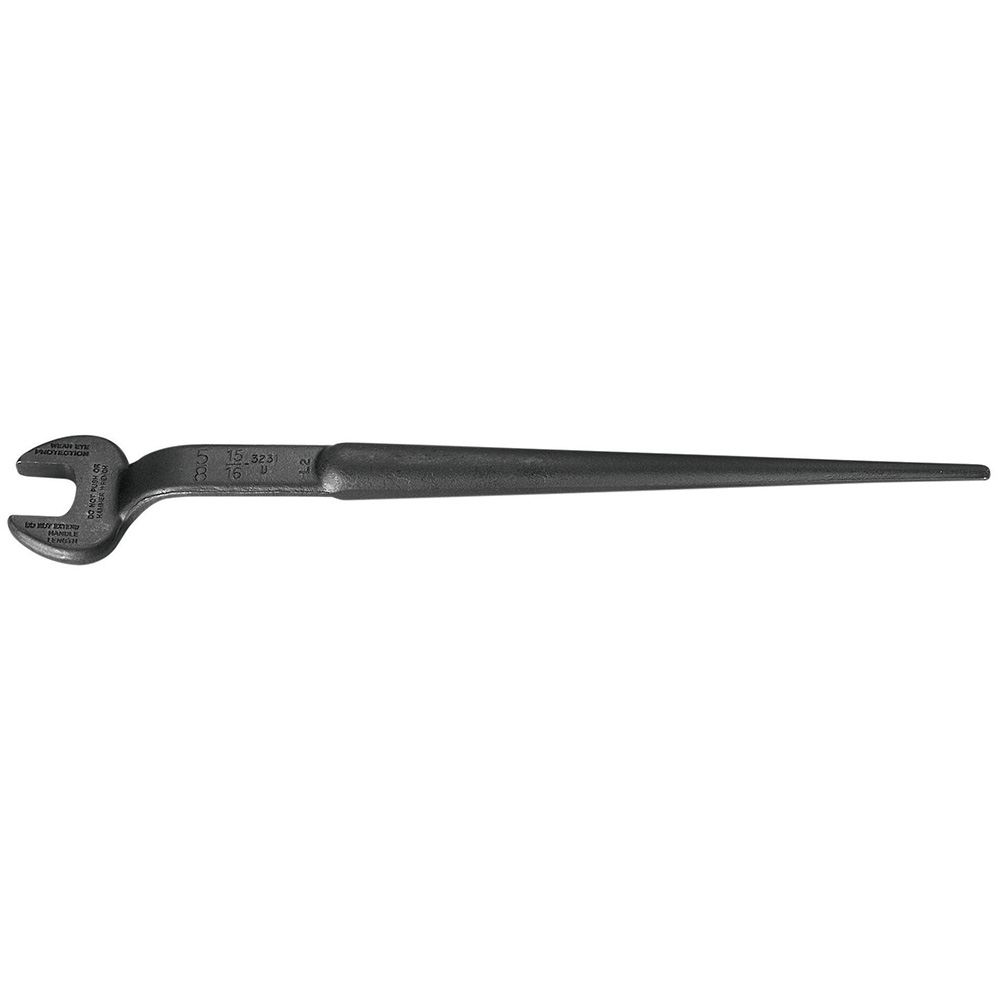

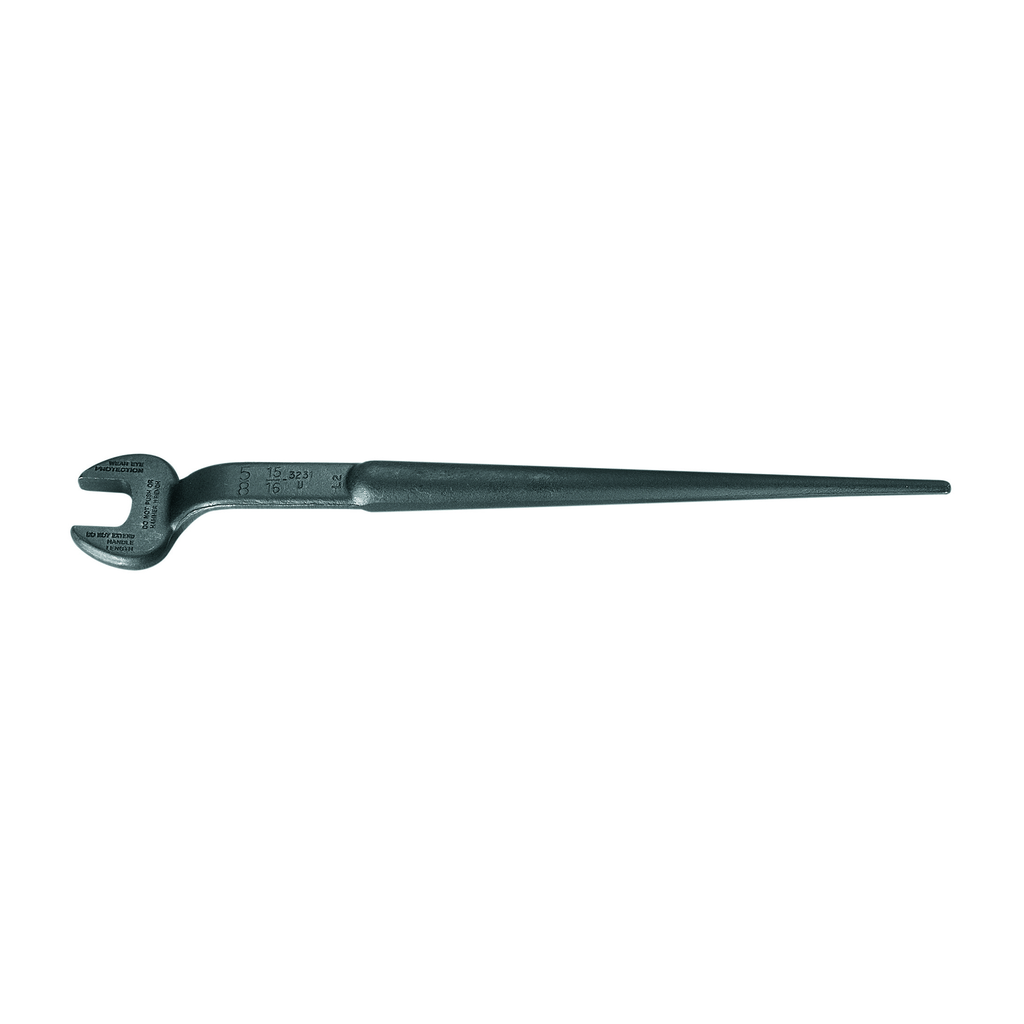

Spud Wrench, 1-5/16-Inch Nominal Opening for Regular Nut

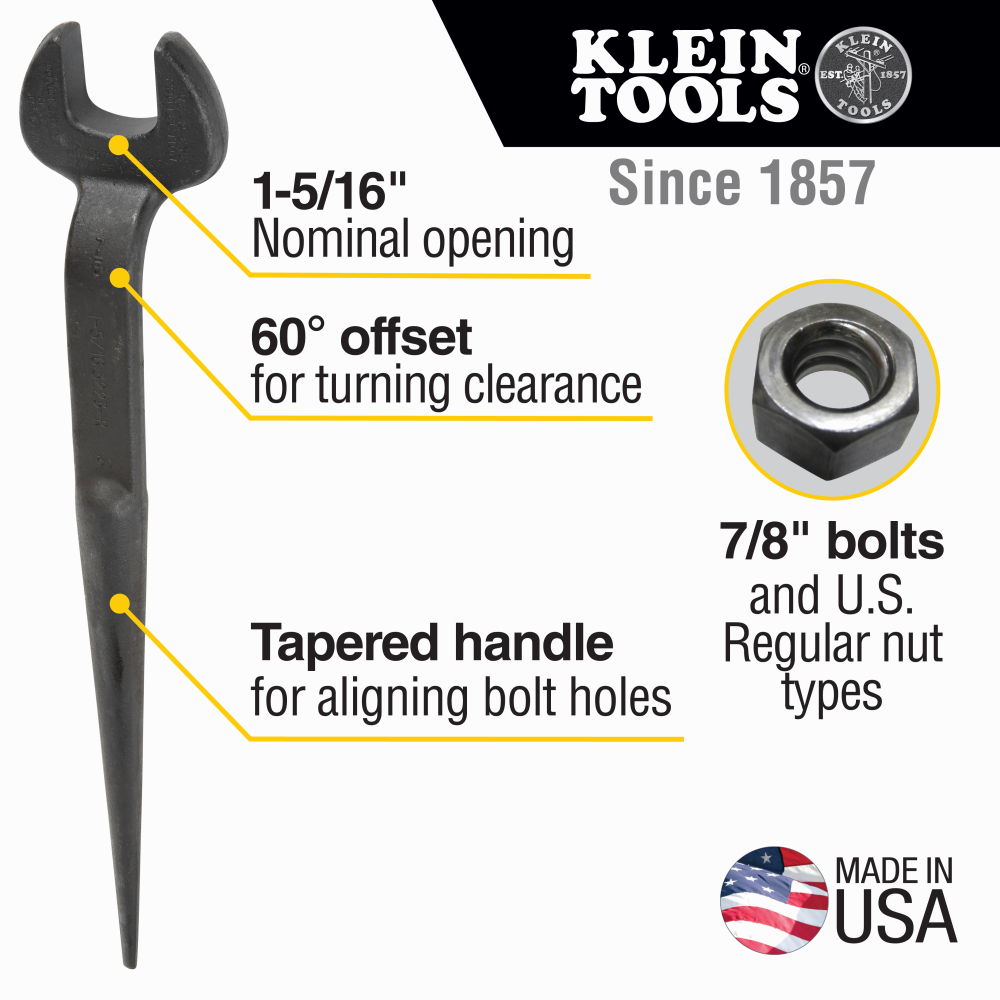

Forged from select alloy steel, the Klein Tools 1-5/16-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. It's designed for use with 7/8-Inch bolts and U.S. regular nut types. The extra-duty head area gives maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.

Features

• Extra heavy-duty head area gives maximum strength and durability
• Forged from select alloy steel to withstand high-leverage and heavy loads
• Extra-large hub area works on larger diameter holes better than other wrenches
• Made in USA

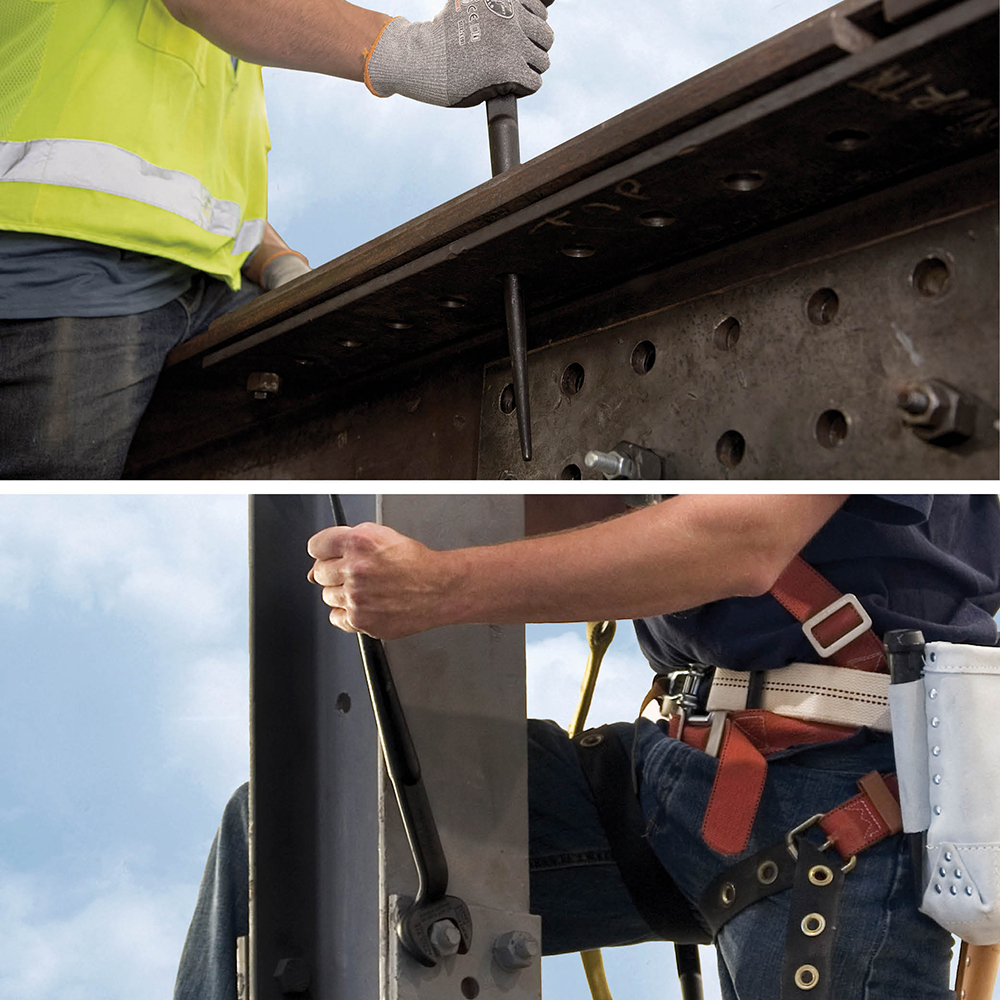

• Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding

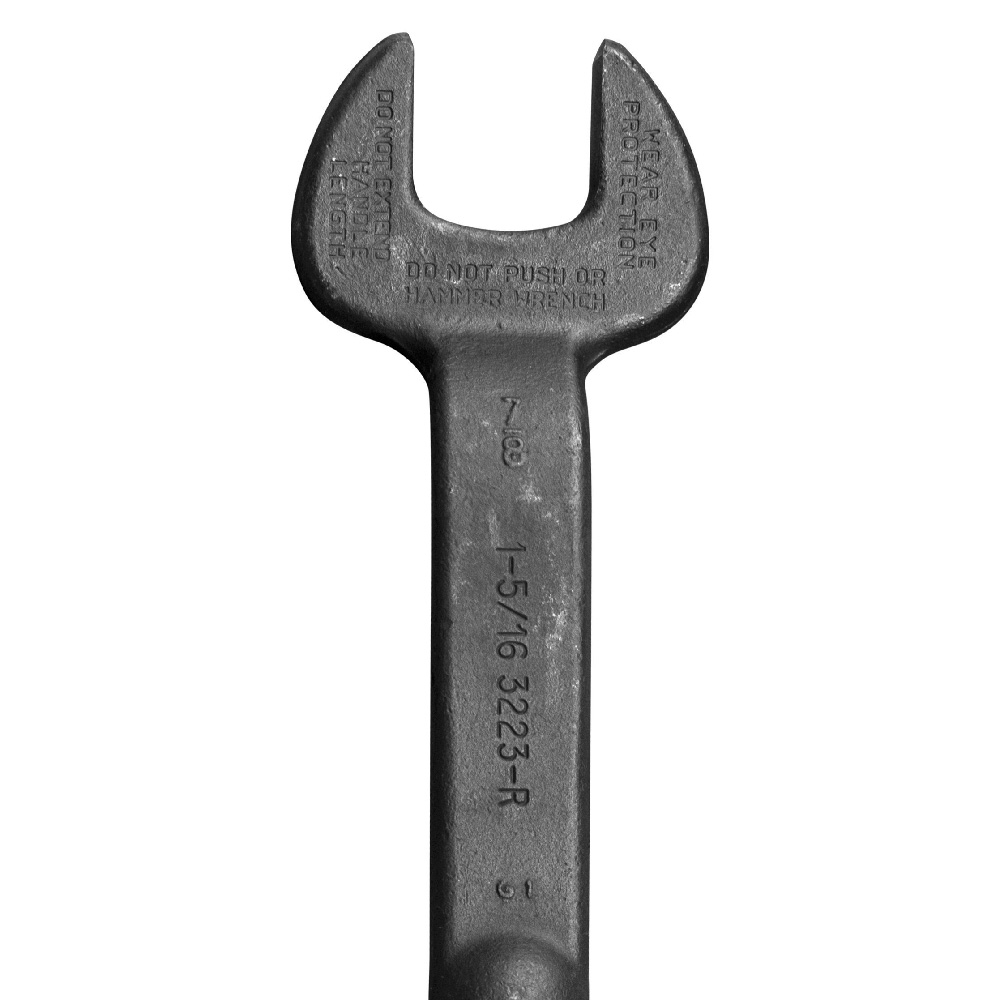

• Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
• Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
• American Bridge design

Warnings

• Do NOT push or hammer wrench.
• Do NOT extend handle length.
• Always wear approved eye protection.

• Size: 7/8 in
• Taper Diameter: 1-1/8 in to 9/32 in (2.9 to 0.7 cm)
• Nominal Opening: 1-5/16 in (3.3 cm)
• Bolt Size: 7/8 in (2.2 cm)
• Nut Type: U.S. Regular

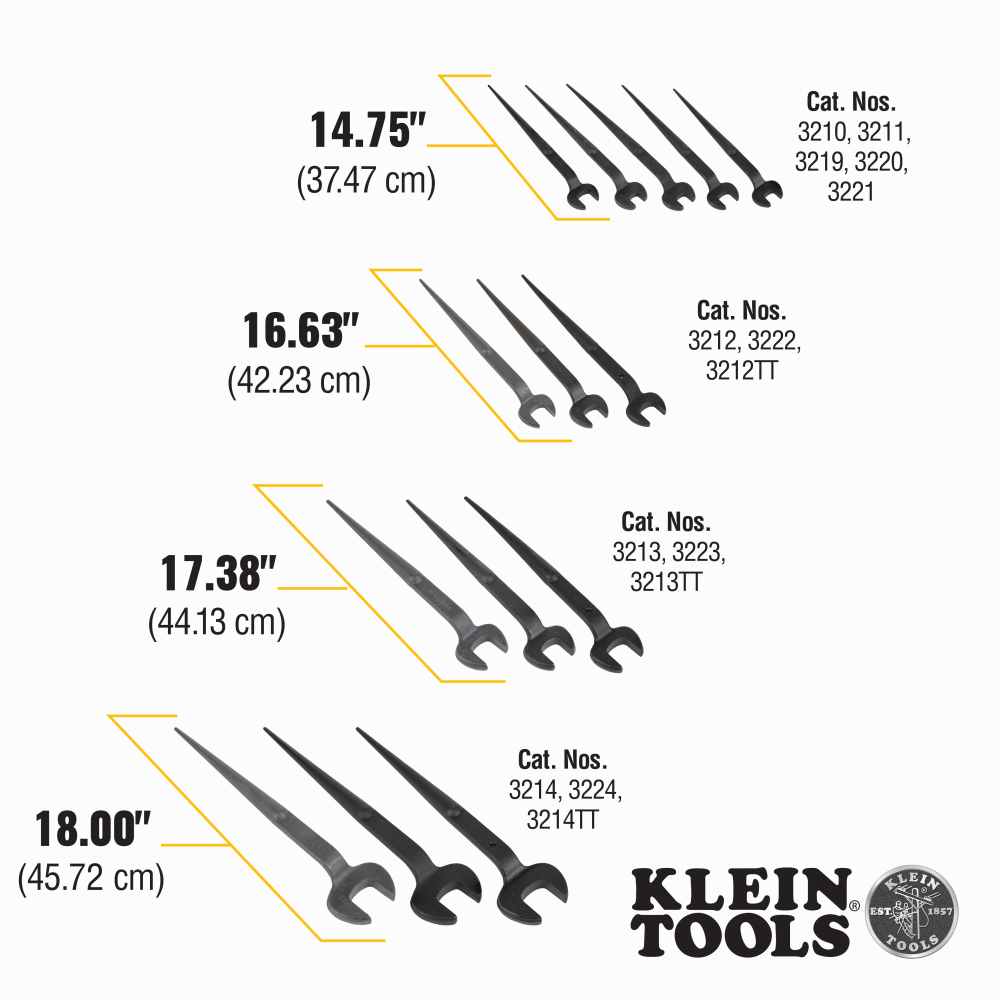

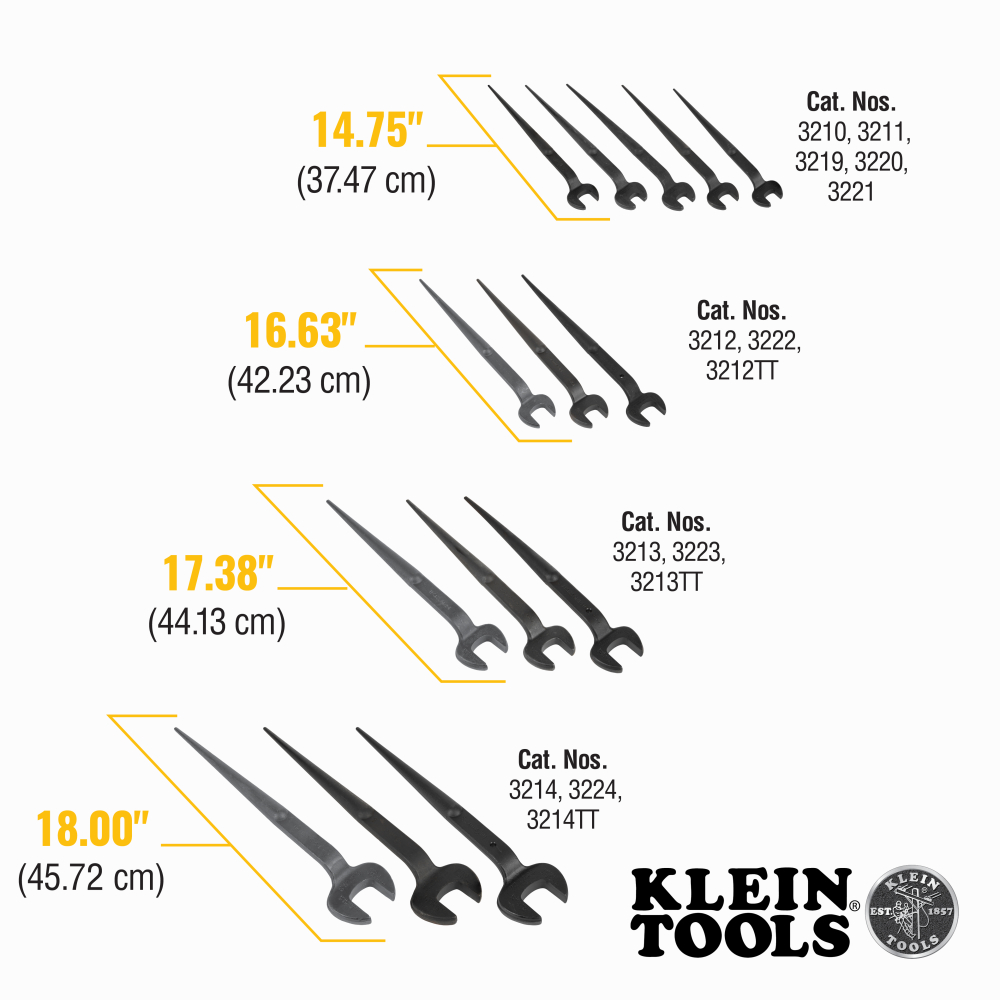

• Overall Length: 17.375 in (44.1 cm)
• Overall Height: 1 in (2.54 cm)
• Overall Width: 3 in (7.6 cm)
• Head Width: 3 in (7.6 cm)
• Offset Angle: 60°
• Weight: 2.87 lb
• Material: Alloy Steel
• Finish: Black Oxide with Rust Preventative
• Country of Origin: United States
• Type: Spud Wrench
• Application: Connecting Steel Members
• Configuration: 1-1/8 to 9/32-Inch Taper
