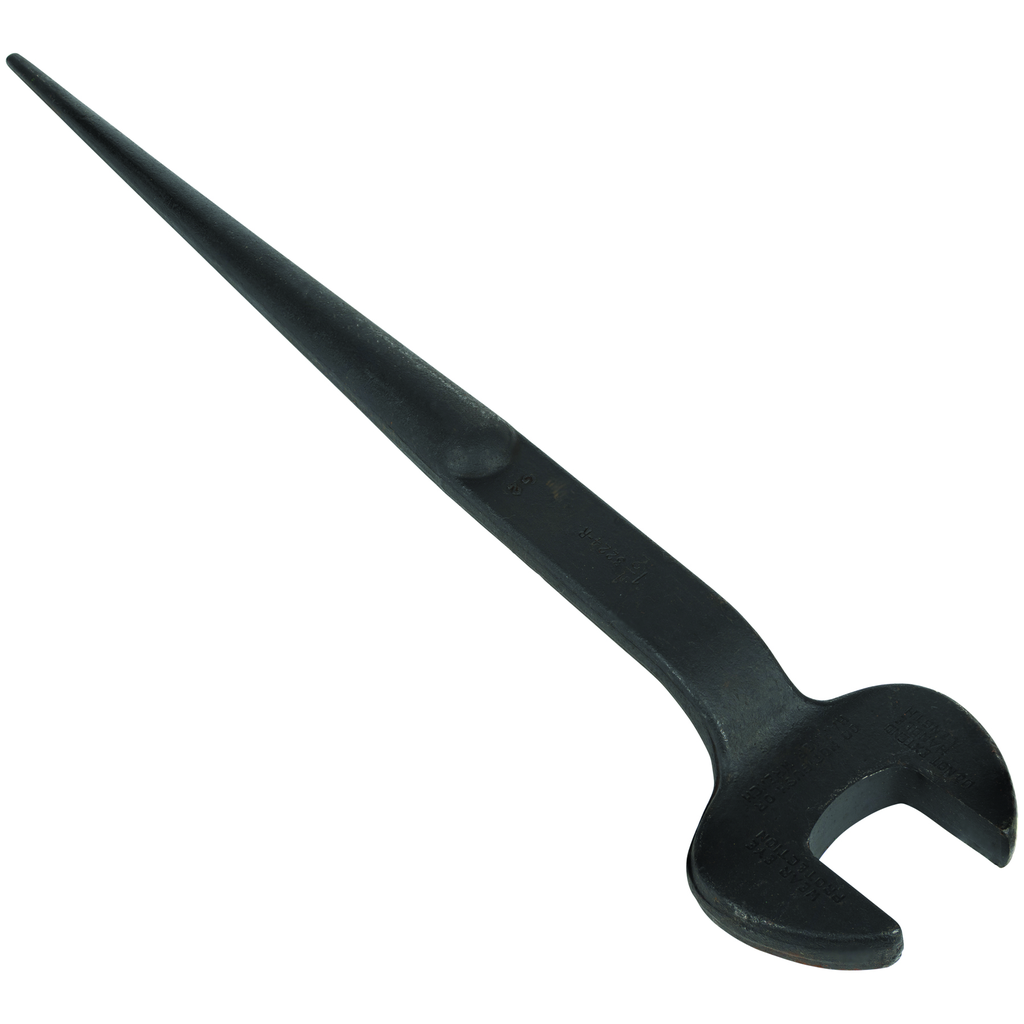

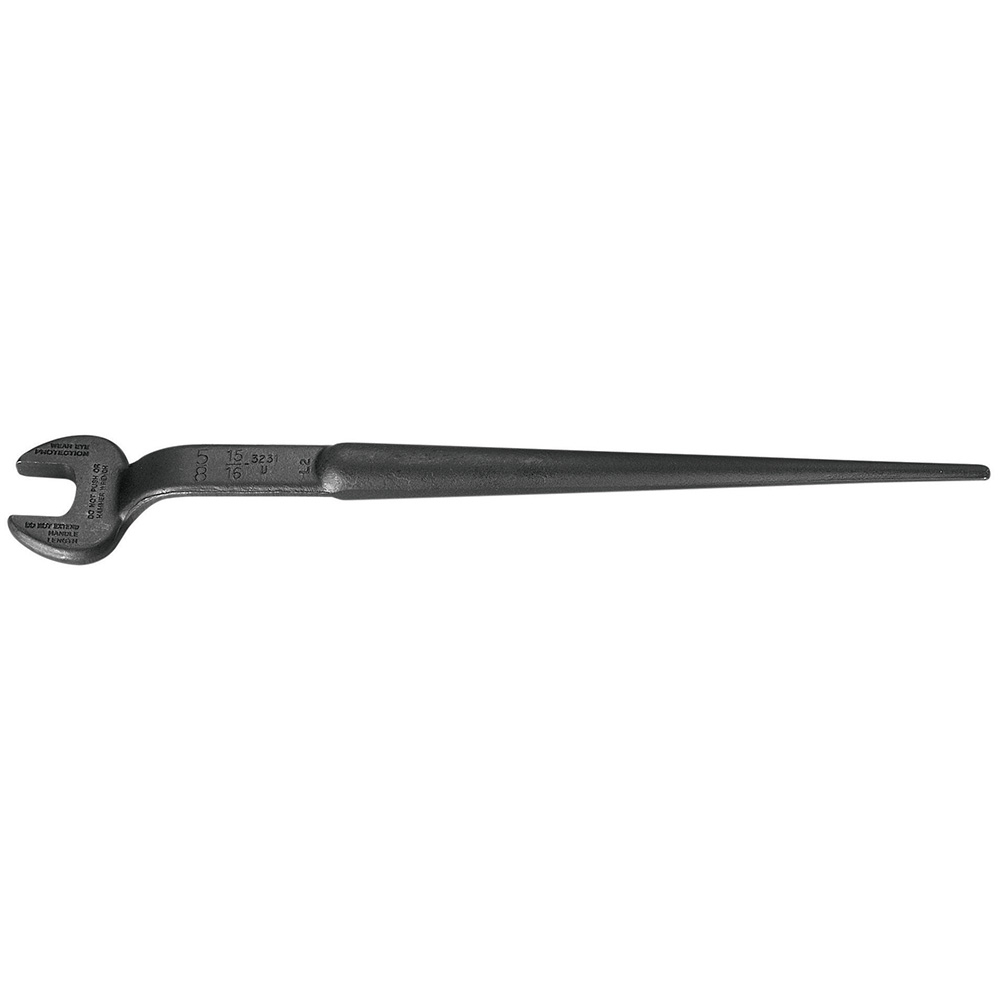

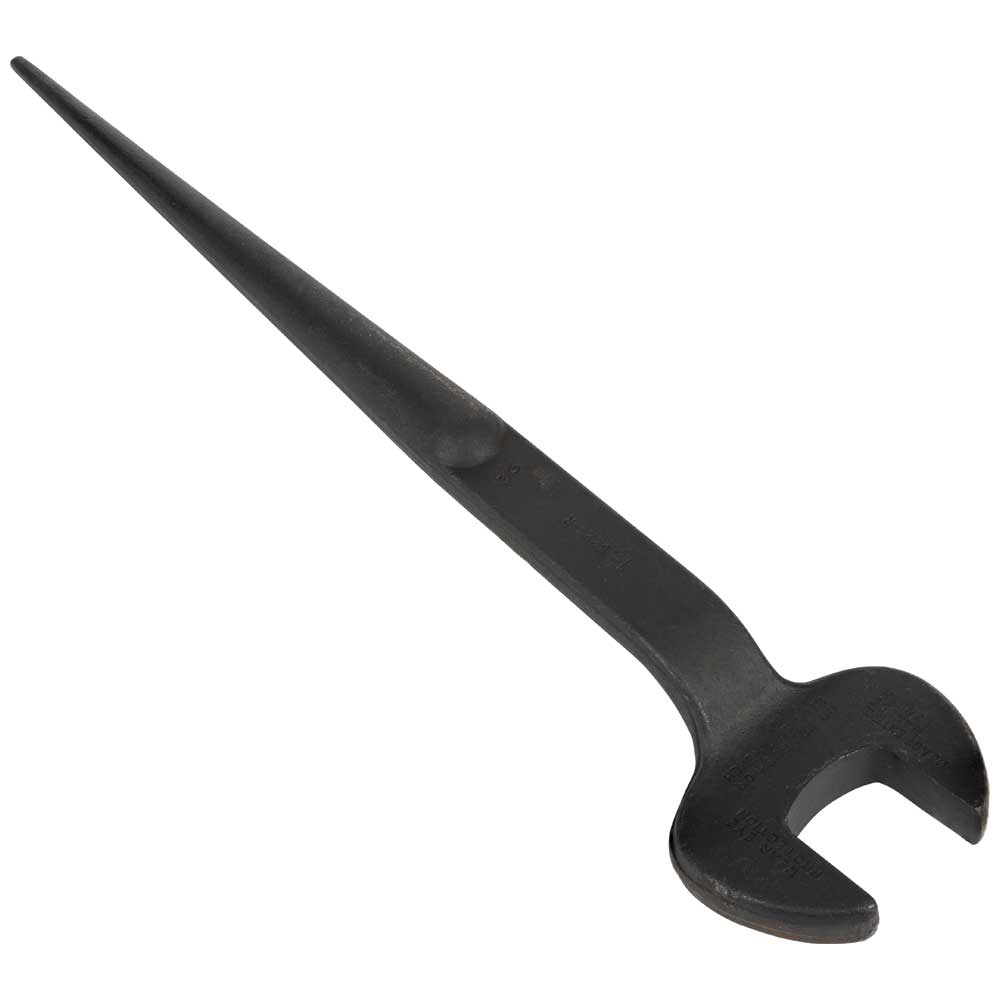

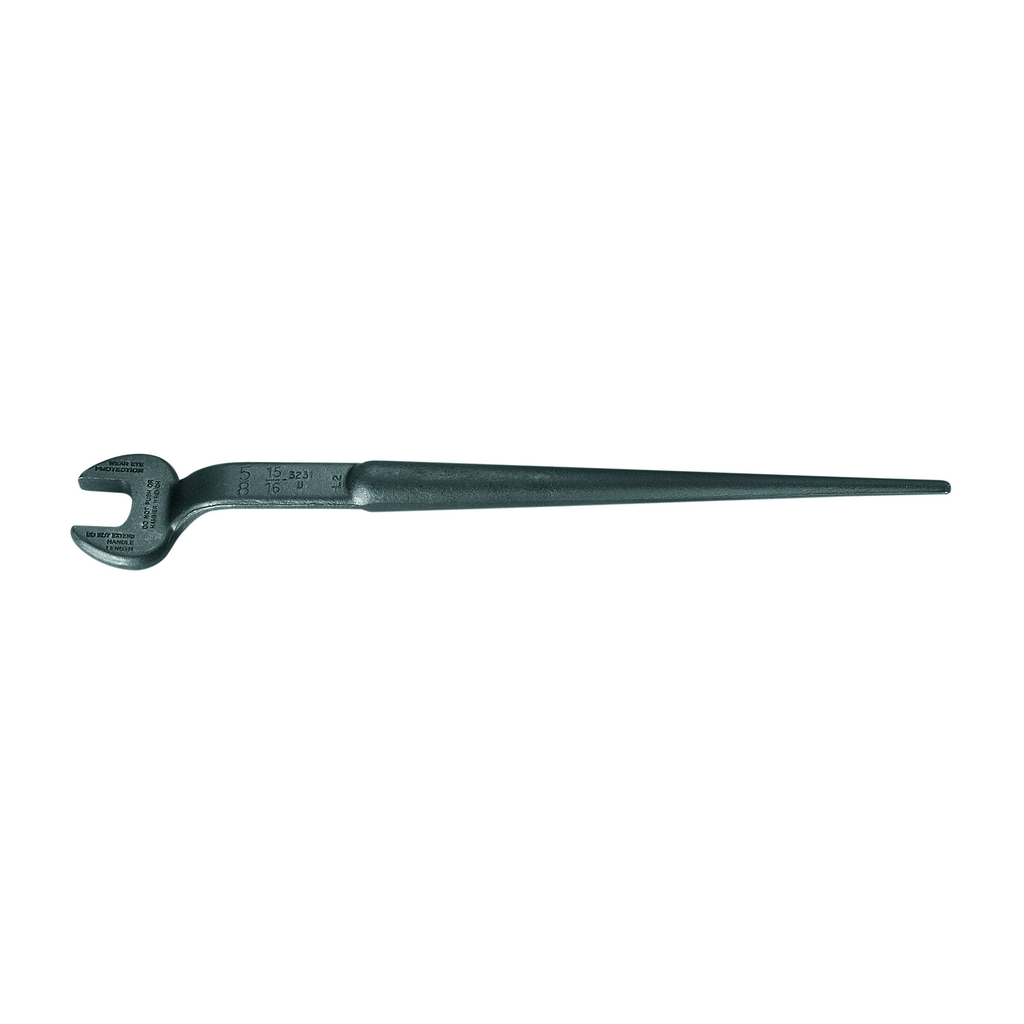

Spud Wrench, 1-1/2-Inch Nominal Opening for Regular Nut

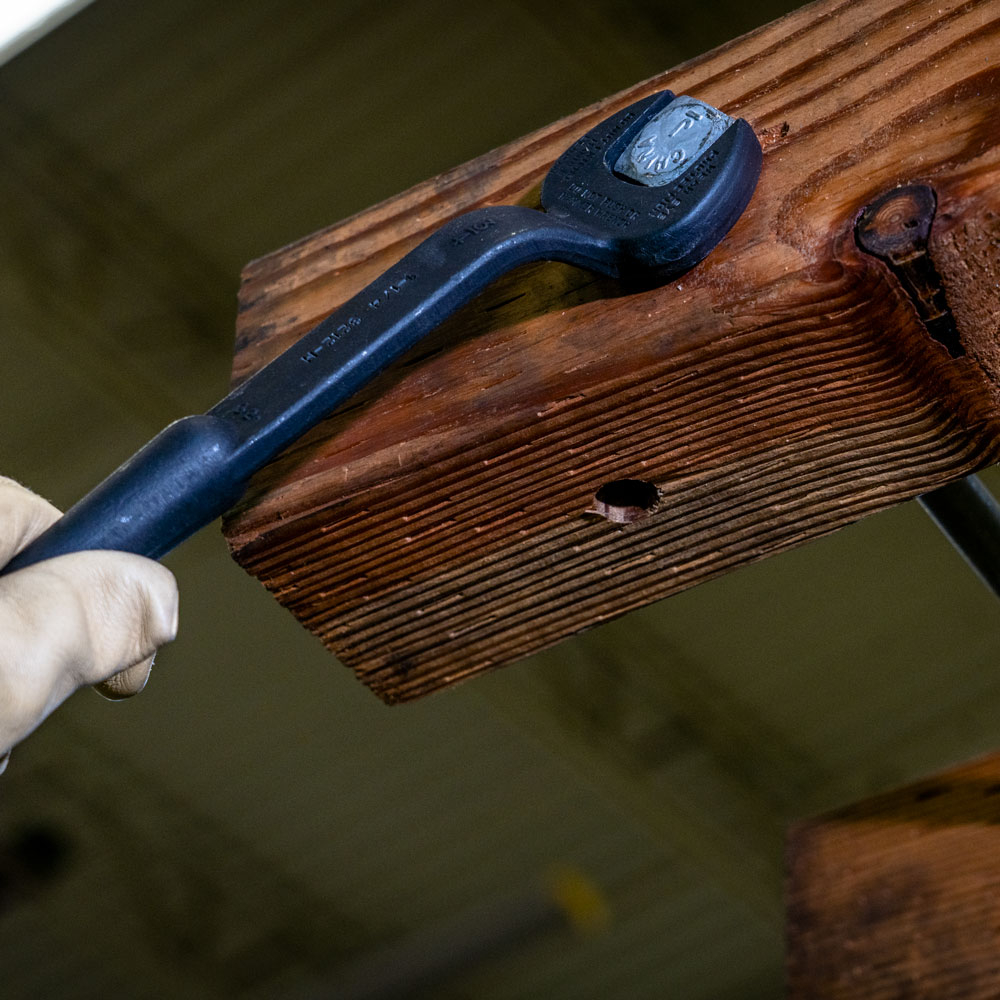

Forged from select alloy steel, the Klein Tools 1-1/2-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. It's designed for use with 1-Inch bolts and U.S. regular nut types. The extra-duty head area gives maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.

Warnings

• Always wear approved eye protection.
• Do NOT push or hammer wrench.
• Do NOT extend handle length.

Features

• Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads

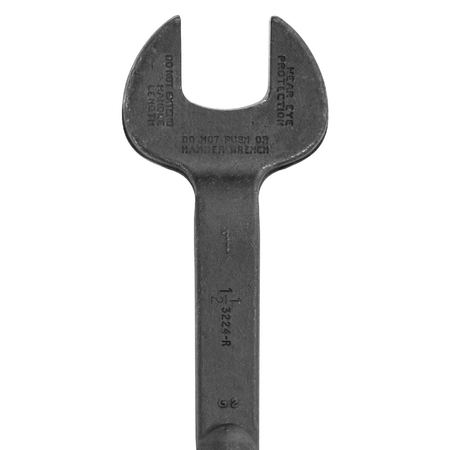

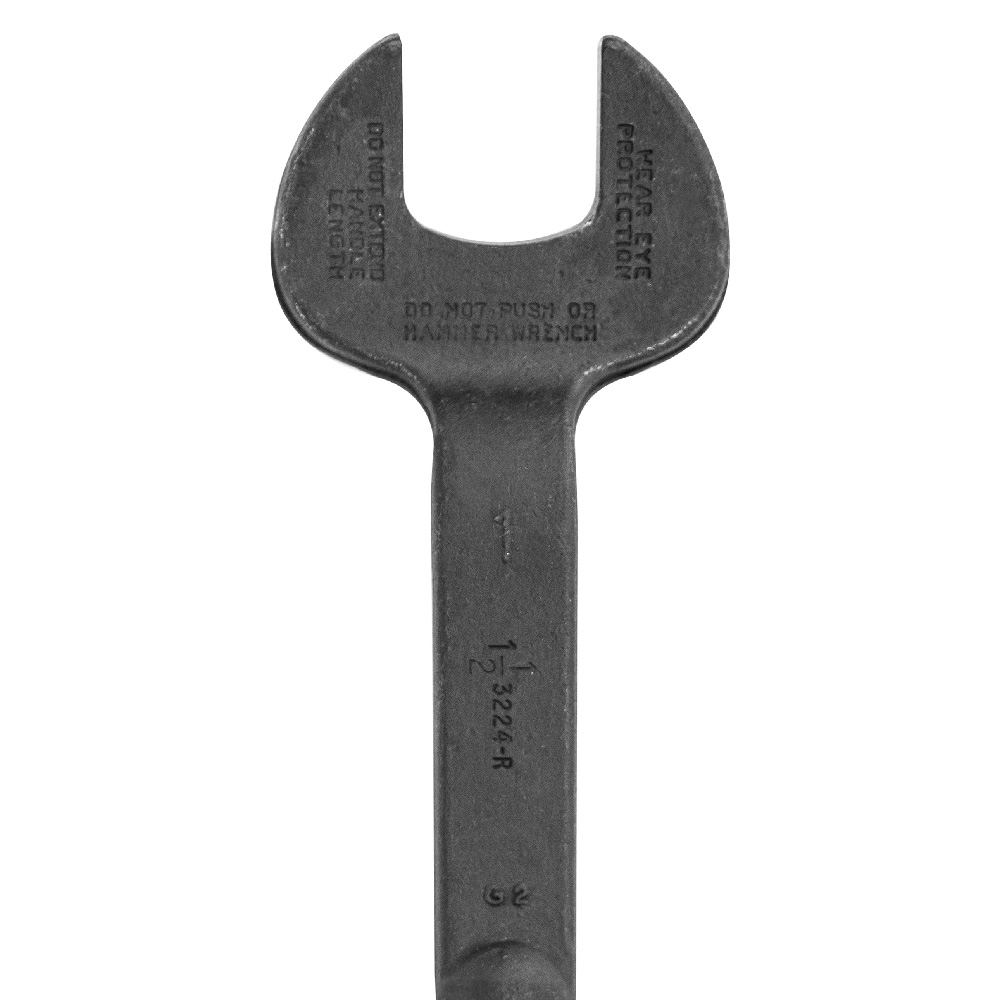

• Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
• American Bridge design
• Made in USA
• Forged from select alloy steel to withstand high-leverage and heavy loads

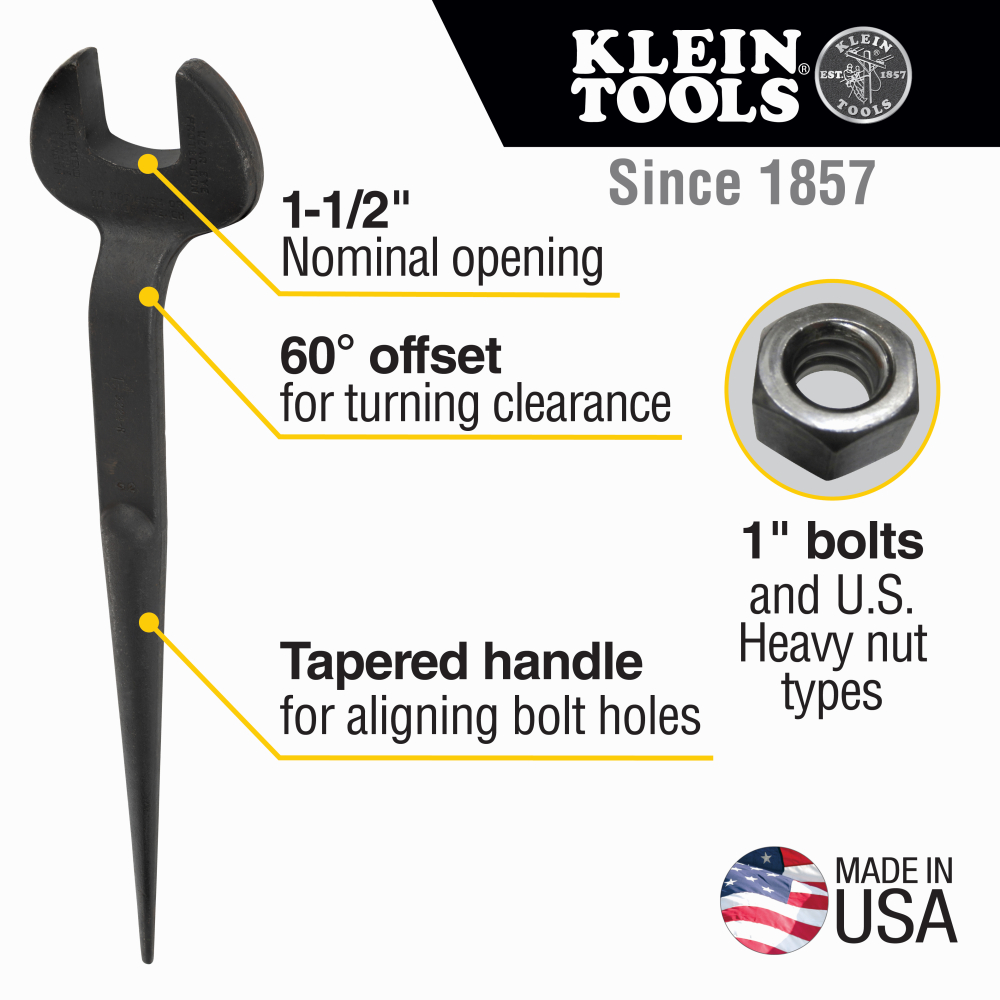

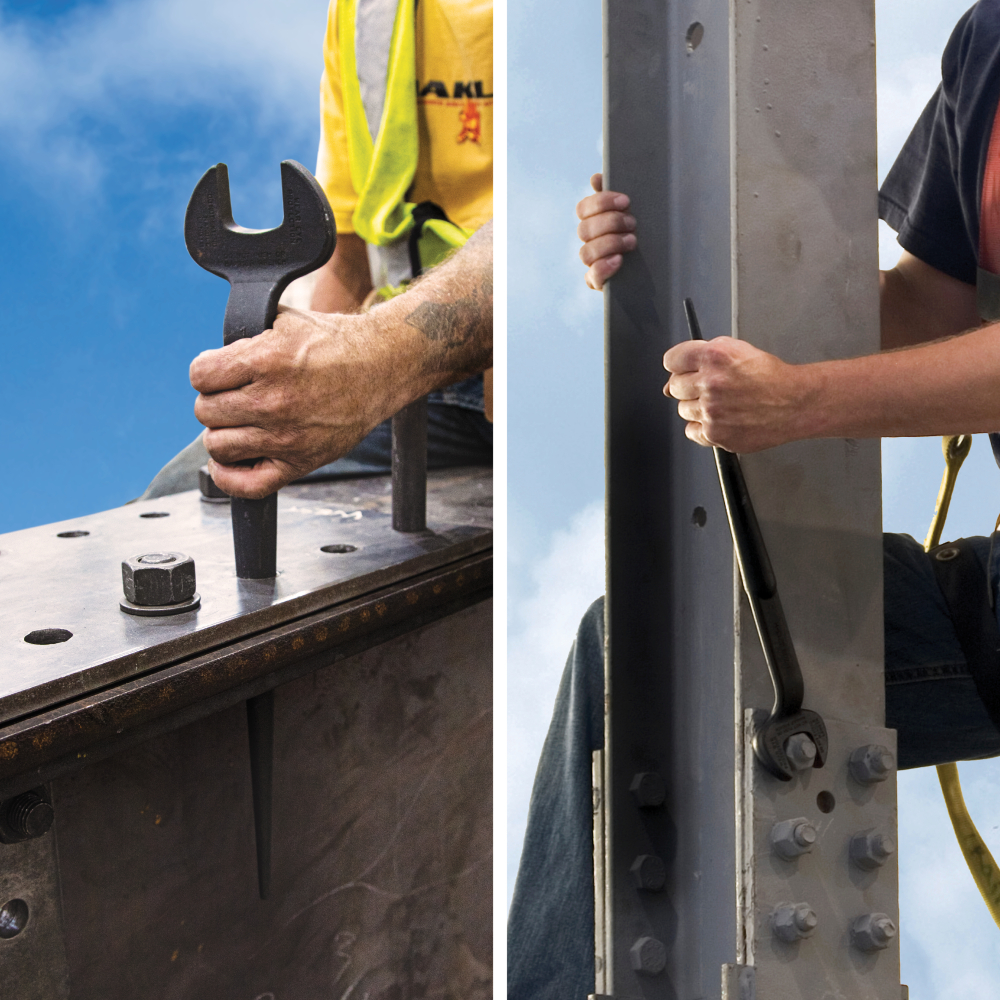

• Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
• Extra heavy-duty head area gives maximum strength and durability
• Extra-large hub area works on larger diameter holes than other wrenches

• Bolt Size: 1 in (2.5 cm)
• Nominal Opening: 1-1/2 in (3.8 cm)

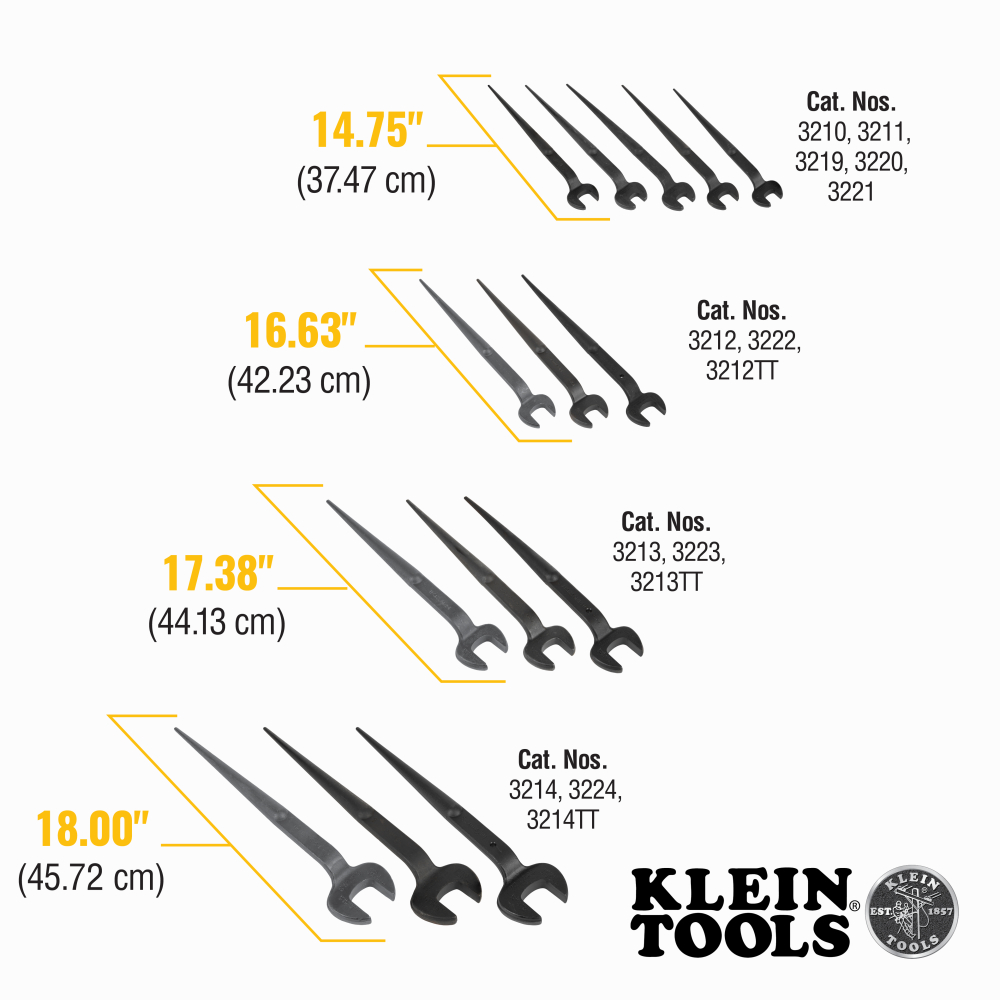

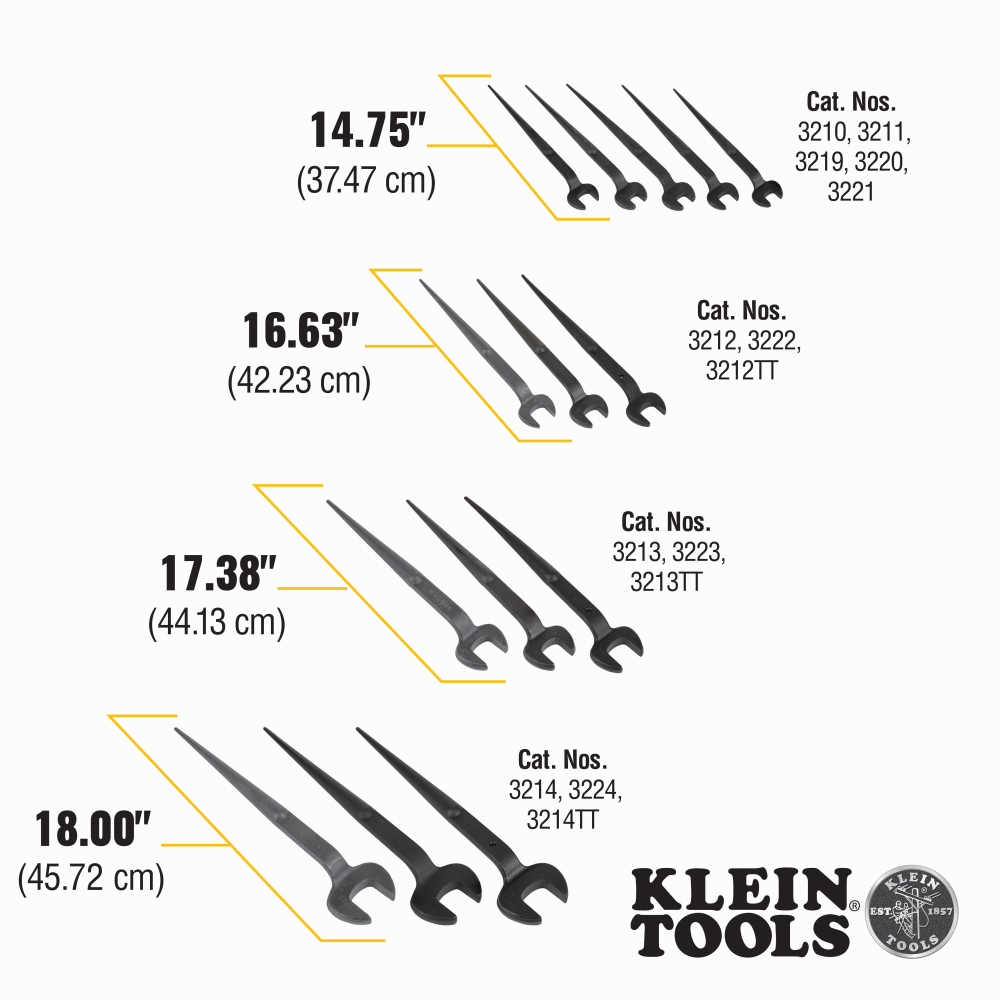

• Overall Length: 18 in (45.7 cm)
• Overall Width: 3.6 in (9.1 cm)
• Head Width: 3.625 in (9.2 cm)
• Overall Height: 1 in (2.54 cm)
• Weight: 3.37 lb
• Taper Diameter: 1-1/8 in to 1/4 in (2.9 to 0.6 cm)
• Offset Angle: 60°
• Square Nut Size: 1 in (2.5 cm)
• Nut Type: U.S. Regular
• Material: Alloy Steel
• Finish: Black Oxide with Rust Preventative
• Country of Origin: United States
