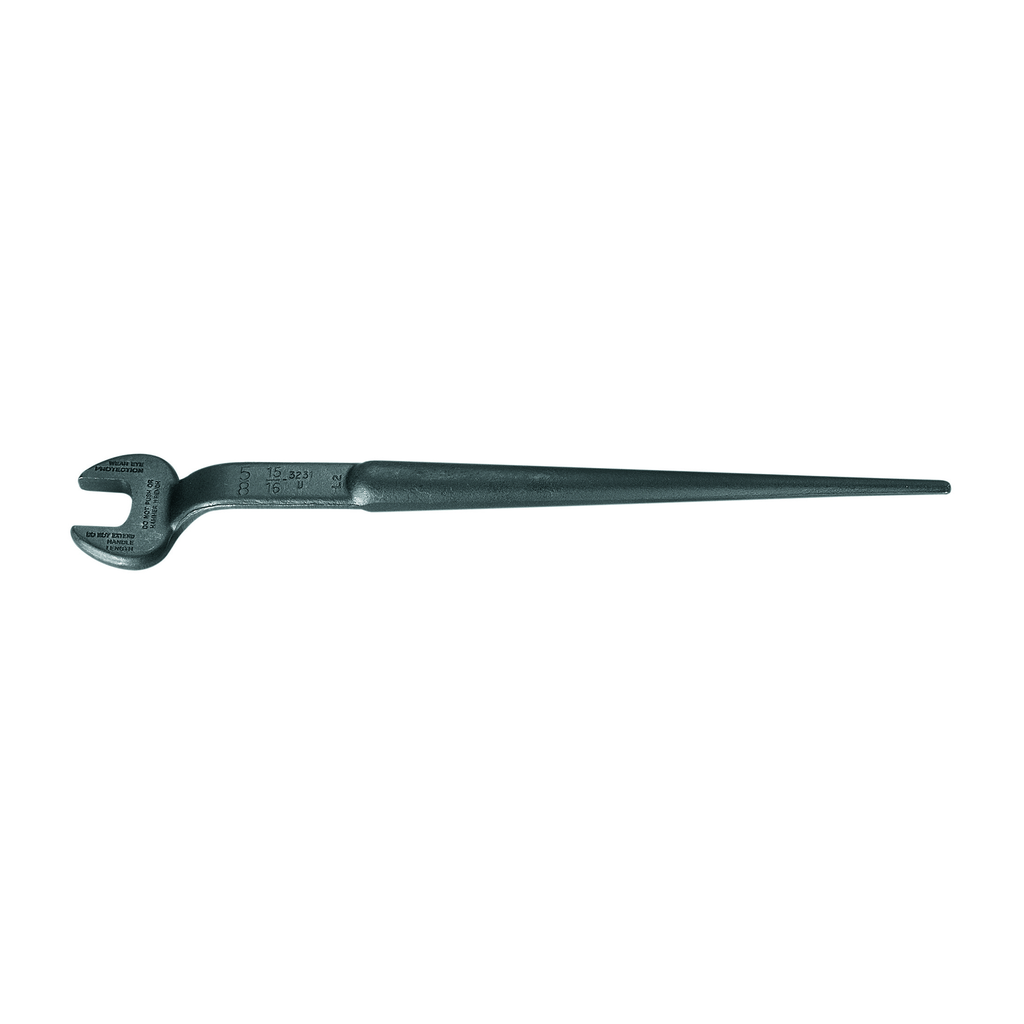

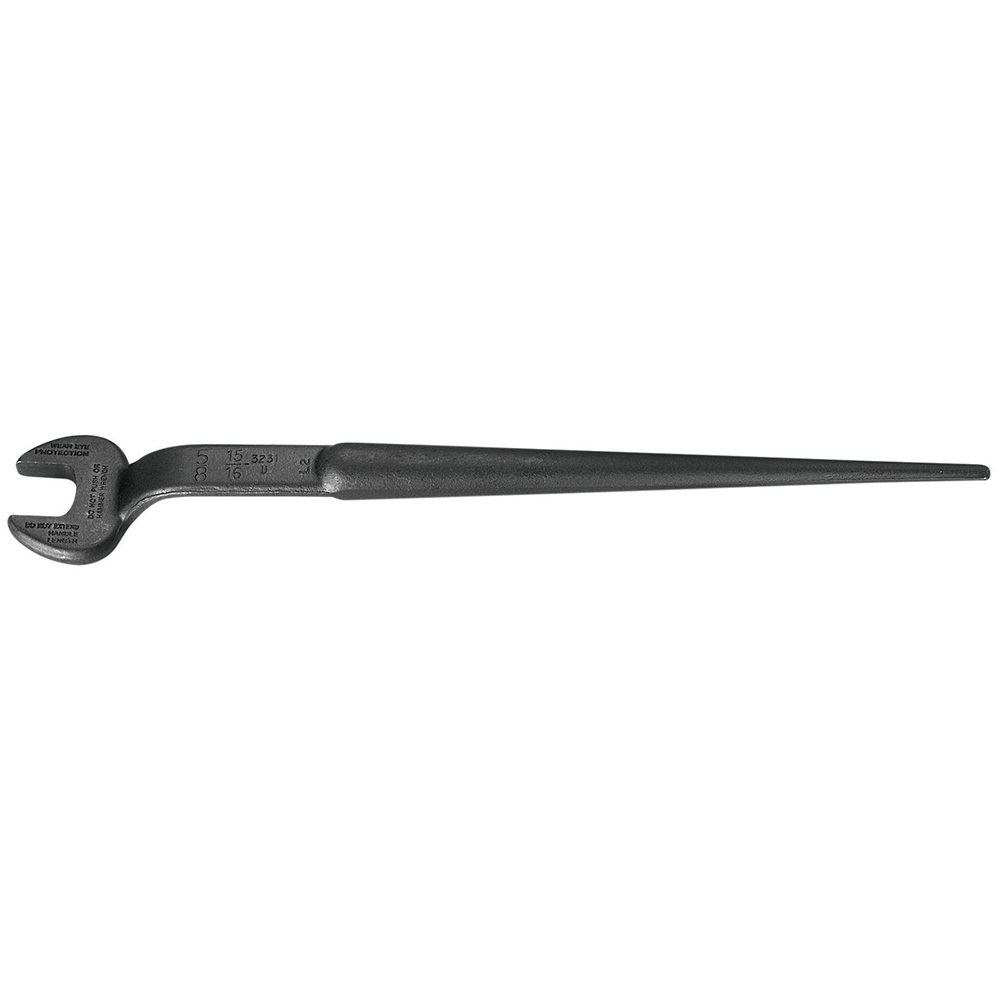

Spud Wrench, 15/16-Inch Nominal Opening for Utility Nut

Forged from select alloy steel, the Klein Tools 15/16-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. It's designed for use with 5/8-Inch bolts and utility nut types. The extra-duty head area gives maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.

Warnings

• Always wear approved eye protection.
• Do NOT extend handle length.
• Do NOT push or hammer wrench.

Features

• Extra-large hub area works on larger diameter holes than other wrenches
• American Bridge design

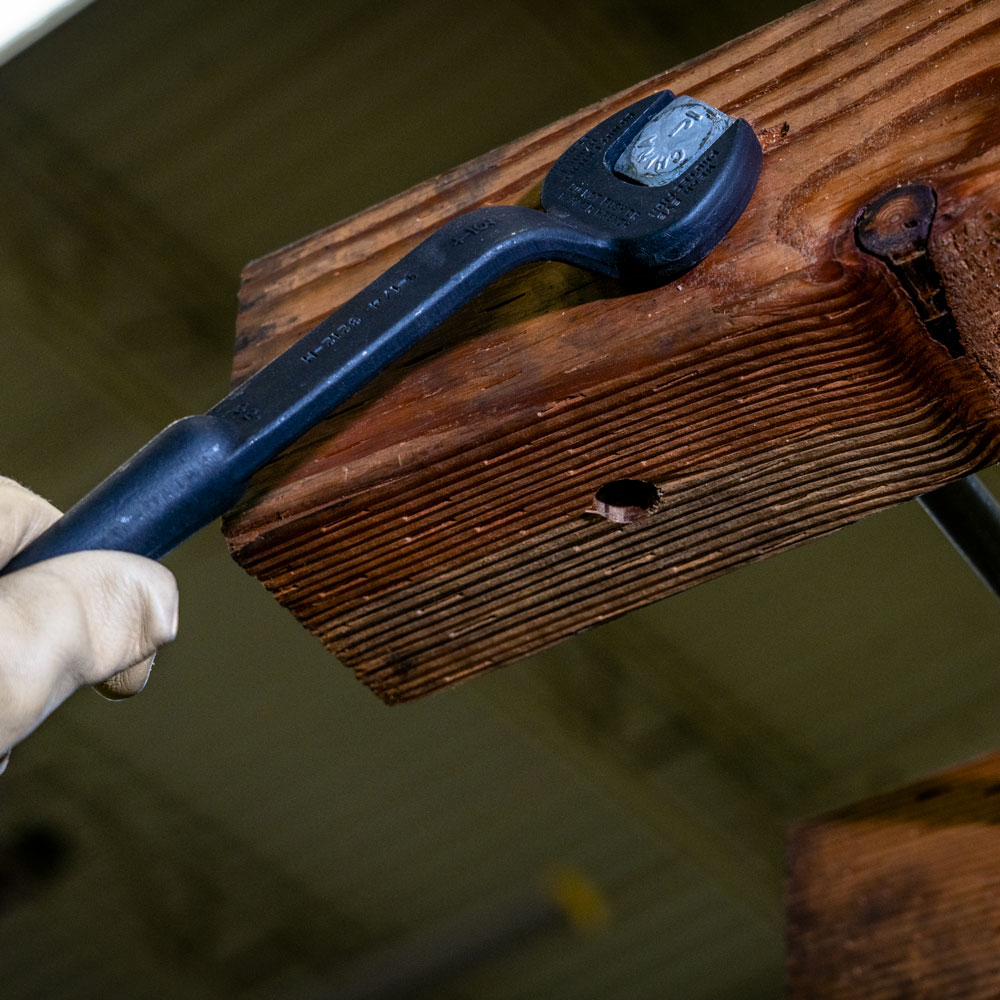

• Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
• Made in USA
• Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
• Extra heavy-duty head area gives maximum strength and durability
• Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
• Forged from select alloy steel to withstand high-leverage and heavy loads

• Nominal Opening: 15/16 in. (2.4 cm)
• Regular Nut Size: 5/8 in. (1.6 cm)
• Heavy Nut Size: 9/16 in. (1.4 cm)
• Bolt Size: 5/8 in. (1.6 cm)
• Offset Angle: 60°
• Taper Diameter: 7/8 to 3/16 in. (2.2 to 0.5 cm)
• Overall Length: 14.75 in. (37.5 cm)
• Overall Height: 1 in. (2.54 cm)
• Overall Width: 2.25 in. (5.7 cm)
• Head Width: 2.25 in. (5.7 cm)
• Weight: 1.3 lb
• Material: Alloy Steel
• Finish: Black Oxide with Rust Preventative
• Nut Type: Utility
• Type: Spud Wrench
• Configuration: 7/8 to 3/16-Inch Taper
• Depth: 14.75 in.
• Size Name: 5/8-Inch
• Country of Origin: USA
