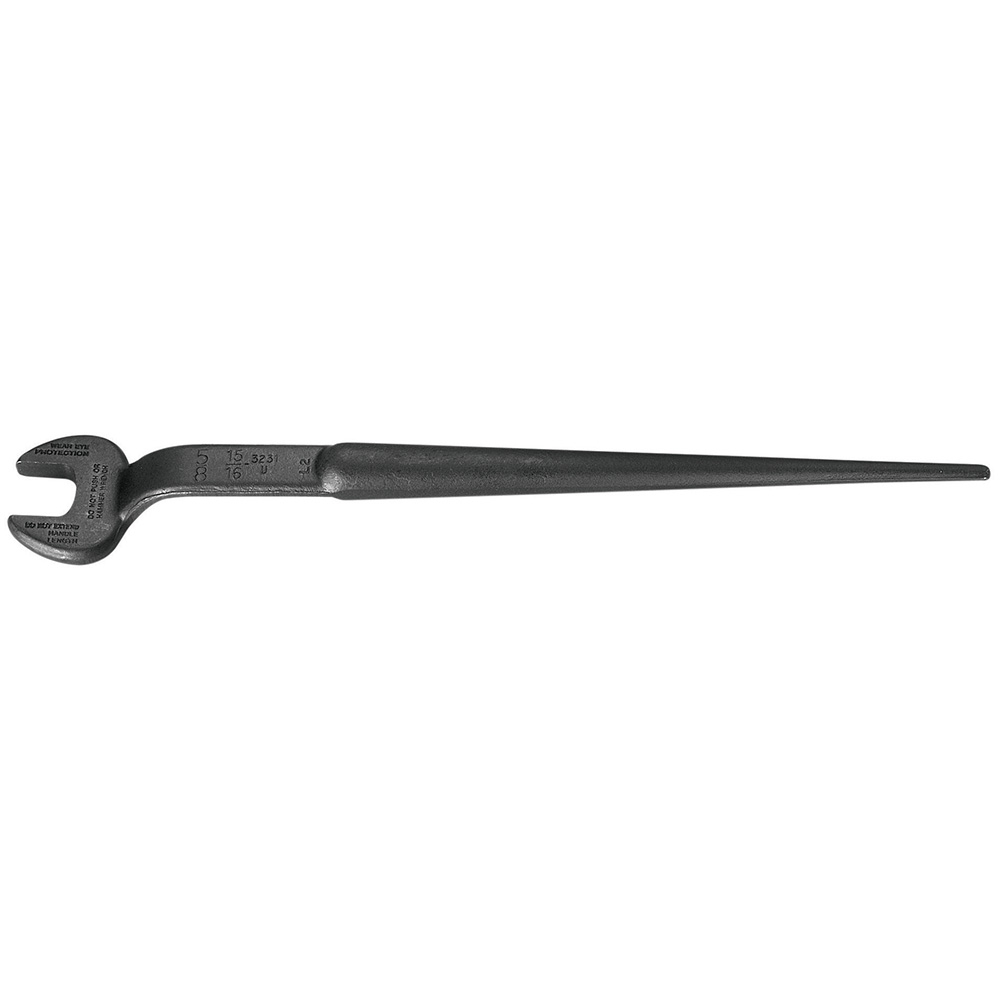

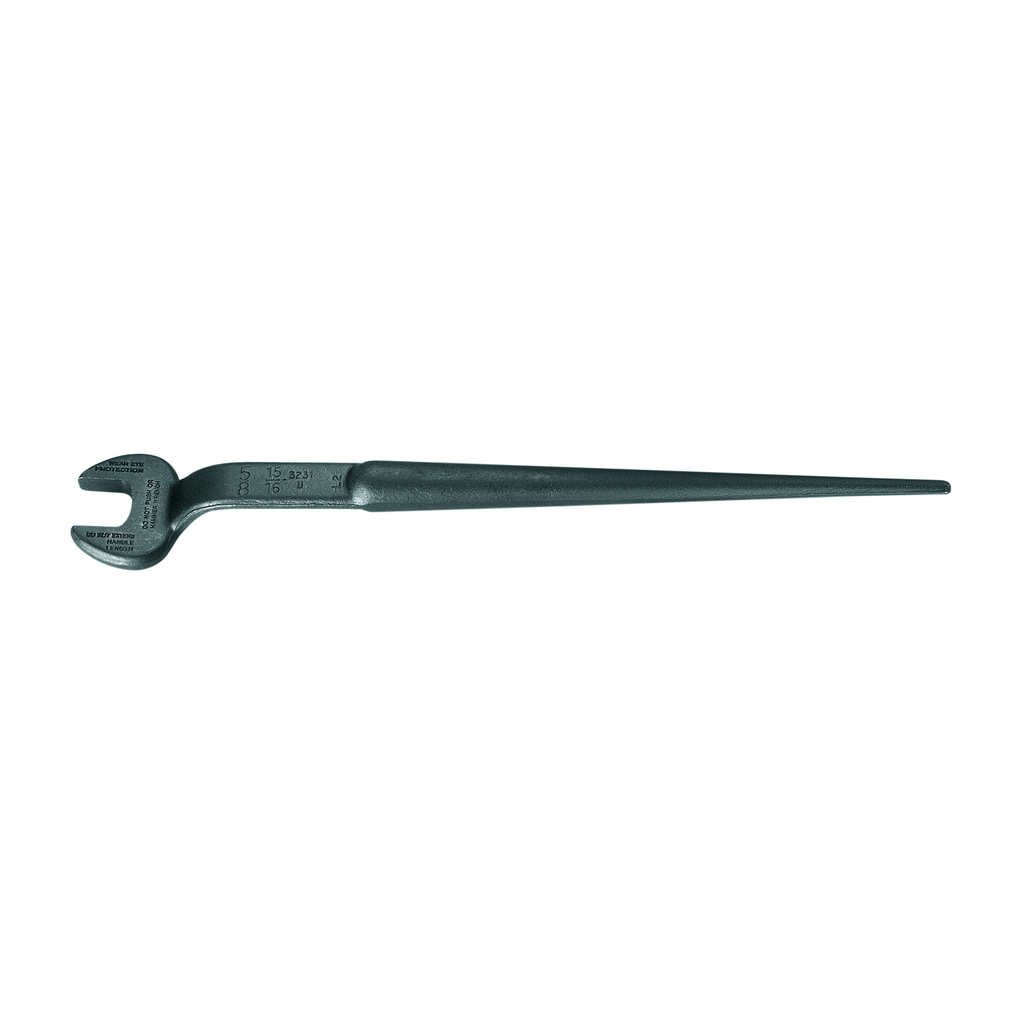

Spud Wrench, 1-1/16-Inch Nominal Opening for Utility Nut

Forged from select alloy steel, the Klein Tools 1-16-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. It's designed for use with 3/4-Inch bolts and utility nut types. The extra-duty head area gives maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.

Features

• Extra-large hub area works on larger diameter holes than other wrenches

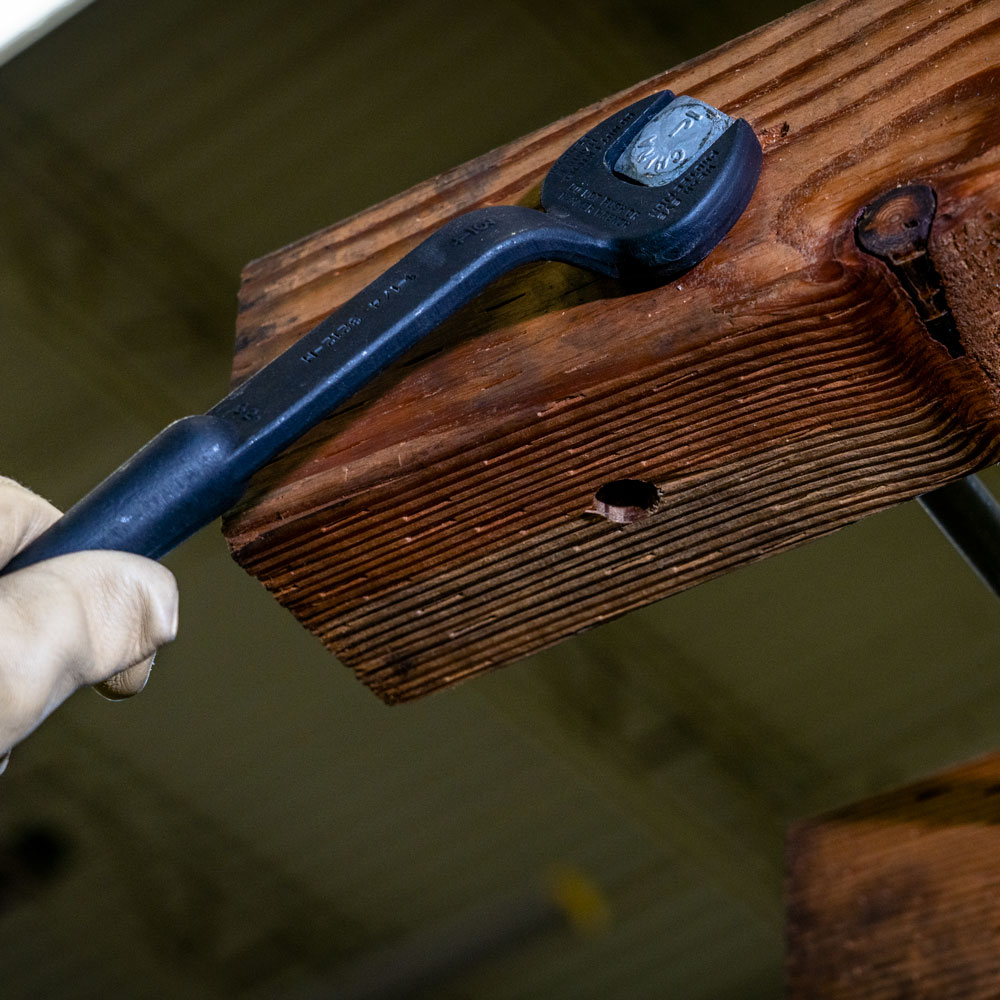

• Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
• American Bridge design
• Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
• Extra heavy-duty head area gives maximum strength and durability
• Nominal Opening: 1-1/6-Inch (27.0 mm)
• Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
• Made in USA
• Forged from select alloy steel to withstand high-leverage and heavy loads

Warnings

• Do NOT push or hammer wrench.
• Always wear approved eye protection.
• Do NOT extend handle length.

• Nominal Opening: 1-1/16 in (2.7 cm)
• Overall Length: 16.625 in (42.2 cm)
• Overall Height: 1 in (2.54 cm)
• Overall Width: 2.5 in (6.4 cm)
• Taper Diameter: 1 in to 1/4 in (2.5 to 0.6 cm)
• Offset Angle: 60°
• Weight: 2.0 lbs
• Material: Alloy Steel
• Finish: Black Oxide with Rust Preventative
• Nut Type: Utility
• Heavy Nut Size: 5/8 in (1.6 cm)
• Type: Spud Wrench
• Configuration: 1 to 1/4-Inch Taper
• Bolt Size: 3/4 in (1.9 cm)
• Country of Origin: United States
• Size Name: 3/4-Inch
• Style Name: 1 to 1/4-Inch Taper
• Depth: 16.625 in
