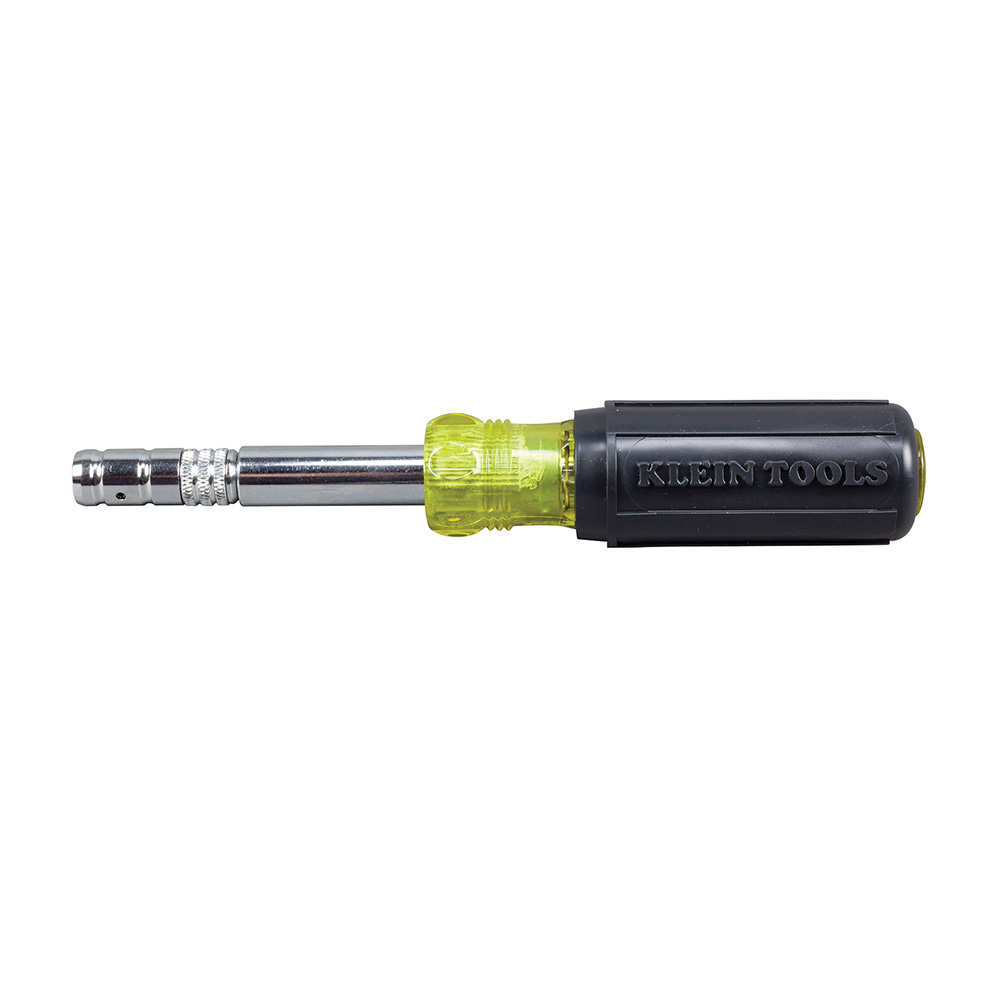

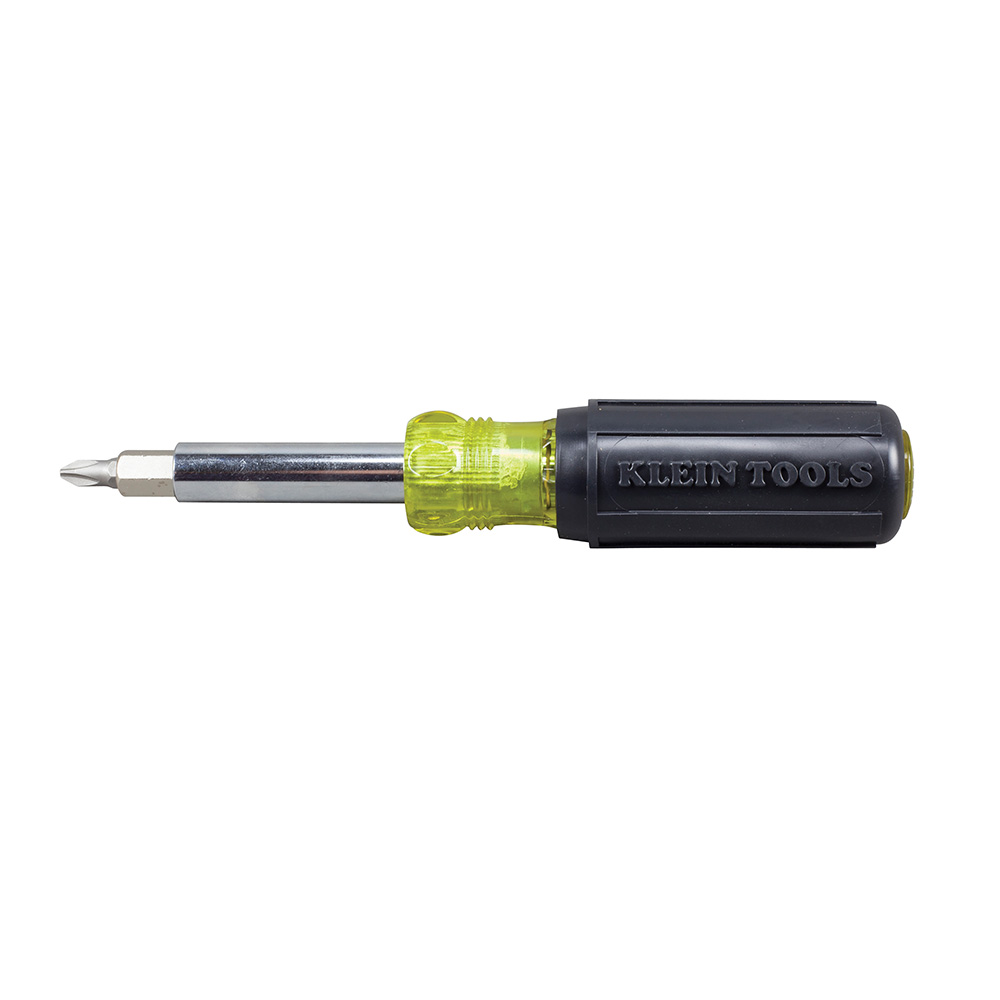

HVAC Slide Drive™ Multi-Bit Screwdriver / Nut Driver, 8-in-1

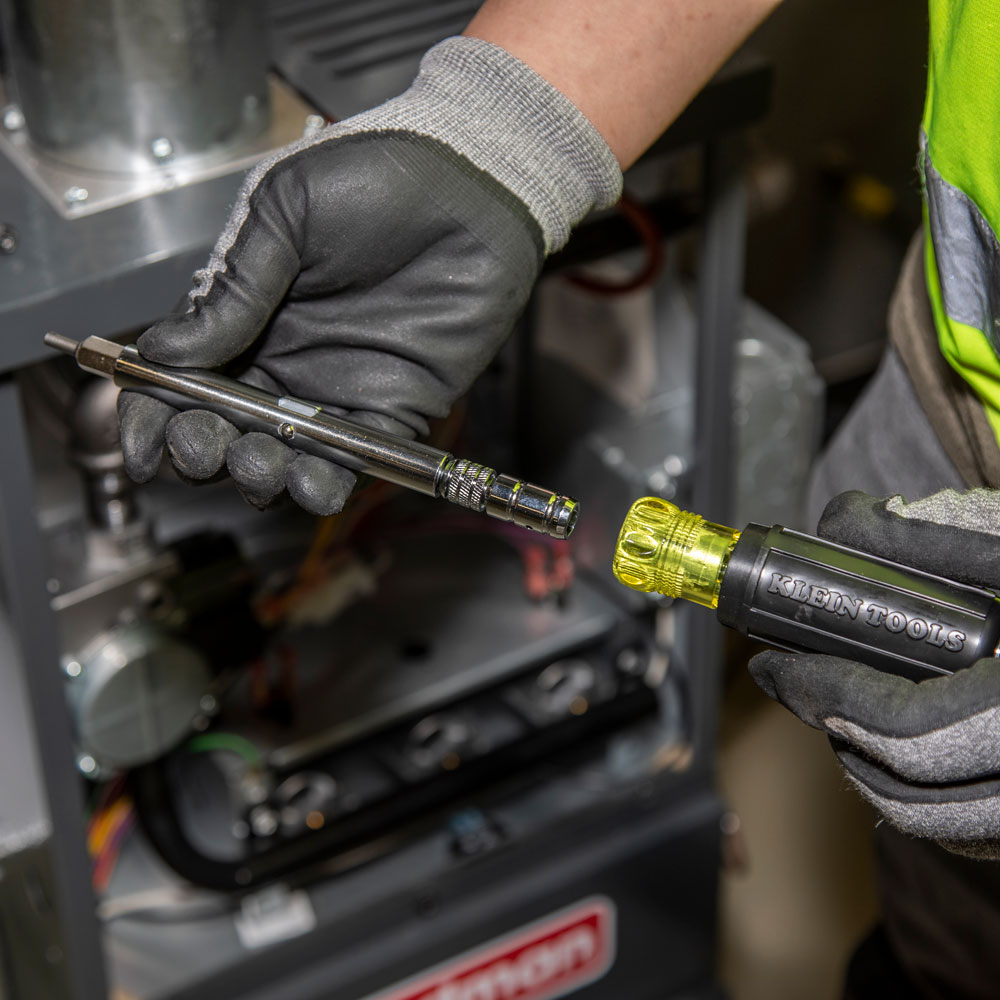

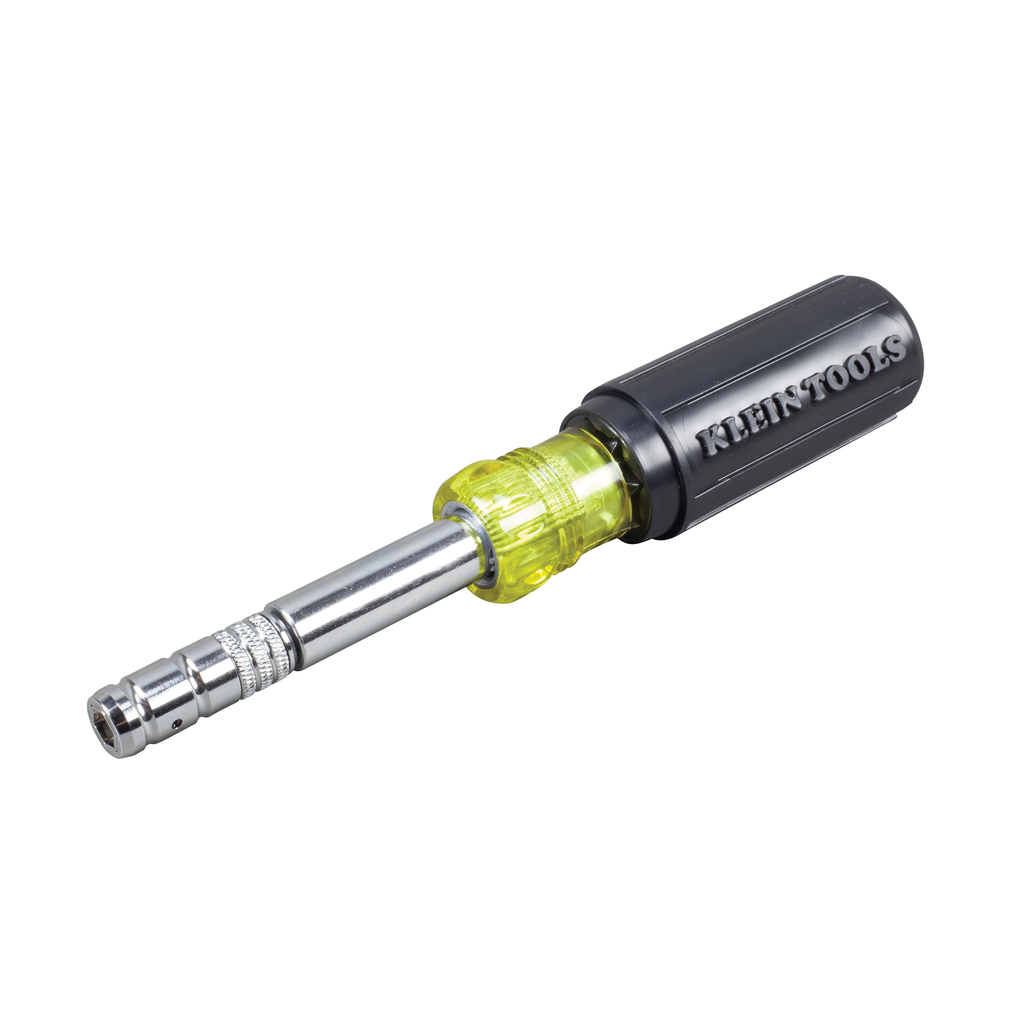

This 8-in-1 HVAC Slide Drive™ Screwdriver / Nut Driver has a unique, patented head that slides back and forth to switch from 1/4-Inch to 5/16-Inch magnetic hex-head screwdriver. Convenient thumb nut locks tip setting. It includes a specialty bit for the installation/removal of common TR-4 Schrader® valves as well as regular 1/4-Inch and 3/8-Inch nut drivers plus Phillips/slotted double-ended bits. Offers the HVAC tech the convenience of having magnetic nut drivers on a multi-bit screwdriver.

Warnings

• Always wear approved eye protection.
• Never use on or near live electrical circuits.
• Do NOT use to pry or chisel.

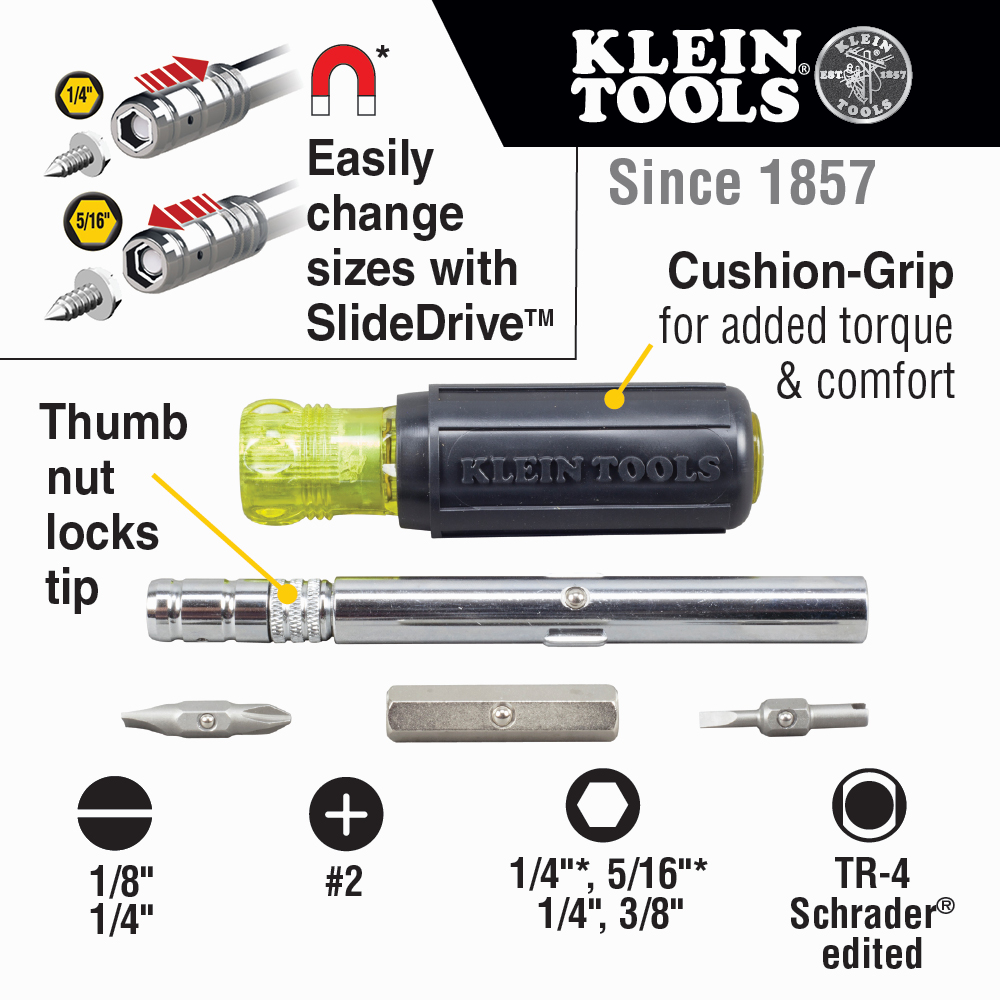

Features

• U.S. patent 7,654,175 B2
• Cushion-Grip™ handle for greater torque and comfort

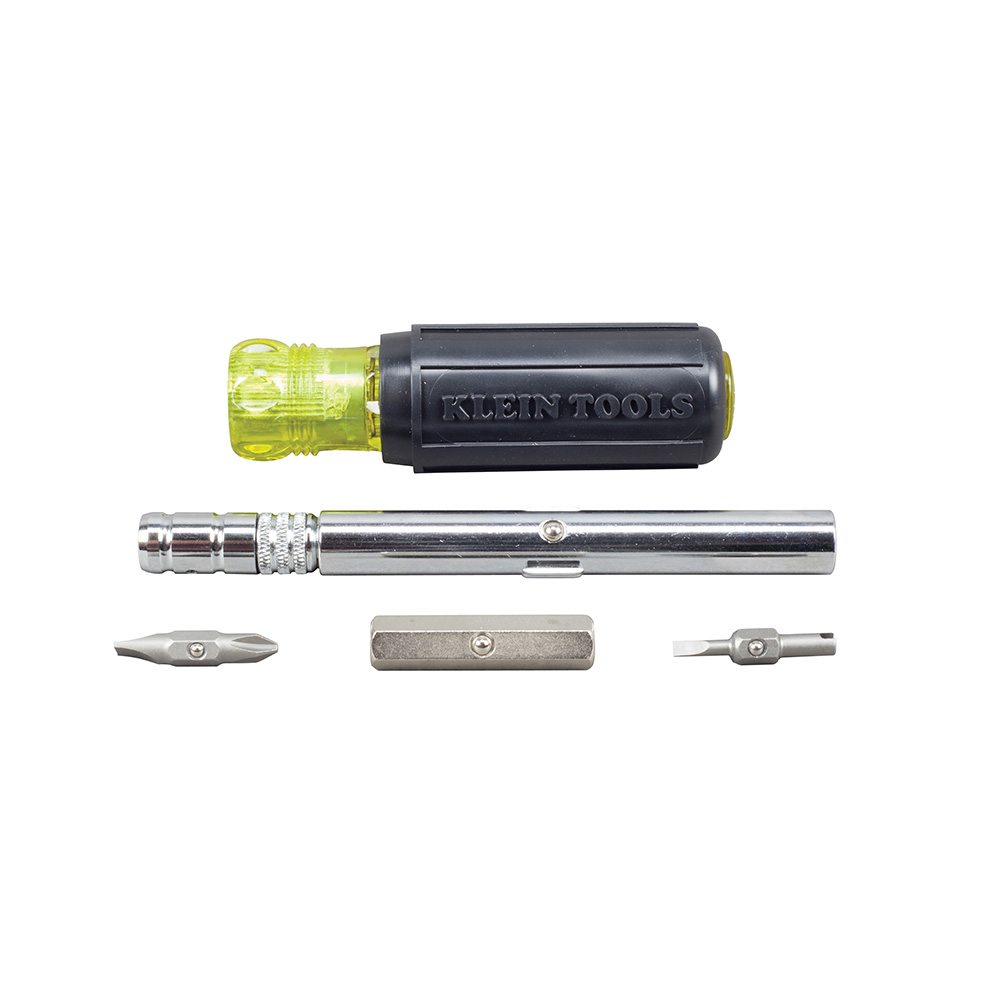

• Includes 1/4-Inch and 3/8-Inch hollow nut drivers, as well as #2 Phillips, 1/8-Inch (3 mm) and 1/4-Inch (6 mm) slotted screwdriver tips
• Features a specialty bit for installation/removal of common TR-4 Schrader® valves

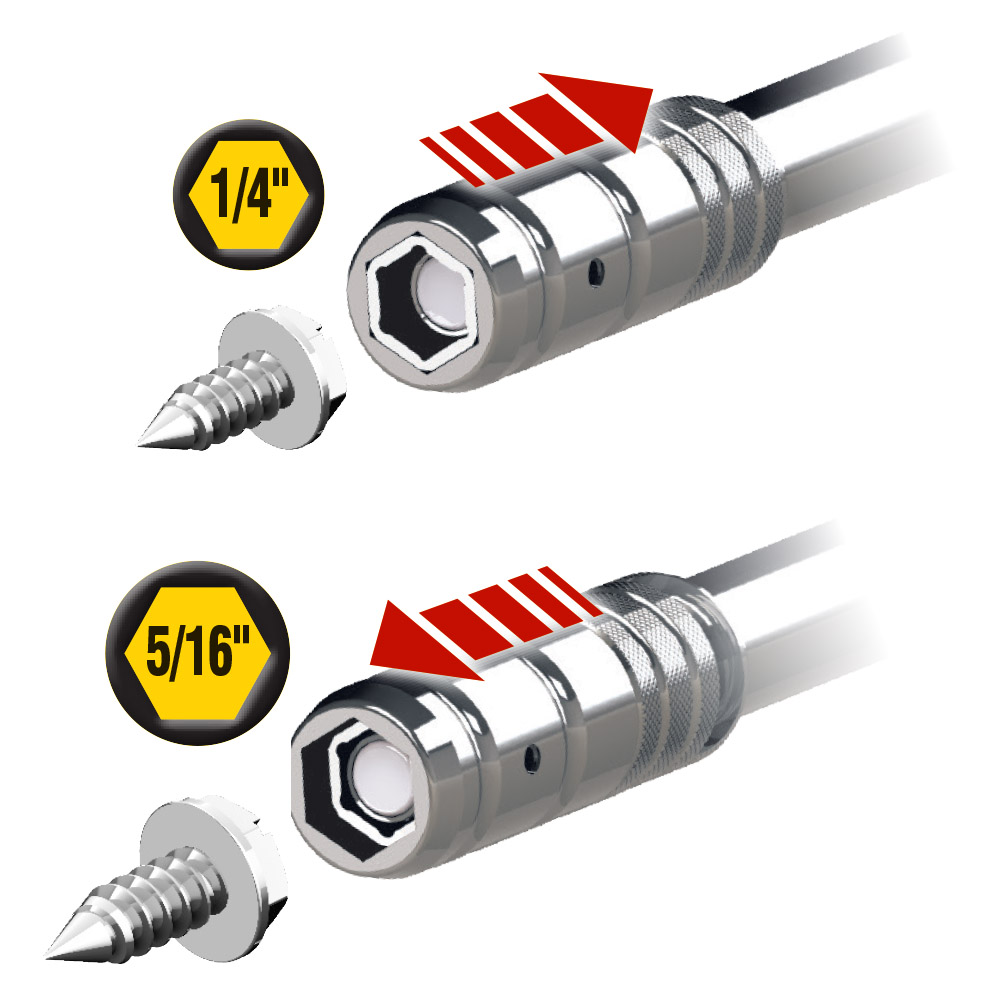

• 8-in-1 Screwdriver / Nut Driver with unique, patented head that slides back and forth to switch from 1/4-Inch to 5/16-Inch magnetic hex-head screwdriver
• Slide Drive™
• Thumb nut locks tip setting

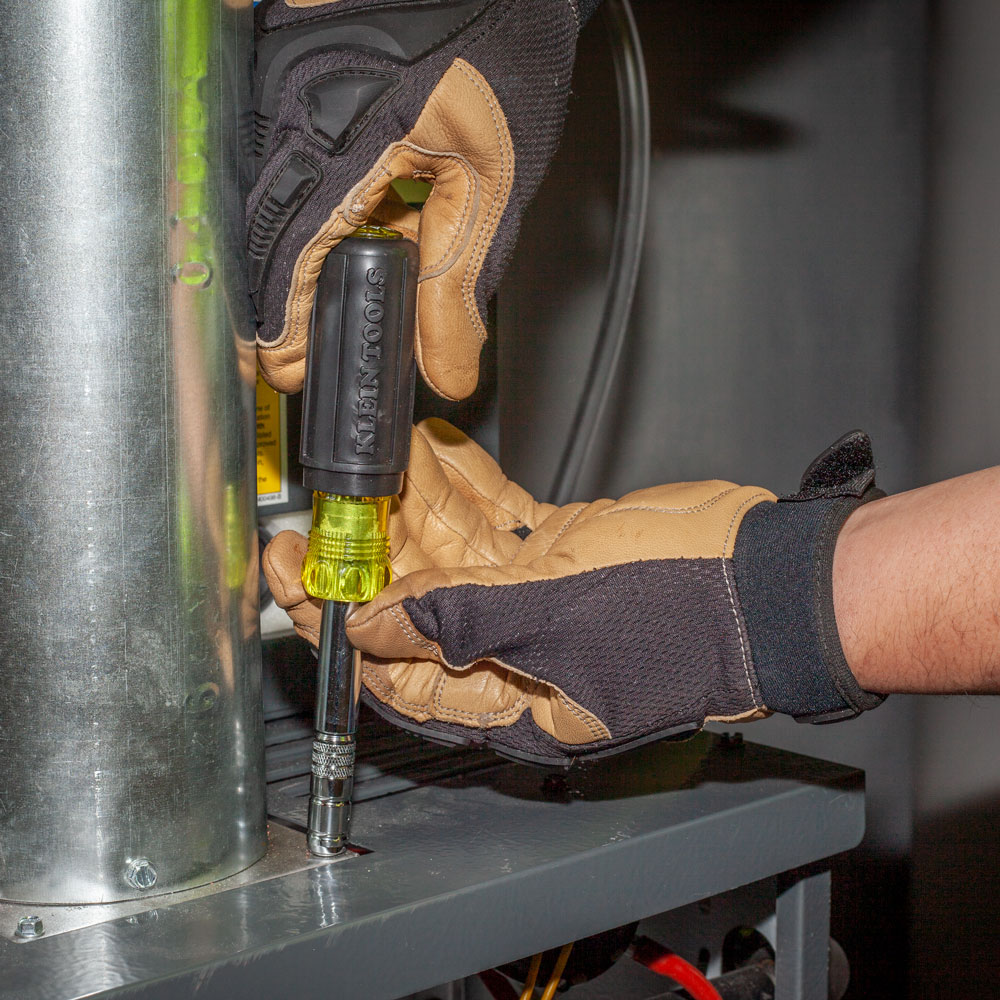

• Great for HVAC applications including thermostat installation and control work

Specifications

• Handle Type: Cushion-Grip
• Overall Width (Inch): 1.25
• Shank Length: 3.25" (8.3 cm)
• Slotted Bits: 1/8" (3.2 mm), 1/4" (6.4 mm)
• Weight (oz): 8
• Handle Color: Yellow/Black
• Overall Length (Inch): 7.5
• Weight: 0.5000 lbs
• Width: 1.2500 in
• Depth: 7.4300 in
• Other Bits: Schrader® Valve Core Removal
• Weight (g): 227
• Nut Driver Sizes: 1/4" Magnetic, 5/16" Magnetic, 1/4", 3/8"
• Overall Width (cm): 3.2
• Phillips Bits: #2
• Overall Length (cm): 19.1
• Overall Height (Inch): 1.25
• Magnetic: Yes
• Handle Length: 4.313" (11 cm)
• Application: HVAC
• Height: 1.2500 in
• Overall Height (cm): 3.2
