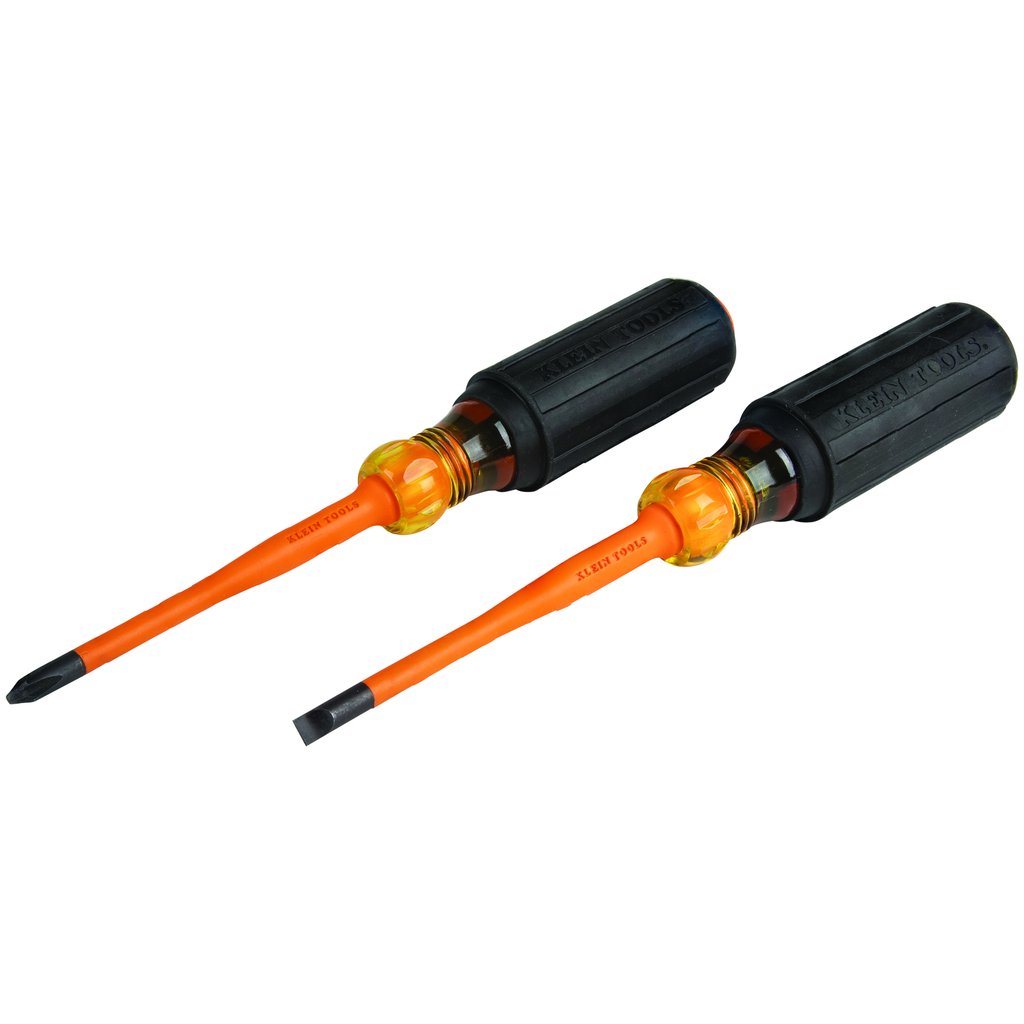

Screwdriver Set, Slim-Tip Insulated Phillips and Cabinet Tips, 2-Piece

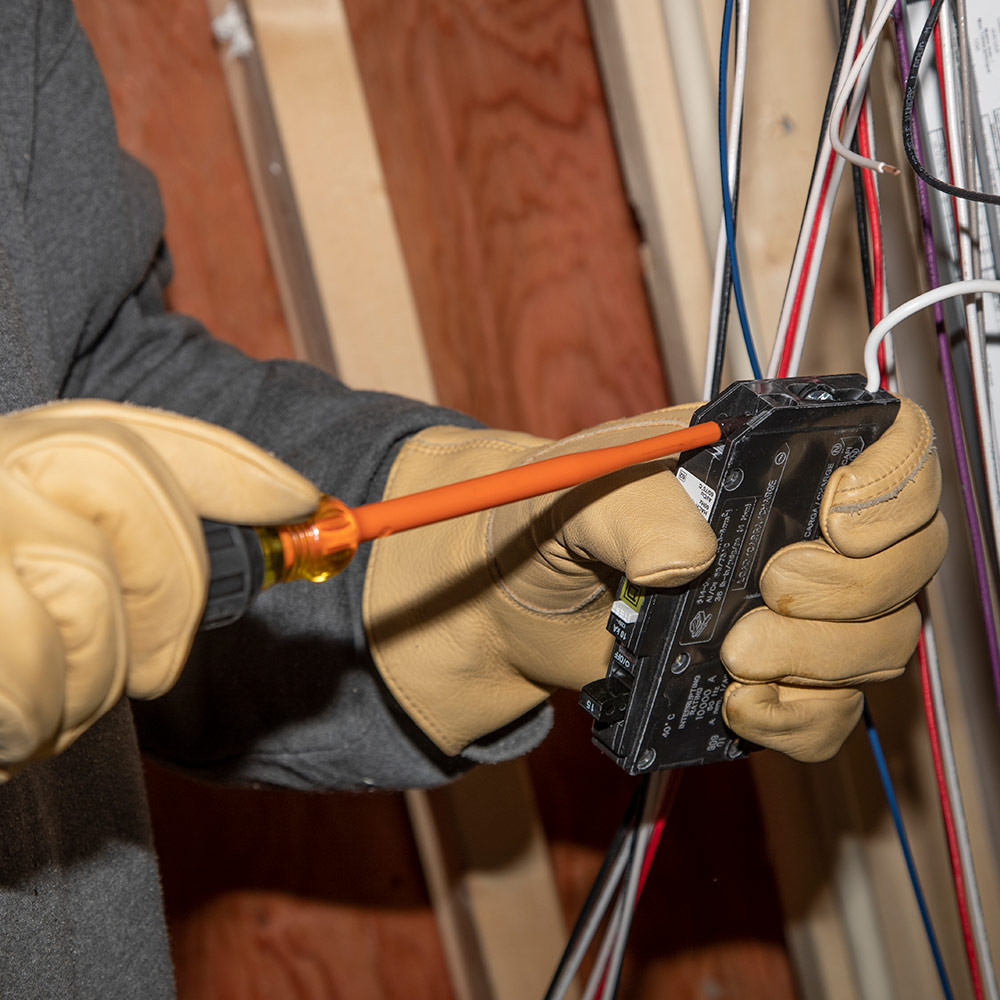

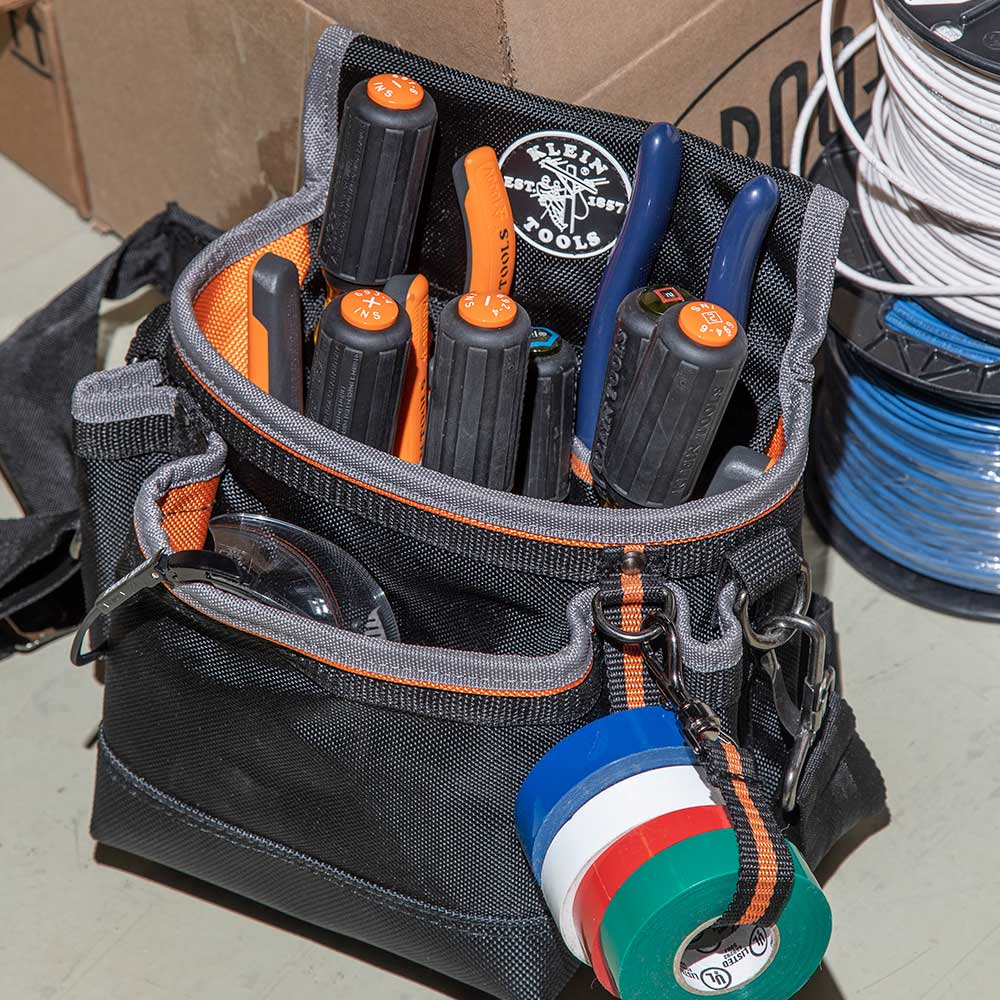

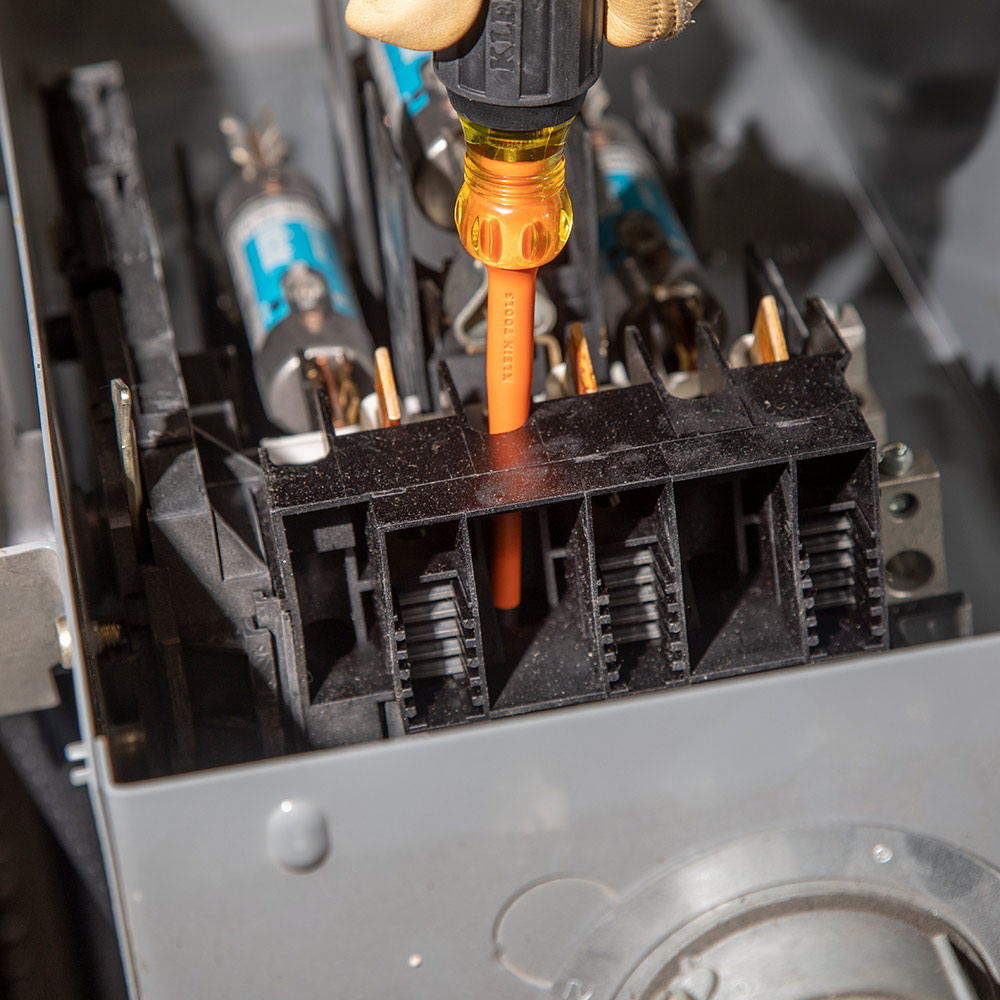

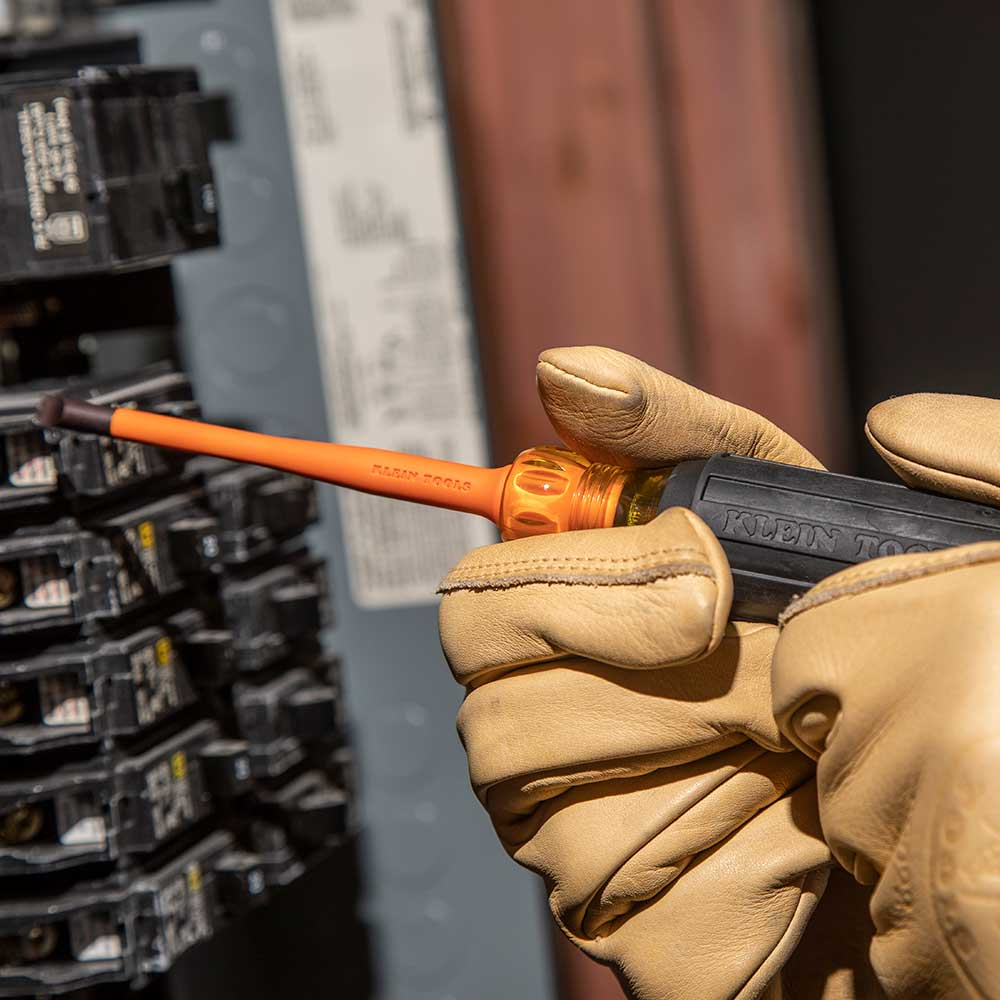

The Klein Tools' Slim-Tip Insulated Screwdrivers in this screwdriver set have slim profile tips that allow for greater access into terminal blocks, slim-style breakers, or other tight spaces near energized sources. A bright orange coating of insulation protects from electrical shock, is flame and impact resistant, and sits flush with the tip helping to reduce insulation chipping and cracking. Klein insulated tools exceed the ASTM F1505 standards for insulated tools, and are clearly marked with the official 1000-volt rating symbol. A great set for any tool bag, the 2-piece set includes 4-Inch round shank in a 1/4-Inch Cabinet tip and a #2 Phillips. Also available is a 6-Inch shank, 3/16-Inch Cabinet tip and a #2 Square.

Warnings

• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them.
• Keep tool clean, dry and free of any surface contaminants.
• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Always inspect your tools before use.

Features

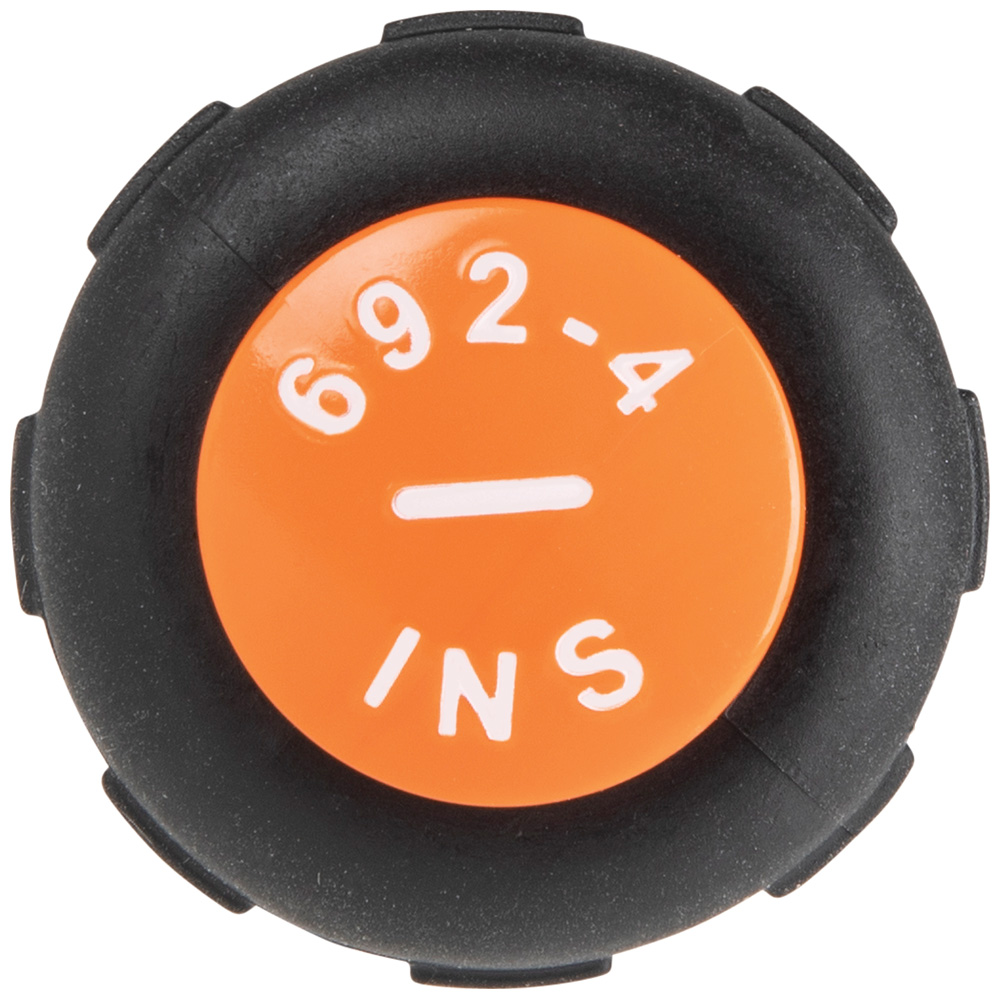

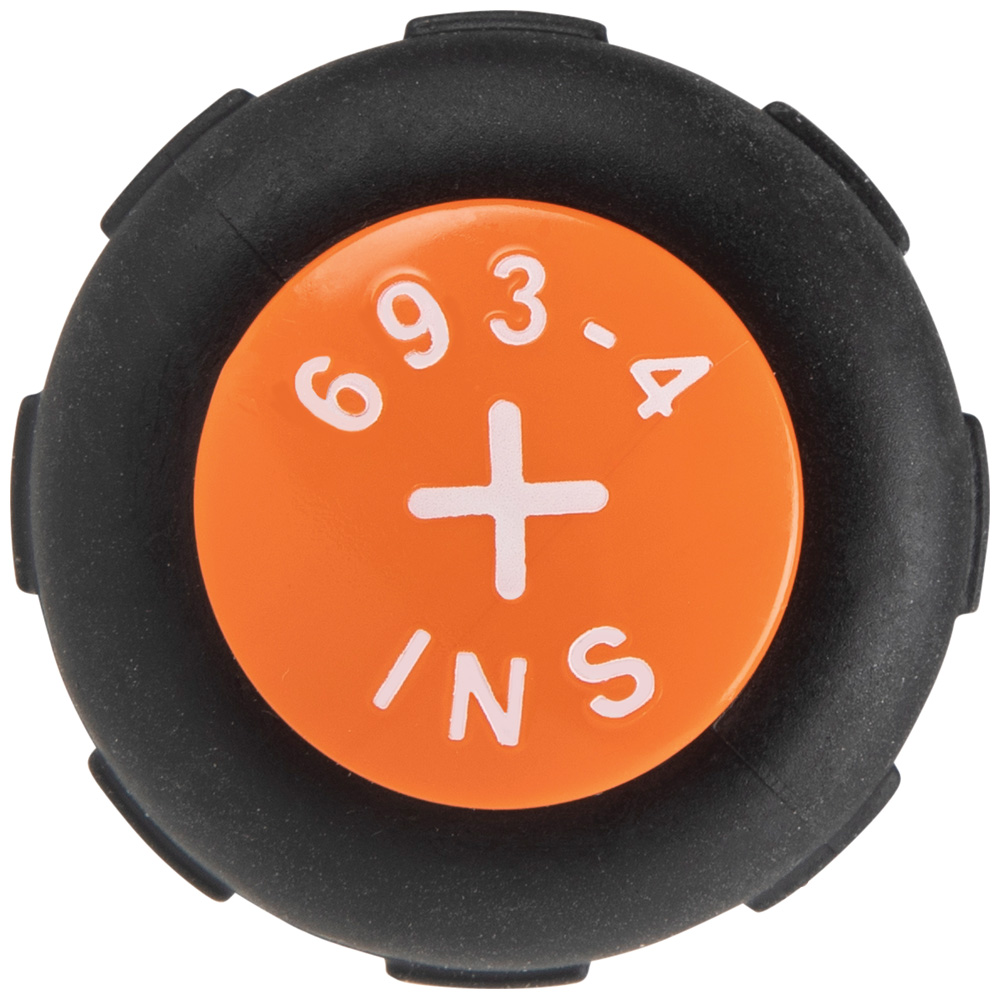

• Tip-Ident quickly identifies the type of screwdriver tip orientation so you can easily engage the screwdriver tip with the screw
• Layer of orange impact and flame-resistant insulation protects from energized sources
• 1000-Volt rated insulated screwdrivers with slim-tips that allow for greater access into tight spaces
• Slim-Tip Insulated Screwdriver Set sizes: 4-Inch round shank in a #2 Phillips and a 1/4-Inch Cabinet tip
• Slim Profile Tips
• Made in USA
• Meets or exceeds ASTM F-1505-16 and IEC 60900:2018

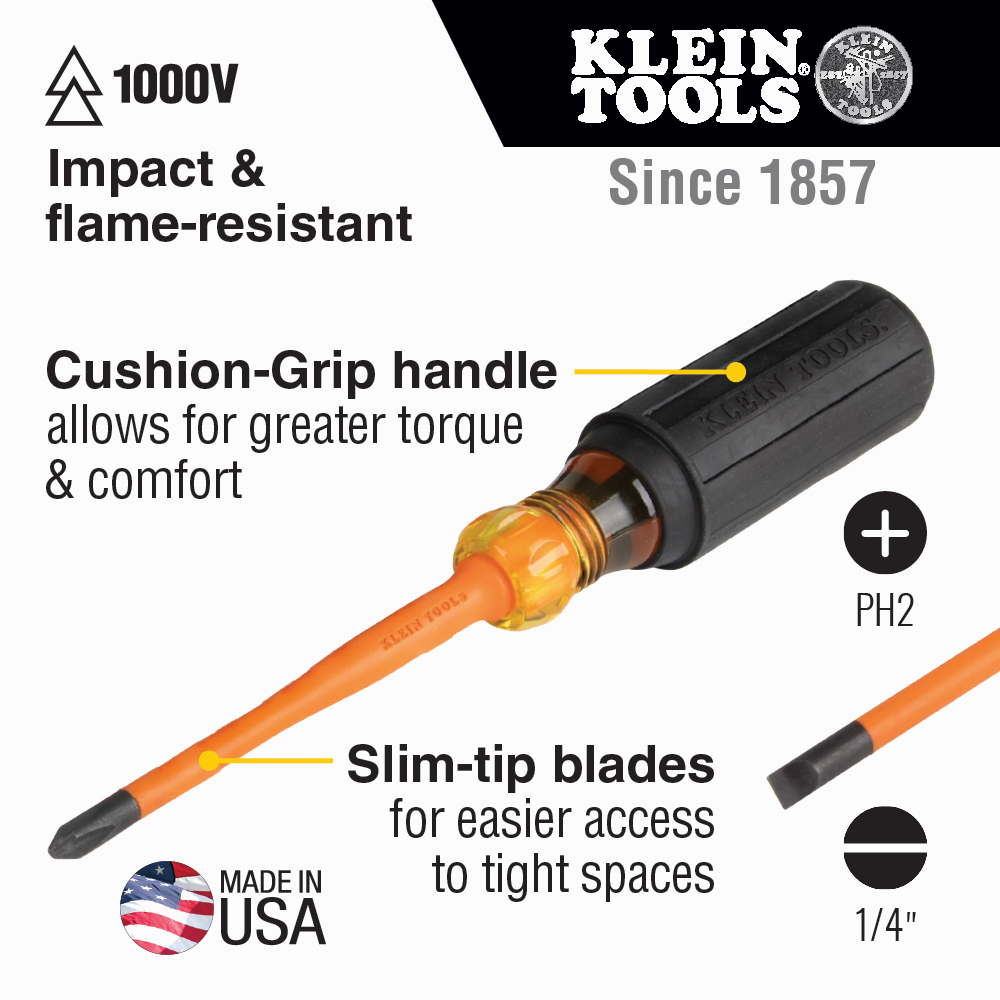

• Cushion-Grip™ handles for greater torque and comfort

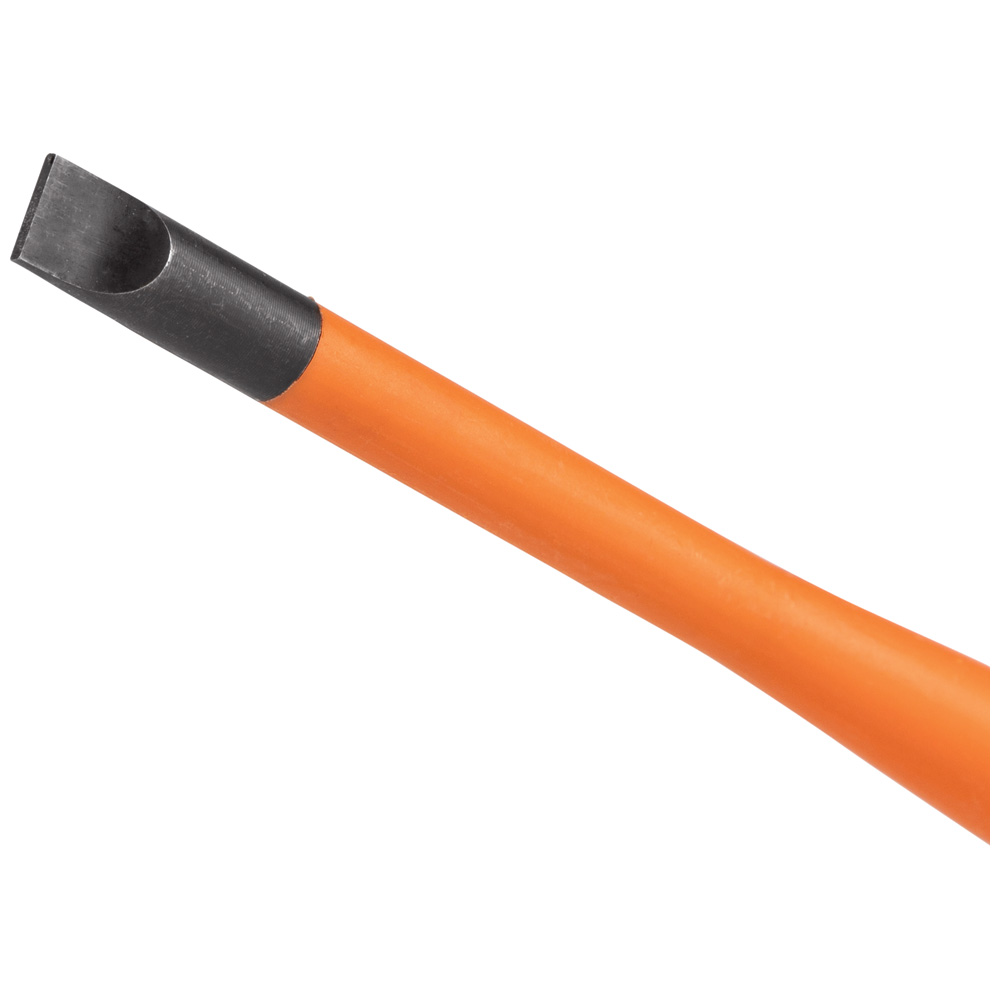

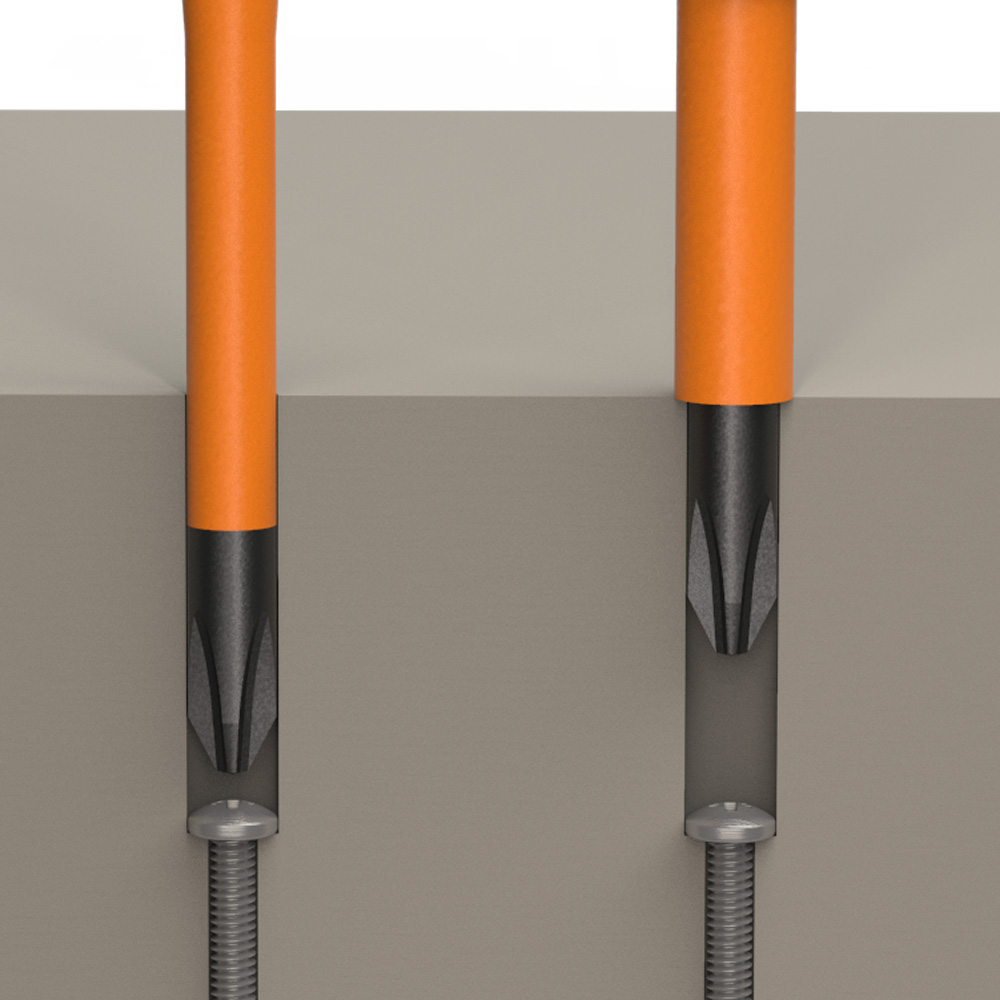

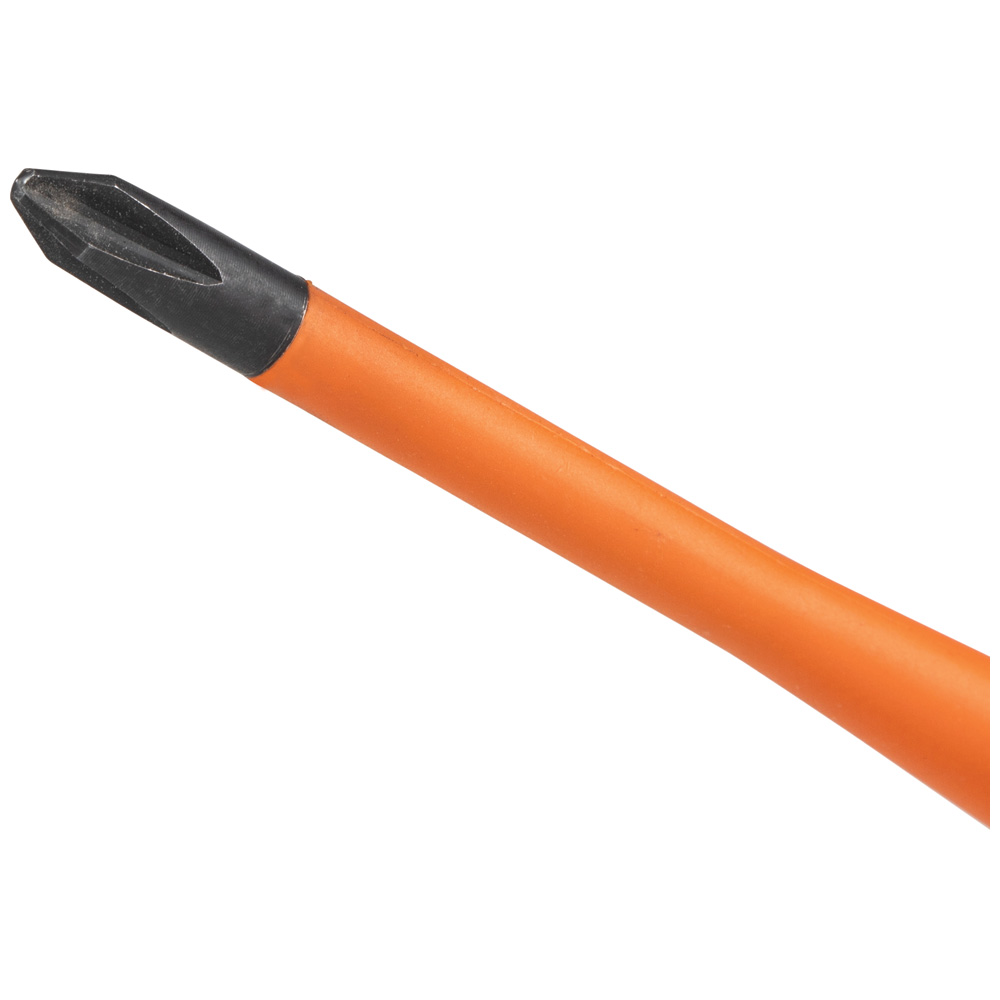

• Insulated blade is flush with the tip which helps reduce nicking the insulation

Specifications

• Application: For Work Near Energized Sources
• Overall Height (Inch): 1.24
• Overall Length (Inch): 8.31
• Handle Material: Rubber
• Type: Slim-Tip Insulated Screwdriver
• Shank Length: 4" (10.2 cm)
• Shank Type: Round
• Weight: 0.4700 lbs
• Height: 1.2500 in
• Tip Type: Cabinet; Phillips
• Tip Size: Cabinet Tip - 1/4" (6.4 mm); Phillips #2
• Handle Length (Inch): 4.31
• Insulated: Yes
• Material: Steel, Plastic
• Weight (oz): 4.8
• Magnetic: No
• Handle Length (cm): 10.9
• Depth: 8.2500 in
• Color Code: Orange
• Handle Diameter: 1.24" (3.2 cm)
• Overall Length (cm): 21.1
• Overall Width (cm): 3.1
• Overall Height (cm): 3.1
• Handle Color: Black
• Included: 2 Screwdrivers - 4" (10.2 cm) Long Shank in a 1/4" (0.6 cm) Cabinet tip, #2 Phillips
• Weight (g): 136
• Overall Width (Inch): 1.24
• Number of Pieces: 2
• Standard: ASTM F-1505-16, IEC 60900:2018
• Width: 1.2500 in
