Screwdriver Set, Slim-Tip Insulated Phillips, Cabinet, Square, 4-Piece

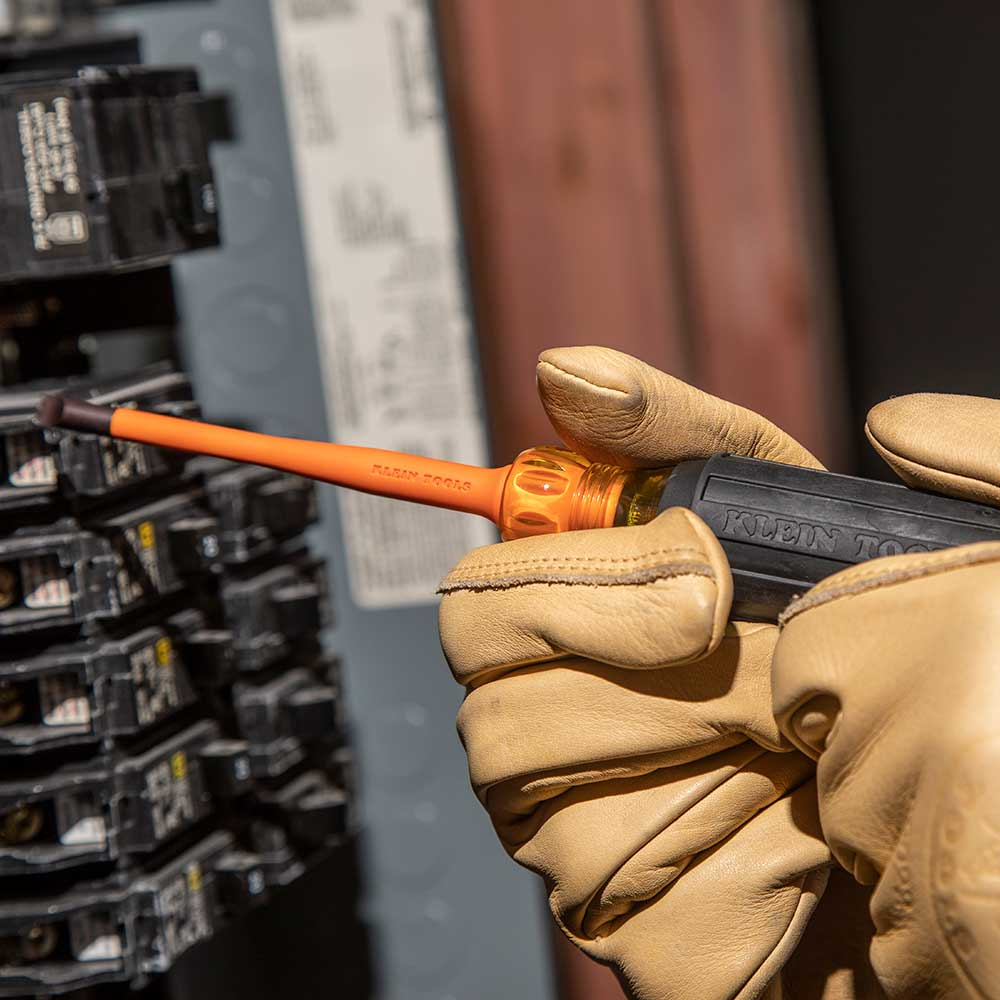

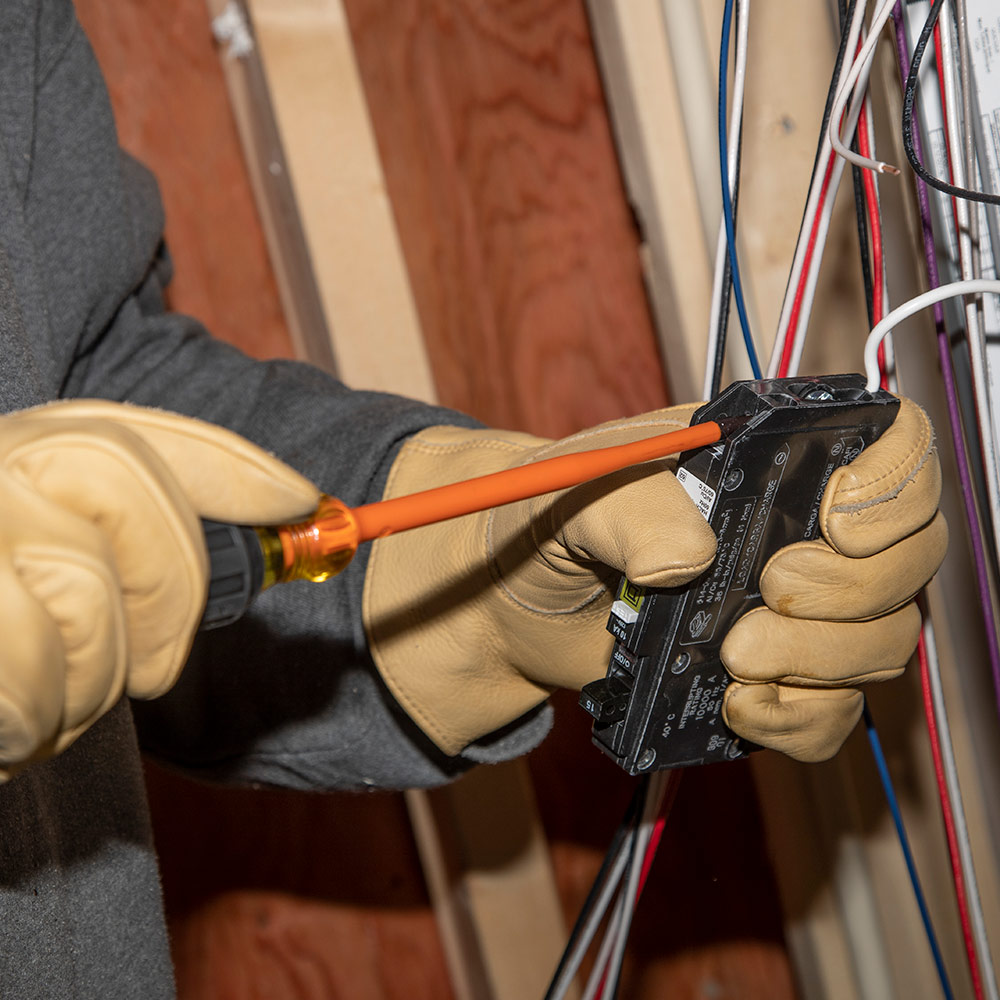

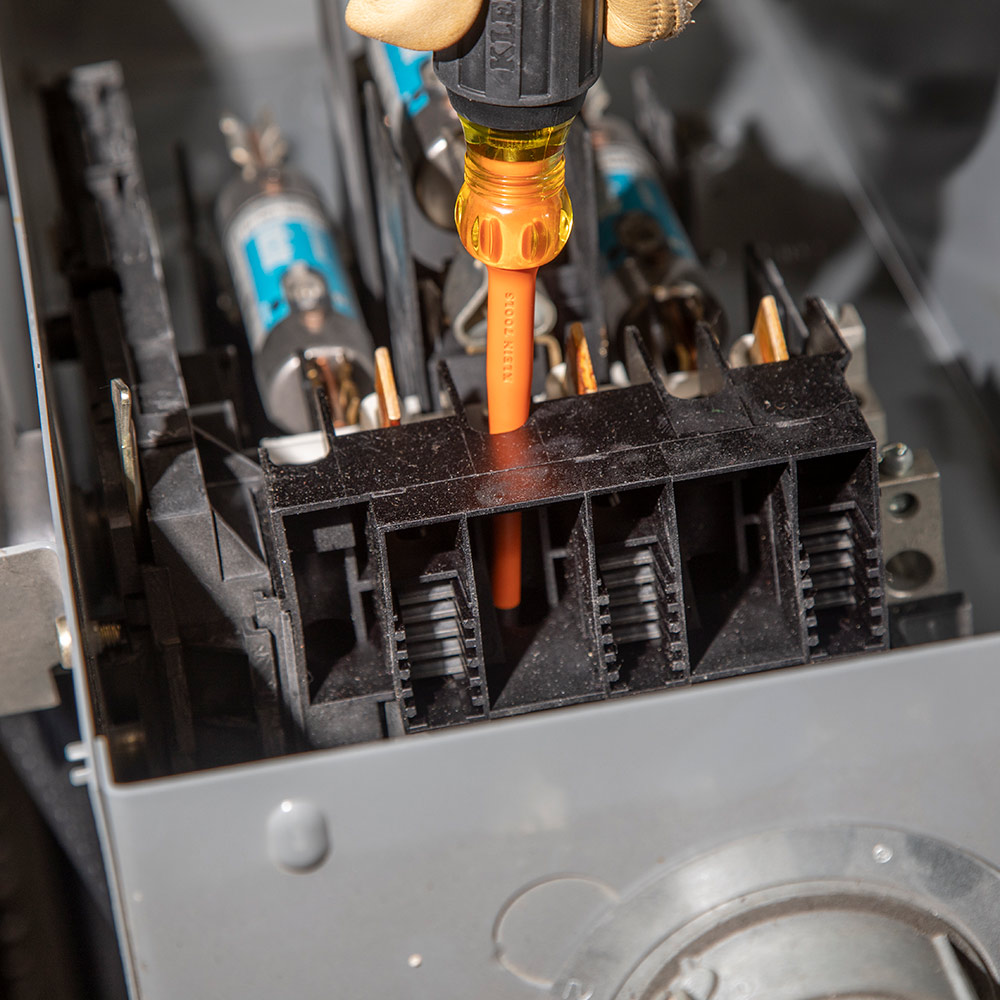

The Klein Tools' Slim-Tip Insulated Screwdrivers in this screwdriver set have slim profile tips that allow for greater access into terminal blocks, slim-style breakers, or other tight spaces near energized sources. A bright orange coating of insulation protects from electrical shock, is flame and impact resistant, and sits flush with the tip helping to reduce insulation chipping and cracking. Klein insulated tools exceed the ASTM F1505 standards for insulated tools, and are clearly marked with the official 1000-Volt rating symbol. A must-have for any electrician's tool bag, the 4-piece set includes 4-Inch round shank in a 1/4-Inch Cabinet tip and a #2 Phillips, as well as 6-Inch round shank in a 3/16-Inch Cabinet tip and a #2 Square tip.

Features

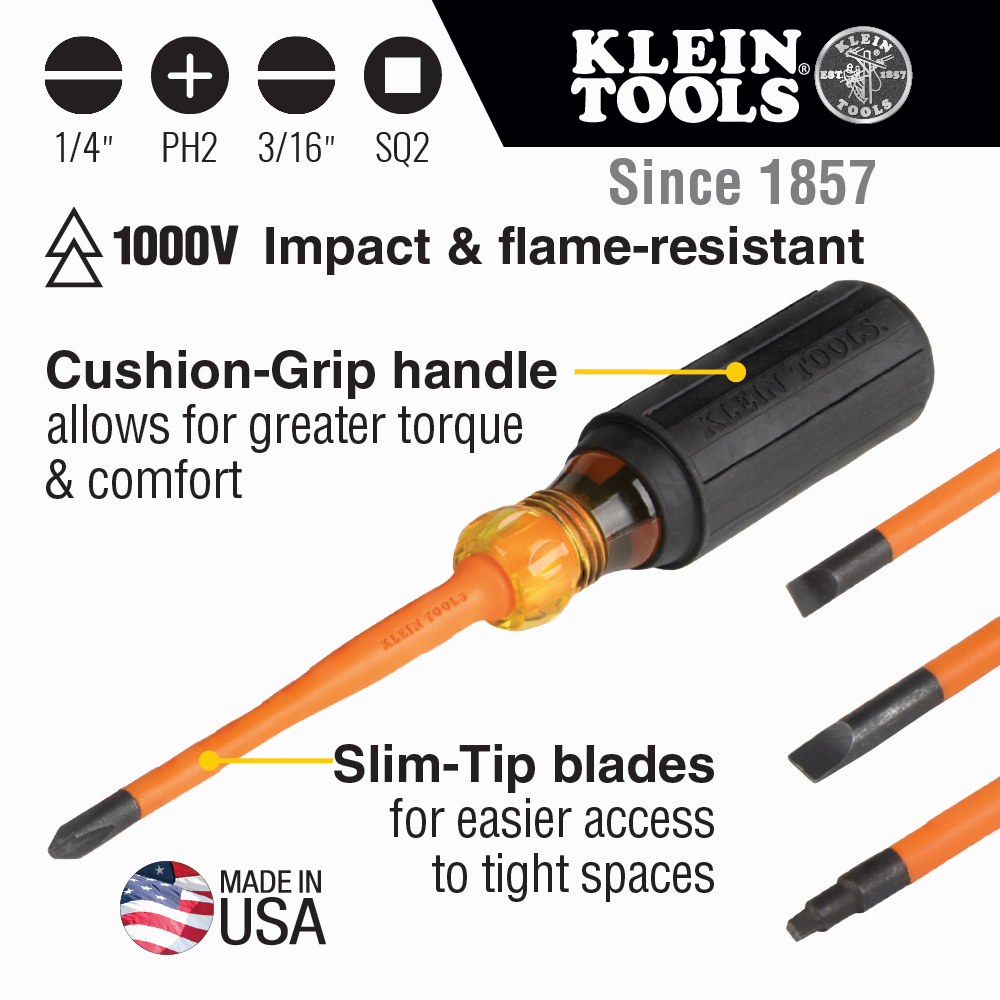

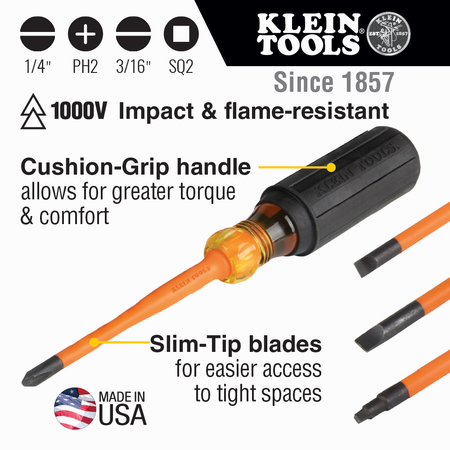

• 1000-Volt rated insulated screwdrivers with slim-tips that allow for greater access into tight spaces
• Cushion-Grip™ handles for greater torque and comfort
• Layer of orange impact and flame-resistant insulation protects from energized sources
• Made in USA
• Meets or exceeds ASTM F-1505-16 and IEC 60900:2018

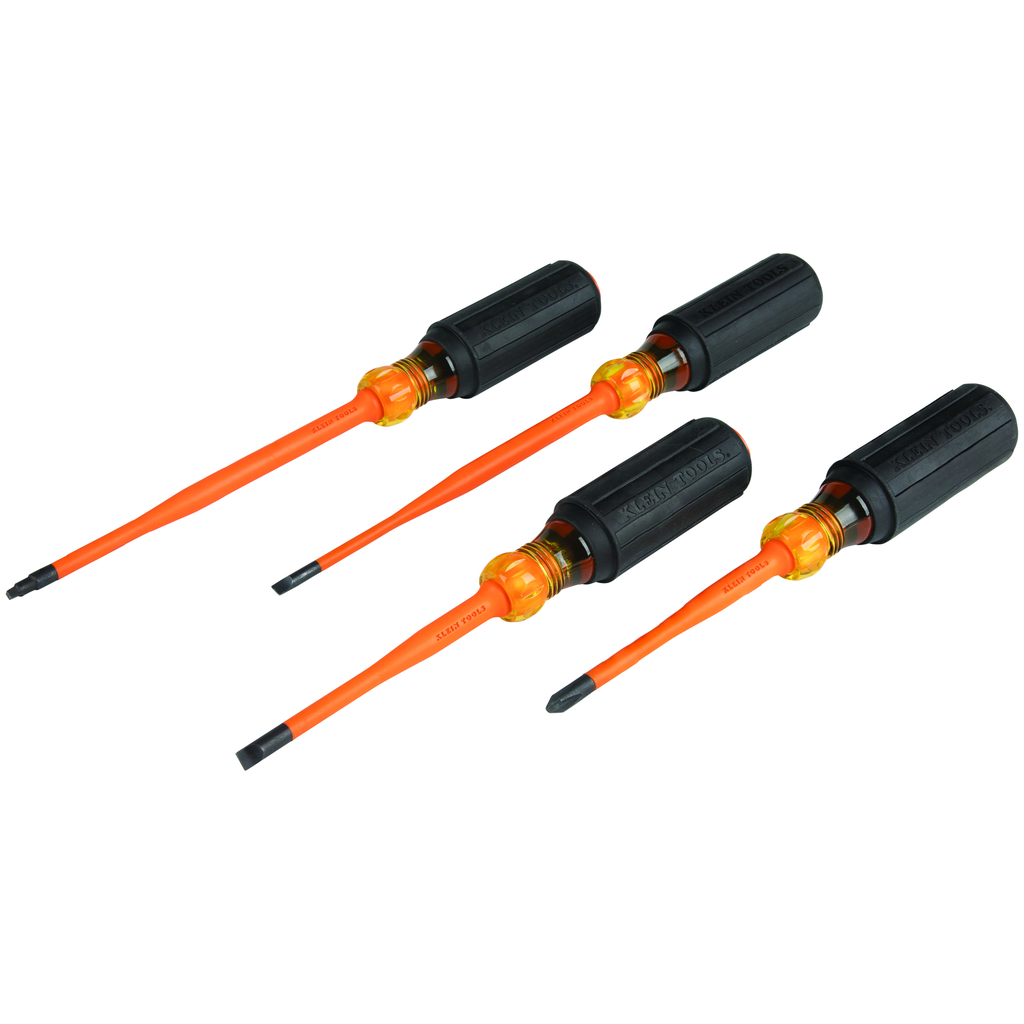

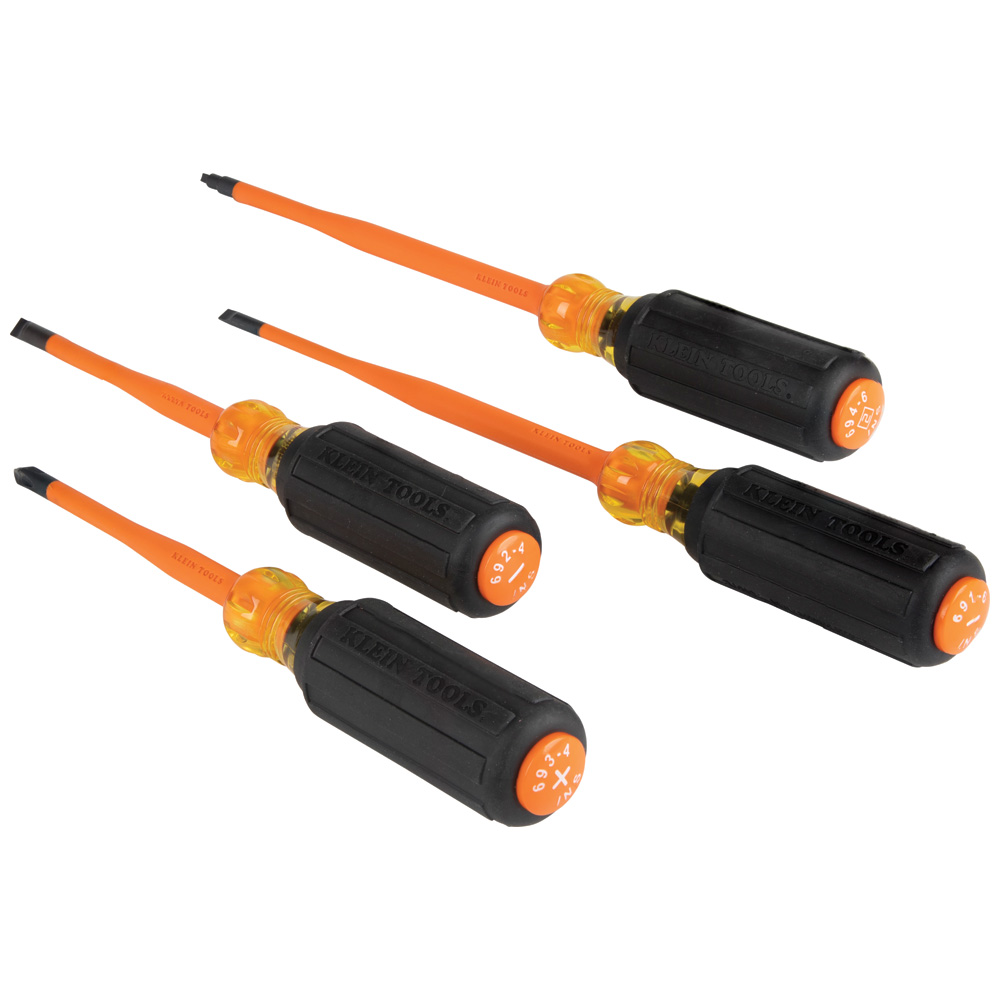

• Slim-Tip Insulated Screwdriver Set includes: 4-Inch round shank in a #2 Phillips and 1/4-Inch Cabinet tips; 6-Inch round shank in a #2 Square and 3/16-Inch Cabinet tips

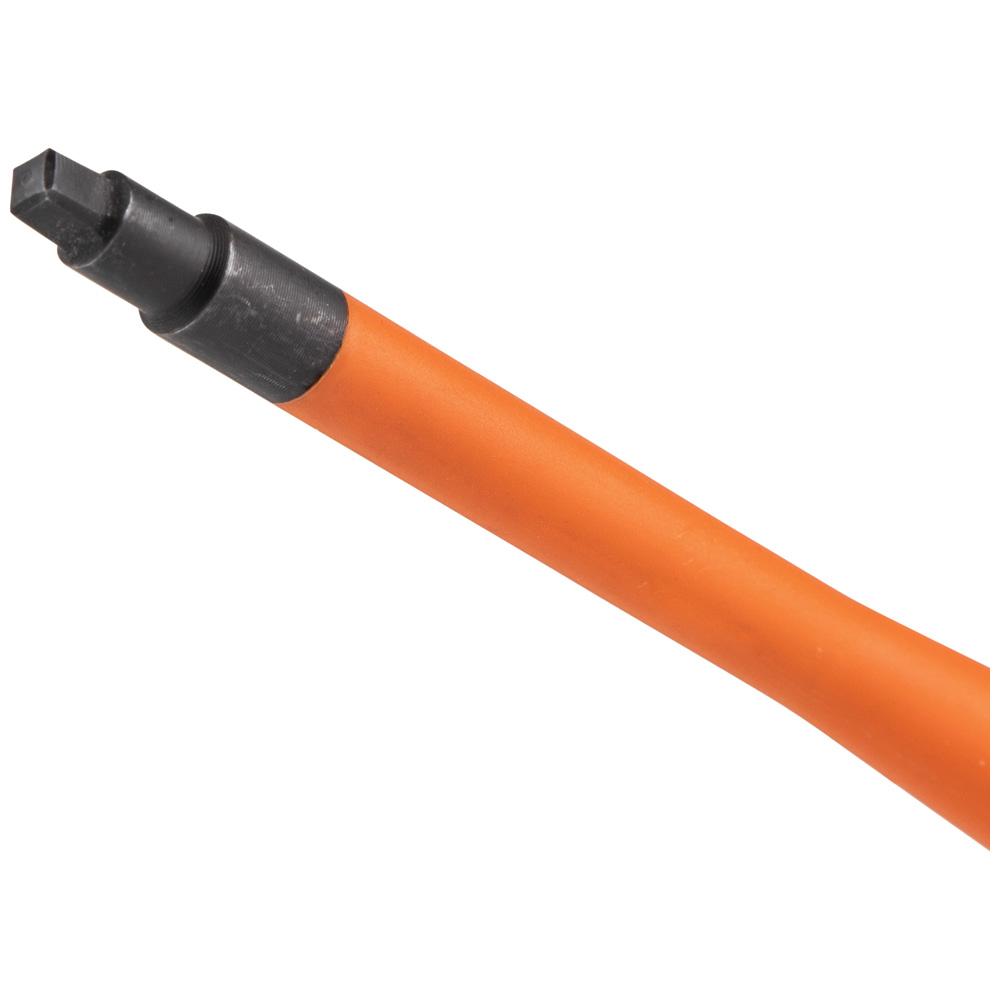

• Slim Profile Tips

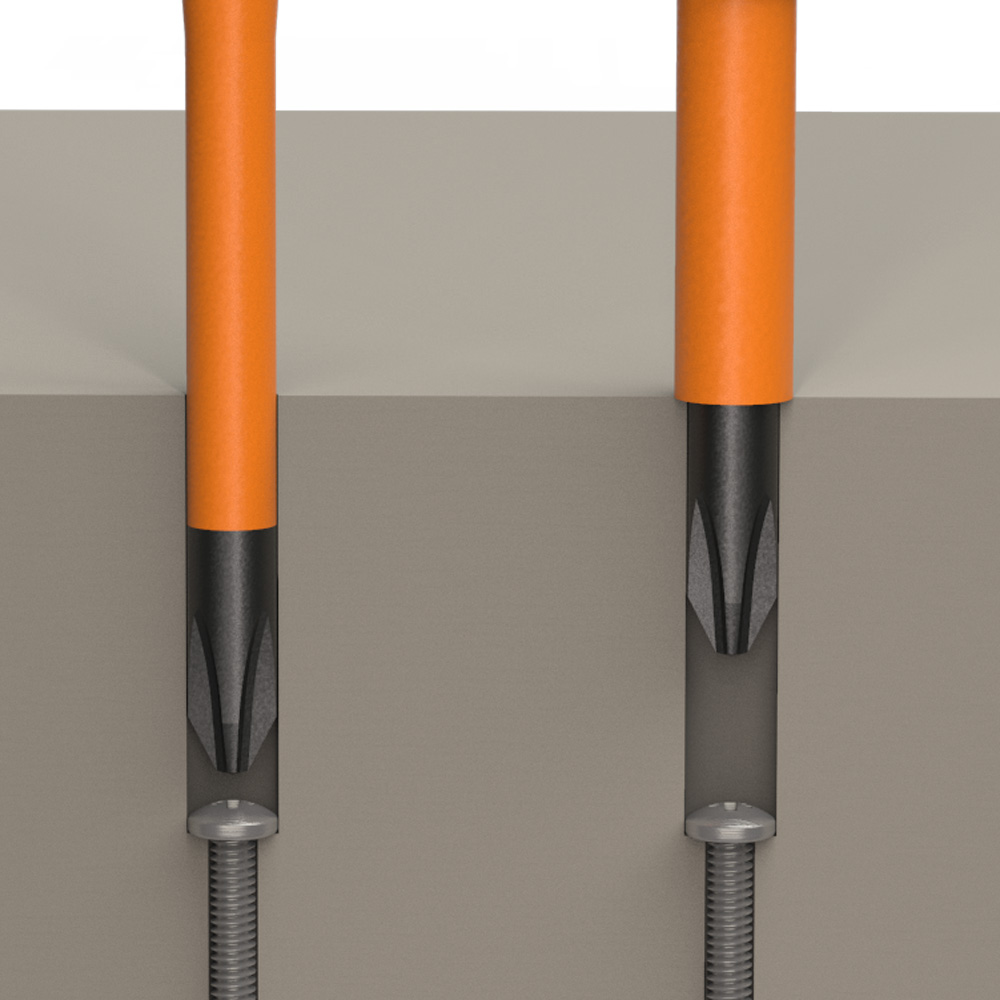

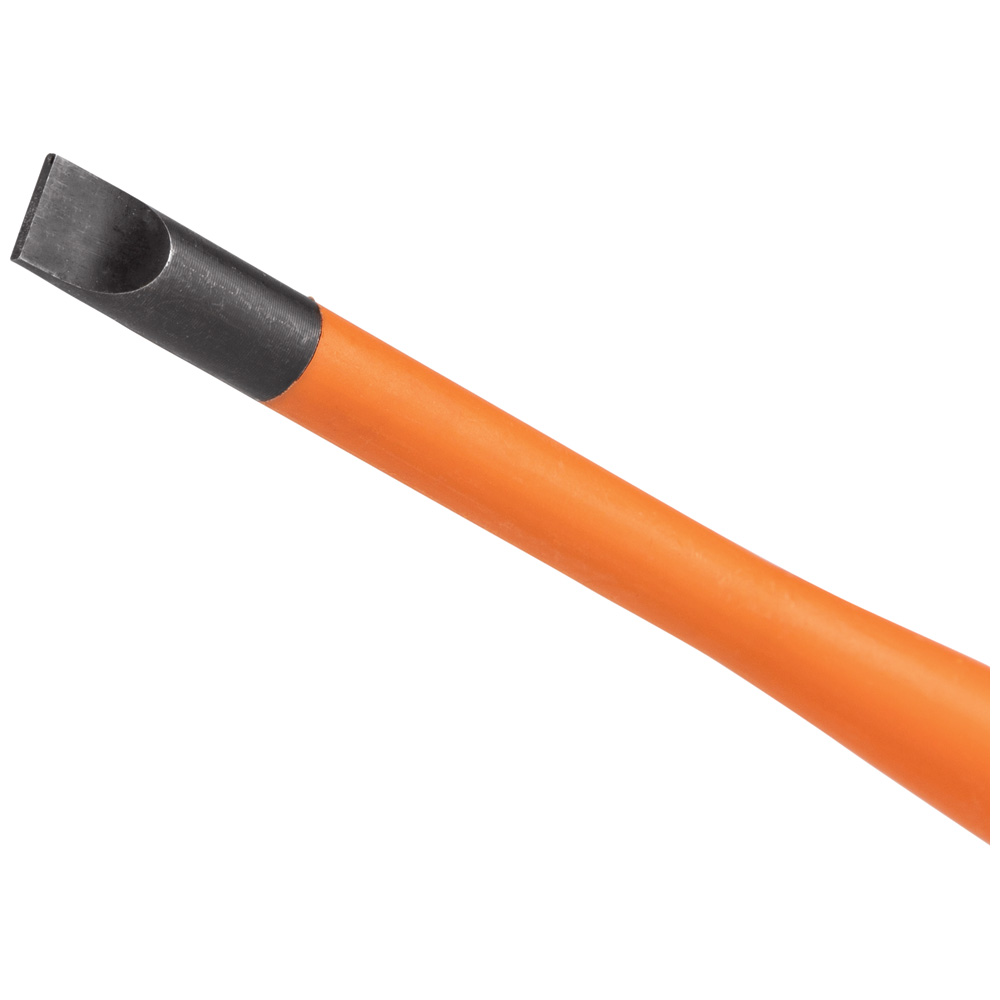

• Insulated blade is flush with the tip to help reduce nicking the insulation

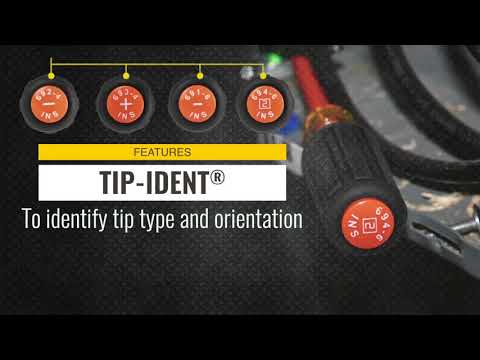

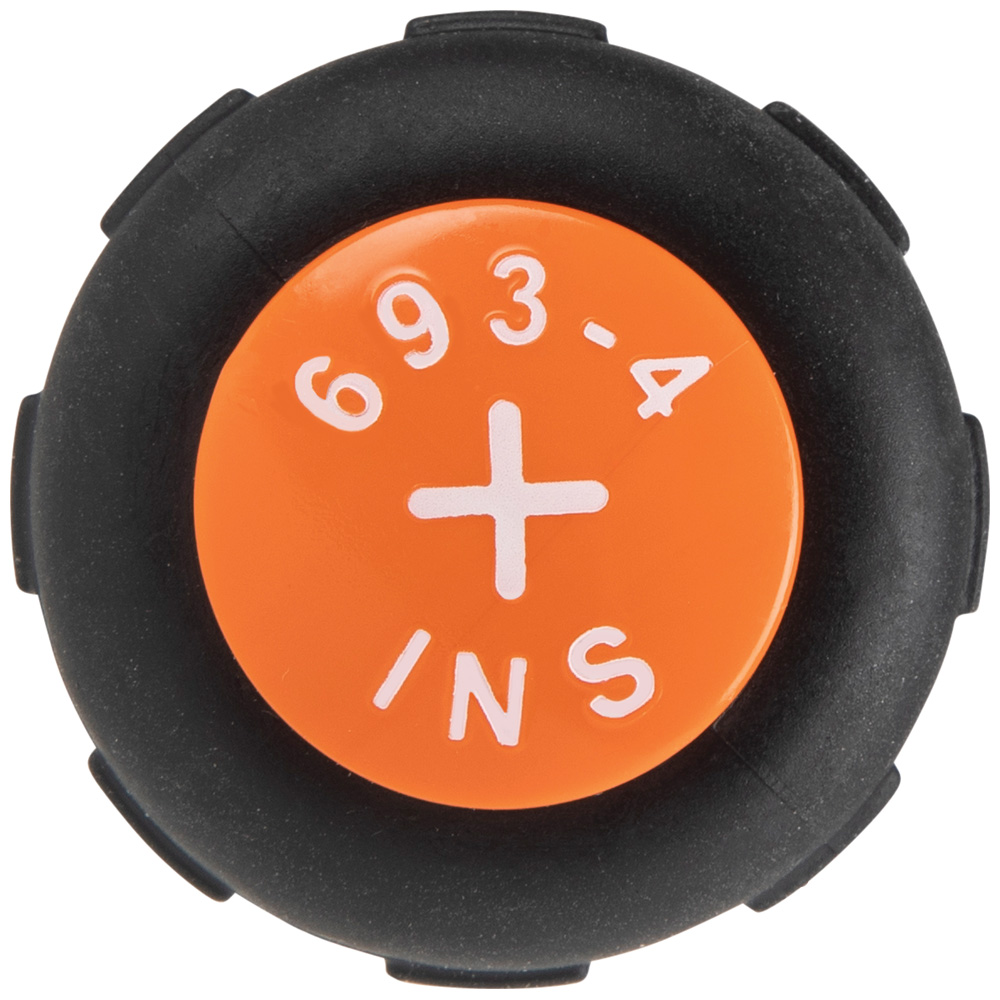

• Tip-Ident quickly identifies the type of screwdriver tip orientation so you can easily engage the screwdriver tip with the screw

Warnings

• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them.
• Always inspect your tools before use.
• Keep tool clean, dry and free of any surface contaminants.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.

Specifications

• Application: For Work Near Energized Sources
• Handle Length (Inch): 4.31
• Depth: 10.5000 in
• Material: Steel, Plastic
• Tip Size: Cabinet Tip - 1/4" (6.4 mm), 3/16" (4.8 mm); Phillips - #2; Square Tip - #2
• Overall Height (cm): 3.1
• Color Code: Orange
• Weight (g): 295
• Magnetic: No
• Overall Length (Inch): 10.5
• Shank Type: Round
• Standard: ASTM F-1505-16, IEC 60900:2018
• Tip Type: Cabinet, Phillips, Square
• Overall Height (Inch): 1.24
• Overall Width (cm): 3.1
• Height: 1.2500 in
• Number of Pieces: 4
• Type: Slim-Tip Insulated Screwdriver
• Overall Width (Inch): 1.24
• Width: 1.2500 in
• Weight: 0.9900 lbs
• Weight (oz): 10.4
• Insulated: Yes
• Handle Color: Black
• Handle Length (cm): 10.9
• Overall Length (cm): 26.7
• Included: 4 Screwdrivers - 4" (10.2 cm) Long Shank in 1/4" (0.6 cm) Cabinet Tip, #2 Phillips; 6" (15.2 cm) Long Shanks in 3/16" (0.5 cm) Cabinet Tip, #2 Square Tip
• Handle Material: Rubber
• Handle Diameter: 1.24" (3.2 cm)
• Shank Length: 4" (10.2 cm), 6" (15.2 cm)
