Screwdriver Set, 1000V Slim-Tip Insulated and Magnetizer, 6-Piece

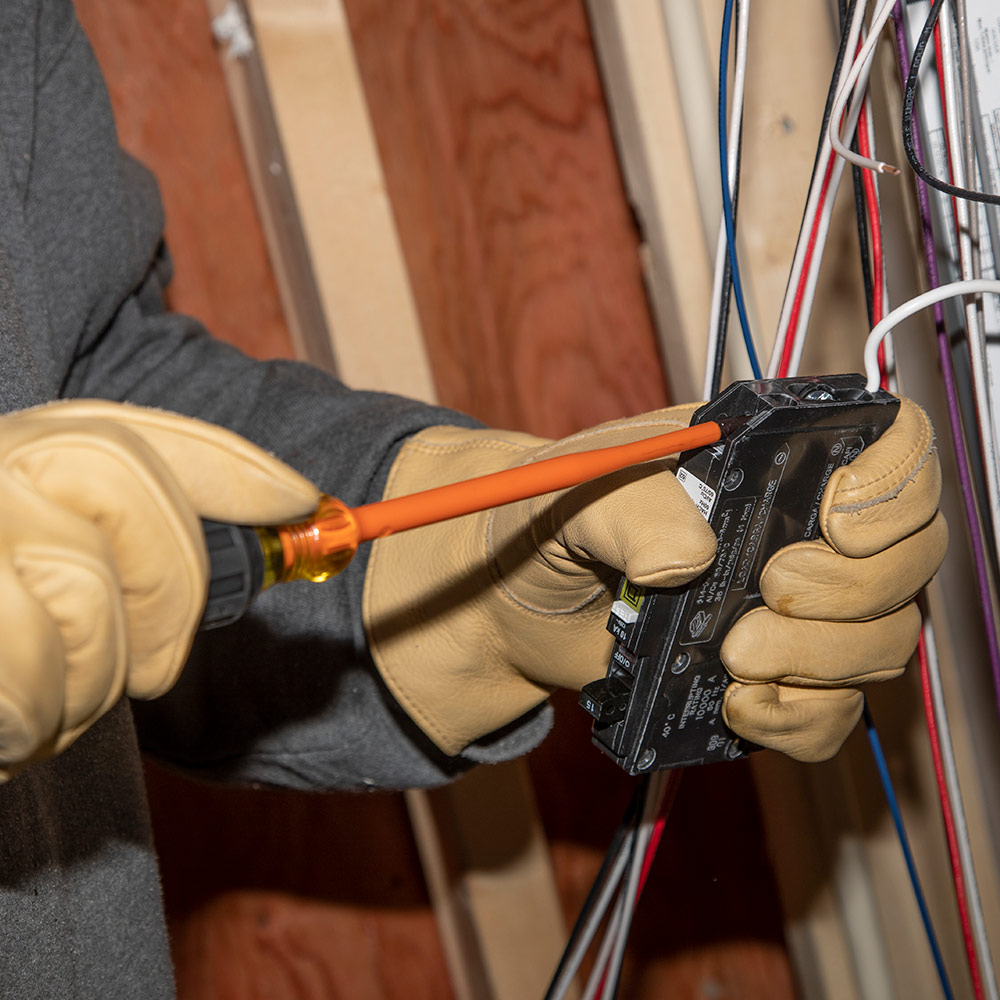

The Klein Tools' Slim-Tip Insulated Screwdrivers in this set have slim profile tips that allow for greater access into terminal blocks, slim-style breakers, or other tight spaces near energized sources. A bright orange coating of insulation protects from electrical shock, is flame and impact resistant, and sits flush with the tip helping to reduce insulation chipping and cracking. Klein insulated tools exceed the ASTM F1505 standards for insulated tools, and are clearly marked with the official 1000V rating symbol. A must-have for any electrician's tool bag, the 6-Piece set includes five general purpose screwdrivers and a magnetizer.

Warnings

• Whenever possible, always de-energize lines and equipment prior to working on or around them.
• Keep tool clean, dry and free of any surface contaminants.
• Always inspect your tools before use.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.

Features

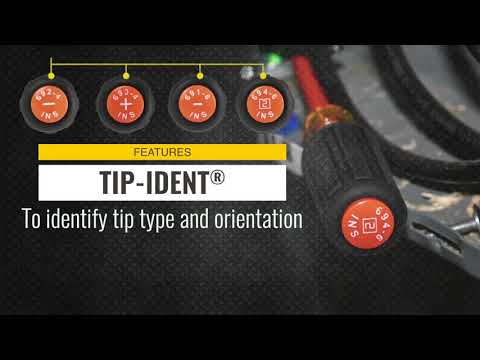

• Tip-Ident quickly identifies the screwdriver tip orientation so you can easily engage the screwdriver tip with the screw

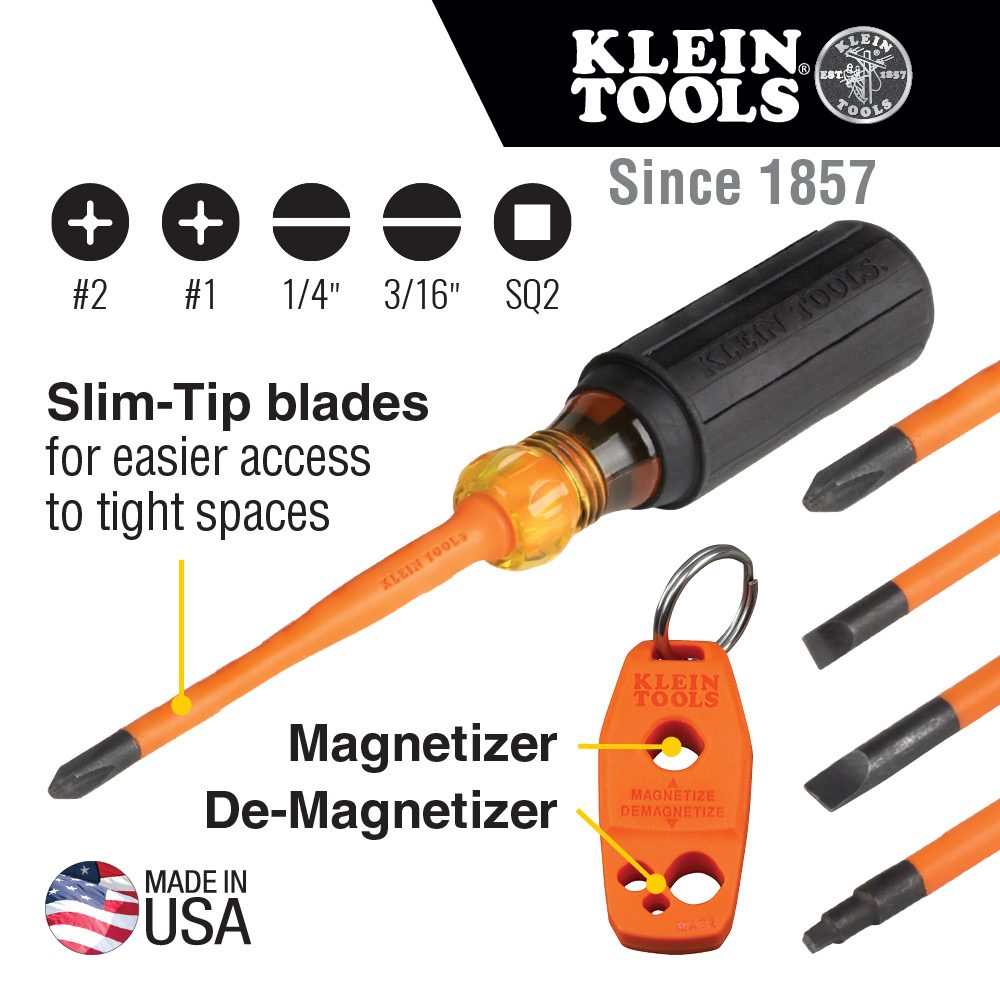

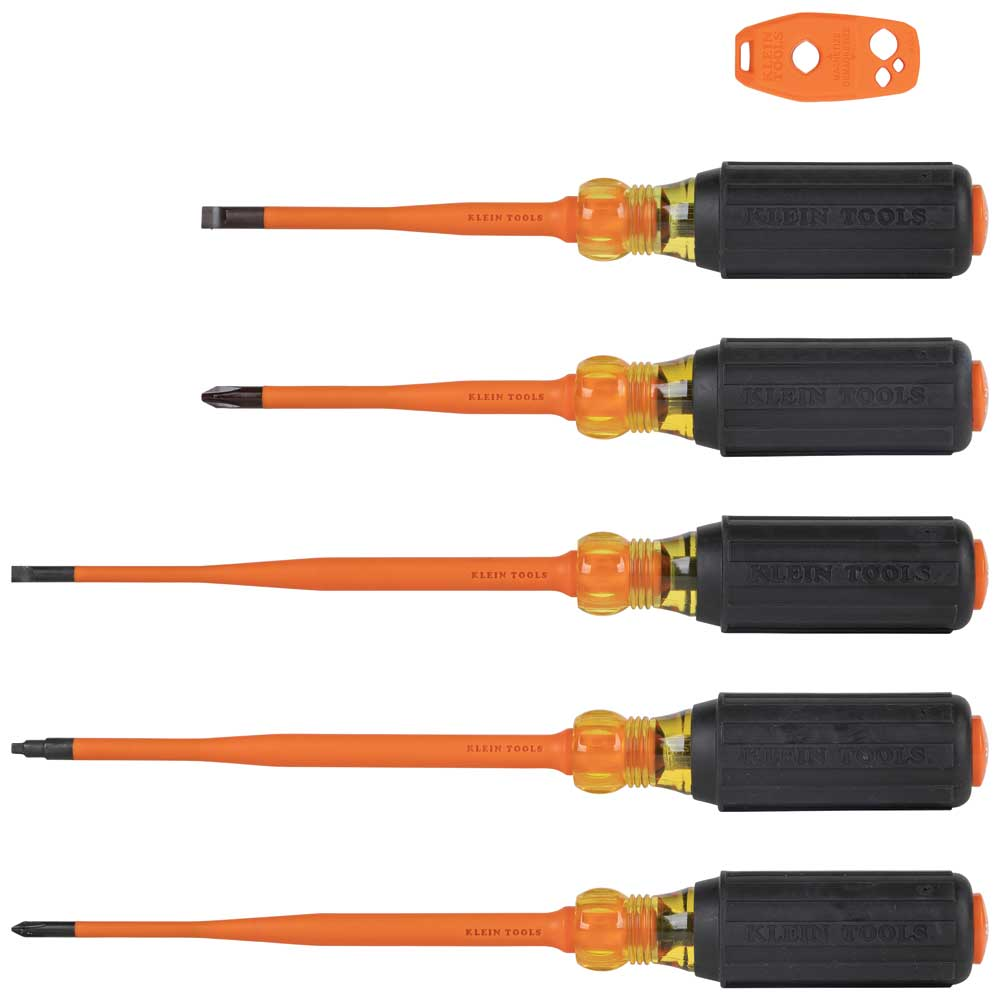

• Slim-Tip Insulated Screwdriver Set includes: 4-Inch round shank in a #2 Phillips and 1/4-Inch Cabinet tips; 6-Inch round shank in a #1 Phillips, #2 Square and 3/16-Inch Cabinet tips and a magnetizer

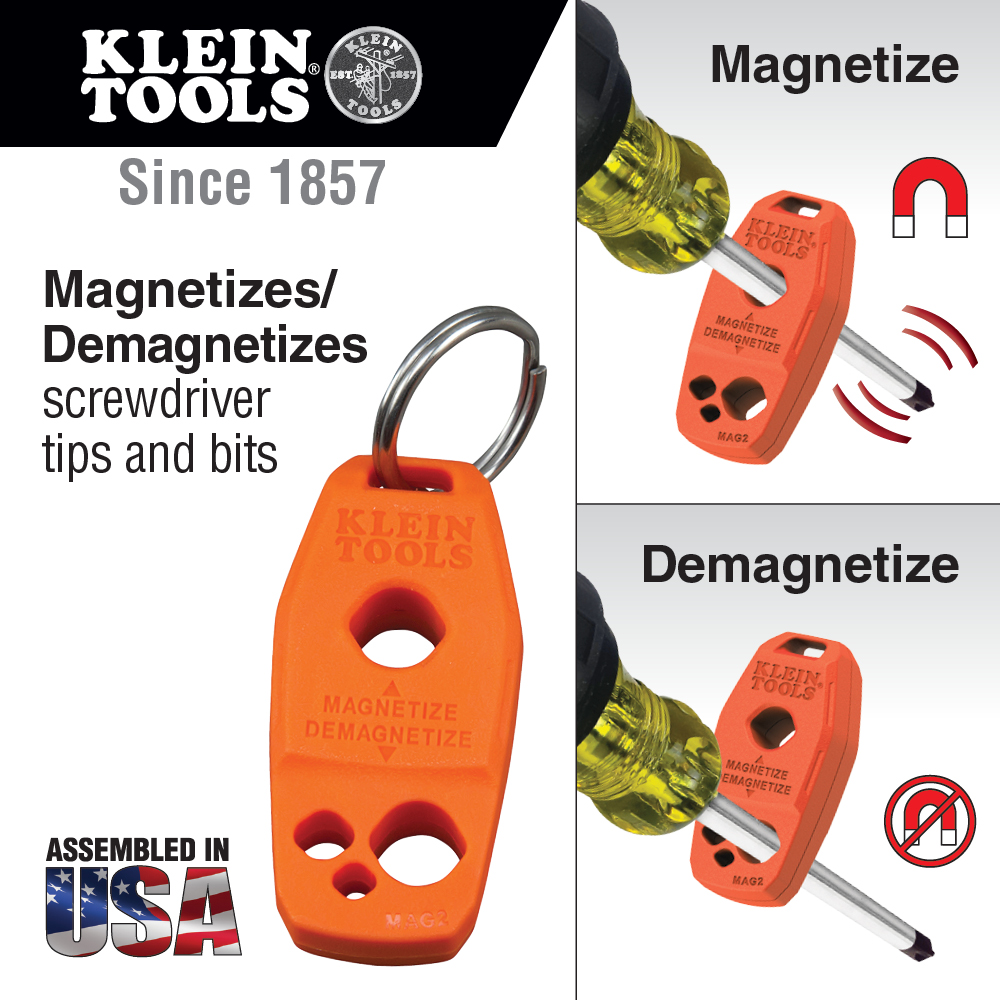

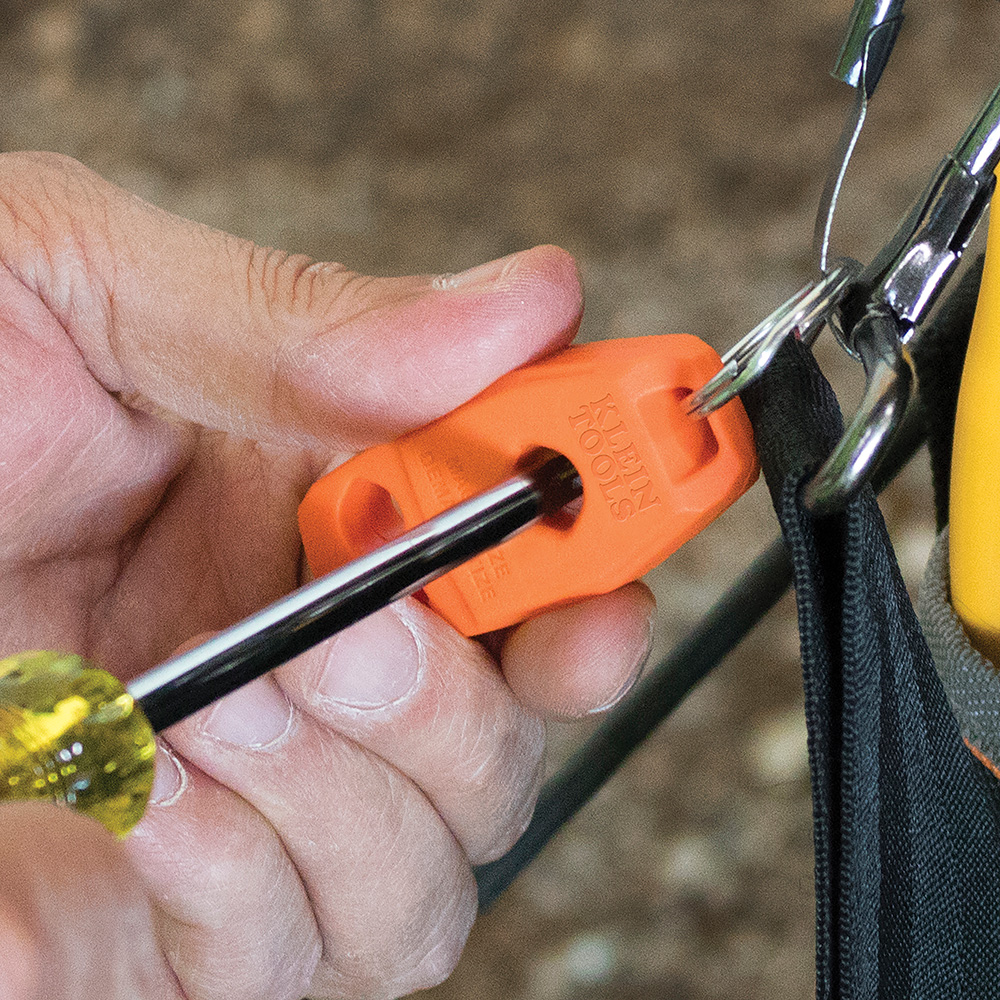

• Magnetize and demagnetize screwdriver tips using the included magnetizer tool

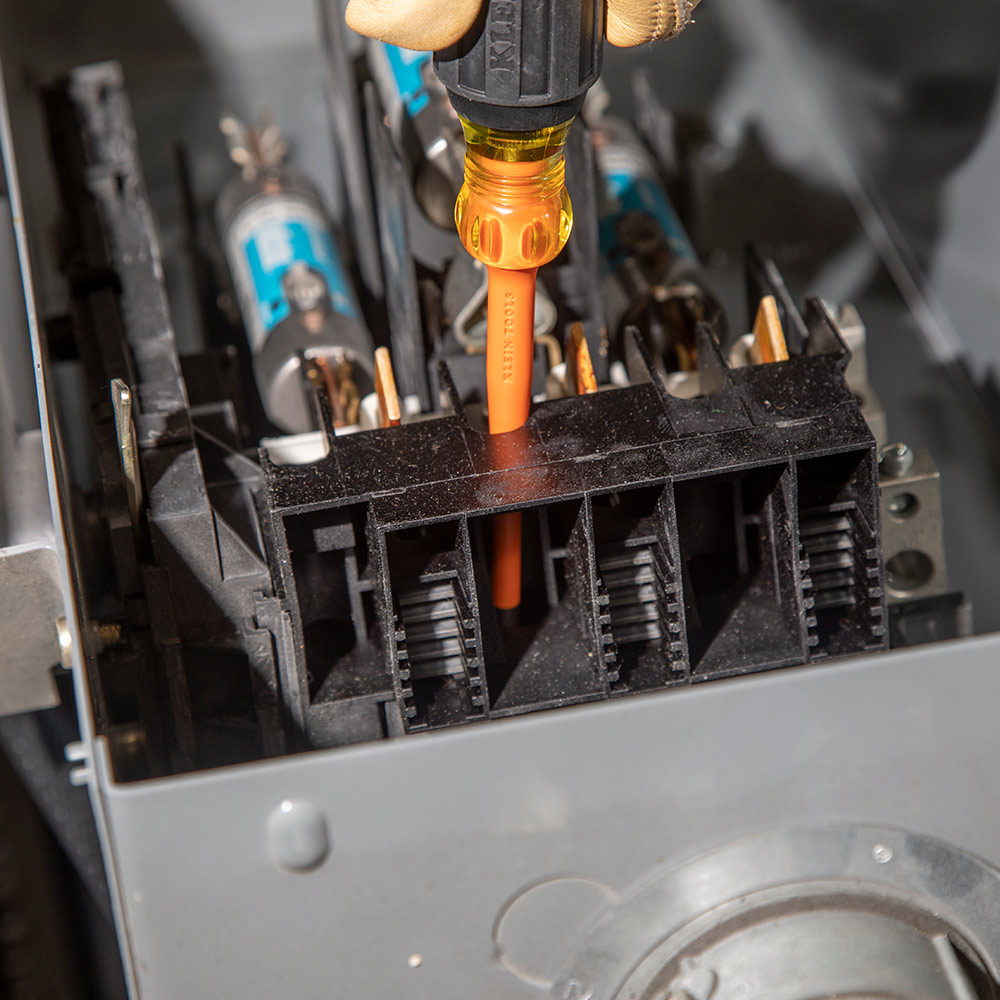

• Insulated blade is flush with the tip to help reduce nicking the insulation and gain access into tight terminal blocks
• Meets or exceeds ASTM F-1505-16 and IEC 60900:2018
• Made in USA

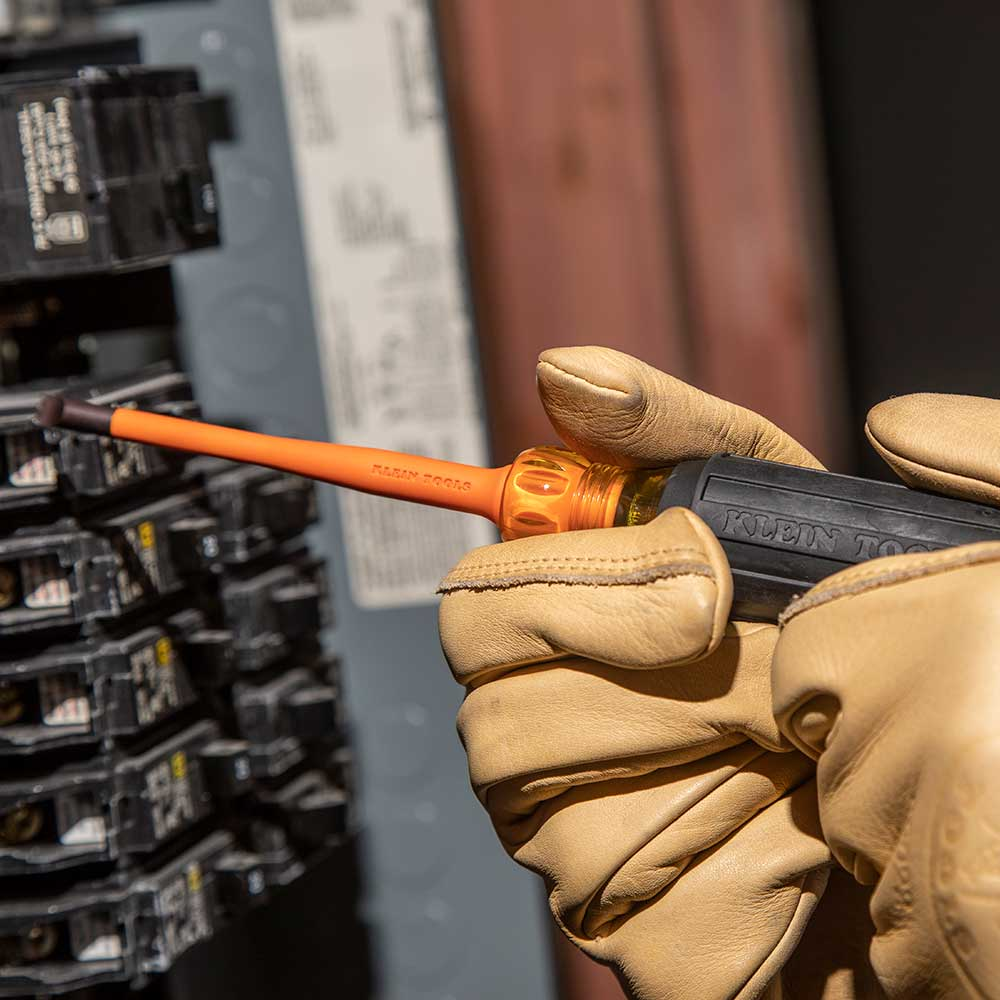

• 1000V rated insulated screwdrivers with slim-tips that allow for greater access into tight spaces
• Cushion-Grip™ handles for greater torque and comfort
• Layer of orange impact and flame-resistant insulation protects from protects from electrical shock

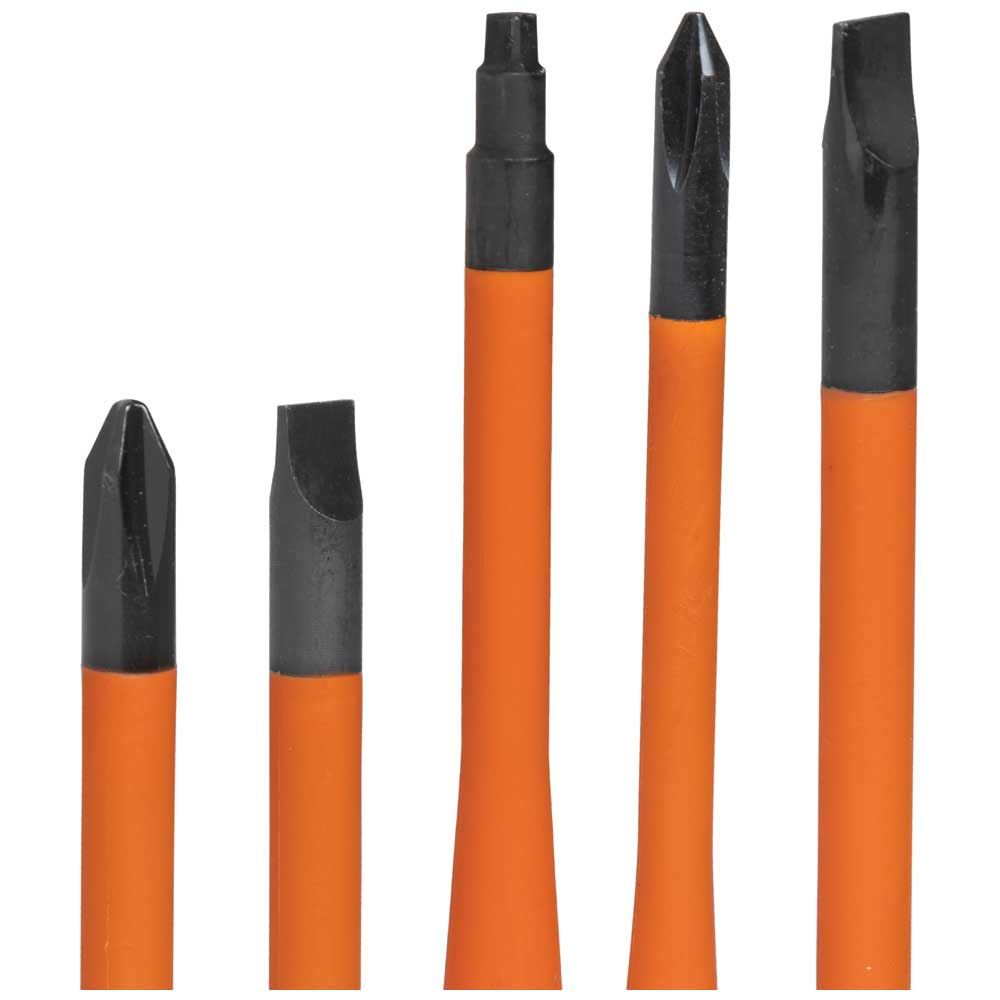

• Slim Profile Tips; Magnetizer

Specifications

• Overall Height (Inch): 1.24
• Type: Slim-Tip Insulated Screwdriver
• Handle Color: Black
• Overall Height (cm): 3.1
• Weight (kg): 0
• Insulated: Yes
• Depth: 11.2500 in
• Shank Length: 4" (10.2 cm); 6" (15.2 cm)
• Width: 1.2500 in
• Handle Length: 4.31" (10.9 cm)
• Weight: 0.6000 lbs
• Number of Pieces: 6
• Color Code: Orange
• Overall Length (cm): 28.6
• Overall Width (Inch): 1.24
• Standard: ASTM F-1505-16, IEC 60900:2018
• Overall Width (cm): 3.1
• Overall Length (Inch): 11.25
• Application: For Work Near Energized Sources
• Handle Material: Rubber
• Included: 5 Screwdrivers - 4" (10.2 cm) Shanks in 1/4" (0.6 cm) Cabinet Tip, #2 Phillips; 6" (15.2 cm) Shanks in 3/16" (0.5 cm) Cabinet Tip, #1 Phillips, #2 Square Tip; Magnetizer
• Material: Steel, Plastic
• Magnetic: No
• Handle Diameter: 1.24" (3.2 cm)
• Height: 1.2500 in
