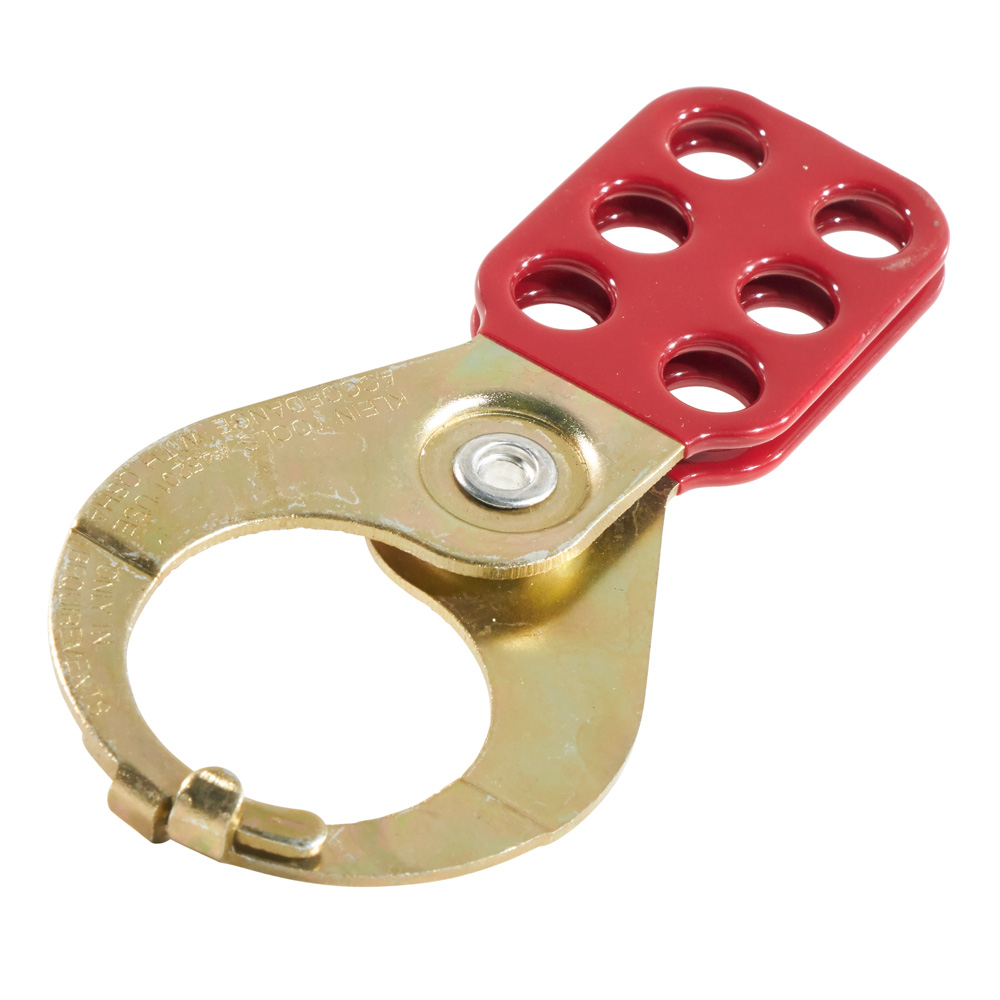

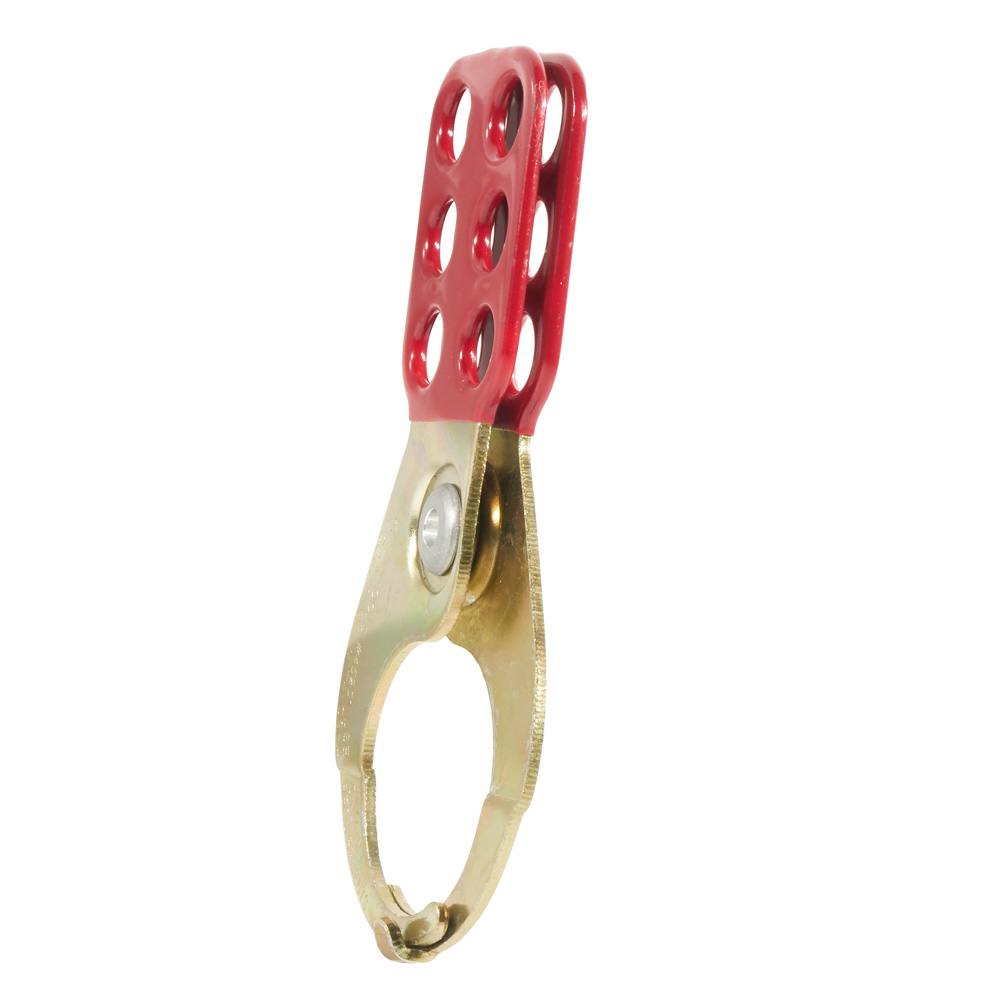

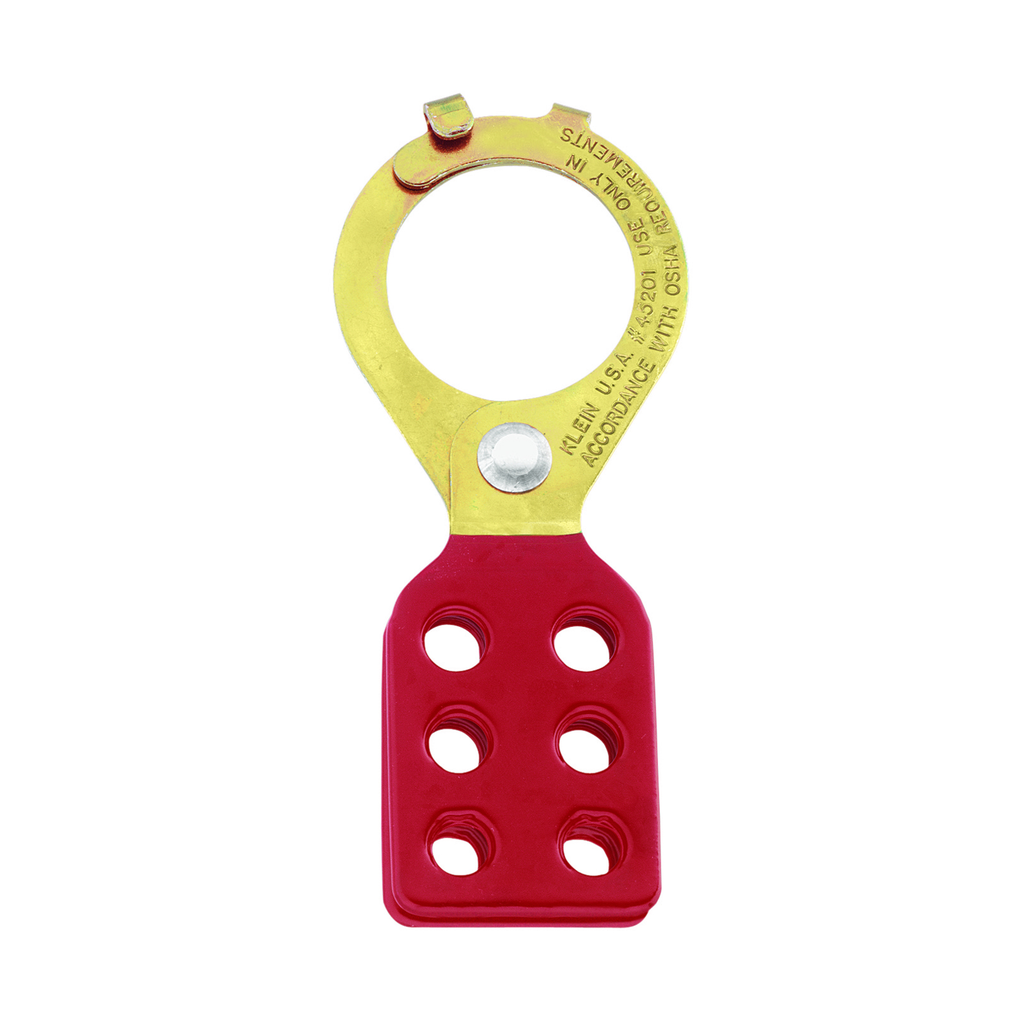

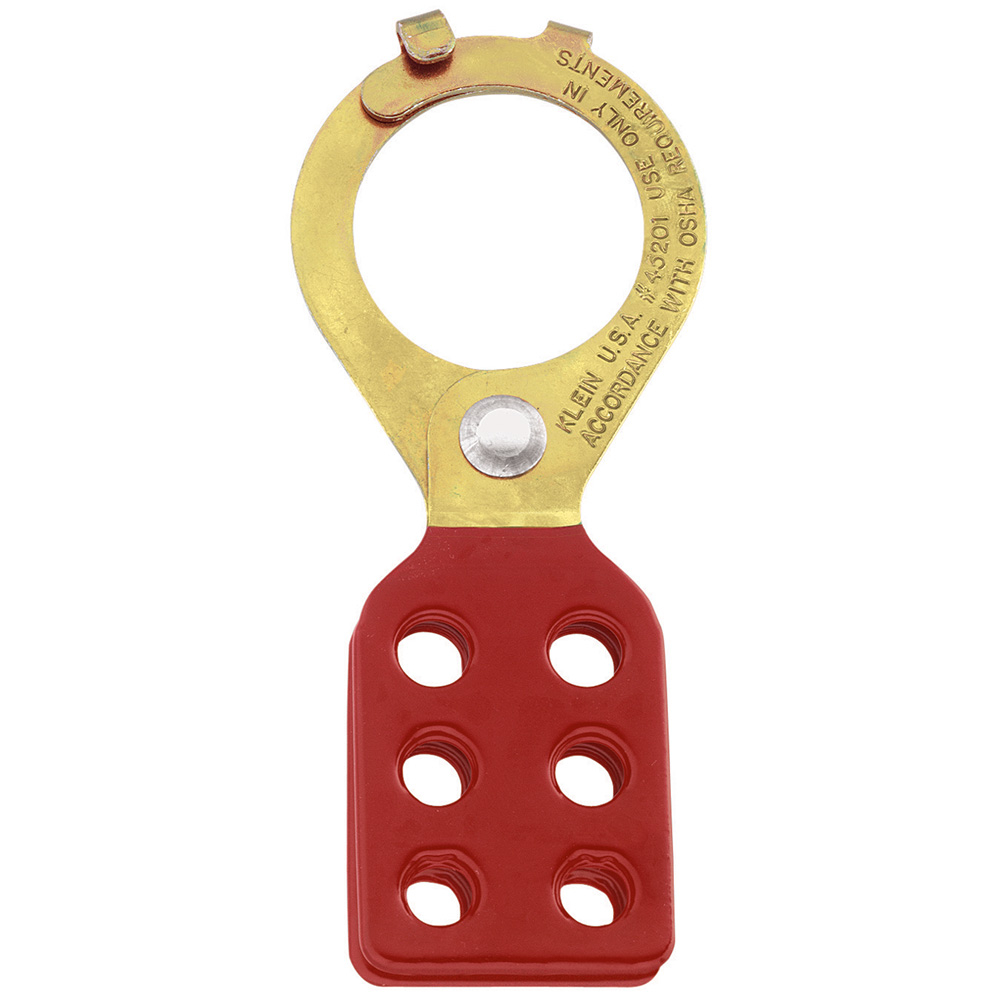

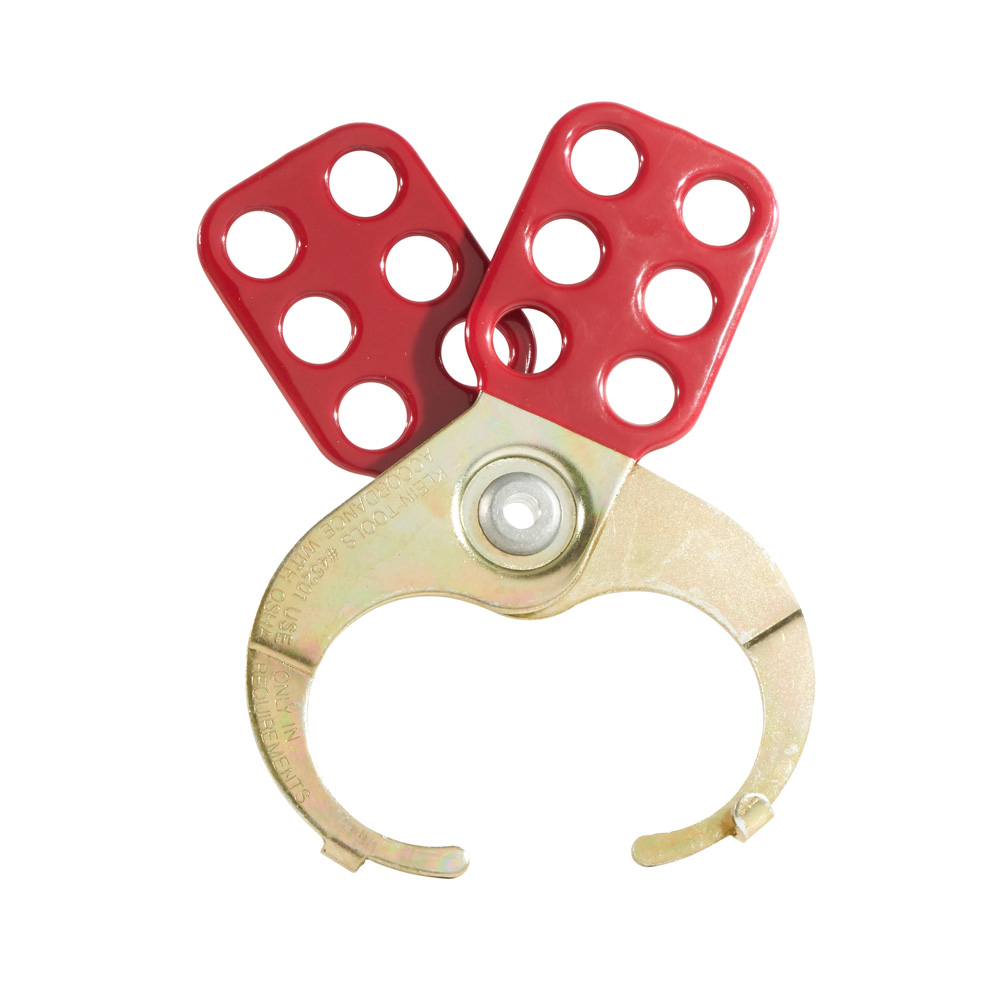

Lockouts with Interlocking Tabs 1-Inch Diameter

The Klein Tools Lockout with Interlocking Tabs is designed to lock out power sources, such as disconnects, switches and panel boxes. The lockout has zinc-plated double interlocking hasps of tempered steel with interlocking tabs for extra security. Tabs feature 6-hole locking bodies coated with red vinyl plastic.

Warnings

• Use only in accordance with OSHA requirements.

Features

• Hasps are bright zinc-plated
• Specifically designed for locking out power sources such as disconnects, switches, and panel boxes
• Six-hole locking bodies coated with red vinyl plastic
• Double interlocking hasp of tempered steel with patented interlocking tabs for extra security
• Holes will accept up to 5/16-Inch (8 mm) diameter shackles
• Double Interlocking Hasp of Tempered Steel with Patented Interlocking Tabs for Extra Security
• Riveted construction

Specifications

• Overall Height: 0.75" (1.9 cm)
• NEMA Color: Red
• Closed Hasp I.D.: 1" (2.5 cm)
• Height: 0.7500 in
• Country of Origin: China
• Locking Holes: 6 Coated in Red Vinyl Plastic
• Width: 1.0000 in
• Type: Lockout with Interlocking Tabs
• Material: Tempered Steel
• Overall Width: 1" (2.5 cm)
• Overall Length: 3.75" (9.5 cm)
• Application: Specifically Designed for Locking Out Power Sources such as Disconnects, Switches, and Panel Boxes
• Weight: 0.2000 lbs
• Depth: 3.7500 in
