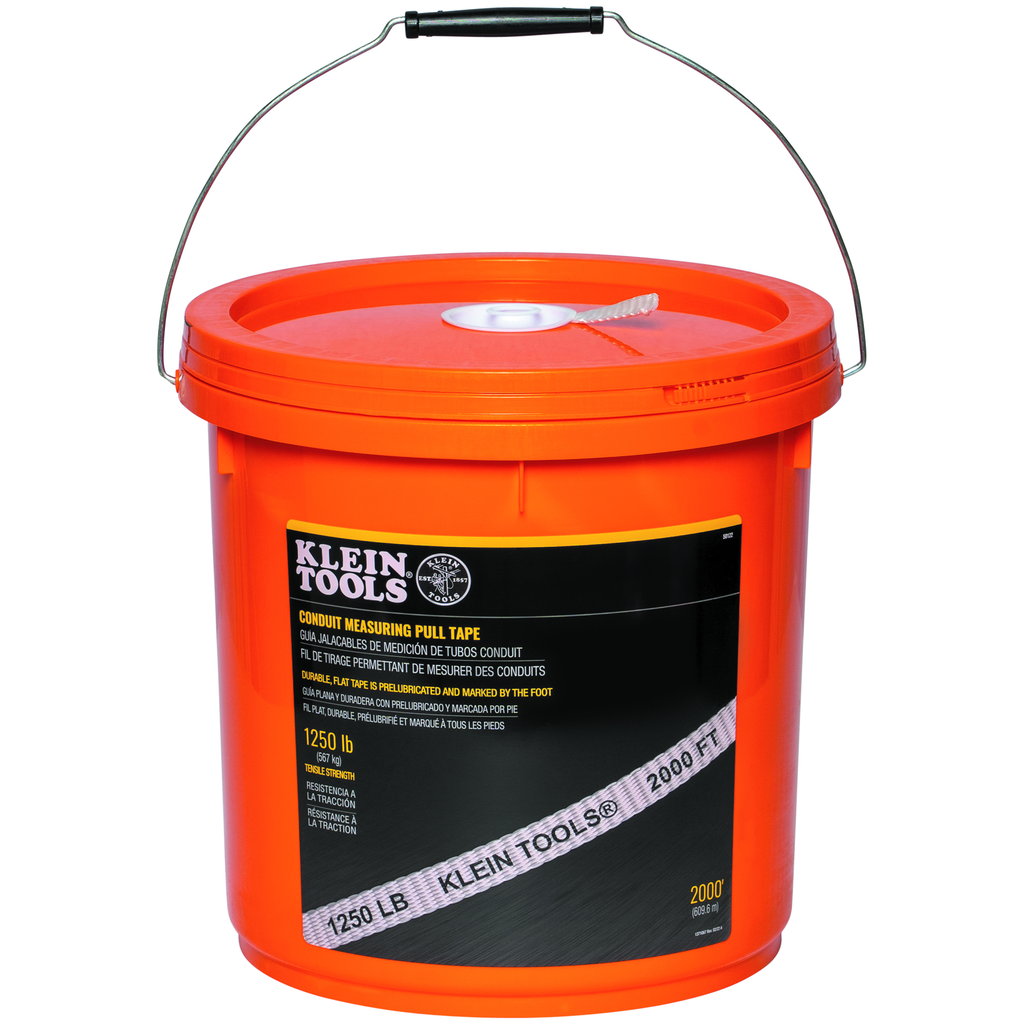

Conduit Measuring Pull Tape, 1250-Pound x 2000-Foot

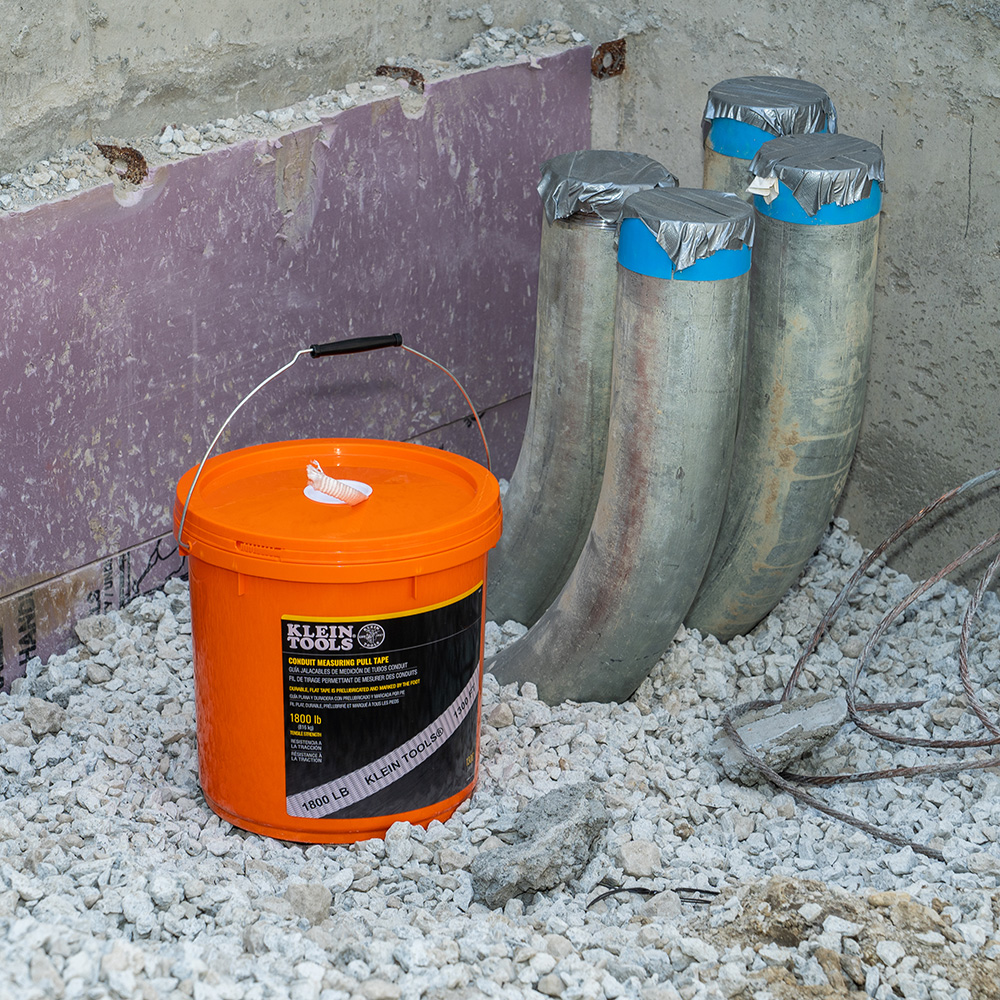

The Klein Tools 1250-Pound tensile strength conduit measuring pull tape is a durable, flat polyester strapping that disperses pull load and minimizes stretching when pulling. The tape is marked with descending 1-Foot increments to measure conduit runs. Tape is pre-lubricated to reduce friction and comes in a bucket with a hole in the lid for tangle-free dispensing. Pull Tape is also available in a variety of tensile strengths and lengths.

Features

• Bucket provides easy storage and transport
• Pull Tape is a woven, flat polyester strapping that disperses pull load and minimizes stretching when pulling
• 1250-Pound (567 kg) tensile strength

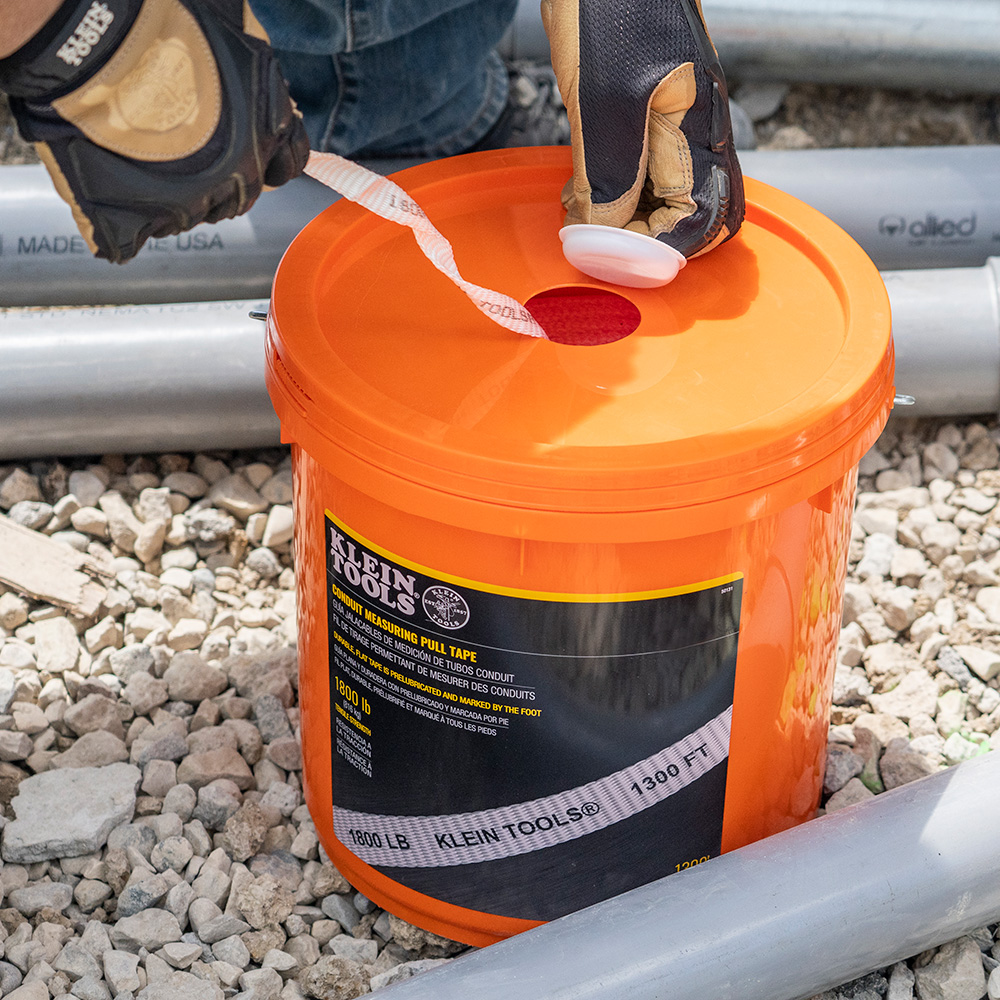

• Tangle-Free Dispensing with Hole in Bucket Lid

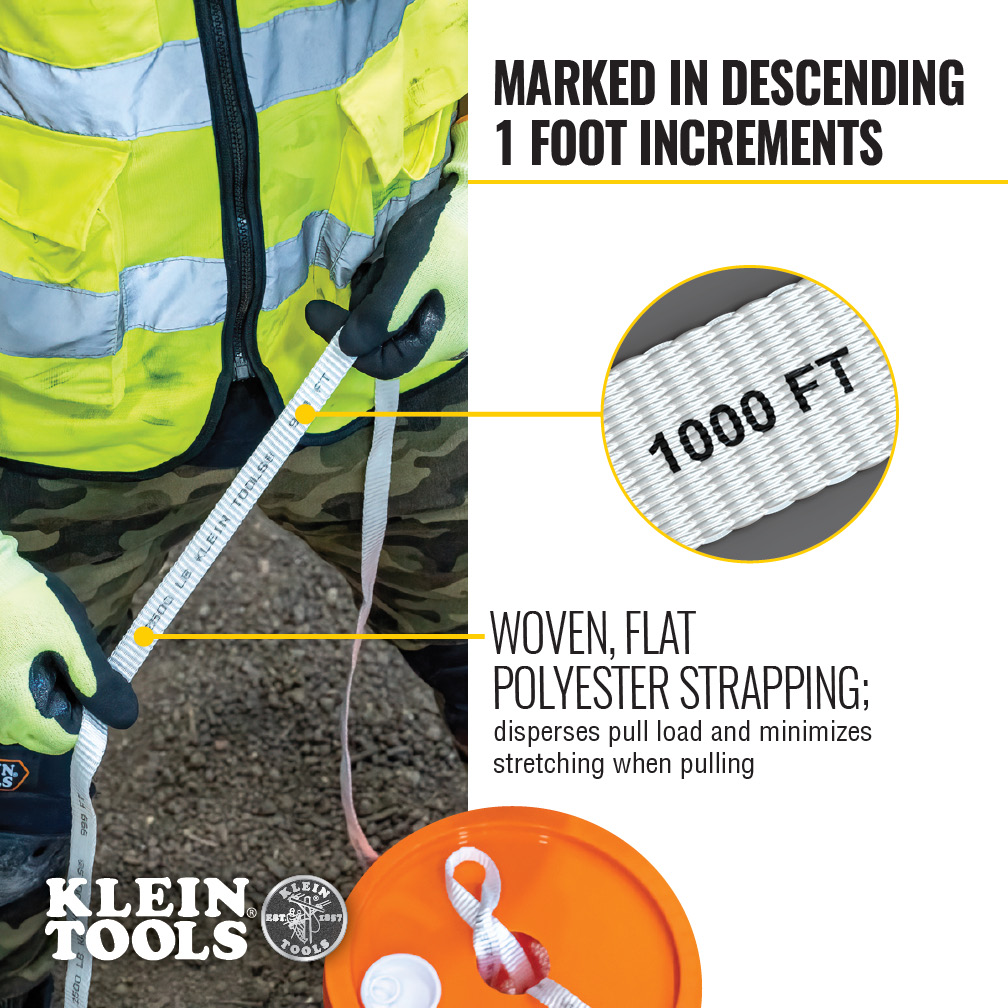

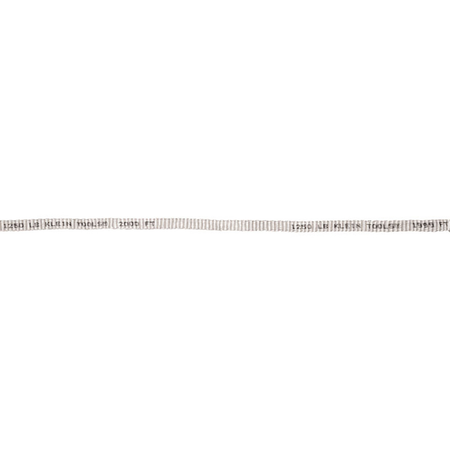

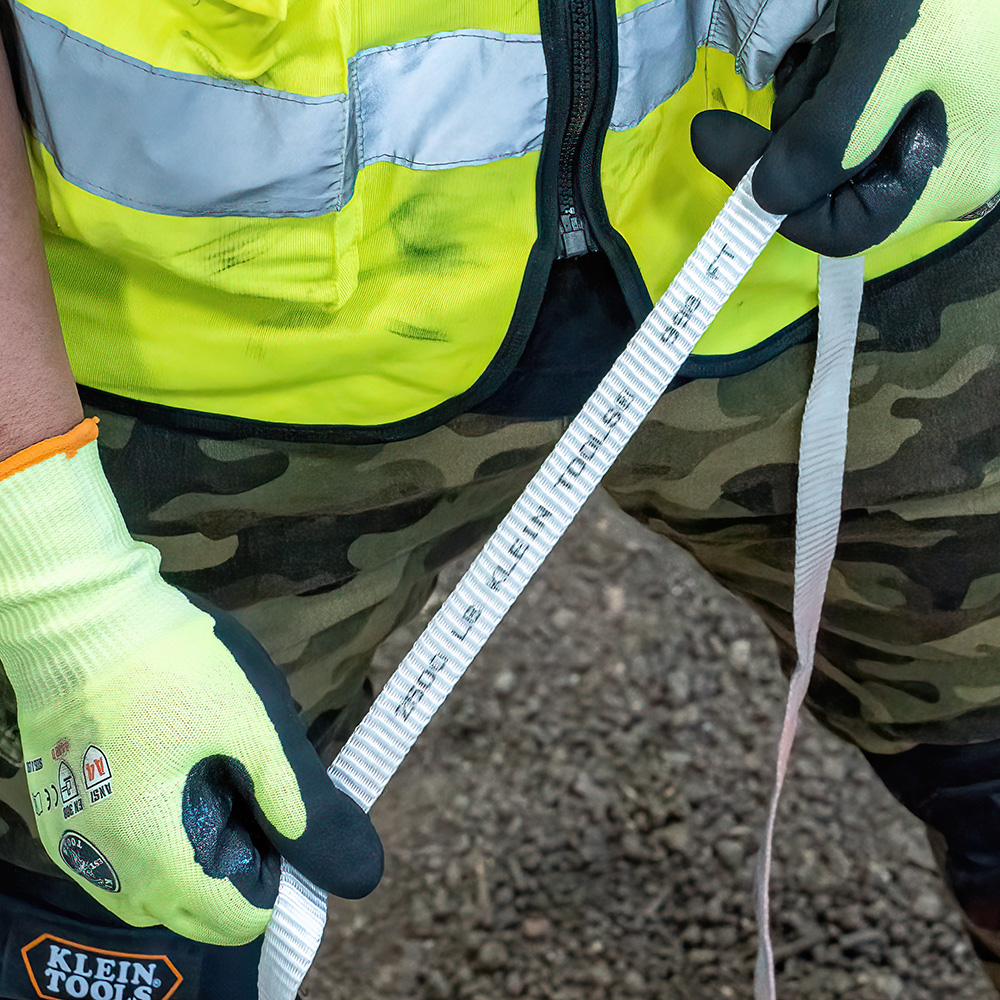

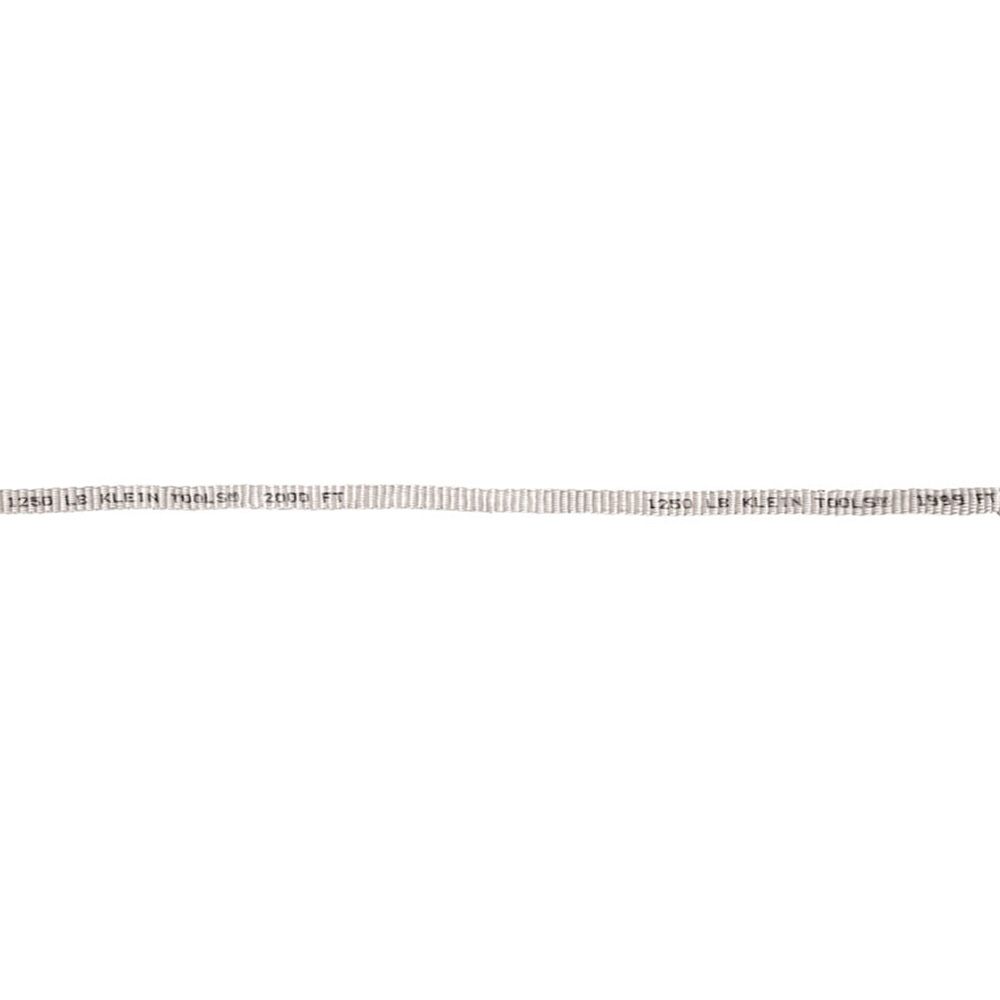

• Tape is marked with easy-to-read, descending 1-Foot increments to measure conduit runs and determine the amount of tape left to pay out

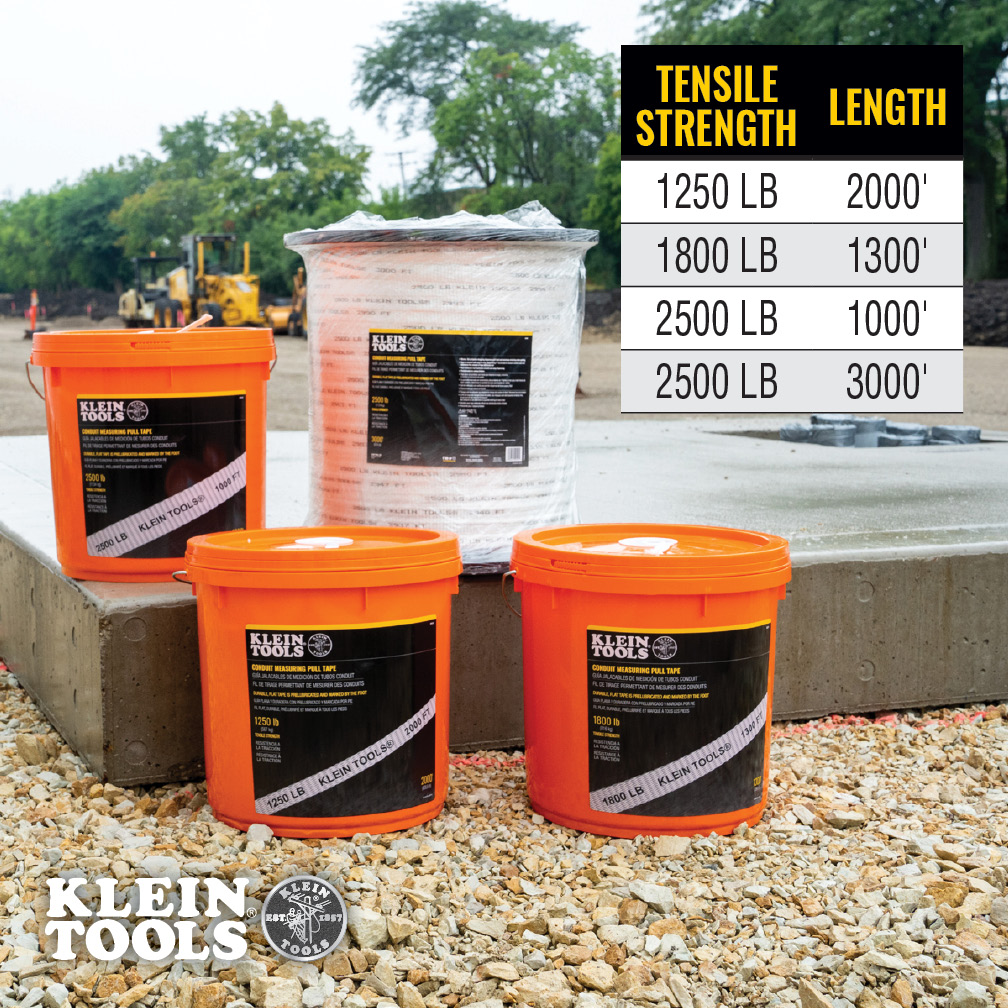

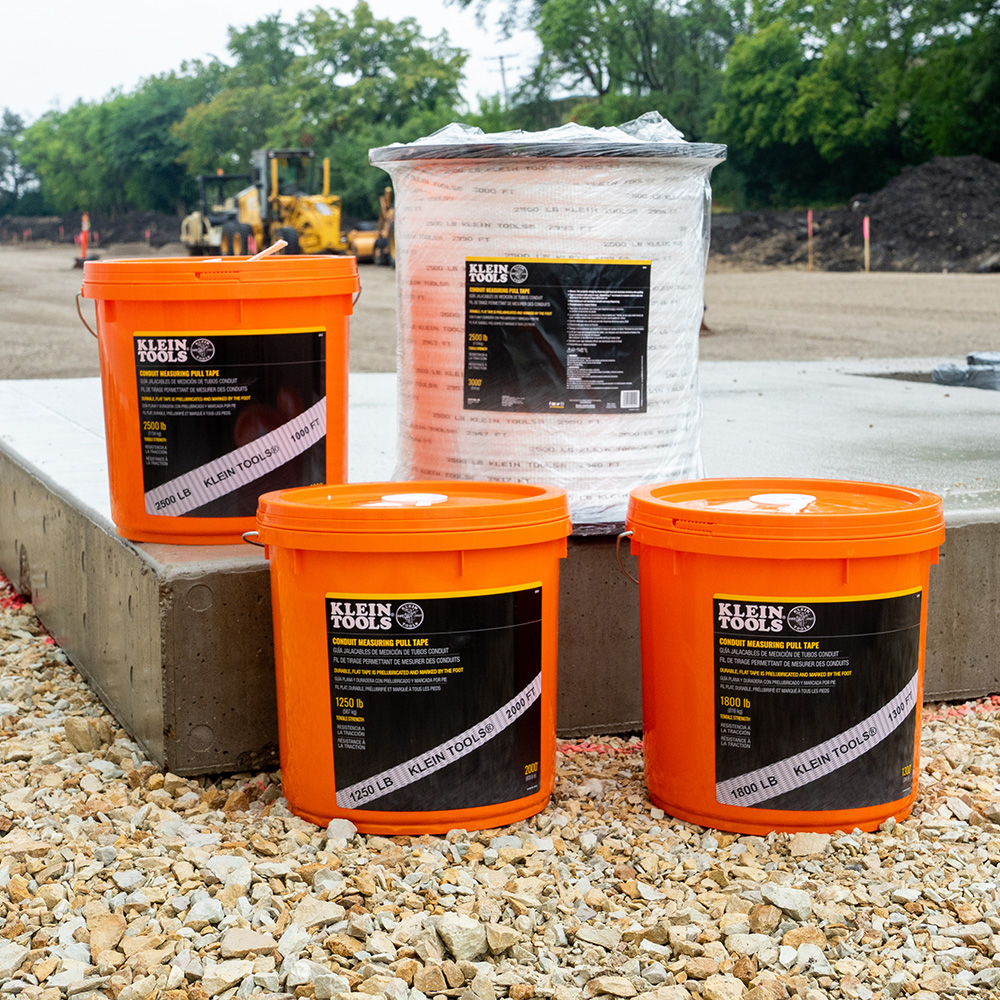

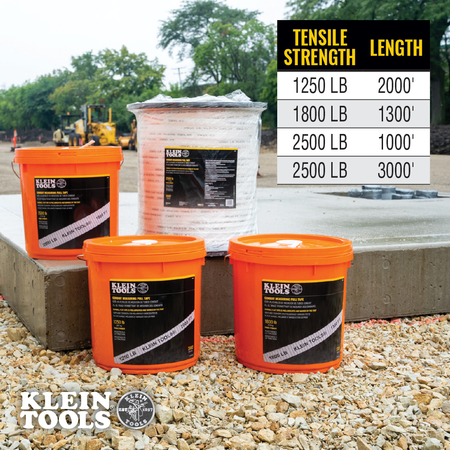

• Additional pull tape tensile strengths and lengths available
• Pre-lubricated to reduce friction

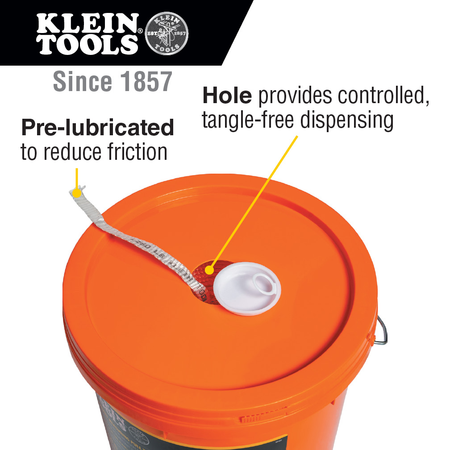

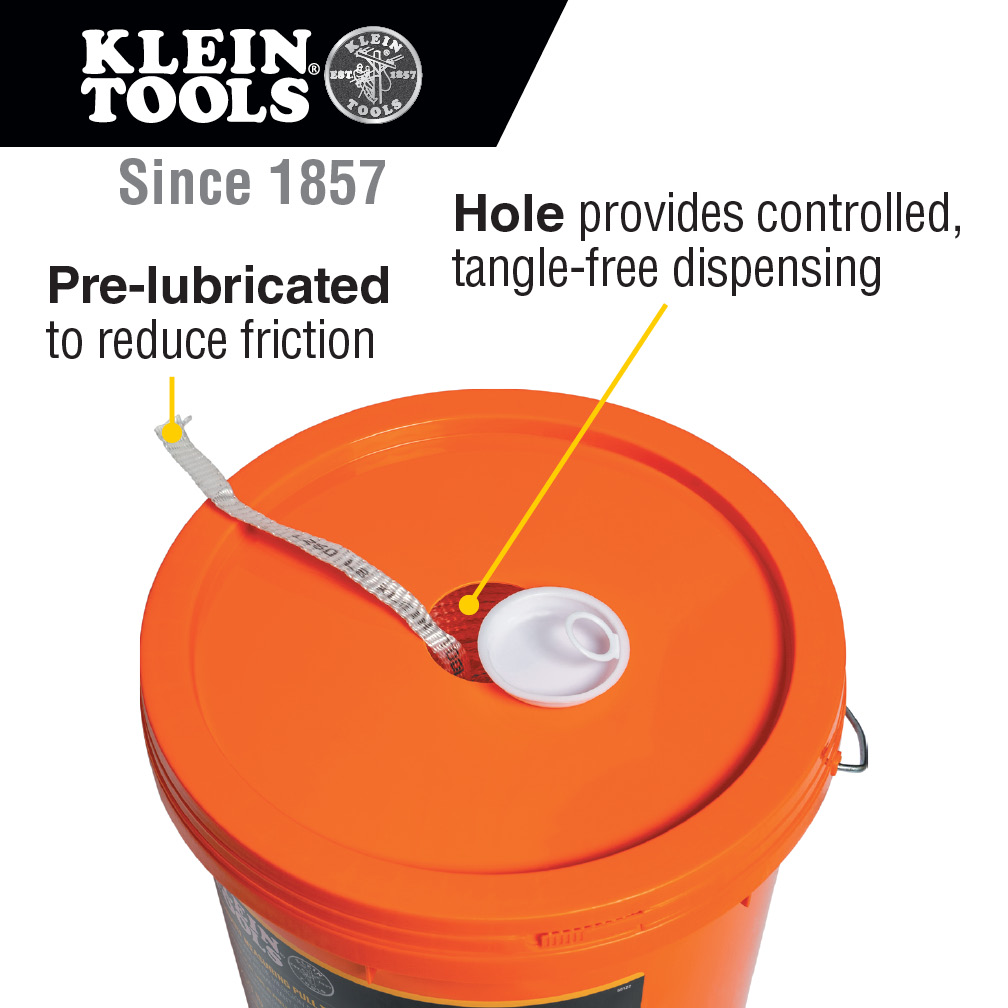

• Hole in bucket lid for controlled, tangle-free dispensing

Warnings

• Do not use on live circuits. Tape can wick moisture and become conductive.
• For wire and cable installation only.
• Knots in line can significantly reduce tensile strength.
• Not for overhead lifting.

Specifications

• Type: Pre-Lubricated, Flat Pull Tape with 1' Markings
• Depth: 11.0000 in
• Application: Heavy-Duty Pulling
• Color: White Tape with Black Markings
• Width: 11.0000 in
• Height: 11.0000 in
• Material: 100% Polyester Tape Lubricated with Ethylene Glycol and Water
• Overall Width (Inch): 0.49
• Weight: 16.6000 lbs
• Weight (lb): 16.6
• Overall Width (cm): 1.2
• Overall Length (Feet): 2000
• Container: Orange Bucket with Lid and Handle
• Overall Length (m): 609.6
