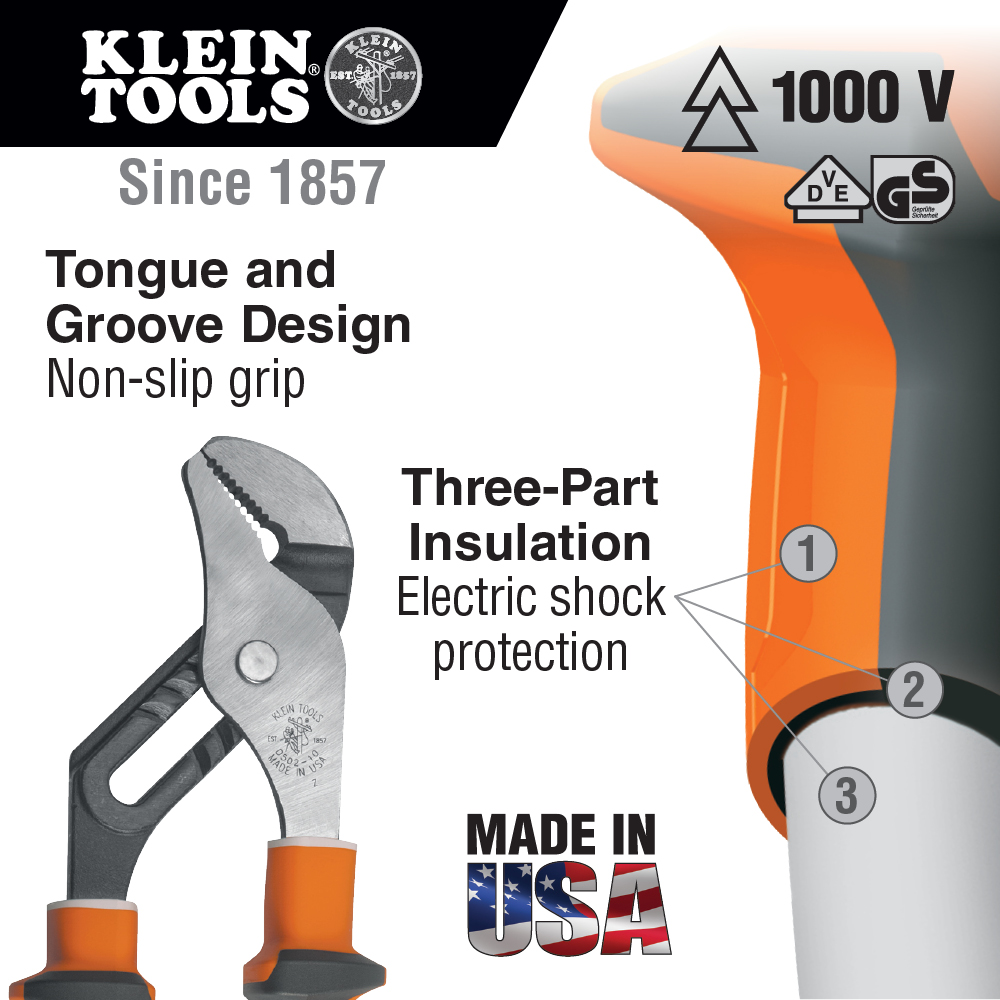

Insulated Pump Pliers, Slim Handle, 10-Inch

Klein Tools Electrician's Insulated pump pliers are 1000V rated and VDE certified for safety on the job. The multi-color, sleek design with small thumb guards make for easy handling and storage. The three-part insulation with white underlayer provides a warning sign that insulation may be compromised. The durable, molded insulation meets or exceeds IEC 60900 and ASTM F1505 standards for insulated tools.

Warnings

• Always inspect your tools before use.
• Keep tool clean, dry and free of any surface contaminants.
• Destroy tool if the insulation is damaged in any way.
• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Always wear approved eye protection.

Features

• Secure Tongue and Groove Design For Non-Slip Grip
• Forged in the USA of US-made steel
• 1000 V Rated for safety on the job. VDE Certified; durable, molded insulation meets or exceeds ASTM F1505 and IEC 60900 standards for insulated tools
• Secure tongue and groove design for non-slip grip even with heavy pressure
• Multi-color, sleek design with small thumb guards for ease of handling and easy storage in your toolbelt
• Unique three-part insulation with white underlayer provides warning sign that insulation may be compromised

Specifications

• Standard: IEC 60900 and ASTM F1505
• Type: Pump
• Height: 0.4840 in
• Weight (lb): 1
• Jaw Width (Inch): 0.484
• Handle Color: Orange/Gray
• Jaw Width (cm): 1.2
• Overall Length (Inch): 10.29
• Width: 3.0000 in
• Application: For Work Near Energized Sources
• Jaw Capacity (cm): 4.4
• Depth: 10.2500 in
• Handle Material: High-Dielectric Plastic
• Handle Finish: 3-Layer Insulation
• Weight: 1.0000 lbs
• Material: Induction Hardened Steel
• Insulated: Yes
• Handle Length (Inch): 5.5
• Handle Length (cm): 14
• Jaw Capacity (Inch): 1.75
• Overall Length (cm): 26.1
• Weight (kg): 0.5
