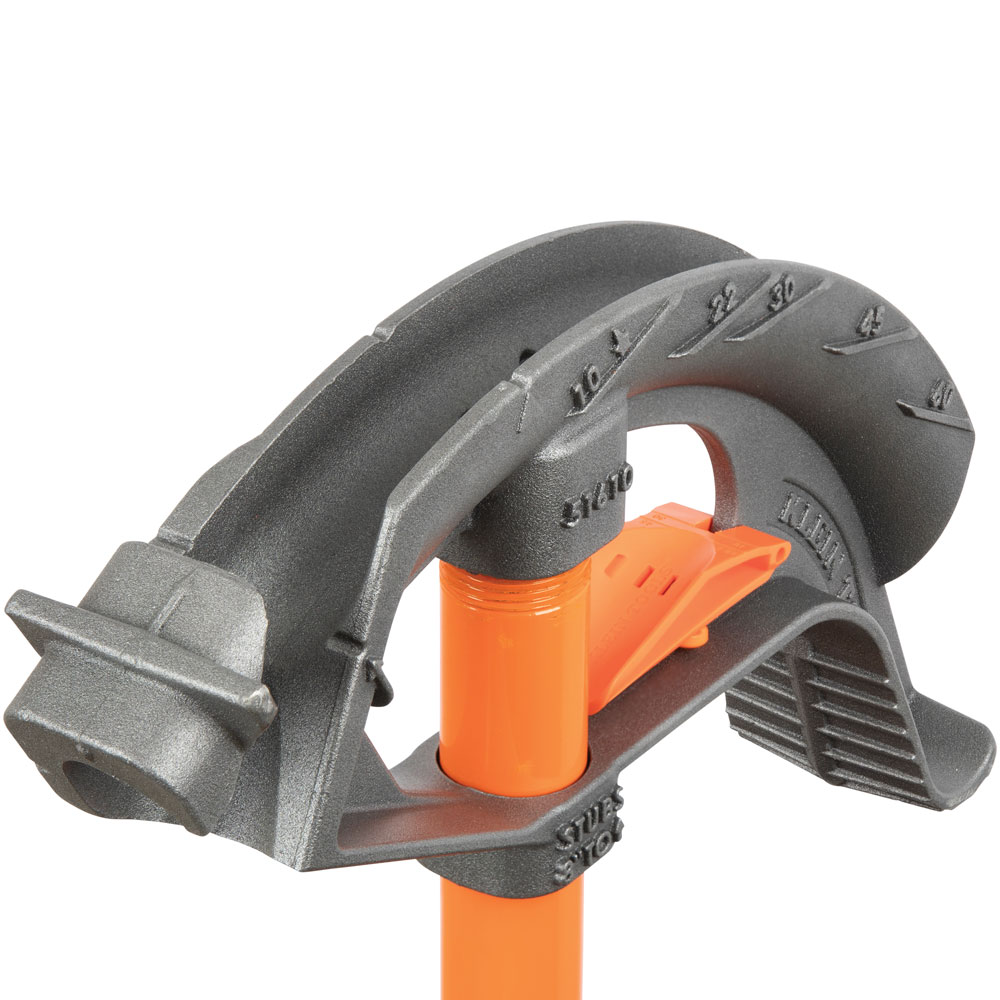

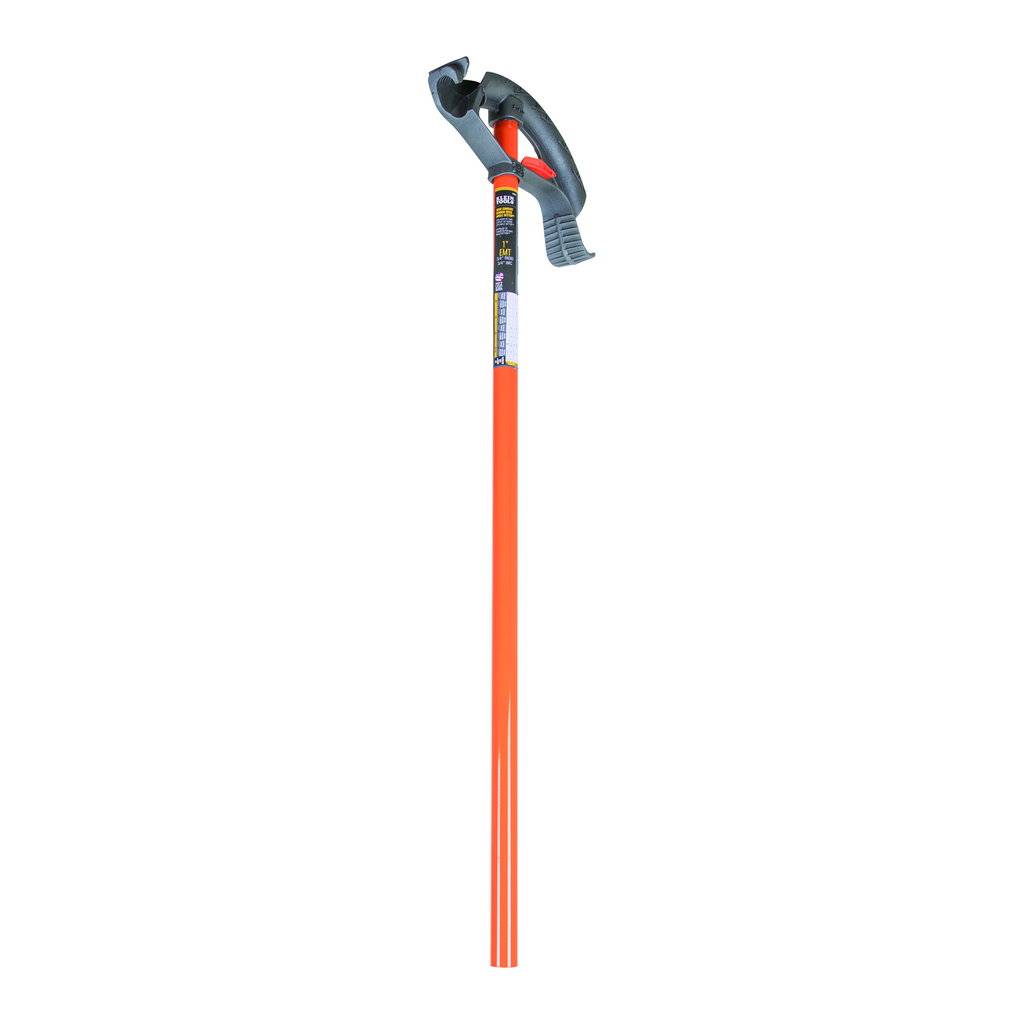

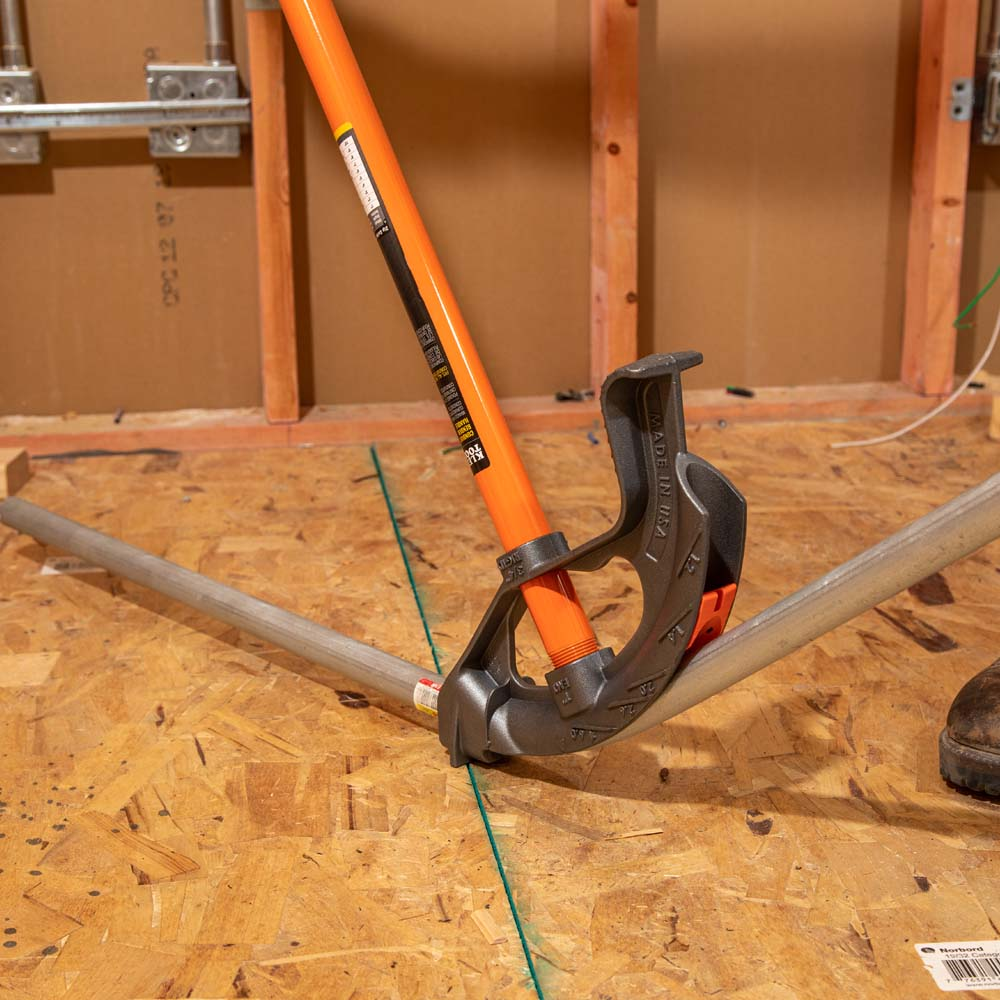

Iron Conduit Bender Full Assembly, 1-Inch EMT with Angle Setter™

Klein Tools' conduit benders with Patent Pending Angle Setter™ technology allow for quick, accurate repeated bends. The wide foot pedal provides excellent stability and features angled grooves for extra traction. With easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job.

Features

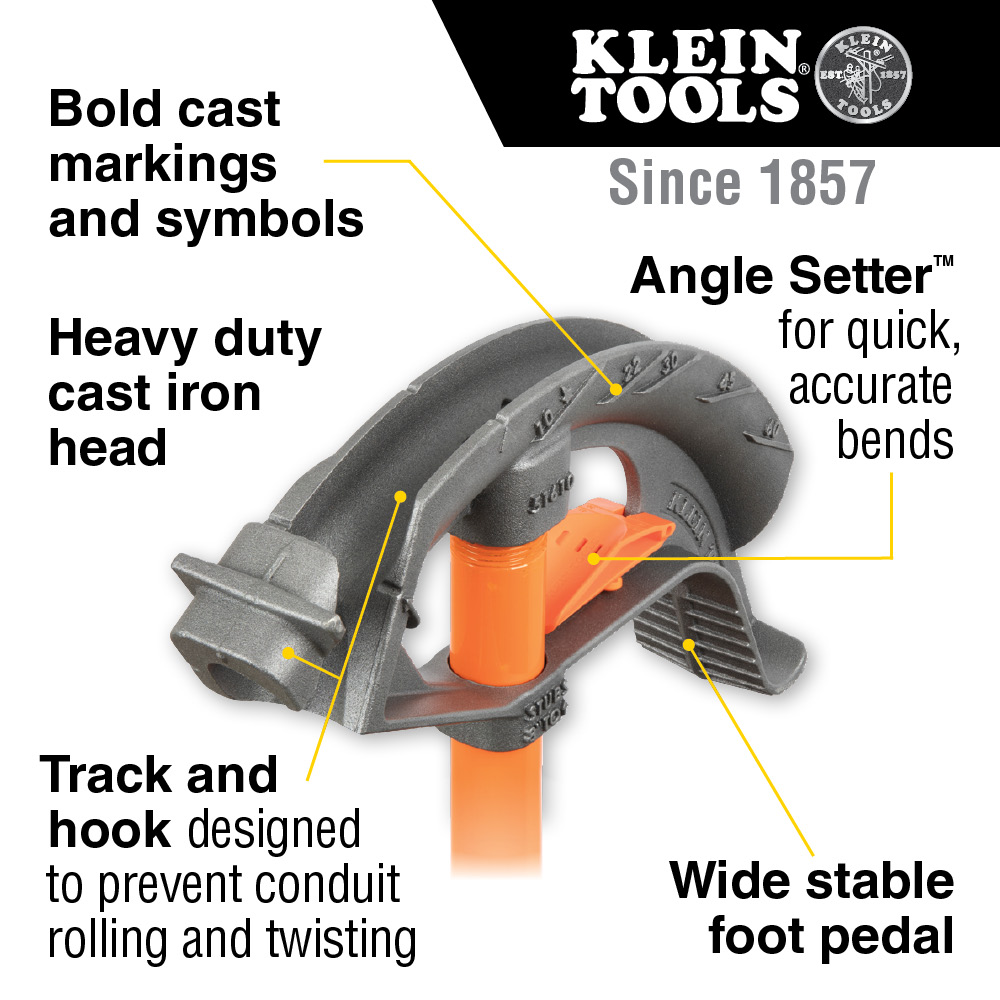

• Wide foot pedal provides excellent stability, leverage, and comfort
• 1-Inch assembled Iron Bender includes Klein's unique Angle Setter™ technology for time-saving, repeated accurate bends; Patent pending Angle Setter™ for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)
• Heavy duty cast ductile iron has the durability needed on the job site
• Designed to bend 1-Inch EMT, 3/4-Inch Rigid and 3/4-Inch IMC conduit

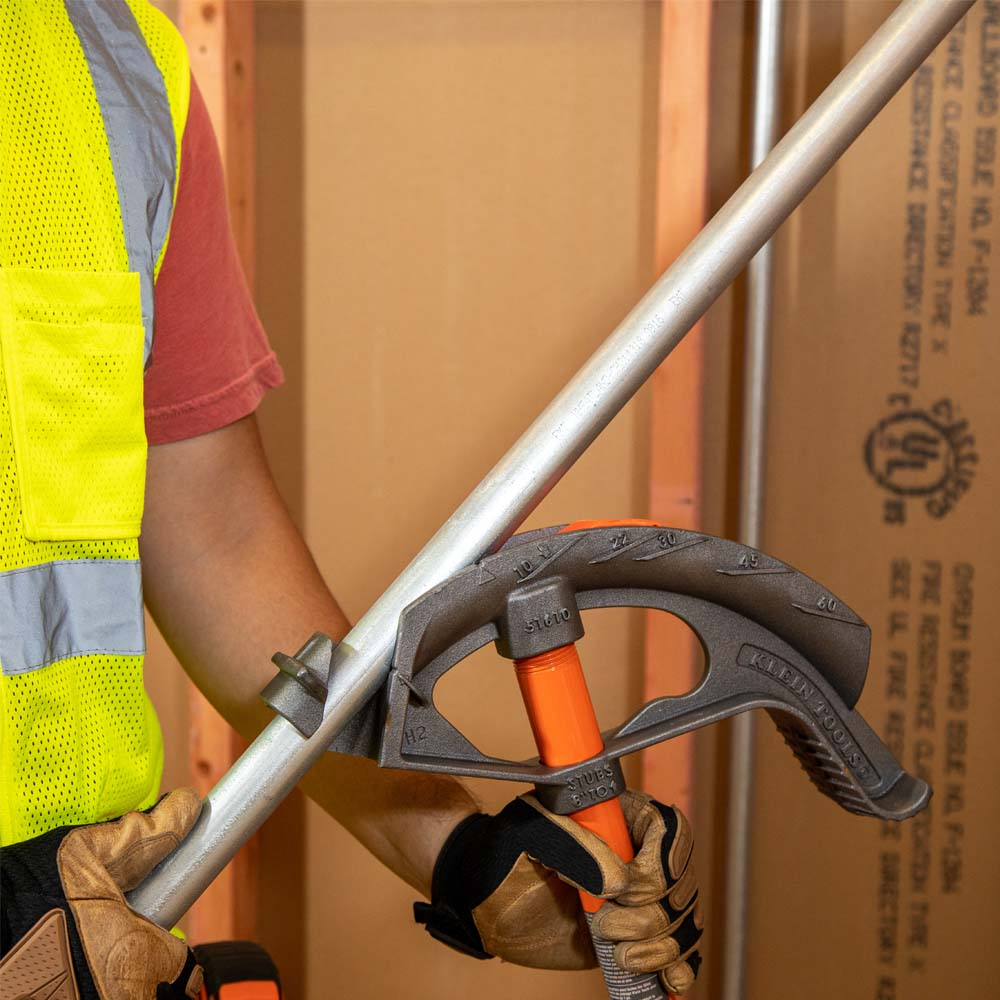

• Interior hook surface prevents conduit from rolling or twisting during bends

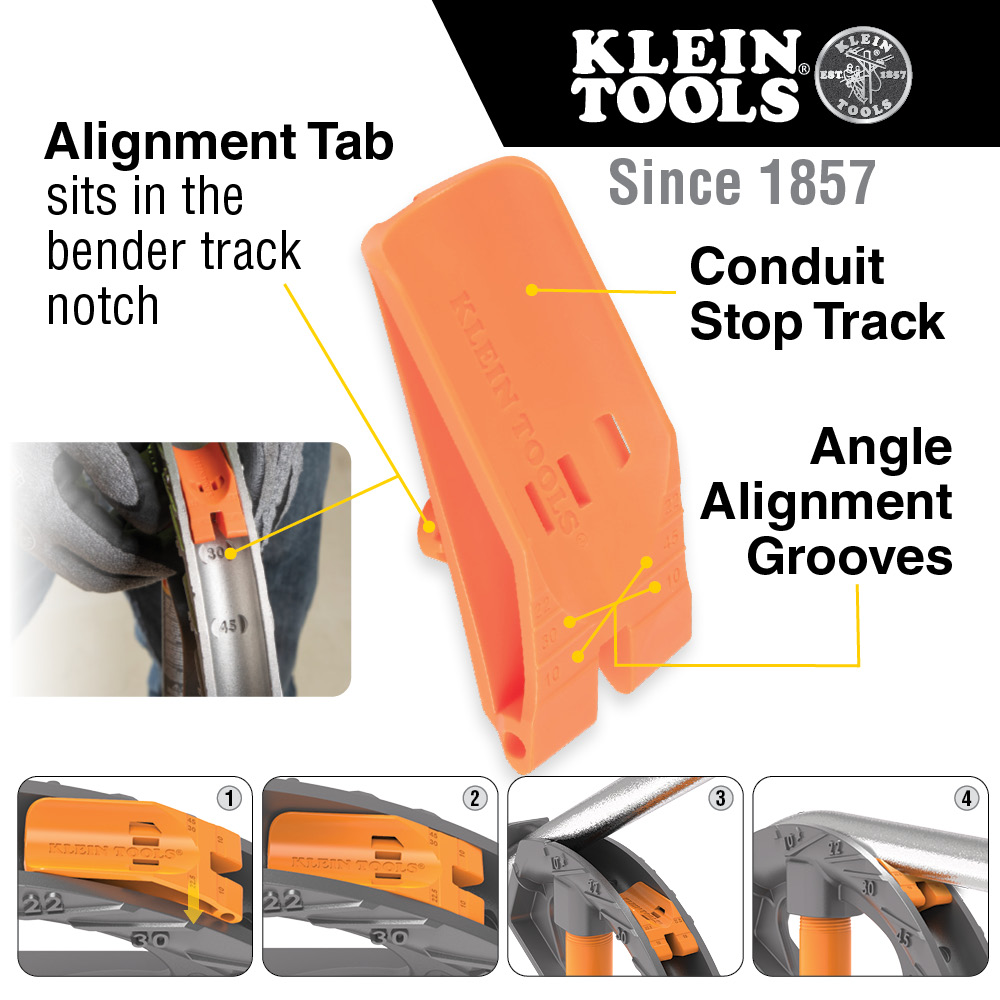

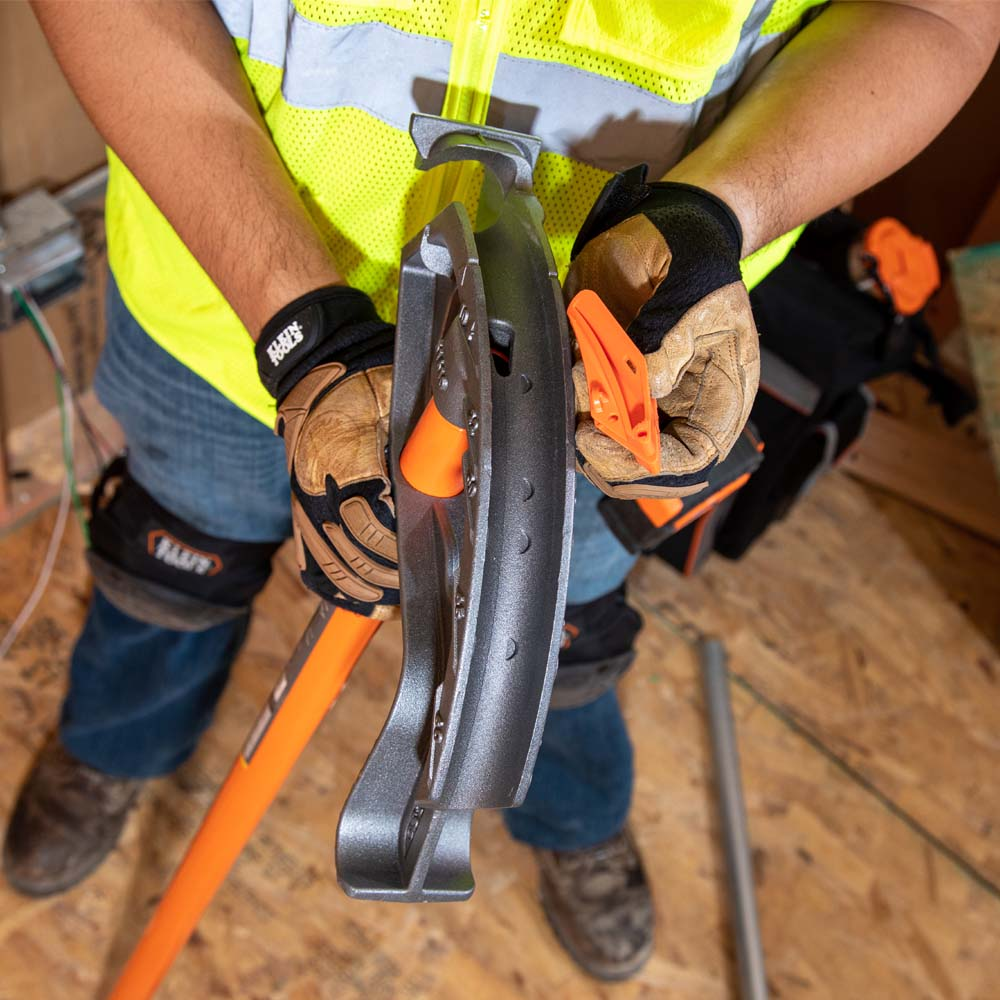

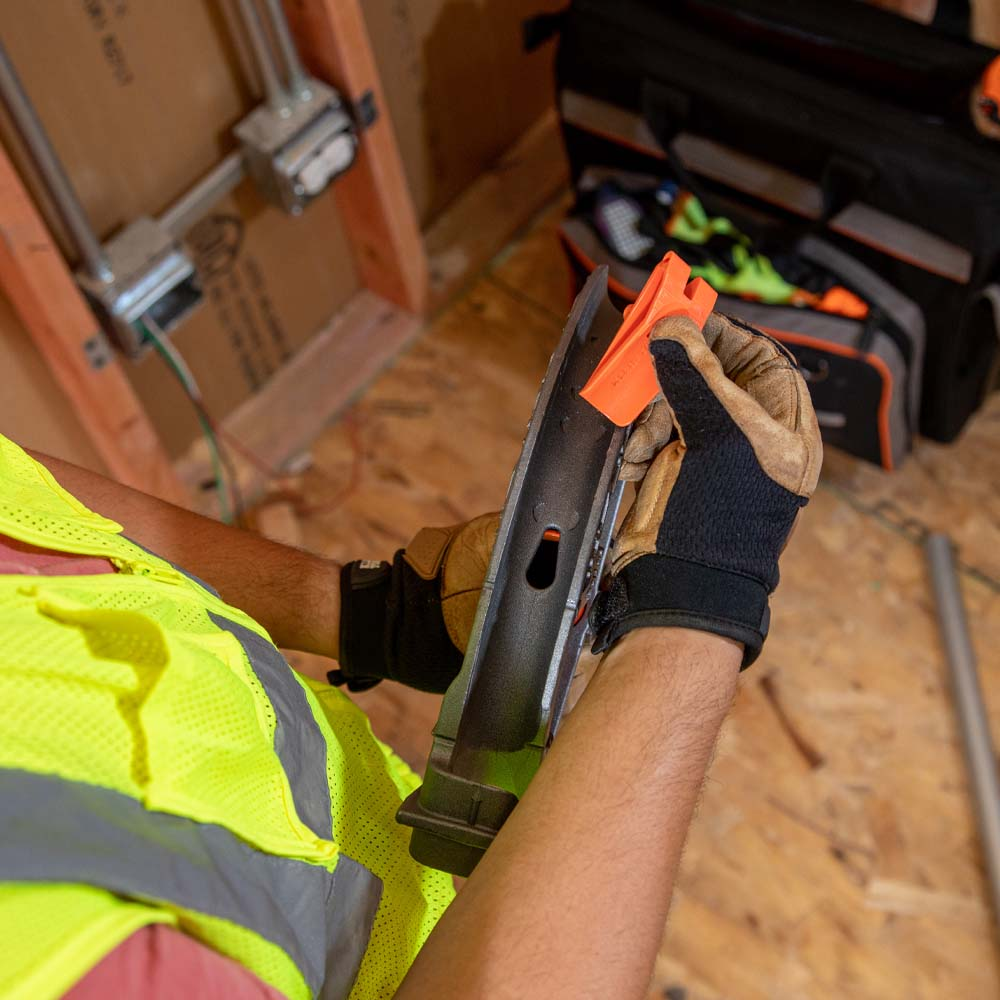

• Features Klein's 1-Inch Angle Setter™ (Cat. No. 51613) that creates a hard stop for quick, accurate, and consistent bends

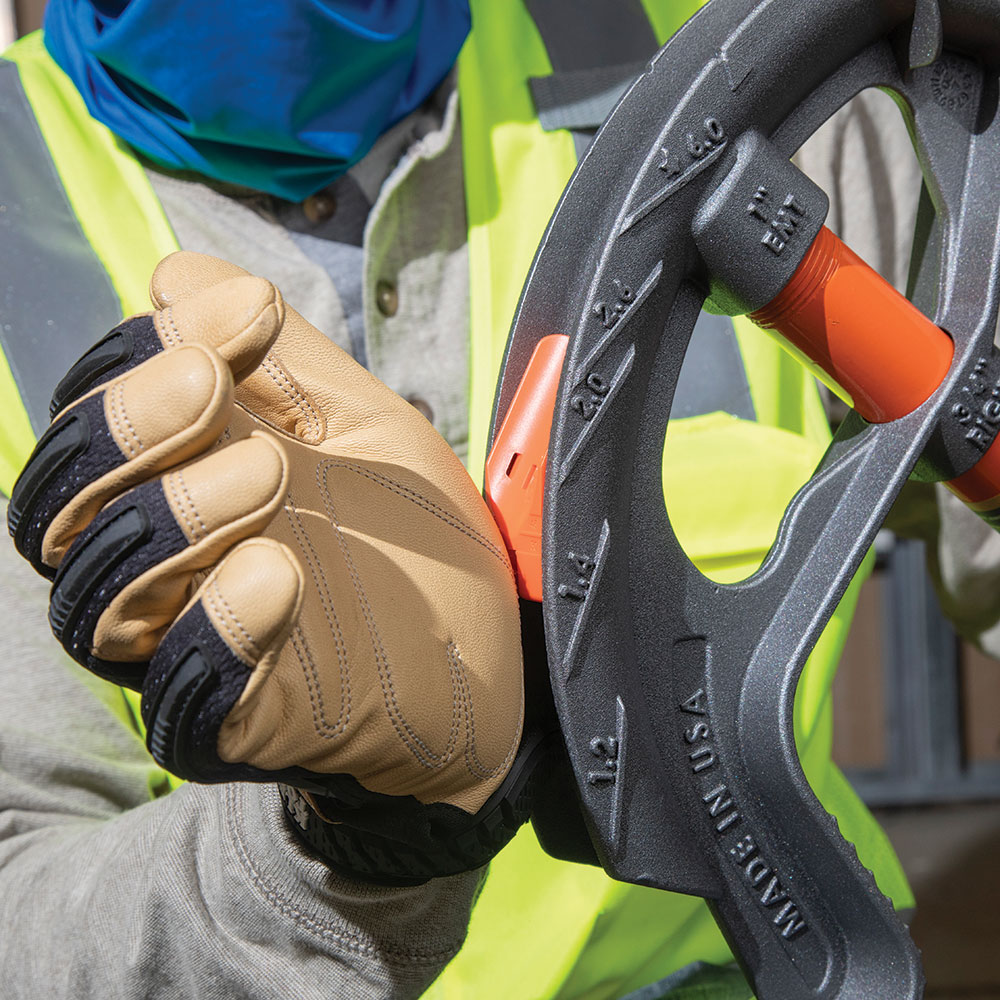

• Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends

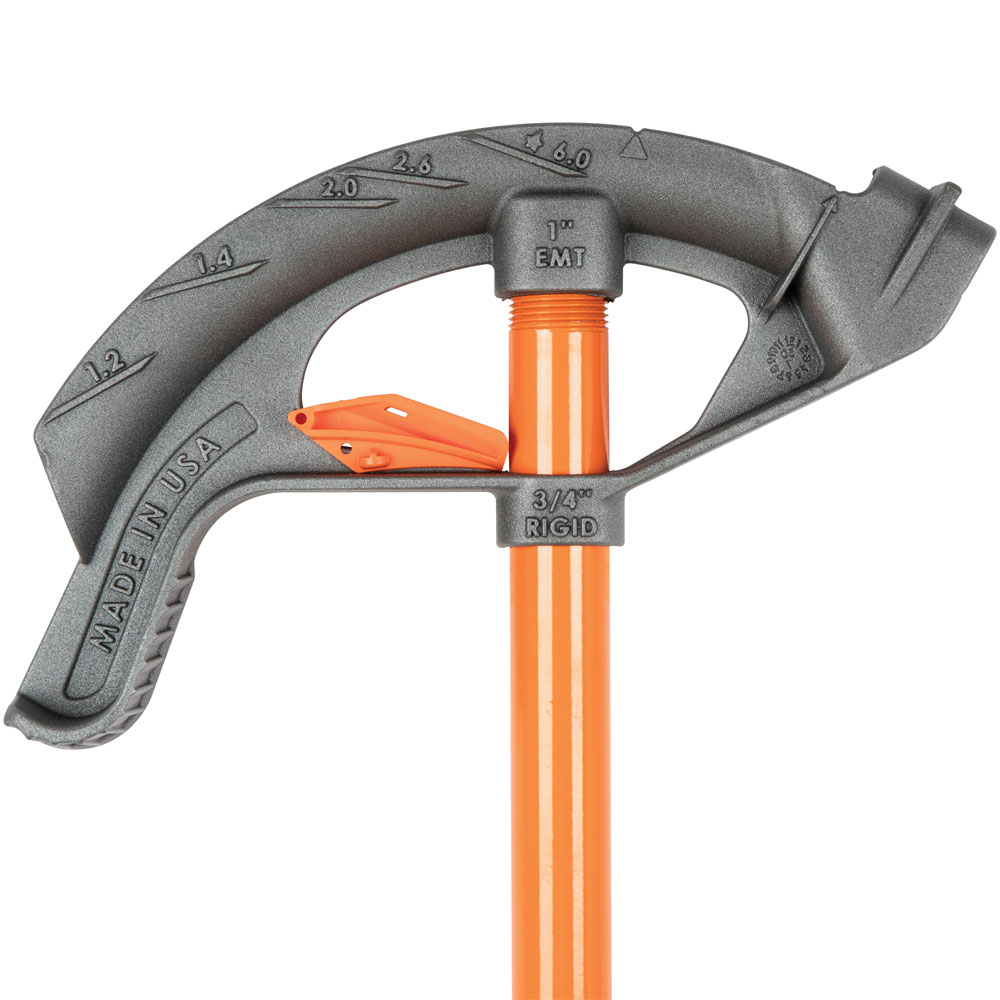

• Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers
• Patent Pending Angle Setter™ Technology

Warnings

• Always wear approved eye protection.
• Use a safe work position to avoid loss of balance.

Specifications

• Weight: 11.6000 lbs
• Weight (kg): 5.4
• Material: Iron
• Overall Height (Inch): 52.1
• Centerline Bend Radius (Inch): 7.375
• Stub-Up Height (Inch): 8
• Overall Length (cm): 6.4
• Included: 51610 Bender Head; 51428 Handle; 51613 Angle Setter™

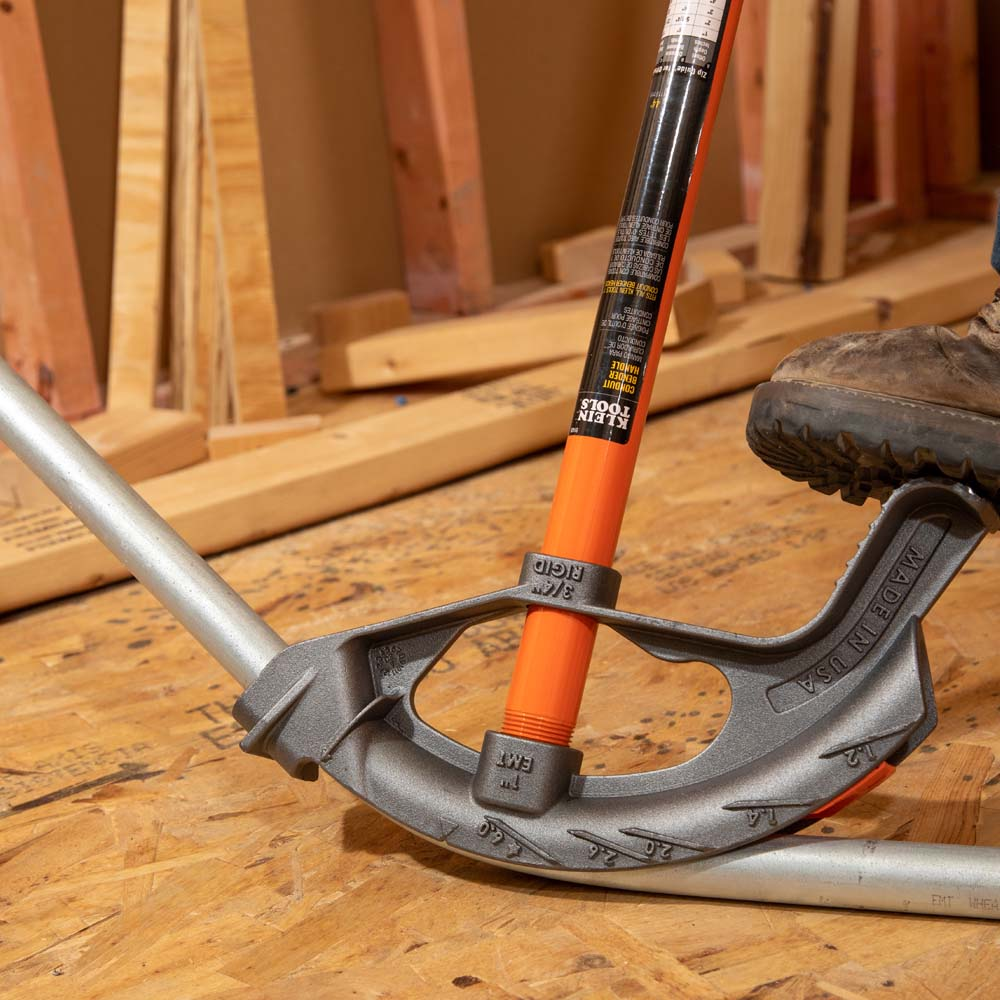

• Application: Bending Conduit
• Overall Length (Inch): 2.5
• Marking: 10°, 22°, 30°, 45°, 60°
• Height: 12.6250 in
• Type: Iron Conduit Bender
• Rigid/IMC: 3/4" (1.9 cm)
• Overall Width (cm): 32.8
• Width: 2.3130 in
• Handle Length (Inch): 44
• Thinwall/EMT: 1" (2.5 cm)
• Weight (lb): 11.8
• Overall Height (cm): 132.3
• Conduit Type: EMT
• Handle Length (cm): 111.8
• Overall Width (Inch): 12.9
• Depth: 45.3750 in
• Conduit Size: 1"
