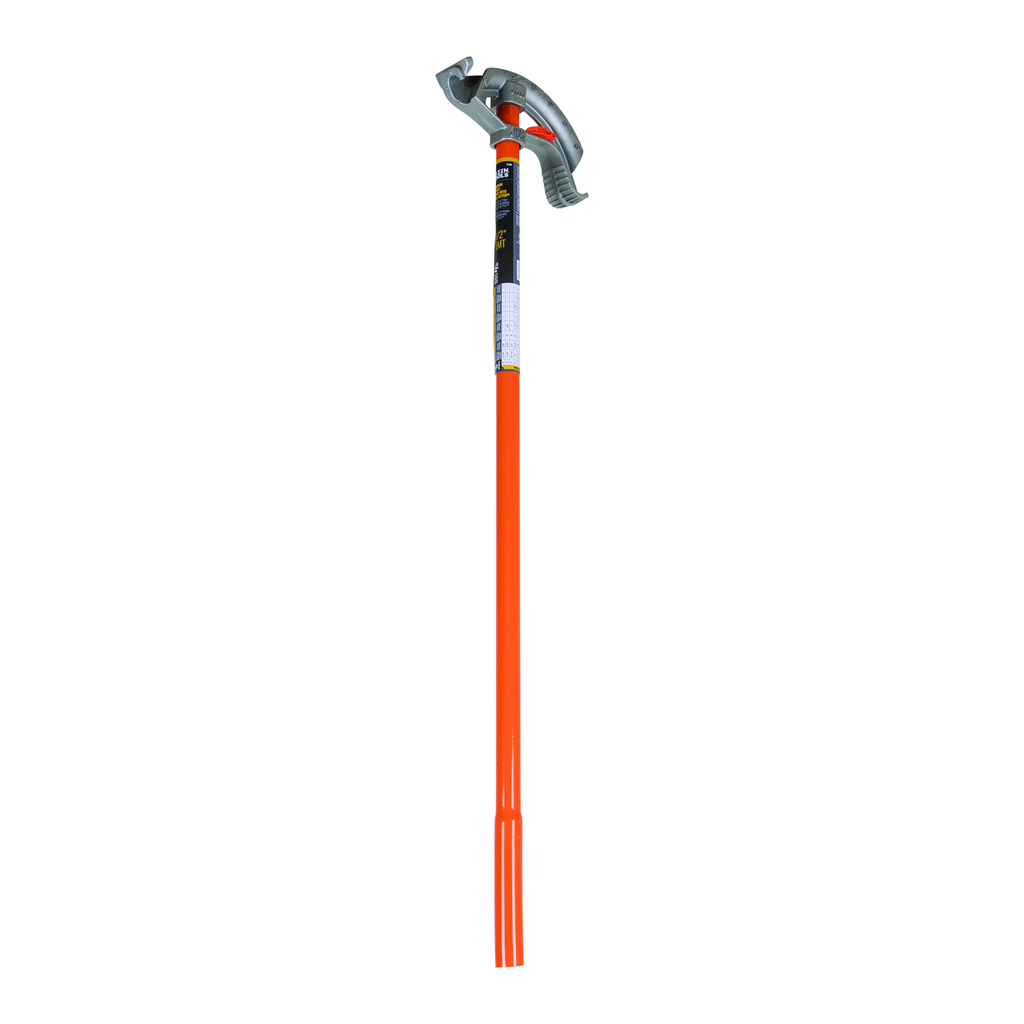

Aluminum Conduit Bender Full Assembly, 1/2-Inch EMT with Angle Setter™

Klein Tools' conduit benders with Patent Pending Angle Setter™ technology allow for quick, accurate repeated bends. The wide foot pedal provides excellent stability and features angled grooves for extra traction. With easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job.

Warnings

• Always wear approved eye protection.
• Use a safe work position to avoid loss of balance.

Features

• Includes markings for 10-Degree, 22.5-Degree, 30-Degree, 45-Degree, 60-Degree and corresponding offset multipliers
• 1/2-Inch assembled Aluminum Bender includes Klein's unique Angle Setter™ technology for time-saving, repeated accurate bends; Patent pending Angle Setter™ for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)
• Patent Pending Angle Setter™ Technology

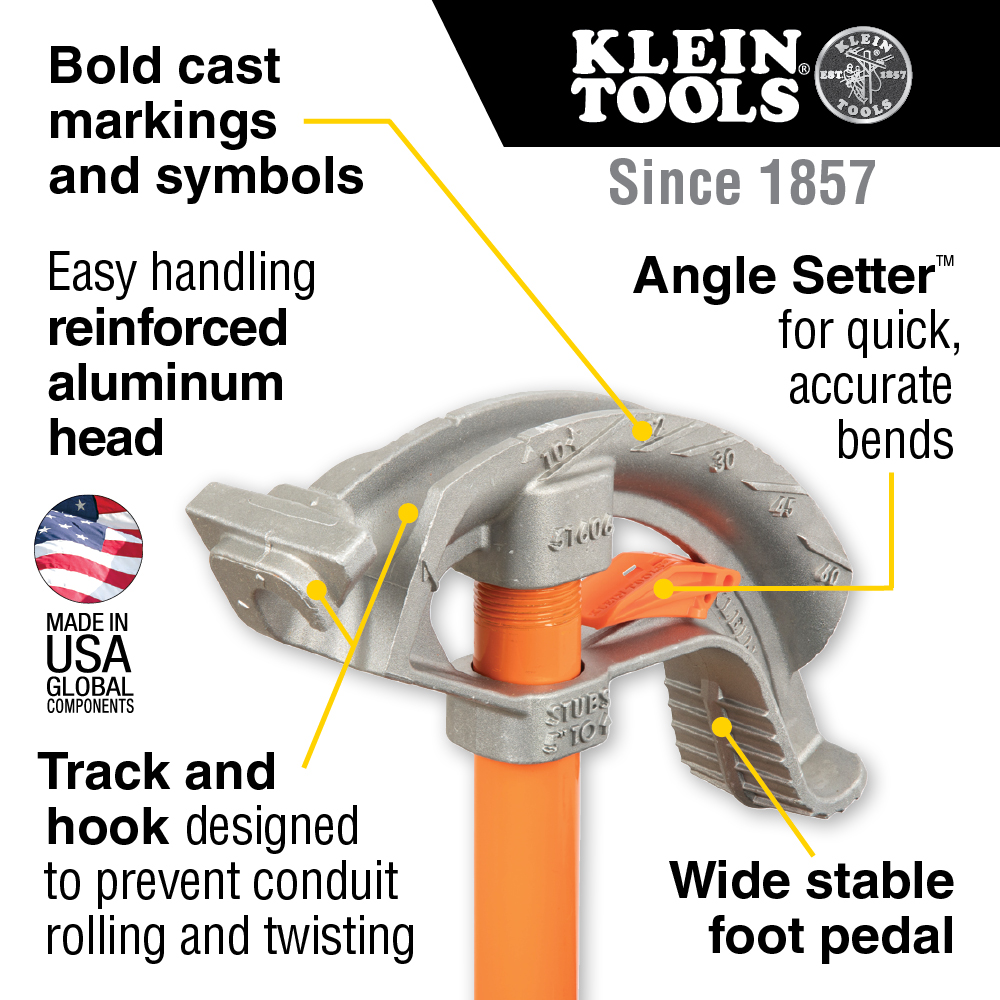

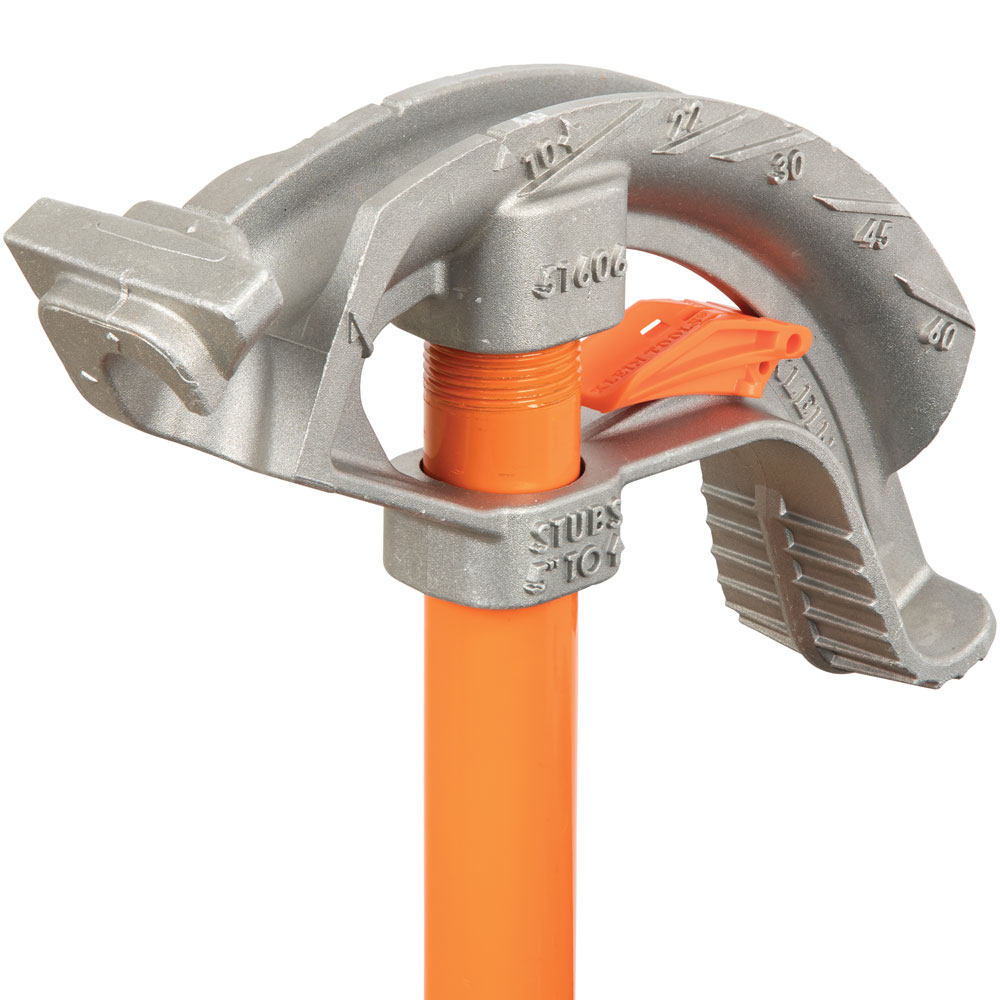

• Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends

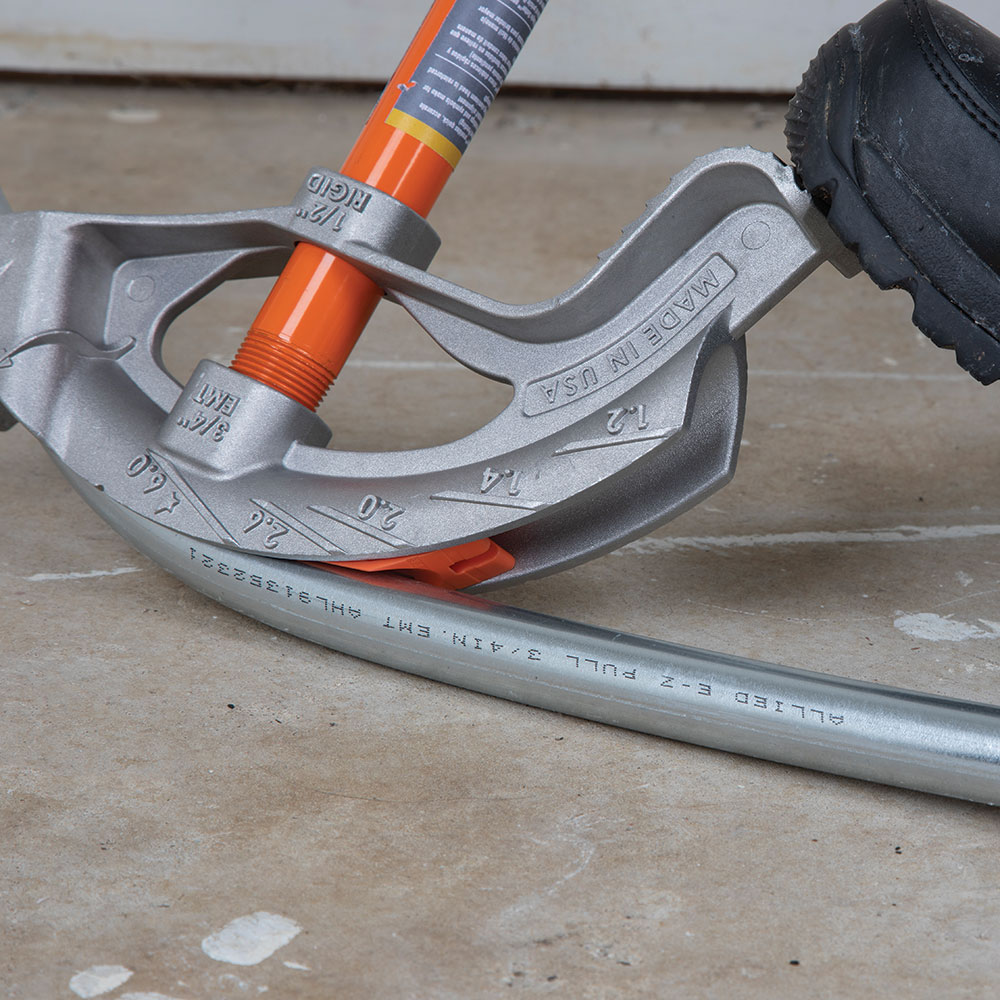

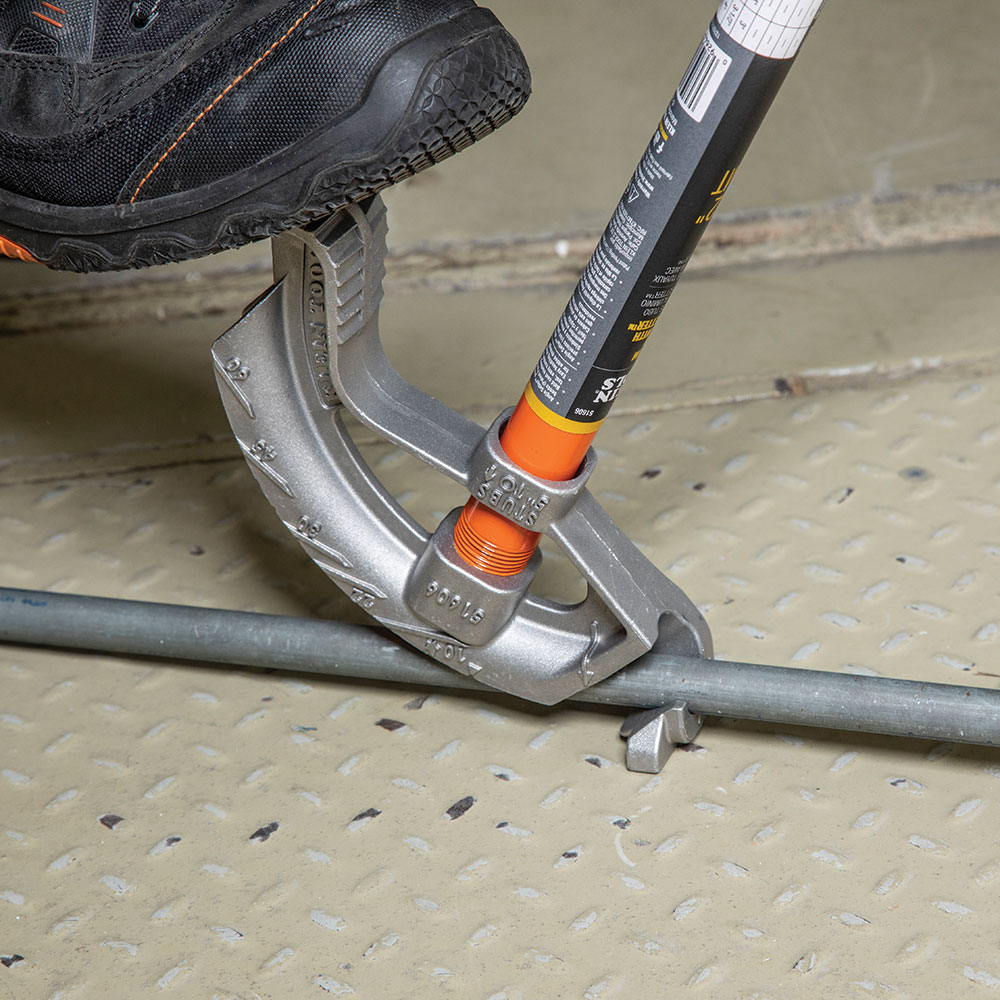

• Wide foot pedal provides excellent stability, leverage, and comfort

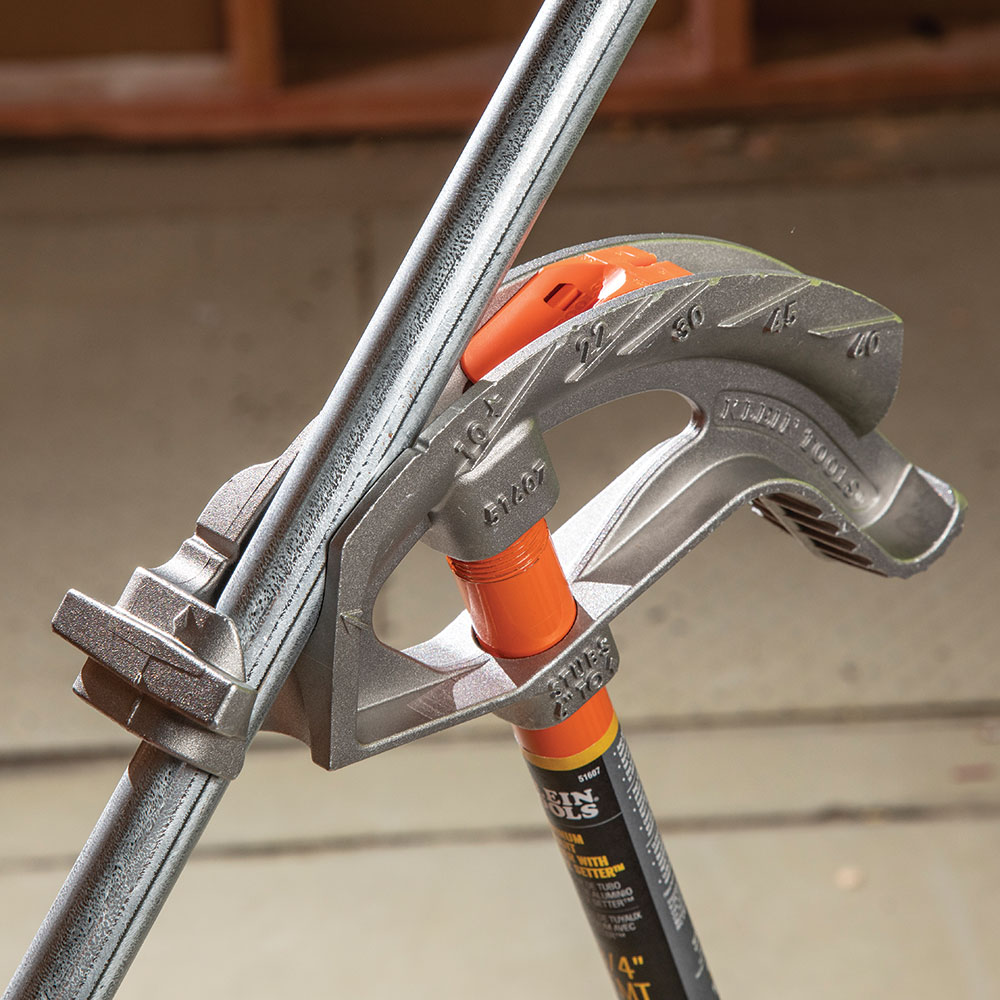

• Interior hook surface prevents conduit from rolling or twisting during bends
• Interior clamp securely holds conduit while cutting with hacksaw

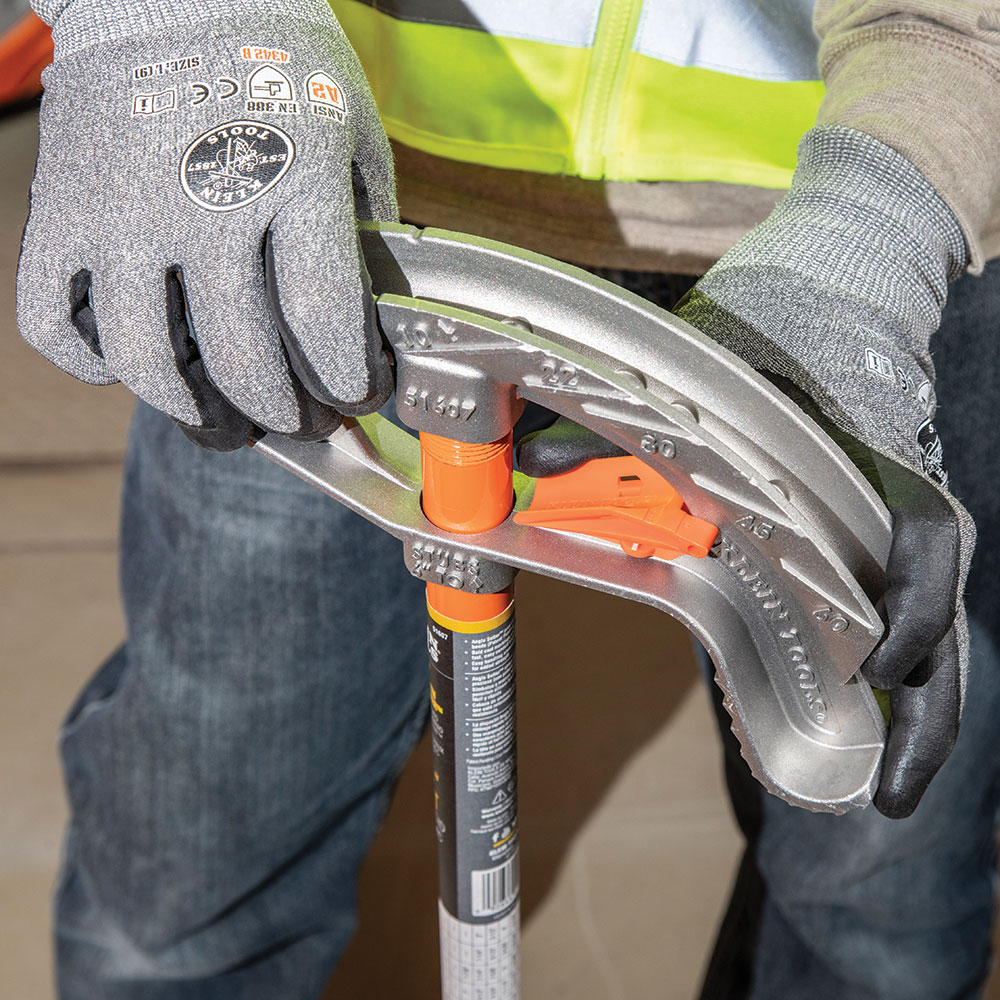

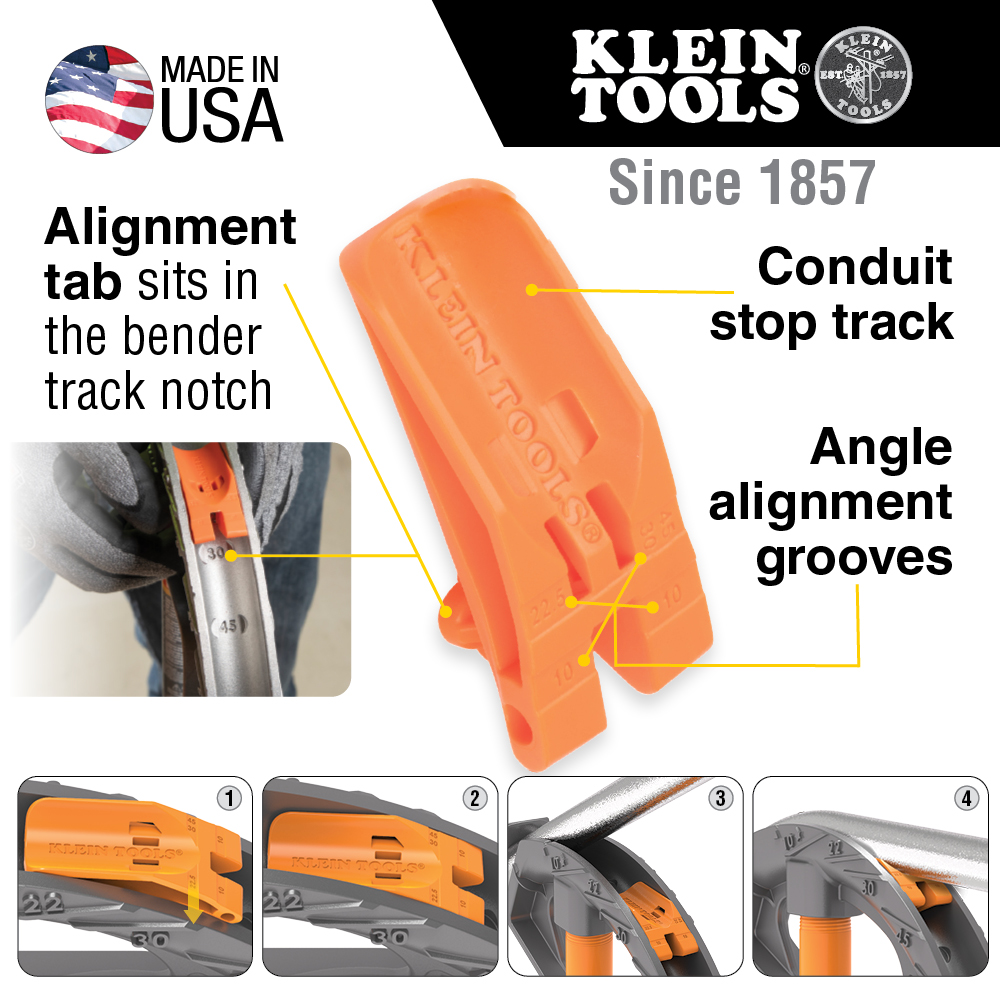

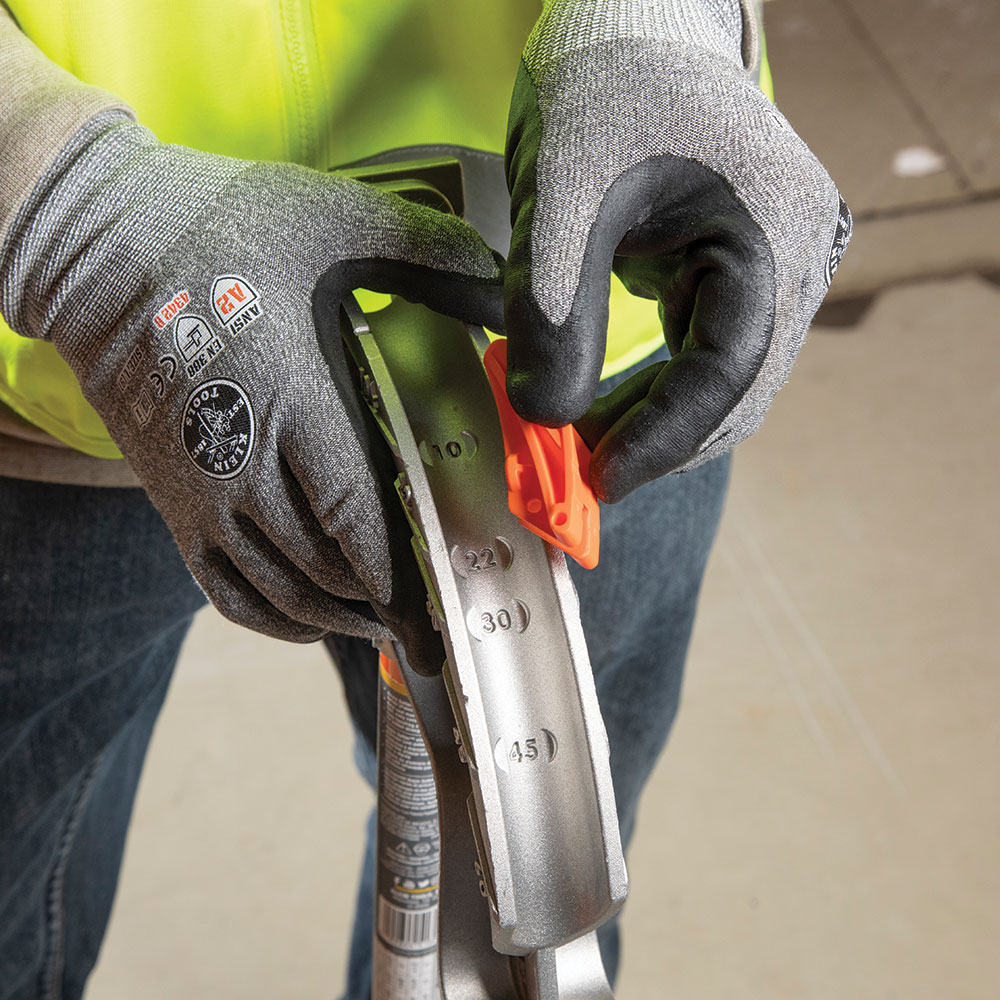

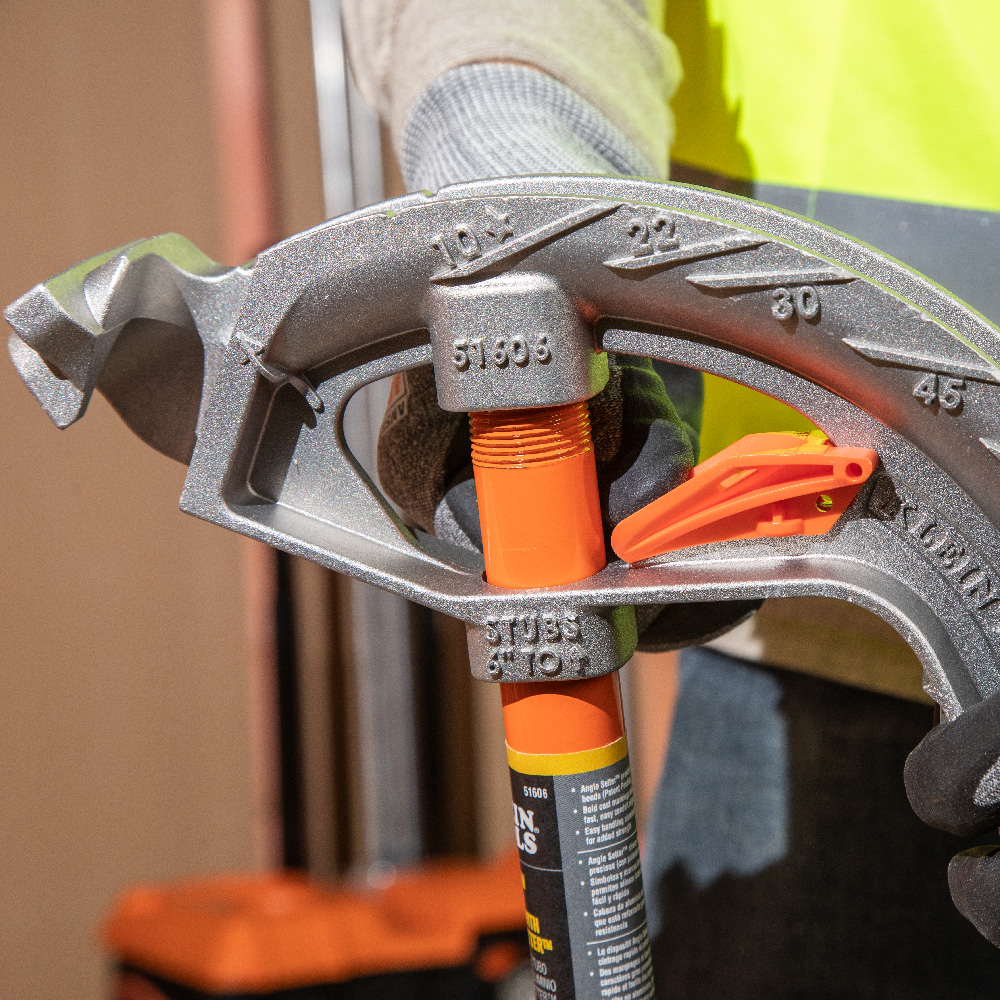

• Features Klein's Angle Setter™ Cat. No. 51611 that creates a hard stop for quick, accurate, and consistent bends

Specifications

• Overall Length (Inch): 1.7
• Thinwall/EMT: 1/2" (1.3 cm)
• Centerline Bend Radius (Inch): 4.625
• Application: Bending Conduit
• Handle Length (cm): 96.5
• Overall Height (cm): 109.5
• Conduit Type: EMT
• Stub-Up Height (Inch): 5
• Weight: 4.4000 lbs
• Overall Height (Inch): 43.1
• Weight (lb): 4.3
• Overall Length (cm): 4.3
• Height: 9.6250 in
• Width: 2.5000 in
• Conduit Size: 1/2"
• Included: 51427 Aluminum Bender Head, Handle; 51611 Angle Setter™
• Type: Aluminum Conduit Bender
• Marking: 10°, 22°, 30°, 45°, 60°
• Handle Length (Inch): 38
• Overall Width (Inch): 8.1
• Depth: 39.8750 in
• Weight (kg): 2
• Material: Aluminum
• Overall Width (cm): 20.6
