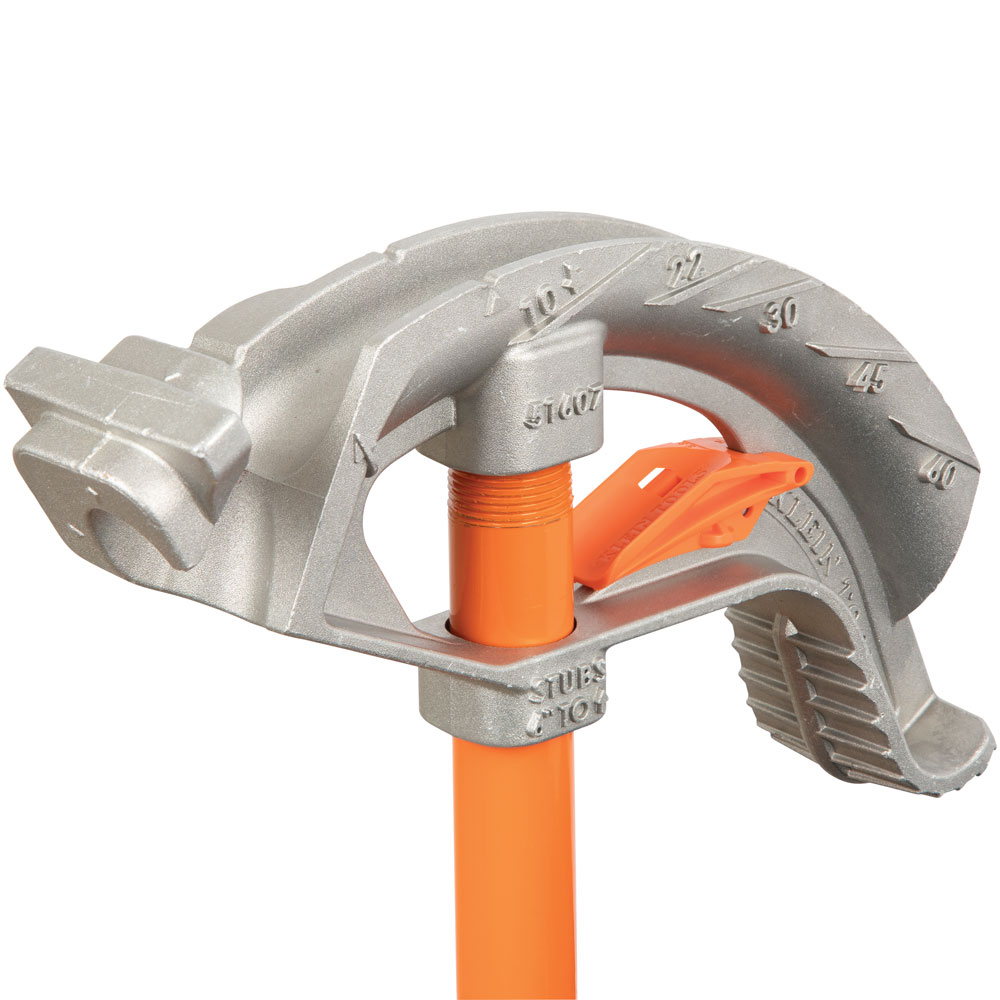

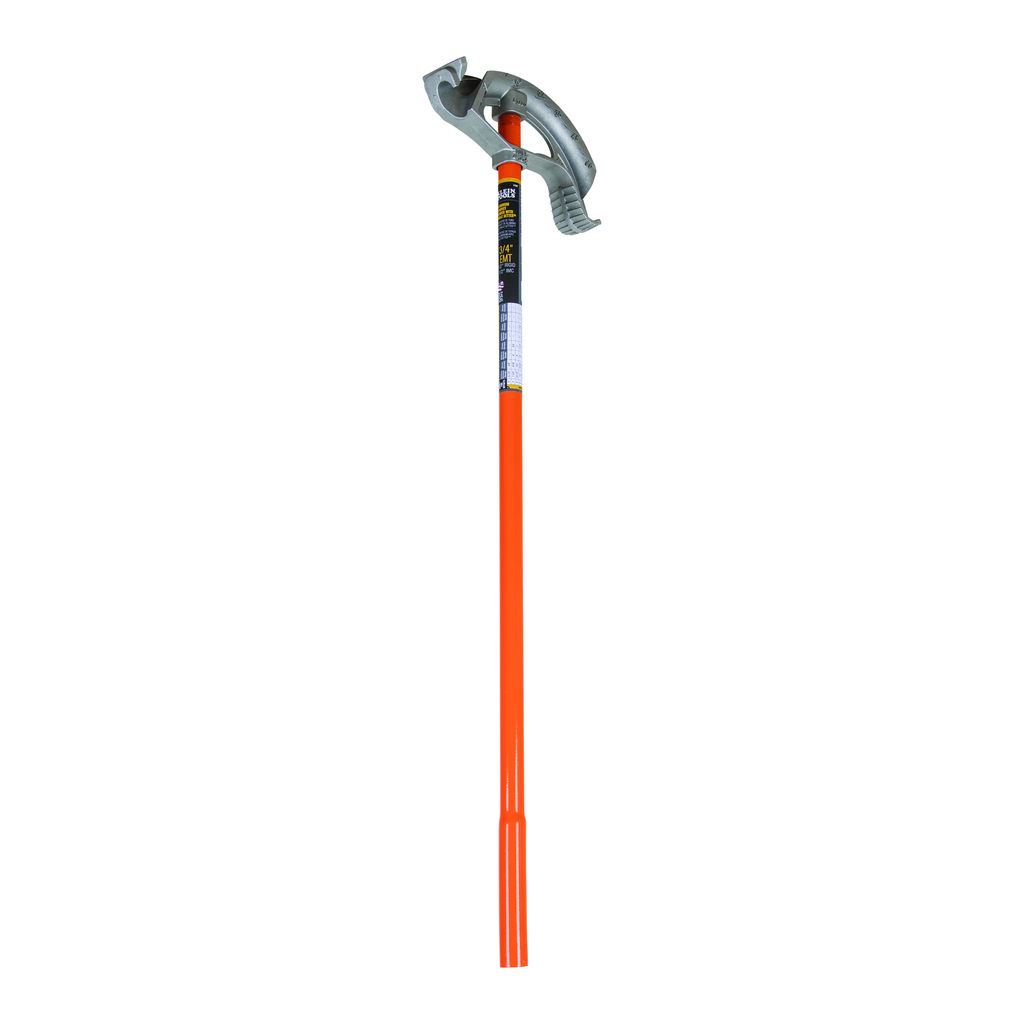

Aluminum Conduit Bender Full Assembly, 3/4-Inch EMT with Angle Setter™

Klein Tools' conduit benders with Patent Pending Angle Setter™ technology allow for quick, accurate repeated bends. The wide foot pedal provides excellent stability and features angled grooves for extra traction. With easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job.

Features

• Designed to bend 3/4-Inch EMT, 1/2-Inch Rigid and 1/2-Inch IMC conduit

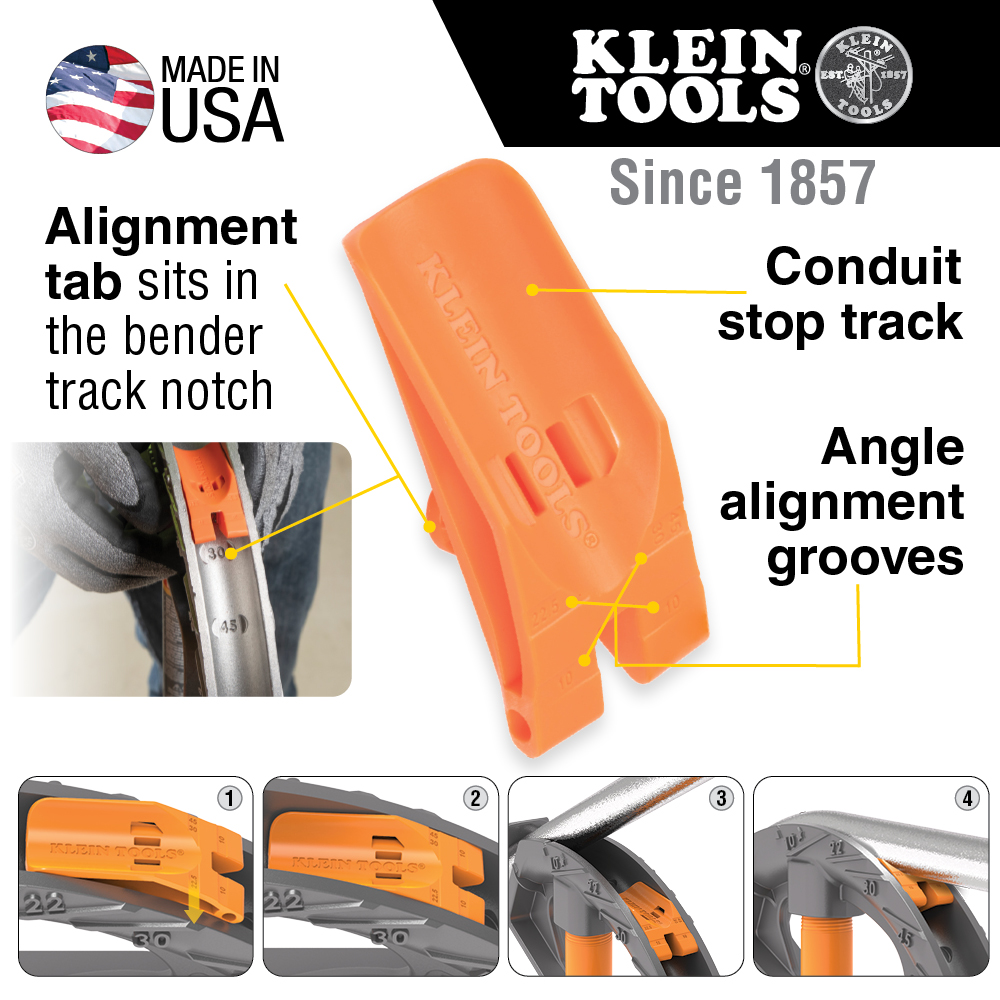

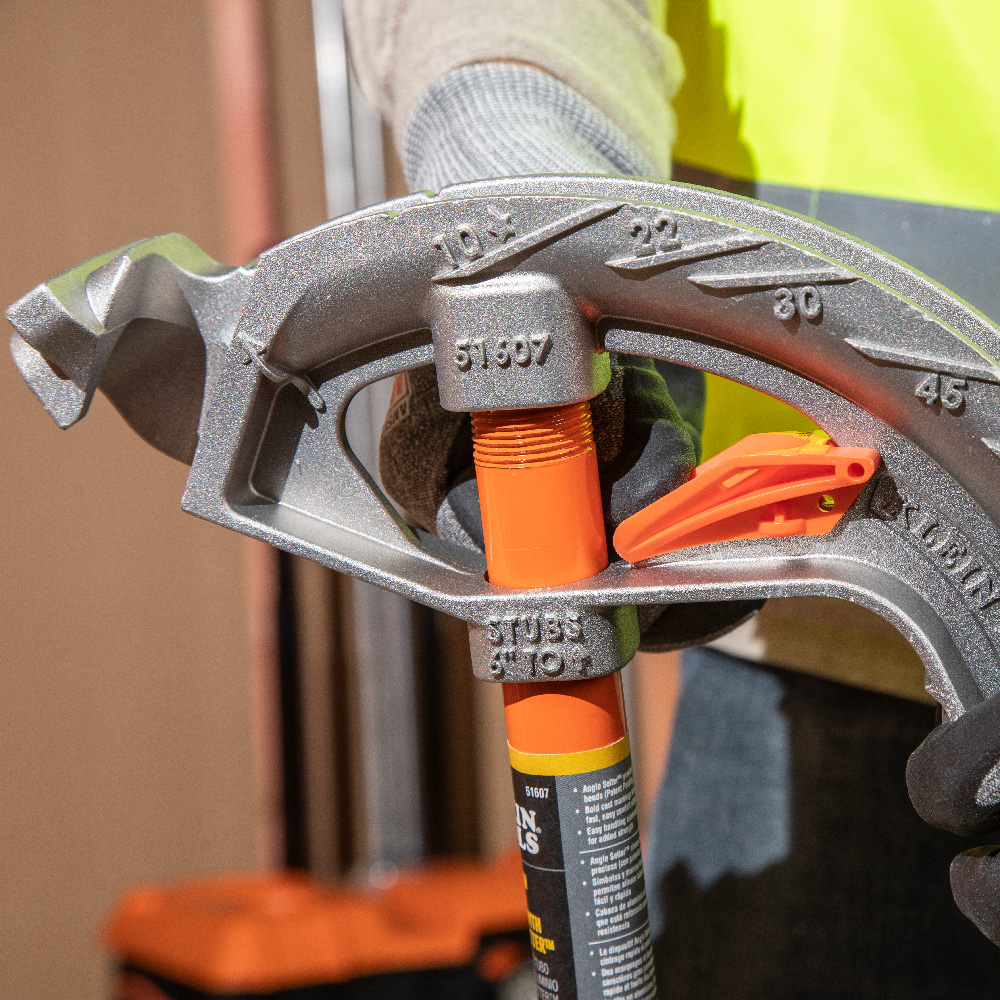

• Compatible with Klein's 3/4-Inch Angle Setter™ (Cat. No. 51612) creates a hard stop for quick, accurate, and consistent bends
• Patent Pending Angle Setter™ Technology

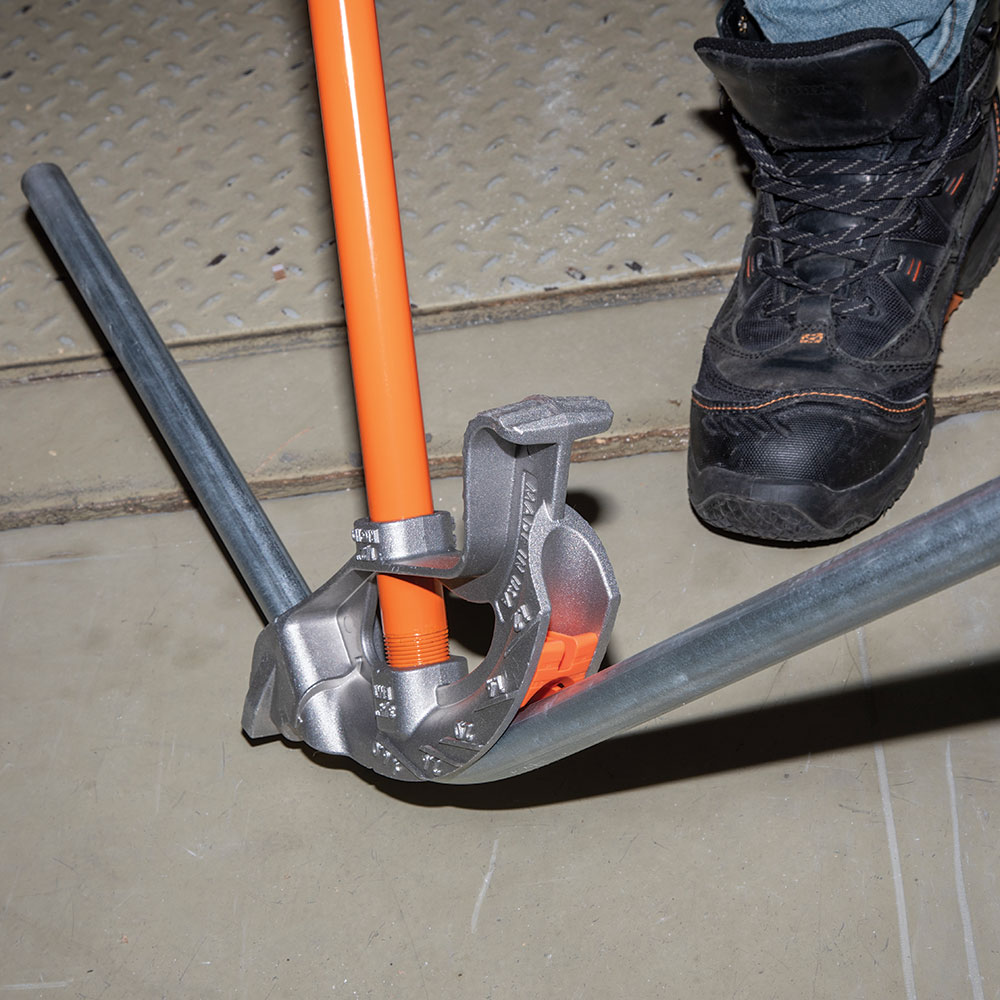

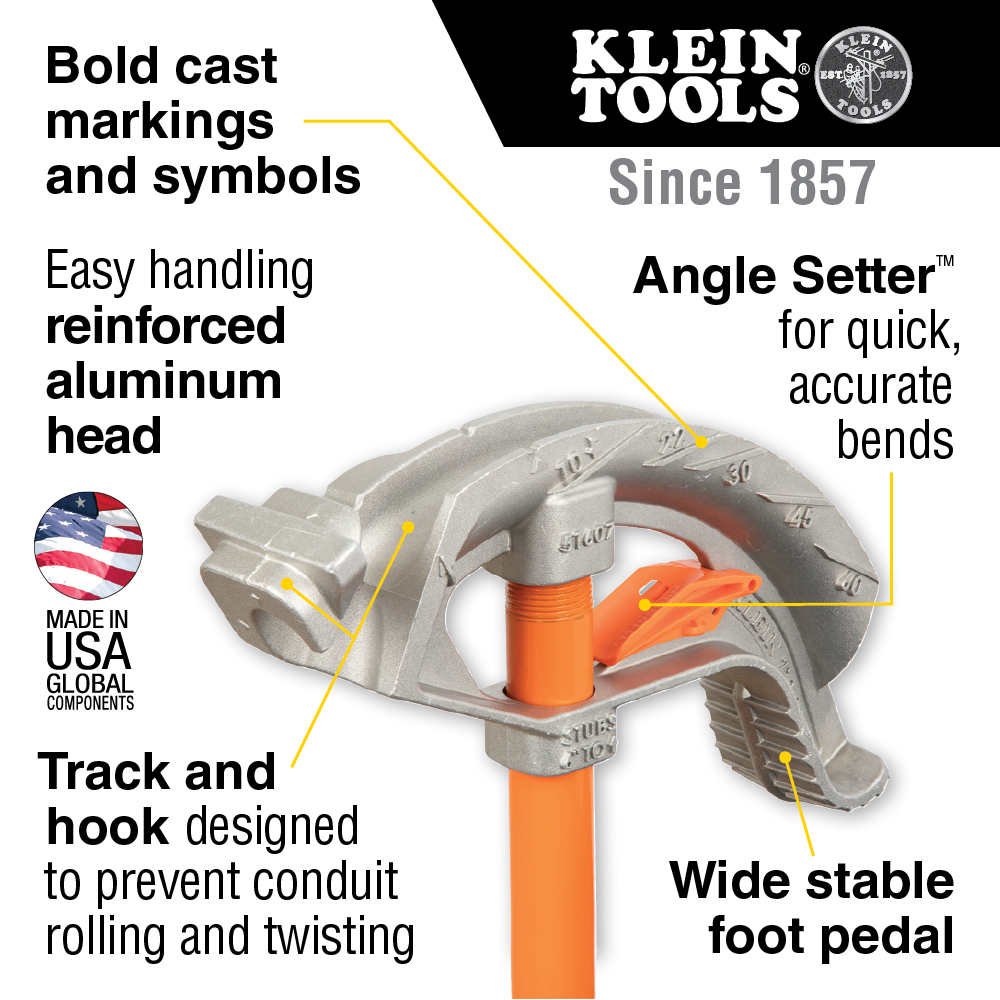

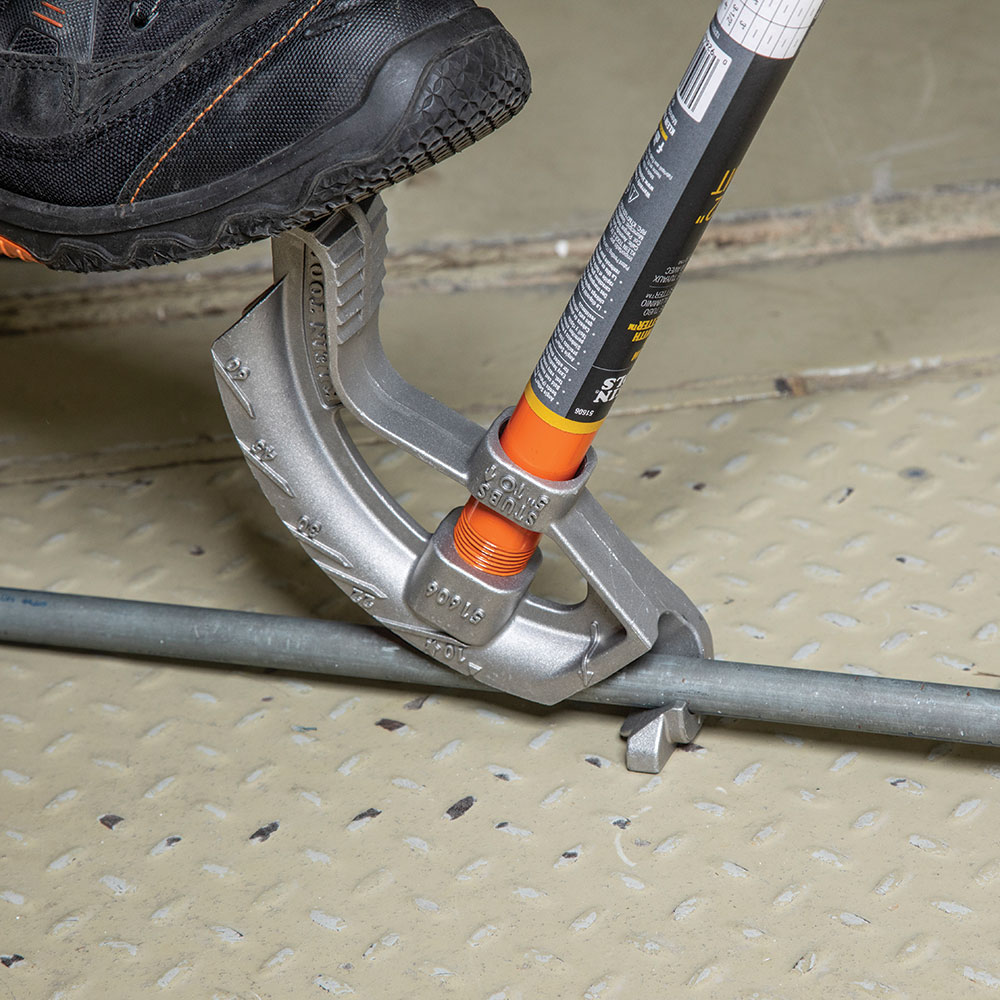

• Wide foot pedal provides excellent stability, leverage, and comfort
• Easy handling aluminum head is reinforced for added strength
• Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends
• Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers
• Interior hook surface prevents conduit from rolling or twisting during bends

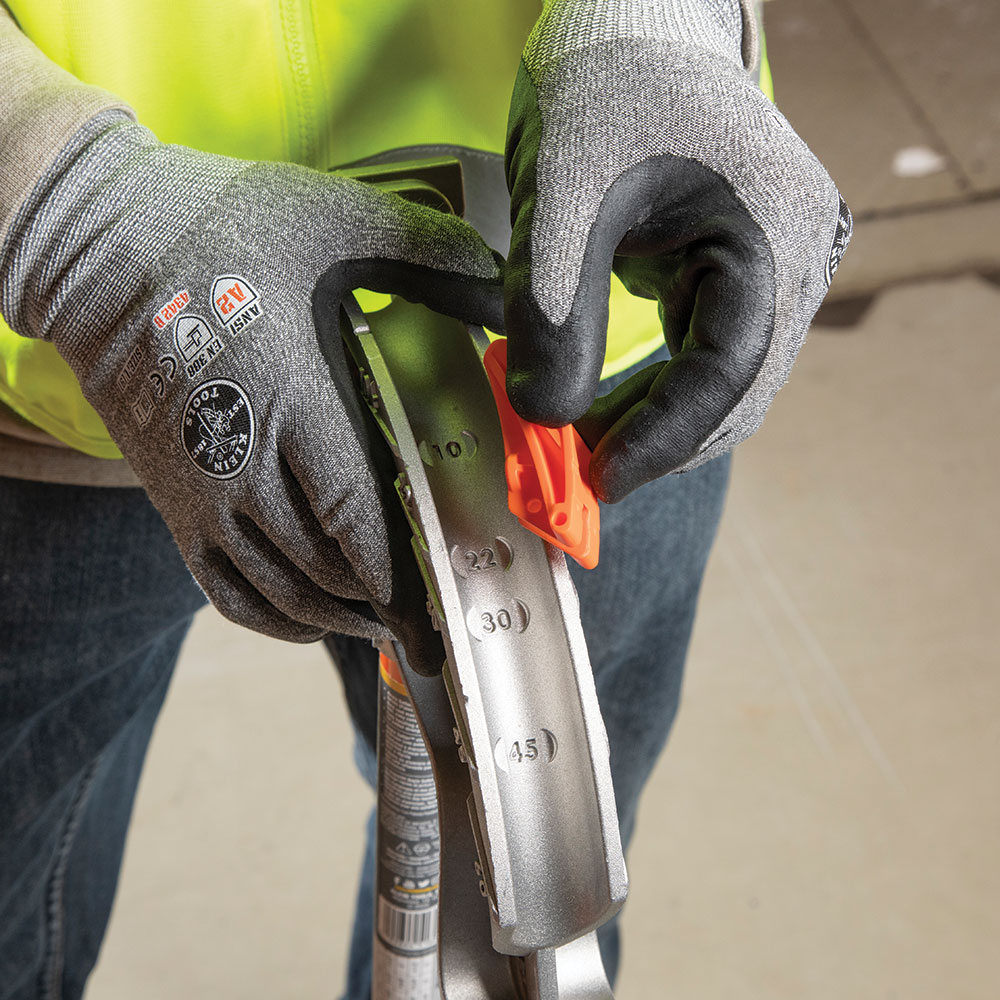

• 3/4-Inch assembled Aluminum Bender includes Klein's unique Angle Setter™ technology for time-saving, repeated accurate bends; Patent pending Angle Setter™ for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)

Warnings

• Always wear approved eye protection.
• Use a safe work position to avoid loss of balance.

Specifications

• Depth: 39.8750 in
• Weight (lb): 4.9
• Weight: 5.1200 lbs
• Conduit Type: EMT
• Handle Length (cm): 96.5
• Overall Height (Inch): 44.1
• Overall Length (cm): 4.8
• Overall Length (Inch): 1.9
• Stub-Up Height (Inch): 6
• Conduit Size: 3/4"
• Rigid/IMC: 1/2" (1.3 cm)
• Thinwall/EMT: 3/4" (1.9 cm)
• Overall Width (Inch): 9.8
• Handle Length (Inch): 38
• Overall Width (cm): 24.9
• Width: 2.5000 in
• Included: 51427 Aluminum Bender Head, Handle; 51612 Angle Setter™
• Material: Aluminum
• Weight (kg): 2.2
• Centerline Bend Radius (Inch): 5.5
• Overall Height (cm): 112
• Marking: 10°, 22°, 30°, 45°, 60°
• Application: Bending Conduit
• Height: 9.6250 in
• Type: Aluminum Conduit Bender
