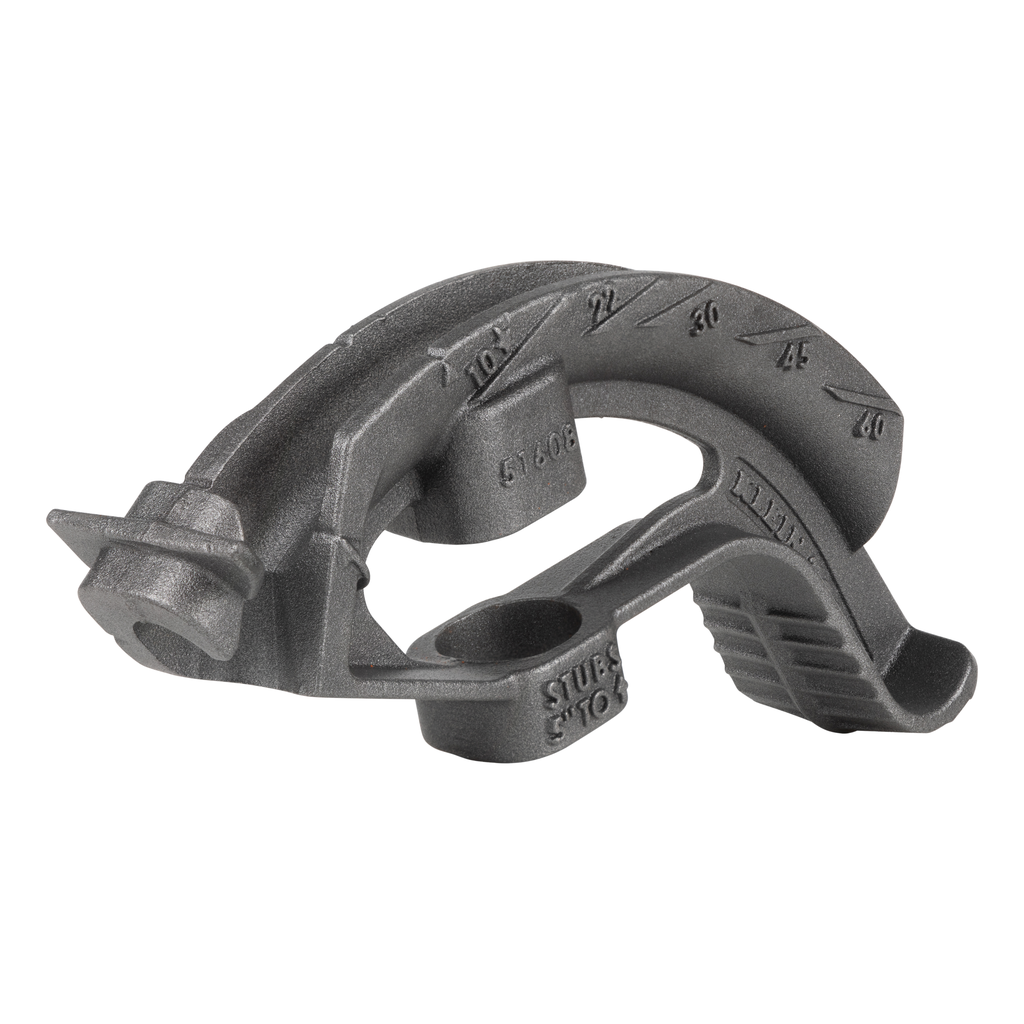

1/2-inch Iron Conduit Bender Head

Klein Tools Conduit Bender Head is designed to handle thin wall EMT up to 1/2-Inch. Made from Iron with Klein's advanced casting process for the ultimate in core strength and durability. The wide foot pedal provides excellent stability and features angled grooves for extra traction. Easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job. This head works with Klein's patented Angle Setters™ (Cat. No. 51611) for quick, repeated bends and the Klein Handle (Cat. No. 51427), which are both sold separately.

Features

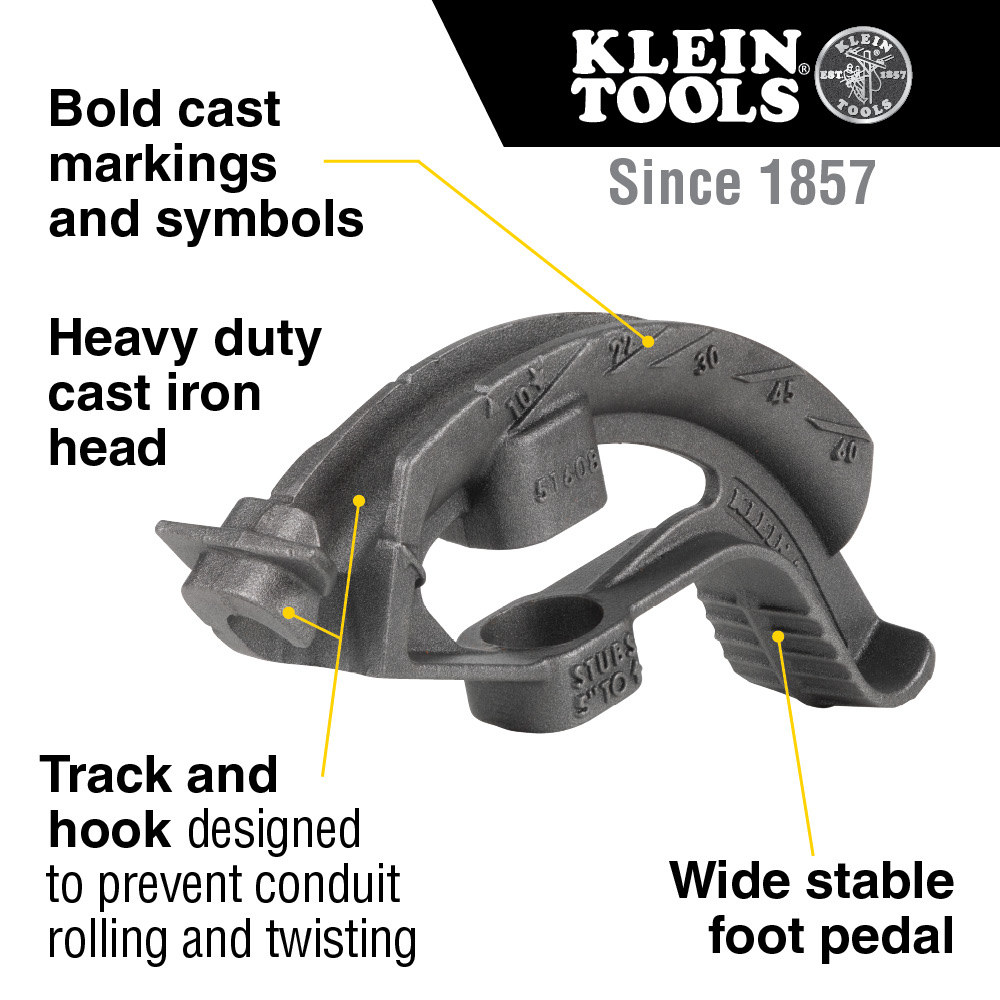

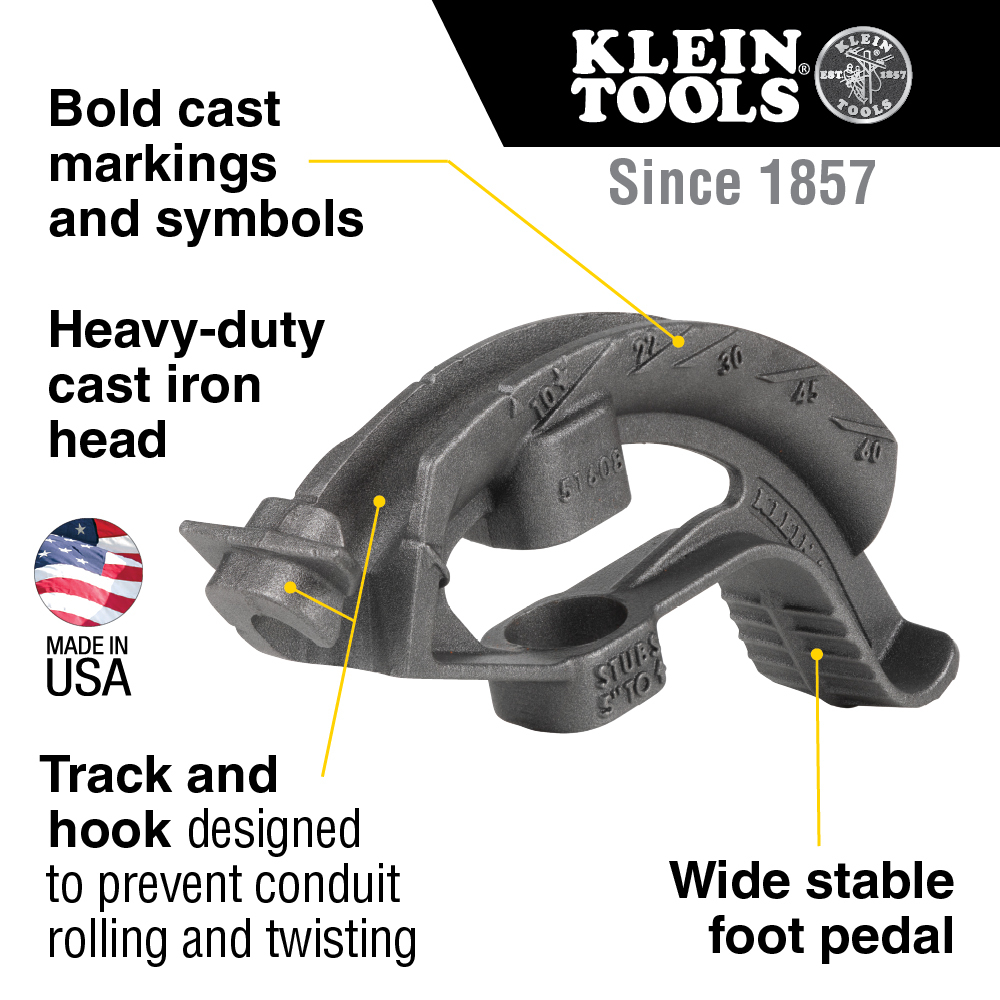

• Advanced casting process for ultimate core strength

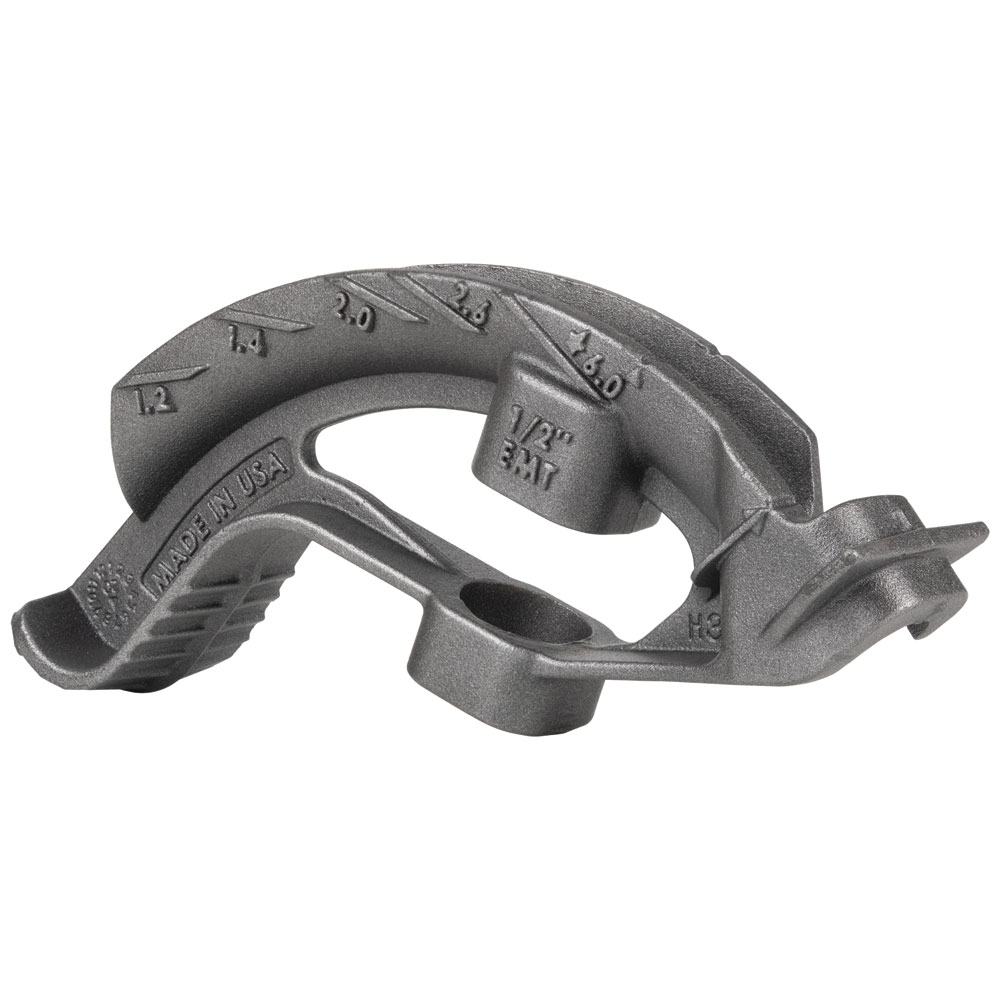

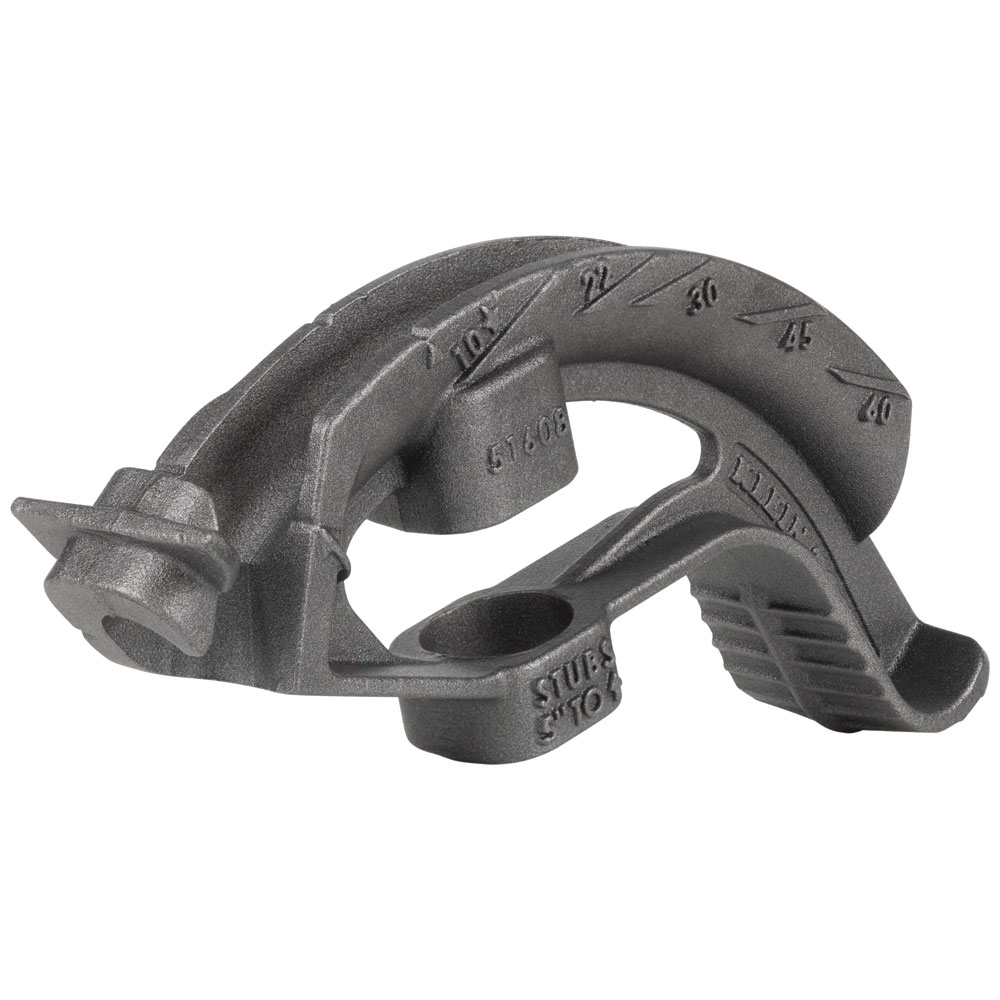

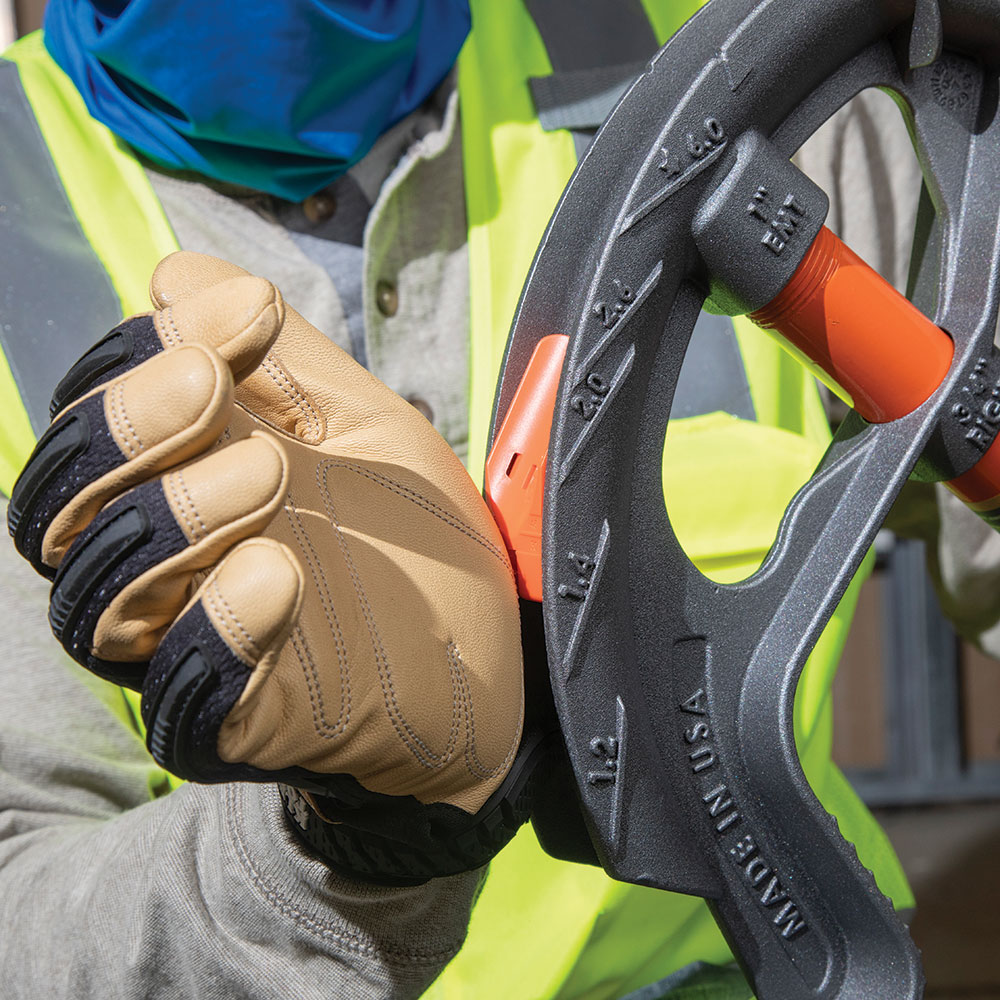

• Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers
• Made in USA

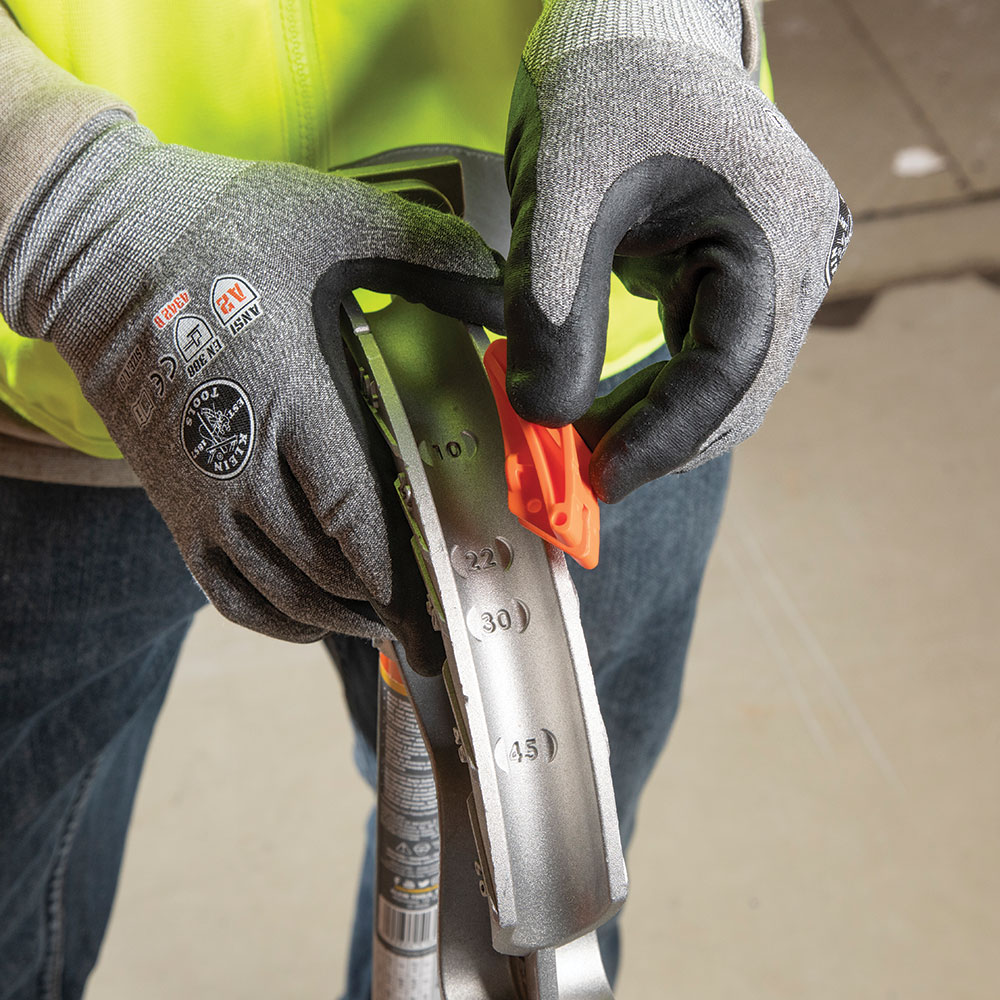

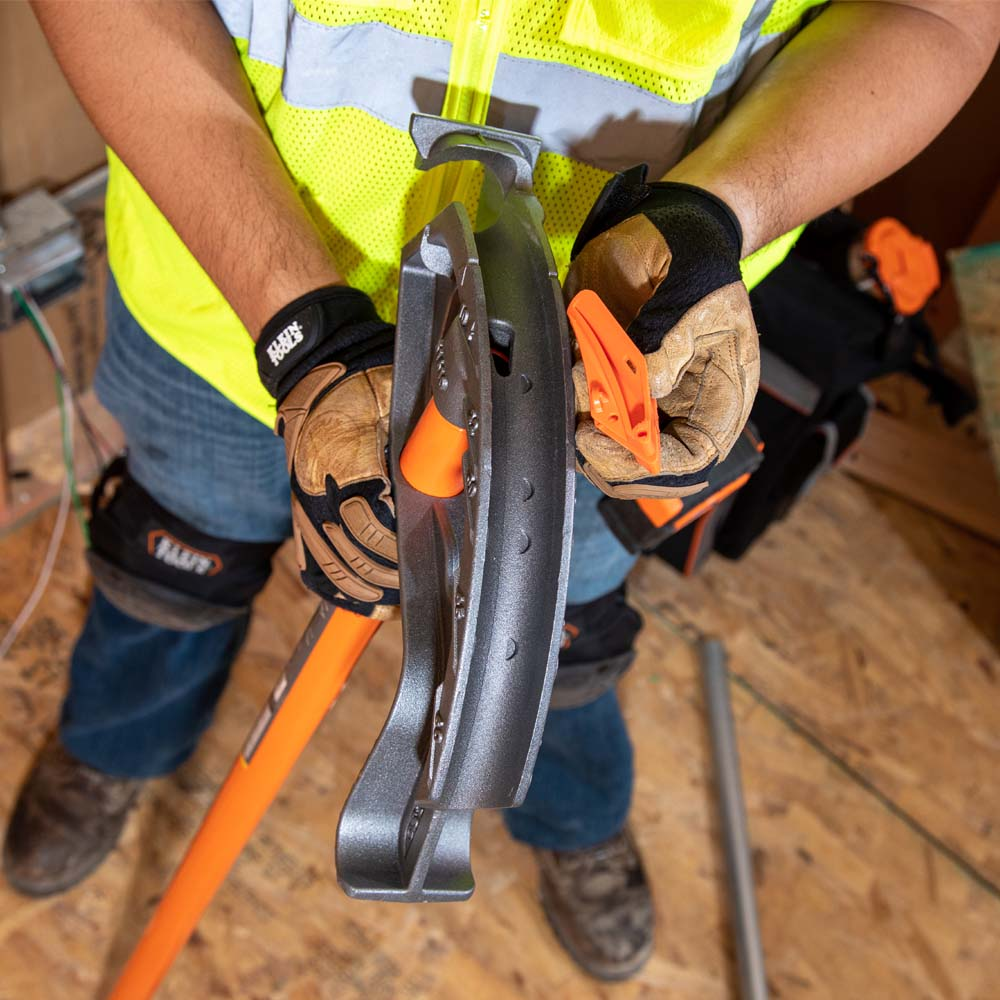

• Compatible with Klein's unique Angle Setter™ technology for time-saving, repeated accurate bends (Patent pending Angle Setter™ Cat. No. 51611) and works with Klein Tools' bender handle Cat. No. 51427 (sold separately)
• Bold, Cast Markings, Compatible with Angle Setter™

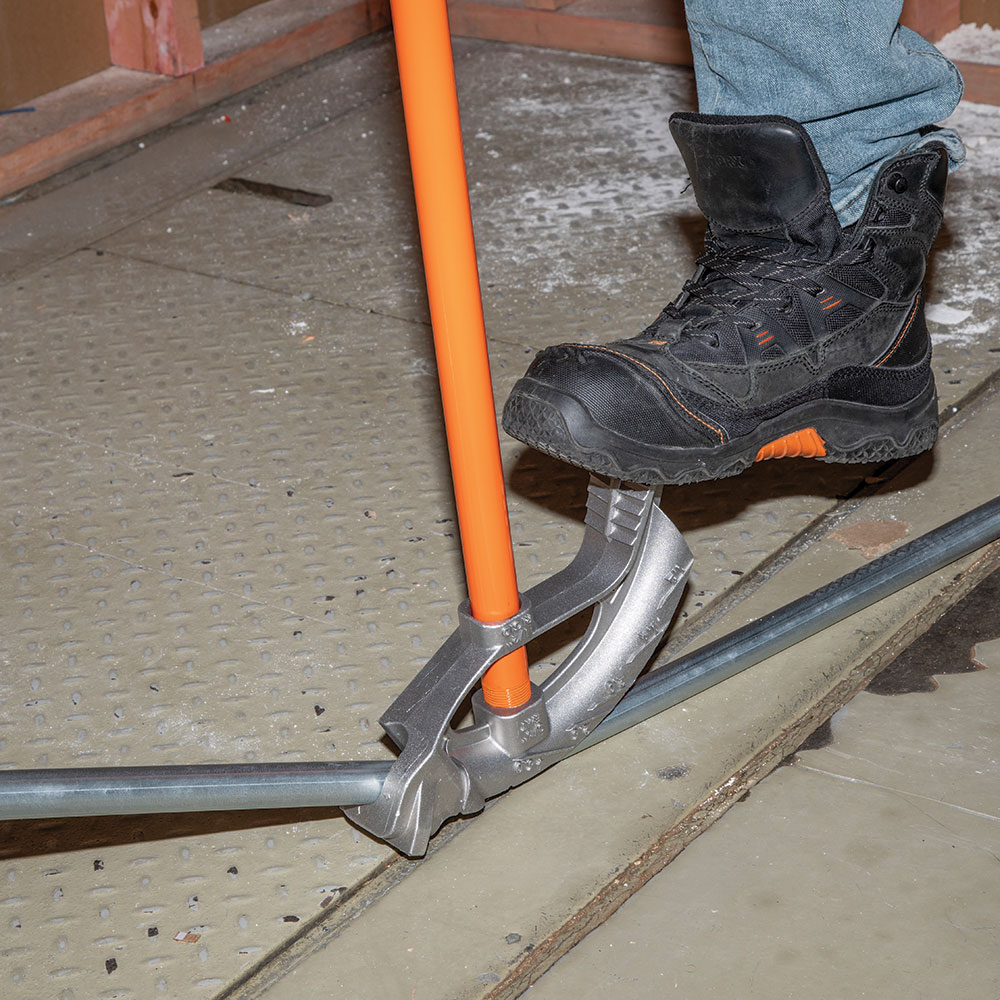

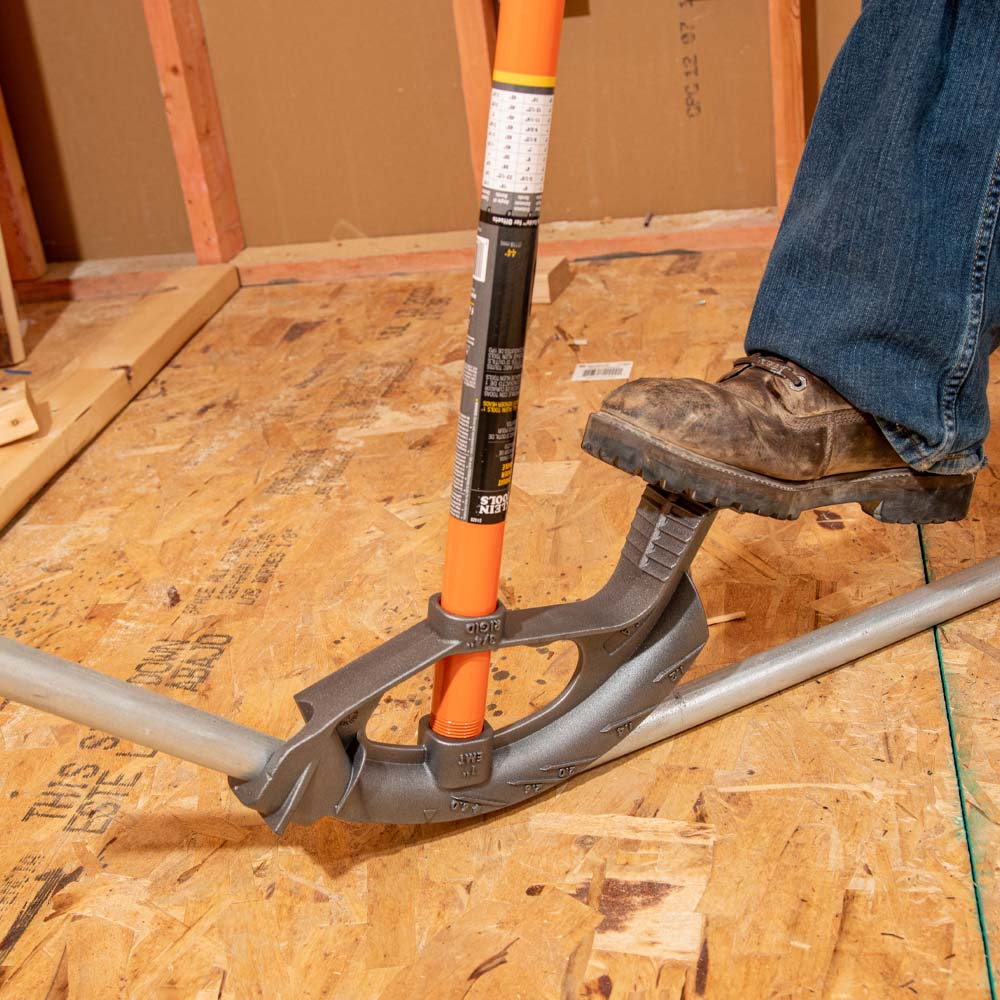

• Wide foot pedal provides excellent stability, leverage, and comfort
• Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends

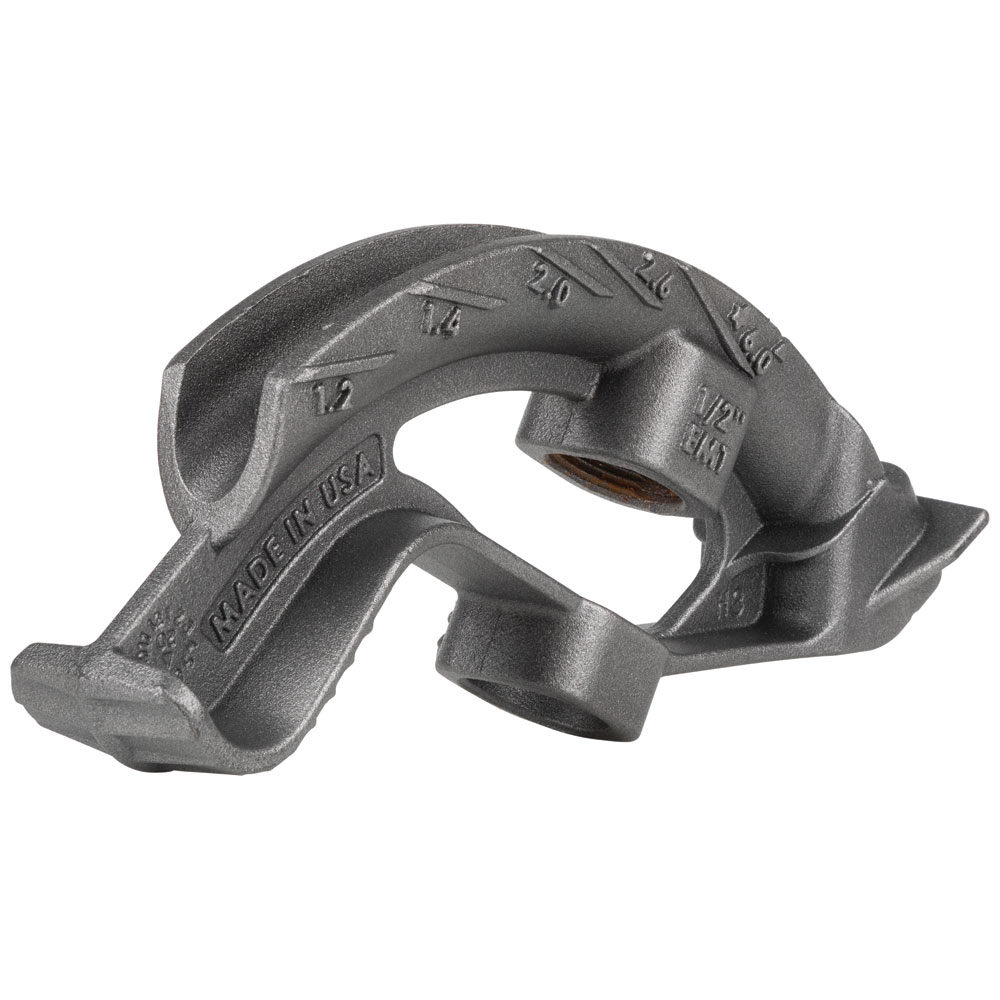

• 1/2-Inch Iron Bender Head made of heavy duty cast ductile iron is designed for 1/2-Inch EMT
• Interior hook surface prevents conduit from rolling or twisting during bends

Warnings

• Use a safe work position to avoid loss of balance.
• Always wear approved eye protection.

Specifications

• Depth: 10.7500 in
• Centerline Bend Radius: 4"- Stub-up Height 5", Centerline Radius 4-5/8"
• Height: 6.5000 in
• For Use With: Angle Setter™ Cat. No. 51611
• Application: Conduit Bending
• Thinwall/EMT: 1/2" (1.3 cm)
• Width: 2.5000 in
• Material: Iron
• Overall Length: 1.7 Inch (4.3 cm)
• Type: Iron Bender Head
• Overall Width: 8.1 Inch (20.6 cm)
• Conduit Size: 1/2"
• Overall Height: 13.2 cm (5.2 Inch)
• Marking: 10°, 22º, 30°, 45°, 60°
• Weight: 1.7730 lbs
