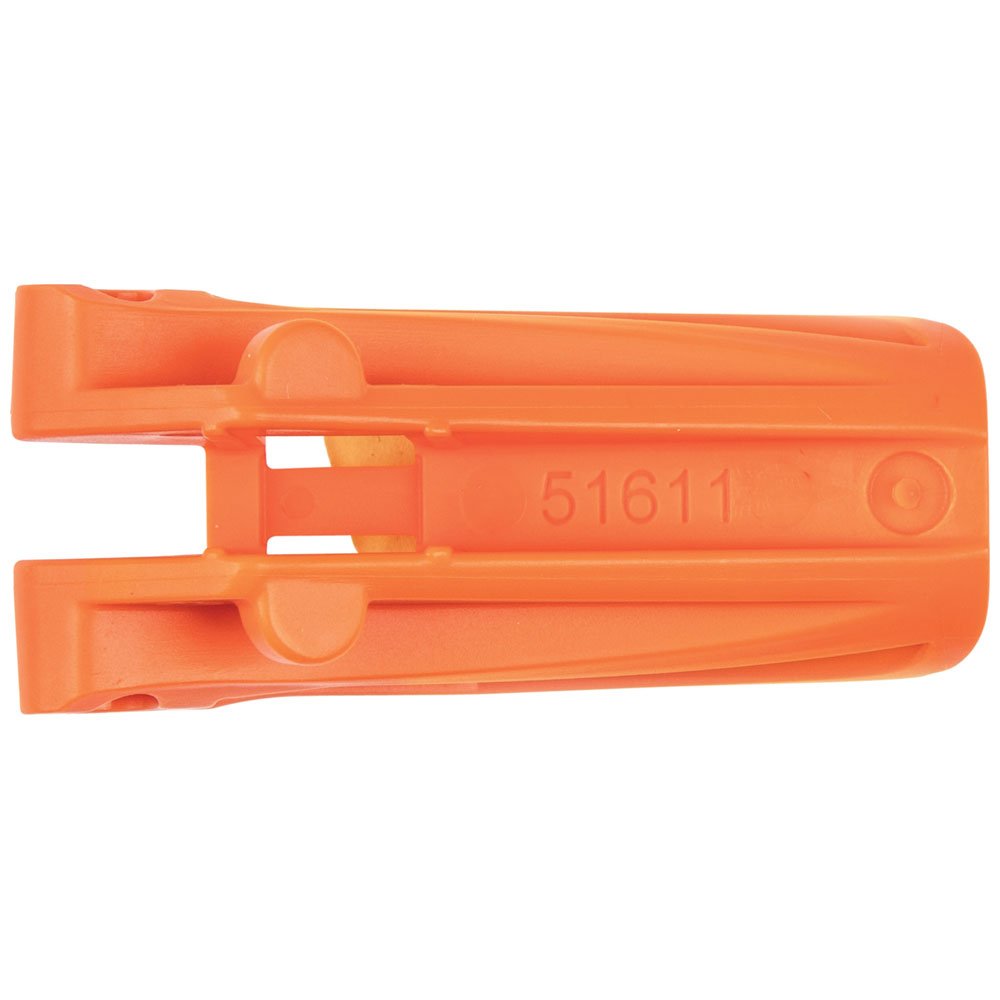

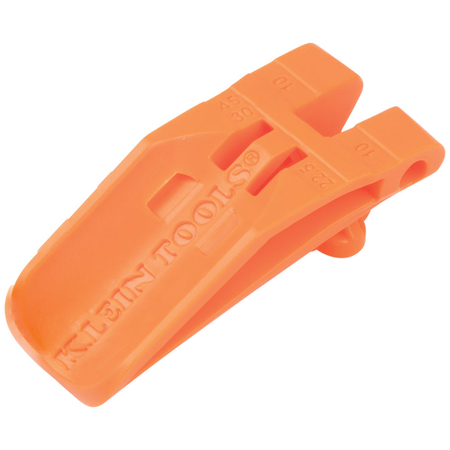

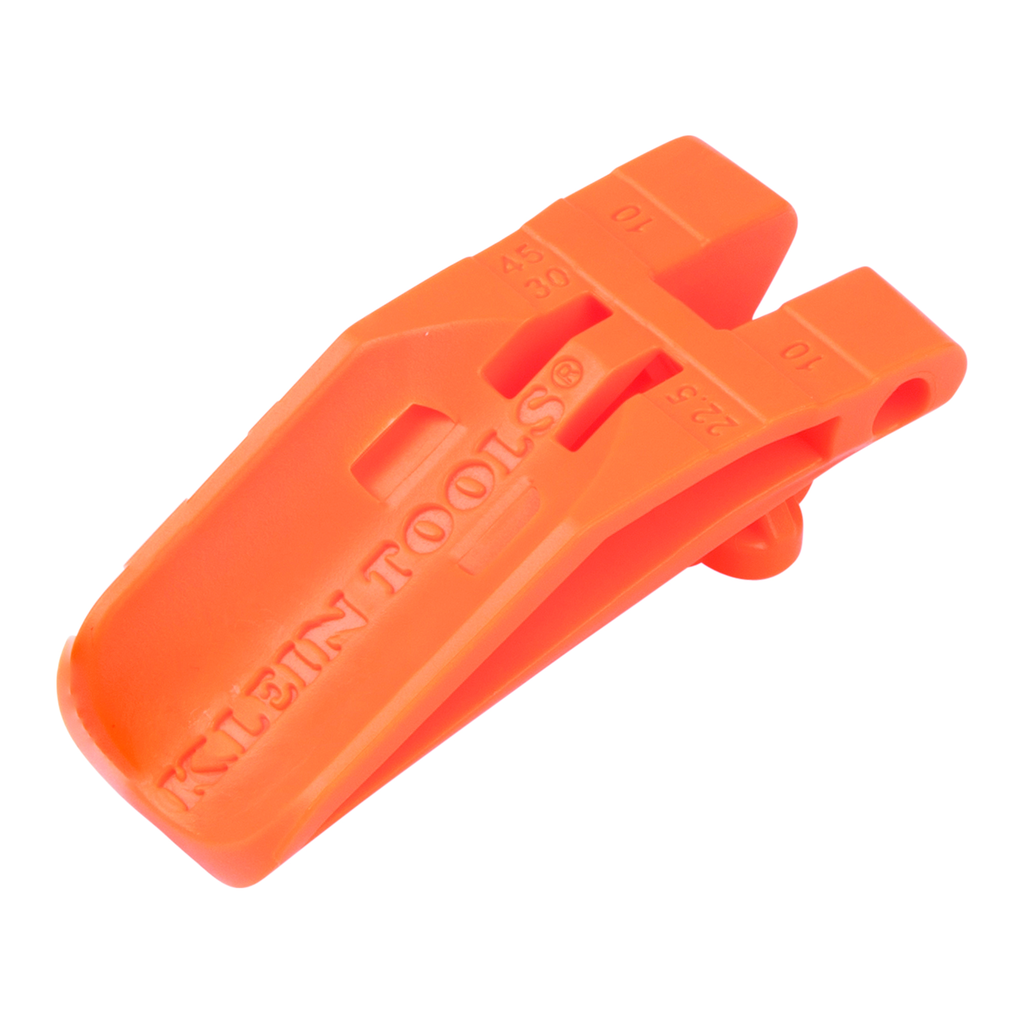

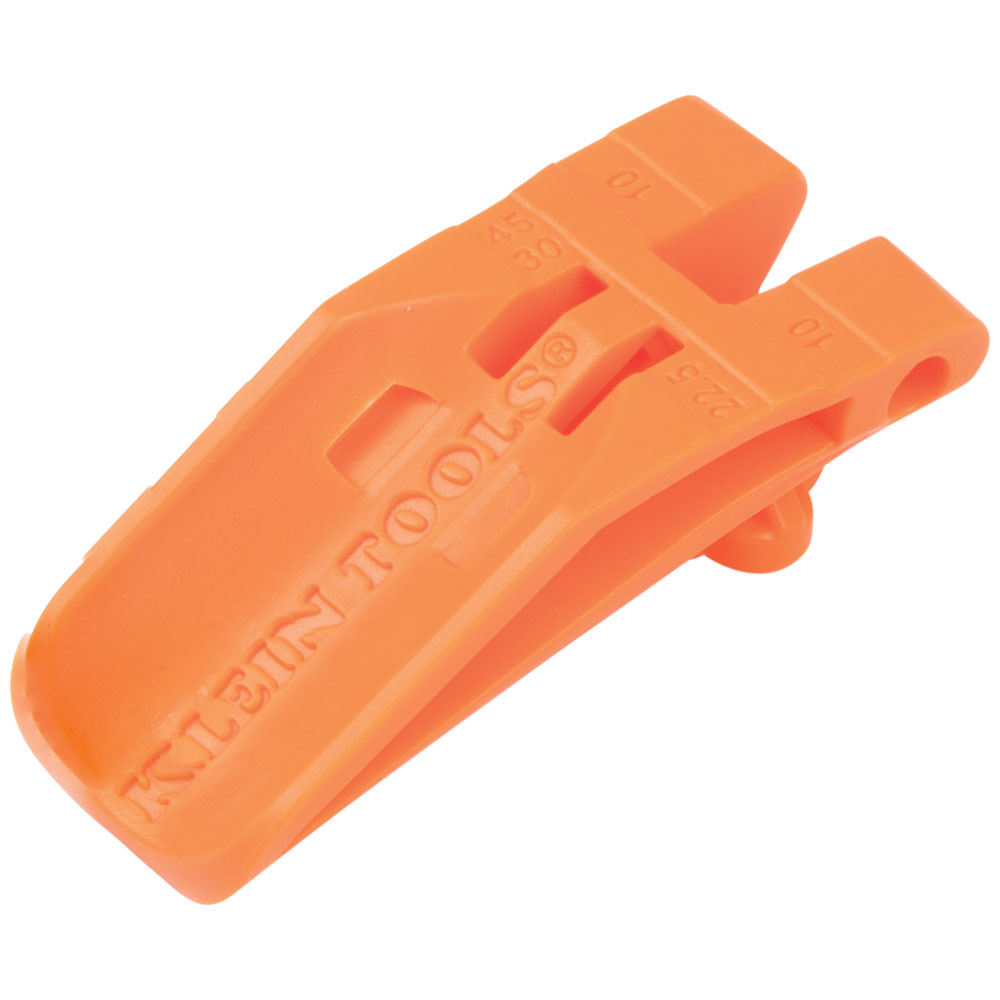

1/2-Inch Angle Setter™

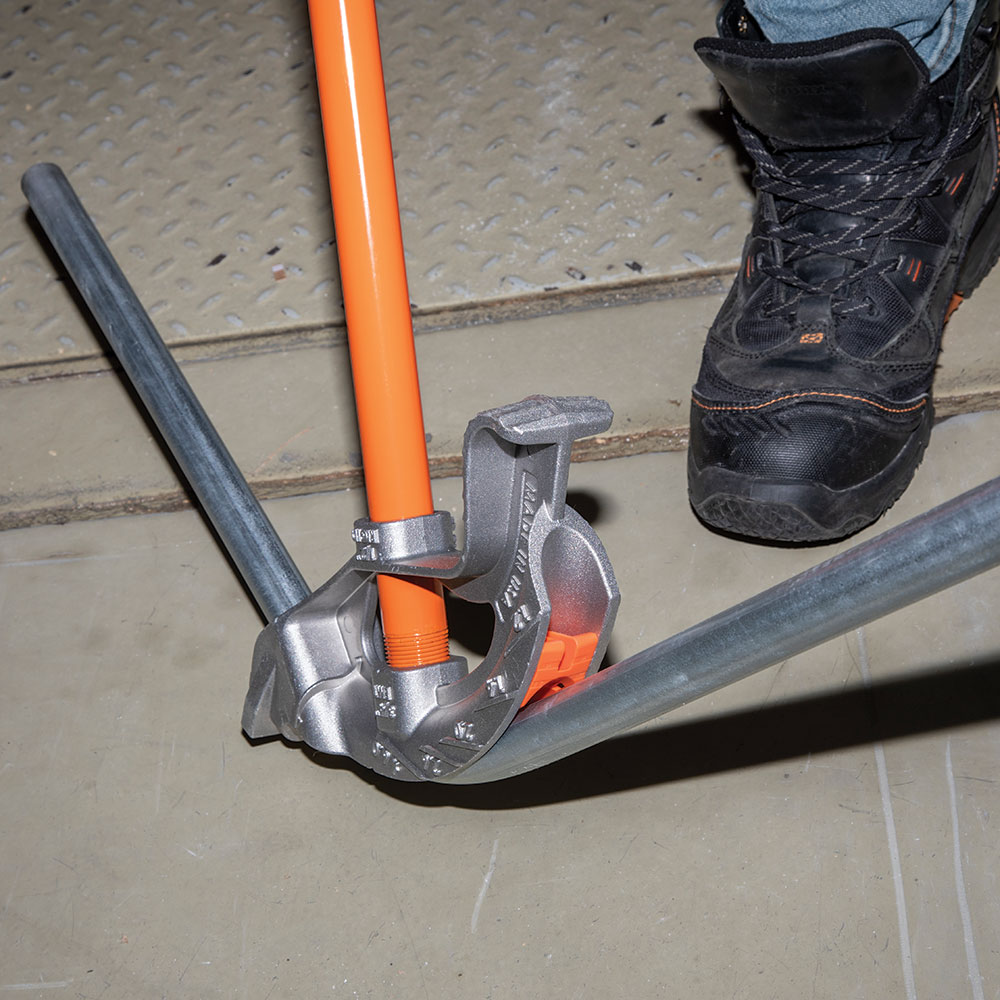

Klein Tools’ conduit benders with Patent Pending Angle Setter™ technology allow for quick, accurate bends. When performing repeated bends the Angle Setter will save time on the job. Works for floor or air bends.

Features

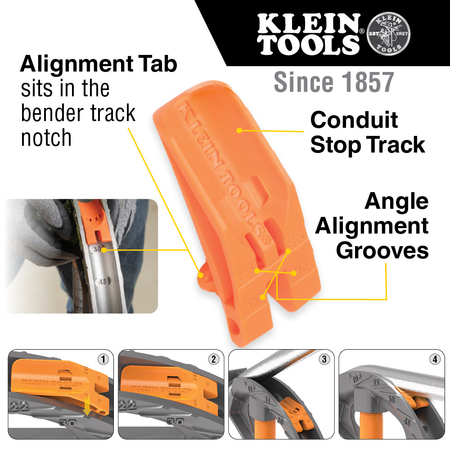

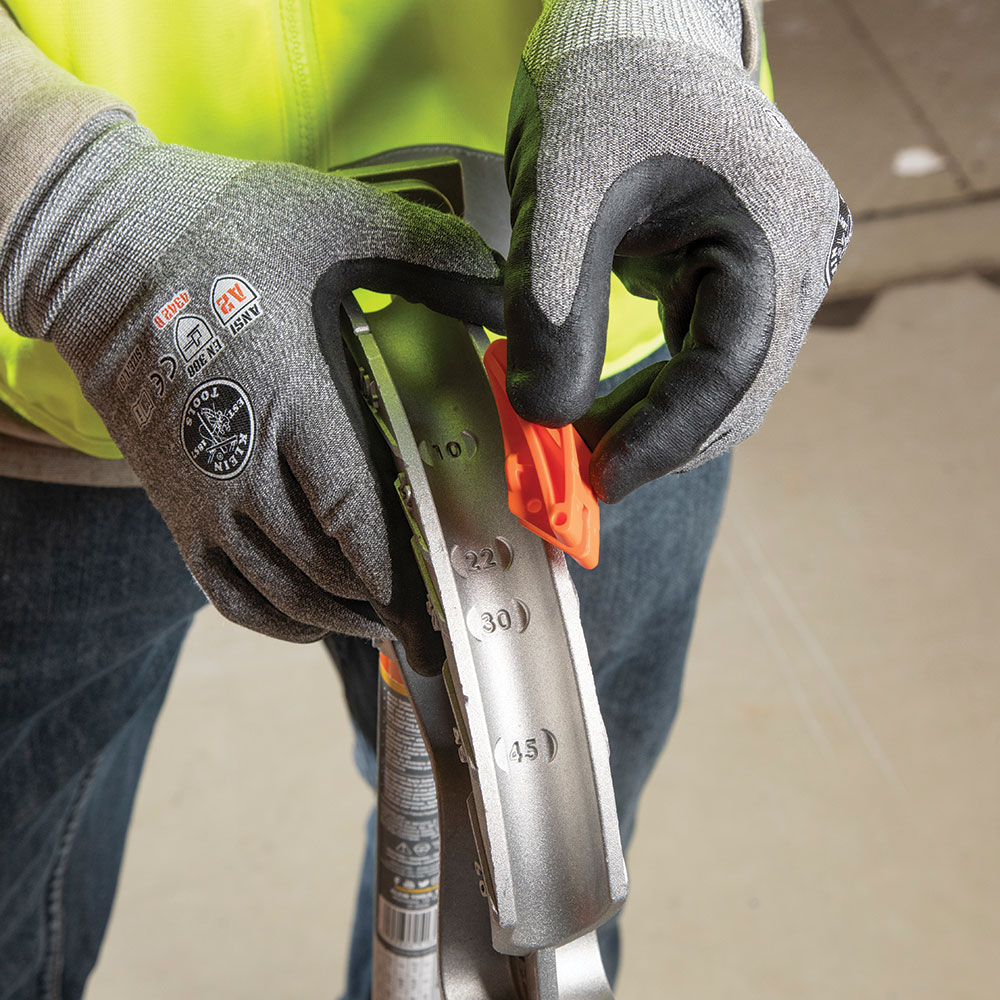

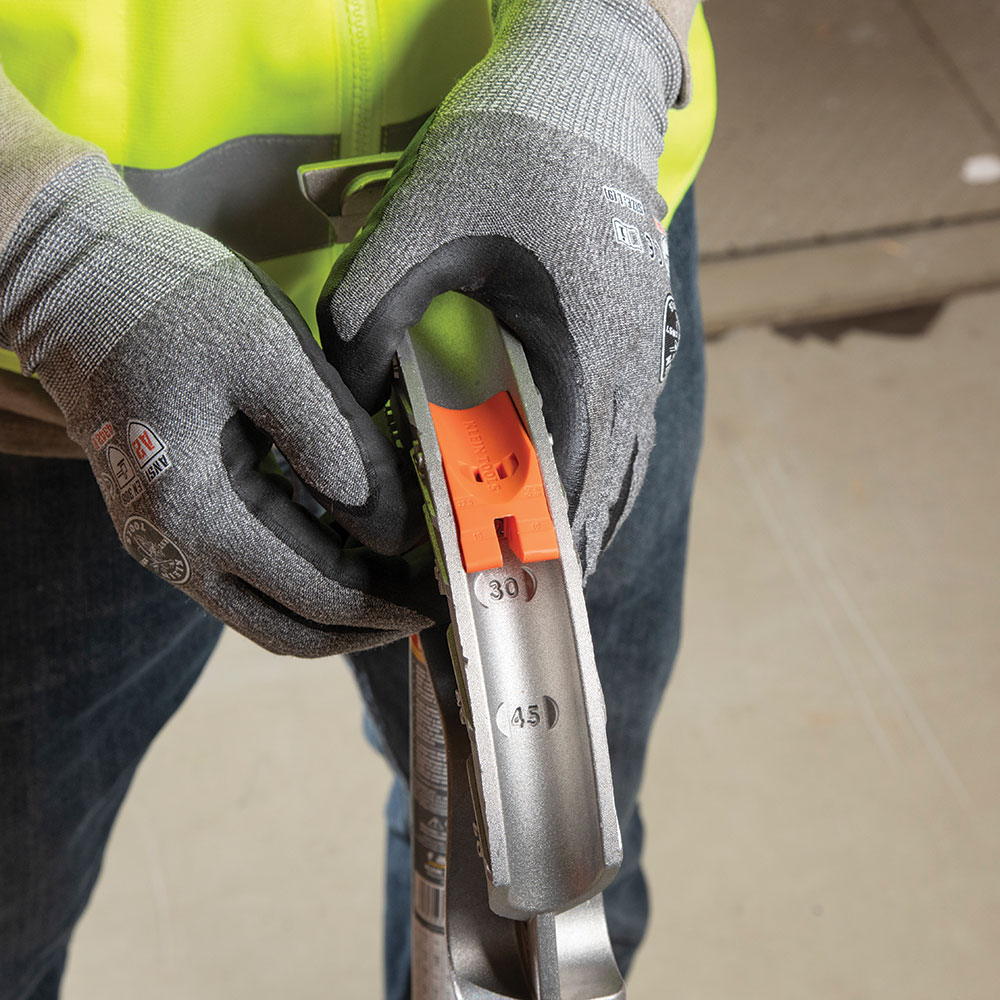

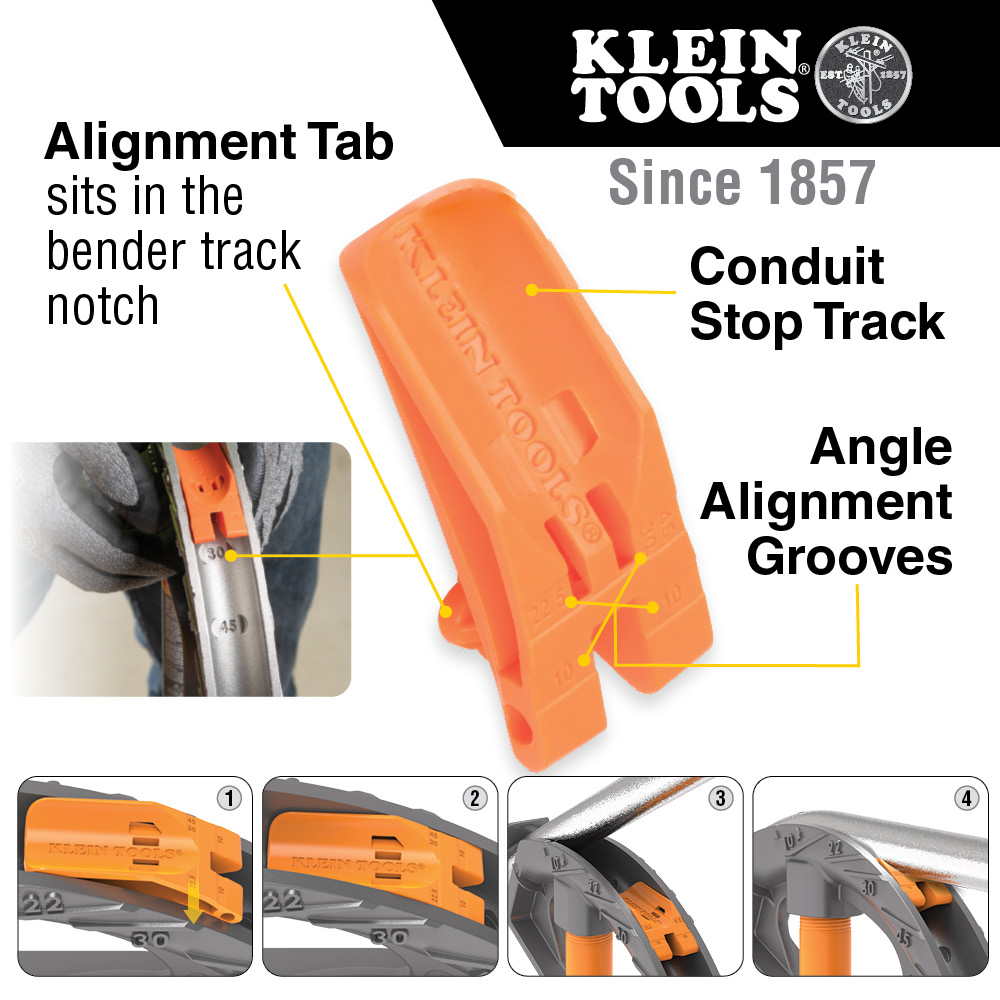

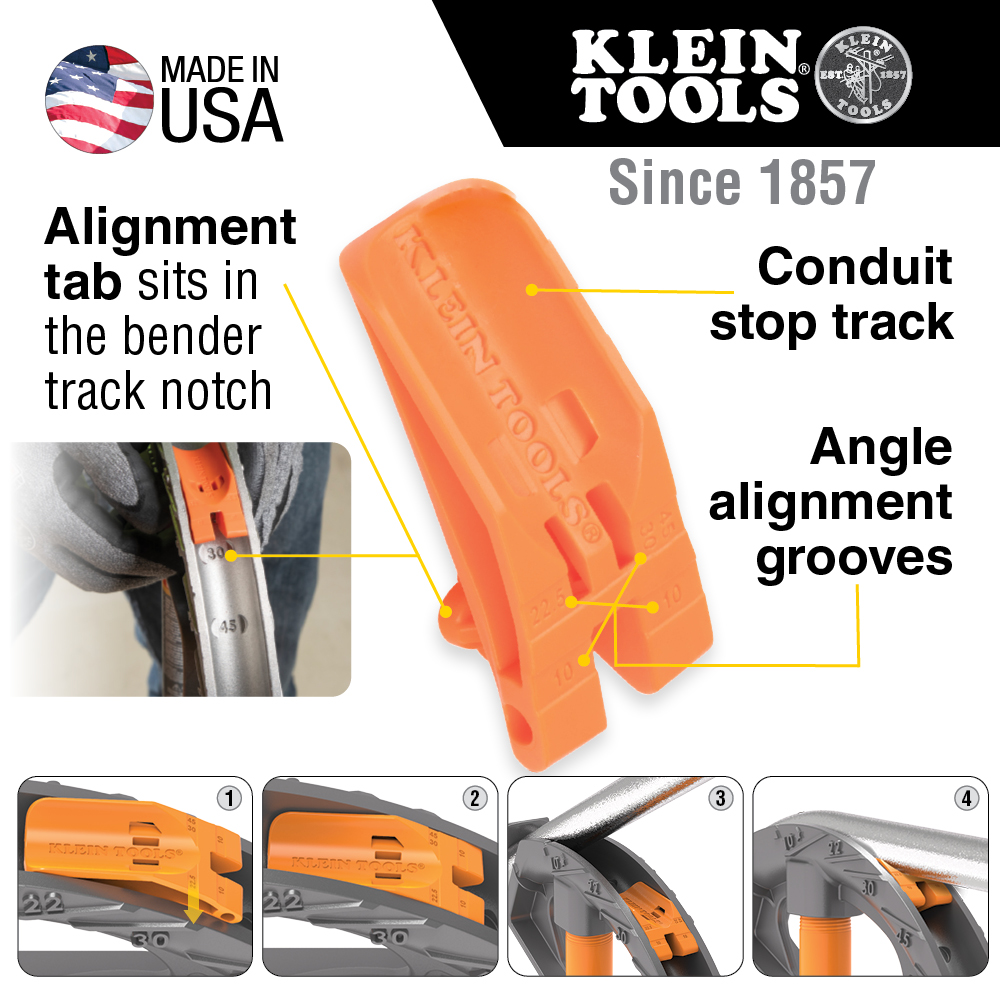

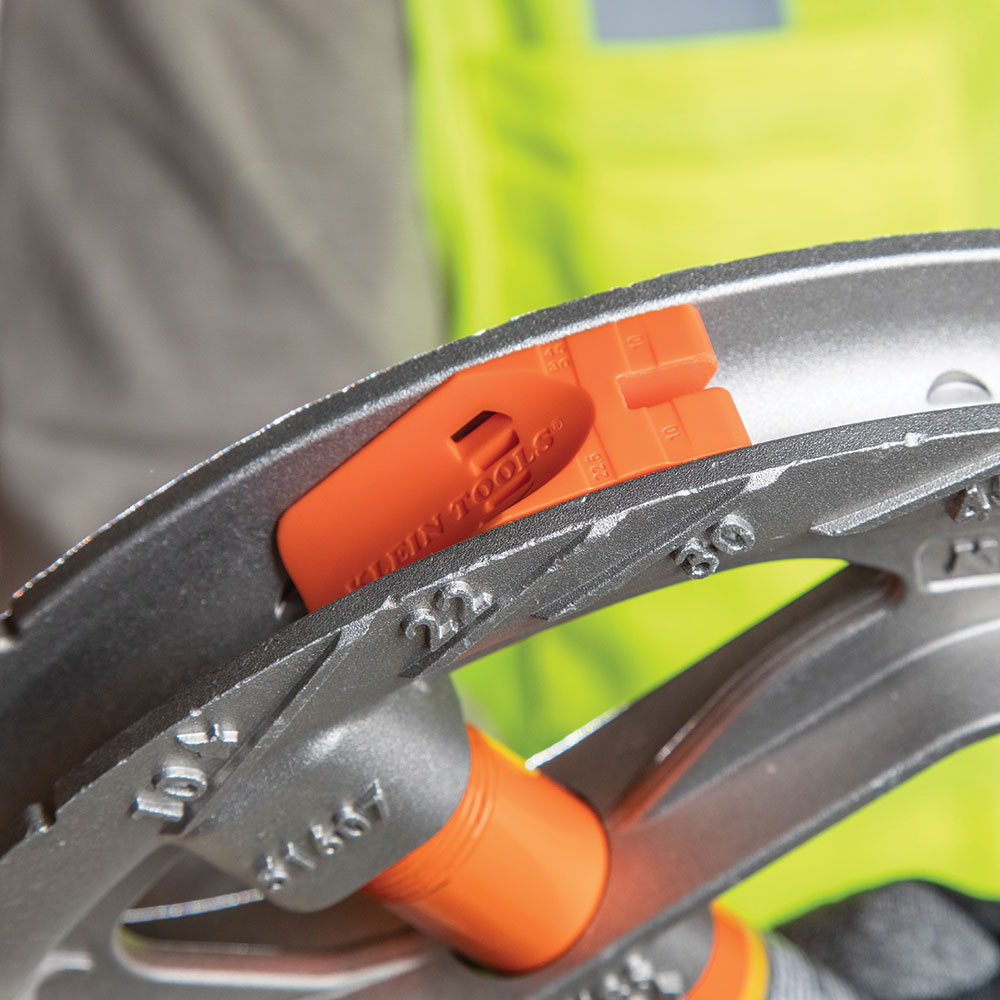

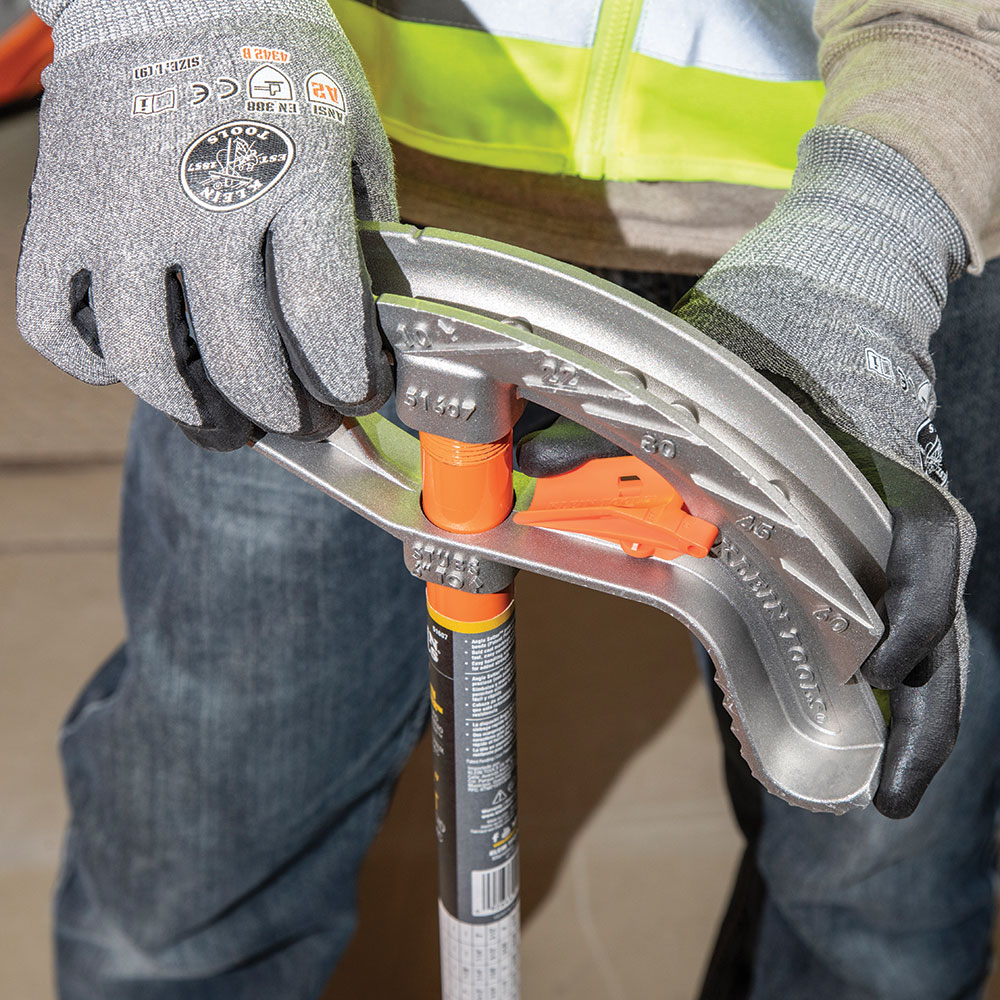

• Align the angle lines on the Angle Setter with the bender, ensure the alignment tabs are fully seated in the bender track notches, press the Angle Setter firmly into place
• Movable for four different bend angles: 10-Degree, 22.5-Degree, 30-Degree, 45-Degree (adjusted for conduit spring back)
• Klein’s unique Angle Setter™ technology for quick, accurate repeated bends saving time on the job (Patent Pending)

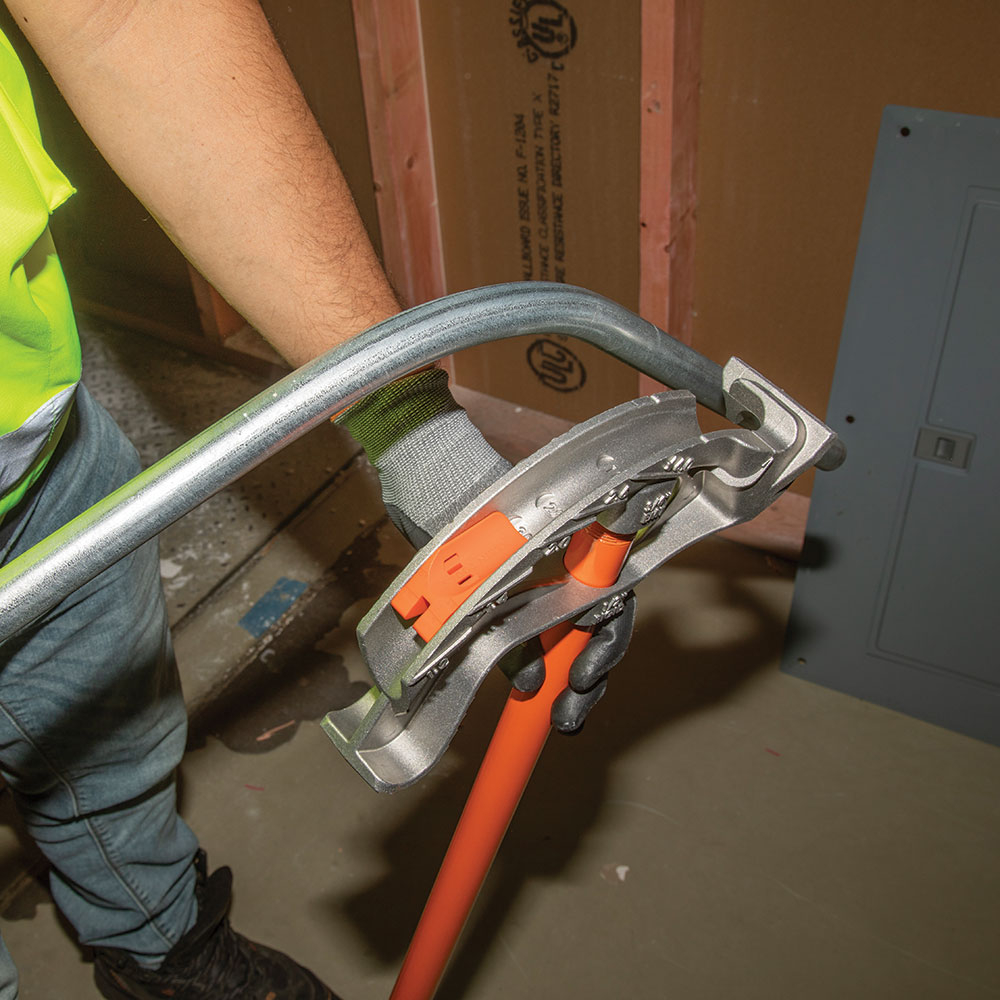

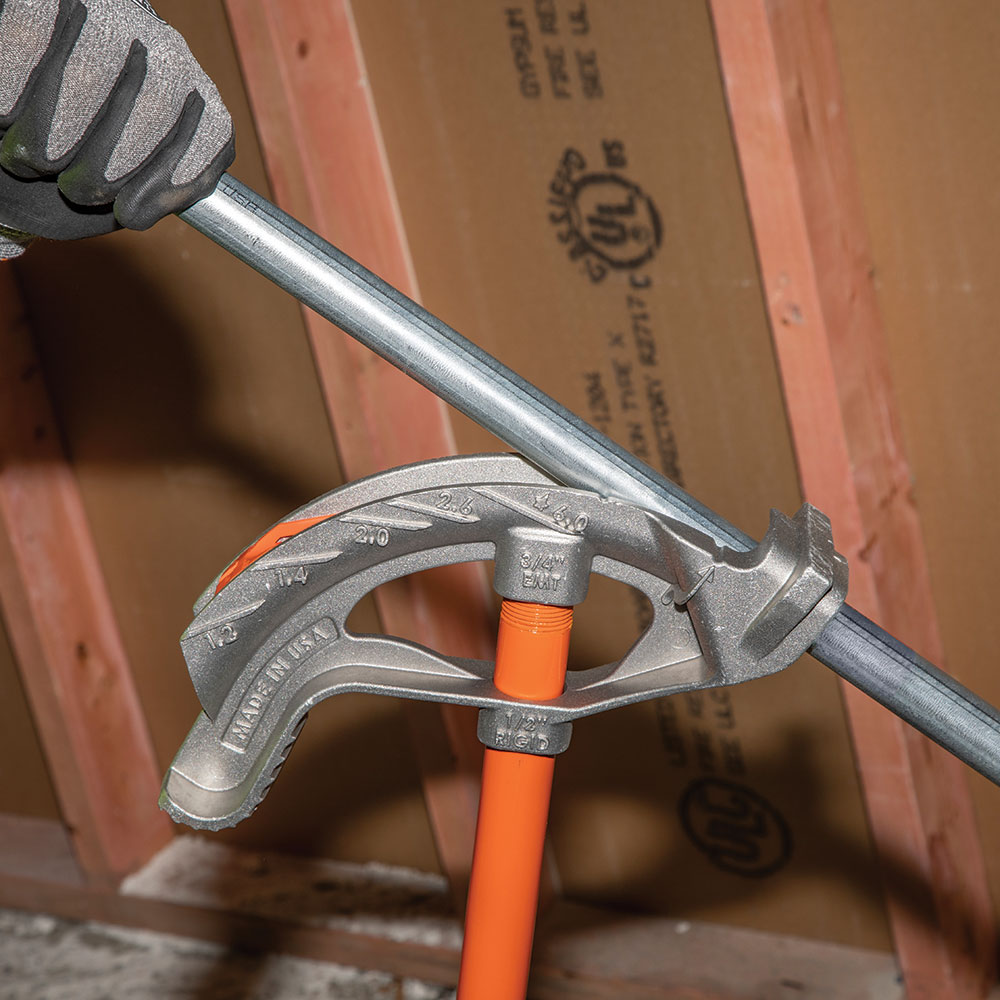

• Conduit insets into bender head, bend as usual until the conduit makes contact with the setter
• Patent Pending Technology
• Made in the USA Angle Setters create a hard stop for fast, accurate bending
• Also available in 3/4-Inch (Cat. No. 51612) and 1-Inch (Cat. No. 51613)
• Movable for four different bend angles: 10-Degree, 22.5-Degree, 30-Degree, 45-Degree
• Compatible with Klein Tools' 1/2-Inch Aluminum Conduit Bender (Cat. No. 51606)
• Creates a hard stop for fast accurate bending

Warnings

• Always wear approved eye protection.
• Use a safe work position to avoid loss of balance.

Specifications

• Country of Origin: United States
• Type: Angle Setter™
• Included: 2 Angle Setters™
• Material: Delrin® Plastic
• For Use With: Conduit Benders Cat. Nos. 51603, 51606; Conduit Bender Head Cat. No. 51608

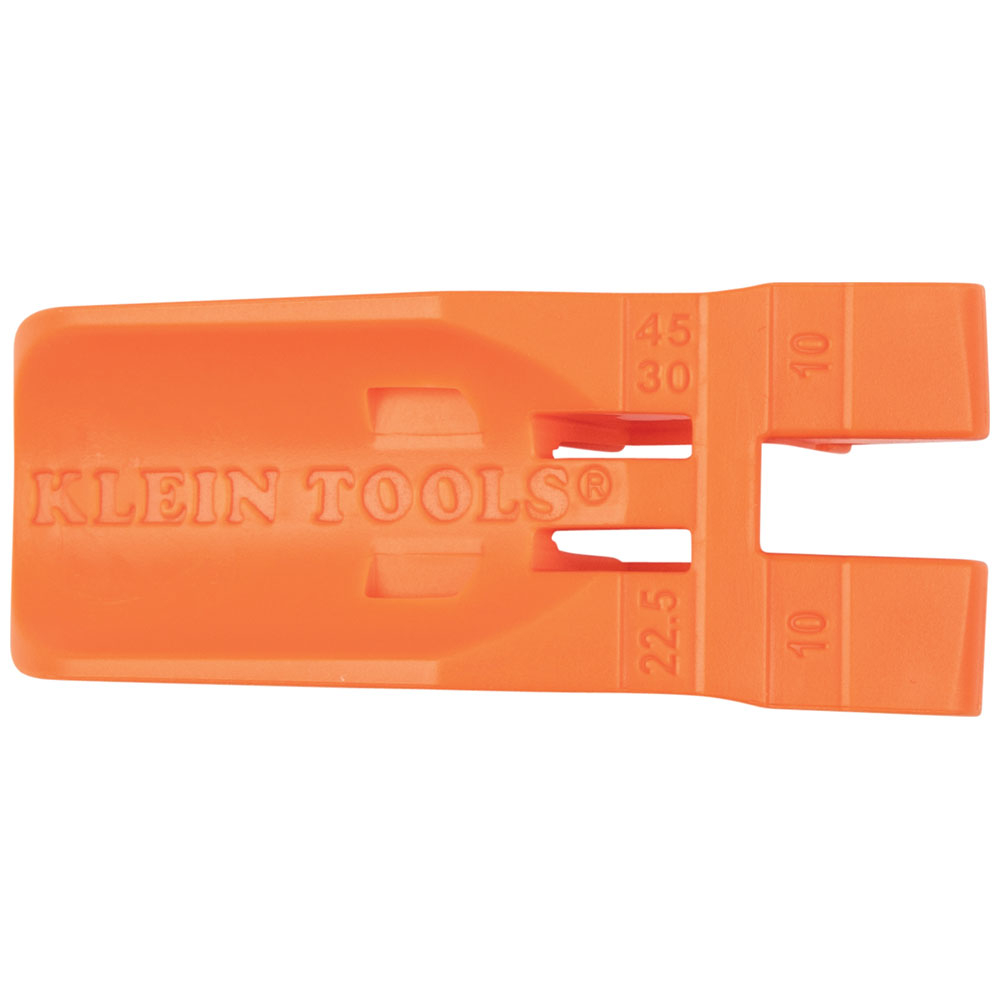

• Marking: 10°, 22.5°, 30°, 45°
• Overall Width: 0.8" (2.0 cm)
• Width: 3.7000 in
• Thinwall/EMT: 1/2" (1.3 cm)
• Overall Height: 0.9" (2.2 cm)
• Conduit Size: 1/2"
• Application: Angle Setter™ for Klein Conduit Benders
• Depth: 7.1000 in
• Overall Length: 1.8" (4.6 cm)
• Height: 1.3700 in
• Weight: 0.0800 lbs
• Package Quantity: 2
