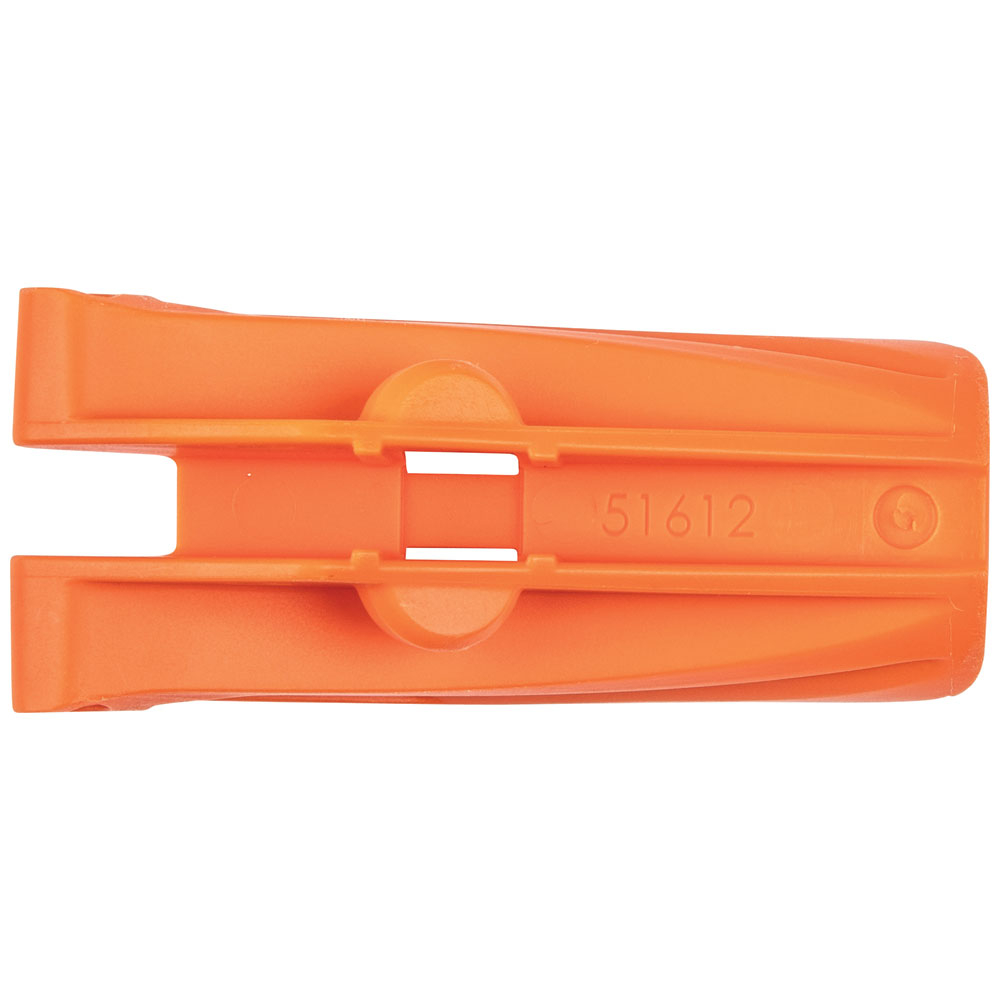

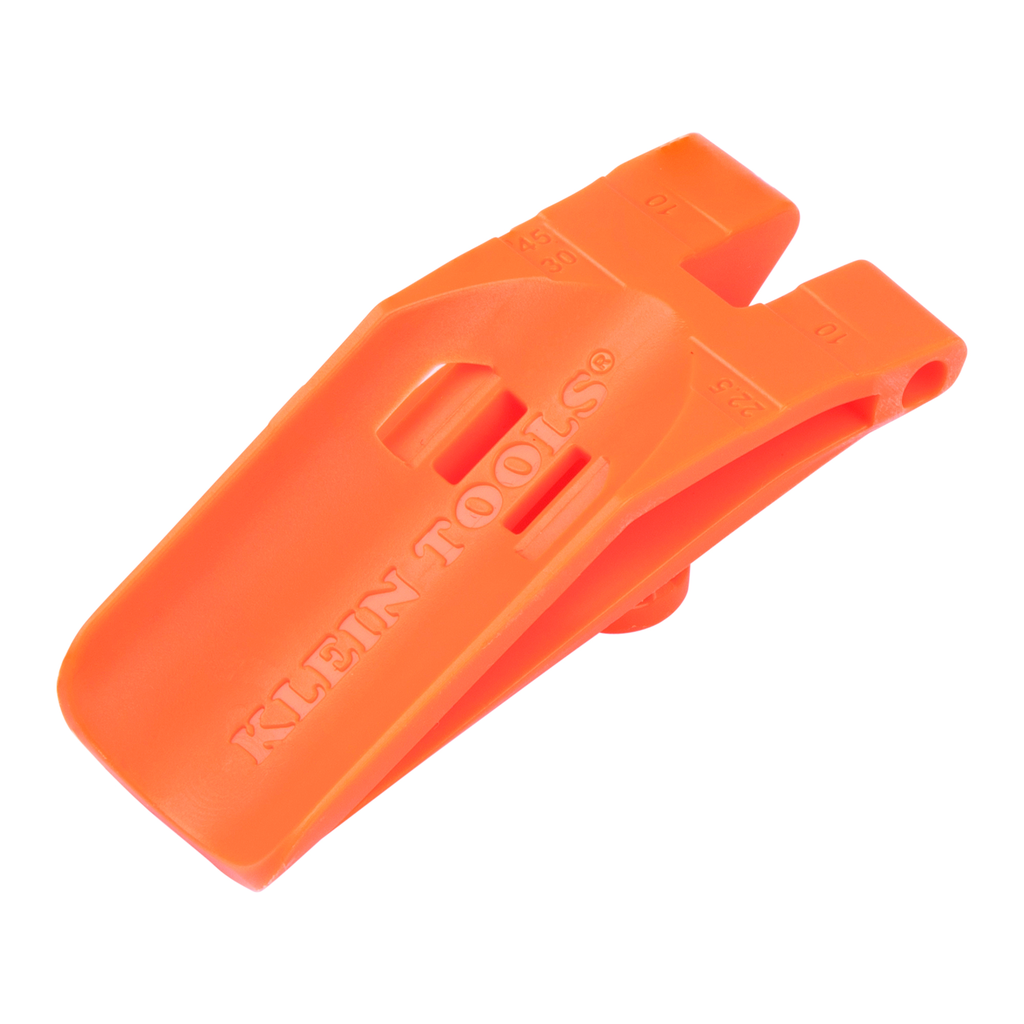

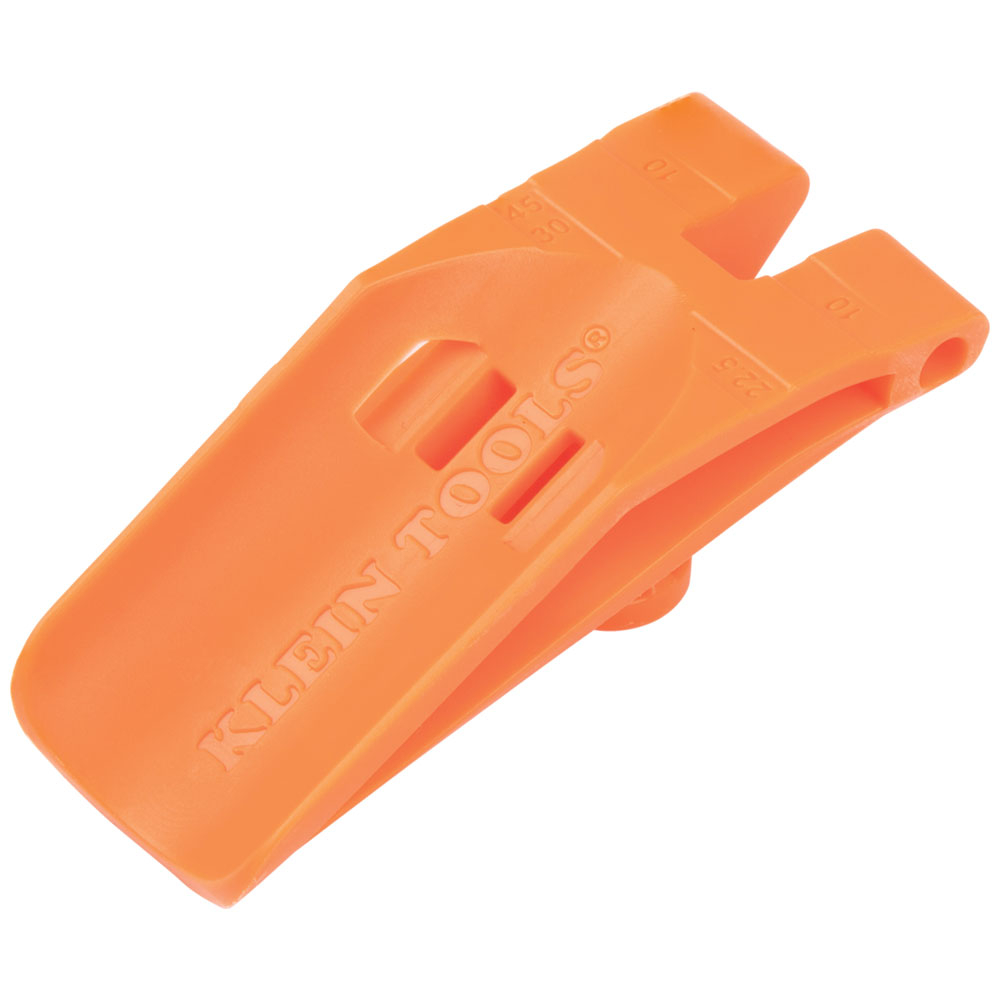

3/4-Inch Angle Setter™

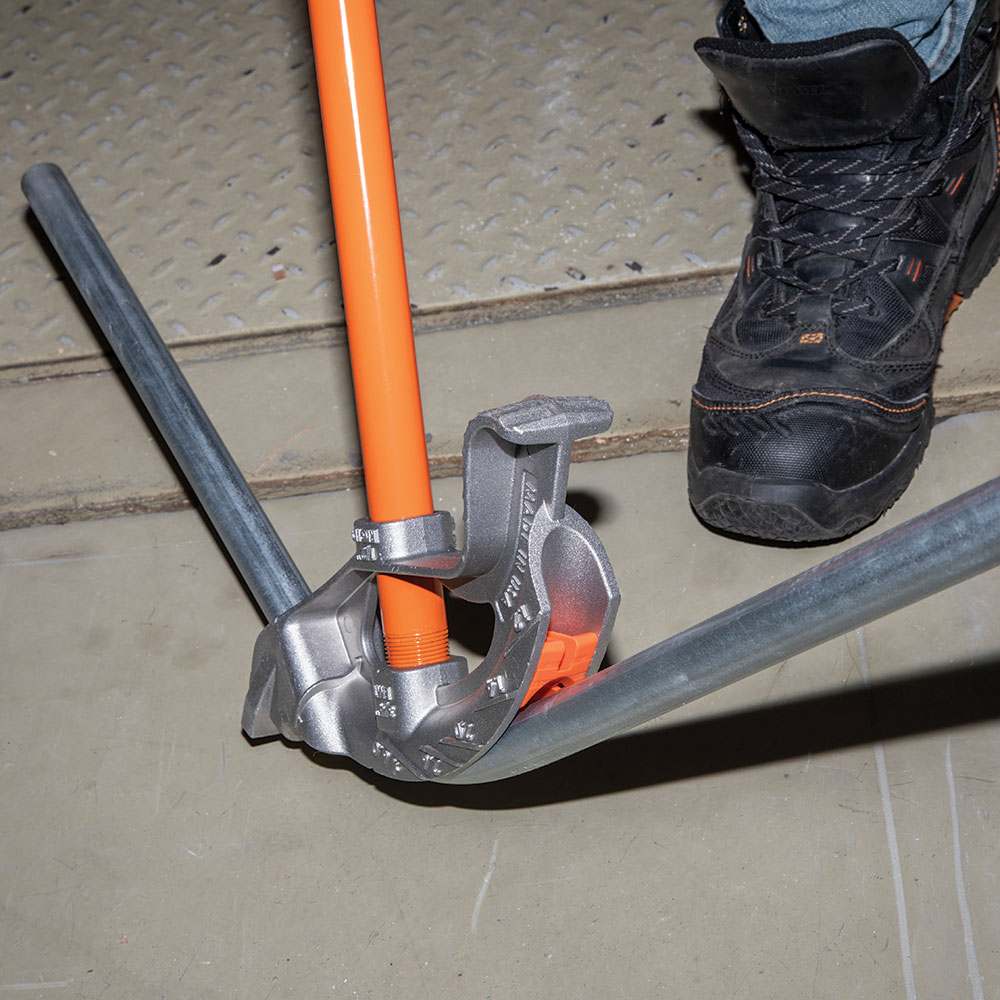

Klein Tools' conduit benders with Patent Pending Angle Setter™ technology allow for quick, accurate bends. When performing repeated bends the Angle Setter will save time on the job. Works for floor or air bends.

Features

• Klein's unique Angle Setter™ technology for quick, accurate repeated bends saving time on the job (Patent Pending)
• Also available in 1/2-Inch (Cat. No. 51611) and 1-Inch (Cat. No. 51613)

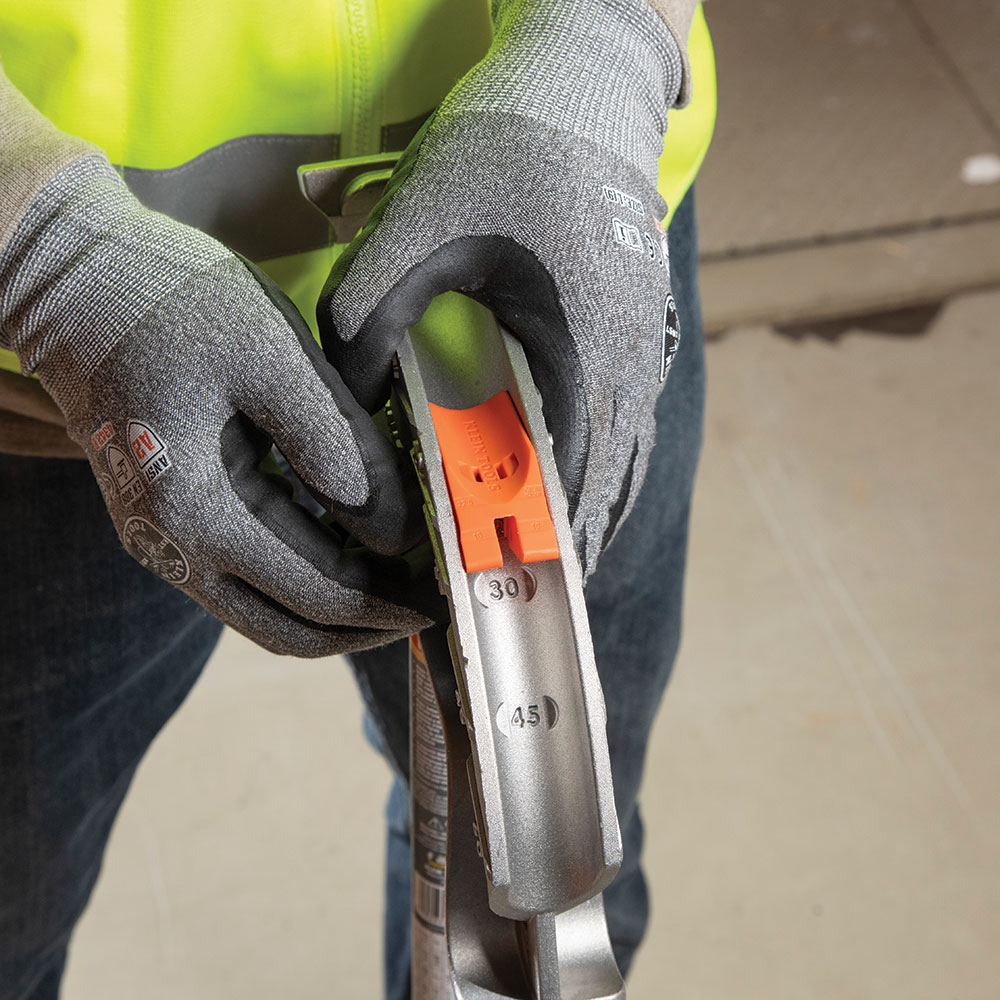

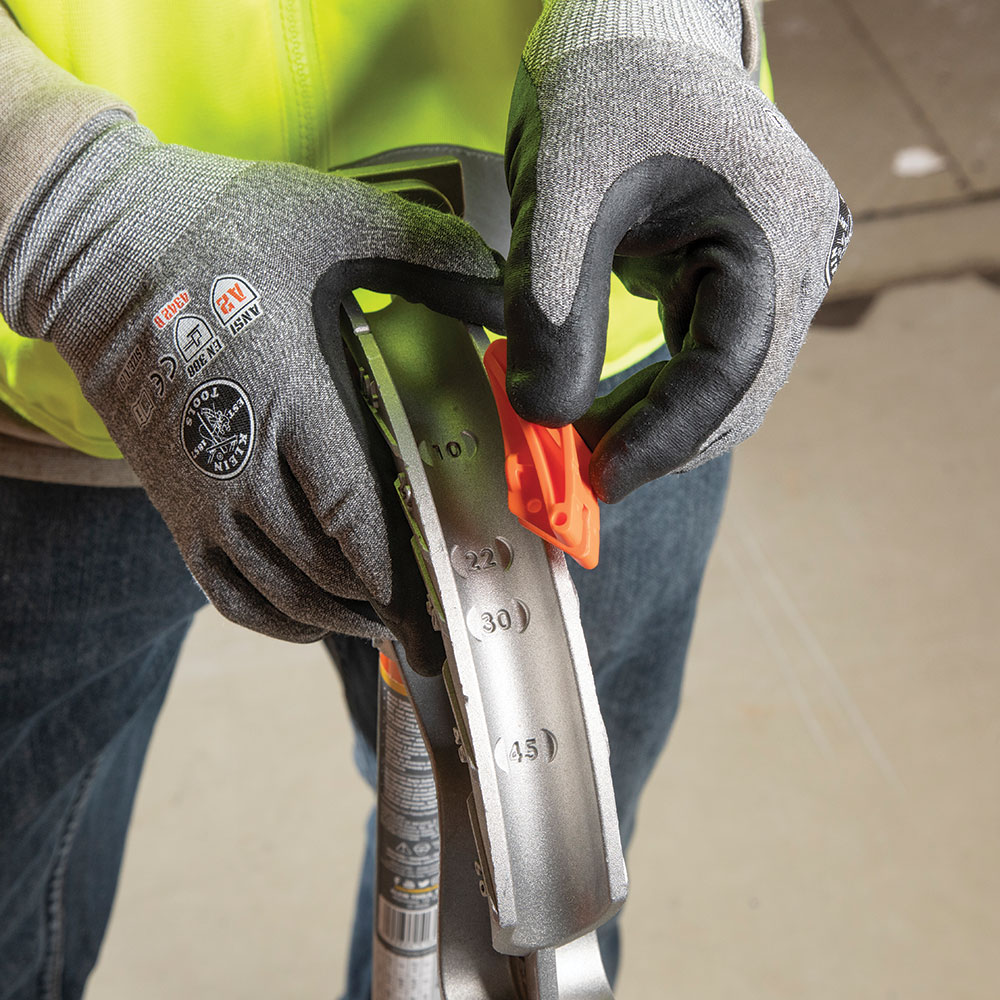

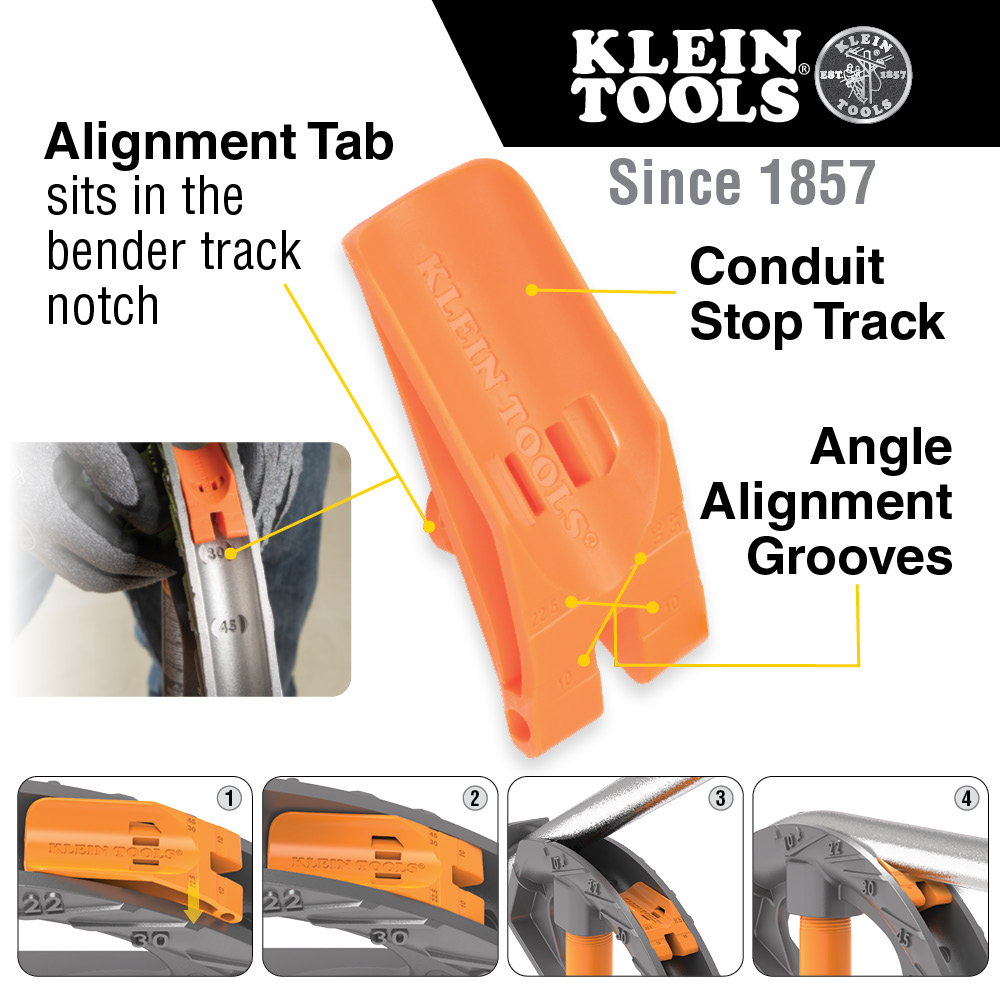

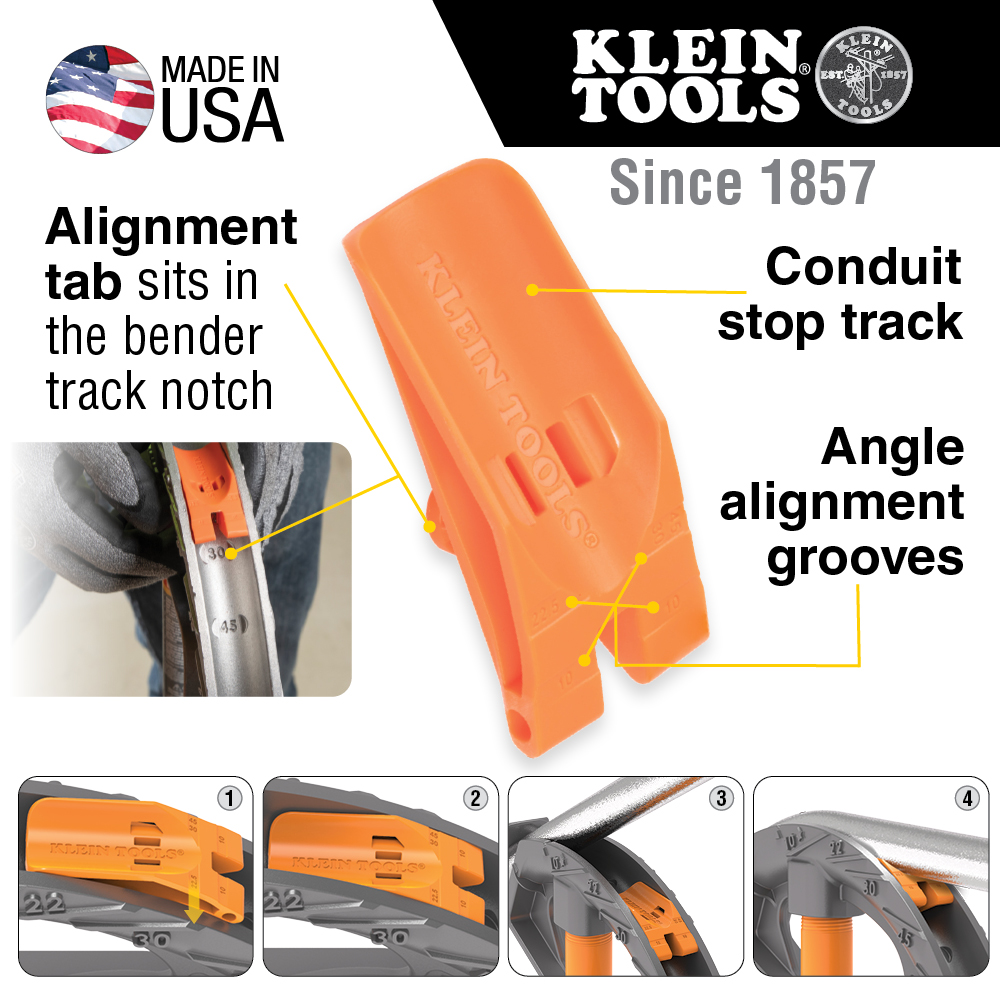

• Align the angle lines on the Angle Setter with the bender, ensure the alignment tabs are fully seated in the bender track notches, press the Angle Setter firmly into place
• Compatible with Klein Tools' 3/4-Inch Aluminum Conduit Bender (Cat. No. 51607)
• Patent Pending Technology

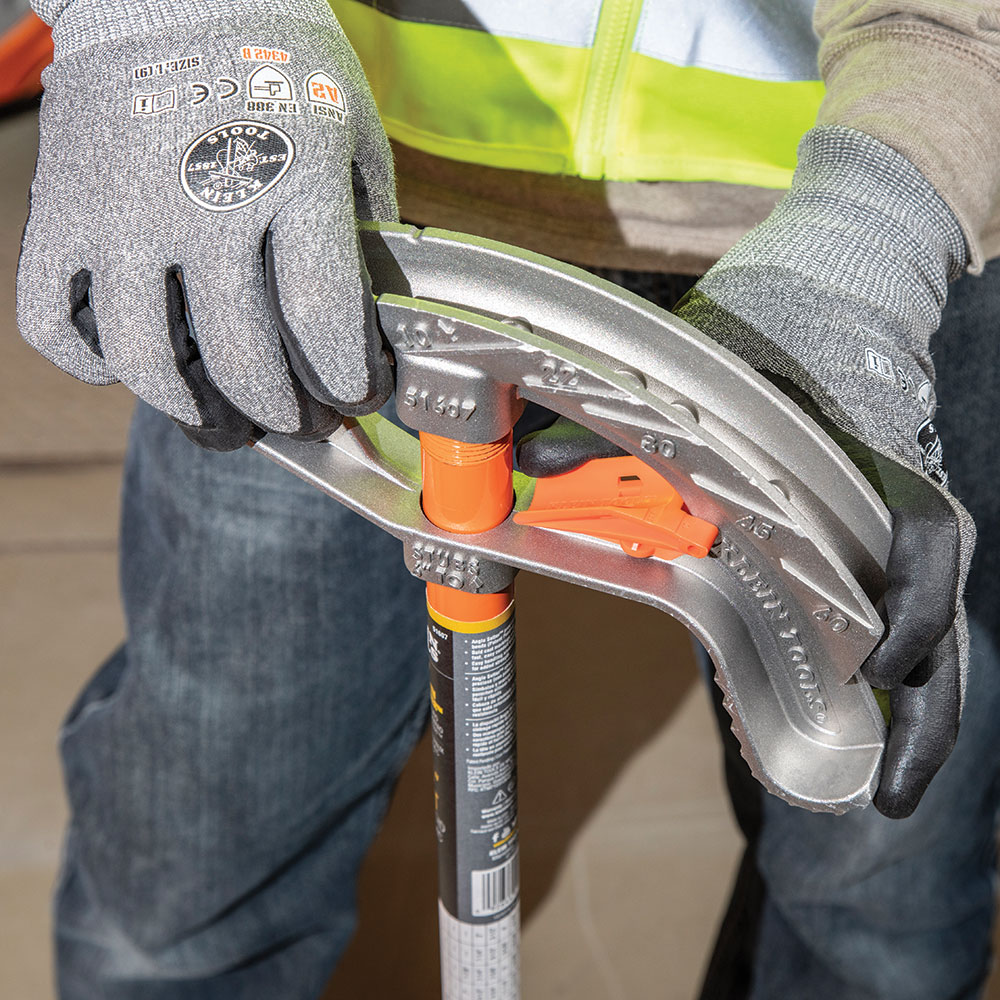

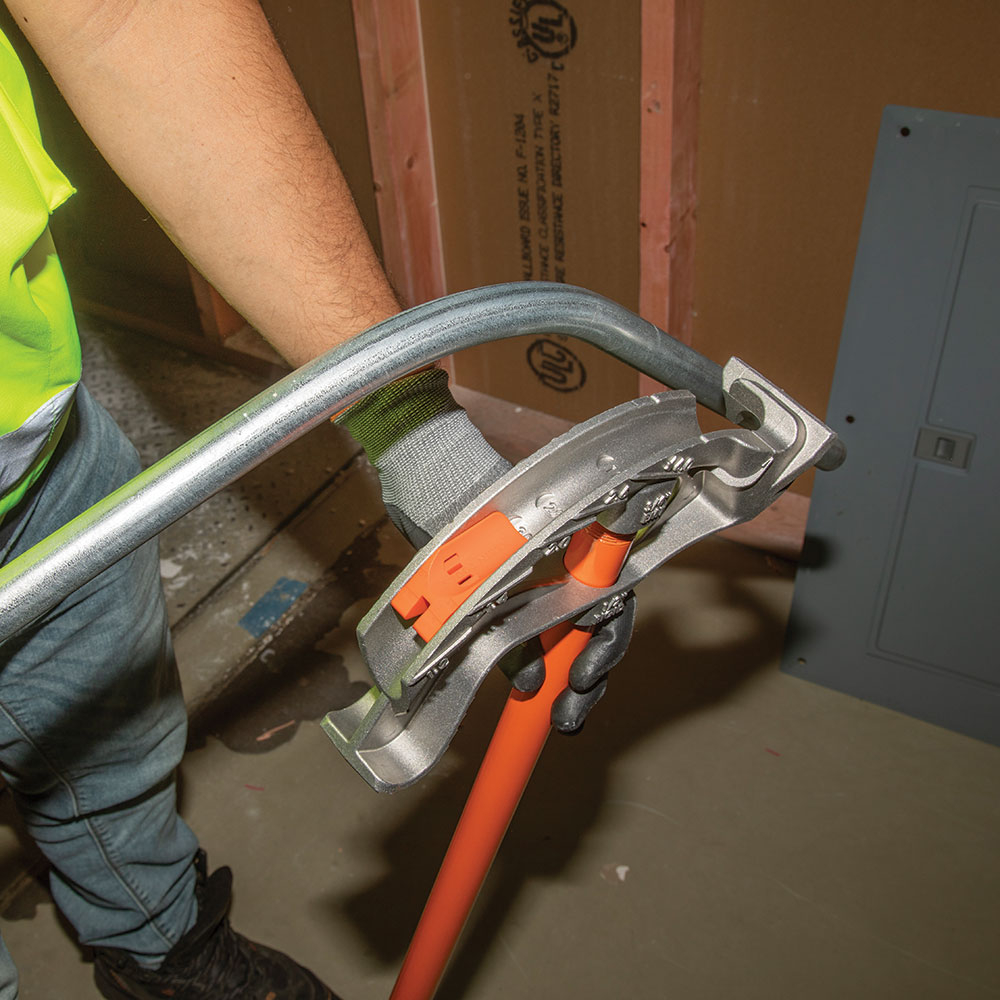

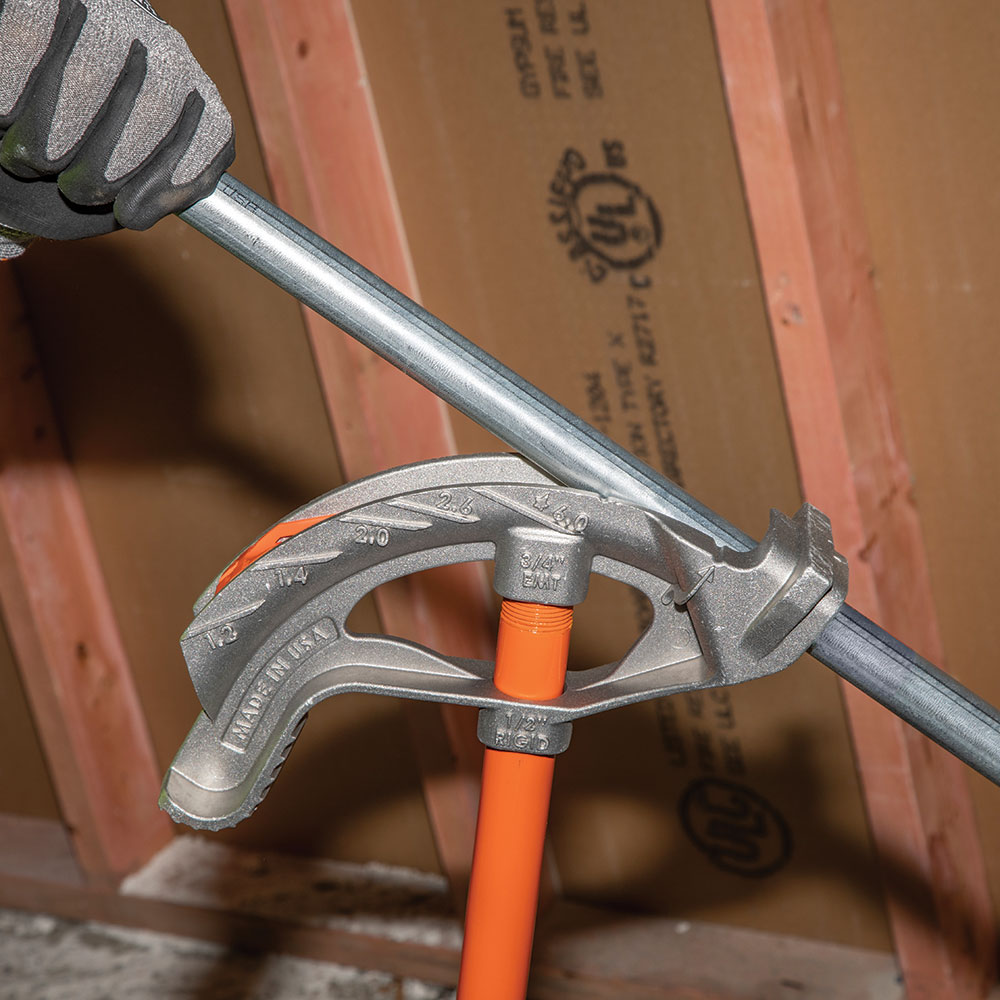

• Conduit insets into bender head, bend as usual until the conduit makes contact with the setter

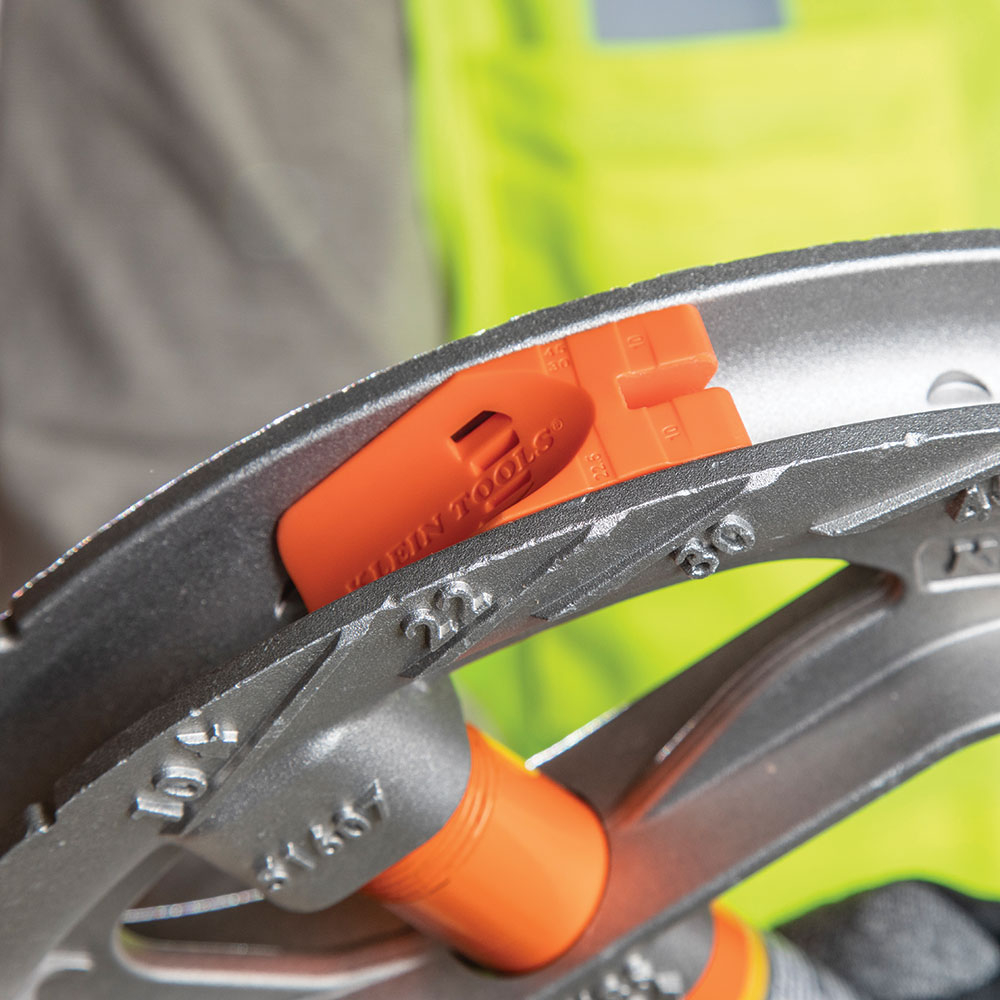

• Movable for four different bend angles: 10-Degree, 22.5-Degree, 30-Degree, 45-Degree (adjusted for conduit spring back)
• Made in the USA Angle Setters create a hard stop for fast, accurate bending

Warnings

• Use a safe work position to avoid loss of balance.
• Always wear approved eye protection.

Specifications

• Weight: 0.0800 lbs
• For Use With: Conduit Benders Cat. Nos. 51604, 51607; Conduit Bender Head Cat. No. 51609
• Type: Angle Setter™
• Application: Angle Setter for Klein Conduit Benders
• Rigid/IMC: 1/2" (1.3 cm)

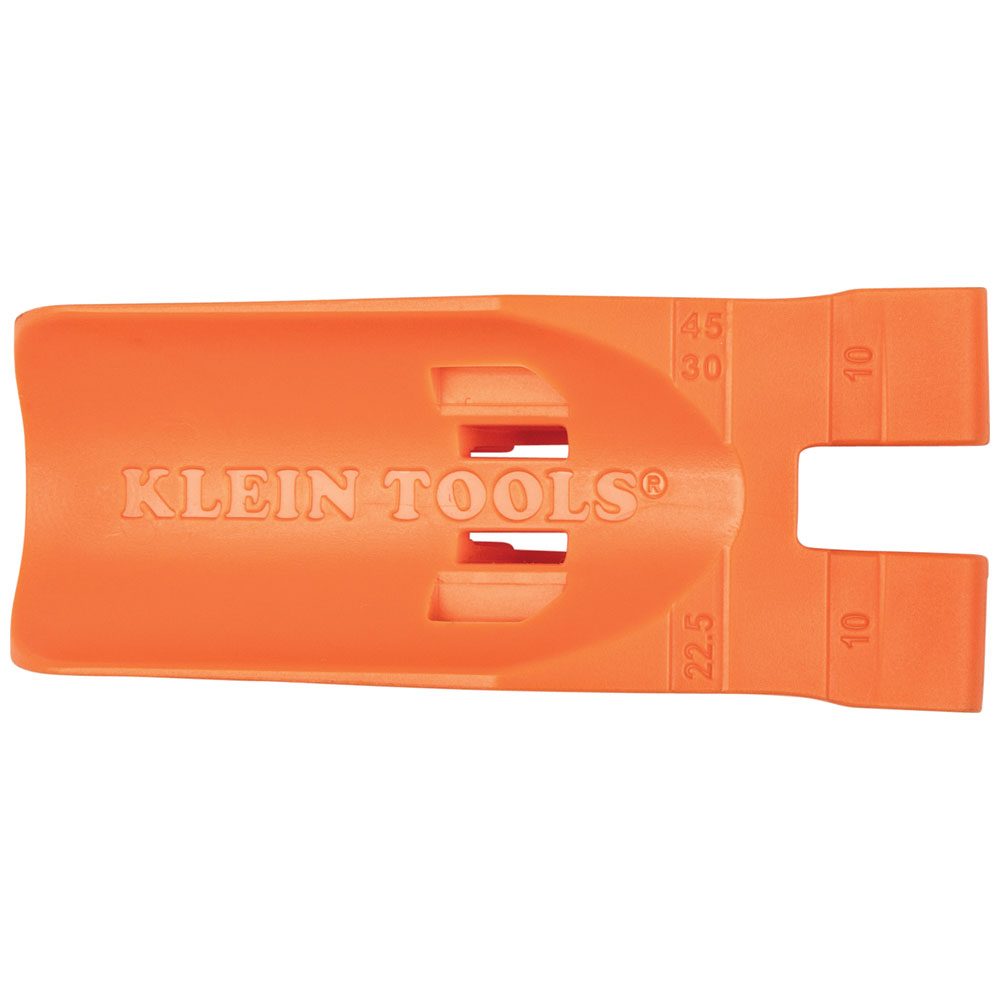

• Marking: 10°, 22.5°, 30°, 45°
• Material: Delrin® Plastic
• Thinwall/EMT: 3/4" (1.9 cm)
• Depth: 7.1400 in
• Height: 1.3700 in
• Overall Height: 2.5 cm (1 Inch)
• Overall Width: 1 Inch (2.5 cm)
• Conduit Size: 3/4"
• Overall Length: 2.4 Inch (6.1 cm)
• Width: 3.7100 in
