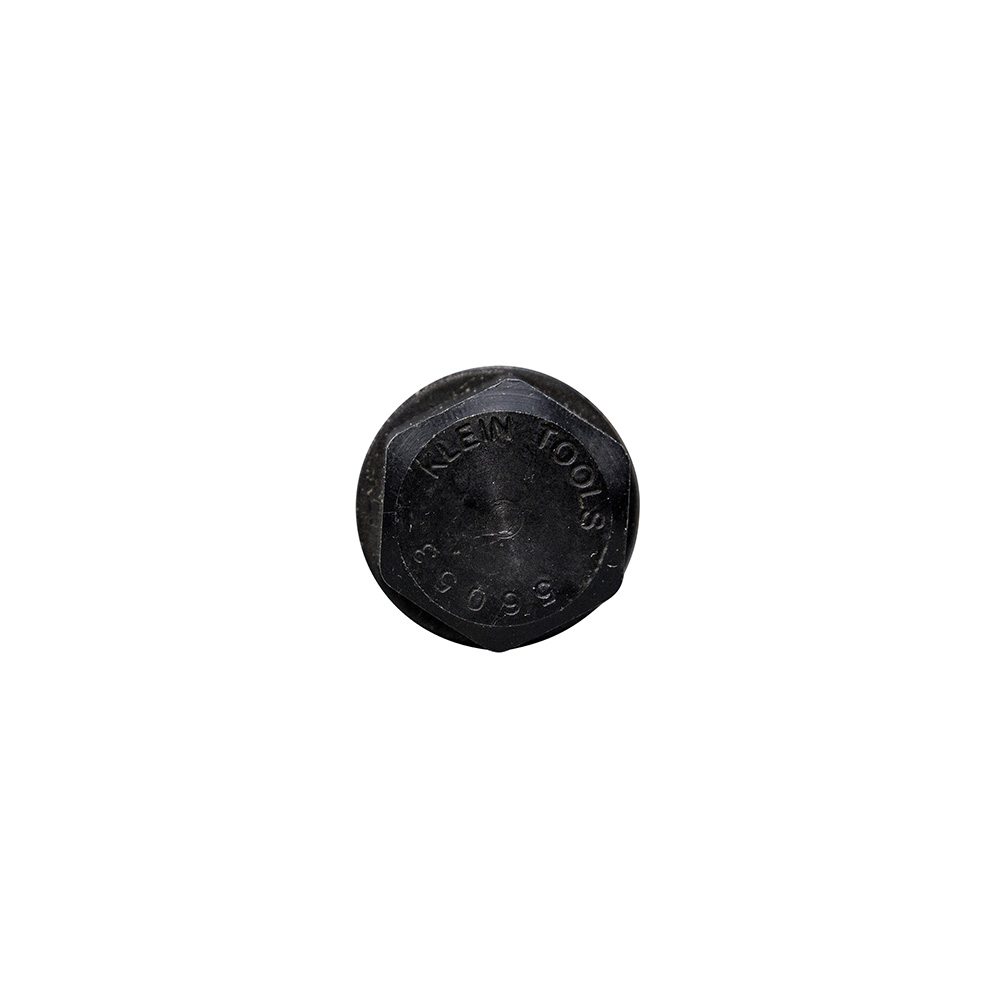

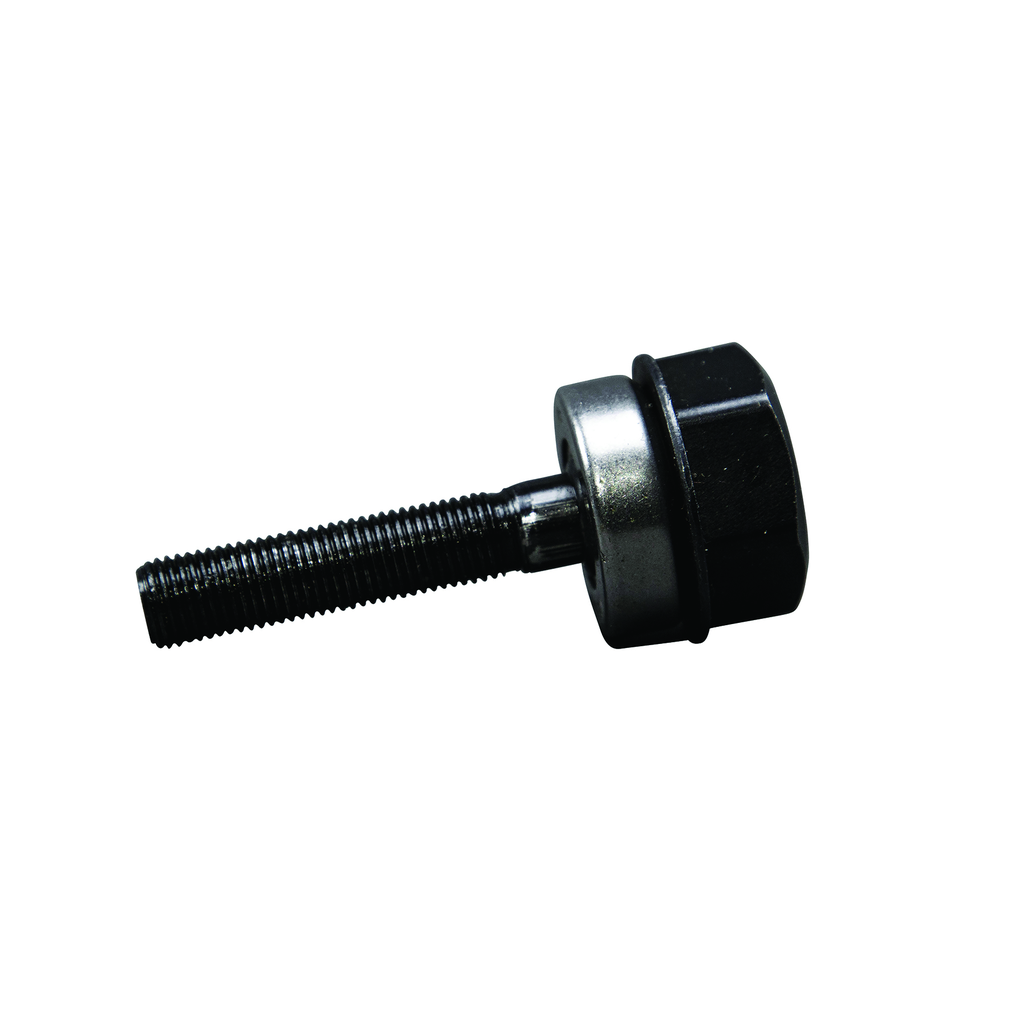

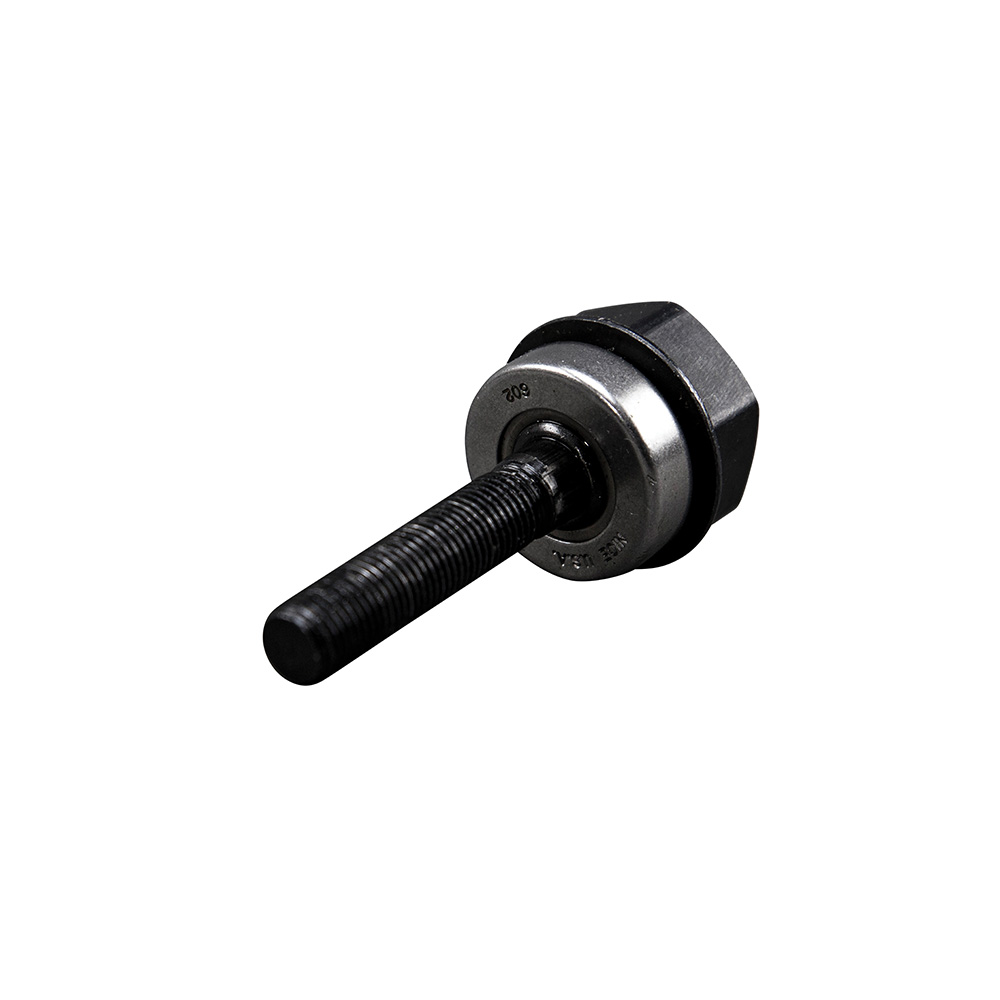

Knockout Draw Stud 3/8-Inch x 2-5/8-Inch

For use in hydraulic drivers. Punch and die are required for operation. Draw stud's flat end designed to guide punch for faster thread engagement.

Features

• Self-centering punch aligns itself on pilot hole
• Designed for optimal set-up and slug removal speed
• Weight: 3.2 ounces
• Rated for mild and stainless steel
• No need to draw crosshairs or line up die alignment marks
• Bearing has electrogalvanized zinc-plate finish

Specifications

• Overall Height: 2.625" (6.7 cm)
• Overall Length: 1" (2.5 cm)
• Size Name: 3/8-Inch by 2-5/8-Inch
• Type: Knockout Draw Stud
• Size: 3/8" x 2-5/8" (1 x 6.7 cm)
• Overall Width: 1" (2.5 cm)
• Height: 2.6300 in
• Width: 1.0000 in
• Weight: 0.2000 lbs
• Country of Origin: Mexico
• Depth: 1.0000 in
