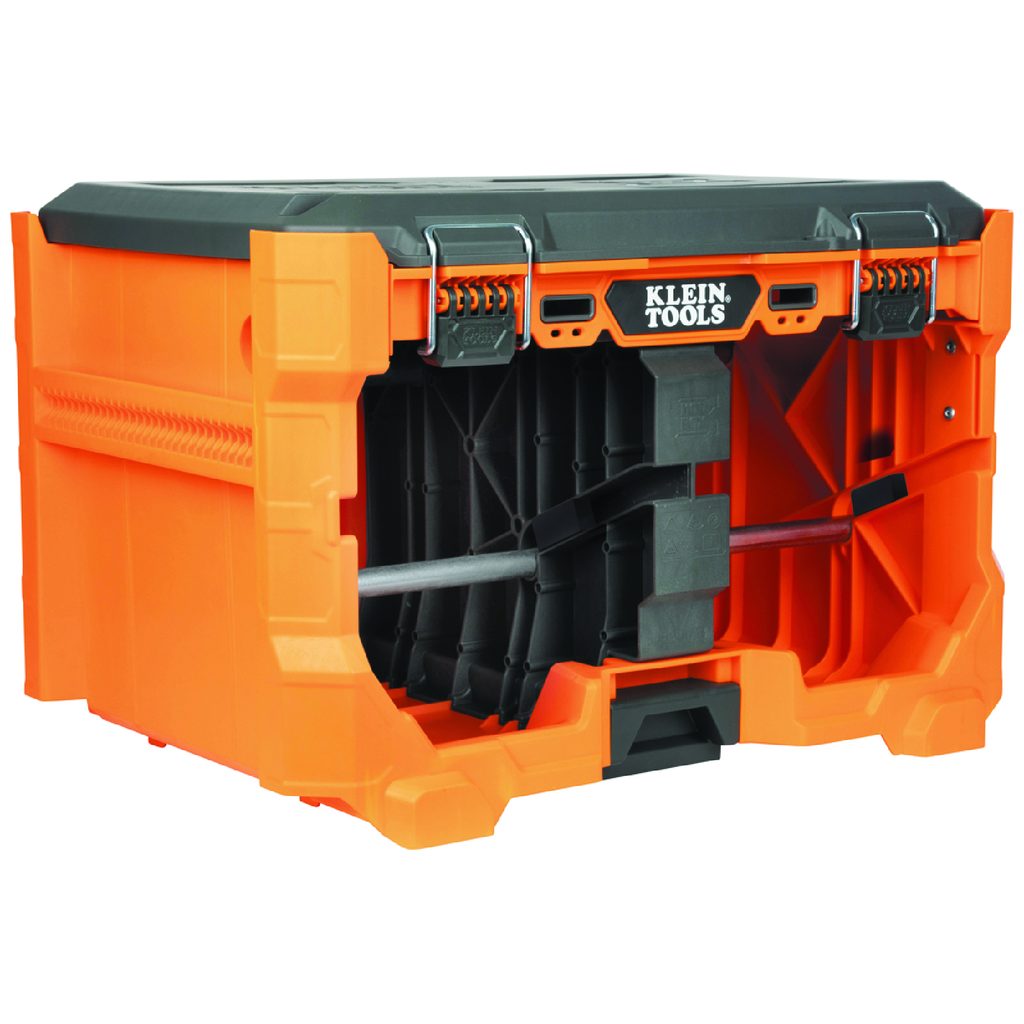

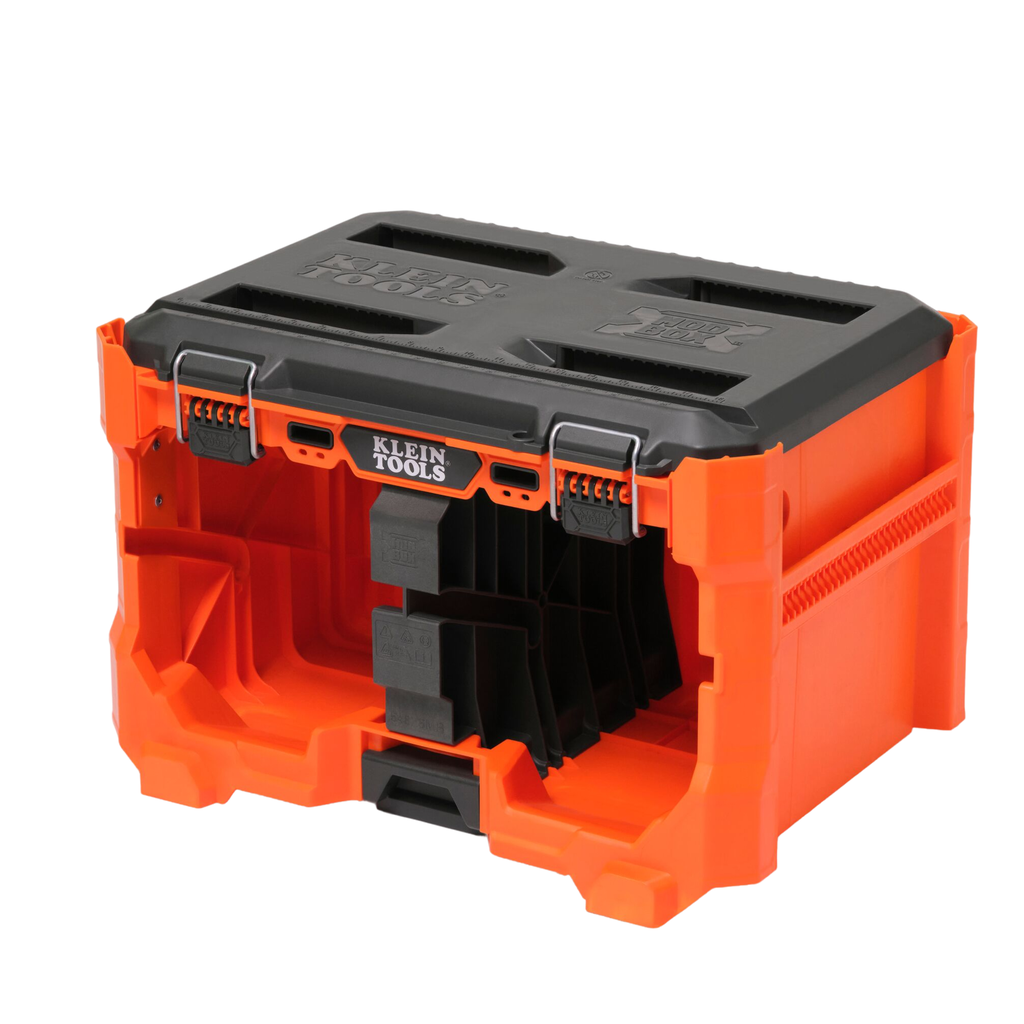

MODbox™ Wire Spool Dispenser

MODbox™ Wire Spool Dispenser streamlines wire management on the jobsite. It holds up to four 500-Foot spools of 10AWG wire inside and additional reels outside via a through-hole for conduit. Front guides and wire captures prevent unraveling. The lid with kickstand stays open for ceiling pulls. Built from impact-resistant polymers, supports up to 120 pounds, and has side rails for attachments. Easily connects with other MODbox™ components for a custom mobile workstation.

Warnings

• 120 lb (54.43 kg) max system weight rating. Use two people to lift when over 50 lbs (22.7 kg).
• Do not hang excessive weight from conduit pass-through.
• Do not pull wire at extreme angles from front face.
• Do not use as a step stool or ladder.
• Tipping Hazard; Use on ground or bottom of stack.

Features

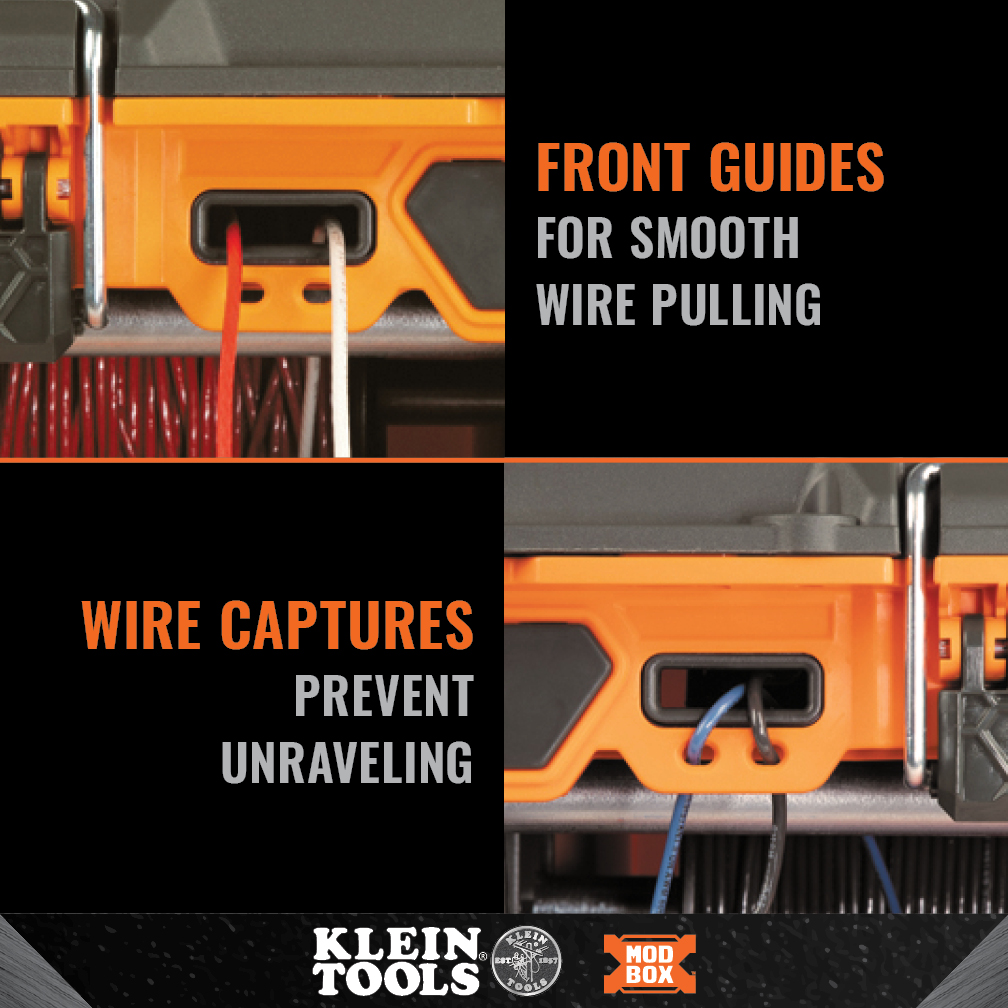

• Features front guides for smooth wire pulling and a wire capture system to prevent unraveling between pulls to optimize wire deployment

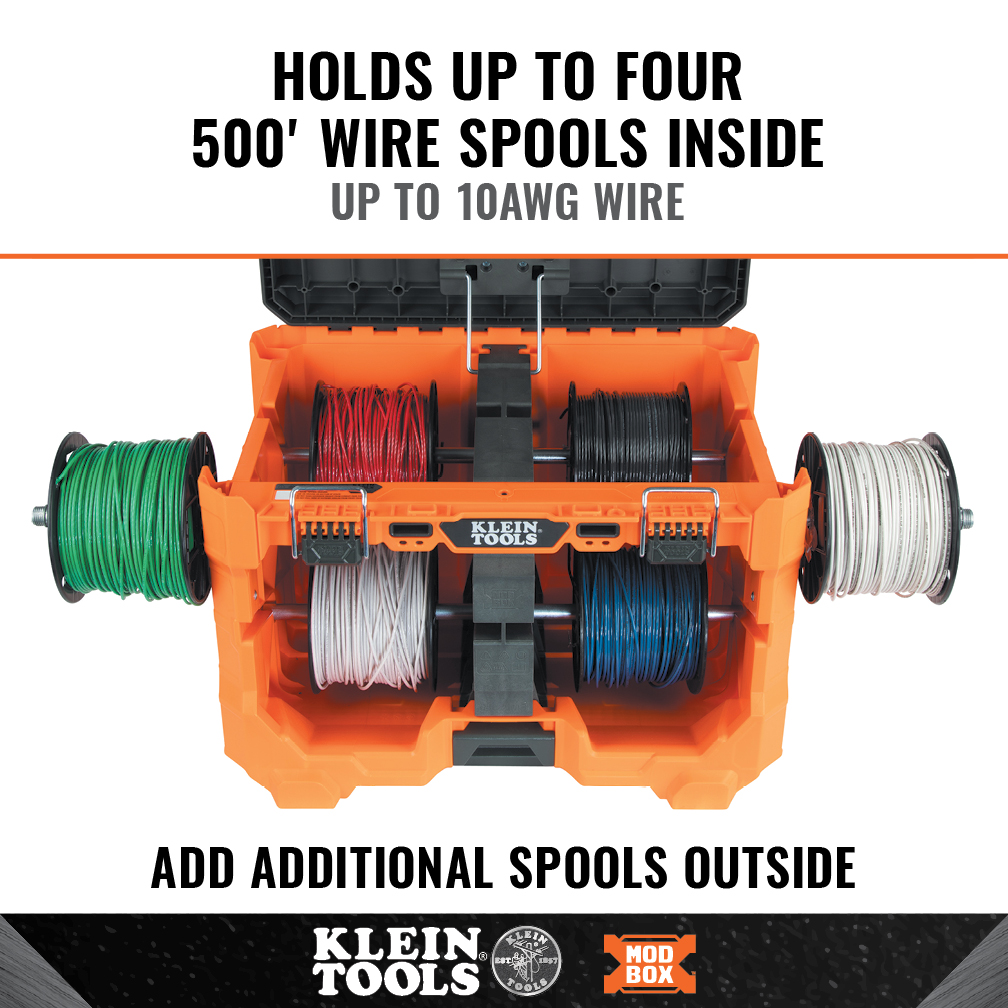

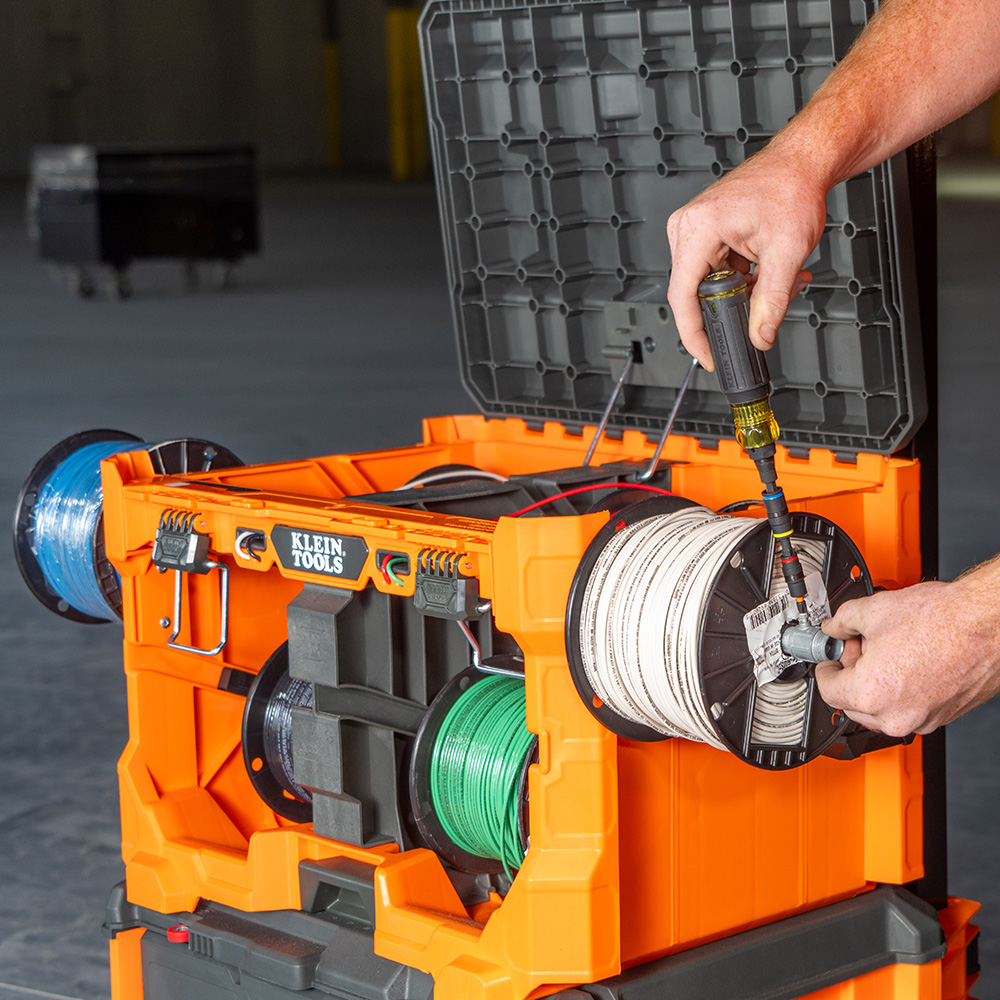

• Holds up to four 500-Foot spools of 10AWG wire inside, add additional spools outside via a through-hole for conduit

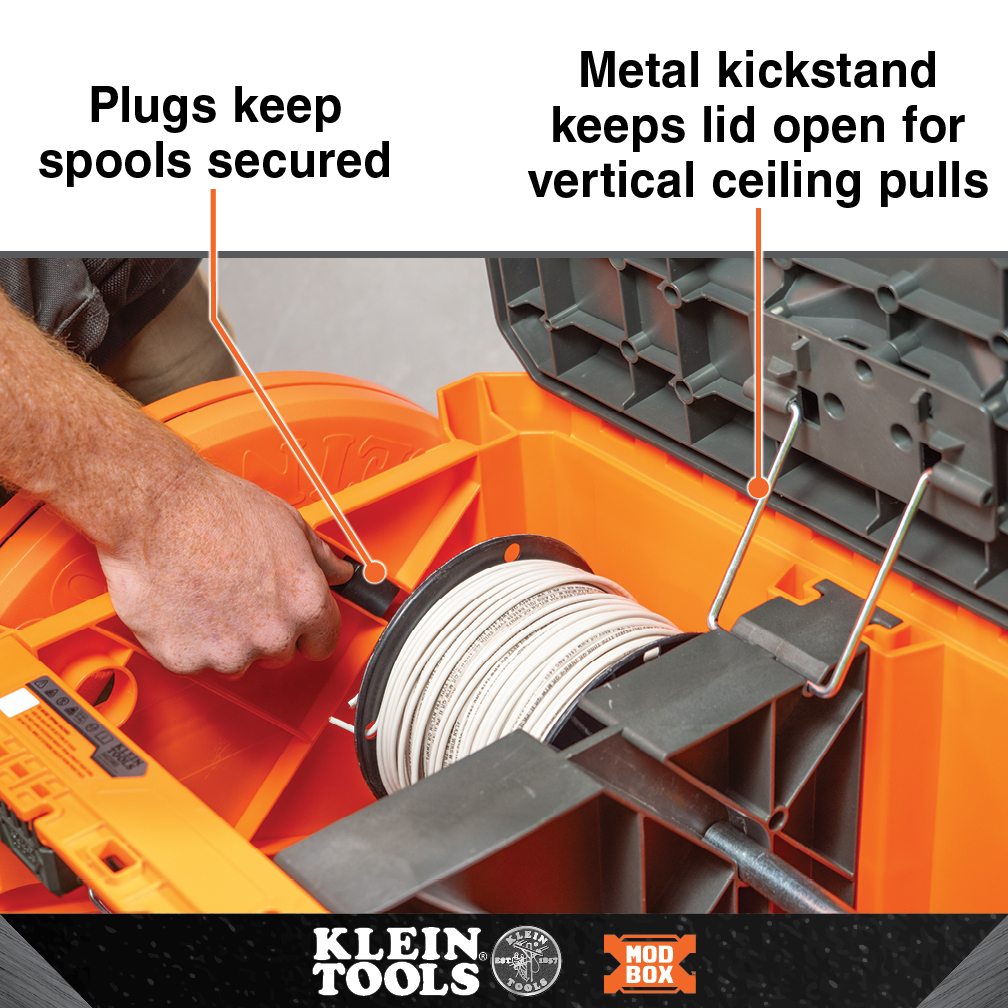

• Rubber plugs offer extra support for reel stability during wire pulling

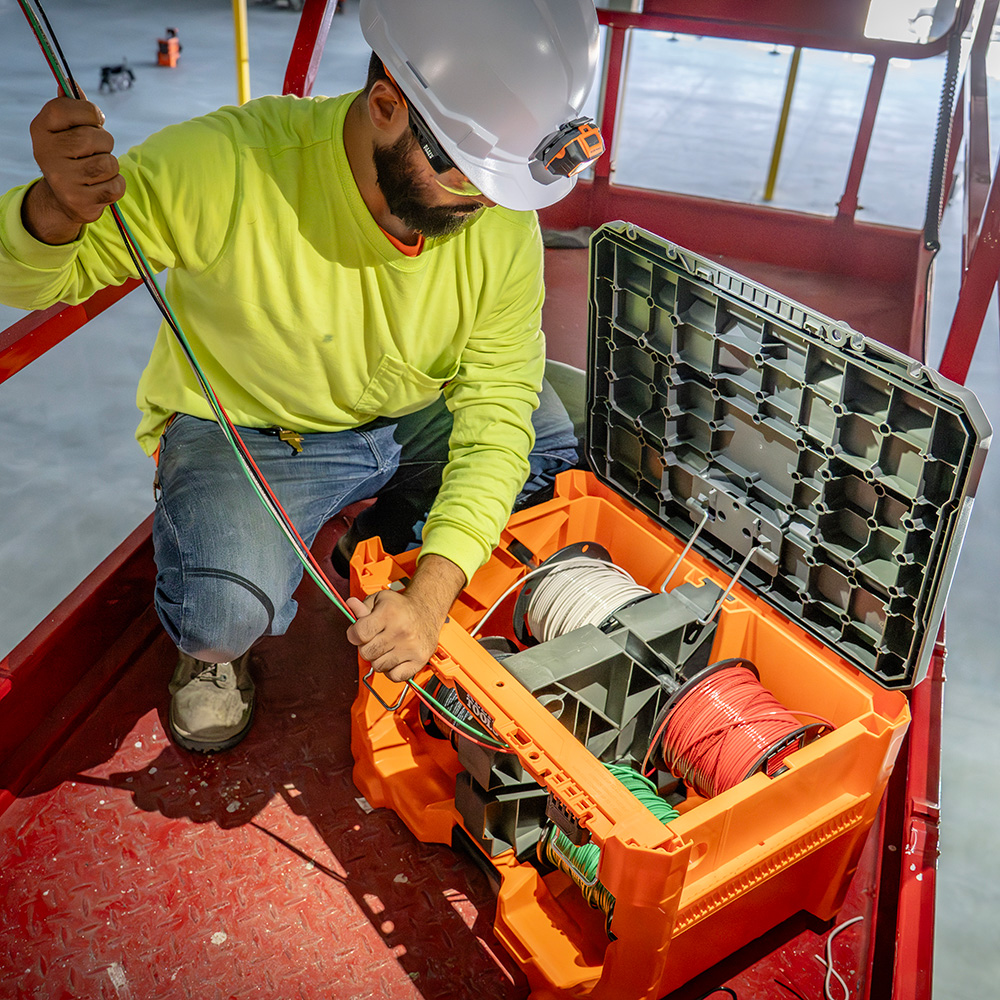

• Open front design allows easy pulls and quick inventory checks during wire installs
• Built-In Side Rails; Front Guides; Wire Capture; Metal Kickstand for Lid

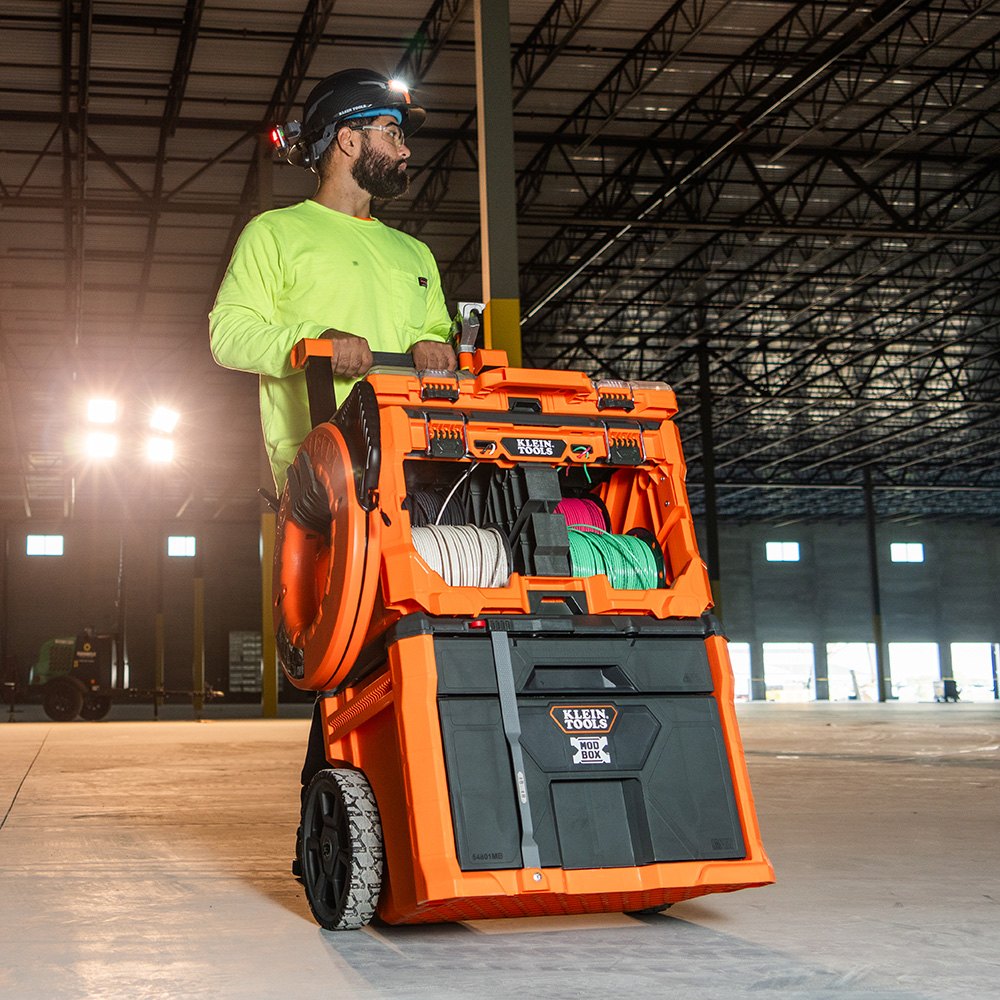

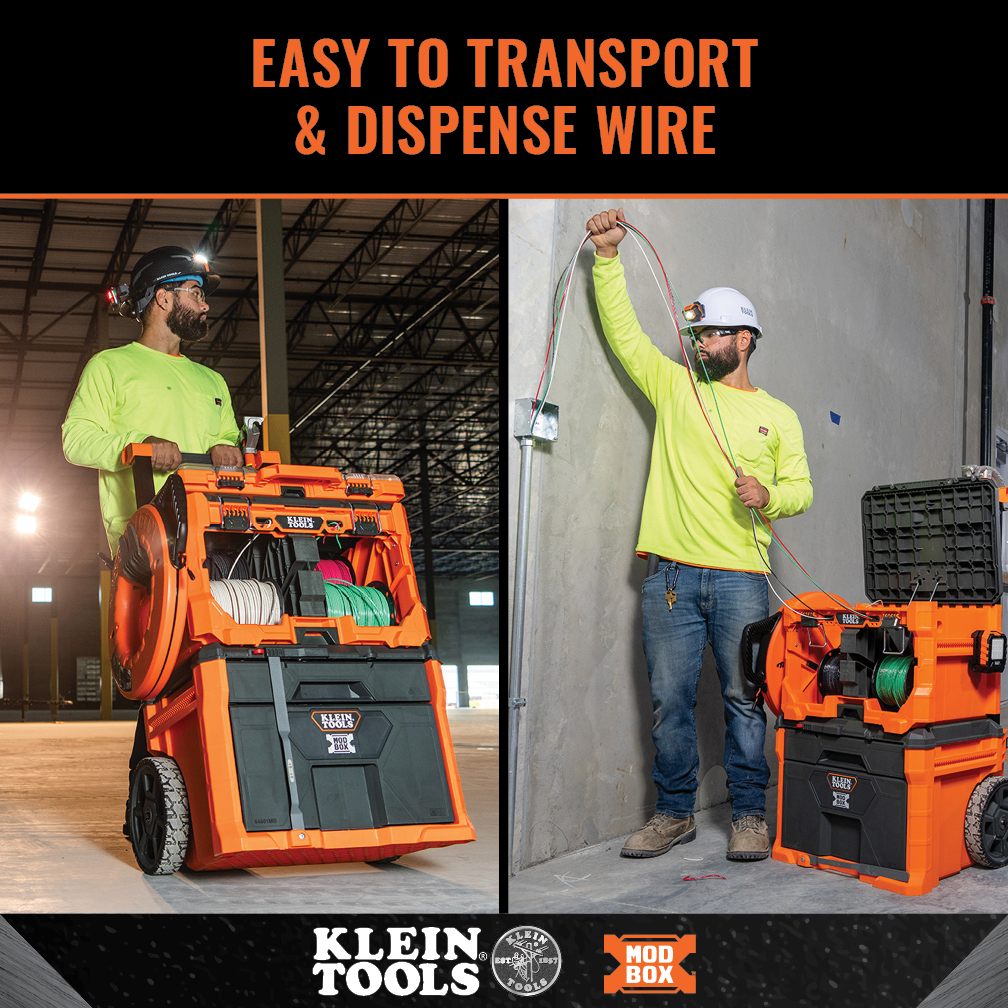

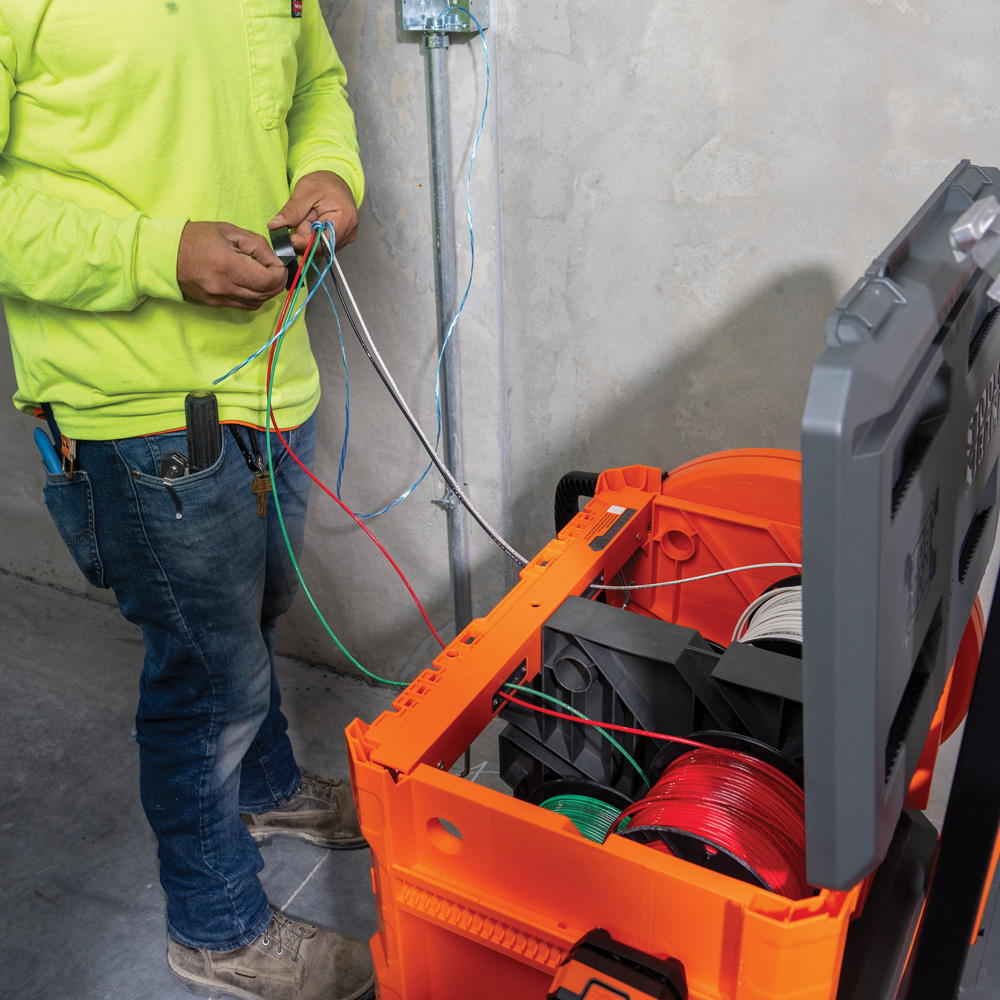

• MODbox™ Wire Spool Dispenser is essential for efficiently transporting and pulling wire at the jobsite, reducing downtime

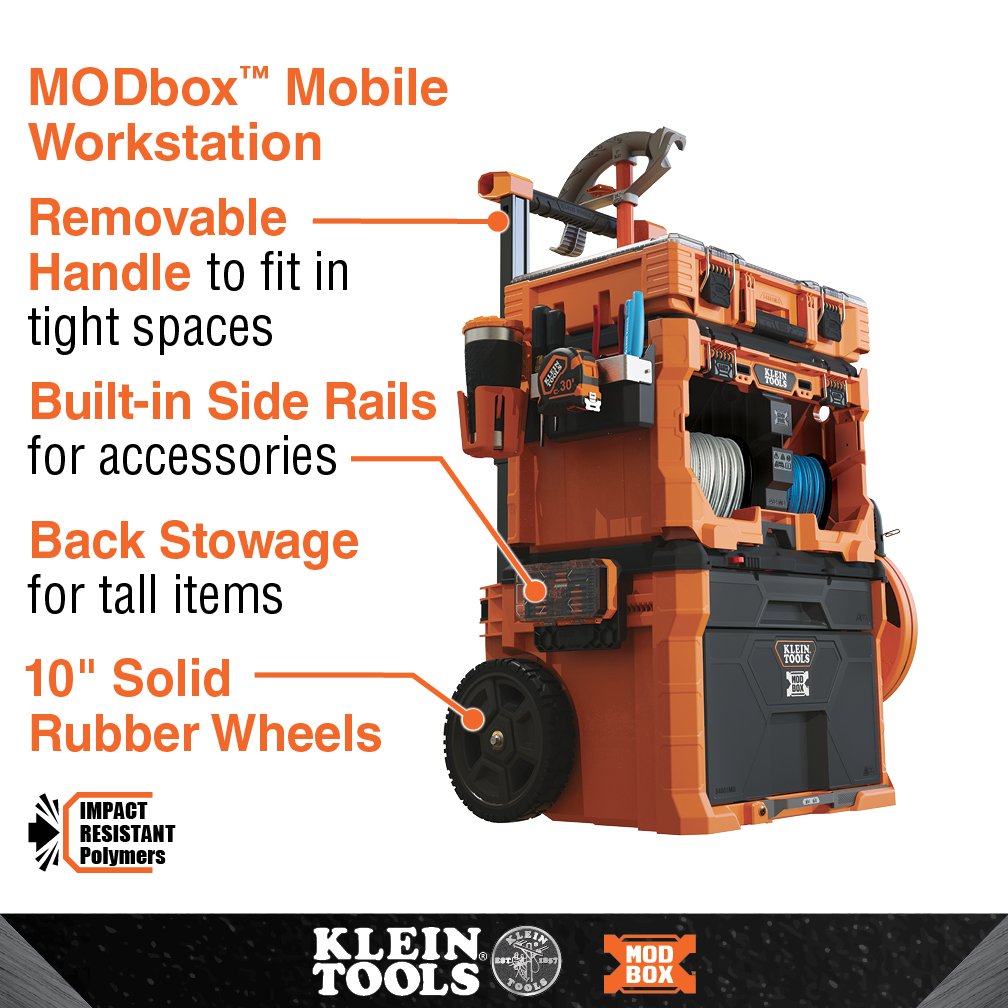

• Built-in side rails accommodate attachments and connect with other MODbox™ components, creating a customizable mobile workstation tailored to your needs

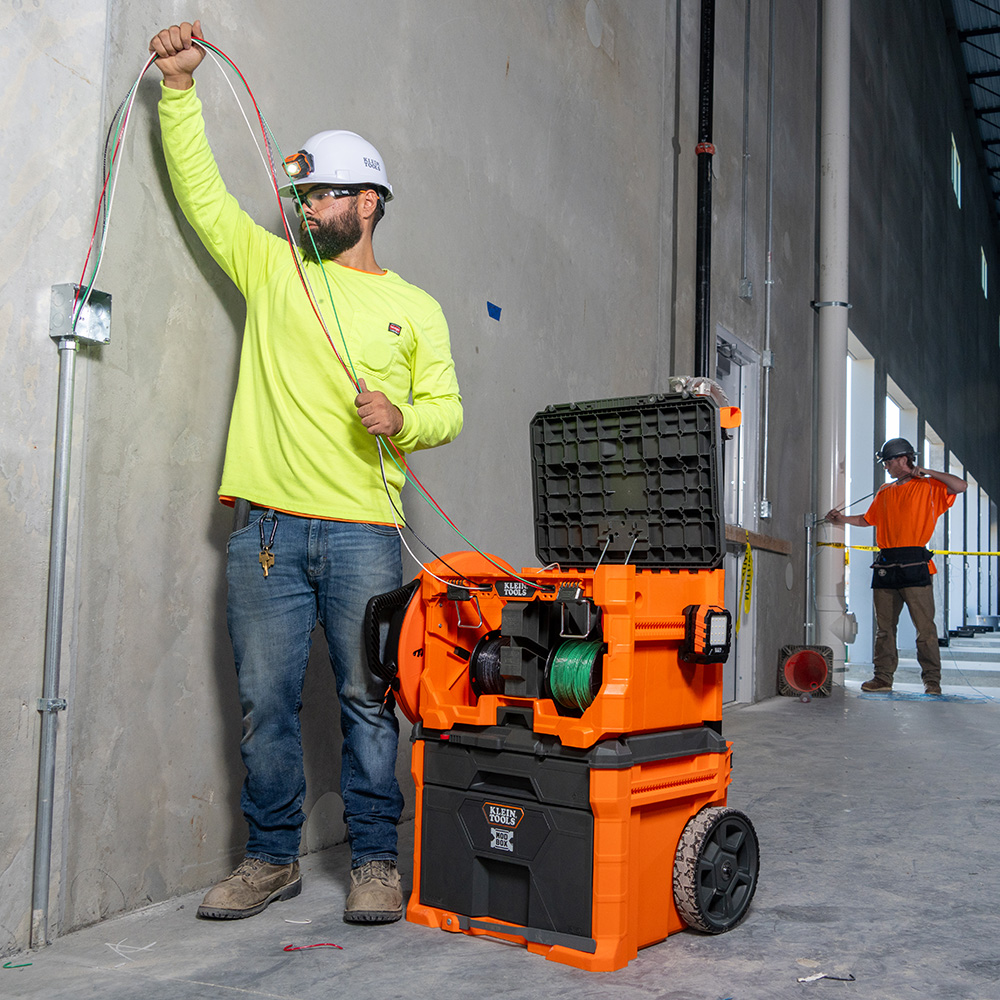

• Lid with metal kickstand stays open for vertical ceiling pulls, ensuring easy access to wire
• Durable construction from impact-resistant polymers supports up to 120 pounds, with a steel-reinforced lock location on the lid for security

Specifications

• For Use With: Wire Spools
• Overall Width (Inch): 16.2
• Depth: 22.0000 in
• Height: 14.4000 in

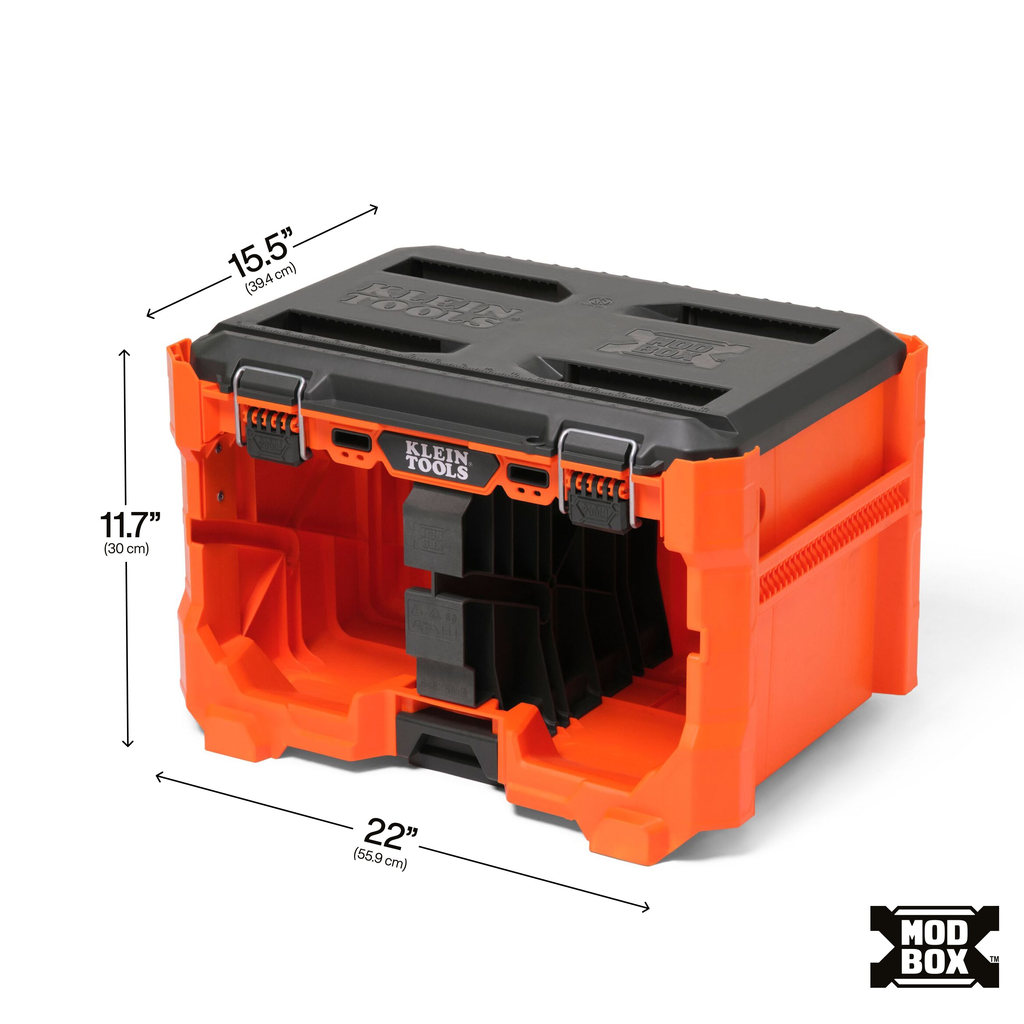

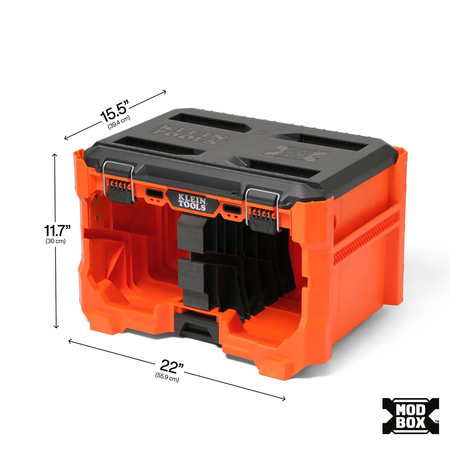

• Dimensions: 14.4" H x 22" L x 16.4" W (36.6 x 55.9 x 41.7 cm)
• Overall Length (Inch): 22
• Material: Impact Resistant Polymers
• Width: 16.2000 in
• Application: Modular Tool Storage
• Capacity: Up to (4) 500' Spools of 10 AWG Wire Inside; Additional Spools Outside
• Weight: 15.5000 lbs
• Weight (lb): 17.4
• Overall Height (Inch): 14.4
• Type: MODbox™
