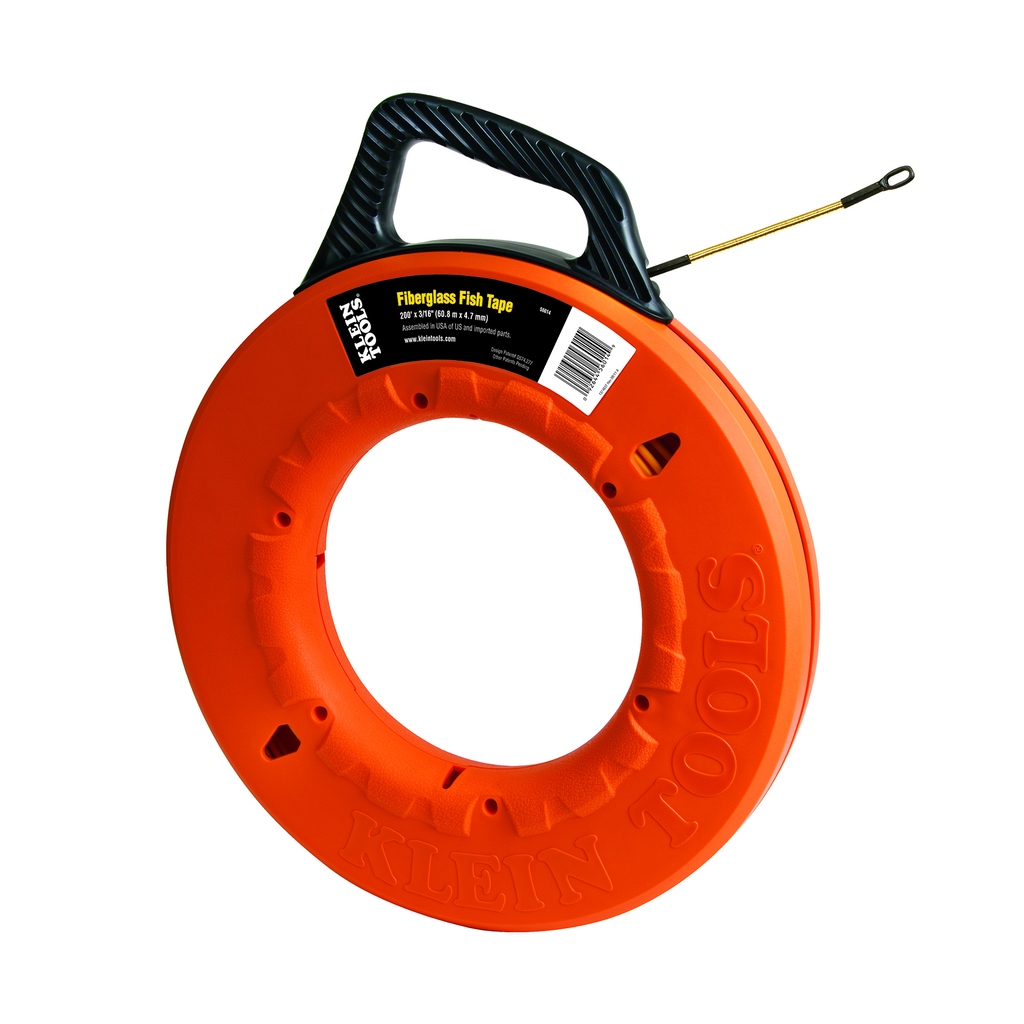

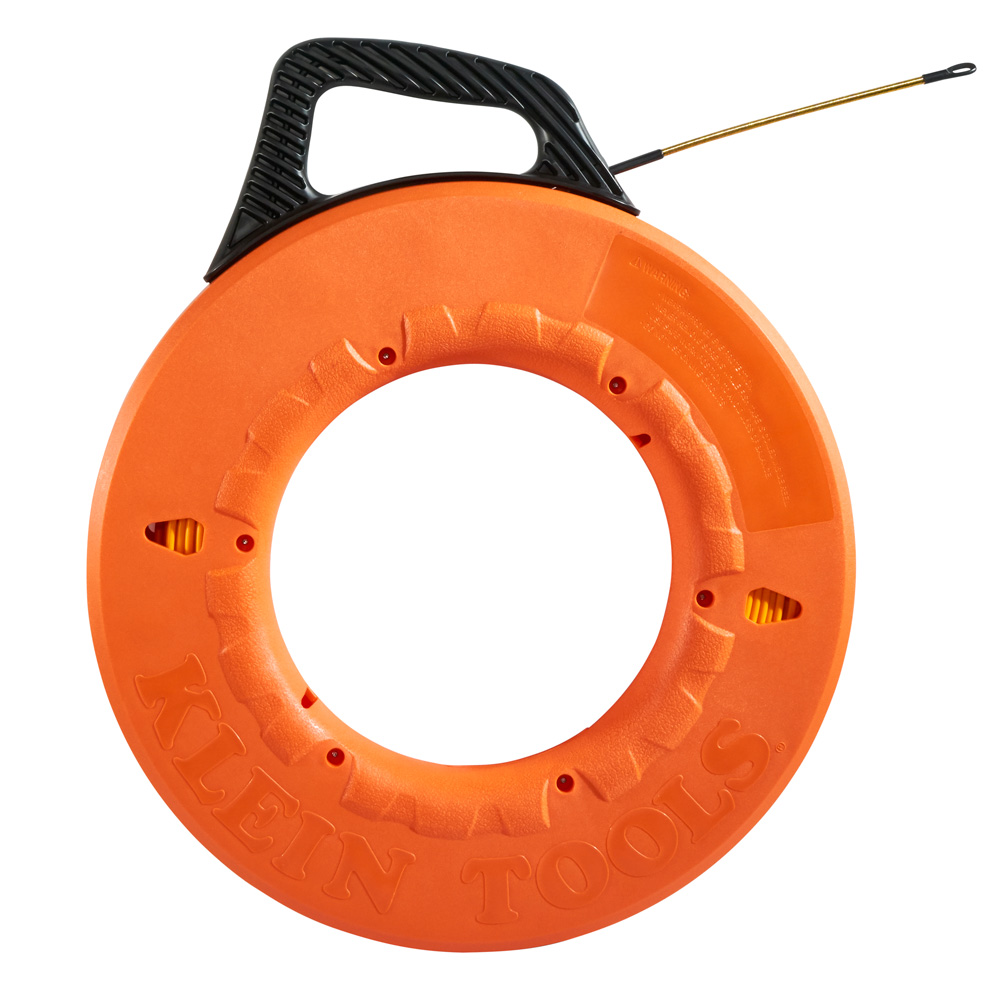

Fiberglass Fish Tape with Spiral Leader, 200-Foot

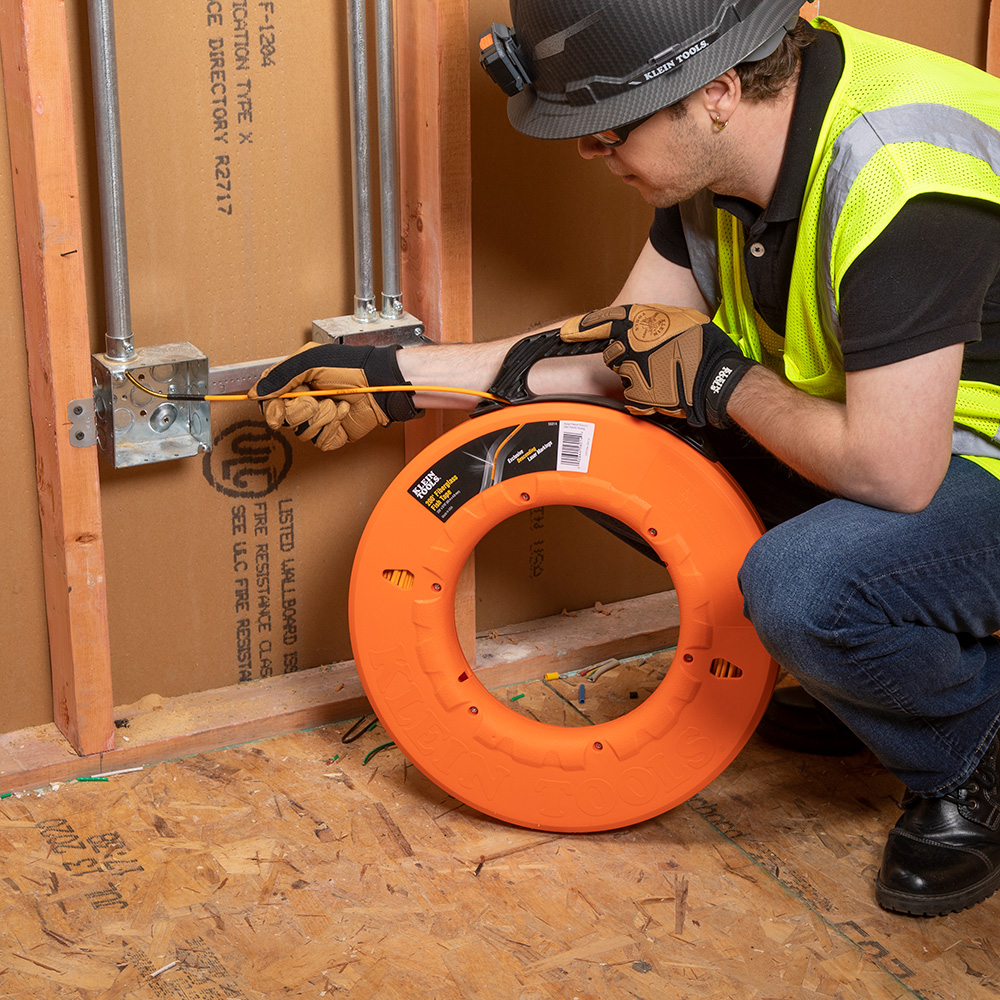

Designed for even longer conduit runs, the Klein Tools 200-foot (60.96 m) Fiberglass Fish Tape is flexible enough to glide over existing wires in crowded conduit, but stiffer than other non-conductive fish tapes. The 17-Inch (432 mm) case diameter allows user to reel in 10-percent more tape in a single revolution than 16-Inch (406 mm) diameter fish tape cases, saving time and effort.

Warnings

• Do NOT pull a fiberglass fish tape with any type of mechanical fish-tape puller. A mechanical puller will severely damage the tape, and could lead to personal injury.
• Although fiberglass fish tape itself is non-metallic, its metallic tip and leader are conductive and could be grounded against conduit. Do NOT use on or near live electrical circuits.
• Do NOT bend a fiberglass fish tape to a radius smaller than 3'' (76 mm) or the tape may break.
• Use a safe work position to avoid loss of balance when using fish tape.
• Never remove screws while fish tape is coiled inside reel.
• Wear approved eye protection when feeding, pulling or rewinding fish tape.

Features

• The 17-Inch case diameter means you can reel in 10-percent more tape in a single revolution vs. a 16-Inch (406 mm) case

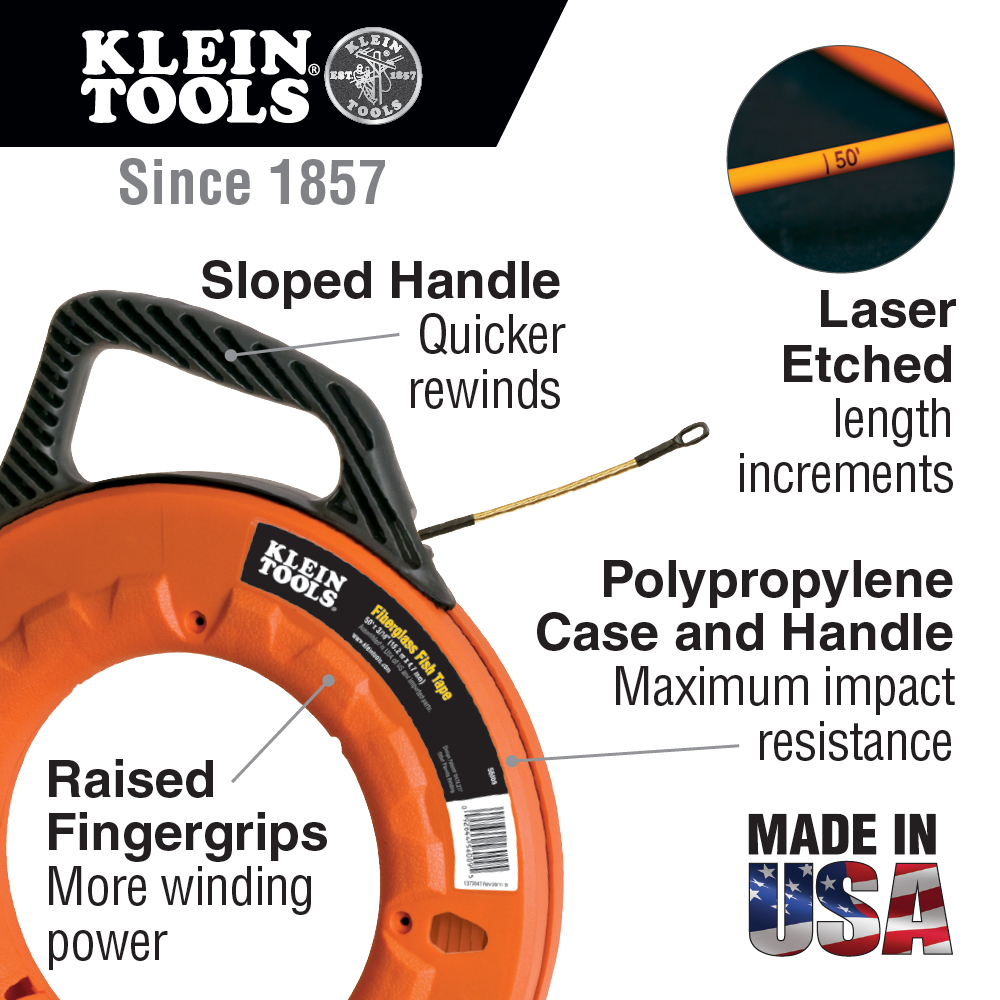

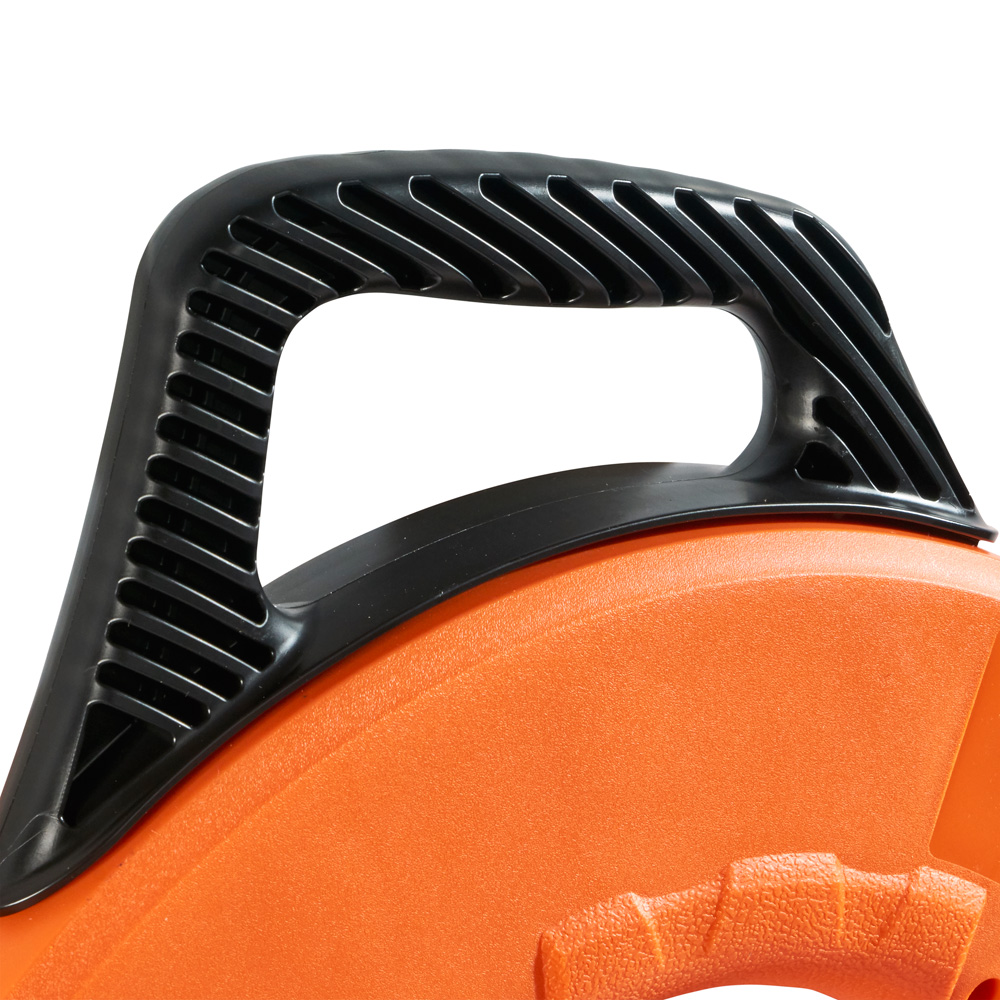

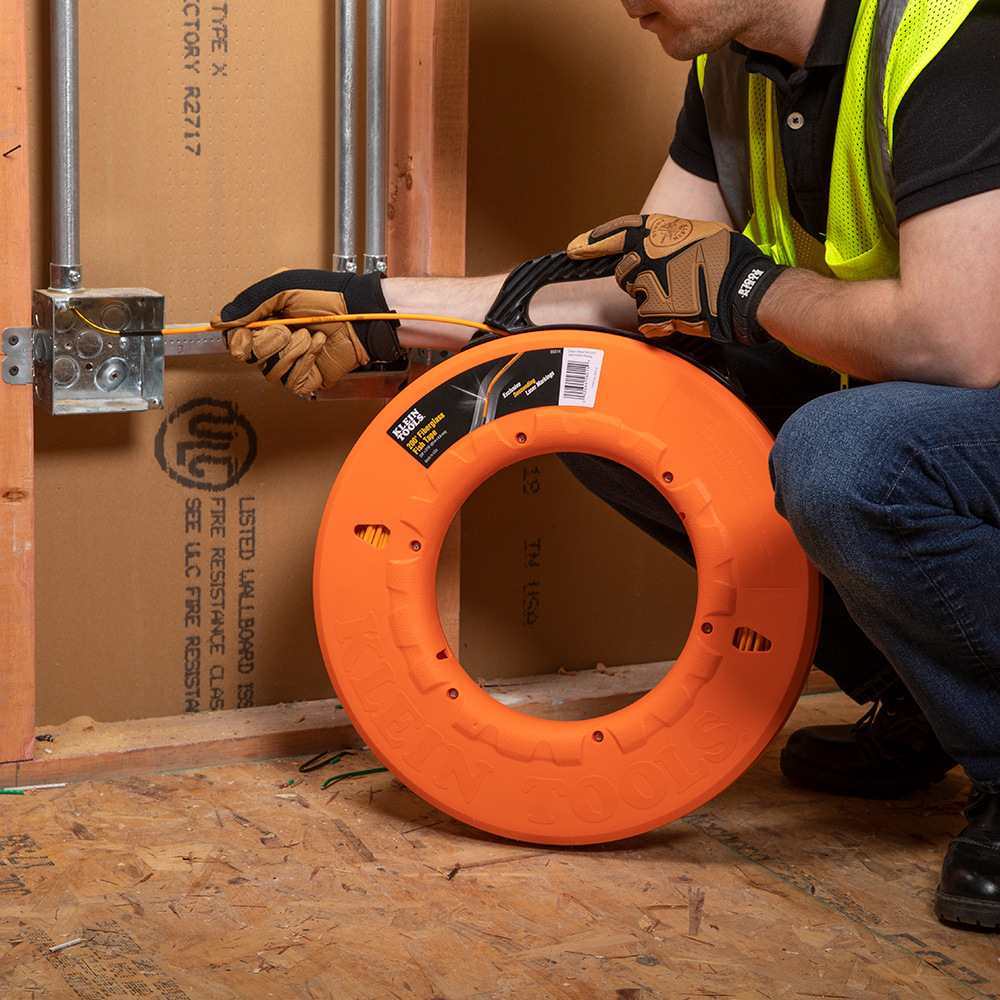

• The unique sloped handle optimizes the position of your hand for quick hand-over-hand rewinds and allows a more level payout of tape on the backswing while feeding conduit
• Repair kit available (Cat. No. 56115)

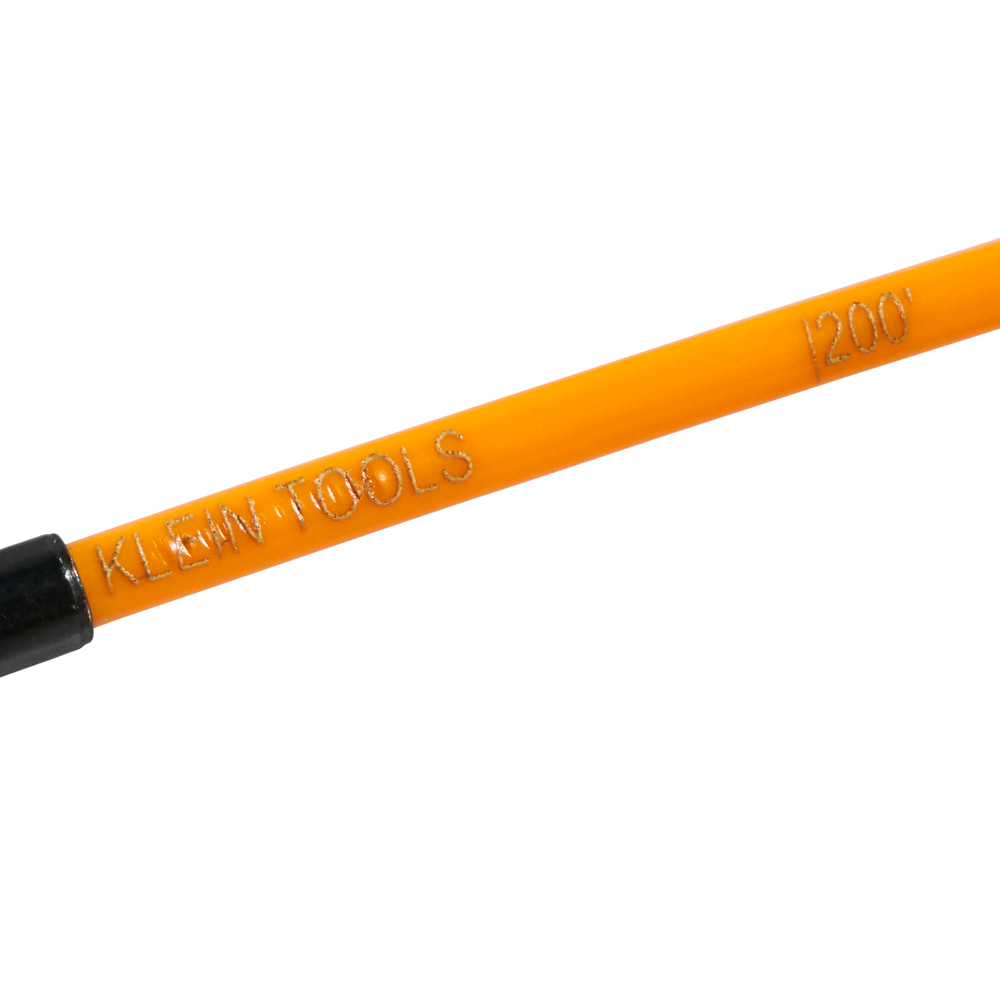

• Permanent, laser etched 1-foot increments on the tape allow you to more accurately measure the depth of conduit runs and determine the amount of tape left to pay out
• Raised finger grips help transfer 100-percent of the winding power from your hand and fingers
• Made in USA
• The lightweight and strong fiberglass tape resists harsh elements and is strength rated up to 500 pulling pounds

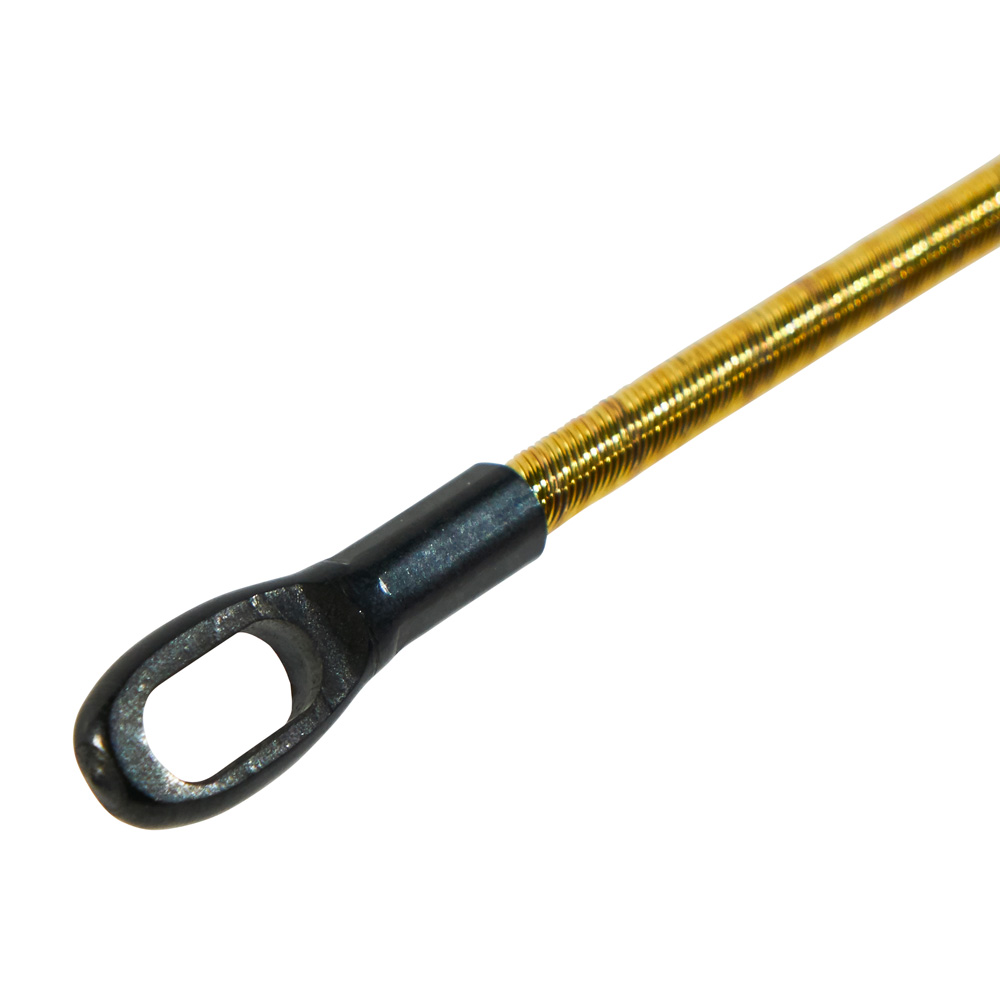

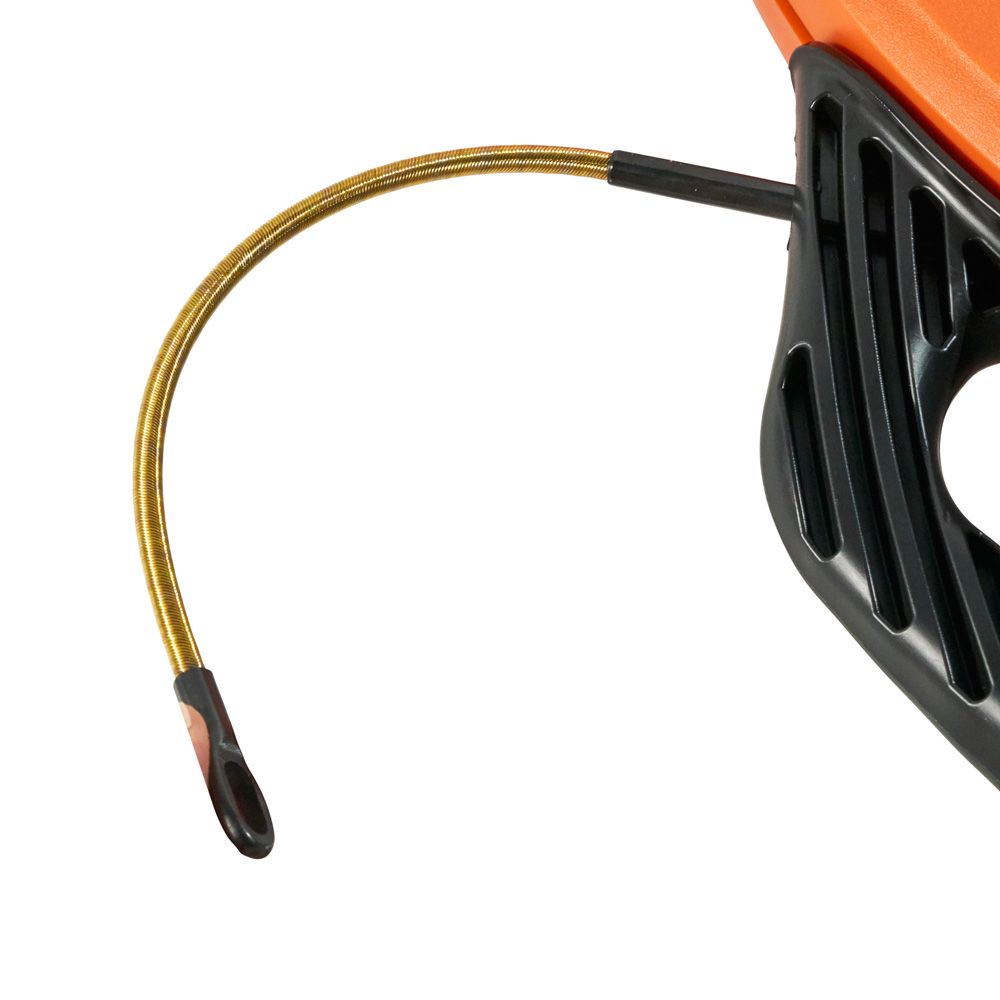

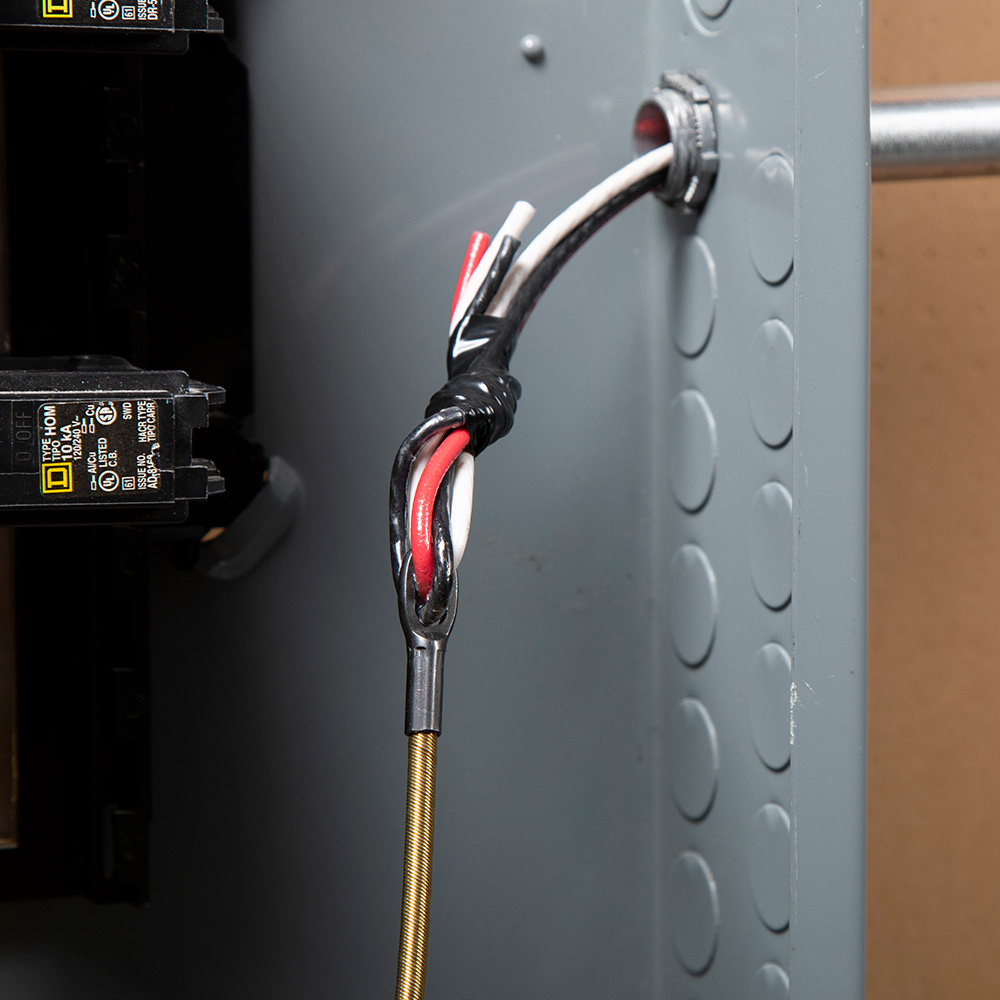

• Durable 7-Inch leader helps push through crowded conduit
• Replacement eyelets (Cat. No. 56116) and spiral leaders (Cat. No. 56120) available

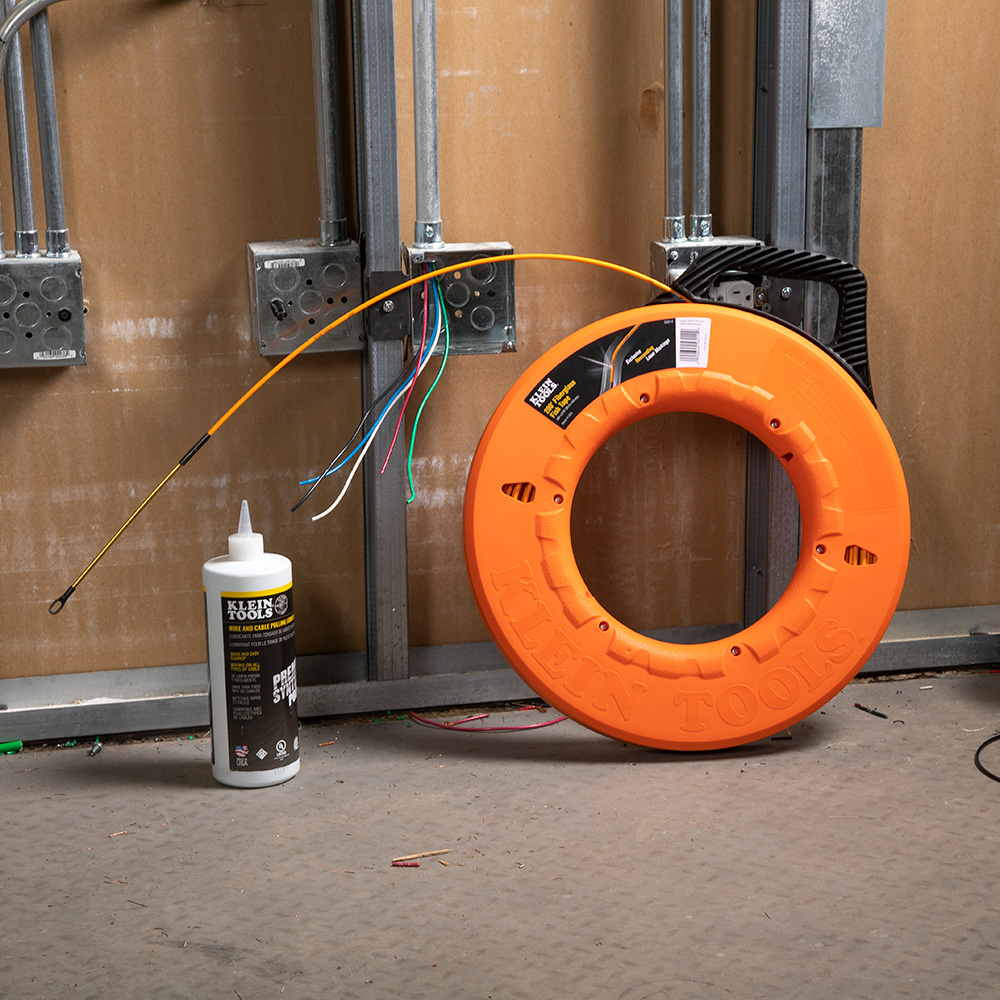

• Non-conductive, fiberglass fish tape slides easily over existing wires and through multiple bends

Specifications

• Material: Fiberglass
• Diameter (cm): 43.2
• Weight (kg): 2.8
• Weight (lb): 6.2
• Depth: 20.5000 in
• Weight: 6.2000 lbs
• Height: 2.0000 in
• Width: 2.5000 in
• Tape End: Spiral Steel Leader
• Tape Size: 200' x 3/16" (60.96 m x 0.5 cm)
• Diameter (Inch): 17
