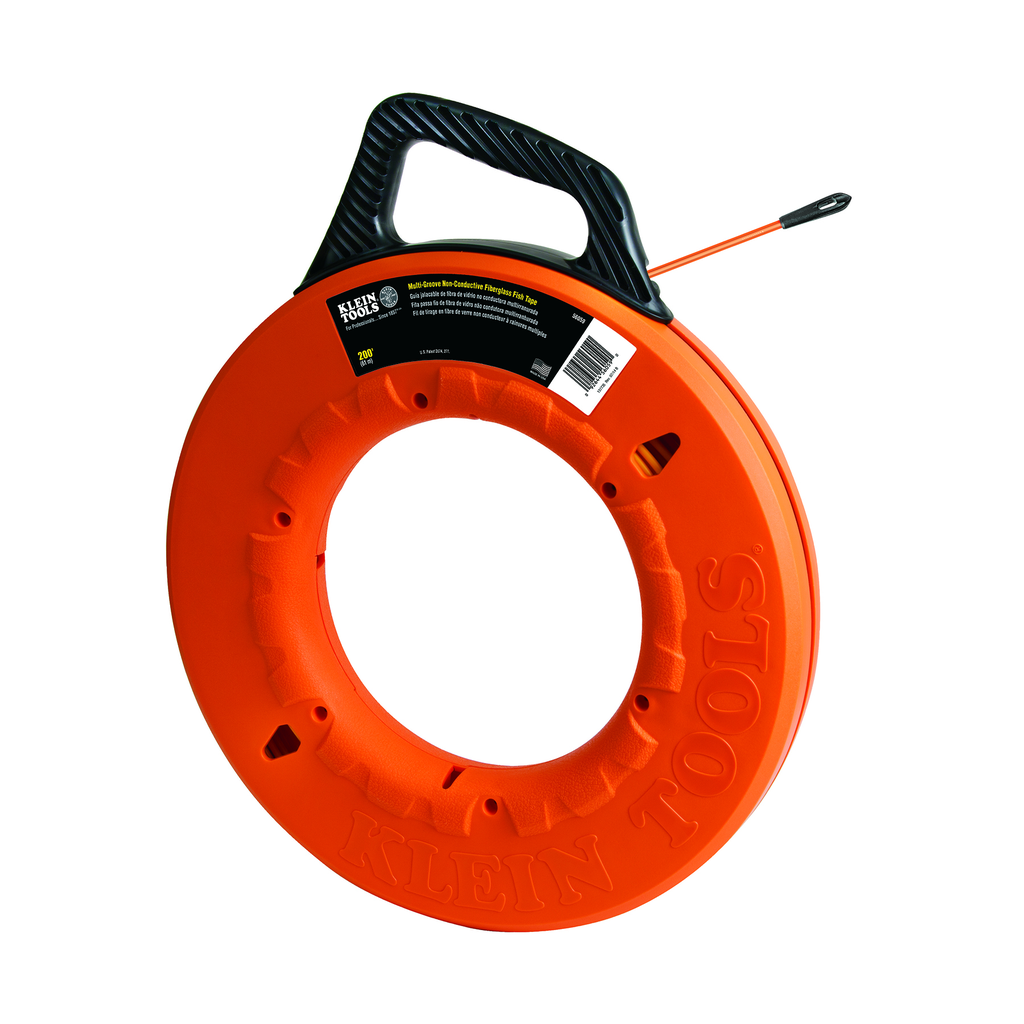

Multi-Groove Fiberglass Fish Tape with Non-Conductive Leader, 200-Foot

Klein Tools' Multi-Groove Fiberglass Fish Tapes feature a low-friction, easy feed design. The grooved profile and fiberglass core provide rigidity for long distances and less surface contact with wires when pushing through crowded conduit. The non-conductive fish tape and non-conductive eyelet tip offer added protection against shock from energized sources.

Features

• Non-conductive fish tape and eyelet tip offer added protection against shock from energized sources

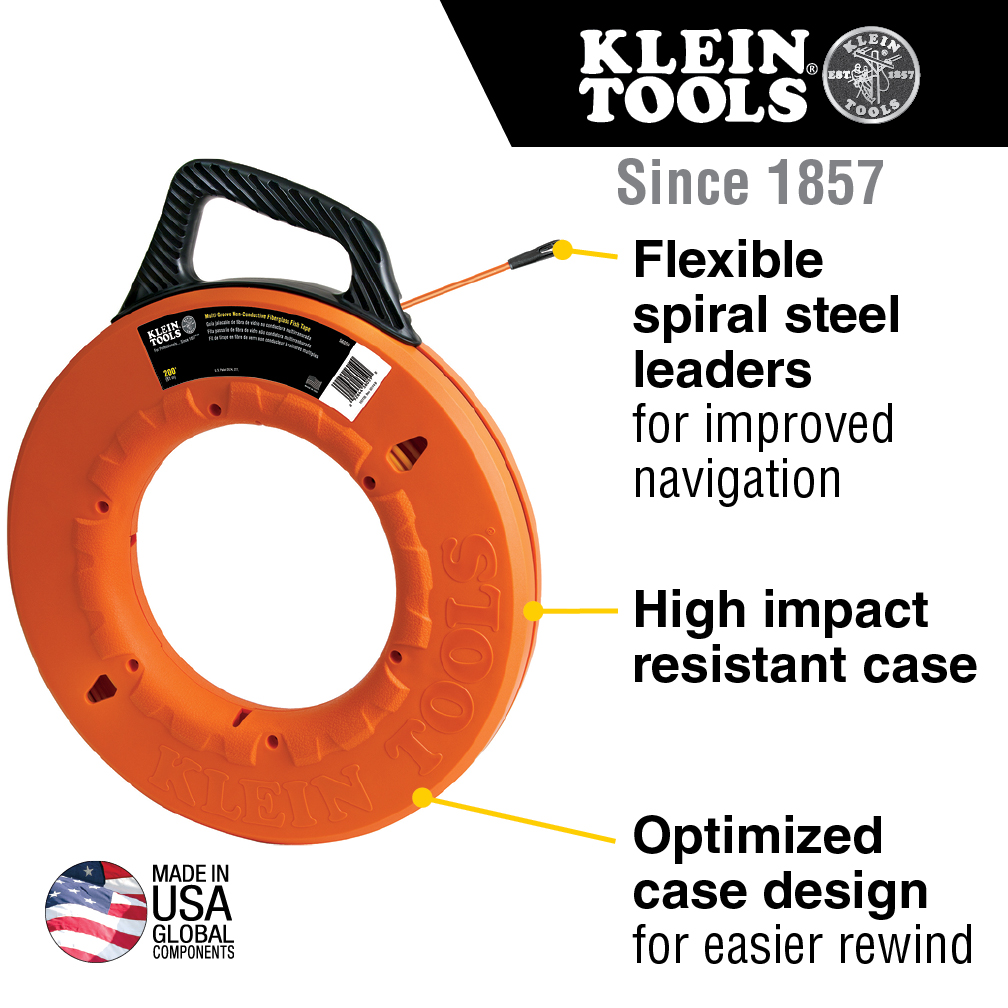

• The unique sloped handle optimizes the position of your hand for quick hand-over-hand rewinds and allows a more level payout of tape on the backswing while feeding conduit
• The 17-Inch case diameter means you can reel in 10-percent more tape in a single revolution vs. a 16-Inch case
• Raised fingergrips help transfer 100-percent of the winding power from your hand and fingers
• Made in USA

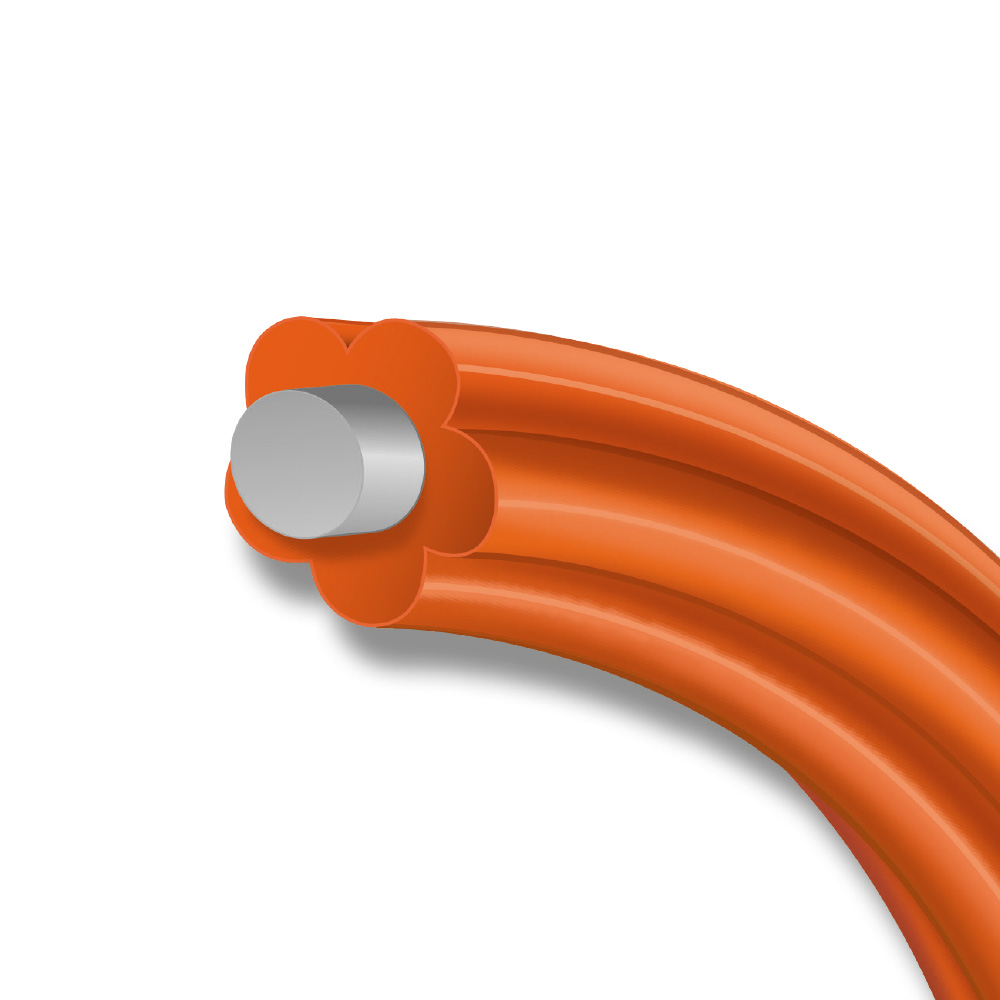

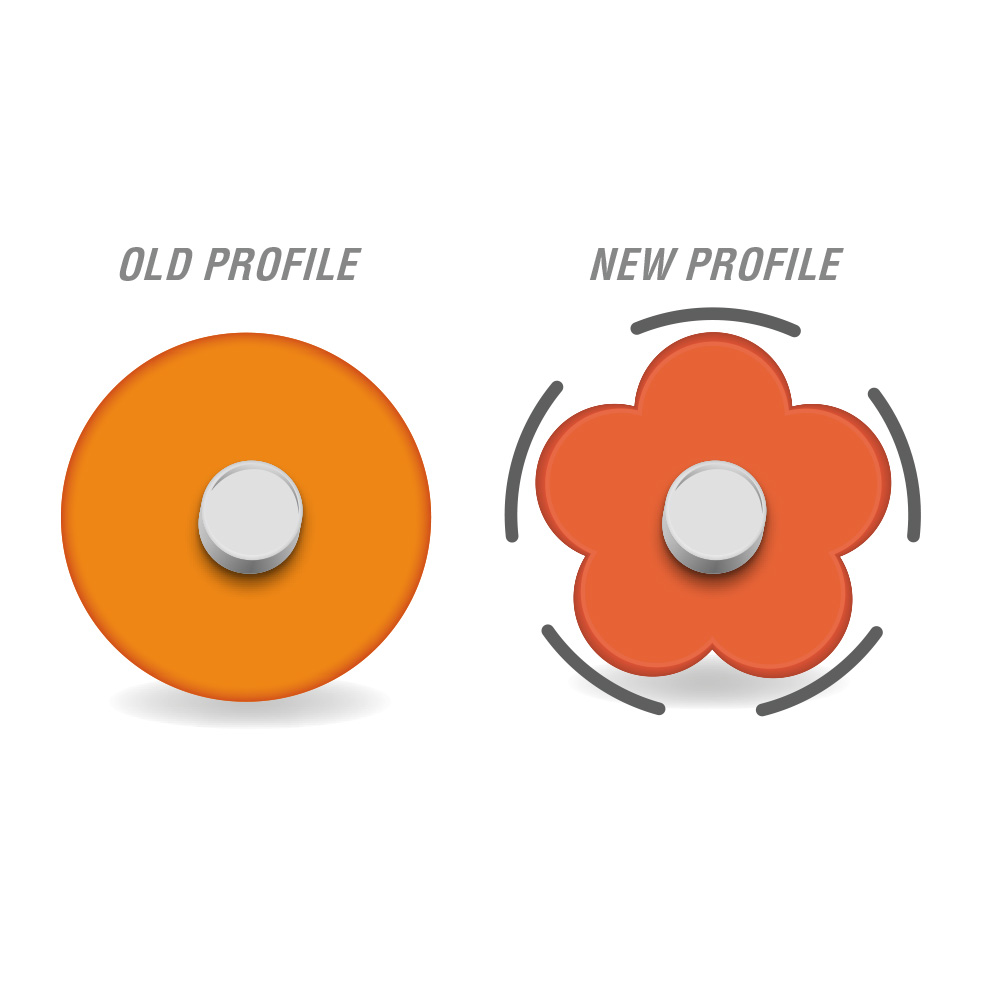

• Multiple grooves molded into the fish tape provides less friction in conduit with or without wires for smoother tape feeding

Warnings

• Use a safe work position to avoid loss of balance when using fish tape.
• Do NOT pull a fiberglass fish tape with any type of mechanical fish-tape puller. A mechanical puller will severely damage the tape, and could lead to personal injury.
• Never remove screws while fish tape is coiled inside reel.
• Wear approved eye protection when feeding, pulling or rewinding fish tape.

Specifications

• Weight (lb): 6
• Tape Size: 200' x 3/16" (61.0 m x 0.5 cm)
• Overall Width (Inch): 0.188
• Width: 0.1880 in
• Diameter (Inch): 17
• Overall Width (cm): 0.5
• Material: Fiberglass

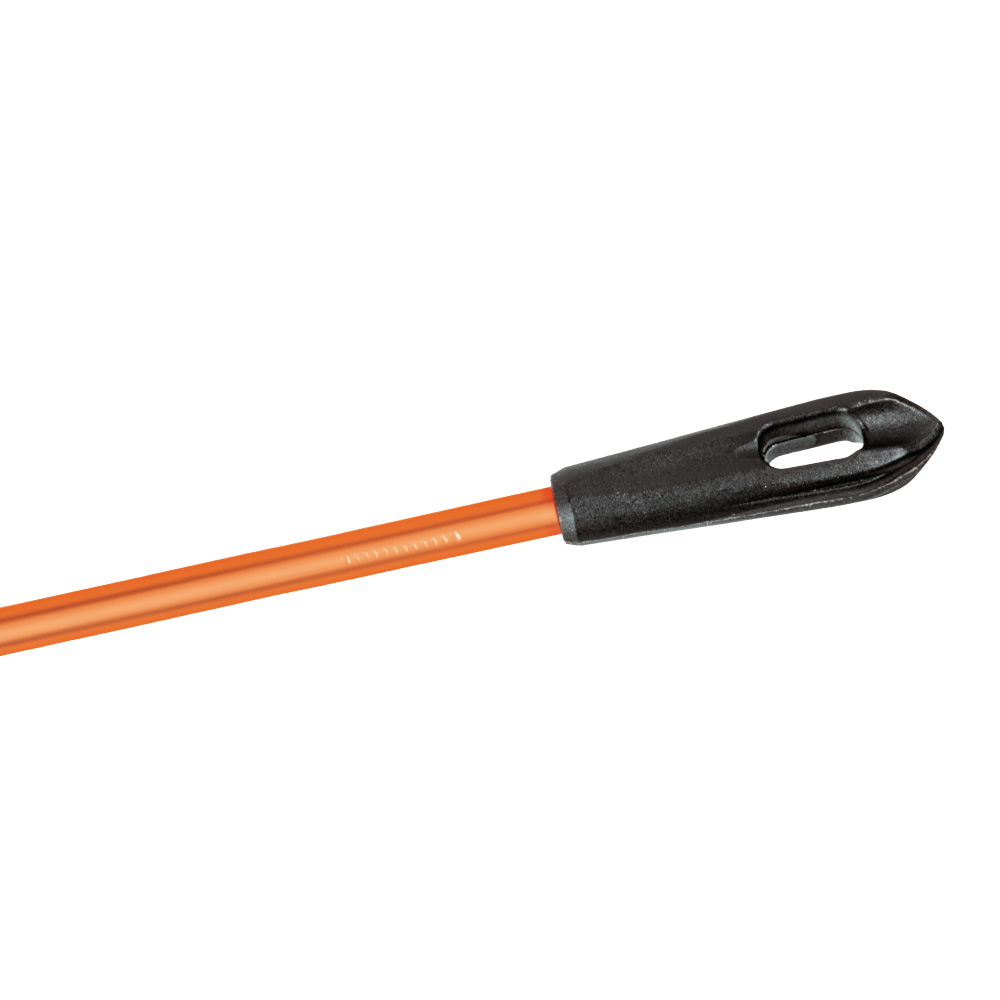

• Tape End: Non-Conductive Nylon Eyelet
• Weight (kg): 2.7
• Diameter (cm): 43.2
• Height: 17.0000 in
• Depth: 21.0000 in
• Weight: 6.0400 lbs
