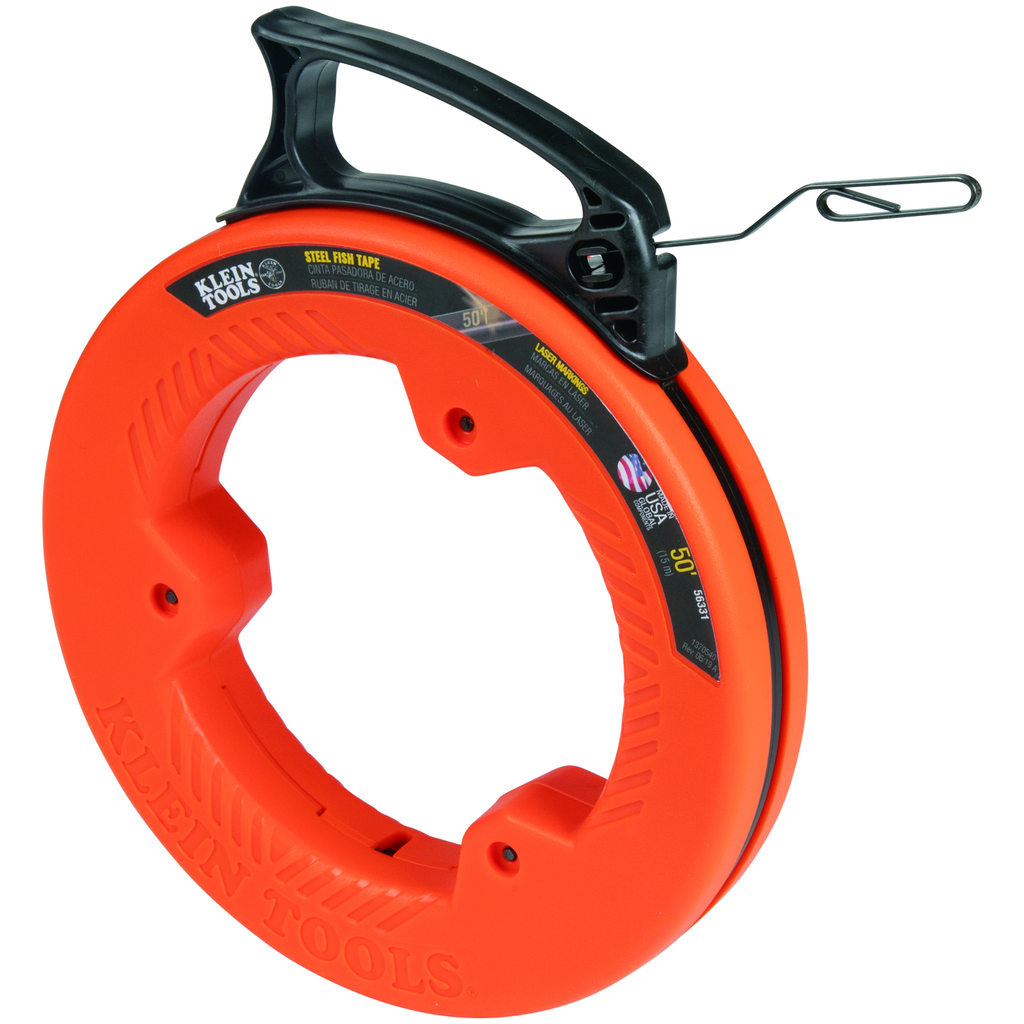

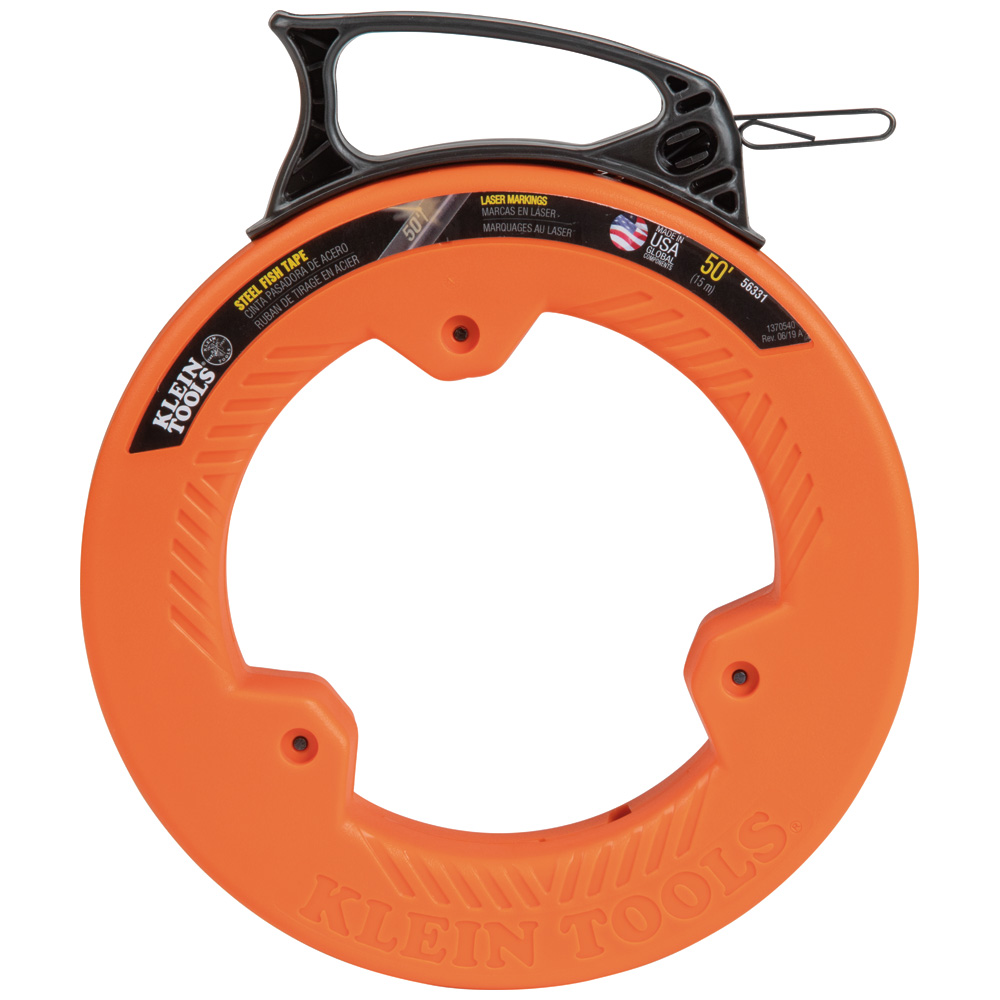

Steel Fish Tape, 1/8-Inch x 50-Foot

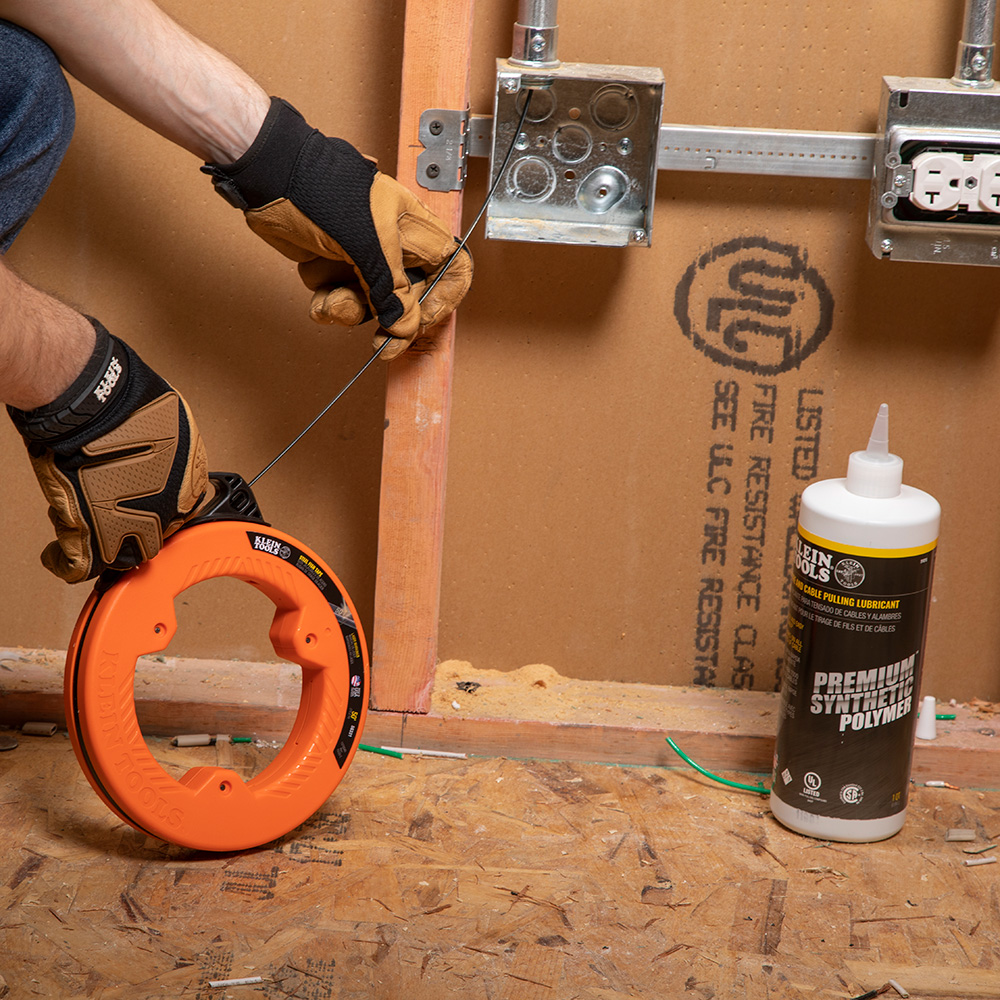

The Klein Tools' 50-Foot Steel Fish Tape is perfect for wire runs associated with light commercial, residential and voice-data-video installations. The optimized housing and handle design decreases payout effort and reduces binding. The large handle allows for a firm, steady grip as you pull the tape from the housing. The tape features laser-etched descending markings placed at every foot. These markings allow you to accurately measure the depth of conduit runs and determine the amount of tape left to pay out.

Warnings

• Wear approved eye protection when feeding, pulling or rewinding fish tape.
• Never remove screws while fish tape is coiled inside reel.
• Use a safe work position to avoid loss of balance when using fish tape.

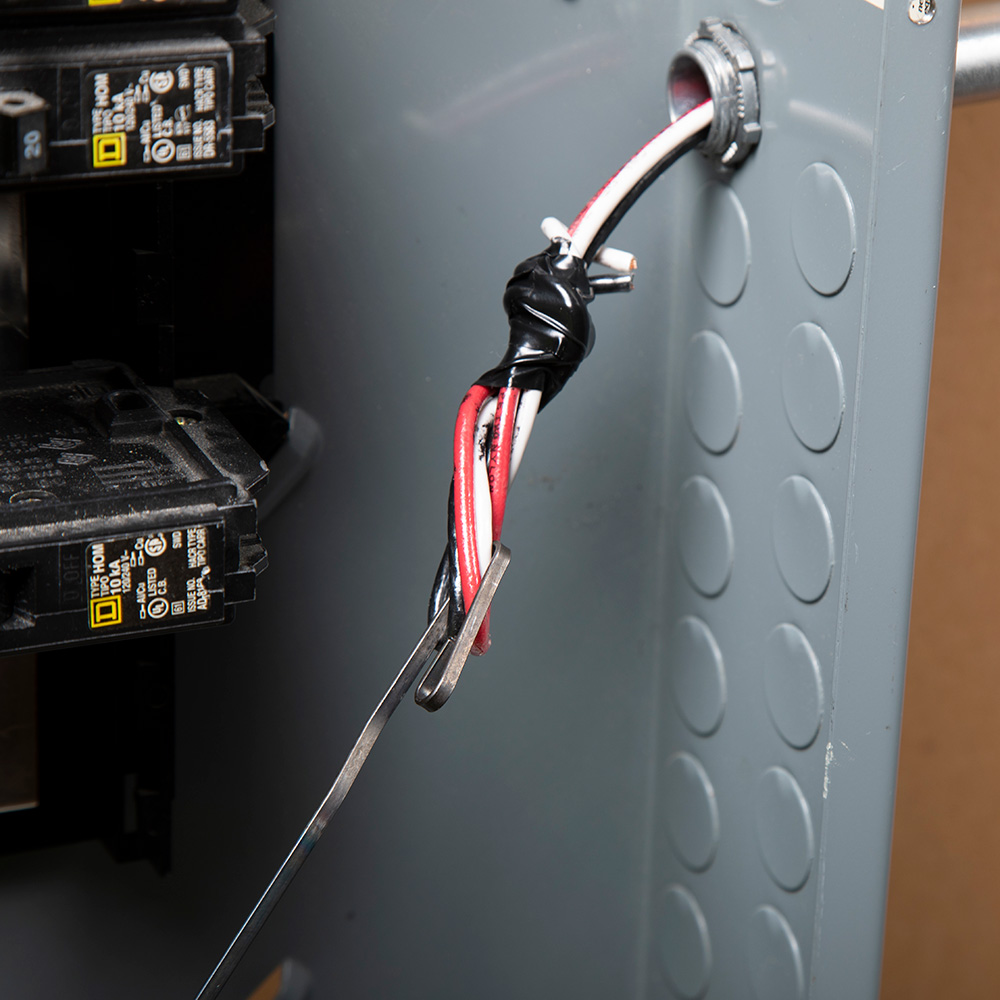

• Never form pulling loop into a single loop (into shape of a fish hook) or create a sharp edge that could cause fish tape to catch on other objects or cut into insulation of surrounding wires. Pulling loop should only be formed into a double loop.
• Do NOT use any fish tape on or near live circuits. Use extreme caution when working near any electrical equipment.

Features

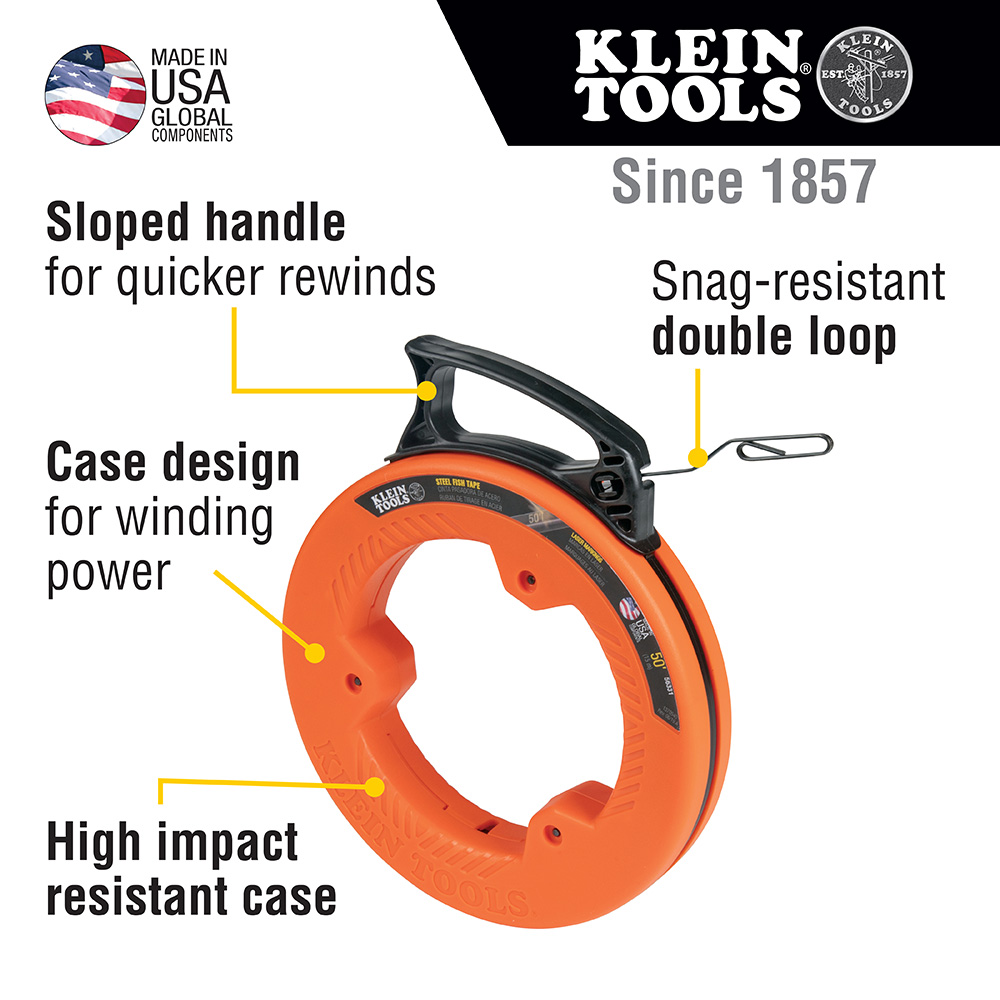

• Optimized Housing Design
• Polypropylene case and handle offer high impact resistance
• U.S. Patents: 8164025; 8168921; 8212178; 9895773; 10099316
• Descending laser etched markings in 1-Foot (0.3 m) increments
• Optimized design of the tape housing decreases payout effort; slip-resistant geometry improves winding power
• Easy-to-read distance marks allow you to more accurately measure conduit runs and the amount of tape left to pay out

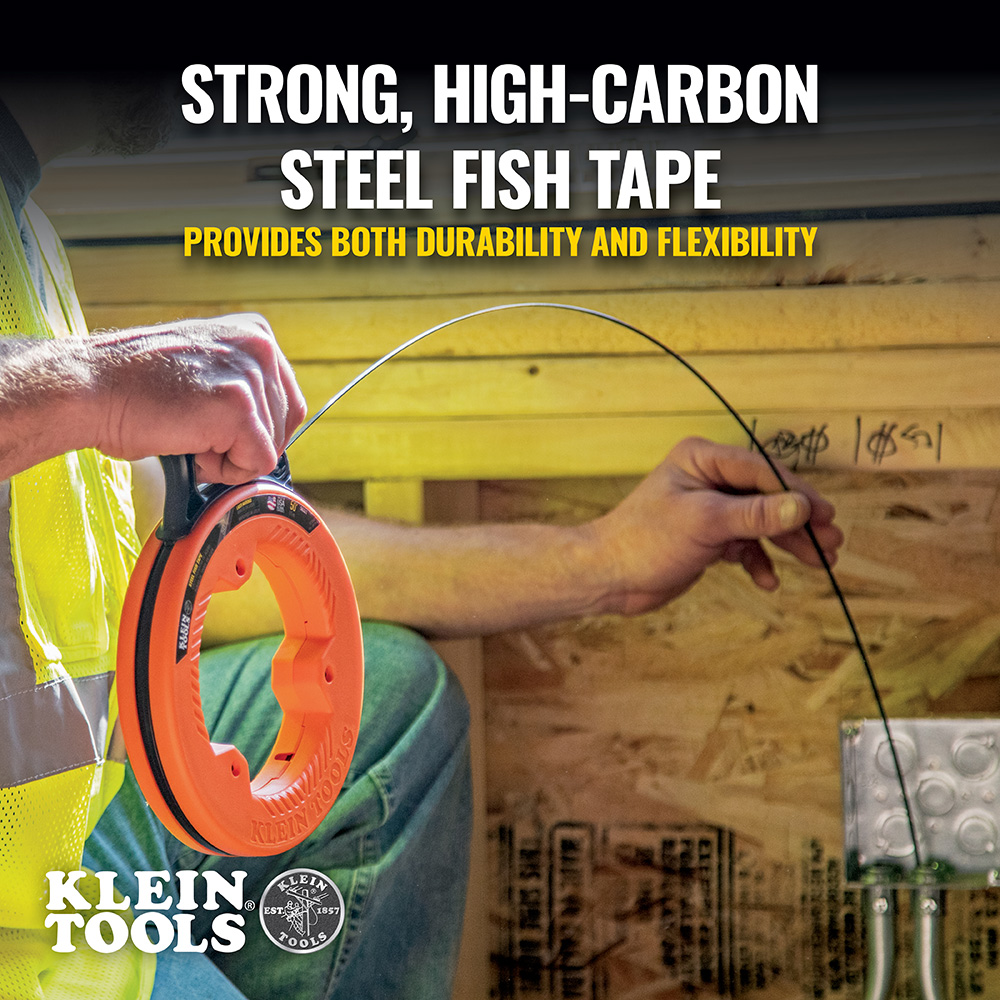

• Durable 1/8-Inch wide steel fish tapes are firm yet flexible for large wire pulls
• Made in the US with Global Components

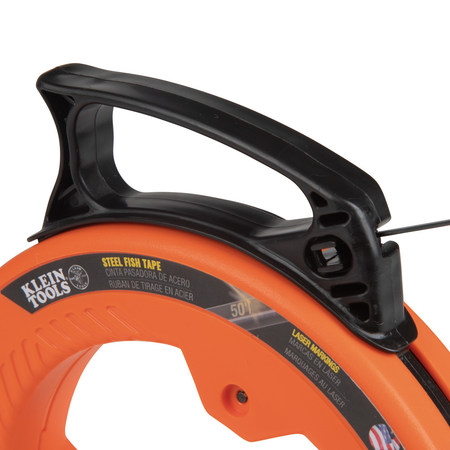

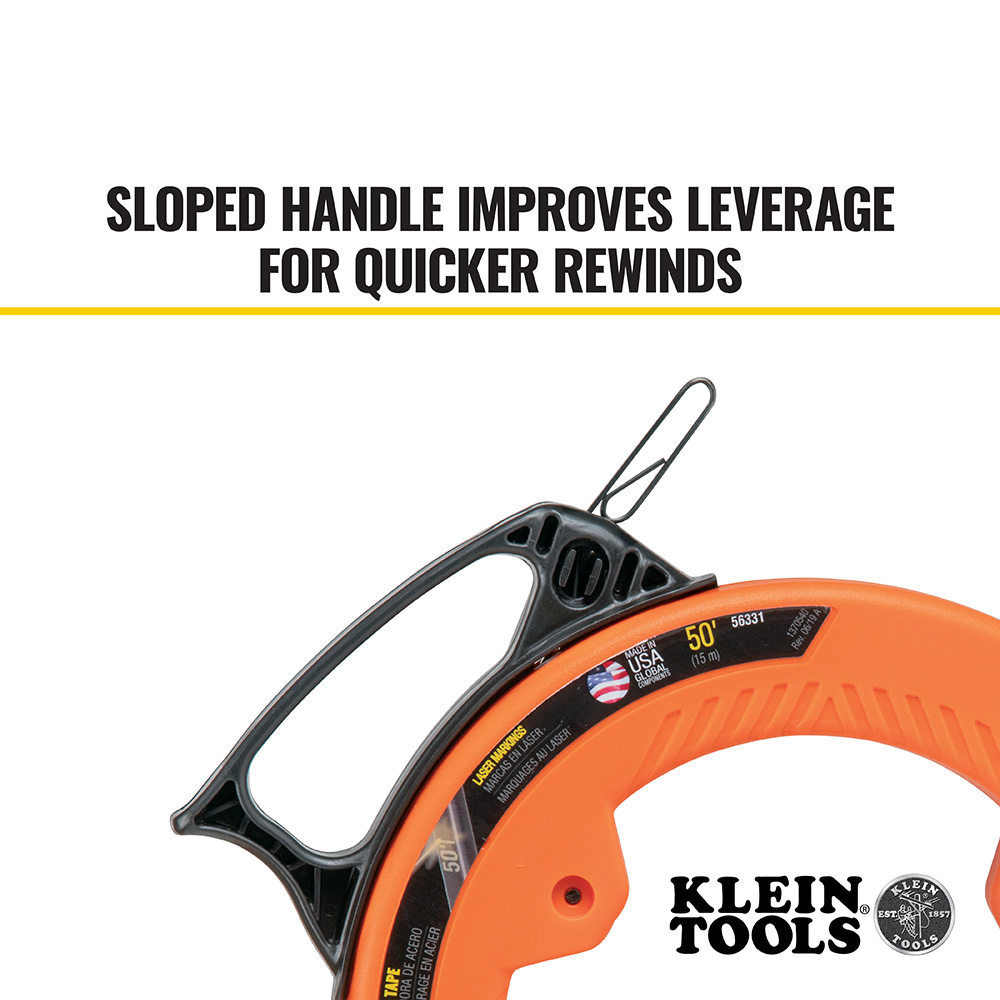

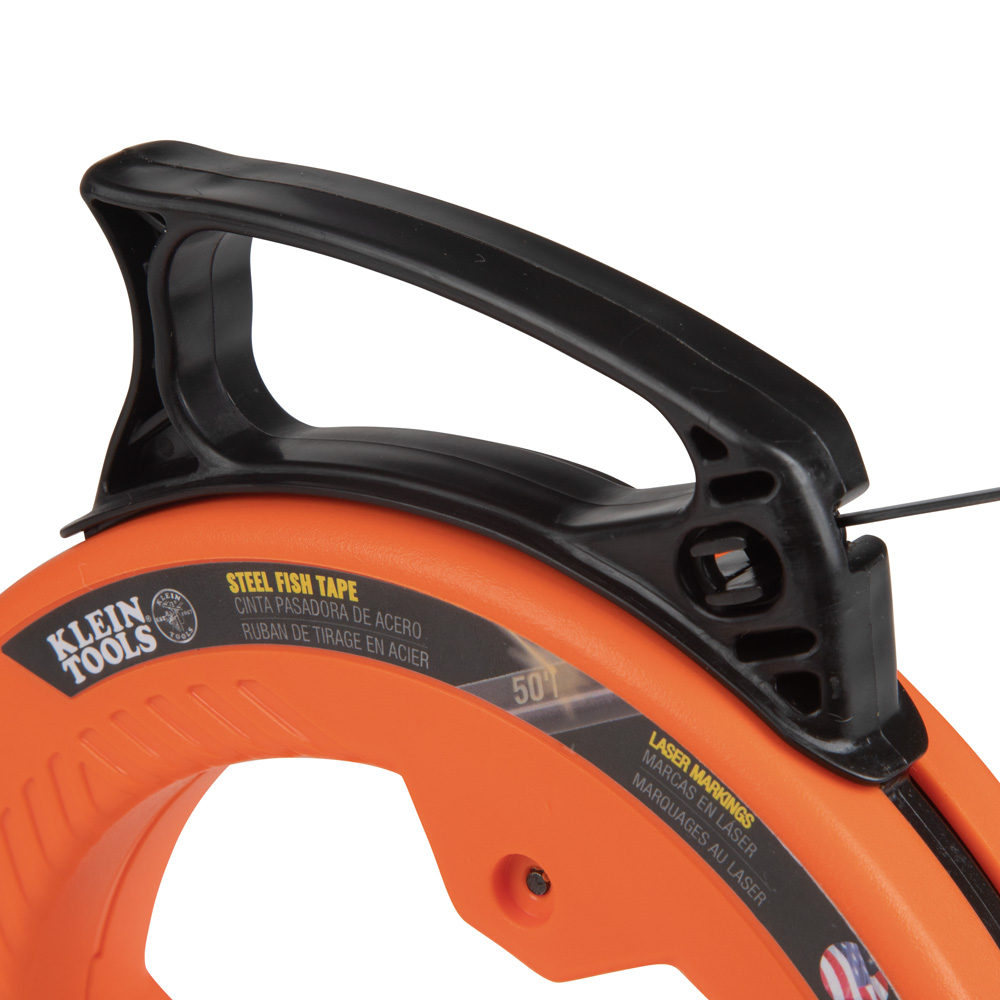

• Multi-position handle gives you a firm, steady grip as you pull tape from the case

Specifications

• Weight (kg): 0.7
• Tape Size: 50.0' x 1/8" x 0.045" (15.2 m x 0.3 cm x 0.1 cm)
• Material: Steel
• Overall Length (Inch): 1.2
• Overall Width (Inch): 7.55
• Type: Steel Fish Tape
• Overall Height (cm): 22.4
• Color: Orange/Black

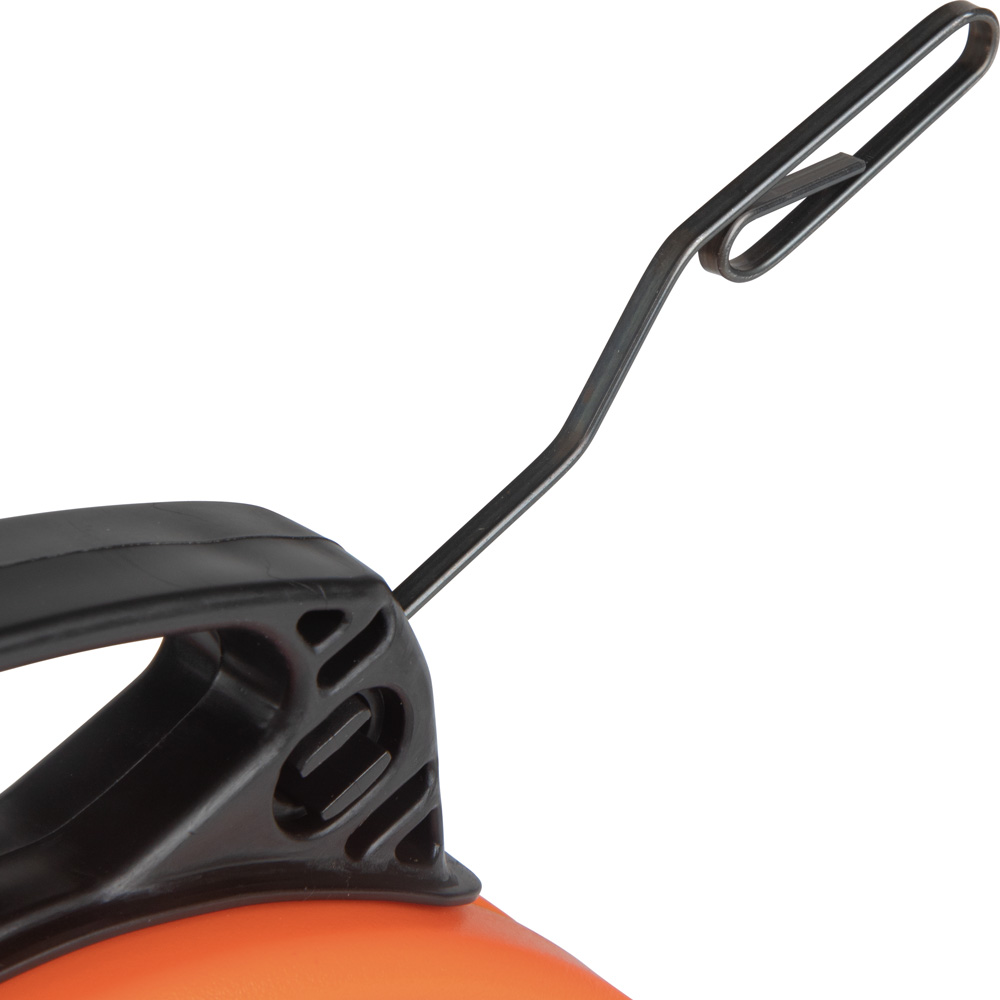

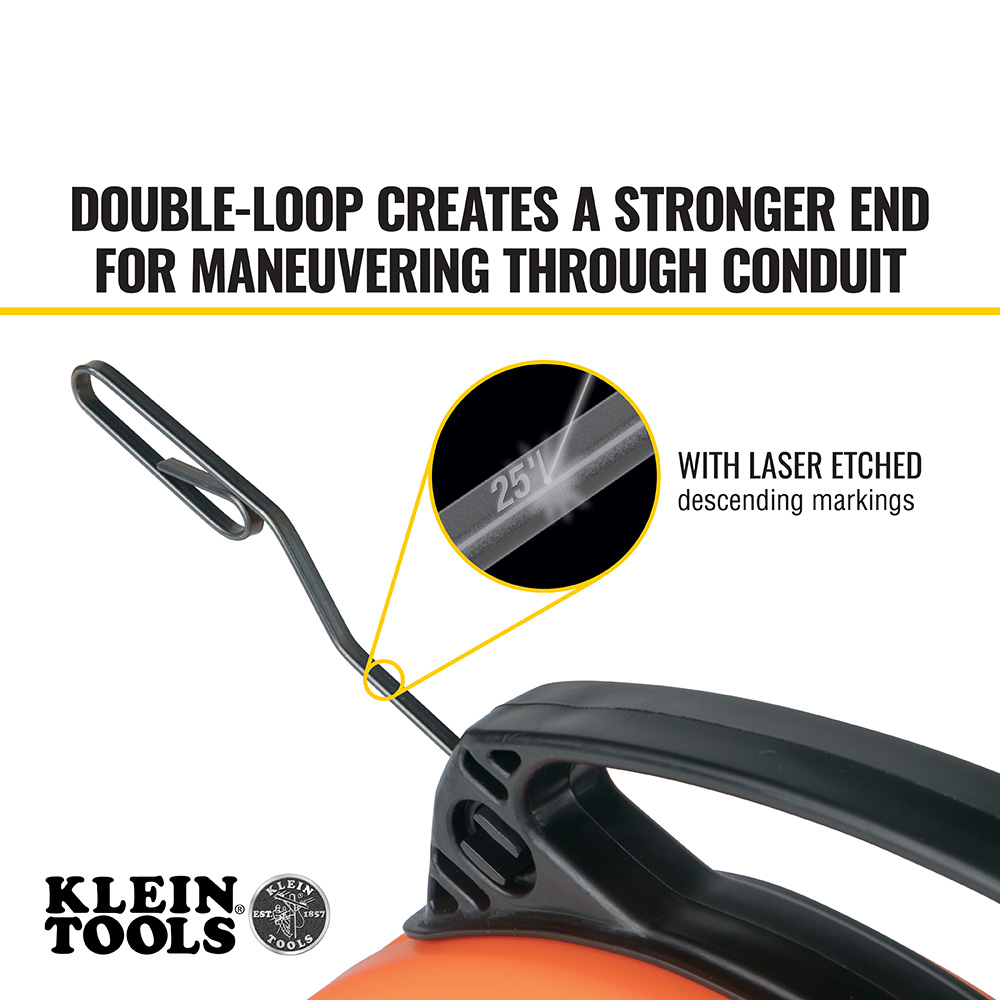

• Tape End: Double Loop Steel
• Height: 8.9000 in
• Depth: 7.5500 in
• Weight: 1.5000 lbs
• Width: 1.2500 in
• Application: Wire Pulling
• Diameter (Inch): 7
• Overall Height (Inch): 8.81
• Overall Width (cm): 19.2
• Weight (lb): 1.5
• Diameter (cm): 17.8
• Overall Length (cm): 3
