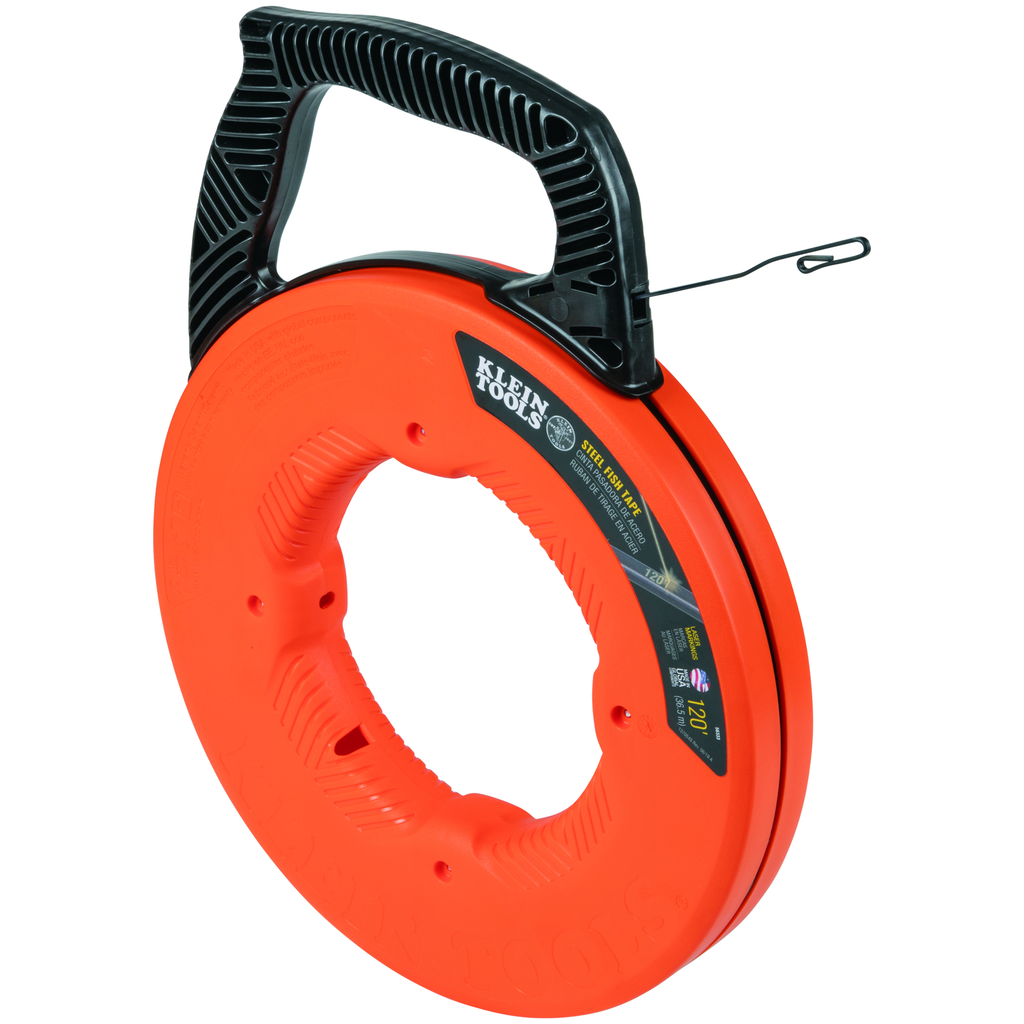

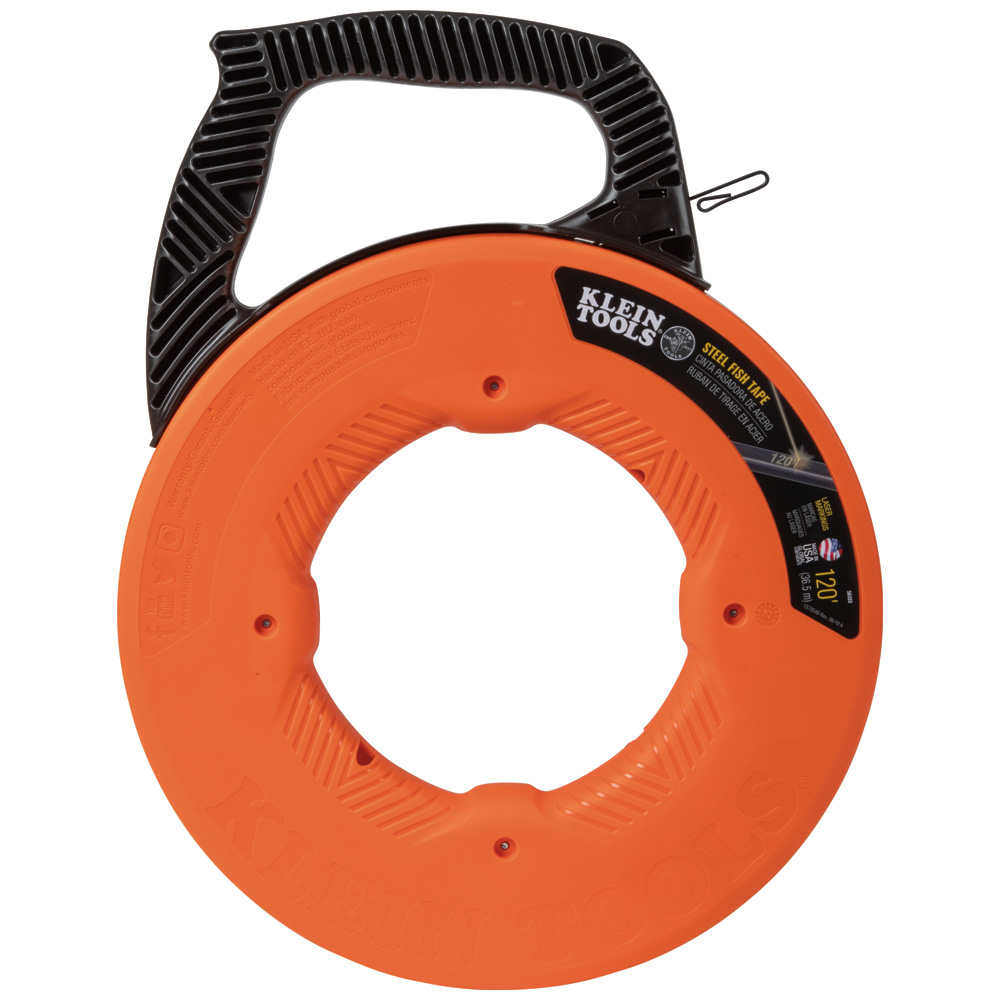

Steel Fish Tape, 1/8-Inch x 120-Foot

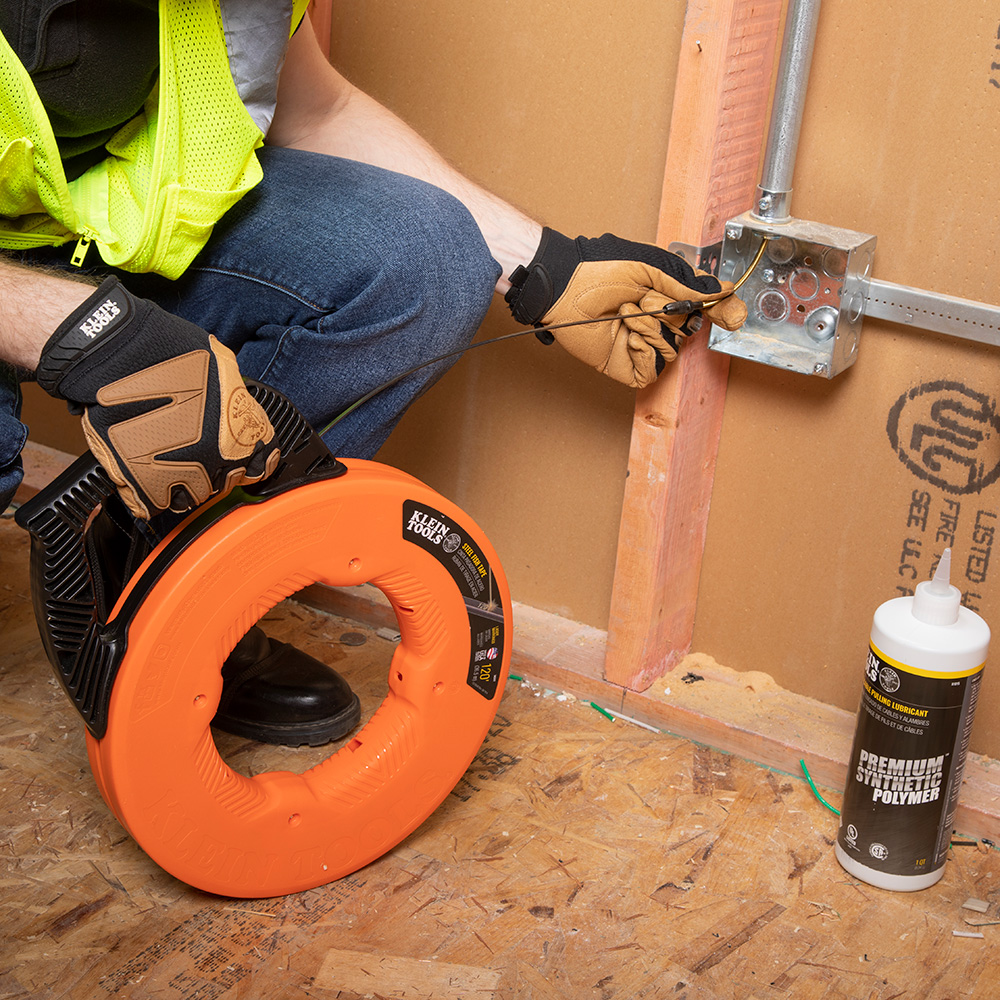

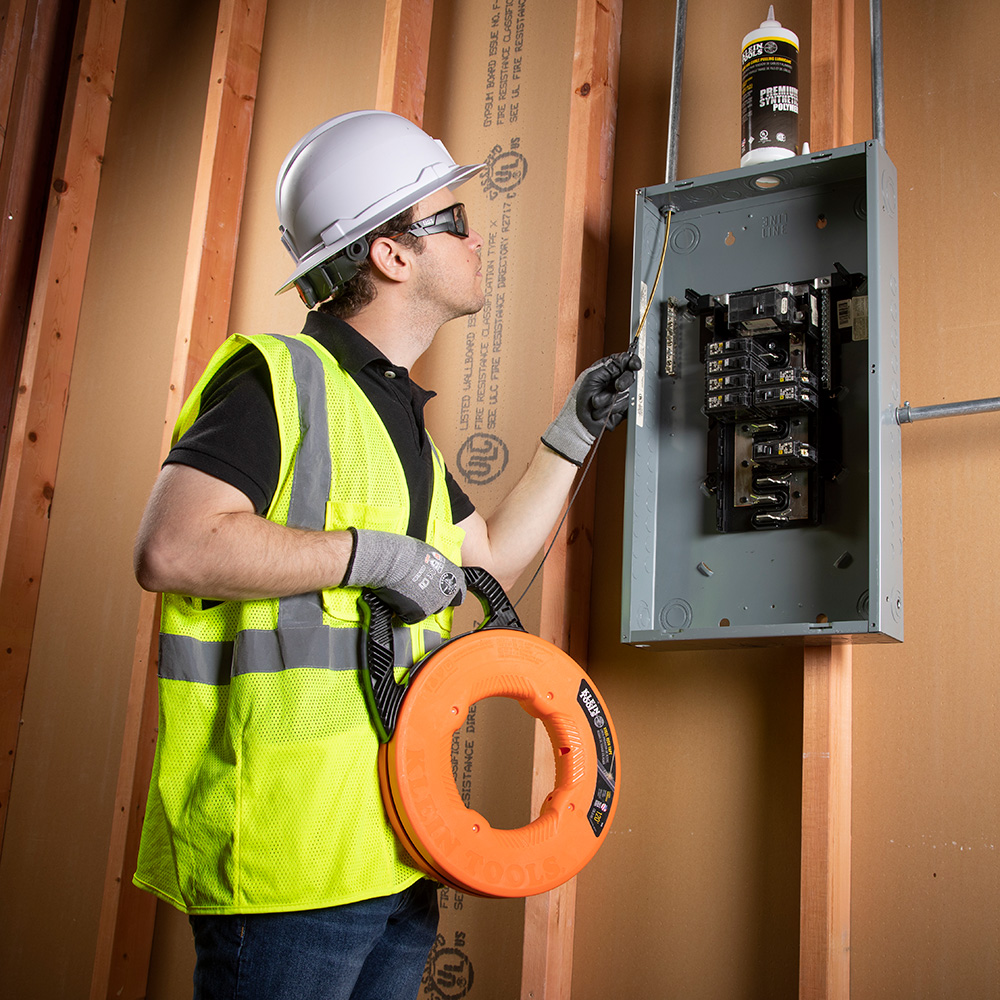

The Klein Tools' 120-Foot, High-Carbon Steel Fish Tape is perfect for wire runs associated with commercial, residential and voice-data-video installations. The optimized housing and handle design decreases payout effort and reduces binding. A multiple-position handle allows for a firm, steady grip as you pull or rewind the tape. The unique interior case shape combines the leverage of square cases and the comfort of round cases, which makes rewinding tape after a long run easier. The tape features laser-etched descending markings placed at every foot. These markings allow you to accurately measure the depth of conduit runs and determine the amount of tape left to pay out.

Features

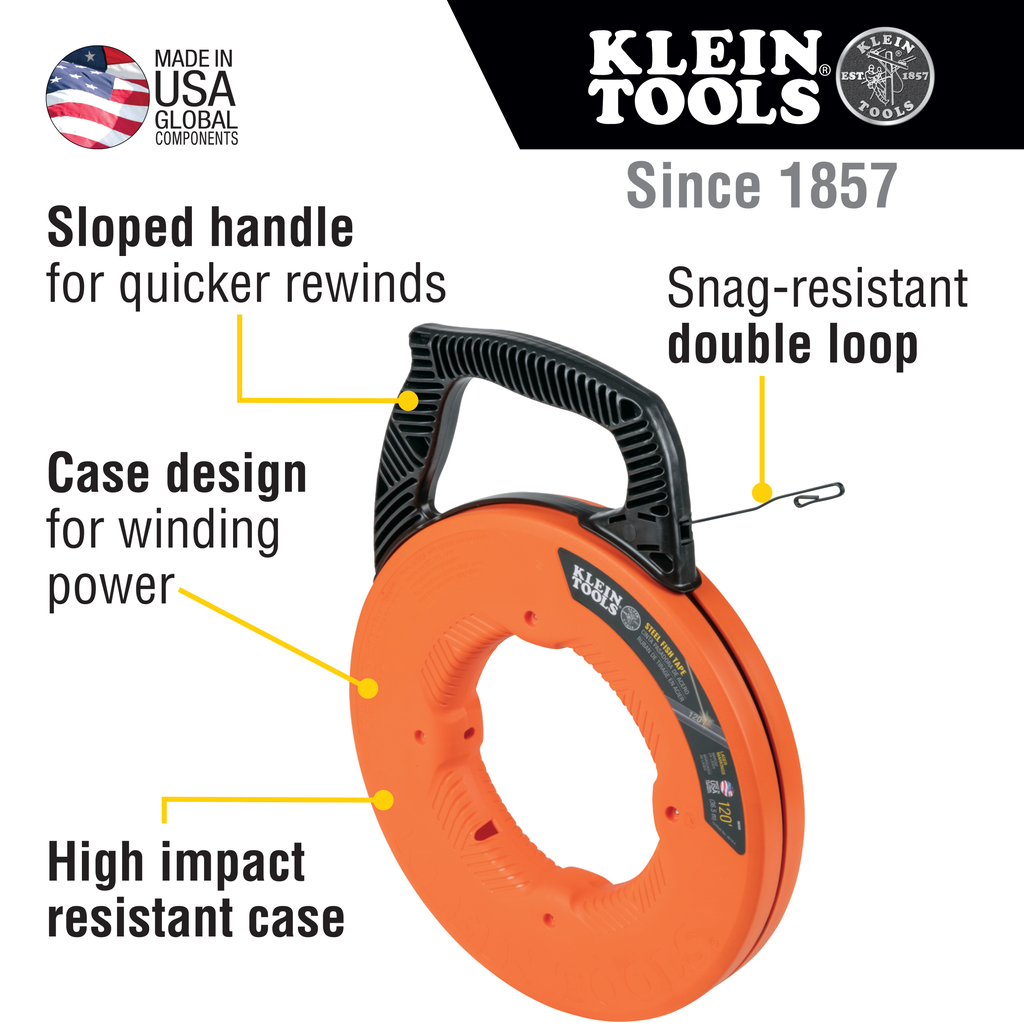

• Slip-resistant housing geometry improves winding power and reduces binding
• Descending laser etched markings in 1-Foot (0.3 m) increments allow you to more accurately measure conduit runs and the amount of tape left to pay out

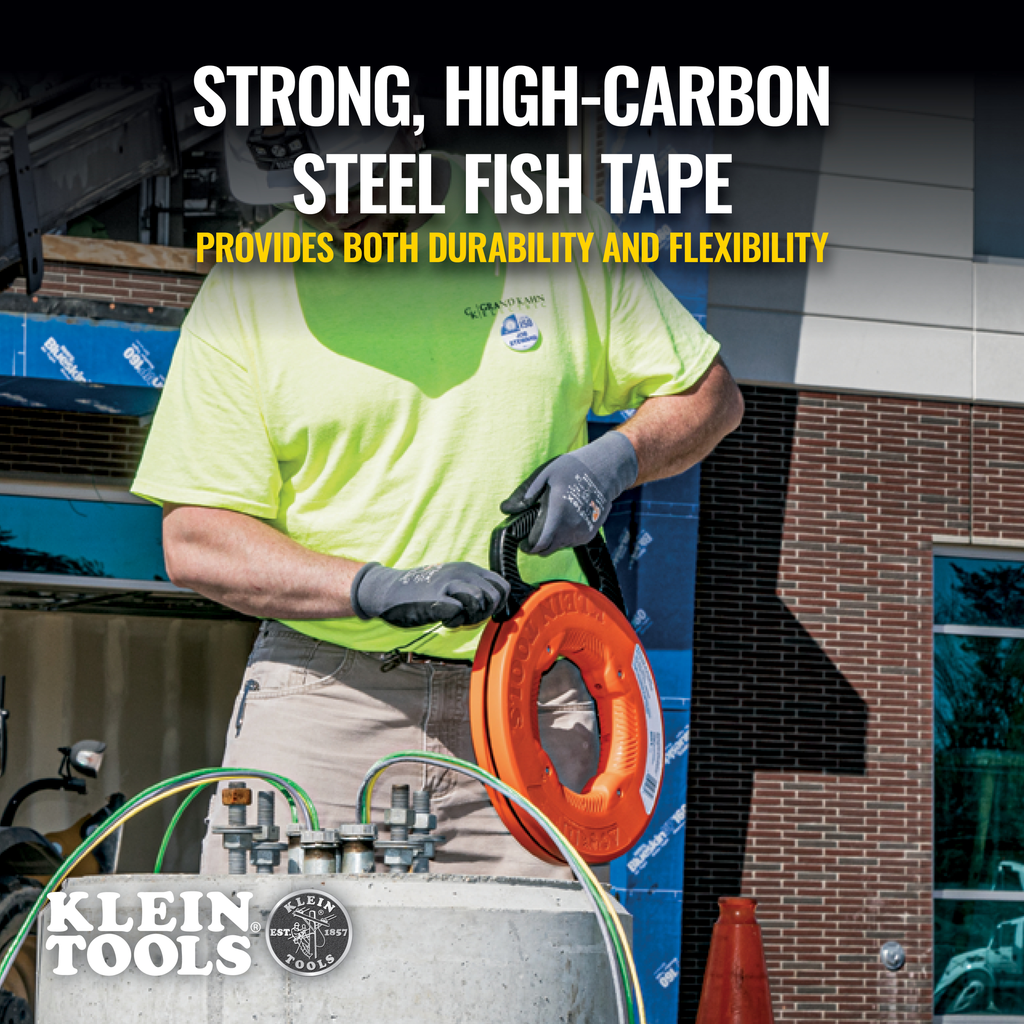

• Durable, high-carbon strength 1/8-Inch wide steel fish tapes are firm yet flexible for long runs and large wire pulls
• Polypropylene case and handle offer high impact resistance
• Case design decreases payout effort and friction by optimizing the tape payout angle

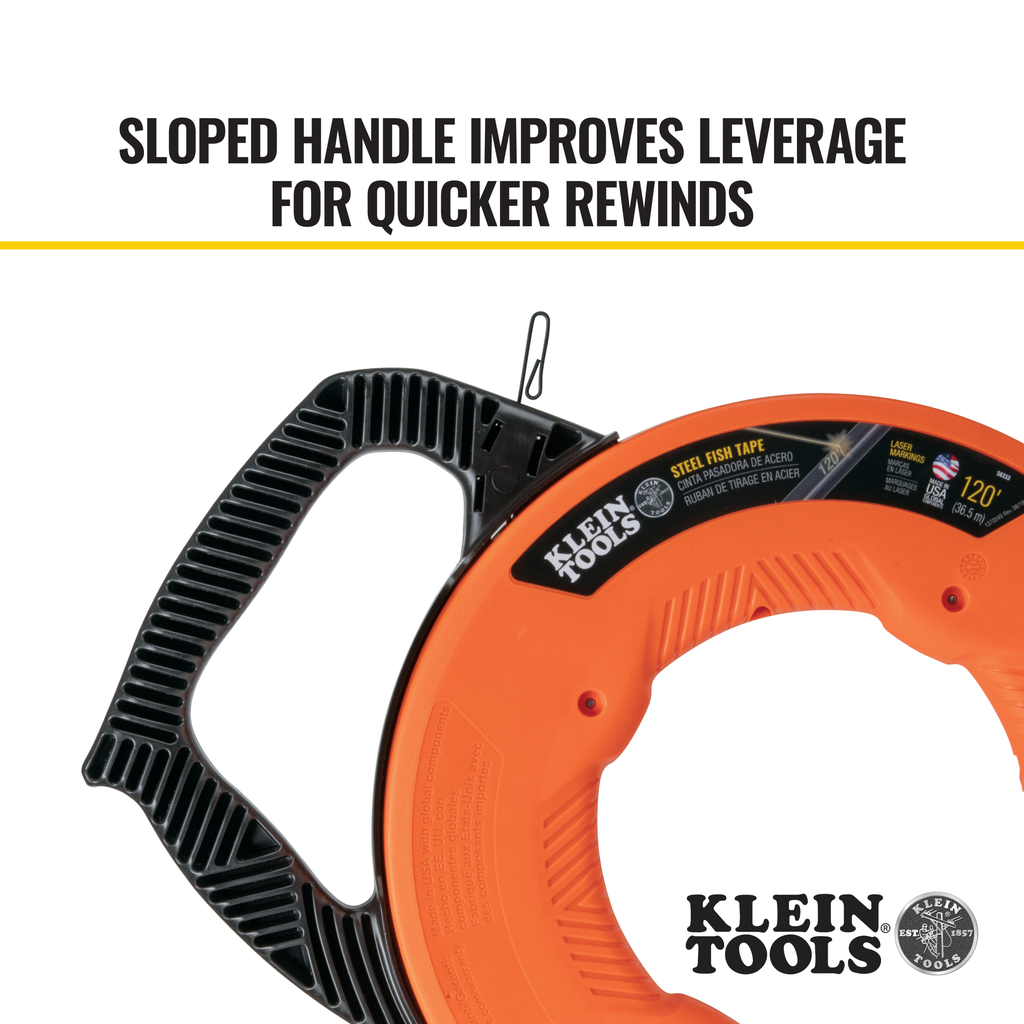

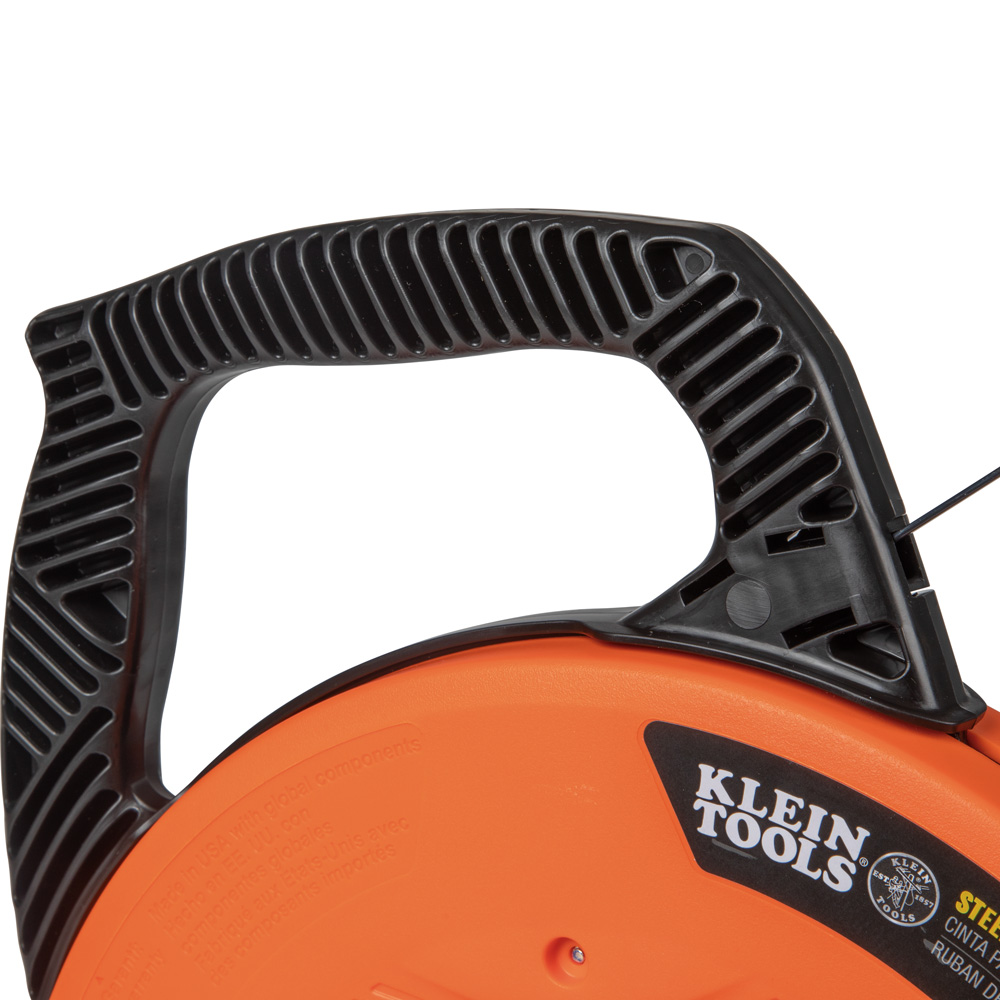

• Multi-position handle gives you a firm, steady grip as you pull or rewind tape from the case
• Optimized Housing Design, High Carbon Steel
• U.S. Patents: 8164025; 8168921; 8212178; 9895773; 10099316
• Protective coating on the steel tape reduces corrosion from non-contact moisture and humidity

Warnings

• Use a safe work position to avoid loss of balance when using fish tape.
• Never form pulling loop into a single loop (into shape of a fish hook) or create a sharp edge that could cause fish tape to catch on other objects or cut into insulation of surrounding wires. Pulling loop should only be formed into a double loop.
• Wear approved eye protection when feeding, pulling or rewinding fish tape.
• Never remove screws while fish tape is coiled inside reel.
• Do NOT use any fish tape on or near live circuits. Use extreme caution when working near any electrical equipment.

Specifications

• Weight (kg): 2.3
• Height: 16.2100 in
• Application: Wire Pulling
• Color: Orange/Black
• Type: Steel Fish Tape
• Overall Width (Inch): 12.35
• Overall Height (Inch): 16.21
• Width: 1.8500 in
• Overall Length (Inch): 1.85
• Overall Height (cm): 41.2
• Tape Size: 120.0' x 1/8" x 0.062" (36.6 m x 0.3 cm x 0.2 cm)

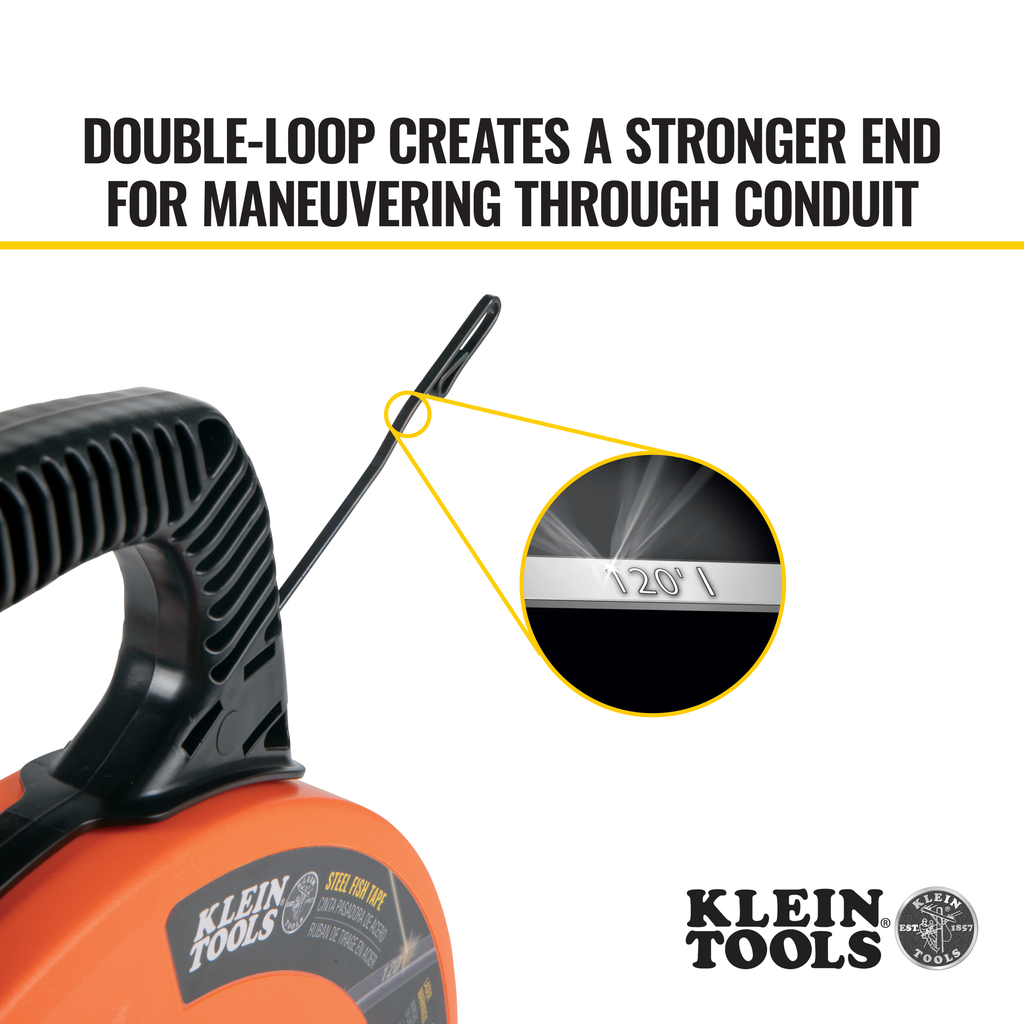

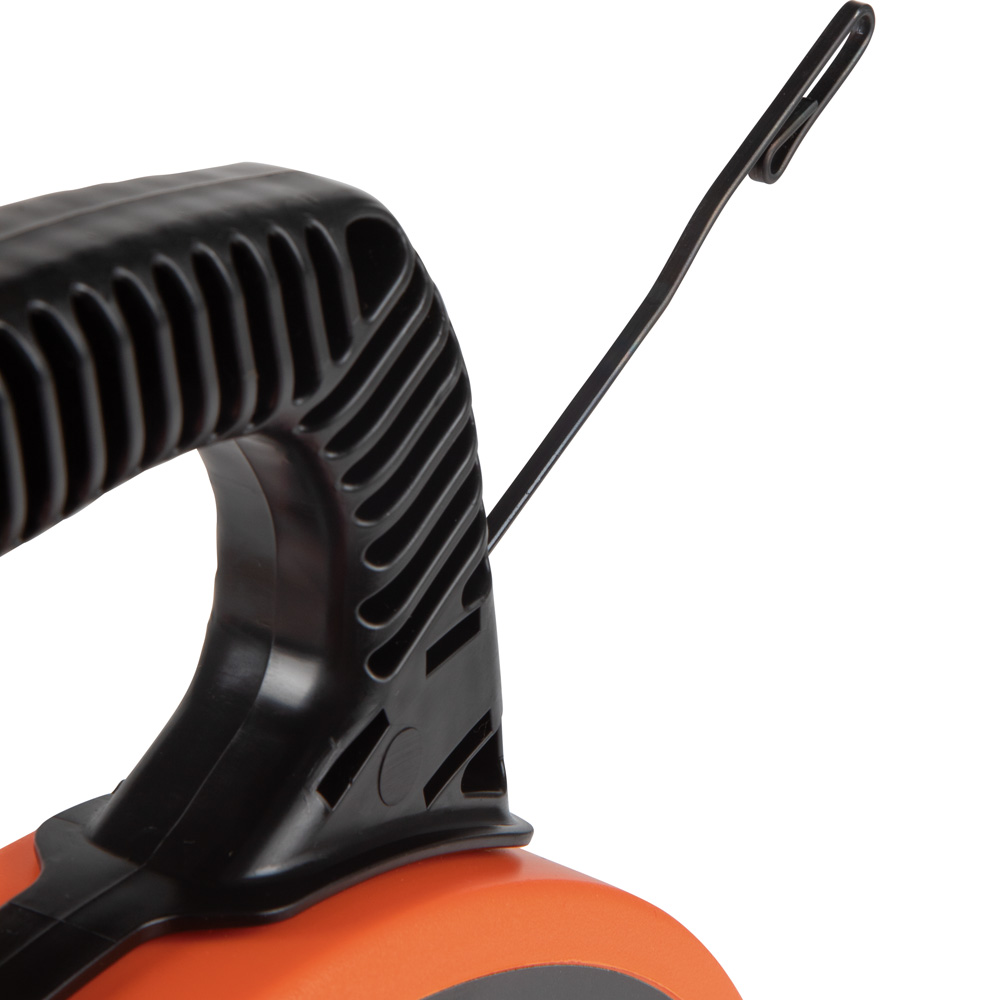

• Tape End: Double Loop Steel
• Depth: 12.3500 in
• Weight (lb): 5
• Diameter (cm): 33
• Material: Steel
• Overall Width (cm): 31.4
• Overall Length (cm): 4.7
• Weight: 4.9600 lbs

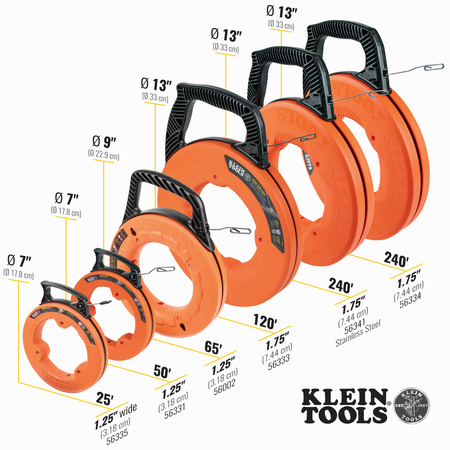

• Diameter (Inch): 13
