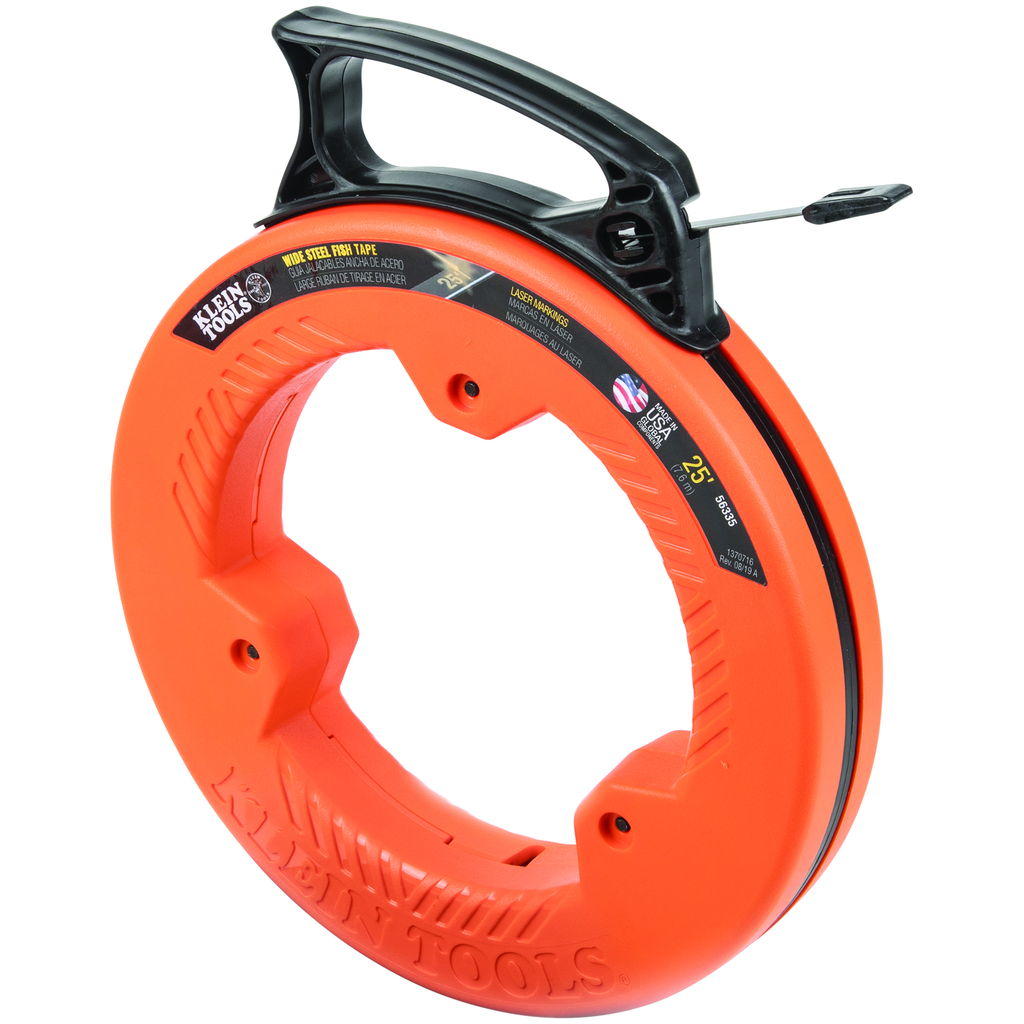

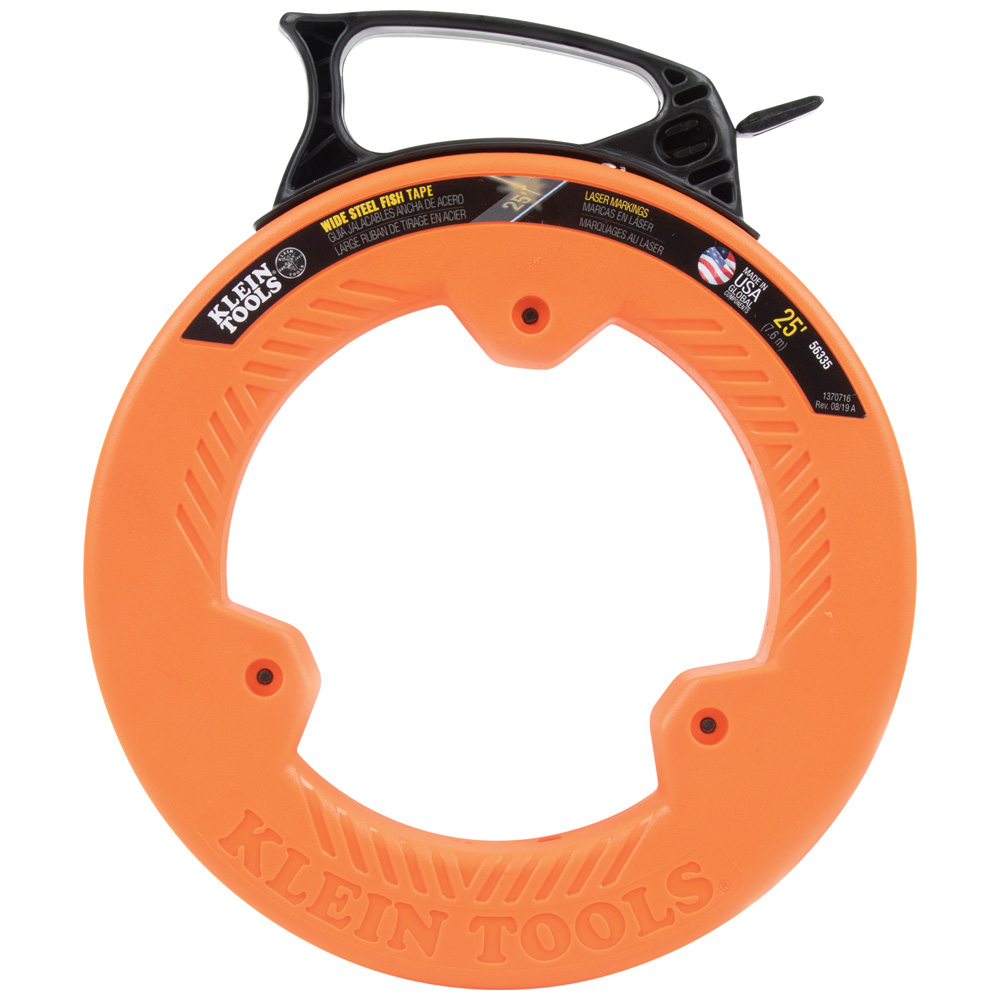

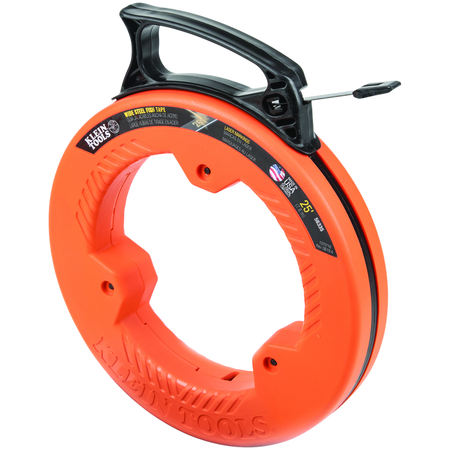

Wide Steel Fish Tape, 1/4-Inch x 25-Foot

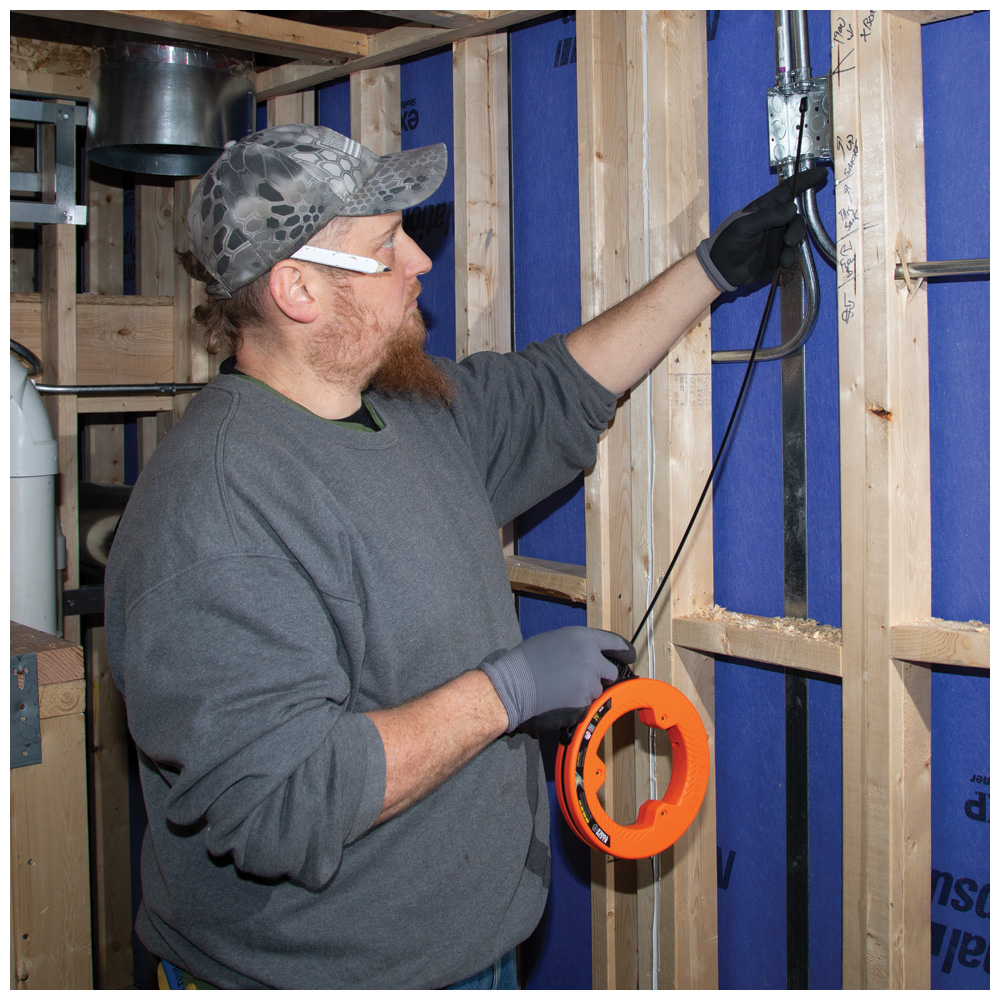

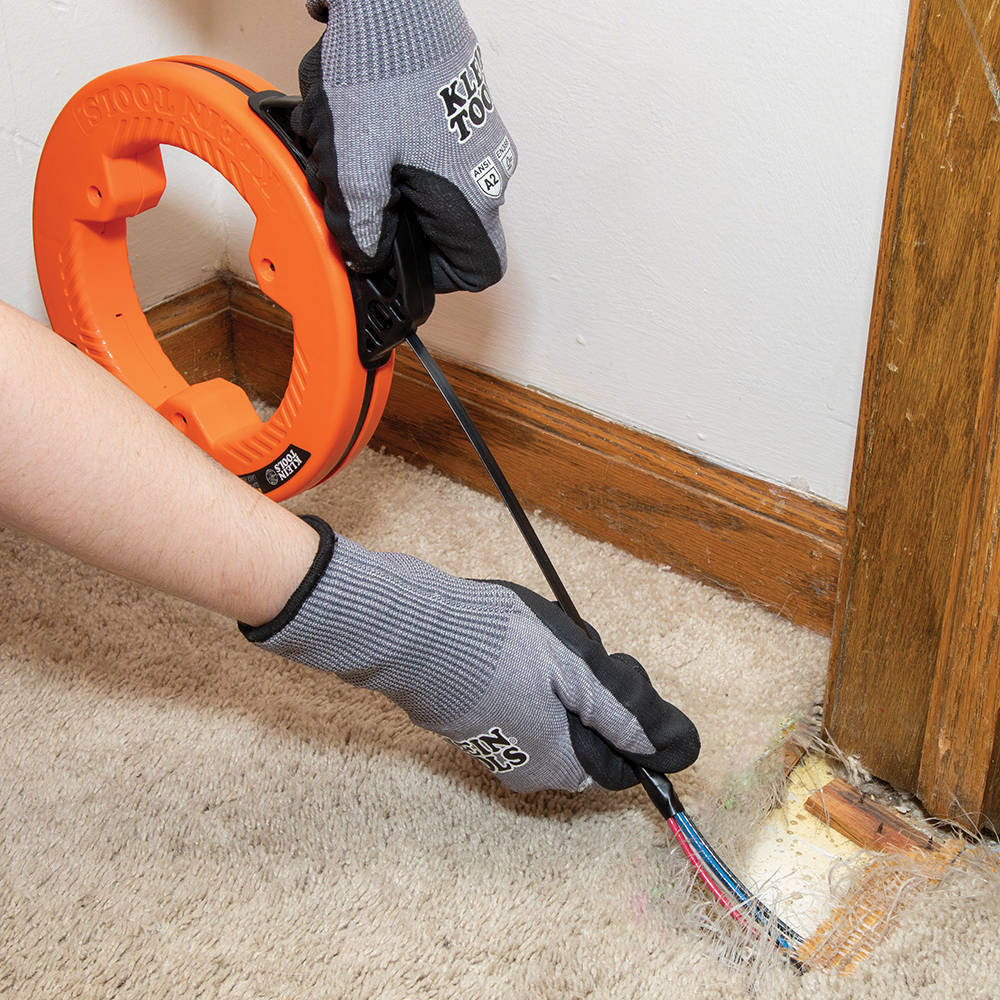

The Klein Tools' Fish Tapes are perfect for wire runs associated with short commercial, residential and VDV runs. The high carbon, coated steel is firm with the right amount of flex when pulling wire in attics, down walls or through small branch circuits. The optimized housing and handle design decreases payout effort and reduces binding.

Features

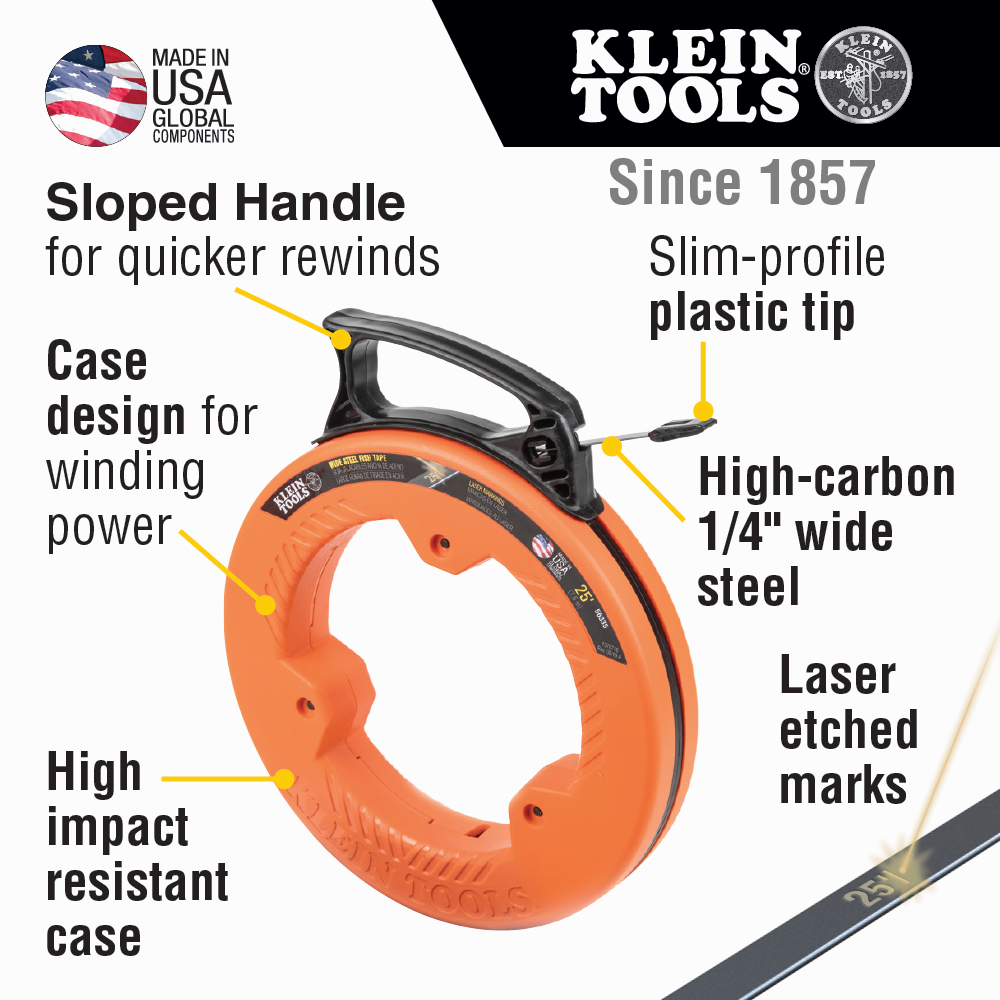

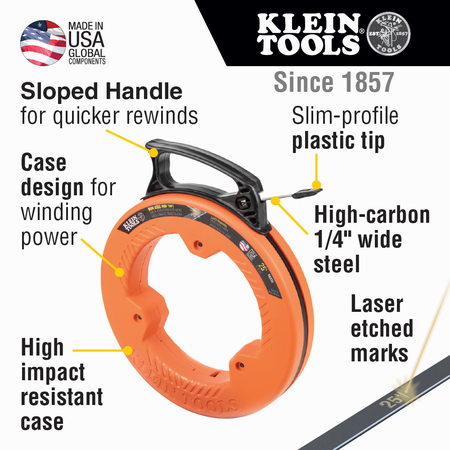

• Optimized design of the tape housing decreases payout effort; compact size makes it a staple for your everyday tool bag
• U.S. Patents: 8164025; 8168921; 8212178; 9895773; 10099316

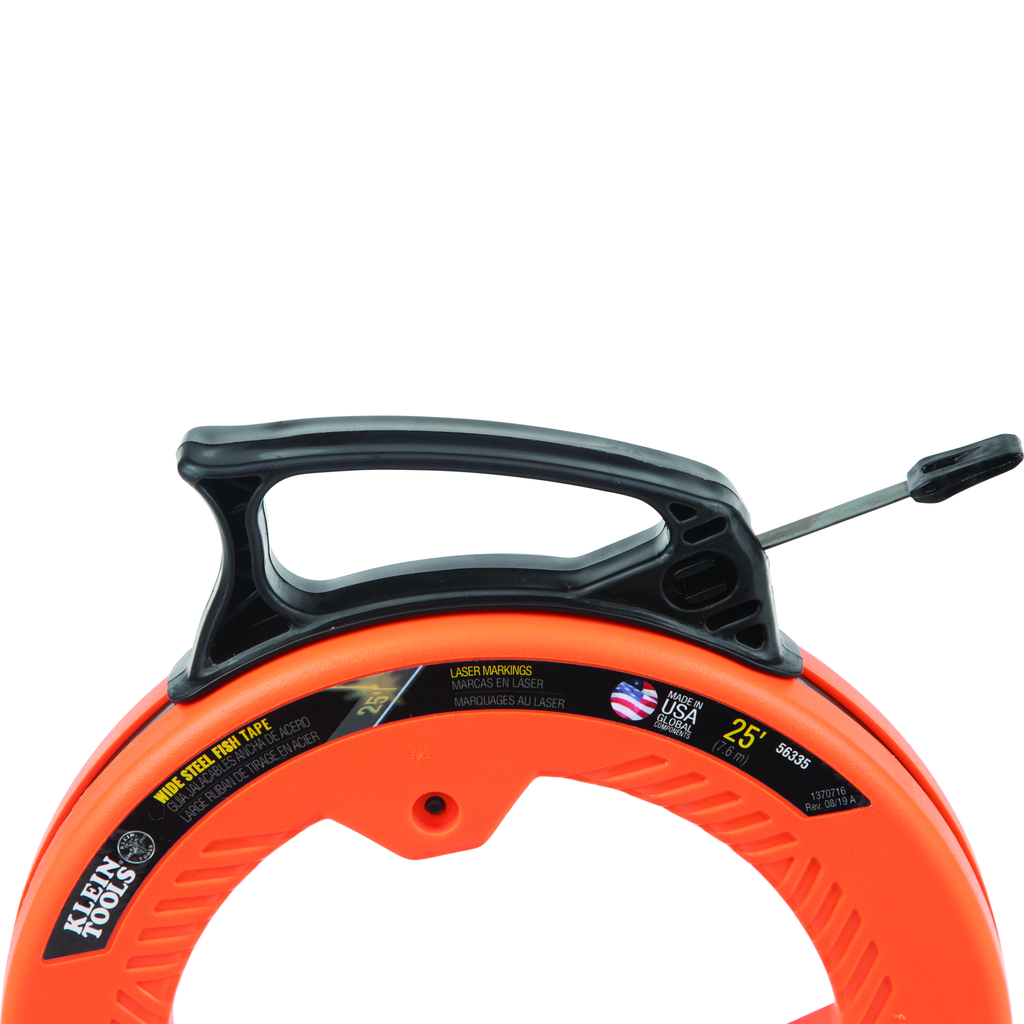

• Laser etched markings in 1-Foot (0.3 m) descending increments allow you to more accurately measure the length of conduit runs and determine the amount of tape left to pay out
• 1/4" Wide Tape; 60 lb Pull Force
• Made in the US with Global Components
• Durable, high carbon 1/4-Inch wide spring steel fish tapes are firm yet flexible
• Case and handle offer the maximum impact resistance
• New protective coating reduces non-contact moisture and humidity but keeps the steel dry to touch

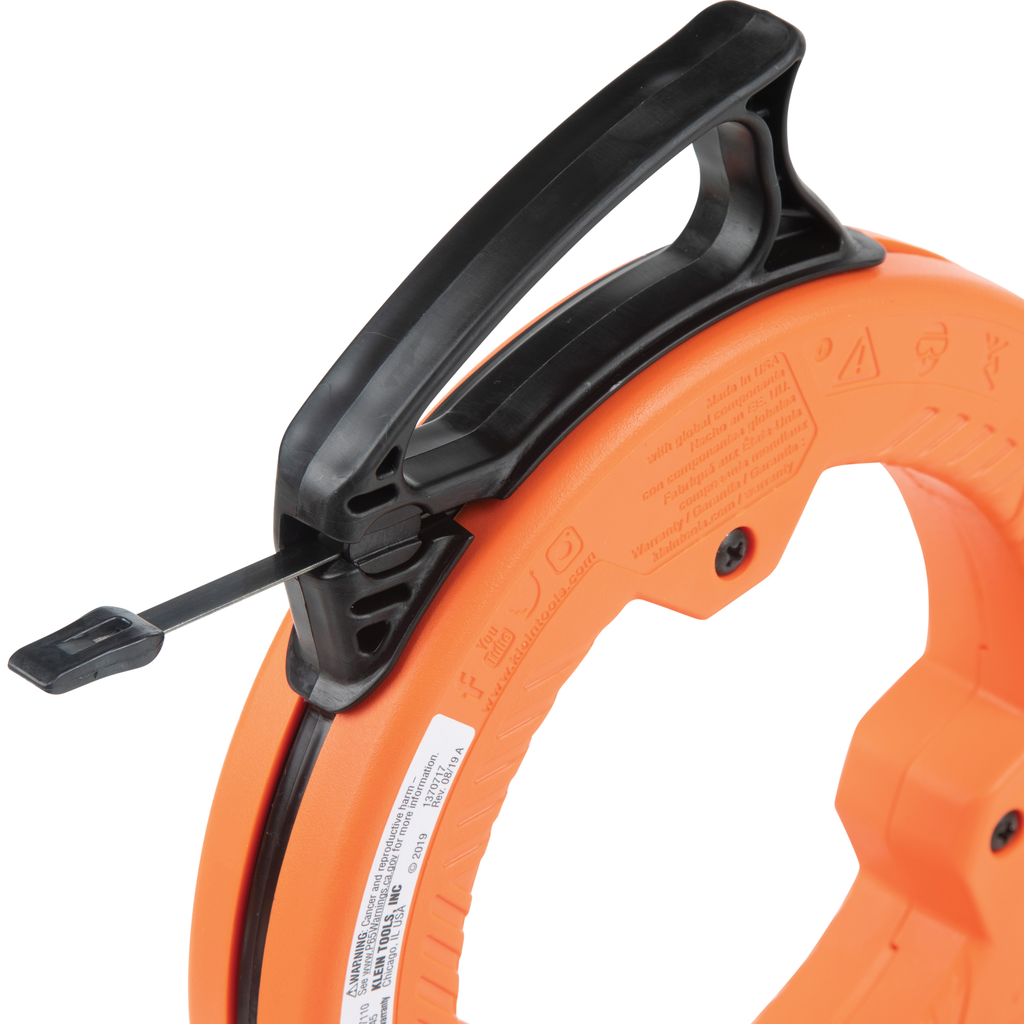

• Slim-profile plastic tip navigates easily and reduces catching

Warnings

• Never form pulling loop into a single loop (into shape of a fish hook) or create a sharp edge that could cause fish tape to catch on other objects or cut into insulation of surrounding wires. Pulling loop should only be formed into a double loop.
• Wear approved eye protection when feeding, pulling or rewinding fish tape.
• Use a safe work position to avoid loss of balance when using fish tape.
• Do NOT use any fish tape on or near live circuits. Use extreme caution when working near any electrical equipment.
• Never remove screws while fish tape is coiled inside reel.

Specifications

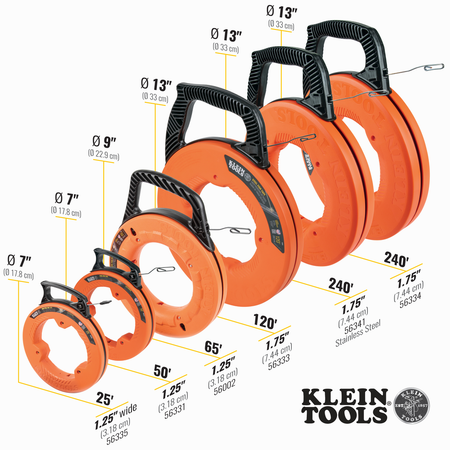

• Diameter (cm): 17.8
• Overall Width (Inch): 7.55
• Diameter (Inch): 7
• Depth: 7.5500 in
• Color: Orange/Black
• Application: Wire Pulling
• Width: 1.2500 in
• Tensile Strength: 230,000 to 280,000 PSI
• Weight (lb): 1.3
• Overall Height (cm): 22.4
• Height: 8.9000 in
• Type: Wide Steel Fish Tape
• Overall Height (Inch): 8.81
• Overall Length (Inch): 1.2
• Overall Length (cm): 3
• Tape Size: 25' x 1/4" x 0.03" (7.6 m x 0.6 cm x 0.08 cm)
• Weight: 0.9920 lbs
• Material: Steel
• Weight (kg): 0.6
• Tape End: Plastic Slim Tip
• Overall Width (cm): 19.2
