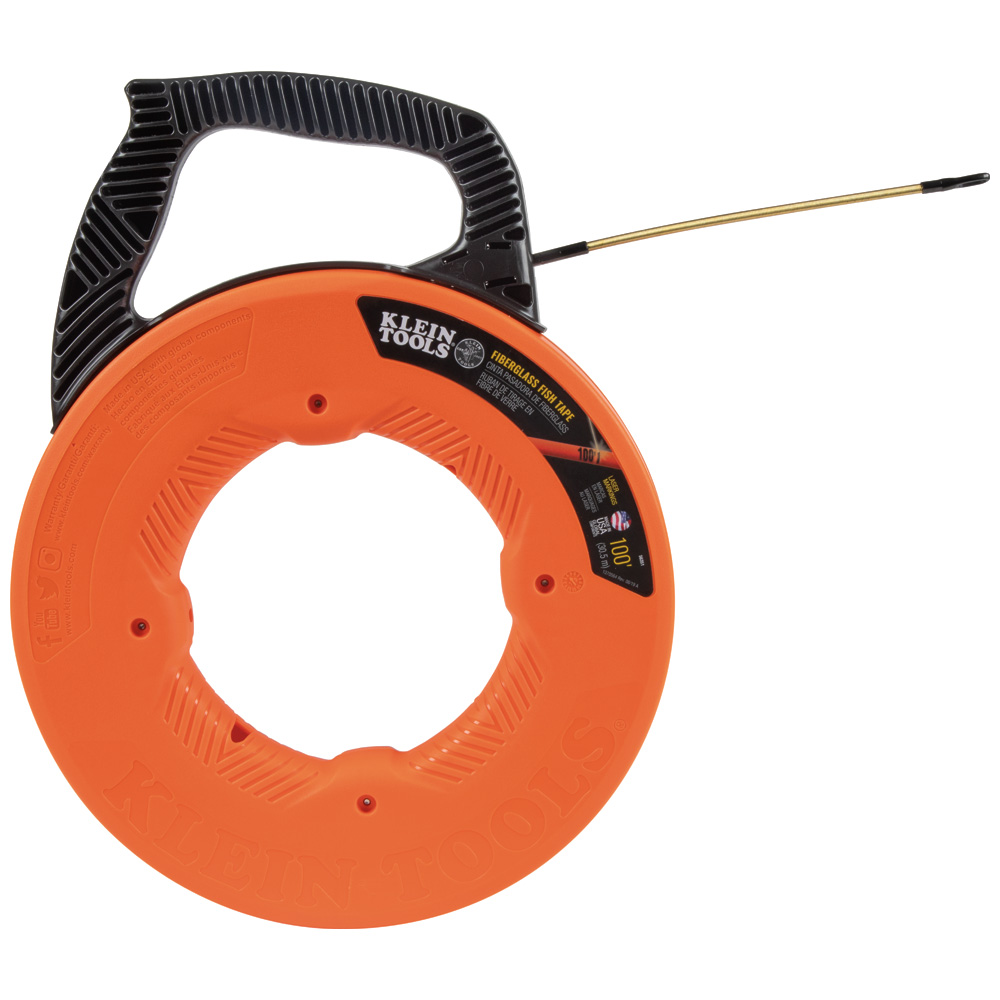

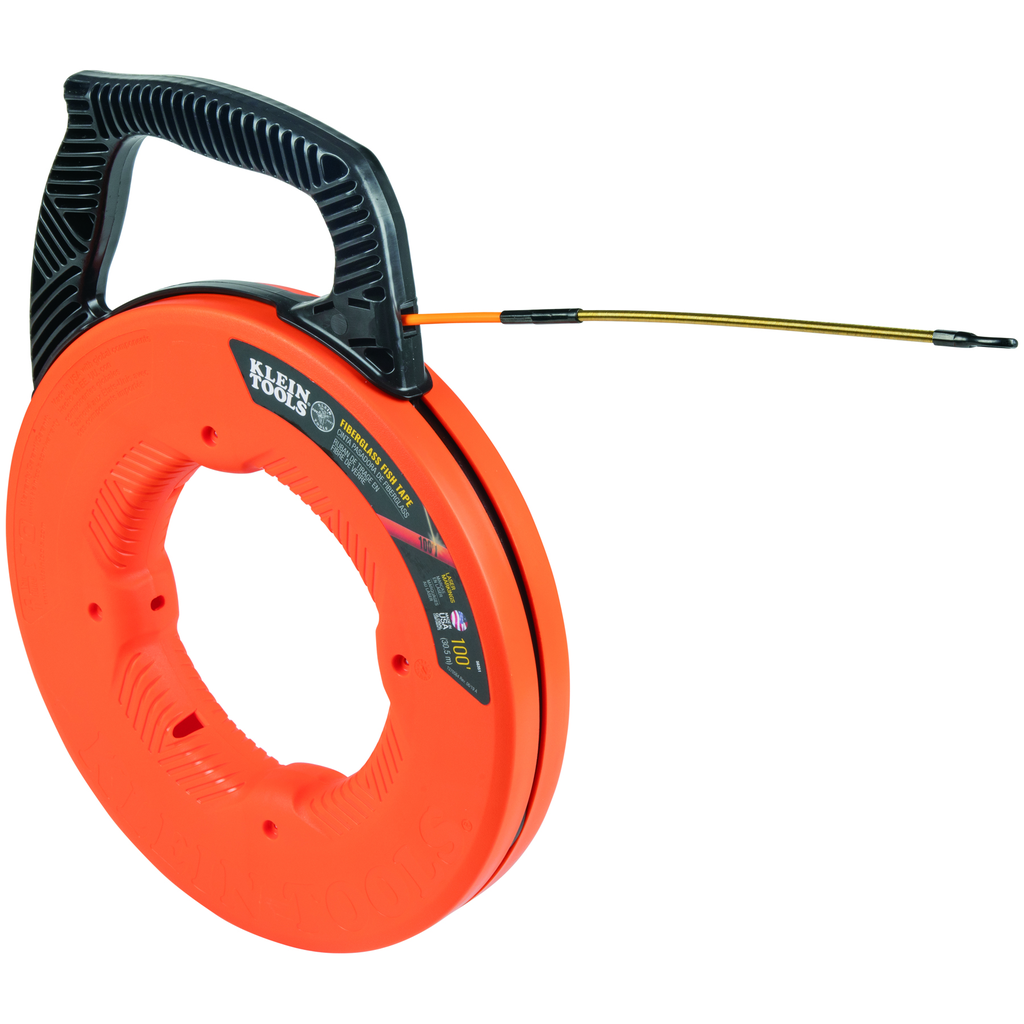

Fiberglass Fish Tape with Spiral Steel Leader, 100-Foot

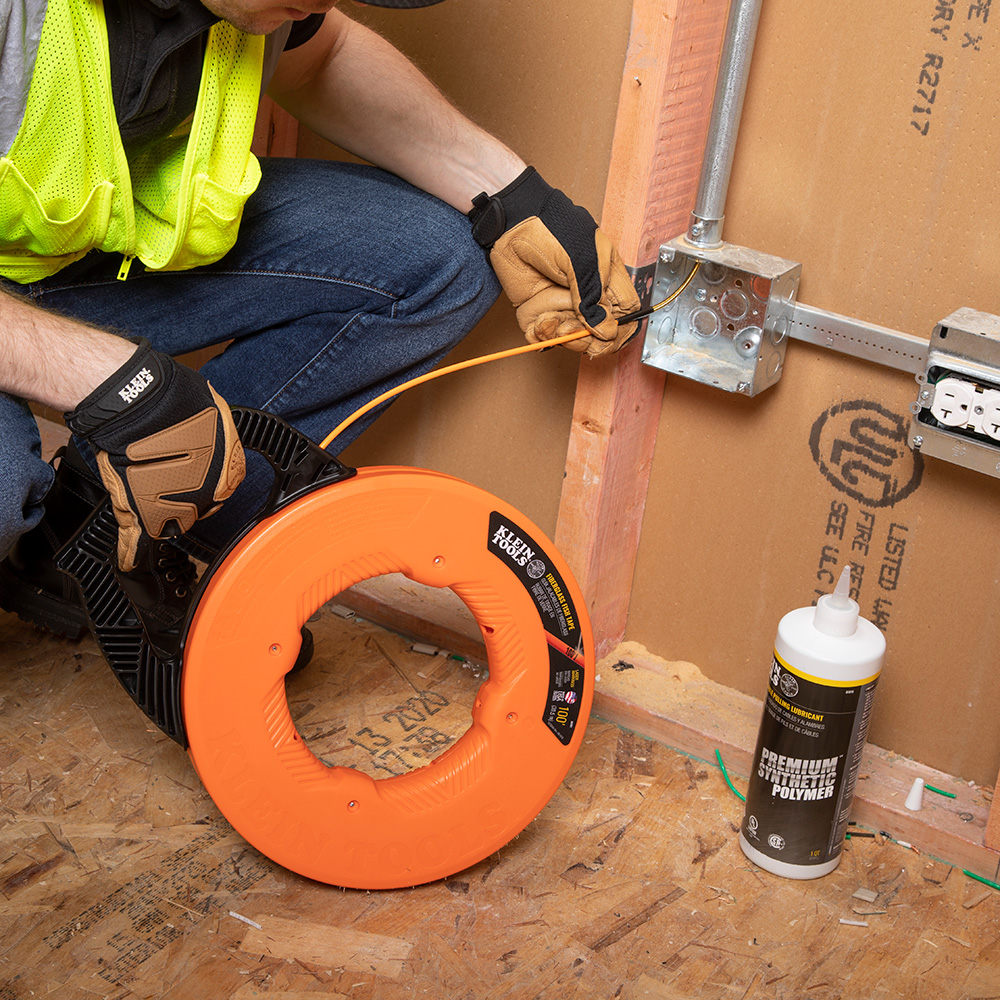

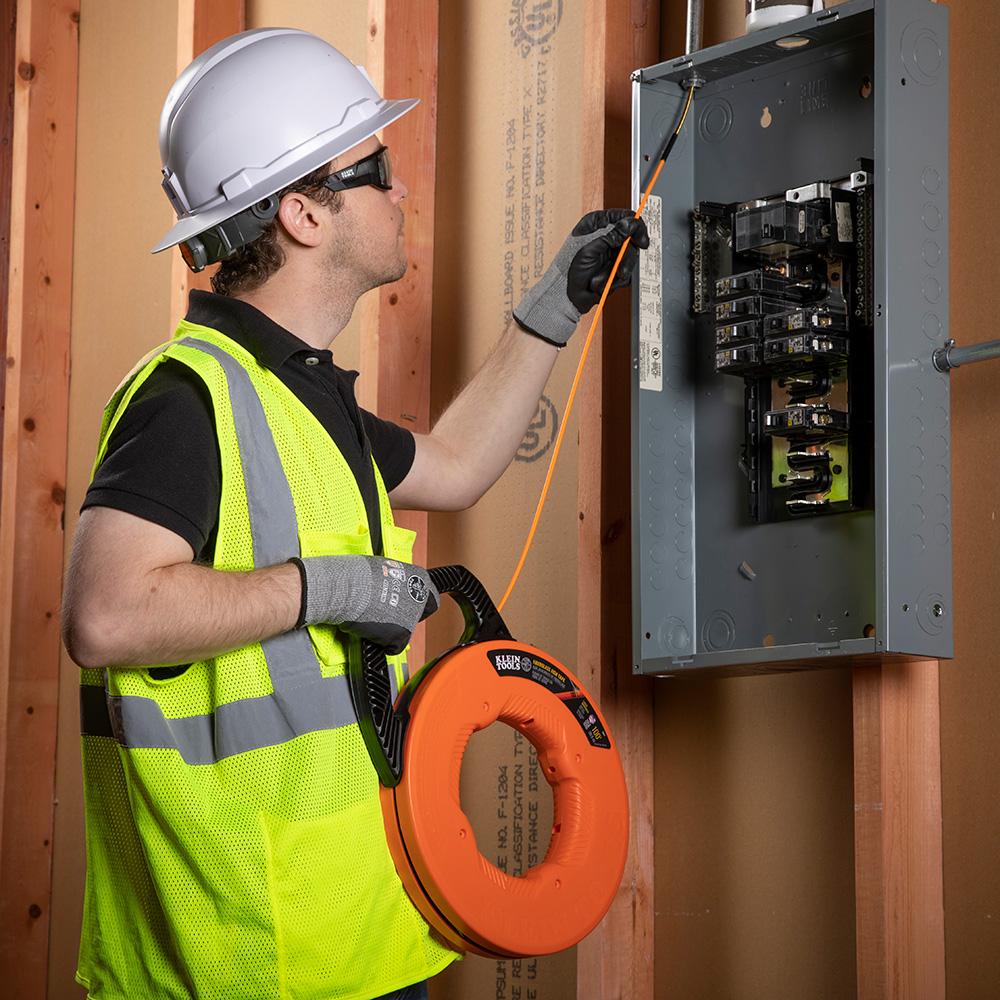

The Klein Tools' 100-Foot Fiberglass Fish Tape with Spiral Steel Leader is perfect for wire runs associated with commercial, residential and voice-data-video installations. The optimized housing and handle design decreases payout effort and reduces binding. A multiple-position handle allows for a firm, steady grip as you pull or rewind the tape. The unique interior case shape combines the leverage of square cases and the comfort of round cases, which makes rewinding tape after a long run easier. The tape features laser-etched descending markings placed at every foot. These markings allow you to accurately measure the depth of conduit runs and determine the amount of tape left to pay out.

Warnings

• Use a safe work position to avoid loss of balance when using fish tape.
• Do NOT use any fish tape on or near live circuits. Use extreme caution when working near any electrical equipment.
• Wear approved eye protection when feeding, pulling or rewinding fish tape.
• Never remove screws while fish tape is coiled inside reel.
• Never form pulling loop into a single loop (into shape of a fish hook) or create a sharp edge that could cause fish tape to catch on other objects or cut into insulation of surrounding wires. Pulling loop should only be formed into a double loop.

Features

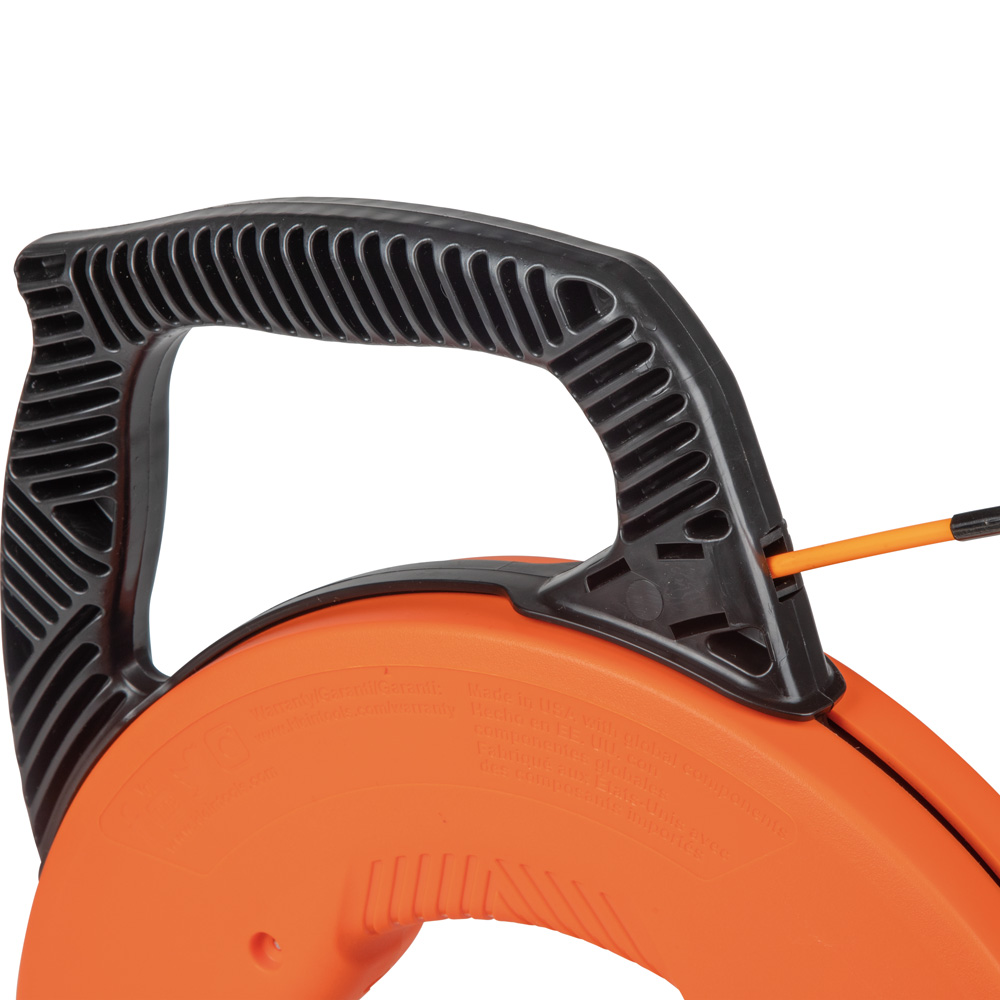

• Multi-position handle gives you a firm, steady grip as you pull or rewind the tape
• Made in the US with Global Components

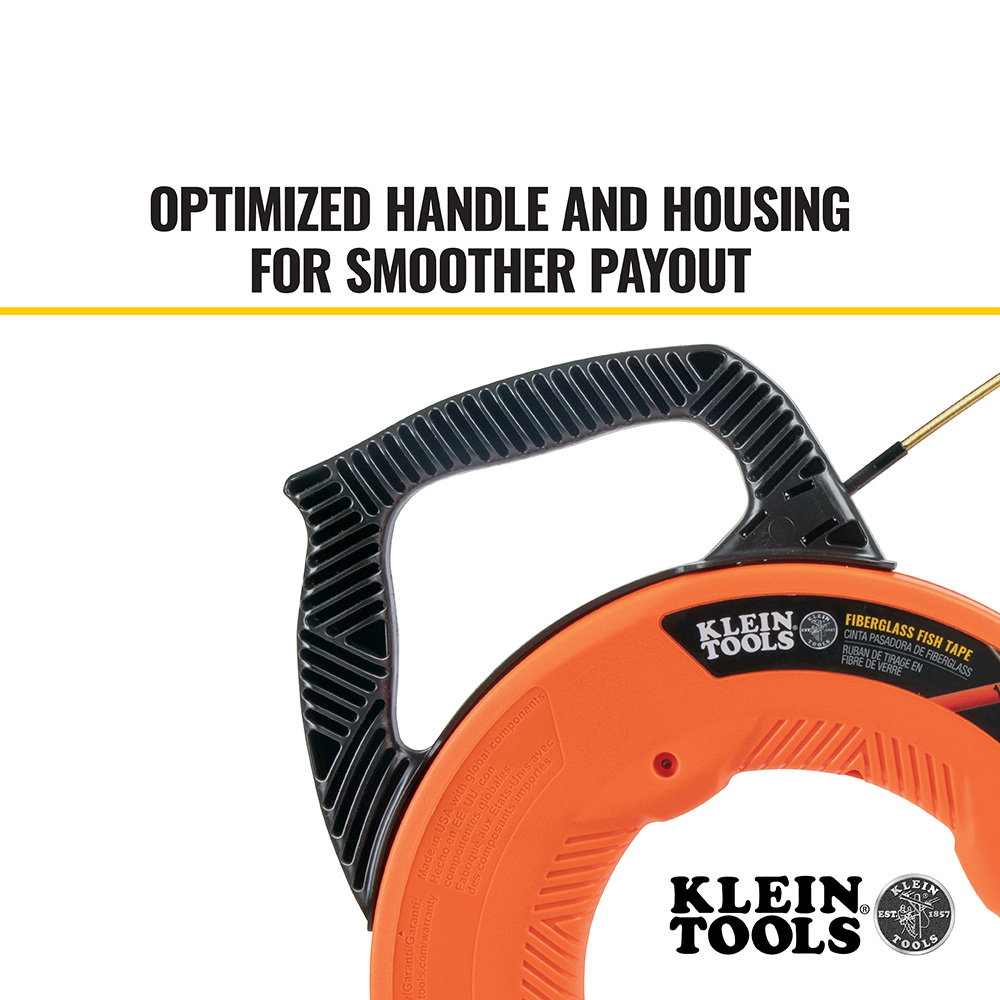

• Case design decreases payout effort and friction by optimizing the tape payout angle; slip-resistant geometry improves winding power and reduces binding
• Optimized Housing Design; S-Glass Fiberglass Tape

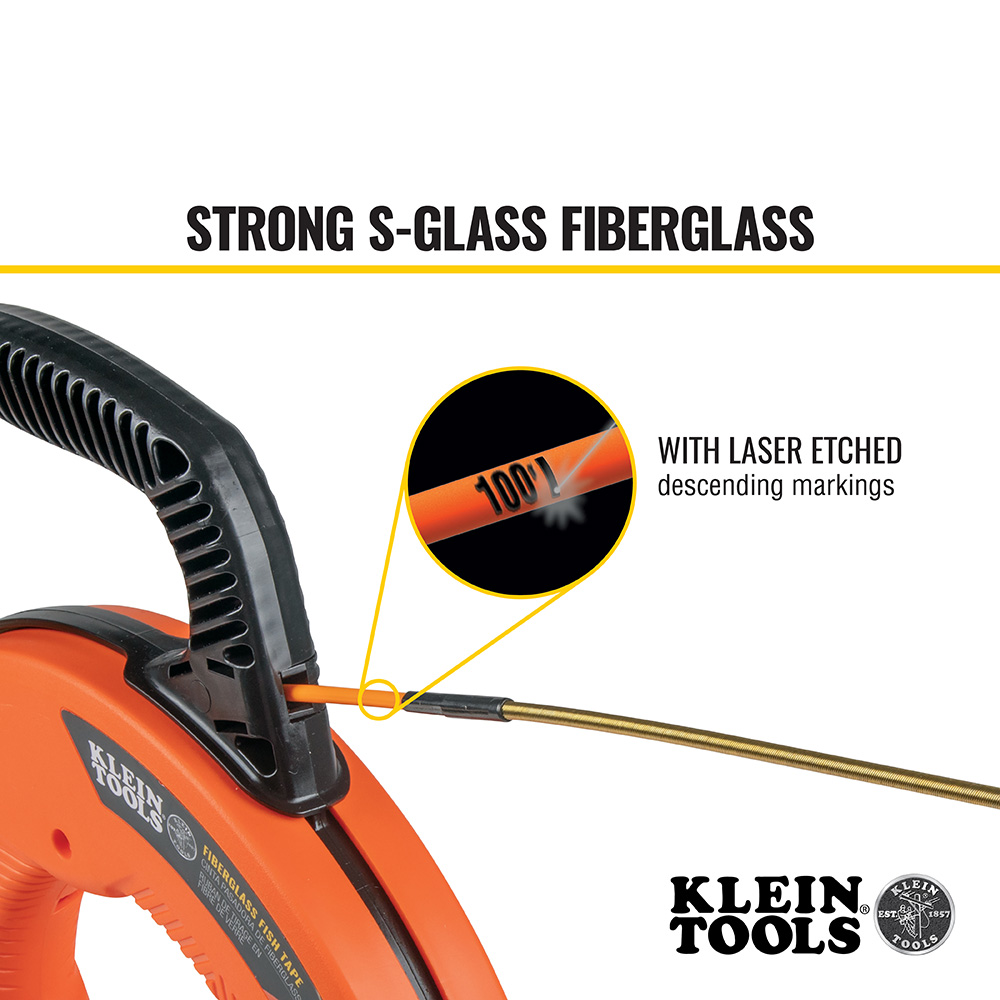

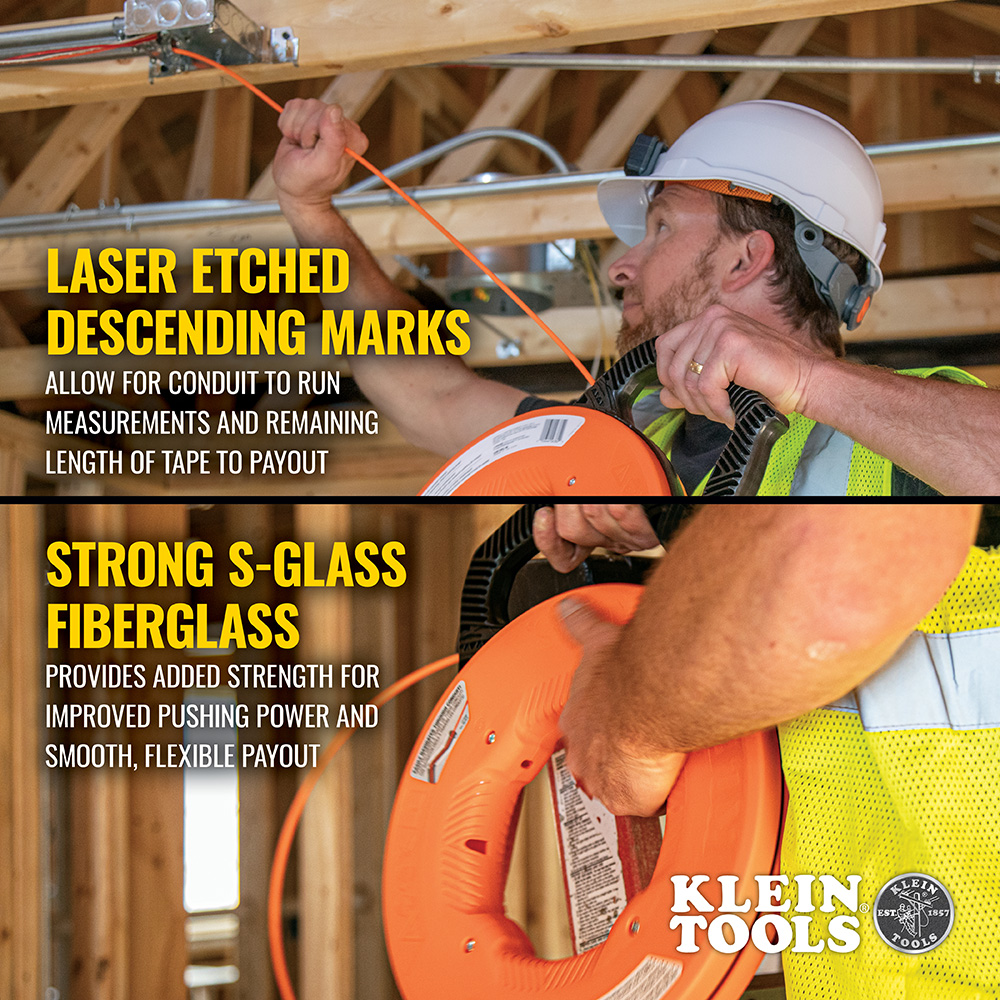

• Descending laser etched markings in 1-Foot (0.3 m) increments allow you to more accurately measure conduit runs and the amount of tape left to pay out
• Strong S-Glass fiberglass fish tape material provides better pushing power and long life while maintaining its low-friction exterior and maneuverability

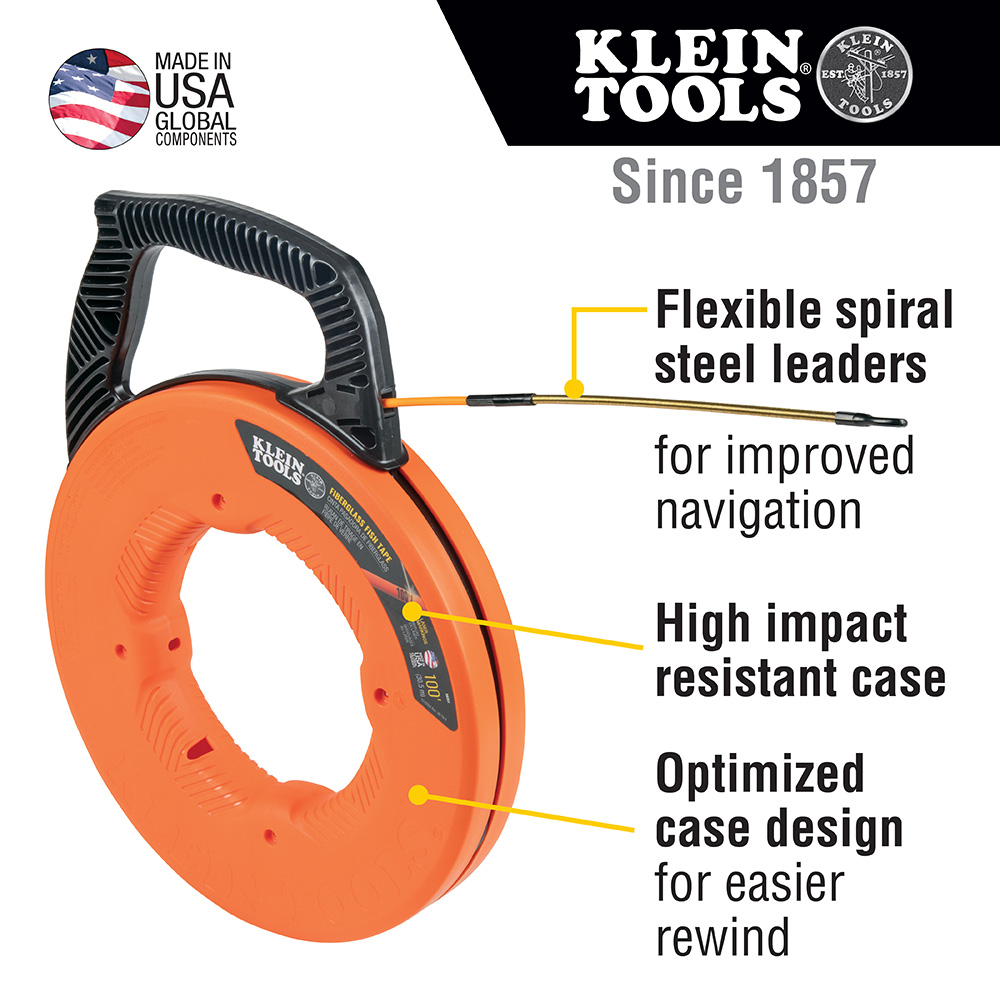

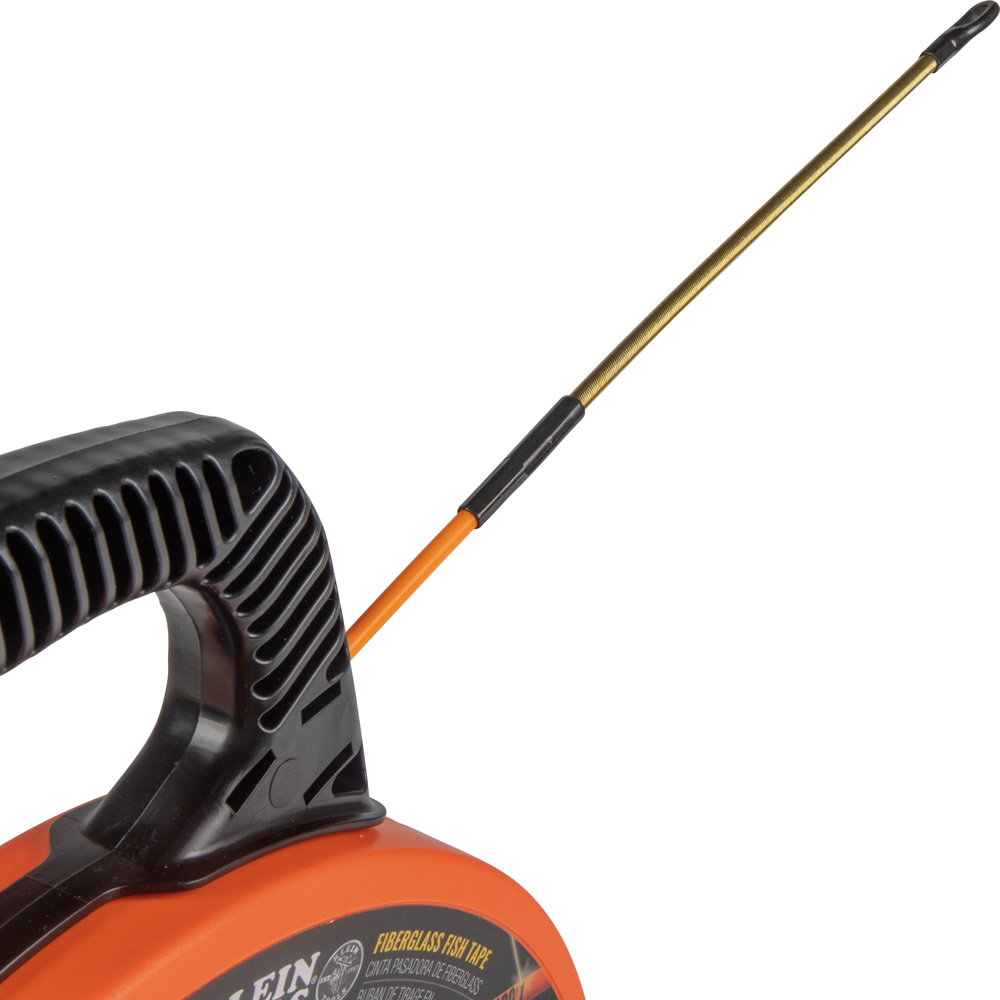

• Durable 7-Inch spiral steel leader helps push through crowded conduit
• Polypropylene case and handle offer high impact resistance

Specifications

• Color: Orange/Black
• Weight (kg): 1.5
• Overall Width (cm): 31.4
• Weight (lb): 3.4
• Application: Wire Pulling
• Tape Size: 100' x 3/16" (30.5 m x 0.5 cm)

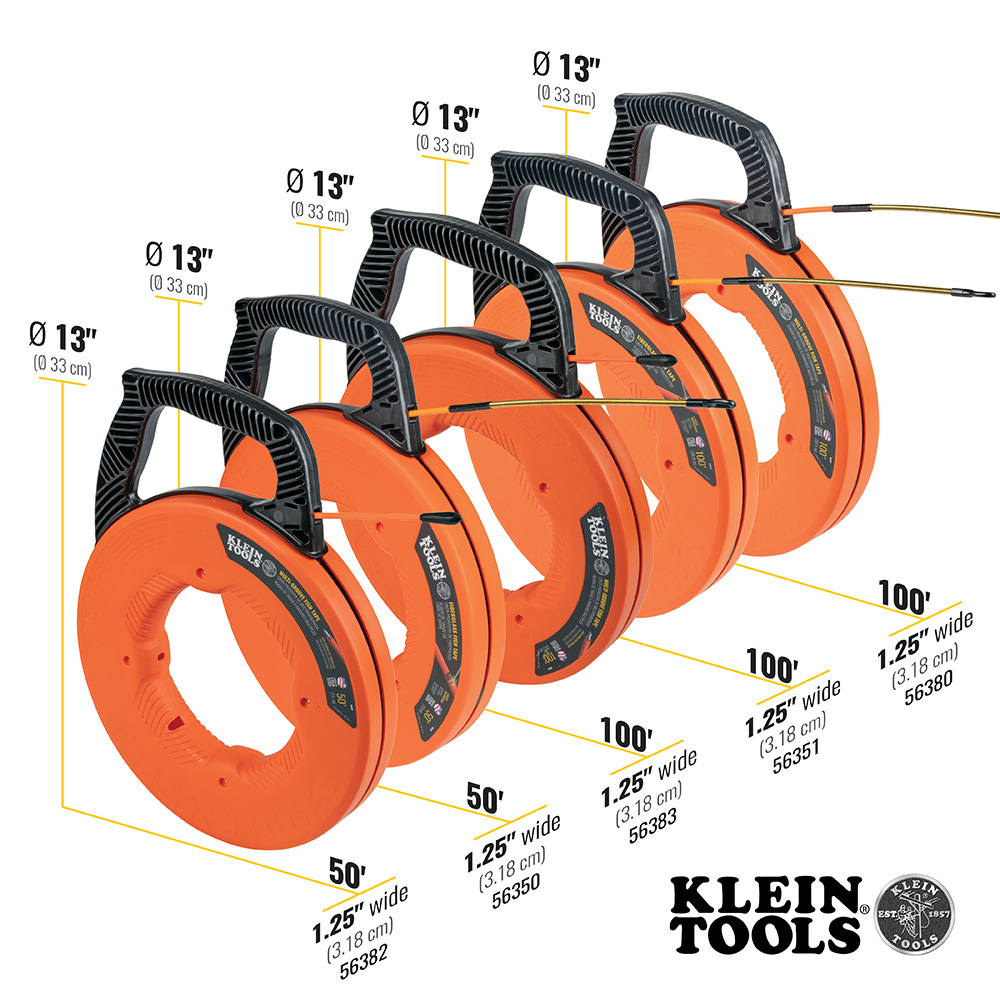

• Diameter (cm): 33
• Weight: 3.4400 lbs
• Overall Height (Inch): 16.21
• Overall Length (Inch): 1.85
• Depth: 12.3500 in
• Tape End: Spiral Steel Leader
• Material: Fiberglass
• Overall Length (cm): 4.7
• Overall Height (cm): 41.2
• Width: 1.8500 in
• Height: 16.2100 in
• Type: Fiberglass Fish Tape
• Overall Width (Inch): 12.35
• Diameter (Inch): 13
