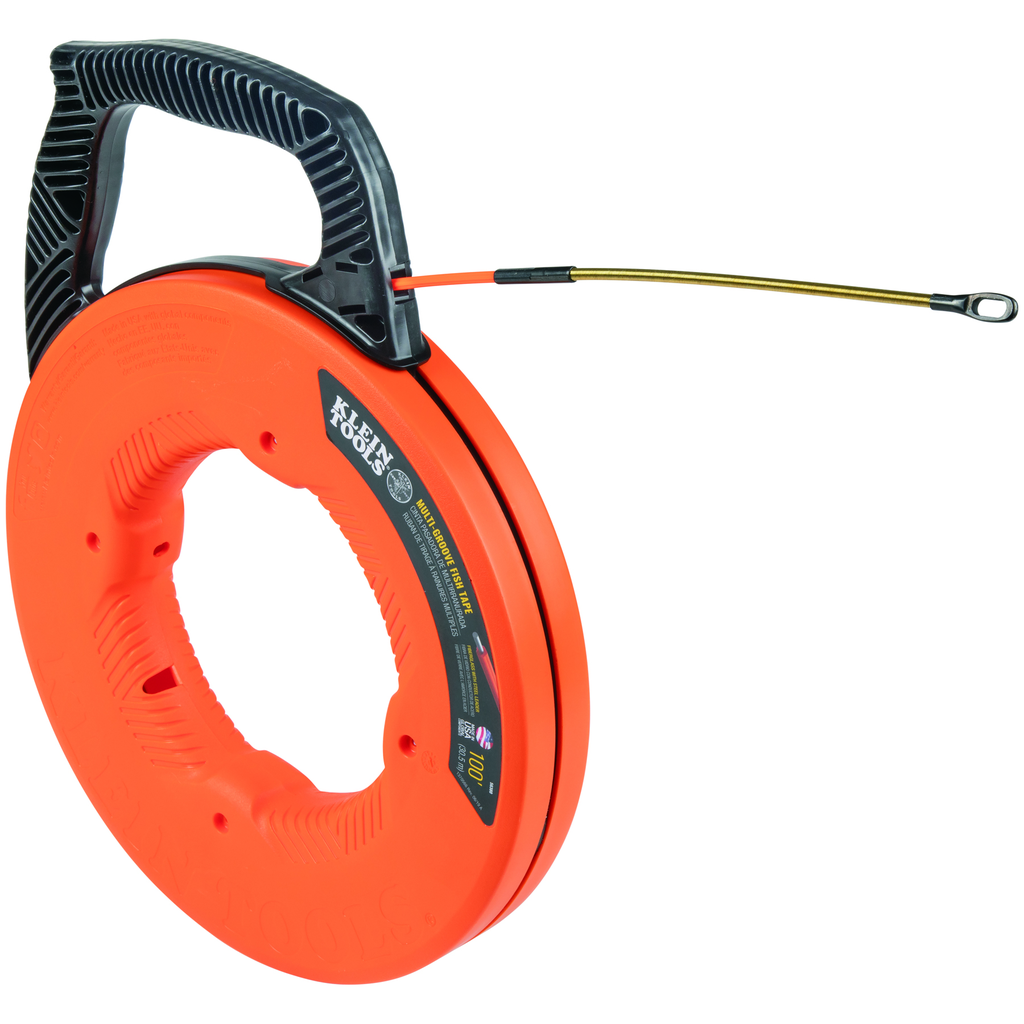

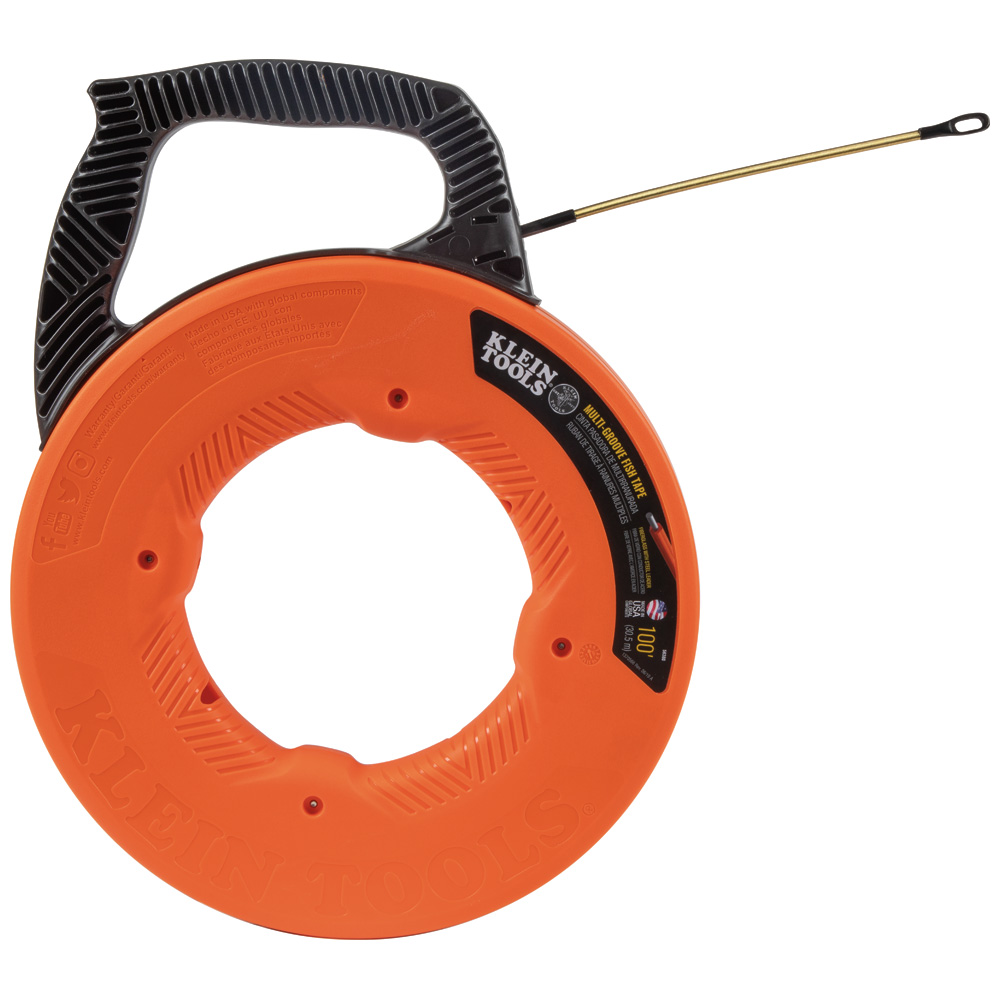

Multi-Groove Fiberglass Fish Tape with Spiral Steel Leader, 100-Foot

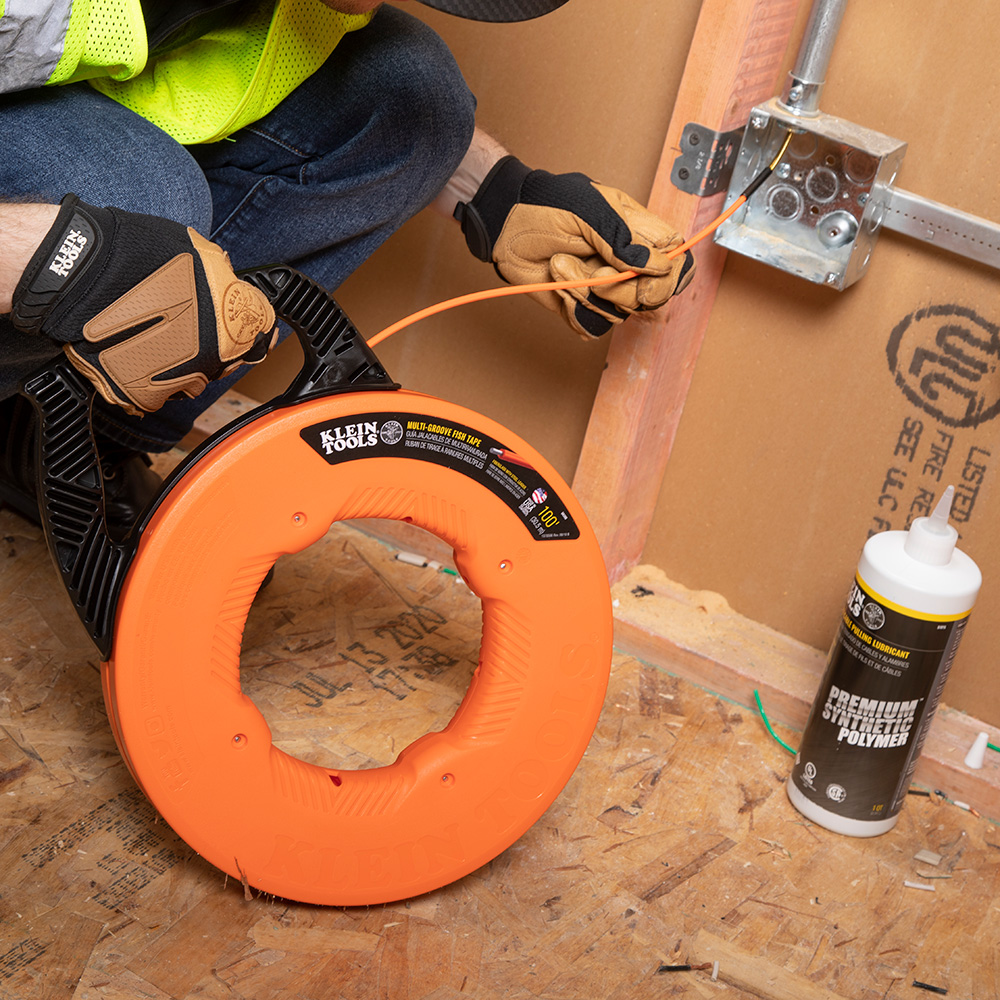

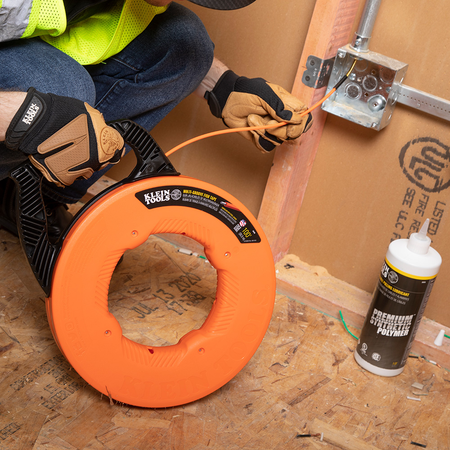

The Klein Tools' 100-Foot Multi-Groove Fiberglass Fish Tape with Spiral Steel Leader is perfect for wire runs associated with commercial, residential and voice-data-video installations. The optimized housing and handle design decreases payout effort and reduces binding. A multiple-position handle allows for a firm, steady grip as you pull or rewind the tape. The unique interior case shape combines the leverage of square cases and the comfort of round cases, which makes rewinding tape after a long run easier. This fiberglass tape maintains a strong core for pushing power, but the multiple grooves provide less surface area therefore less friction for smoother tape feeding.

Warnings

• Use a safe work position to avoid loss of balance when using fish tape.
• Wear approved eye protection when feeding, pulling or rewinding fish tape.
• Never remove screws while fish tape is coiled inside reel.
• Do NOT use any fish tape on or near live circuits. Use extreme caution when working near any electrical equipment.
• Never form pulling loop into a single loop (into shape of a fish hook) or create a sharp edge that could cause fish tape to catch on other objects or cut into insulation of surrounding wires. Pulling loop should only be formed into a double loop.

Features

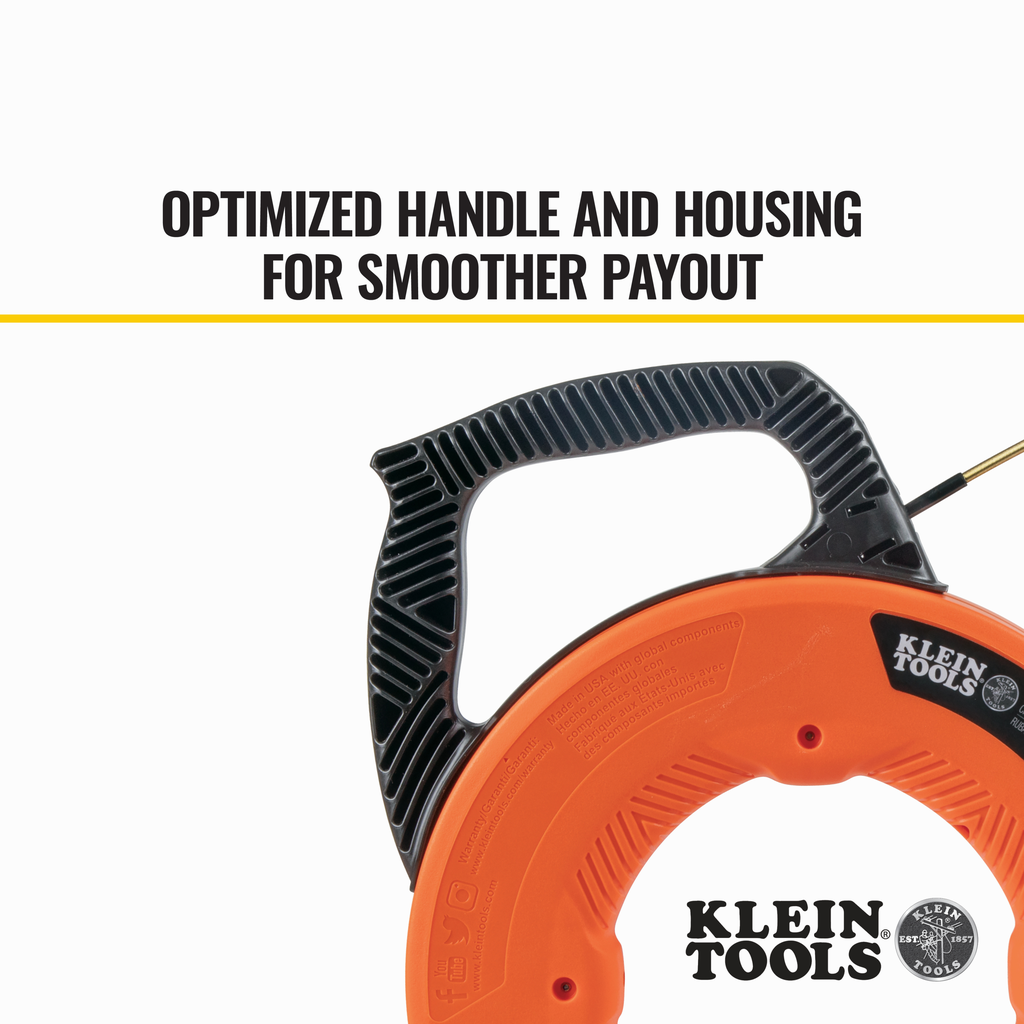

• Case design decreases payout effort and friction by optimizing the tape payout angle

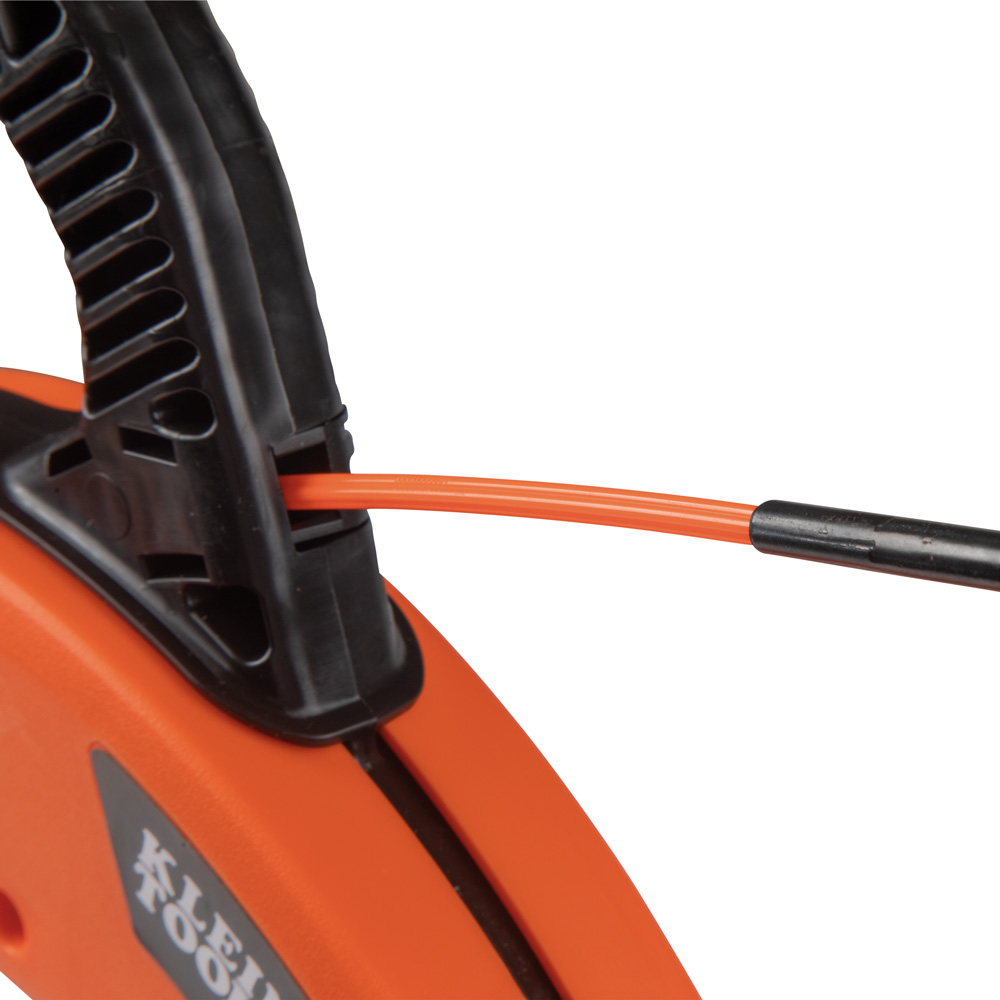

• Multi-position handle gives you a firm, steady grip as you pull or rewind the tape
• Multi-groove fiberglass fish tape has a strong core for better pushing power while the grooves provide less surface area for smoother tape feeding

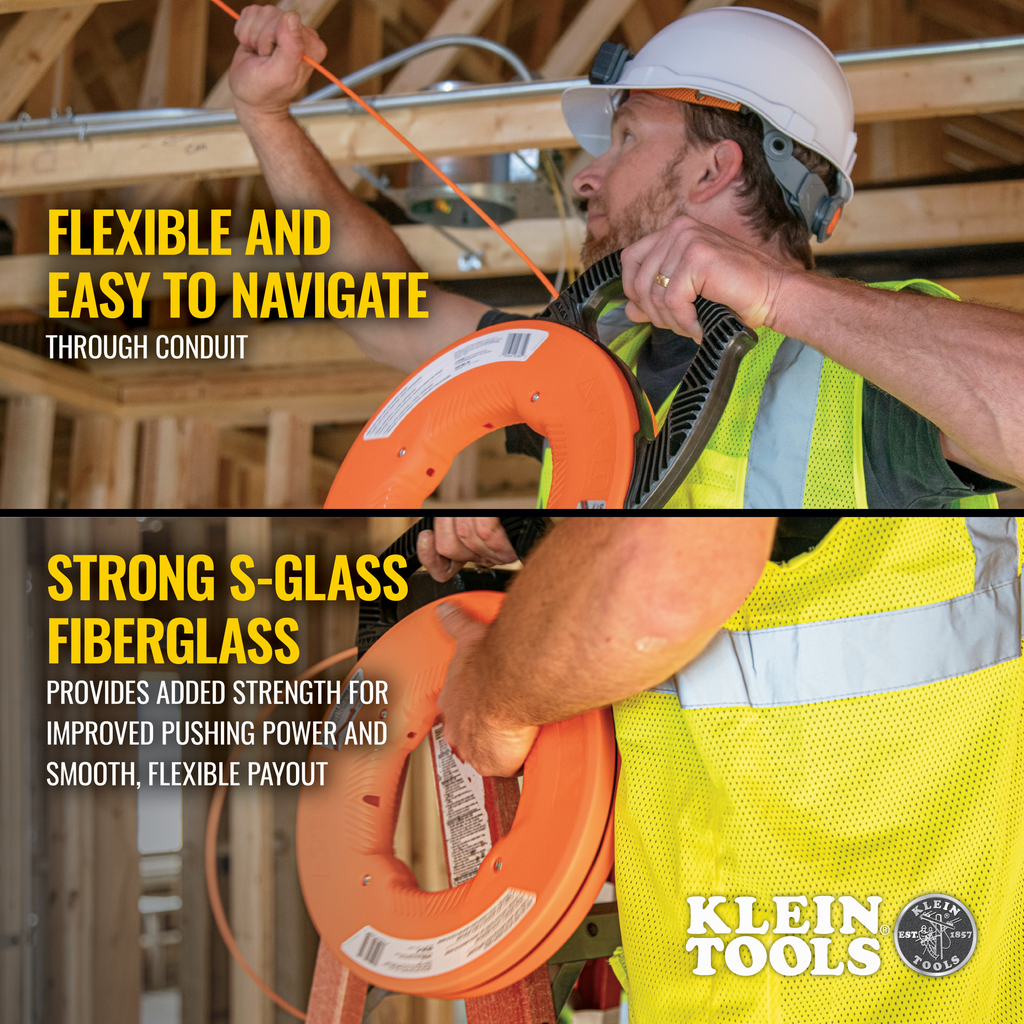

• Durable fiberglass is longer lasting and maneuvers better in crowded conduit
• Polypropylene case and handle offer the maximum impact resistance
• Optimized Housing Design; Multi-Groove Fiberglass Tape

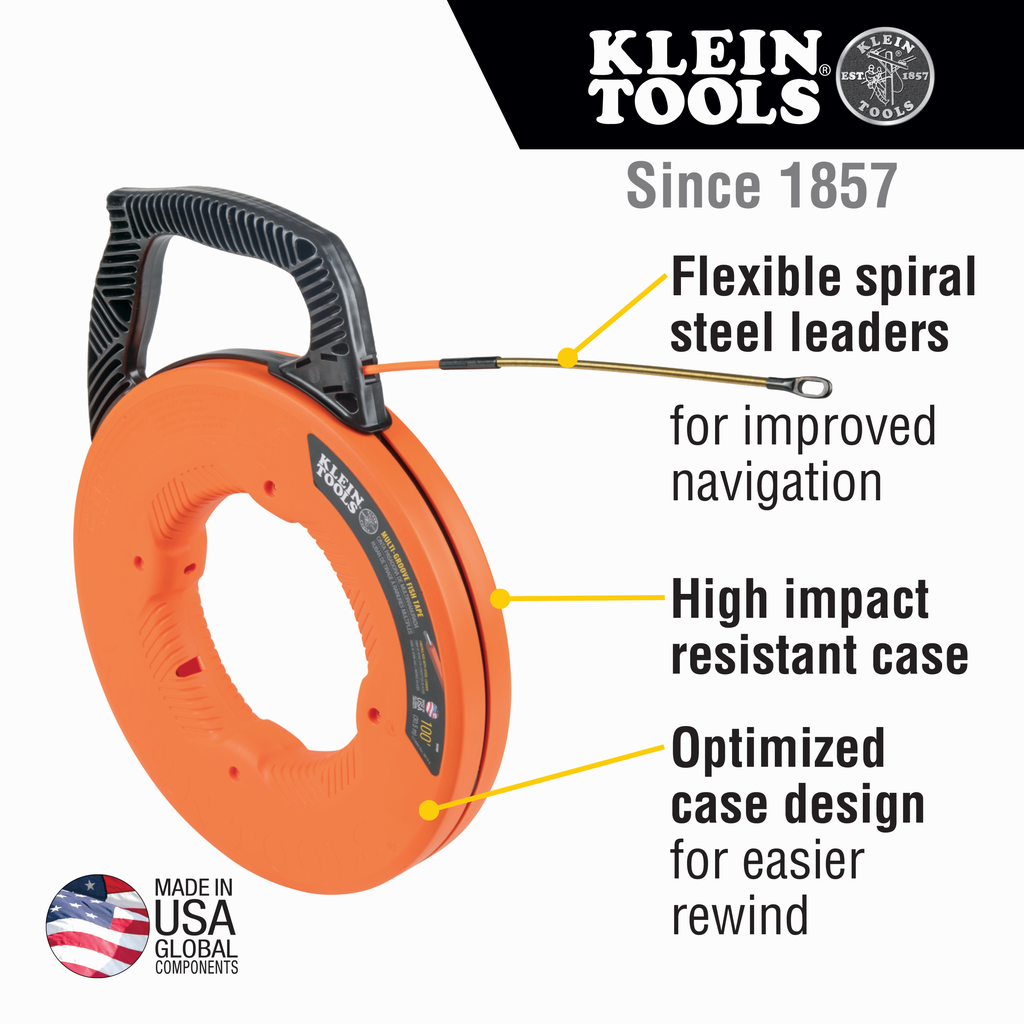

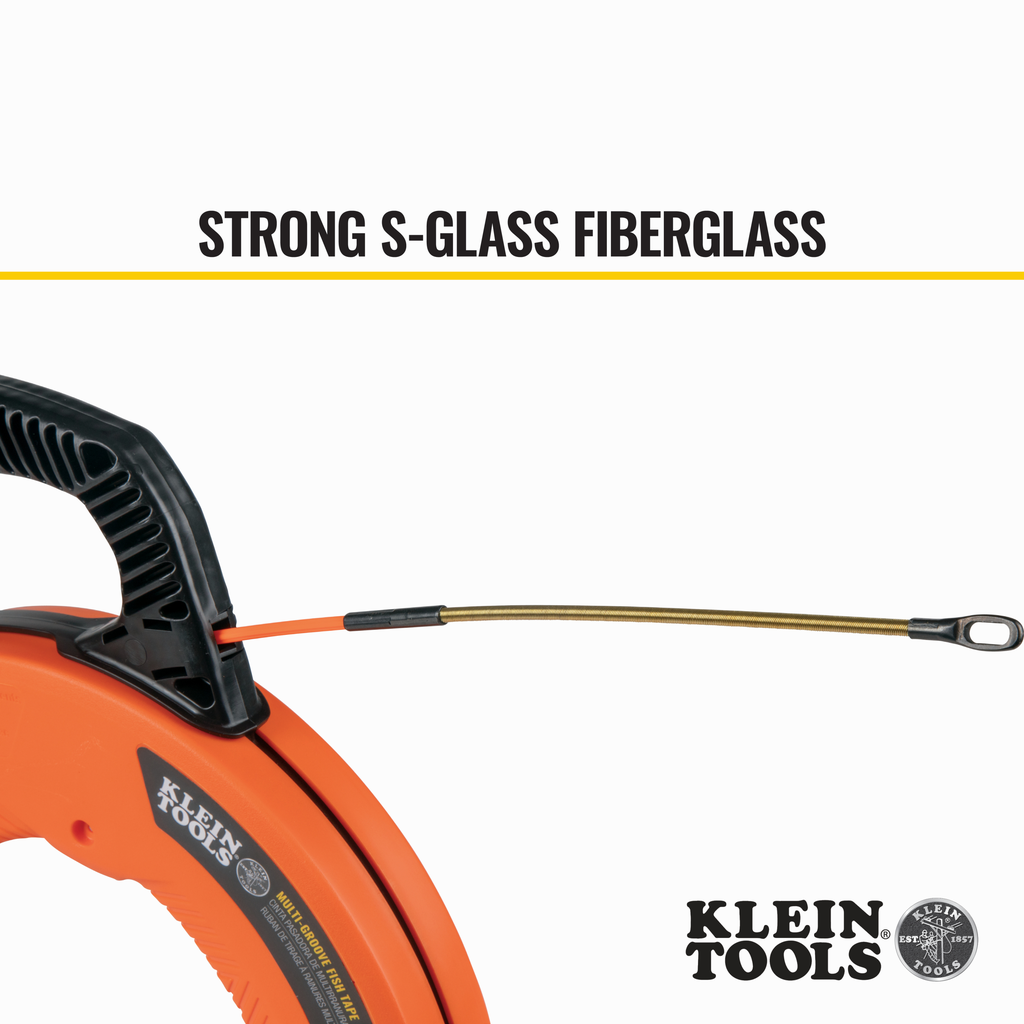

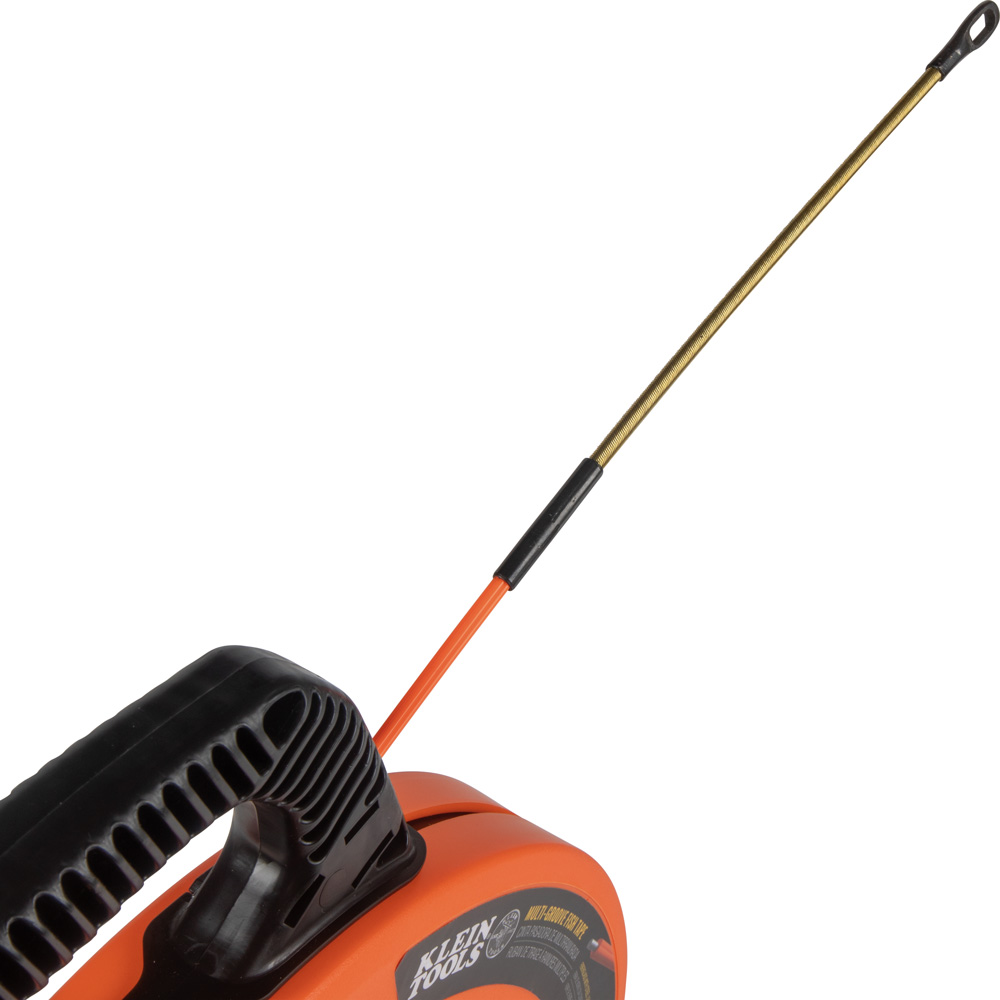

• Durable 7-Inch spiral steel leader helps push through crowded conduit
• Slip-resistant housing geometry improves winding power and reduces binding

Specifications

• Width: 1.8500 in
• Overall Width (Inch): 12.35
• Overall Length (Inch): 1.85

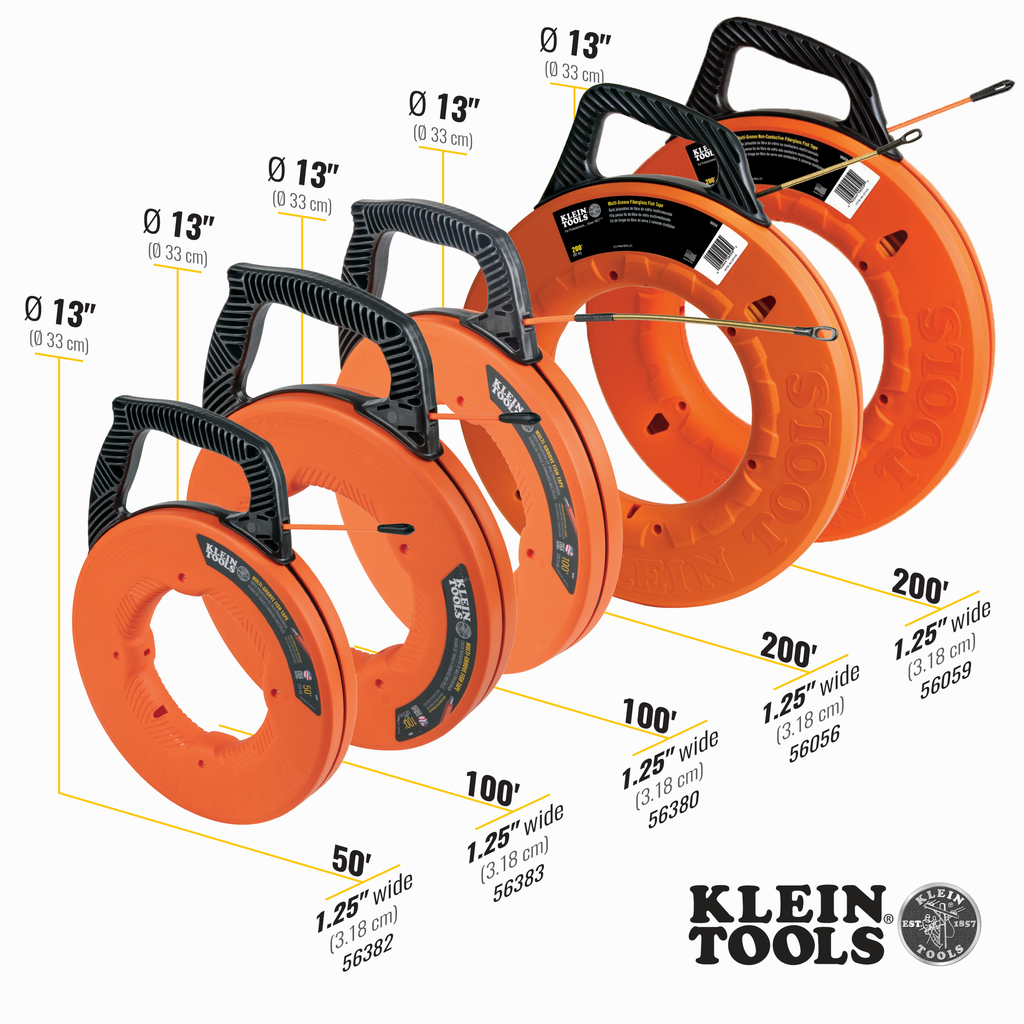

• Tape Size: 100' x 3/16" (30.5 m x 0.5 cm)
• Height: 16.2100 in
• Color: Orange/Black
• Overall Height (cm): 41.2
• Overall Height (Inch): 16.21
• Weight (lb): 3.4
• Application: Wire Pulling
• Diameter (Inch): 13
• Overall Length (cm): 4.7
• Weight: 3.3800 lbs
• Diameter (cm): 33
• Overall Width (cm): 31.4
• Tape End: Spiral Steel Leader
• Weight (kg): 1.5
• Depth: 12.3500 in
• Type: Fiberglass Fish Tape
• Material: Fiberglass
