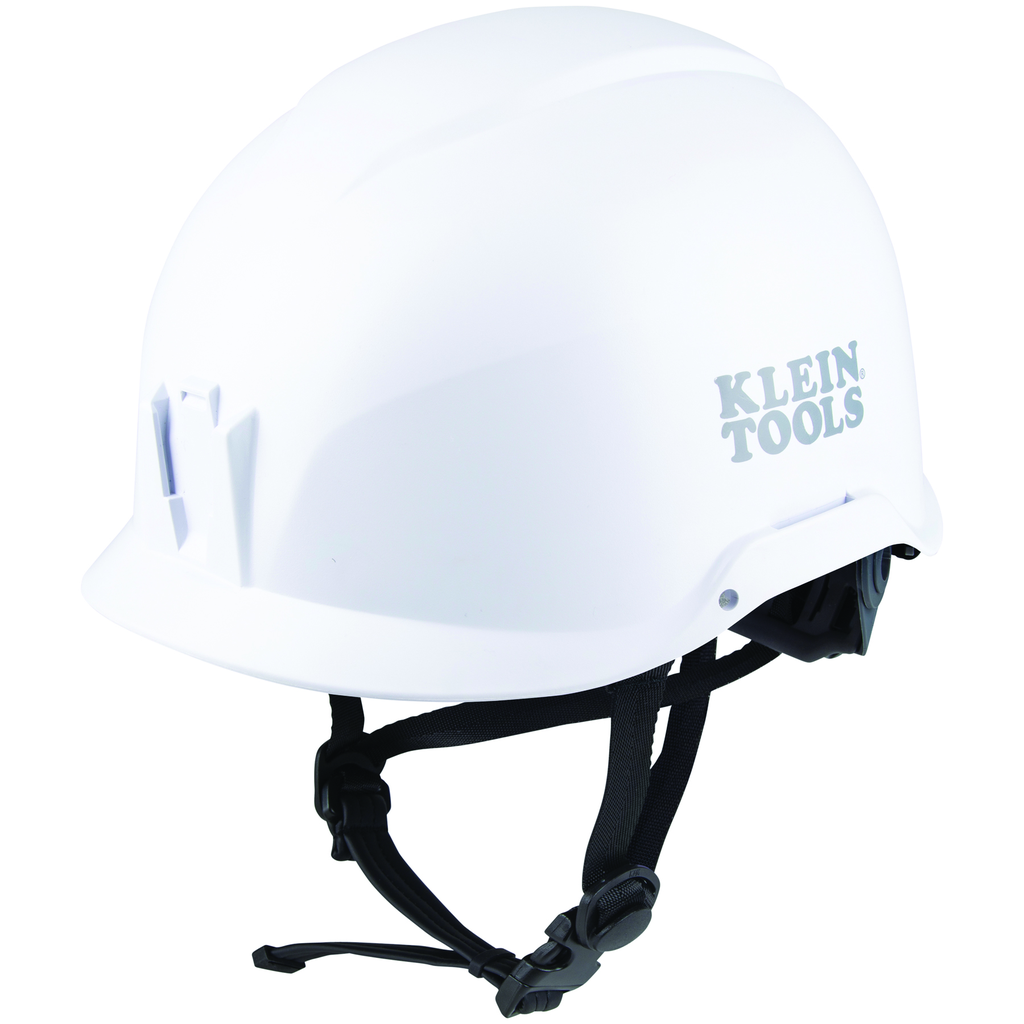

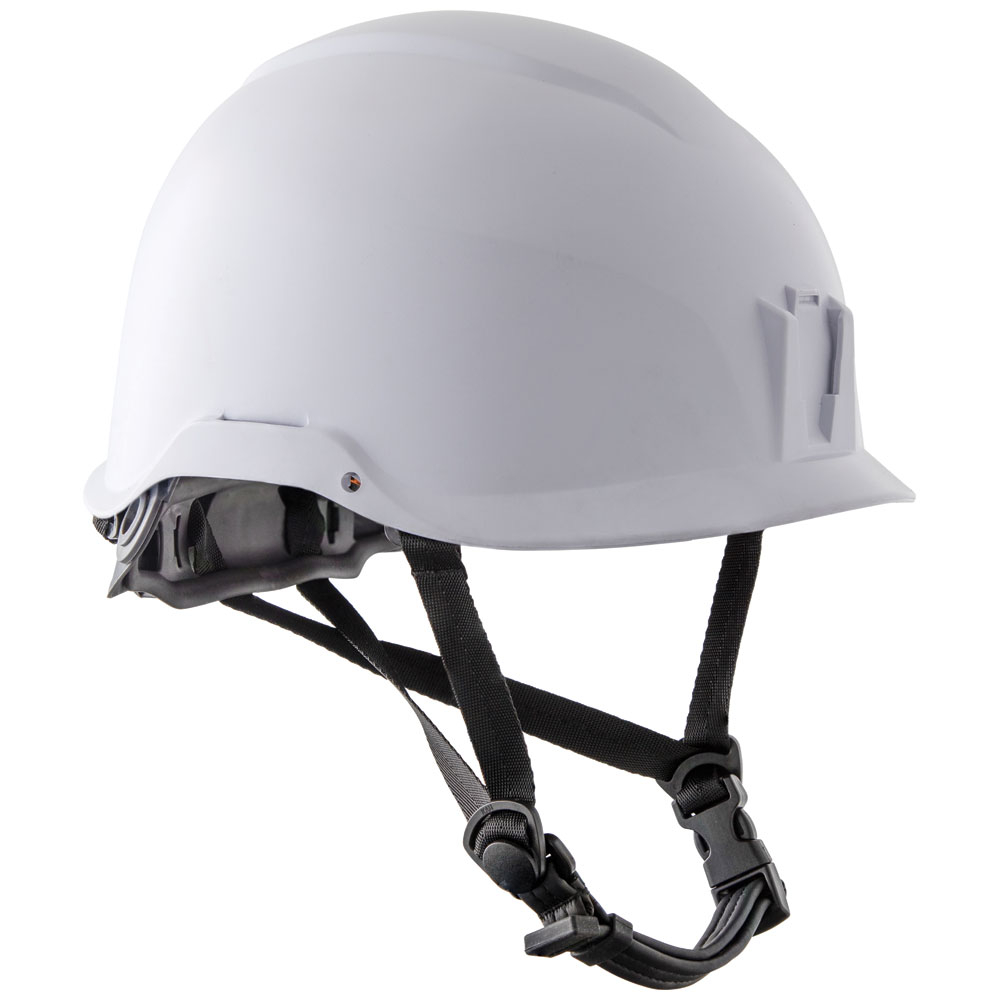

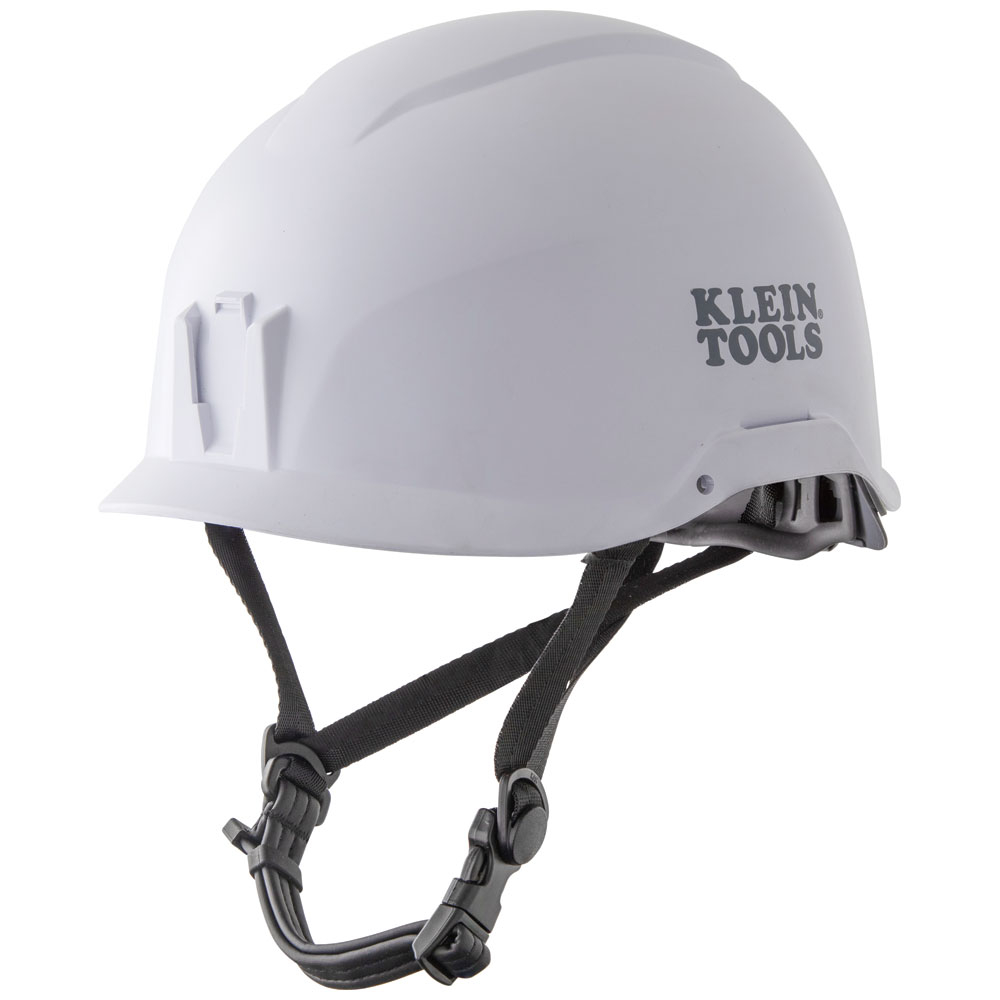

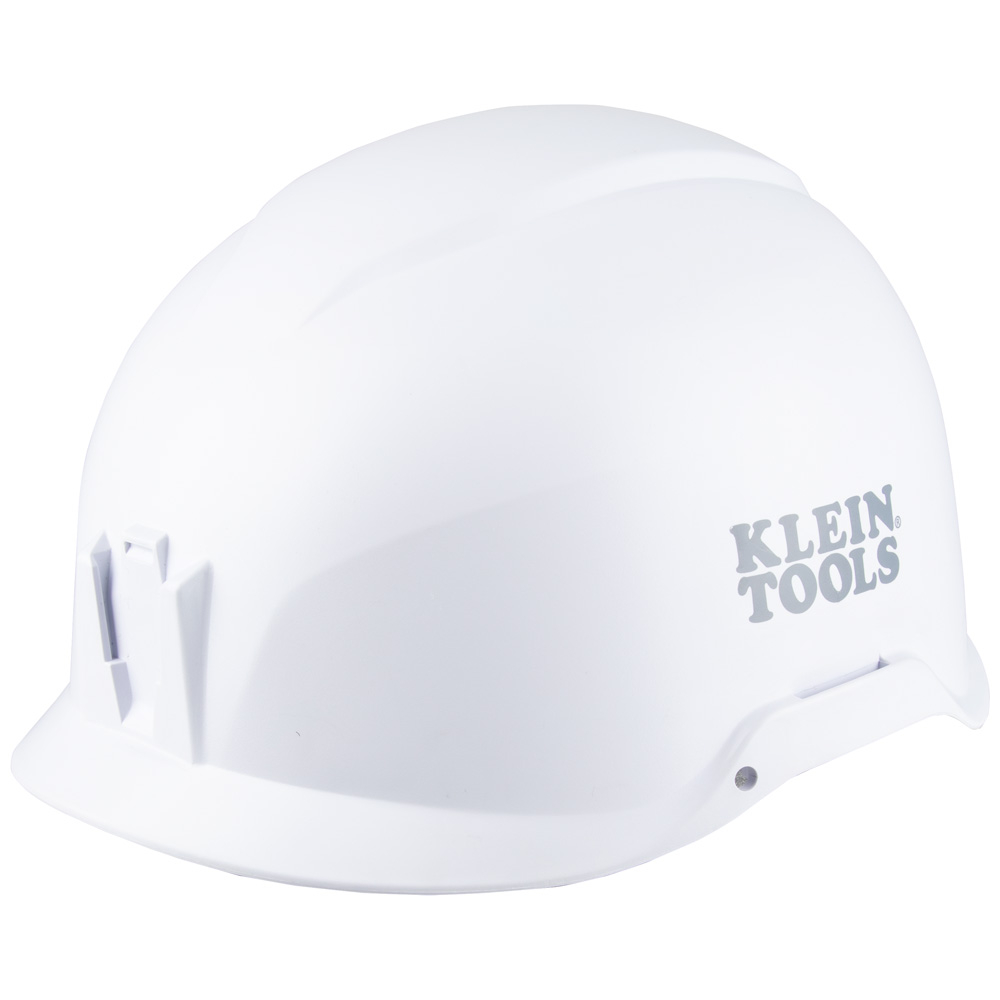

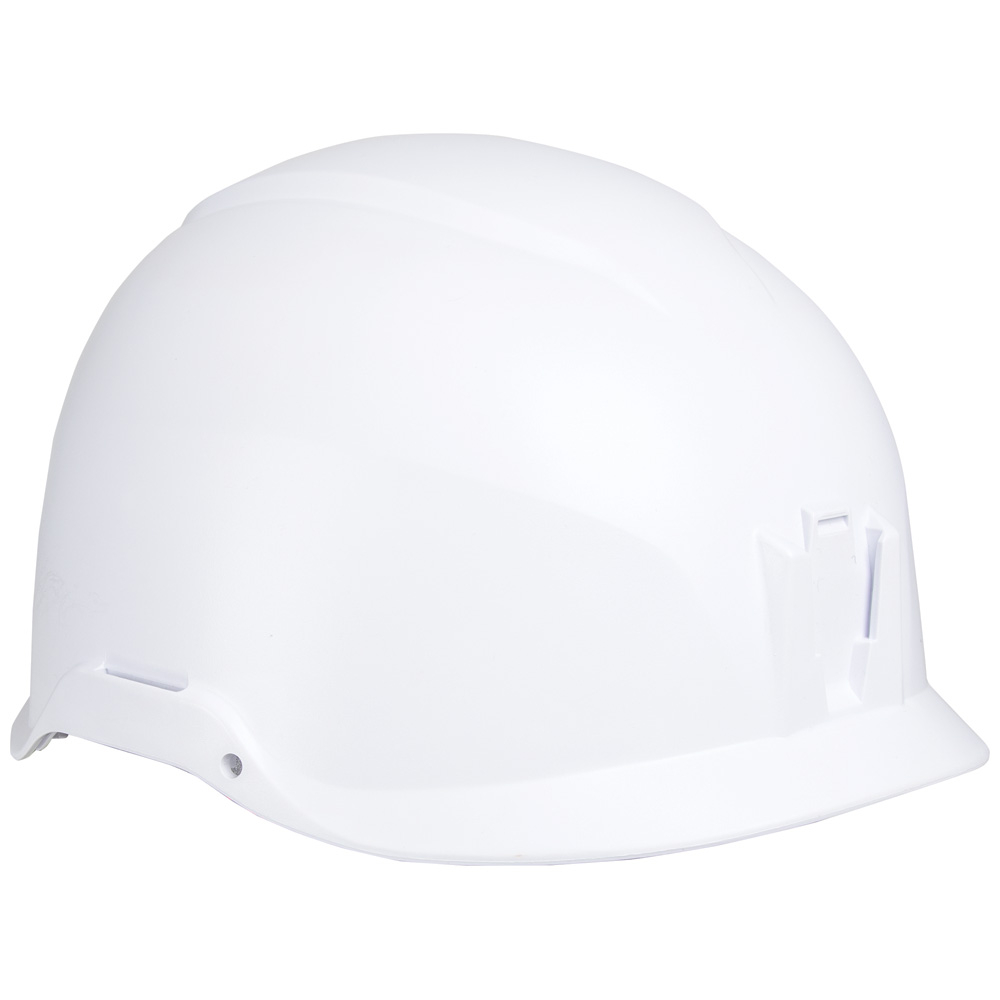

Safety Helmet, Non-Vented-Class E, White

Klein Tools Safety Helmets are engineered for optimal safety, comfort and fit. Compact helmet design and unique features allow the user to comfortably work in confined spaces and a variety of demanding environments. Tested up to 20kV of electrical protection. Patent-pending accessory mounts on front and back ensure optional Klein Headlamps attach securely — no straps needed! Low profile design with accessory slots for optional face shields and Klein visors.

Features

• Compact, lightweight safety helmet design for at-height and confined space applications; low profile bill for unobstructed visibility
• This Class E, Type 1 Safety helmet is tested up to 20kV and meets ANSI Z89.1-2014, CSA Z94.1-15; EN397:2012+A1:2012-5.2.1, 5.2.4, 5.2.5 EN12492:2012-4.2.1.2, 4.2.1.3, 4.2.1.4, 4.2.2, 4.2.3, 4.2.4 (Front/Back/Side impact)

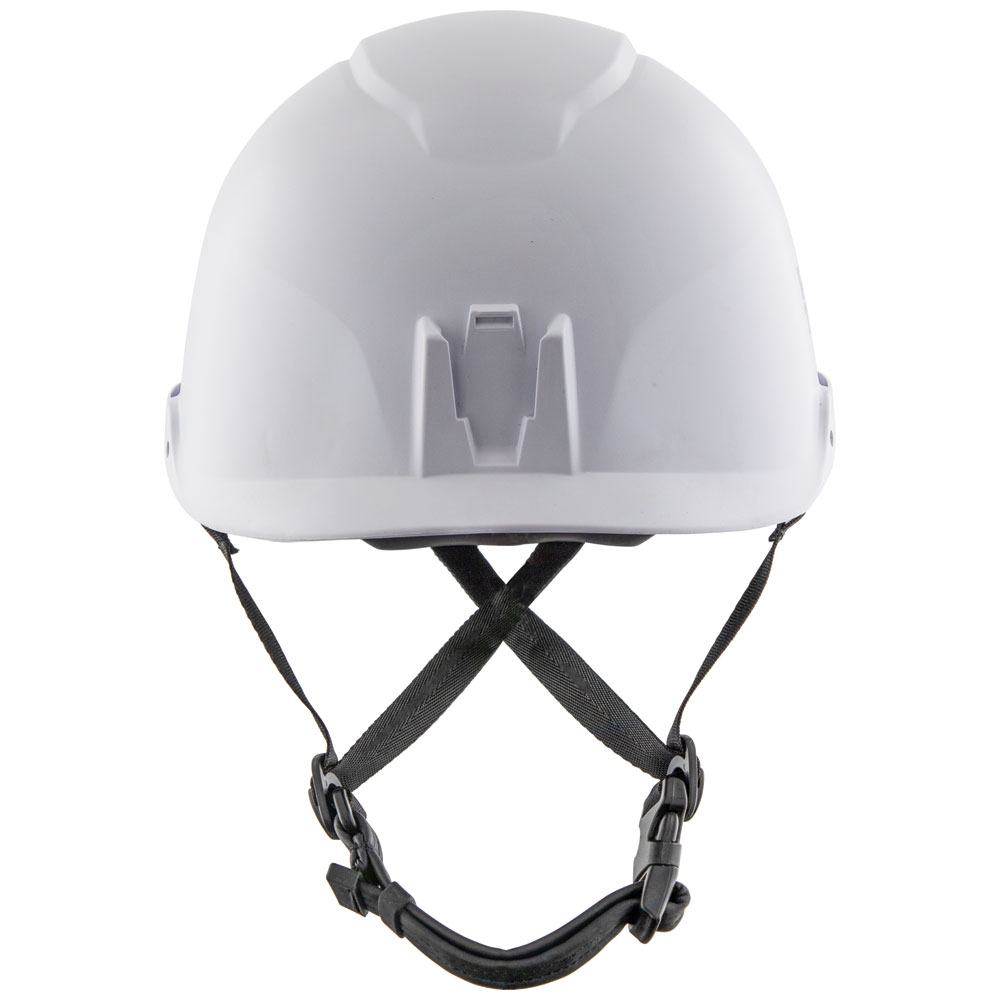

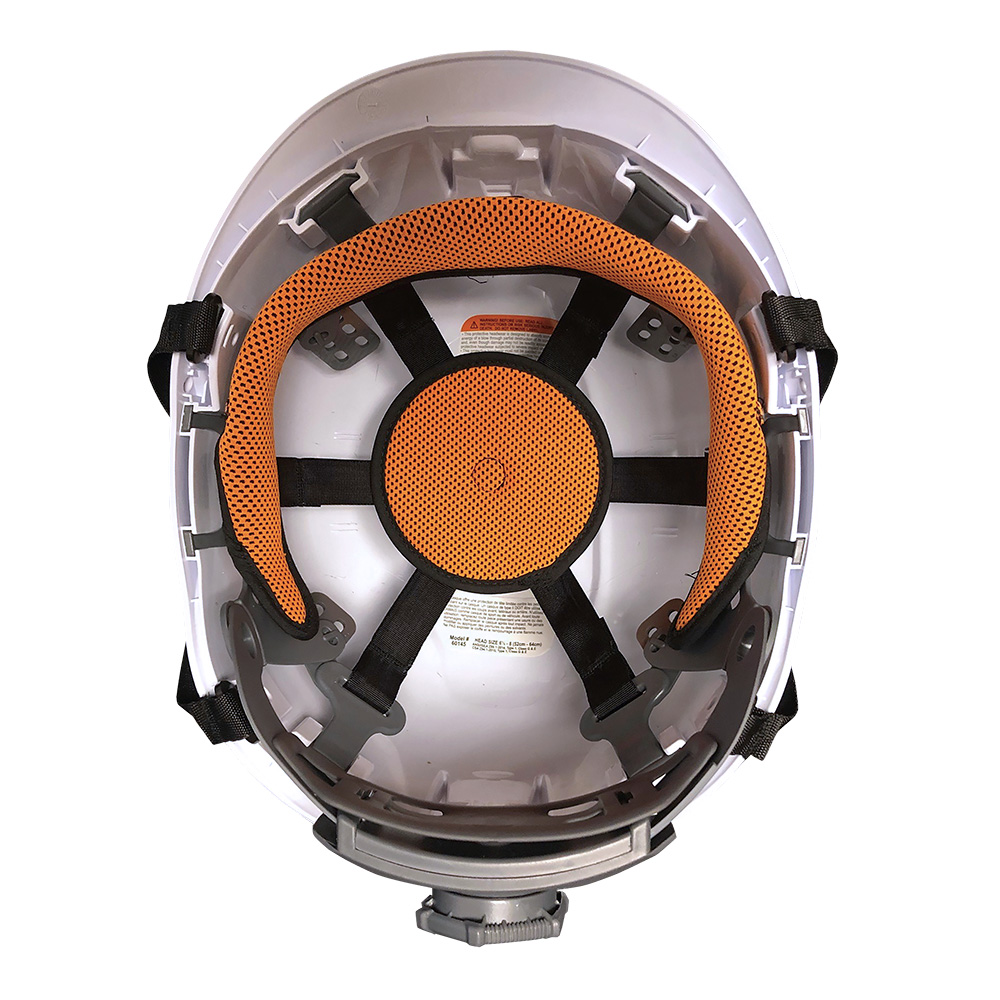

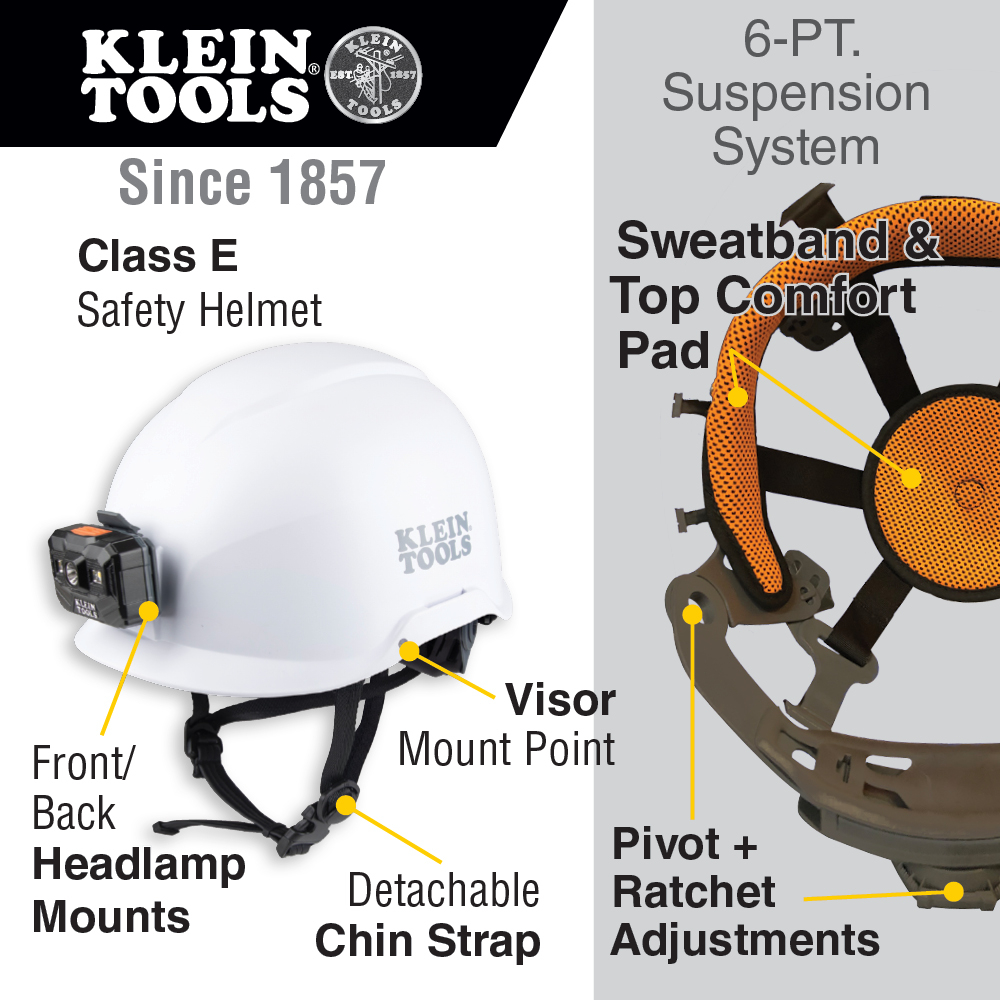

• 6-point suspension along with chin strap provides improved stability and secure fit when tilting your head
• Optional accessories and replacement parts sold separately: Klein Headlamps (Cat. Nos. 56062, 56049, 56048, KHH56220), Klein Visors, Sweatband, Top Pad, Chin Strap, Suspension
• Detachable 4-point padded chin strap for comfortable secure fit
• Universal accessory slots on both sides for attaching hearing protection, face shield and more
• Breathable, padded sweat-wicking sweatband and top pad improve comfort and are machine washable
• Up to 20kV Protection

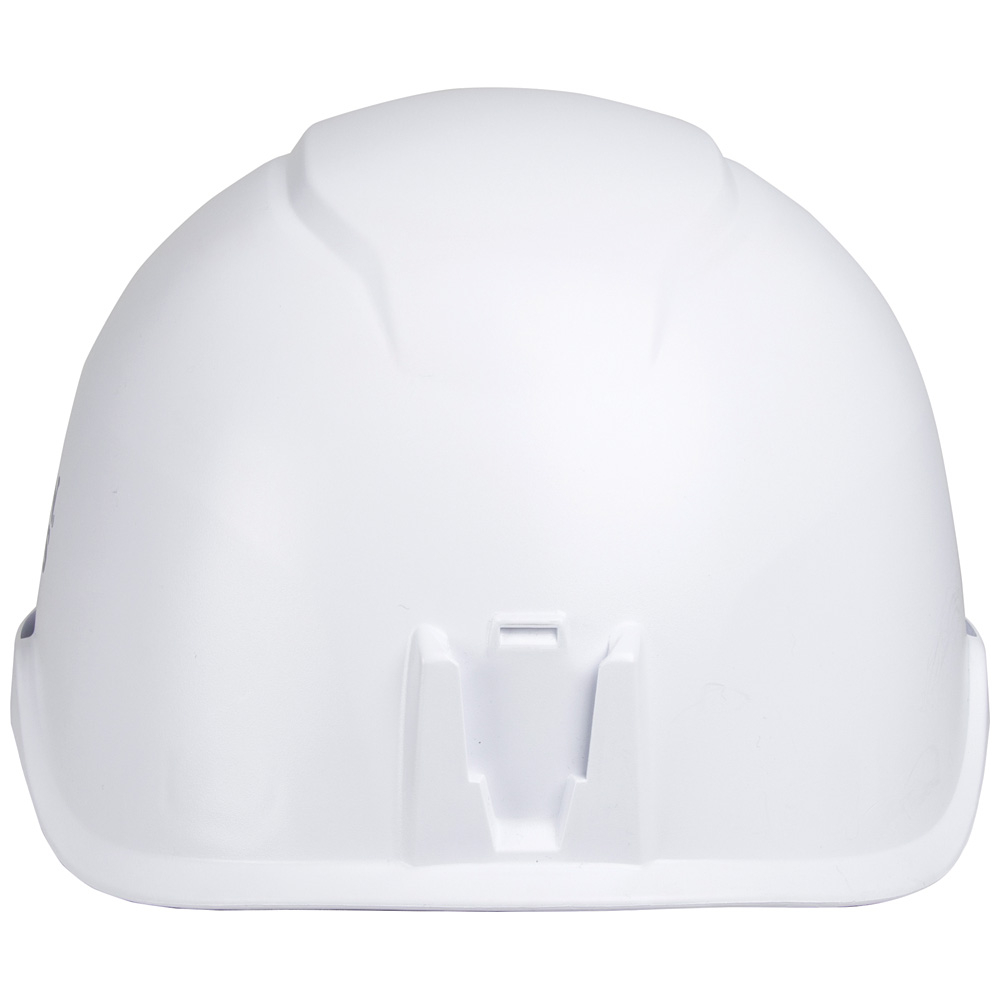

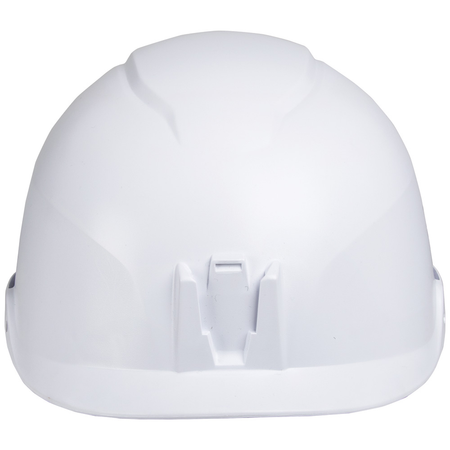

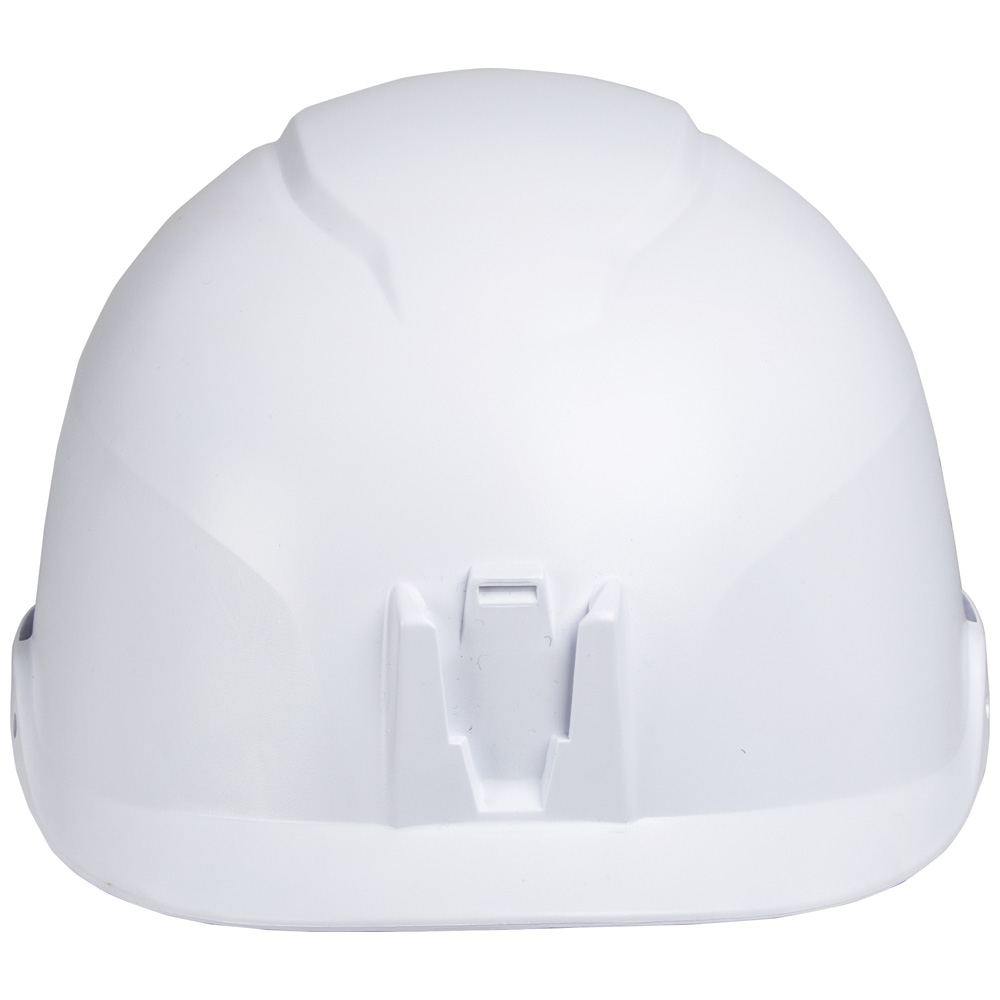

• Safety hard hat has patent-pending accessory mounts on front and back ensure Klein Headlamps attach securely and precisely, every time — no straps or zip ties needed!

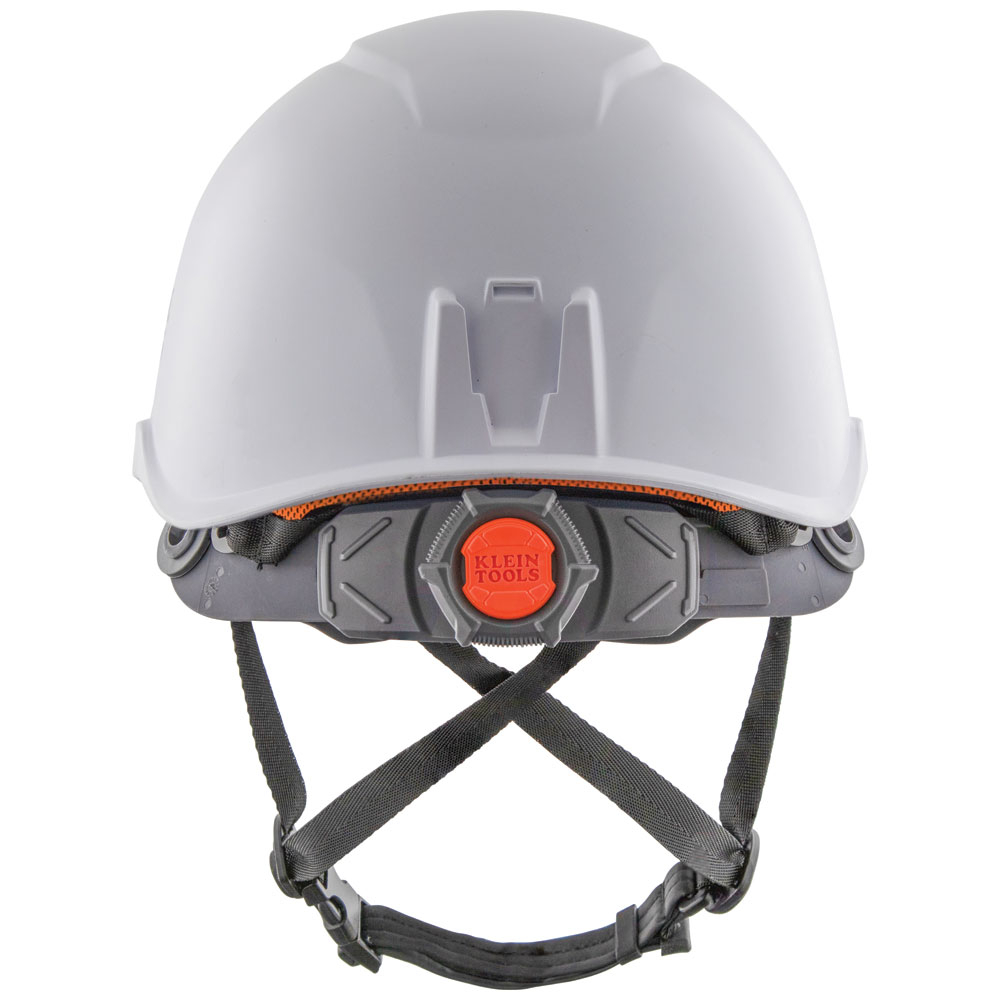

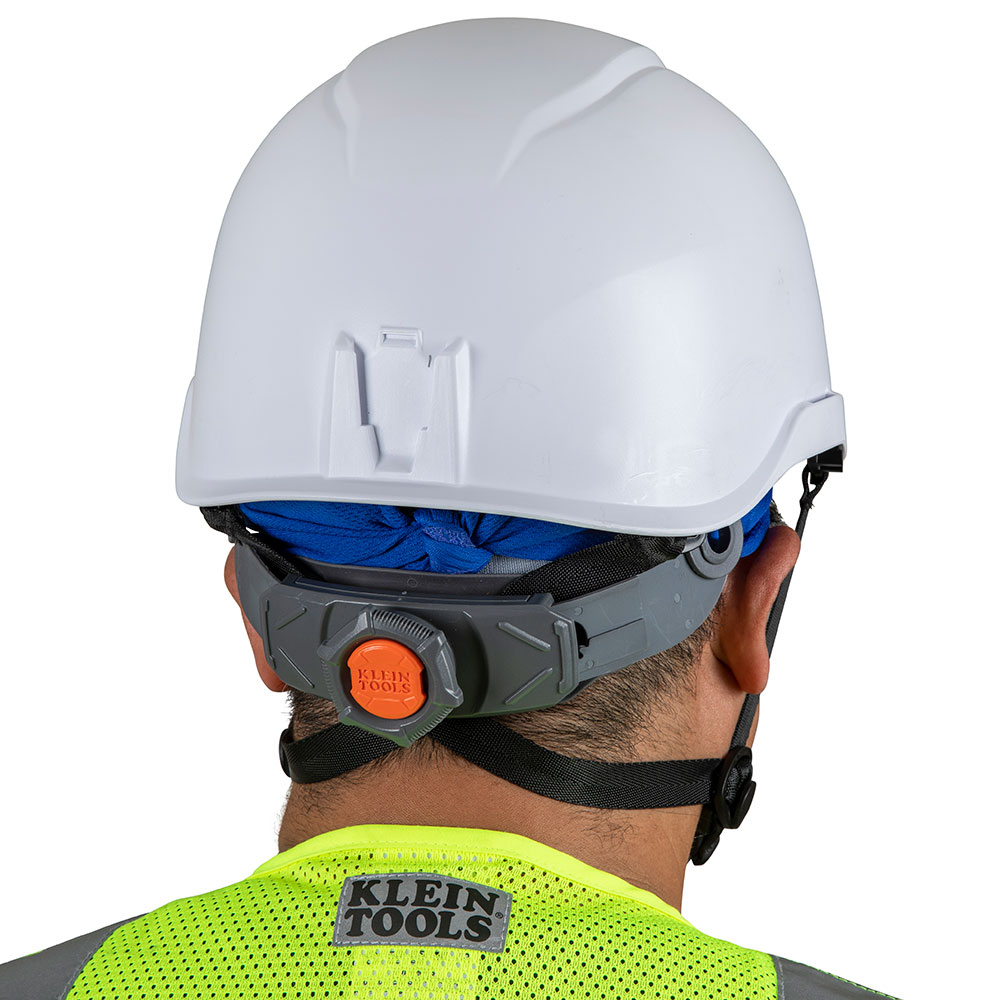

• Easy, one-handed adjustment with large knob ratchet mechanism, even with gloves on; soft neck pad pivots to clear bandana knots and pony tails
• Tested up to 20kV

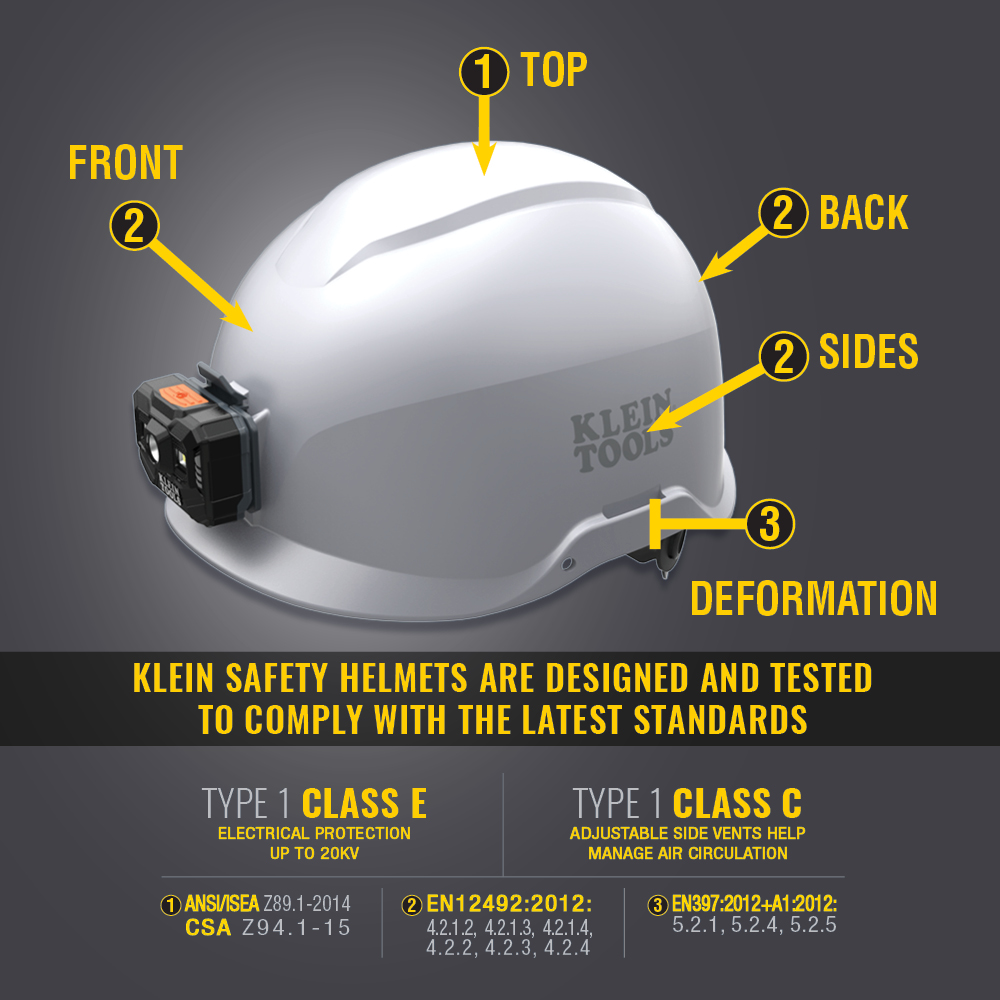

• This Class E Type-1 Safety Helmet has been tested to ANSI/ISEA Z89.1-14 (R2019), CSA Z94.1-15, and select clauses of EN397 and EN12492 Standards for top, front/back, side impact (See instruction manual for details)
• Accessory mounts on front and back (patent pending) ensure Klein Headlamps (not included) attach securely and precisely — no straps or zip ties needed!
• Accessories and replacement parts (sold separately): Rechargeable Headlamps (Cat. Nos. 56049, 56048, 56062), Sweatband, Top Pad, Chin Strap, Suspension System (Cat. Nos. KHHSWTBND, KHHTOPPAD, CLMBRSTRP, CLMBRSPN)

Warnings

• Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all Safety Helmets and Accessories before each use. Failure to follow these warnings and instructions may result in serious bodily injury or death.

Note

• This helmet has been tested for limited impact protection from top, front/back and side impacts; it is NOT an ANSI/CSA Type-II helmet.

Specifications

• Shell Color: White
• Standard: ANSI Z89.1-2014, CSA Z94.1-15, EN397:2012+A1:2012-5.2.1, 5.2.4, 5.2.5, EN12492:2012-4.2.1.2, 4.2.1.3, 4.2.1.4, 4.2.2, 4.2.3, 4.2.4
• Depth: 10.7000 in
• Shell Material: PC/ABS
• Application: Class E
• Hat Style: Helmet
• Overall Height: 6.2" (15.7 cm)
• Weight: 1.2000 lbs
• Hat Size: 6.5 to 8
• Configuration: Safety Helmet
• Width: 8.8000 in
• Material: Shell - PC/ABS; Suspension - PC/ABS and HDPE
• Overall Width: 8.8" (22.4 cm)
• Color Name: White
• Suspension: 6-Point with Removable Chin Strap
• Overall Length: 10.7" (27.2 cm)
• Included: Safety Helmet, User Guide and Reflective Stickers
• Style Name: Safety Helmet
• Height: 6.2000 in
• Suspension Adjustment: Ratchet Knob with Pivot Adjustment
• Country of Origin: China
• Shell Lining: Padded, Sweat Wicking, Odor Resistant; Machine Washable
• Type: Type 1
• Accessory Slots: Front, Back and Both Sides
