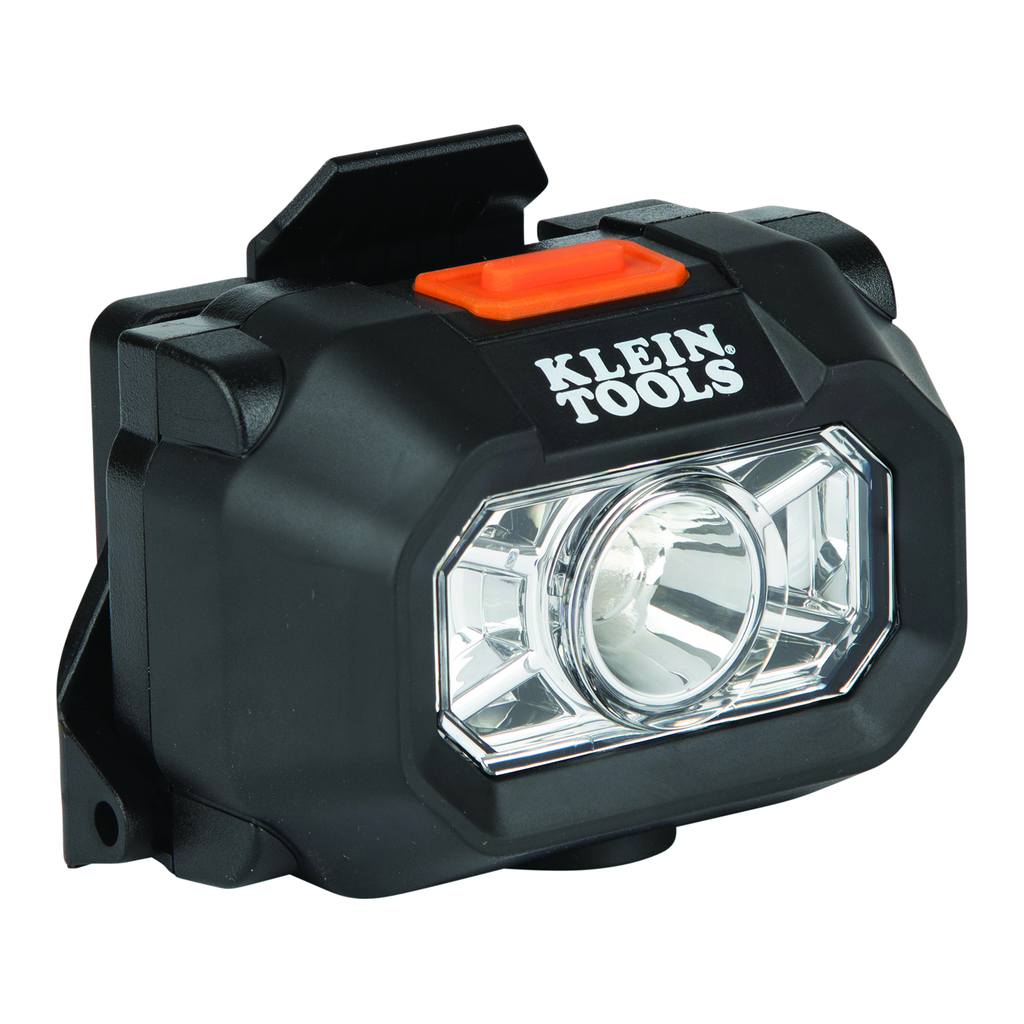

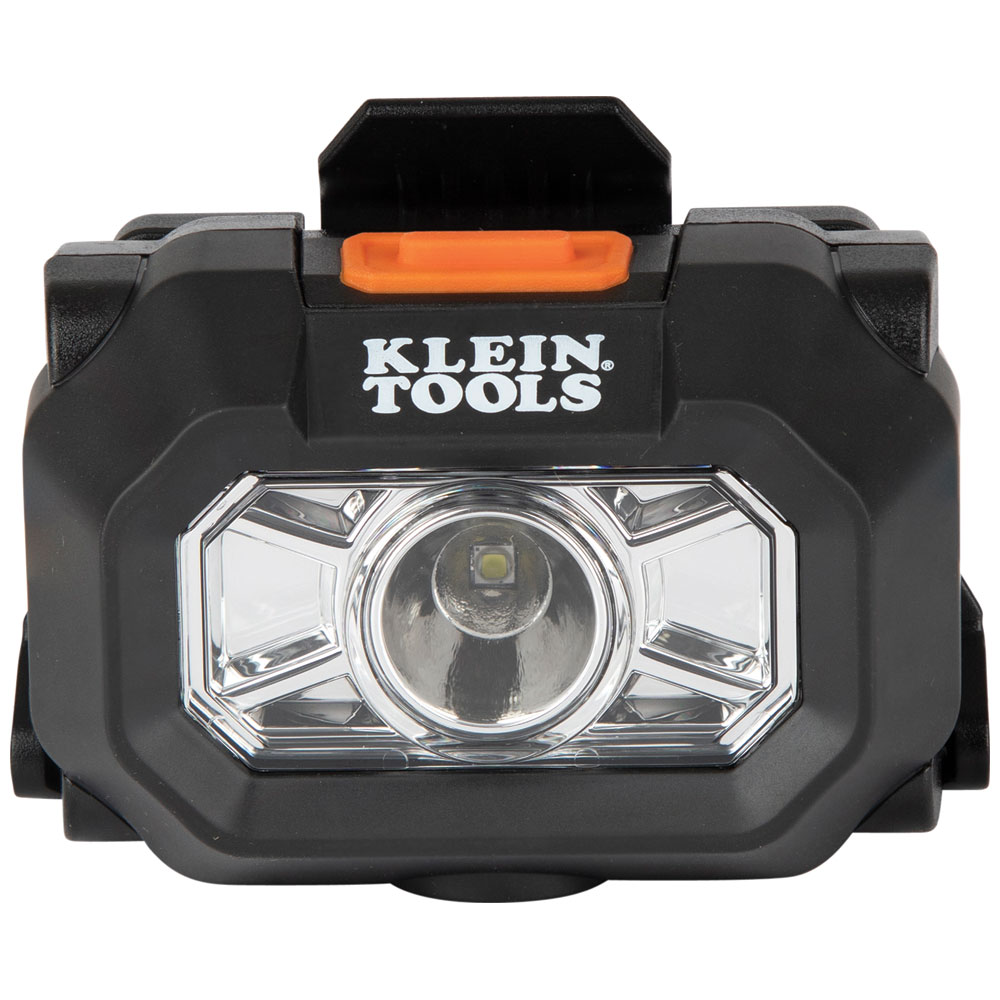

Intrinsically Safe LED Headlamp

This Intrinsically Safe Class I, II, and III / Division 1 Spot Headlamp is designed for hazardous locations, where explosion risk due to fine dust or fumes is high. This headlamp is designed to deliver an optimal combination of lightweight, IP rated waterproof and dust proof rugged construction. Powered by 3 x AAA batteries, this intrinsically safe LED headlamp mounts directly on front or back accessory mounts found exclusively on Klein® Hard Hats and Safety Helmets; no strap needed! Please consult your safety supervisor before using this product.

Features

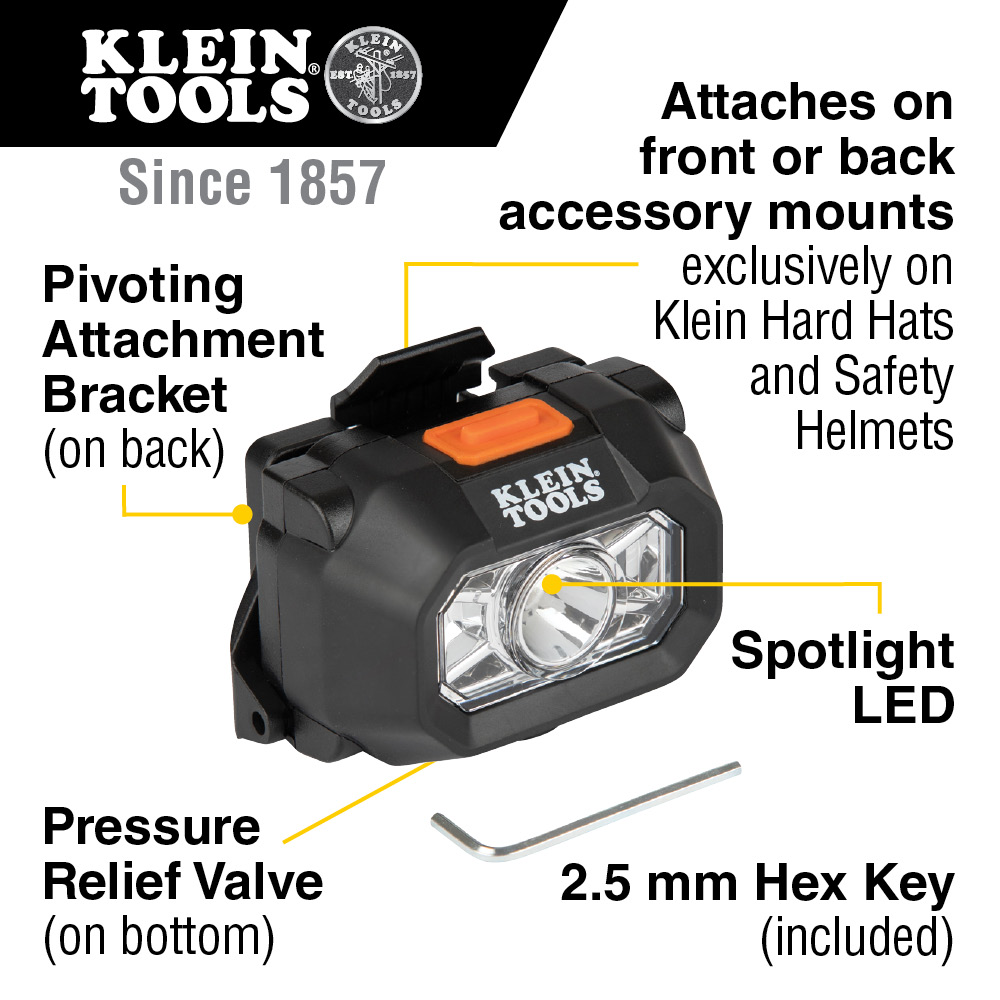

• Large power / mode button
• Pressure relief valve (on bottom)
• Intrinsically Safe Design
• Mode / Lumens / Runtime: 216 lumens on high for 5 hours; 75 lumens on low for 12 hours
• Impact resistant: drop-test rated up to 6.6 feet (2m)
• LED Headlamp Standards tested: UL913 7th edition (US and Canada), CSA 22.2 No. 157-92, Reaffirmed 2012, CLASS I, DIV 1 and 2, GRP ABCD; CLASS II, DIV 1 and 2, GRP EFG; CLASS III; TEMP CODE: T4
• Intrinsically safe LED headlamp attaches directly to Klein Tools Hard Hats and Safety Helmets equipped with Klein Tools accessory mount
• Powered by 3 x AAA batteries (included)
• IP67 rated: waterproof and dust proof

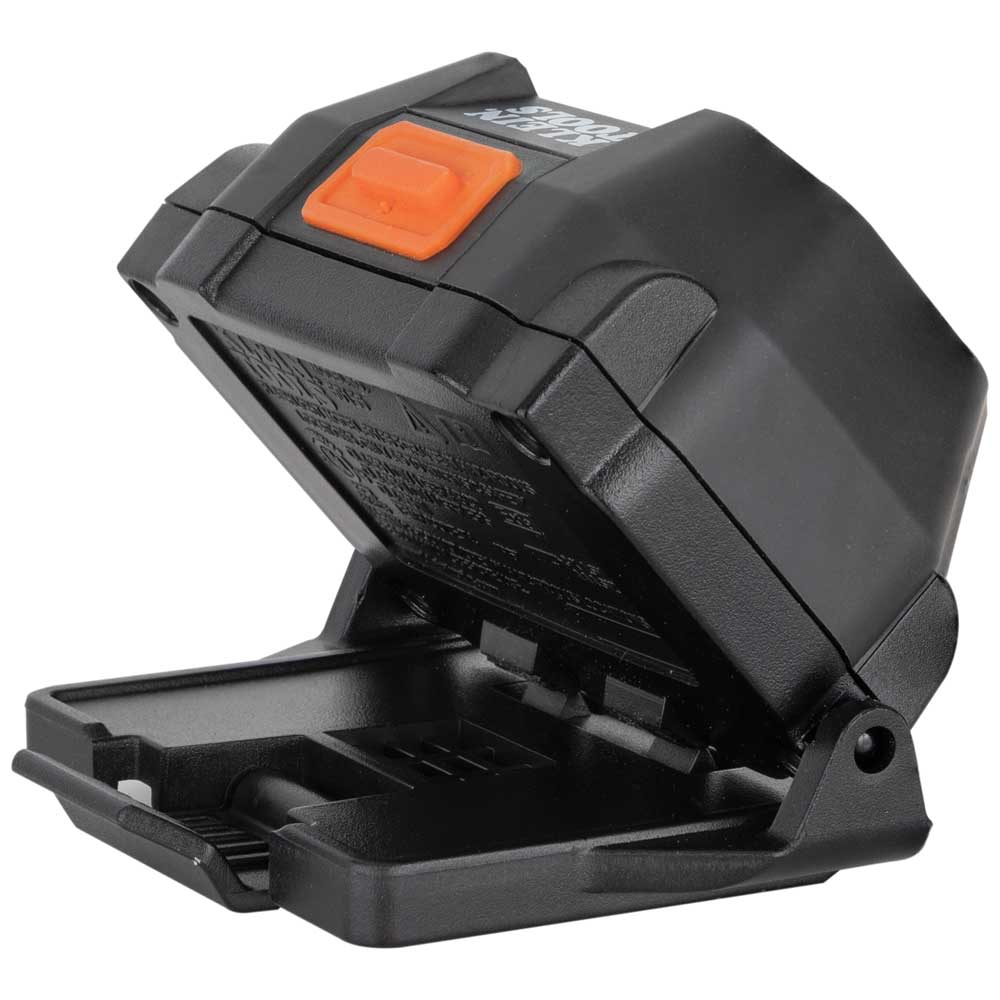

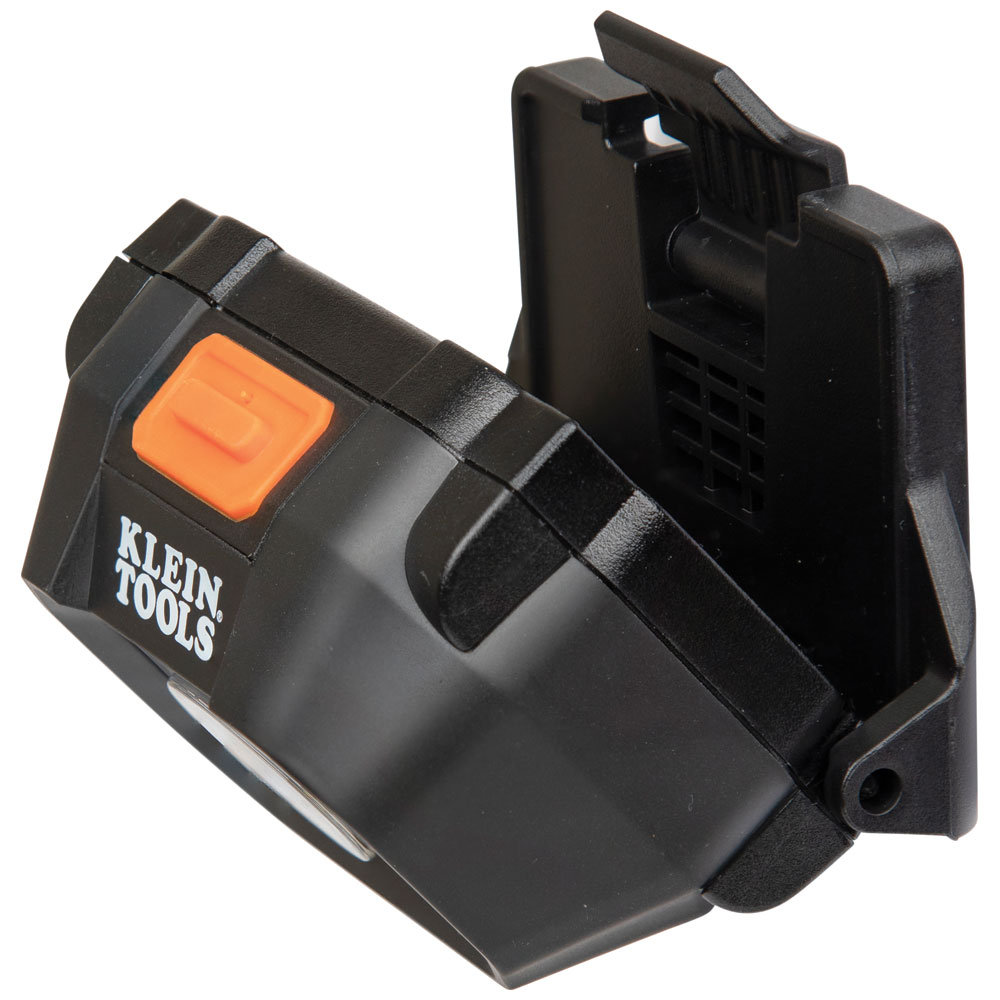

• Bracket tilt angle up to 70 degrees on hard hats (max 90 degrees)

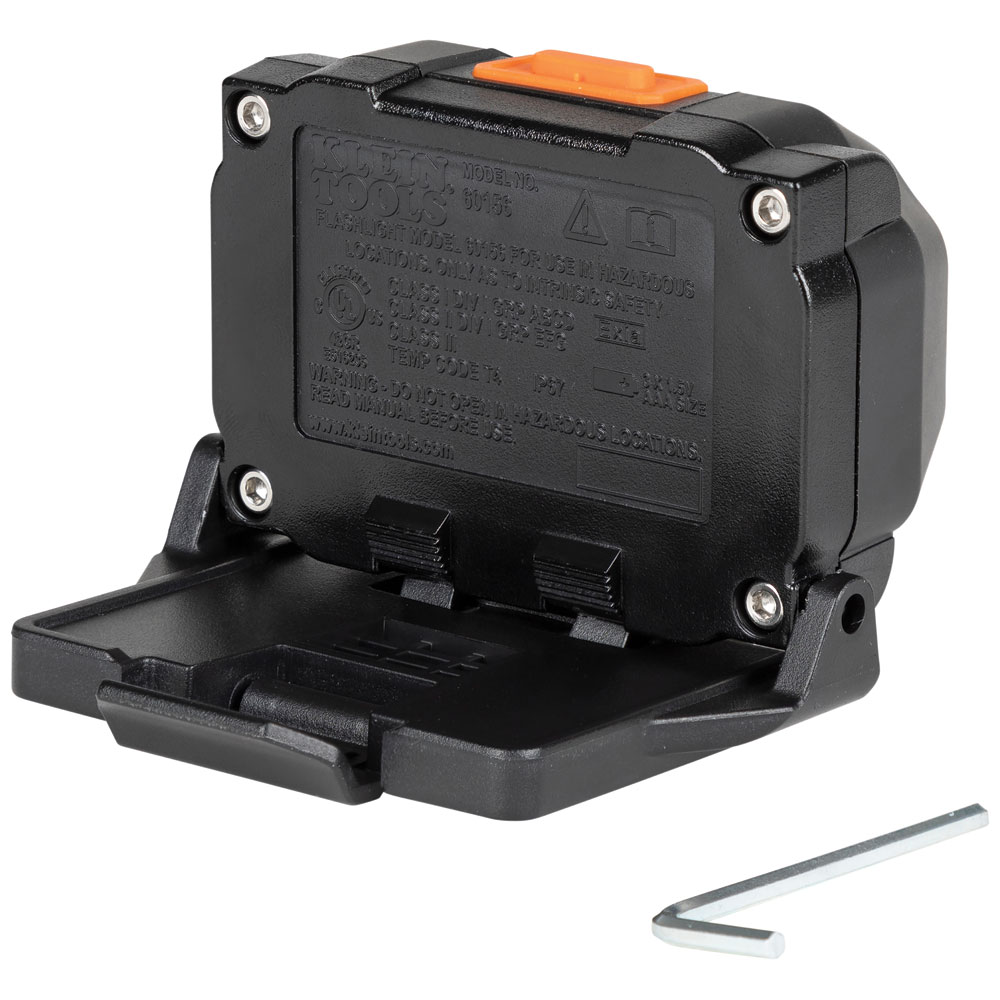

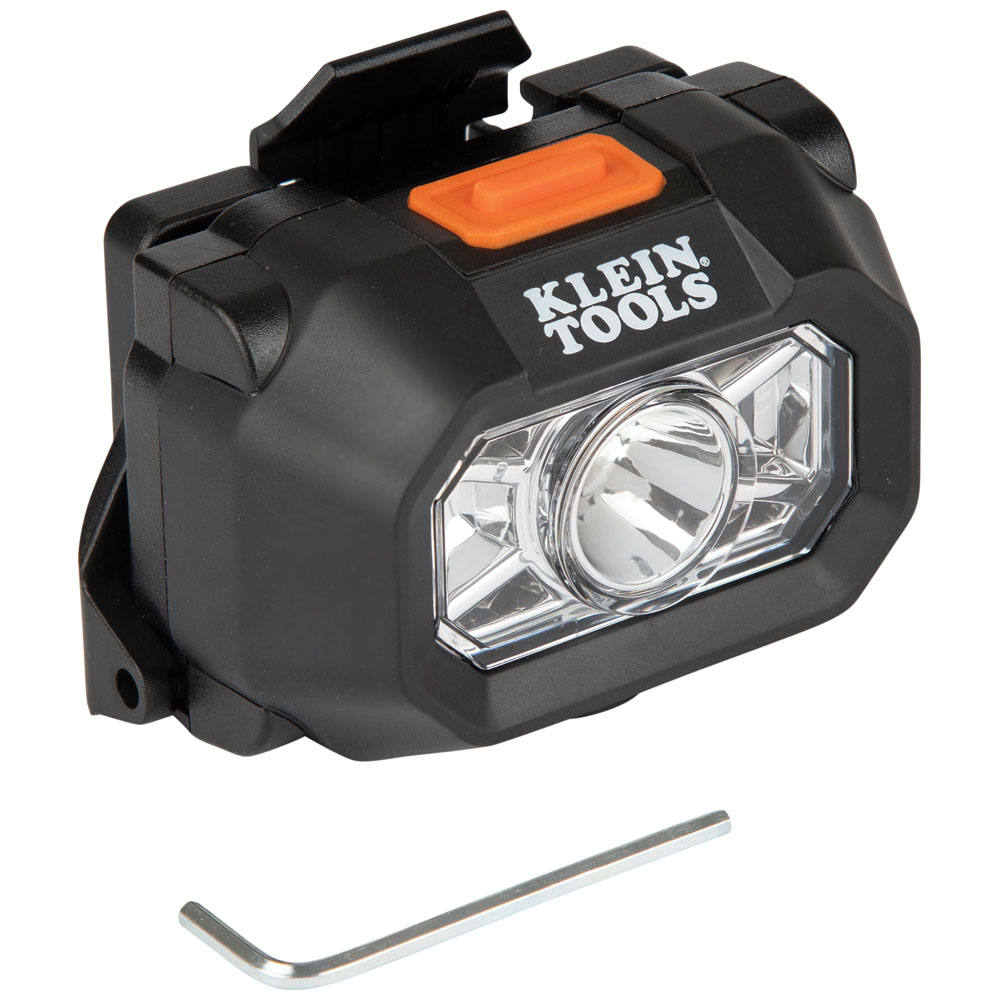

• Includes 1-inch (2.5 mm) Hex Key for covered battery compartment

Warnings

• Read, understand and follow instructions to ensure safe operation.
• Please consult your safety supervisor before using this product.

Specifications

• Type: Headlamp
• Weight (g): 104
• Depth: 3.3090 in
• Overall Length (Inch): 1.9
• Overall Width (Inch): 3.31
• Weight: 0.2300 lbs
• Temperature Range: 32° to 104°F (0° to 40°C)
• Standard: CLASS I DIV 1 and 2 GRP ABCD: CLASS II DIV 1 and 2 GRP EFG; CLASS III; TEMPERATURE CODE T4
• Overall Width (cm): 8.4
• Height: 1.4270 in
• Material: PC/TPU
• Width: 1.8980 in
• Included: Headlamp; Hex Key, Batteries
• Overall Length (cm): 4.8
• Batteries: 3 x AAA
• Drop Protection: 6.6' (2 m)
• Weight (oz): 3.68
• Bulb Type: LED
• Lumens: High - 216; Low - 75
• Battery Life: High - 5 hr; Low - 12 hr
• Application: Designed for Hazardous Environments
• Overall Height (cm): 6.2
• Overall Height (Inch): 2.44
