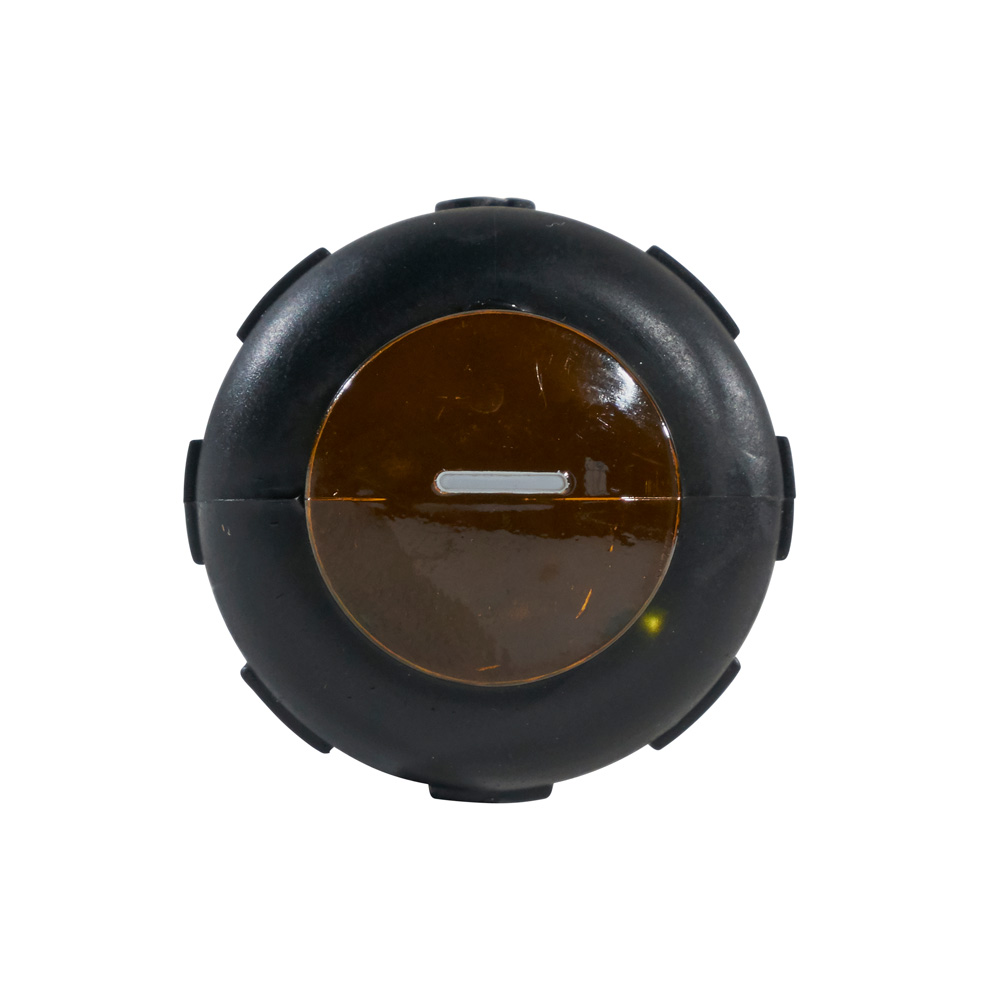

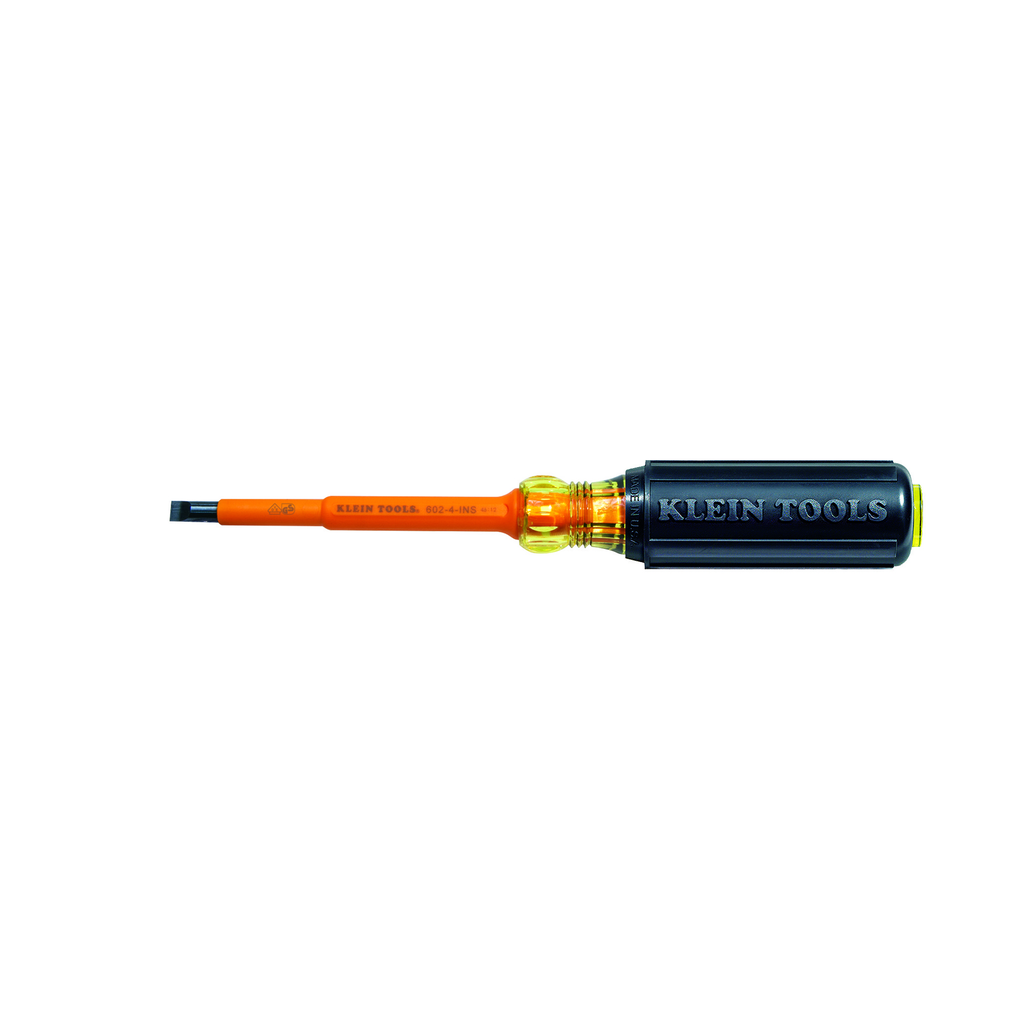

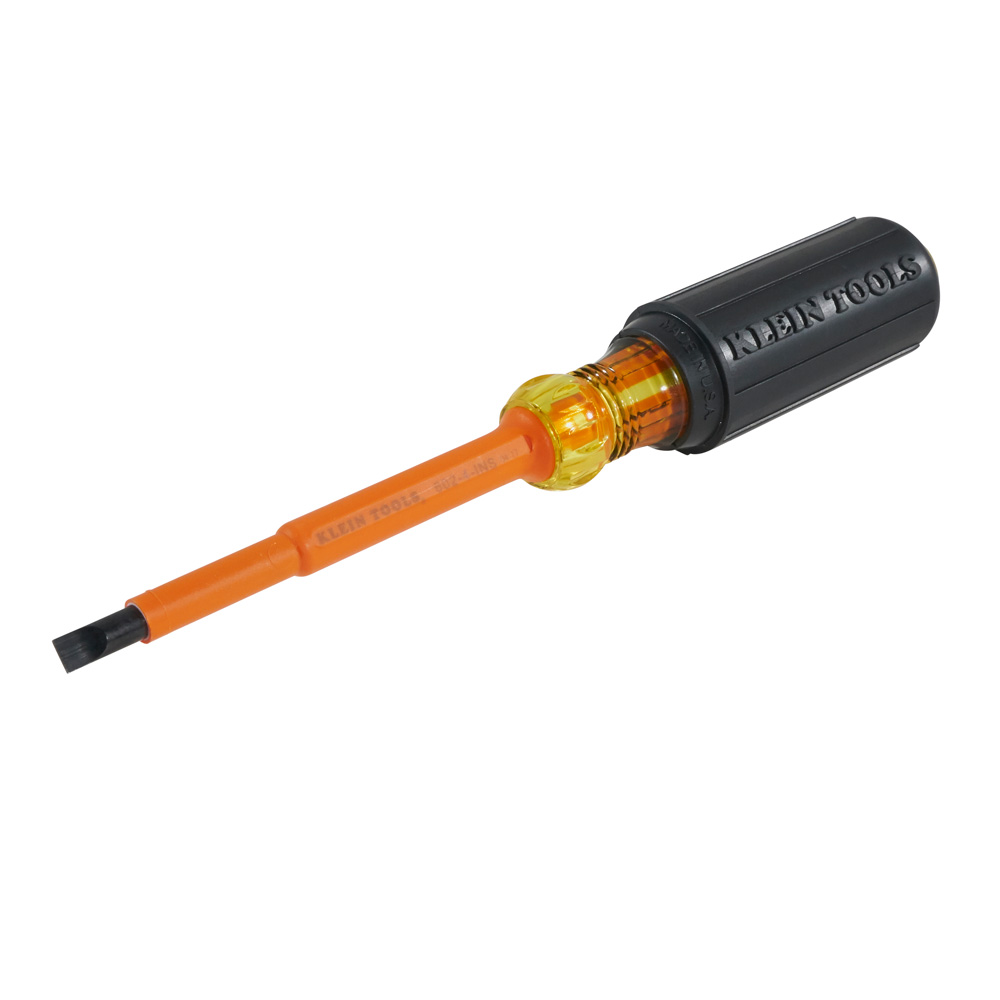

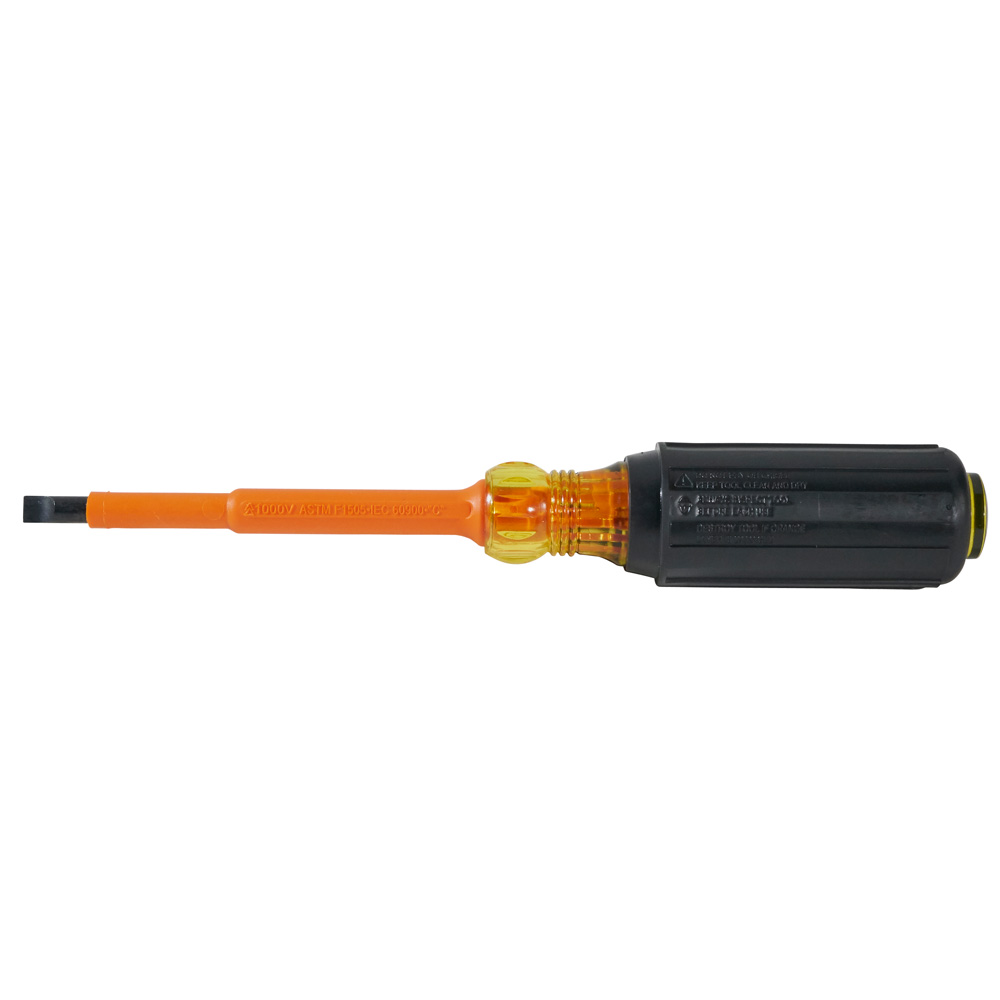

Insulated Screwdriver, 1/4-Inch Cabinet, 4-Inch Round Shank

Protect yourself when working near an energized source. Clearly marked with the official 1000-volt rating symbol, Klein insulated tools exceed IEC 60900 and ASTM F1505 standards for insulated tools. Two layers of insulation provide protection against electric shock. Built to handle the tough jobs with ease.

Warnings

• Do NOT use to pry or chisel.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Because moisture, films and other surface contaminants are conductive, Klein insulated tools must be kept clean, dry and free of any surface contamination.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Wear approved eye protection.

Features

• Custom US-made tool steel
• Flame Retardant and Impact Resistant Handle
• 1000V rated for safety
• Cushion-Grip™ handle for superior torque and comfort
• Durable, flame-retardant, molded dual-layer insulation
• Made in the USA

Specifications

• Magnetic: No
• Standard: IEC 60900 and ASTM F1505
• Shank Type: Round
• Application: For Work Near Energized Sources
• Handle Material: High-Dielectric Plastic
• Tip Size: 1/4" (6.4 mm)
• Handle Color: Black
• Width: 1.2500 in
• Weight (oz): 3.2
• Insulated: Yes
• Overall Length (Inch): 8.313
• Material: Induction Hardened Steel
• Weight: 0.2000 lbs
• Height: 11.0000 in
• Tip Type: Cabinet
• Shank Length: 4" (10.2 cm)
• Overall Length (cm): 21.1
• Depth: 8.3130 in
• Weight (g): 91
