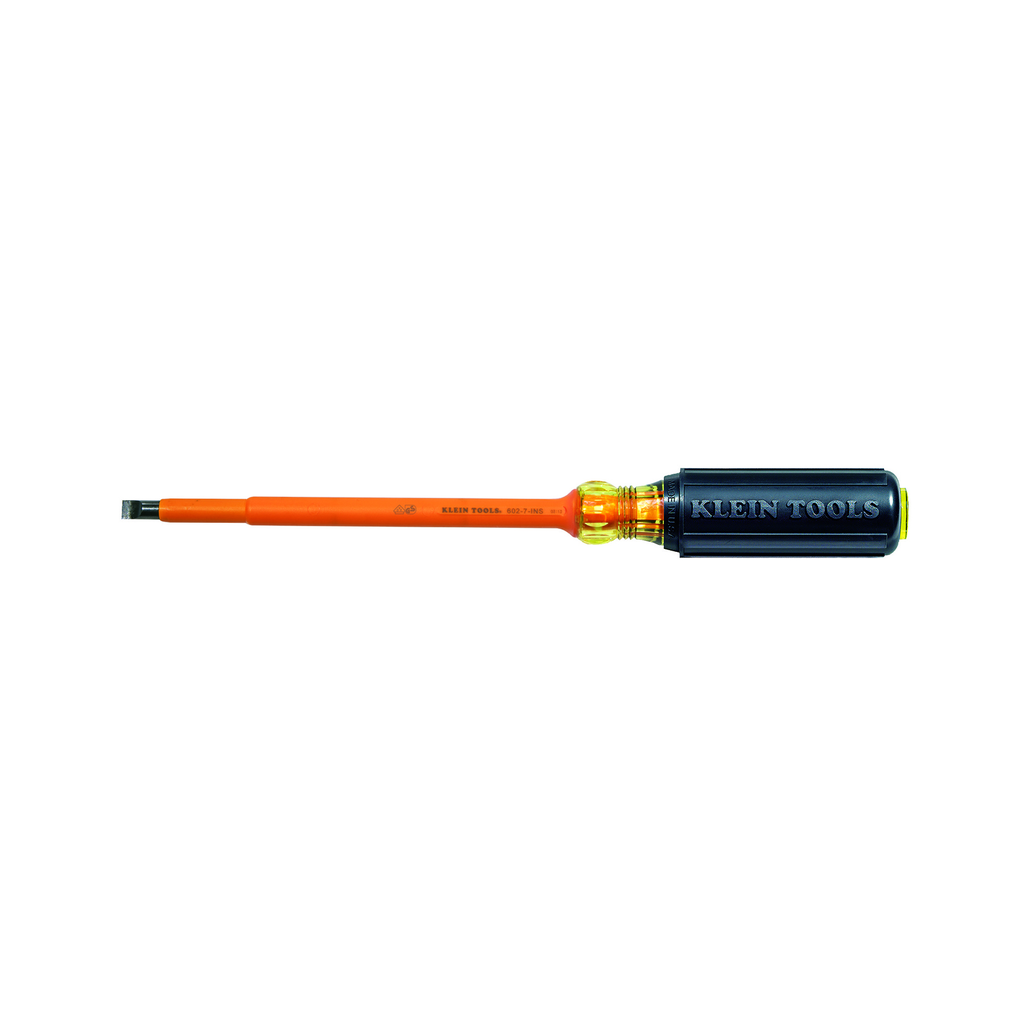

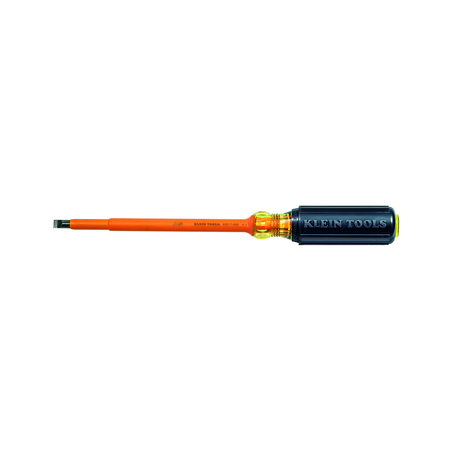

Insulated Screwdriver, 5/16-Inch Cabinet, 7-Inch Round Shank

Protect yourself when working near an energized source. Clearly marked with the official 1000-volt rating symbol, Klein insulated tools exceed IEC 60900 and ASTM F1505 standards for insulated tools. Two layers of insulation provide protection against electric shock. Built to handle the tough jobs with ease.

Warnings

• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Wear approved eye protection.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Because moisture, films and other surface contaminants are conductive, Klein insulated tools must be kept clean, dry and free of any surface contamination.
• Do NOT use to pry or chisel.

Features

• Custom US-made tool steel

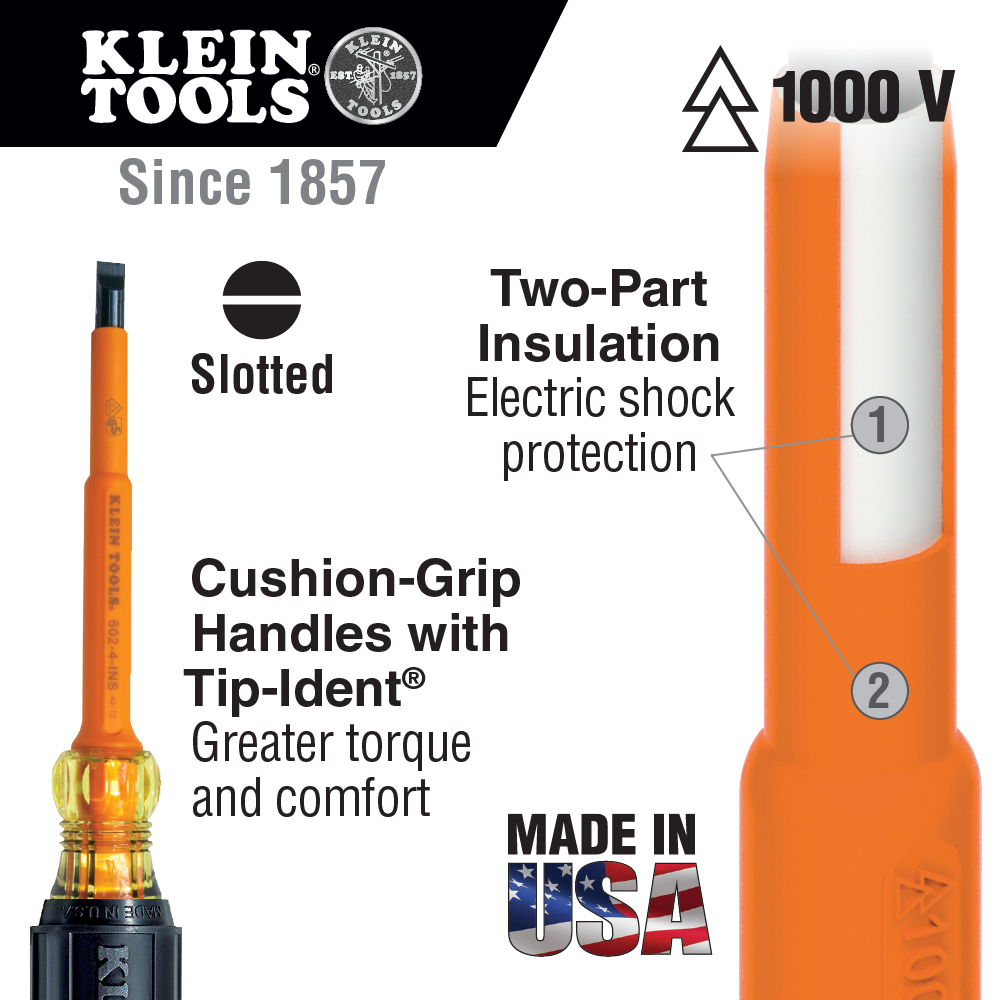

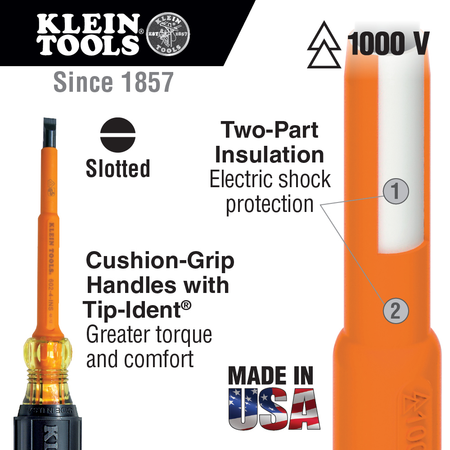

• Durable, two-layer, molded insulation to meet or exceed all ASTM and IEC standards for insulated tools
• Cushion-Grip™ handle for superior torque and comfort
• This replaces Cat. No. 602-6-INS
• Flame Retardant and Impact Resistant Handle
• Made in USA
• 1000V Rated for safety

Specifications

• Magnetic: No
• Material: Induction Hardened Steel
• Handle Color: Black
• Tip Size: 5/16" (7.9 mm)
• Overall Length: 31.4 cm (12.375 Inch)
• Insulated: Yes
• Shank Length: 7" (17.8 cm)
• Weight: 0.4000 lbs
• Shank Type: Round
• Tip Type: Cabinet
• Depth: 12.3750 in
• Standard: IEC 60900 and ASTM F1505
• Width: 1.0000 in
• Handle Material: High-Dielectric Plastic
• Application: For Work Near Energized Sources
• Height: 1.0000 in
