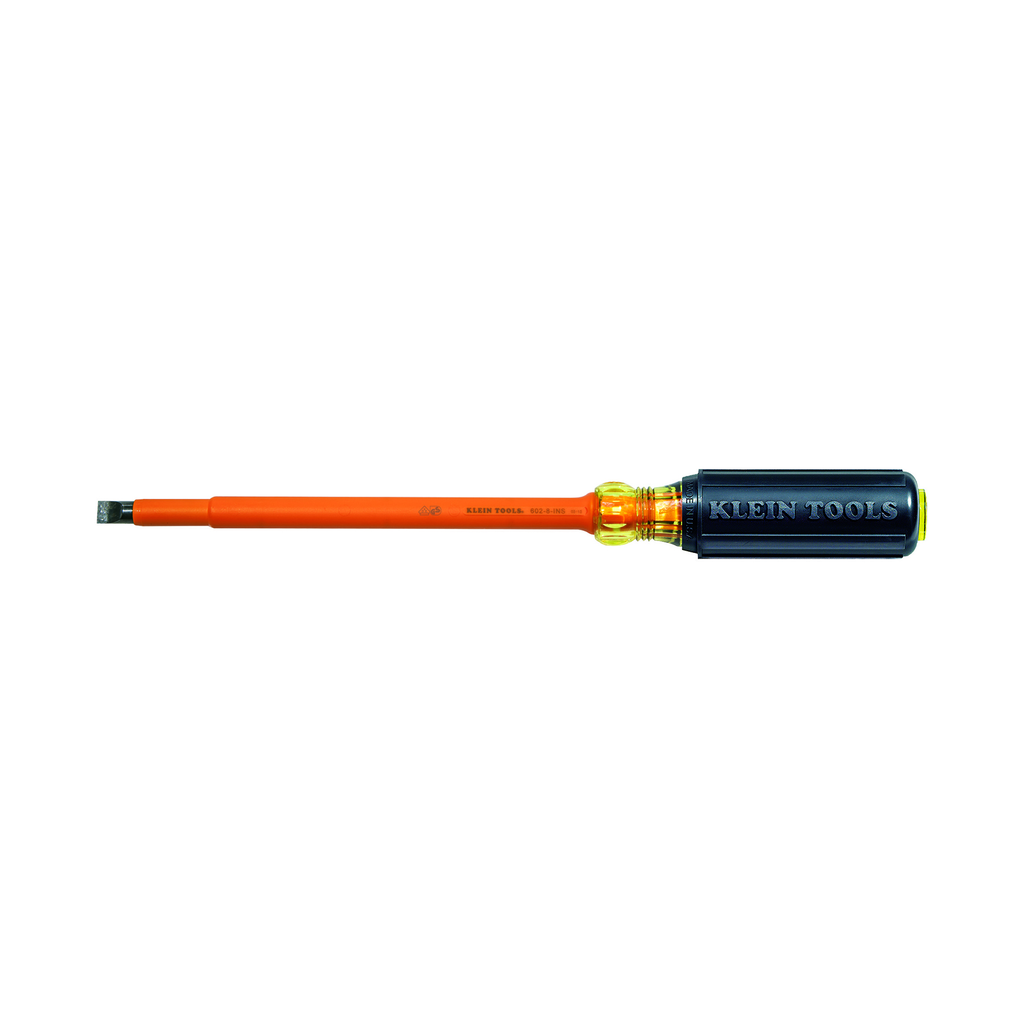

Insulated Screwdriver, 3/8-Inch Cabinet, 8-Inch Round Shank

Protect yourself when working near an energized source. Clearly marked with the official 1000-volt rating symbol, Klein insulated tools exceed IEC 60900 and ASTM F1505 standards for insulated tools. Two layers of insulation provide protection against electric shock. Built to handle the tough jobs with ease.

Features

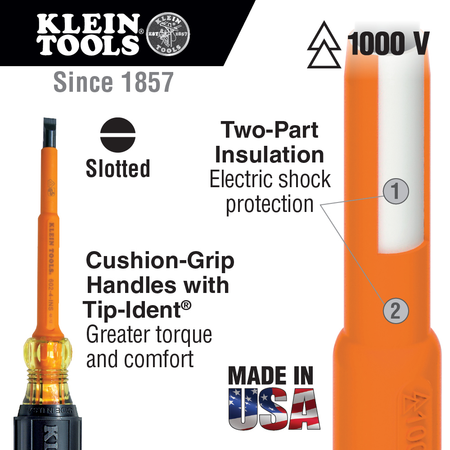

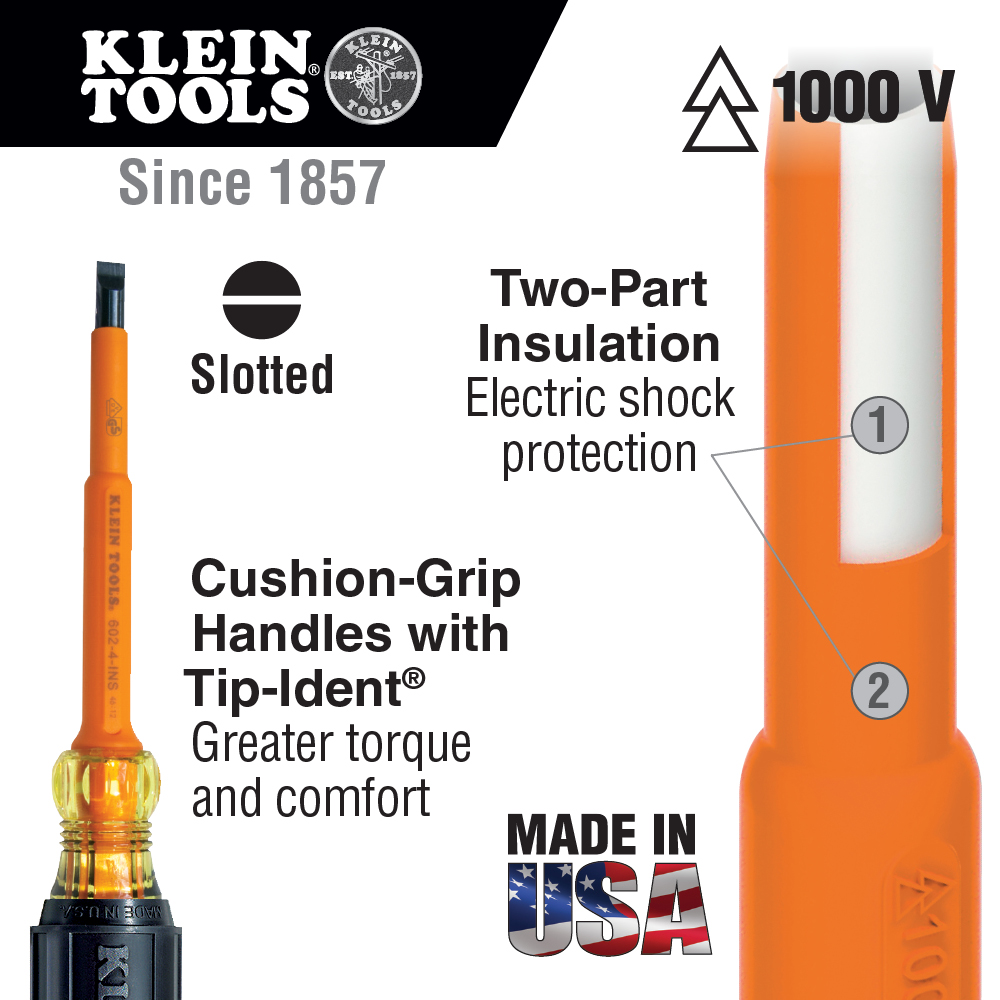

• Durable, two-layer, molded insulation to meet or exceed all ASTM and IEC standards for insulated tools
• This replaces Cat. No. 602-10-INS
• Made in USA
• Flame Retardant and Impact Resistant Handle
• Custom US-made tool steel
• 1000V Rated for safety
• Cushion-Grip™ handle for superior torque and comfort

Warnings

• Because moisture, films and other surface contaminants are conductive, Klein insulated tools must be kept clean, dry and free of any surface contamination.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Do NOT use to pry or chisel.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Wear approved eye protection.
• Destroy tool if insulation becomes damaged in any way.

Specifications

• Magnetic: No
• Material: Induction Hardened Steel
• Height: 1.0000 in
• Standard: IEC 60900 and ASTM F1505
• Weight (g): 227
• Width: 1.0000 in
• Tip Type: Cabinet
• Shank Length: 8" (20.3 cm)
• Overall Length (Inch): 13.375
• Insulated: Yes
• Handle Color: Black
• Overall Length (cm): 34
• Application: For Work Near Energized Sources
• Tip Size: 3/8" (9.5 mm)
• Depth: 13.3750 in
• Weight: 0.5000 lbs
• Weight (oz): 8
• Shank Type: Round
• Handle Material: High-Dielectric Plastic
