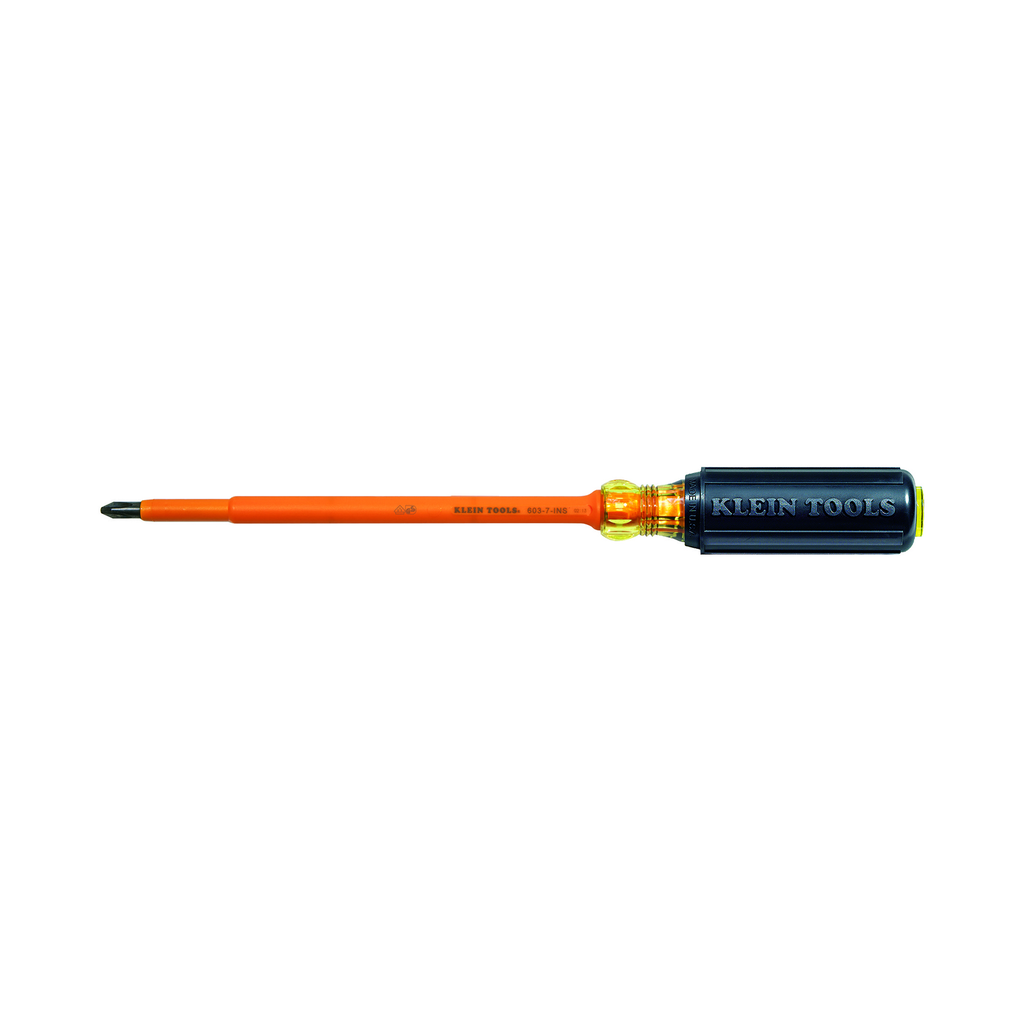

Insulated Screwdriver, #2 Phillips, 7-Inch Round Shank

Protect yourself when working near an energized source. Clearly marked with the official 1000-volt rating symbol, Klein insulated tools exceed IEC 60900 and ASTM F1505 standards for insulated tools. Two layers of insulation provide protection against electric shock. Built to handle the tough jobs with ease.

Warnings

• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Wear approved eye protection.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Do NOT use to pry or chisel.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.

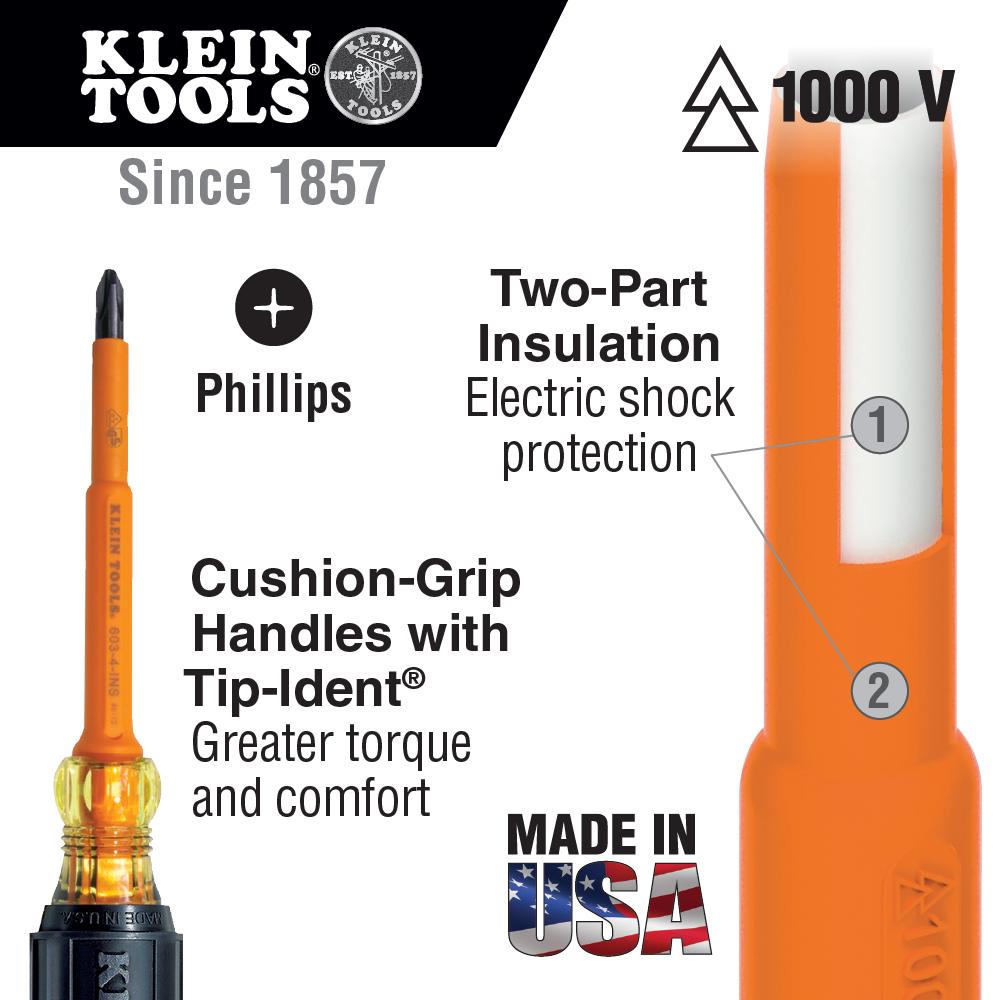

Features

• Made in the USA
• 1000V Rated for safety
• Flame Retardant and Impact Resistant Handle
• Cushion-Grip™ handle for greater torque and comfort
• Custom US-made tool steel
• Durable, two-layer, molded insulation to meet or exceed all ASTM and IEC standards for insulated tools

Specifications

• Material: Induction Hardened Steel
• Tip Type: Phillips
• Weight (oz): 4
• Tip Size: #2
• Width: 1.0000 in
• Weight (g): 113
• Insulated: Yes
• Shank Type: Round
• Weight: 0.2500 lbs
• Shank Length: 7" (17.8 cm)
• Handle Material: High-Dielectric Plastic
• Overall Length (cm): 28.7
• Overall Length (Inch): 11.313
• Height: 1.0000 in
• Magnetic: No
• Standard: IEC 60900 and ASTM F1505
• Depth: 11.3130 in
• Application: For Work Near Energized Sources
