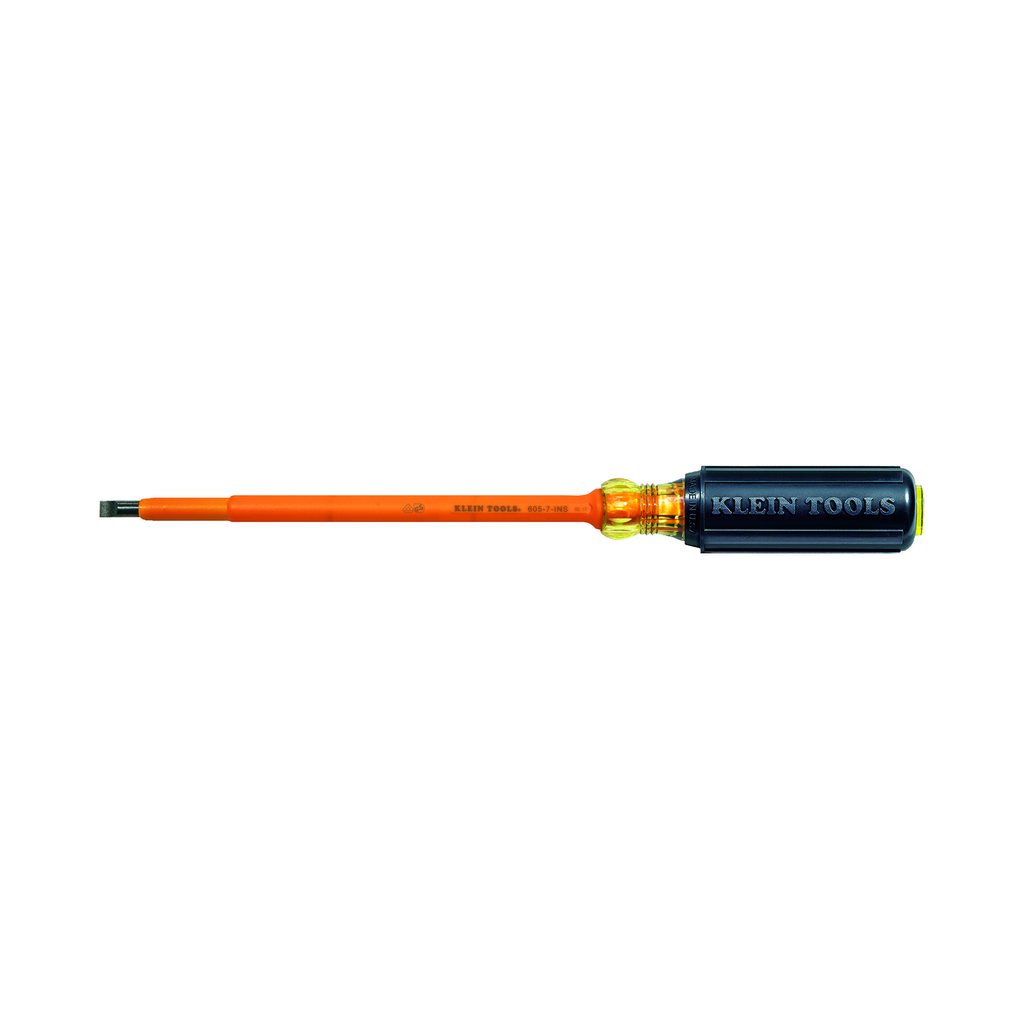

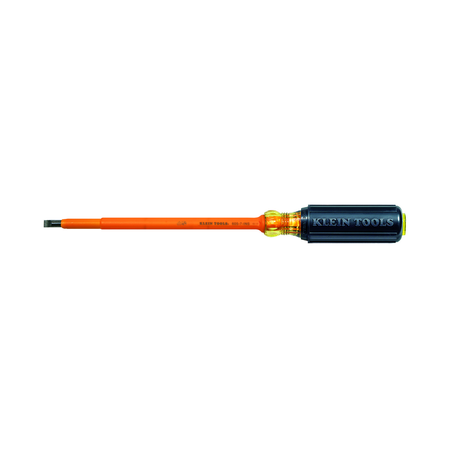

Insulated Screwdriver, 1/4-Inch Cabinet, 7-Inch Round Shank

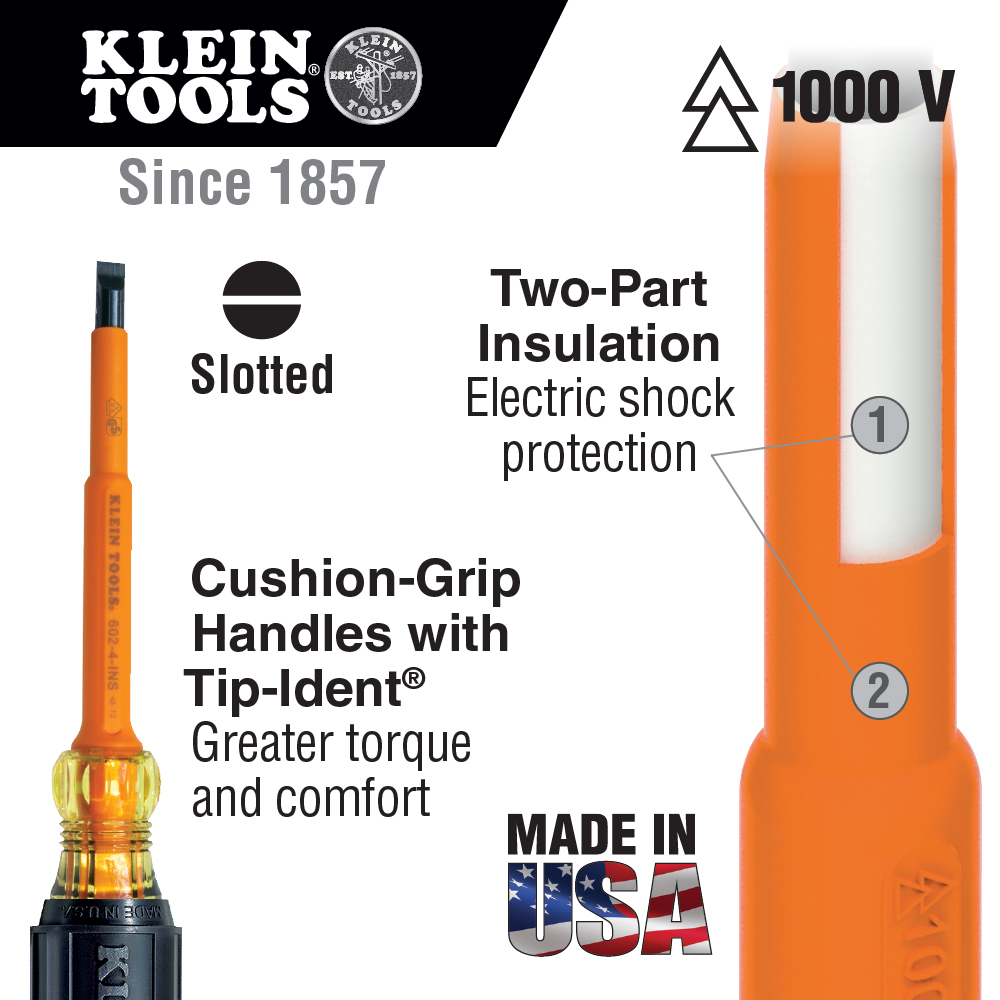

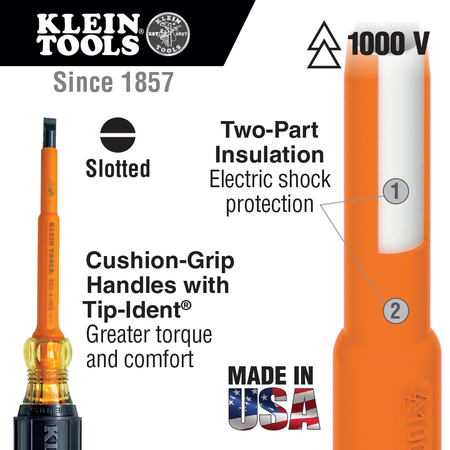

Protect yourself when working near an energized source. Clearly marked with the official 1000-volt rating symbol, Klein insulated tools exceed IEC 60900 and ASTM F1505 standards for insulated tools. Two layers of insulation provide protection against electric shock. Built to handle the tough jobs with ease.

Features

• Flame Retardant and Impact Resistant Handle
• Custom US-made tool steel
• Durable, two-layer, molded insulation to meet or exceed all ASTM and IEC standards for insulated tools
• Made in the USA
• 1000V Rated for safety
• Cushion-Grip™ handle for superior torque and comfort

Warnings

• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Do NOT use to pry or chisel.
• Wear approved eye protection.
• Because moisture, films and other surface contaminants are conductive, Klein insulated tools must be kept clean, dry and free of any surface contamination.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.

Specifications

• Overall Length (Inch): 11.313
• Weight (oz): 4
• Handle Material: High-Dielectric Plastic
• Weight (g): 113
• Application: For Work Near Energized Sources
• Tip Size: 1/4" (6.4 mm)
• Standard: IEC 60900 and ASTM F1505
• Shank Type: Round
• Material: Induction Hardened Steel
• Depth: 11.3130 in
• Overall Length (cm): 28.7
• Height: 1.0000 in
• Shank Length: 7" (17.8 cm)
• Weight: 0.2500 lbs
• Magnetic: No
• Tip Type: Cabinet
• Width: 1.0000 in
• Insulated: Yes

Downloads

Instructions
