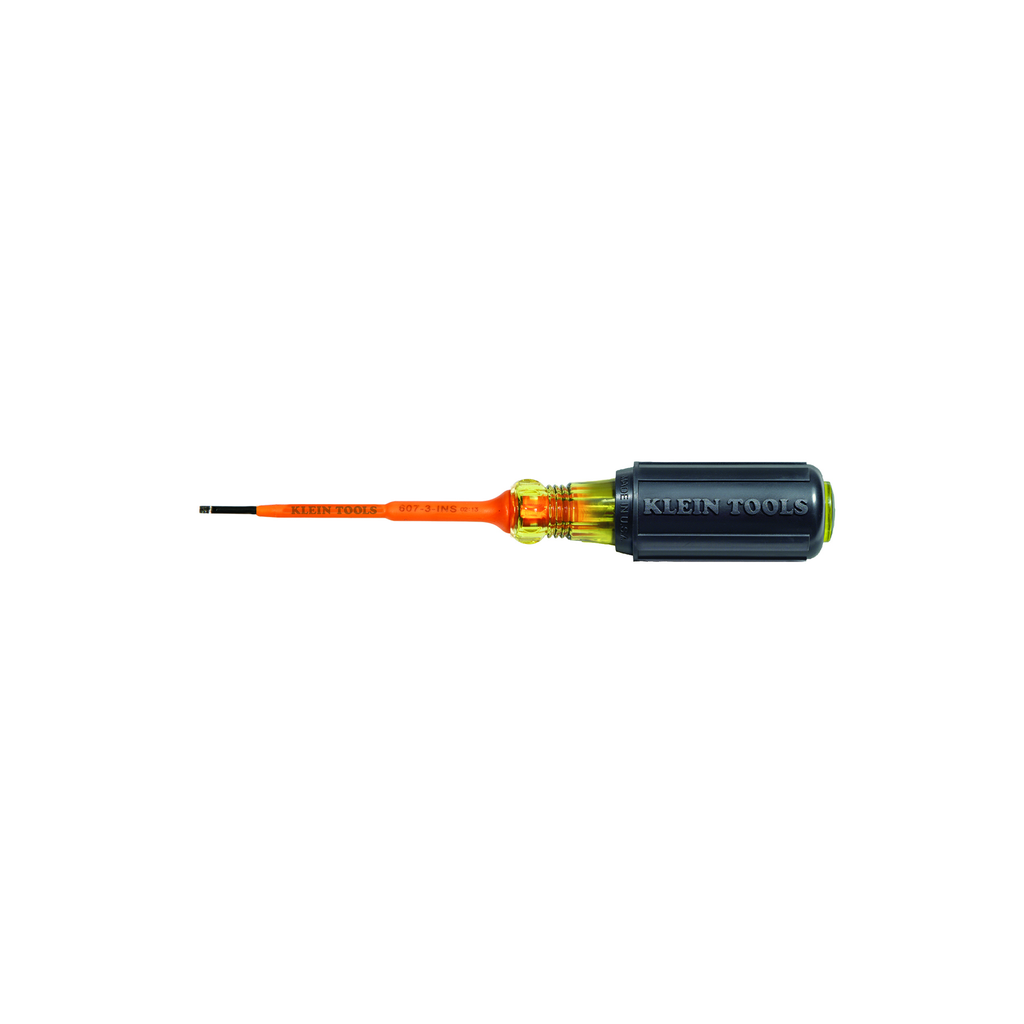

Insulated Screwdriver, 3/32-Inch Cabinet, 3-Inch Round Shank

Protect yourself when working near an energized source. Clearly marked with the official 1000-volt rating symbol, Klein insulated tools exceed IEC 60900 and ASTM F1505 standards for insulated tools. Two layers of insulation provide protection against electric shock. Perfect for working in control boxes or other terminal block applications where insulated tools are necessary.

Warnings

• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Because moisture, films and other surface contaminants are conductive, Klein insulated tools must be kept clean, dry and free of any surface contamination.
• Do NOT use to pry or chisel.
• Wear approved eye protection.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.

Features

• Made in USA with custom US-made tool steel
• 1000V Rated for safety
• Perfect for working in control boxes or other terminal block applications where insulated tools are necessary

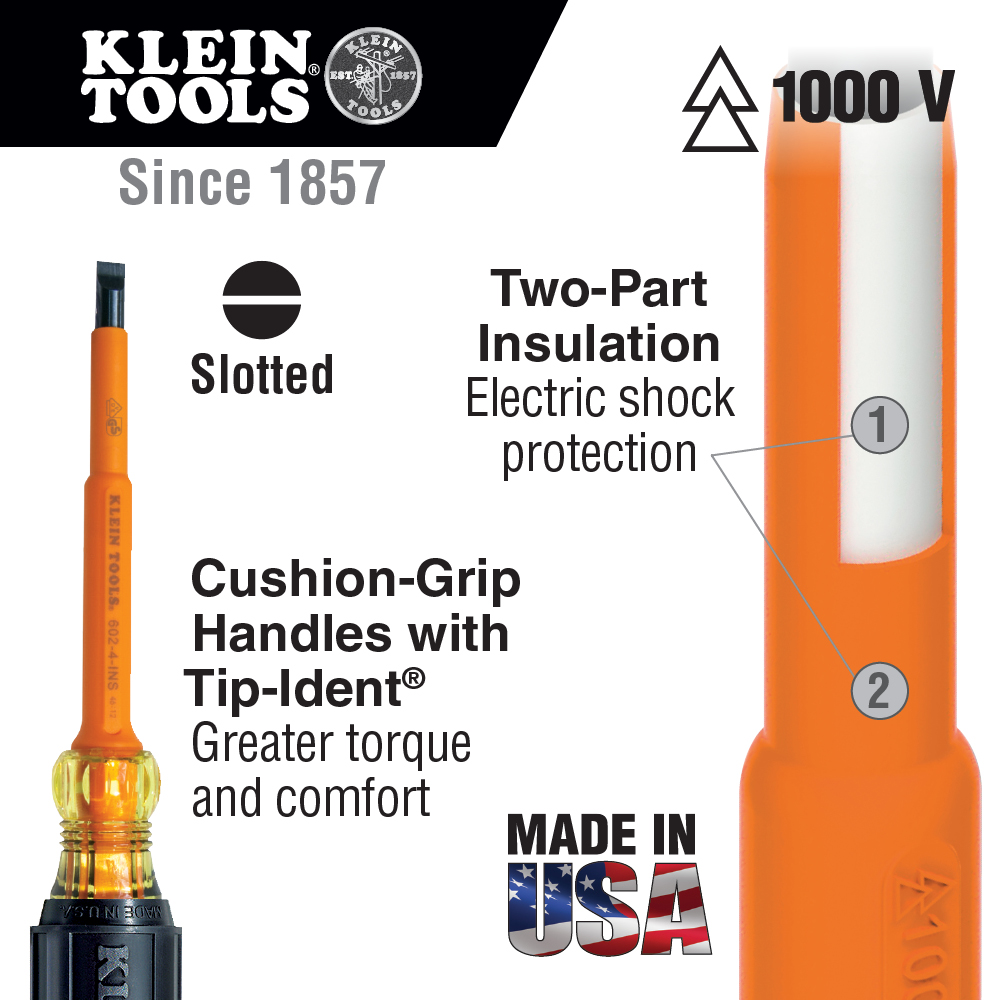

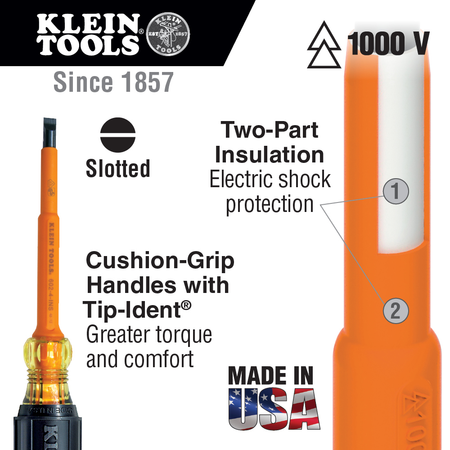

• Durable, two-layer, molded insulation to meet or exceed all ASTM and IEC standards for insulated tools
• Cushion-Grip™ handle for superior torque and comfort
• Flame Retardant and Impact Resistant Handle

Specifications

• Standard: IEC 60900 and ASTM F1505
• Overall Length (cm): 17.1
• Material: Induction Hardened Steel
• Handle Material: High-Dielectric Plastic
• Magnetic: No
• Height: 1.0000 in
• Shank Type: Round
• Weight: 0.1200 lbs
• Application: For Work Near Energized Sources
• Weight (oz): 1.9
• Weight (g): 54
• Shank Length: 3" (7.6 cm)
• Depth: 6.7500 in
• Insulated: Yes
• Handle Color: Black
• Tip Type: Cabinet
• Tip Size: 3/32" (2.4 mm)
• Overall Length (Inch): 6.75
• Width: 1.0000 in
