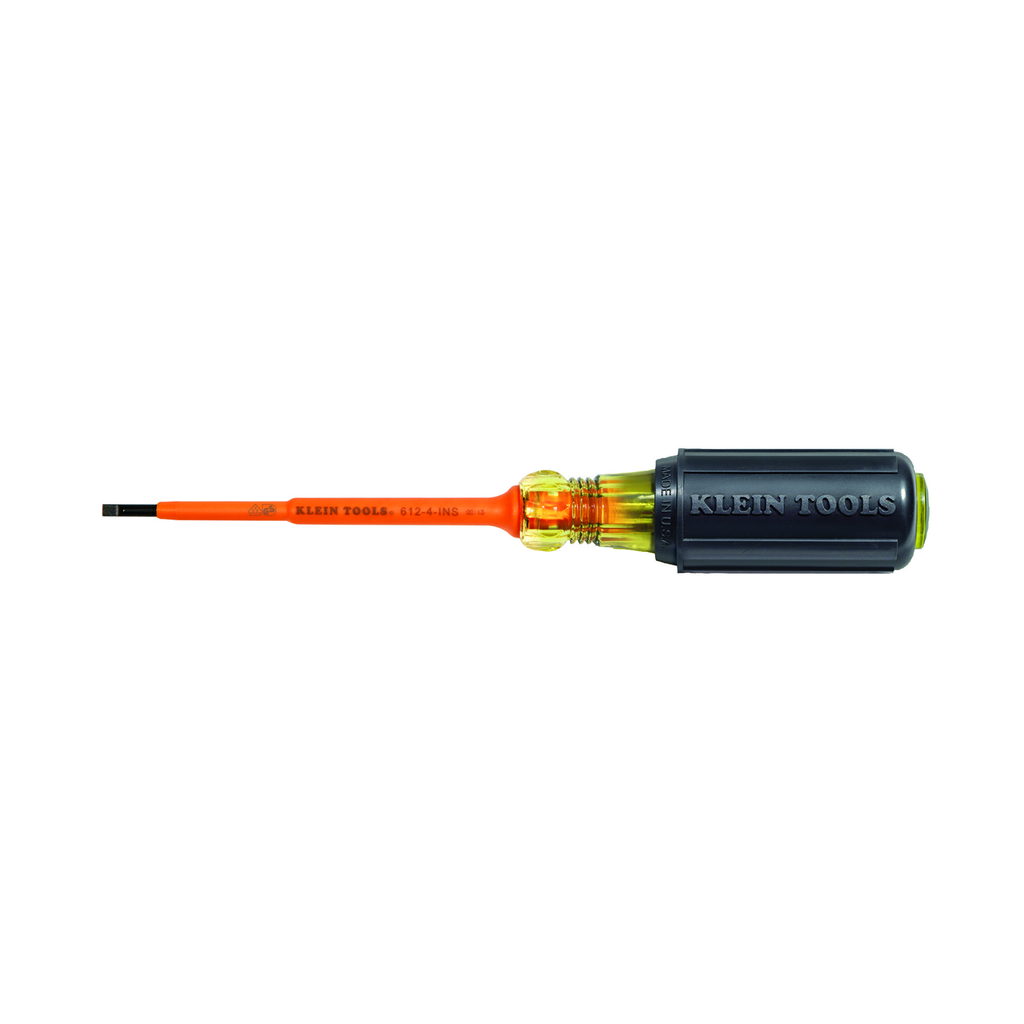

Insulated Screwdriver, 1/8-Inch Slotted, 4-Inch Round Shank

Protect yourself when working near an energized source. Clearly marked with the official 1000-volt rating symbol, Klein insulated tools exceed IEC 60900 and ASTM F1505 standards for insulated tools. Two layers of insulation provide protection against electric shock. Perfect for working in control boxes or other terminal block applications where insulated tools are necessary.

Features

• 1000V Rated for safety
• Meets or exceeds IEC 60900: 2012, ASTM F1505-10
• Perfect for working in control boxes or other terminal block applications where insulated tools are necessary
• Made in USA with custom US-made tool steel

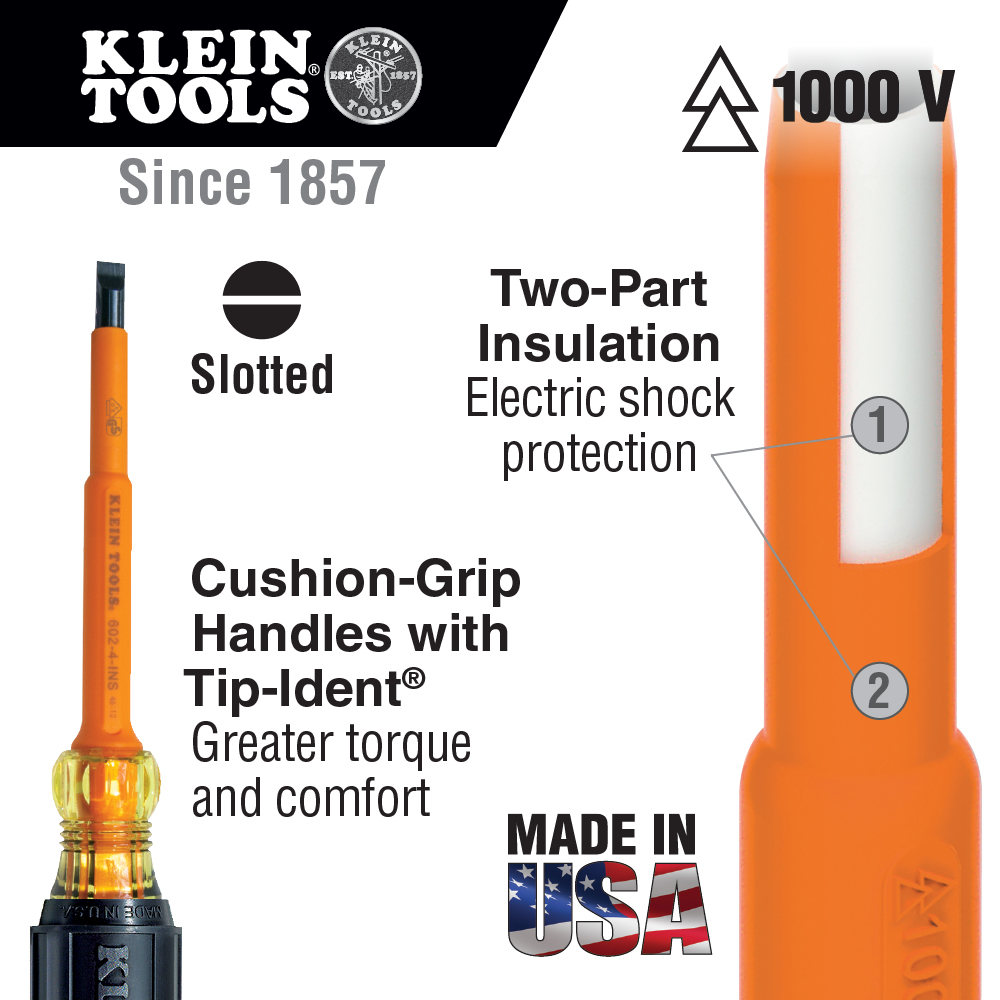

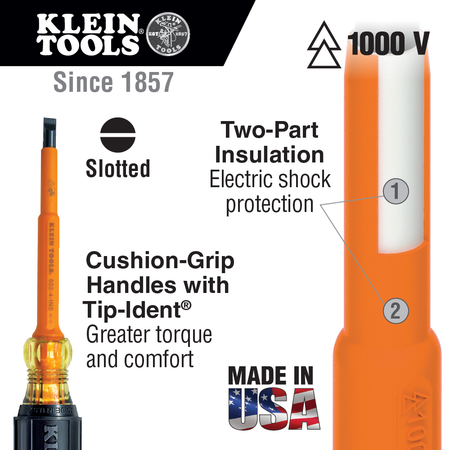

• Durable, two-layer, molded insulation to meet or exceed all ASTM and IEC standards for insulated tools
• Made in the USA
• Flame Retardant and Impact Resistant Handle
• Cushion-Grip™ handle for superior torque and comfort

Warnings

• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Do NOT use to pry or chisel.
• Because moisture, films and other surface contaminants are conductive, Klein insulated tools must be kept clean, dry and free of any surface contamination.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Wear approved eye protection.

Specifications

• Tip Size: 1/8" (3.2 mm)
• Weight: 0.1300 lbs
• Material: Induction Hardened Steel
• Magnetic: No
• Weight (oz): 2.1
• Depth: 7.7500 in
• Weight (g): 60
• Shank Type: Round
• Overall Length (Inch): 7.75
• Height: 0.9000 in
• Insulated: Yes
• Overall Length (cm): 19.7
• Handle Material: High-Dielectric Plastic
• Standard: IEC 60900 and ASTM F1505
• Application: For Work Near Energized Sources
• Shank Length: 4" (10.2 cm)
• Tip Type: Cabinet
• Handle Color: Black
• Width: 2.3670 in
