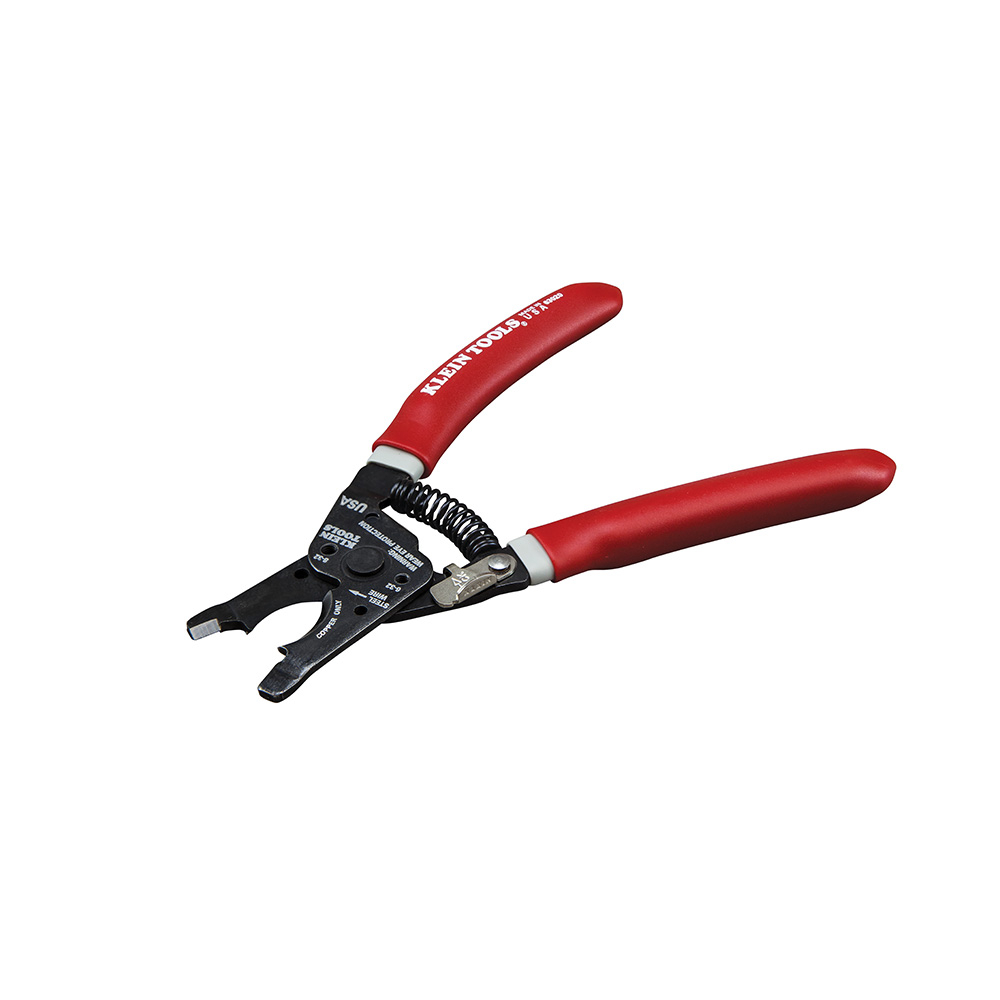

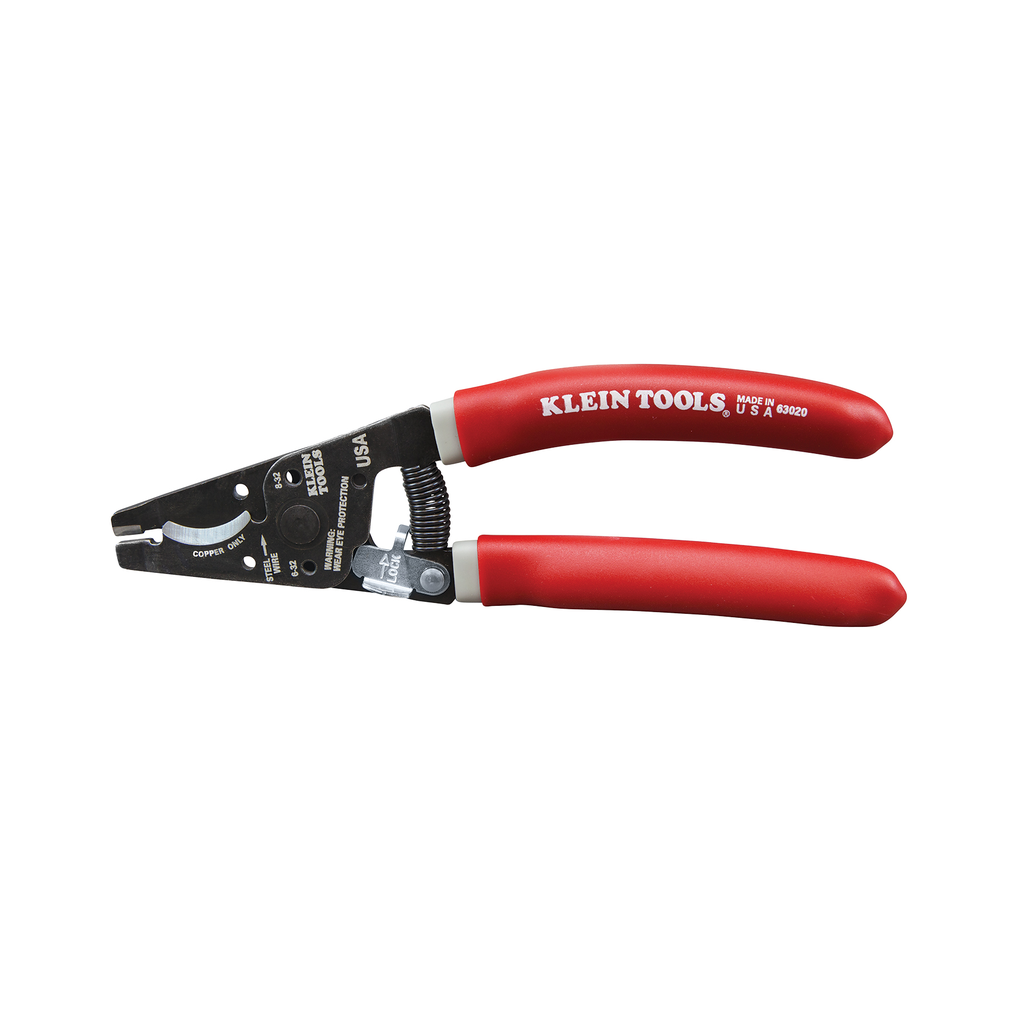

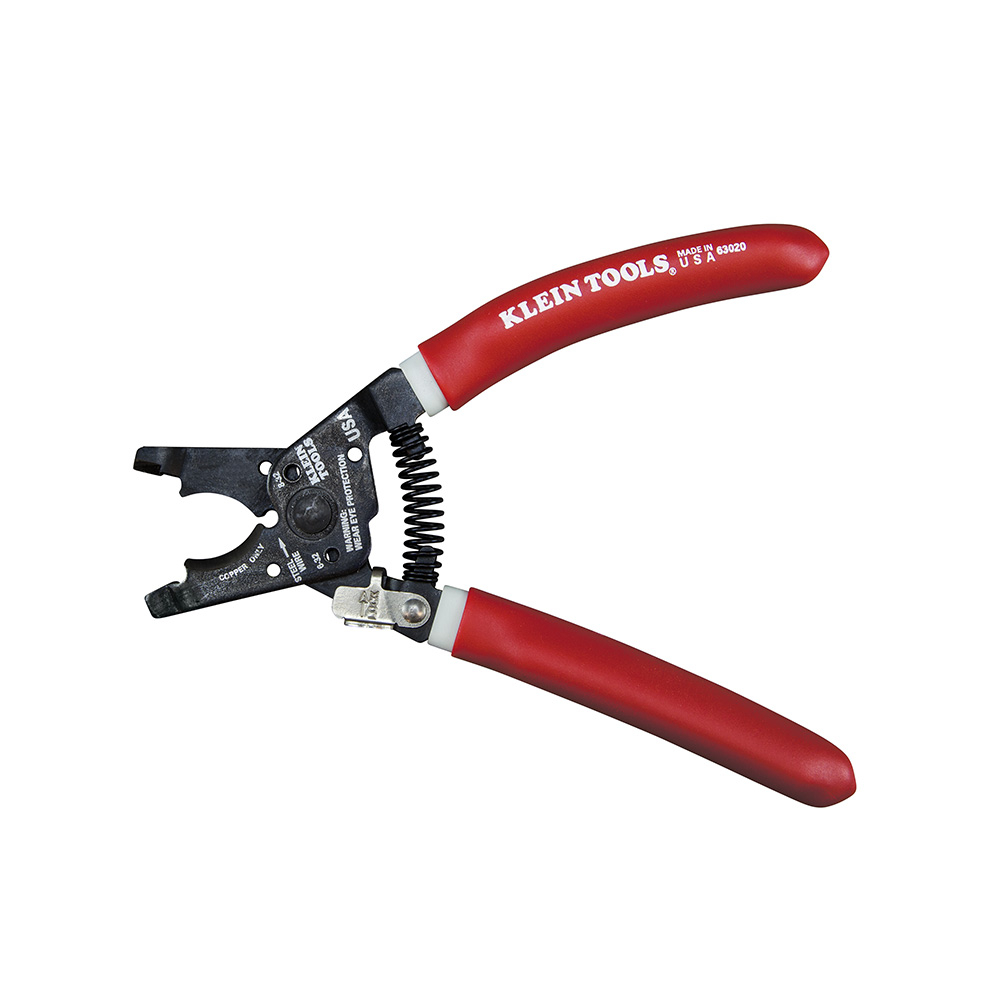

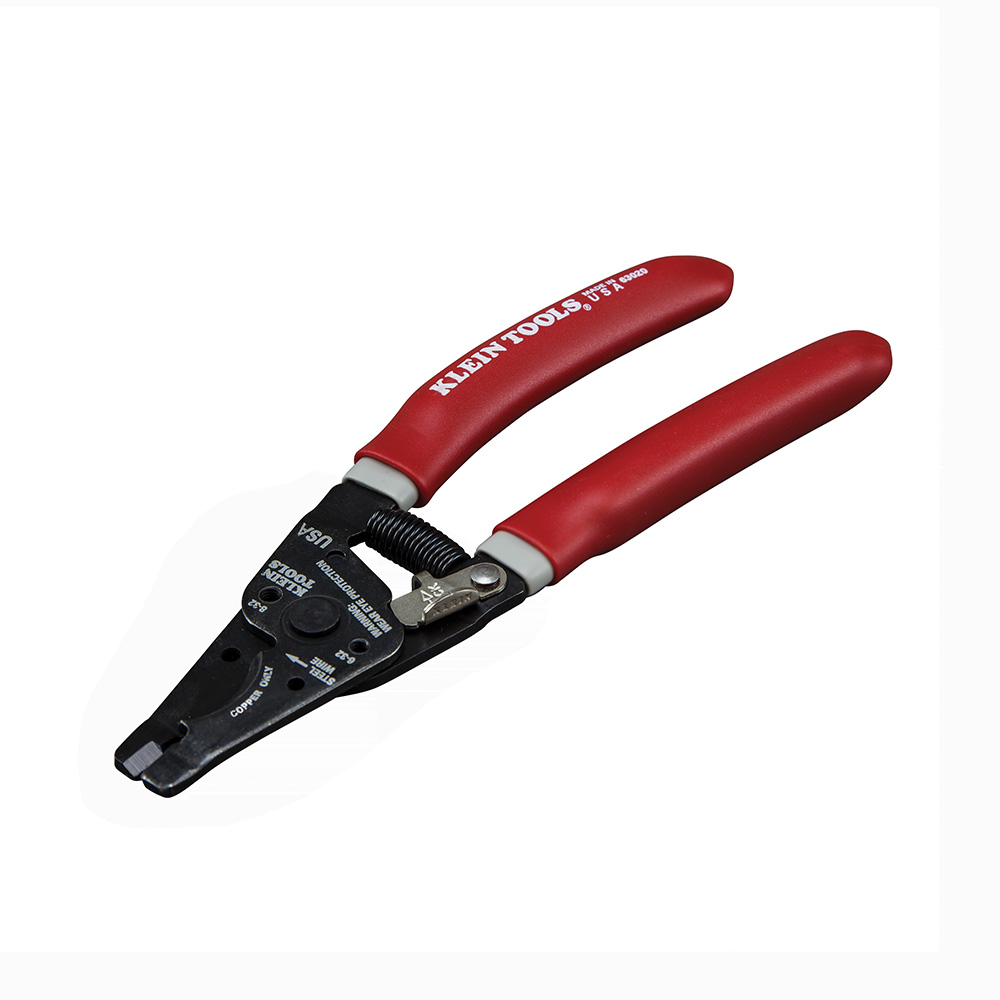

Multi-Cable Cutter Klein-Kurve®

The Klein Tools Klein-Kurve Multi-Cable Cutter has a wide range of blades designed to cut multiple types of cable. The anvil cutter cuts 12 AWG copper wire and stainless steel up to 0.032-Inch in diameter. The copper curved cutter cuts 8 AWG solid and 6 AWG stranded copper wire, conductors, and coaxial cable. This tool also has a cutter for mild steel.

Warnings

• Always wear approved eye protection.

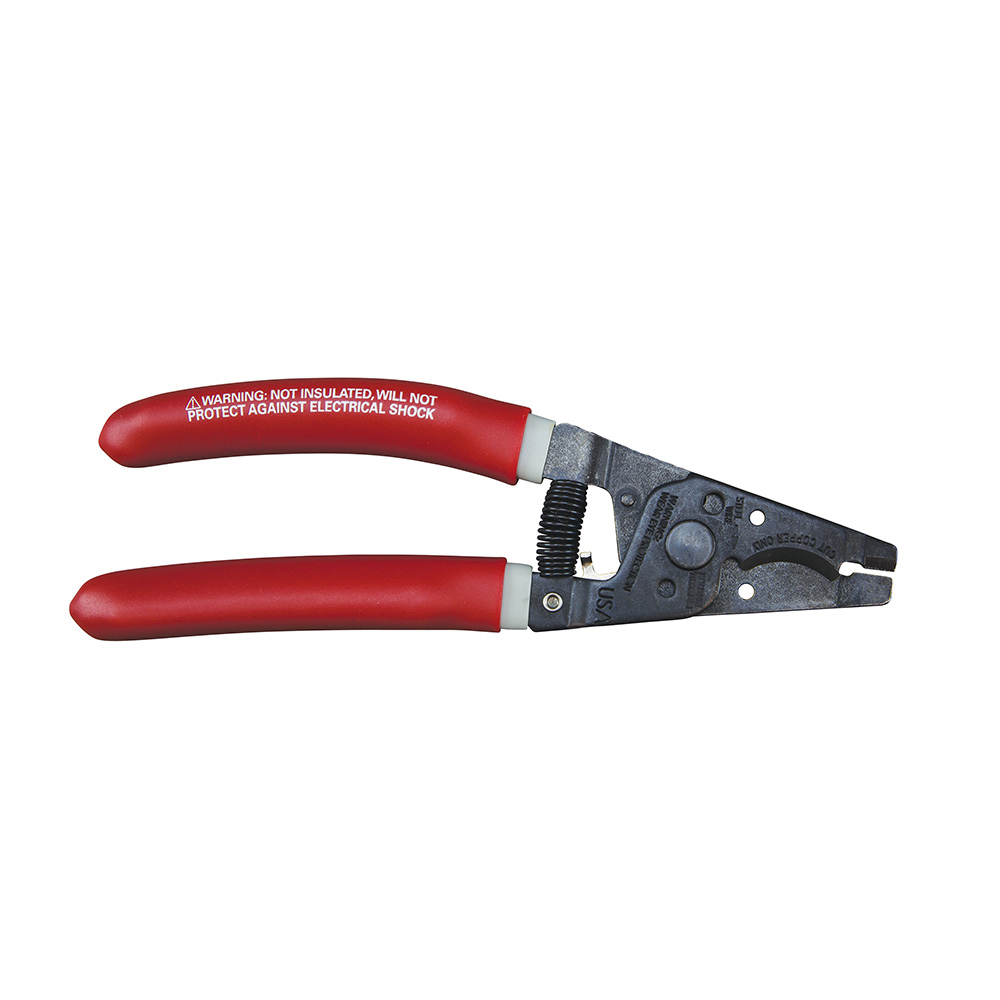

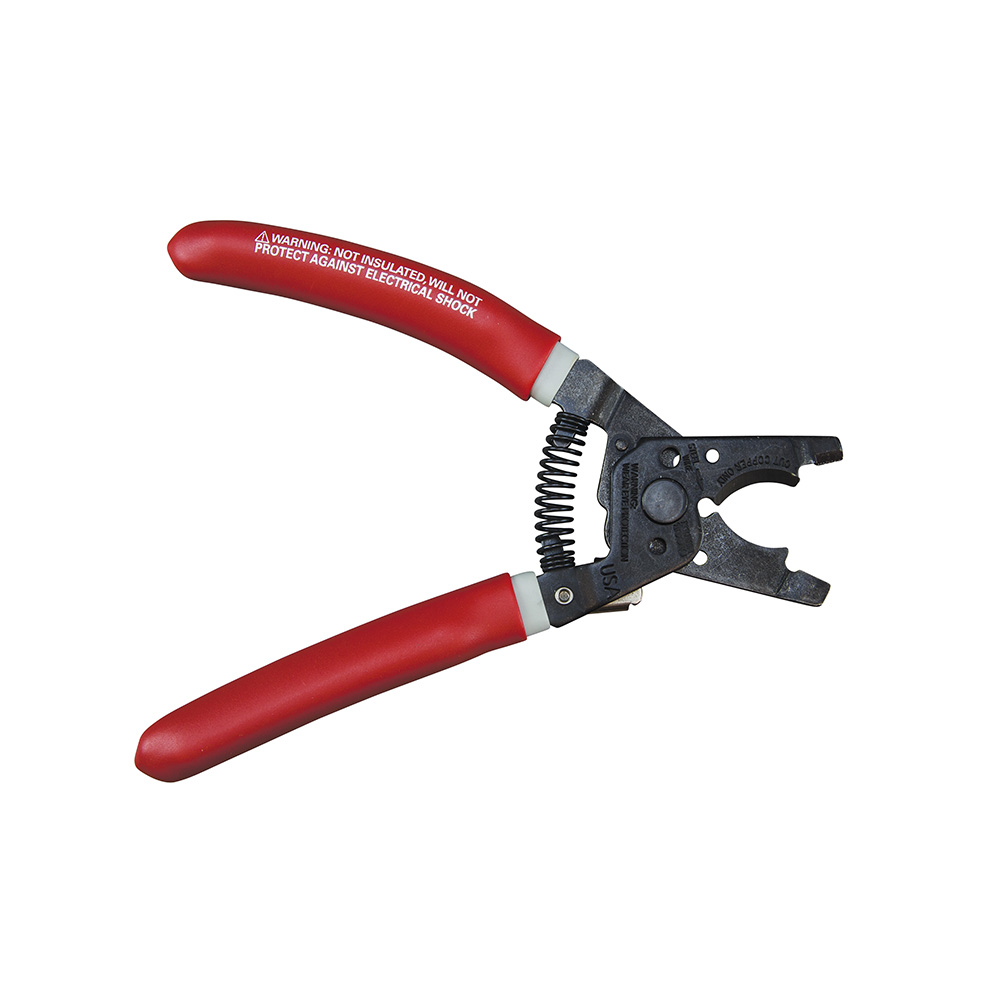

• NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

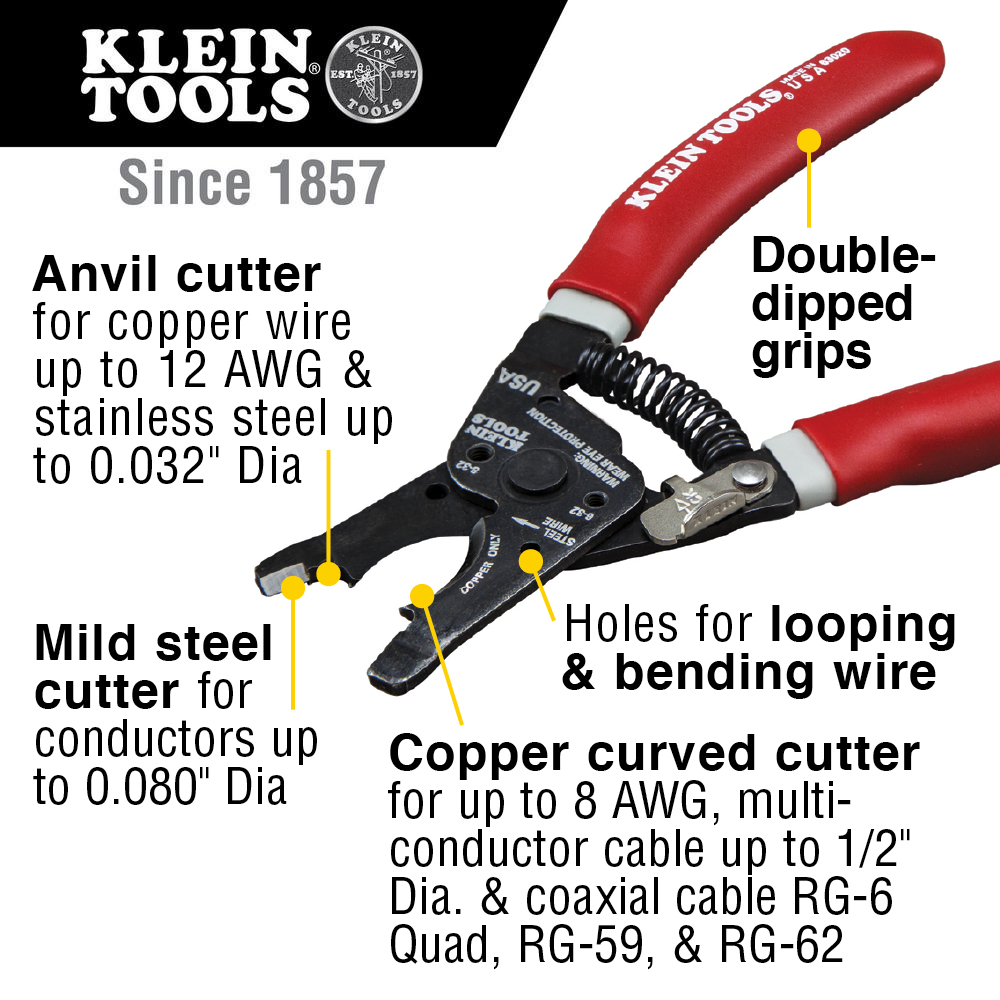

Features

• Holes for looping and bending wire
• Curved cutter for solid and stranded copper wire up to 8 AWG, multi-conductor cable up to 1/2-Inch (13 mm) diameter and coaxial cable RG-6 Quad, RG-59, and RG-62
• Made in USA with hardened steel precision-ground cutting blades for long life
• Hardened steel precision-ground cutting blades for long life
• Double-dipped grips for comfort
• Anvil cutter for solid and stranded copper wire up to 12 AWG and stainless steel up to .032-Inch (0.8 mm) diameter
• Mild steel cutter for conductors up to .080-Inch (2 mm) diameter
• Coil spring provides fast self-opening action

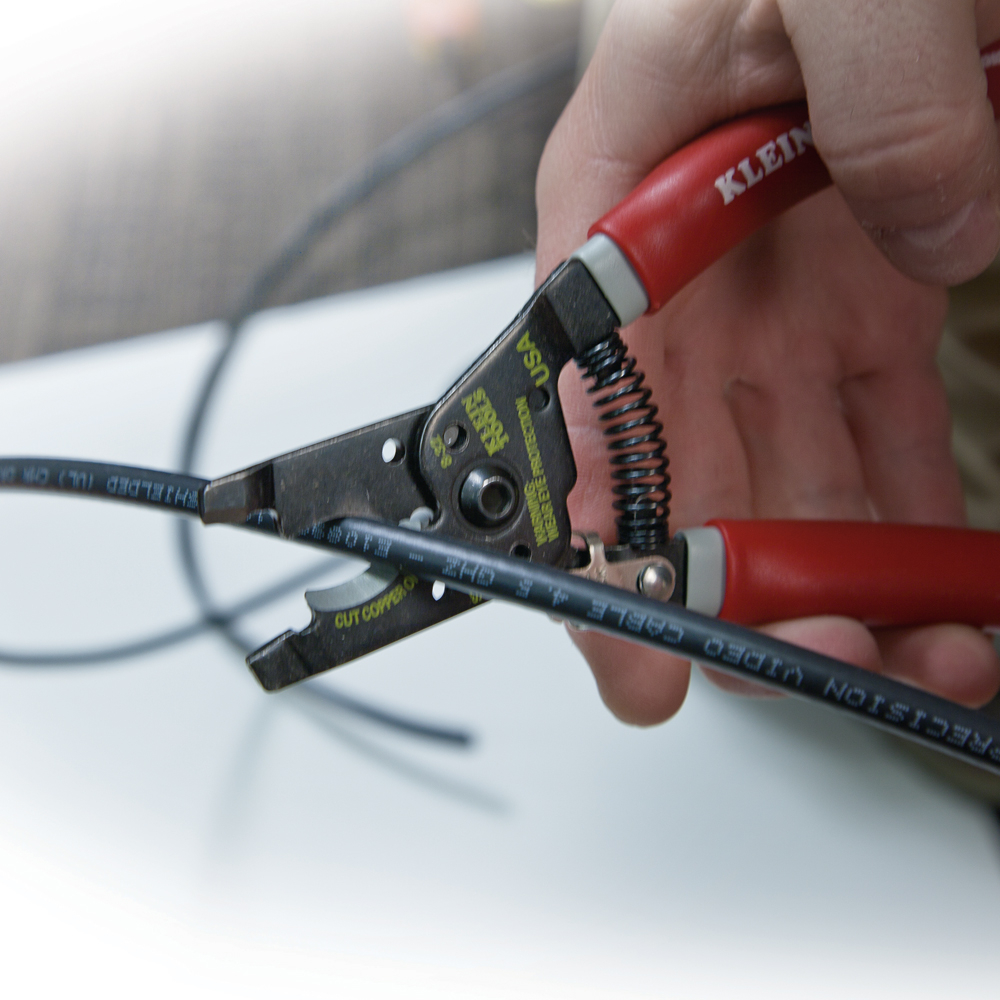

• Copper curved cutter cleanly cuts round copper cable without compression or frayed ends
• Not for CCS coax cable
• New lock design prevents accidental locking or loosening over time

Specifications

• Handle Color: Red
• Insulated: No
• Height: 11.0000 in
• Application: Cuts Copper Wire, Stainless Steel, Conductors, and Coaxial Cable
• Country of Origin: United States
• Sub Brand: Klein-Kurve®
• Material: Steel
• Width: 2.5630 in
• Weight: 0.4400 lbs
• Cutting Capacity: Up to 12 AWG Solid and Stranded Copper Wire, Up to 0.032" (.081 mm) Diameter Stainless Steel, Up to 1/2" (12.7 mm) Multi-conductor Cable, Coaxial Cable RG-6 Quad, RG-59 and RG-62
• Screw Shearing: 6-32 & 8-32
• Type: Cable Cutter
• Overall Length: 7" (17.8 cm)
• Depth: 7.0000 in
