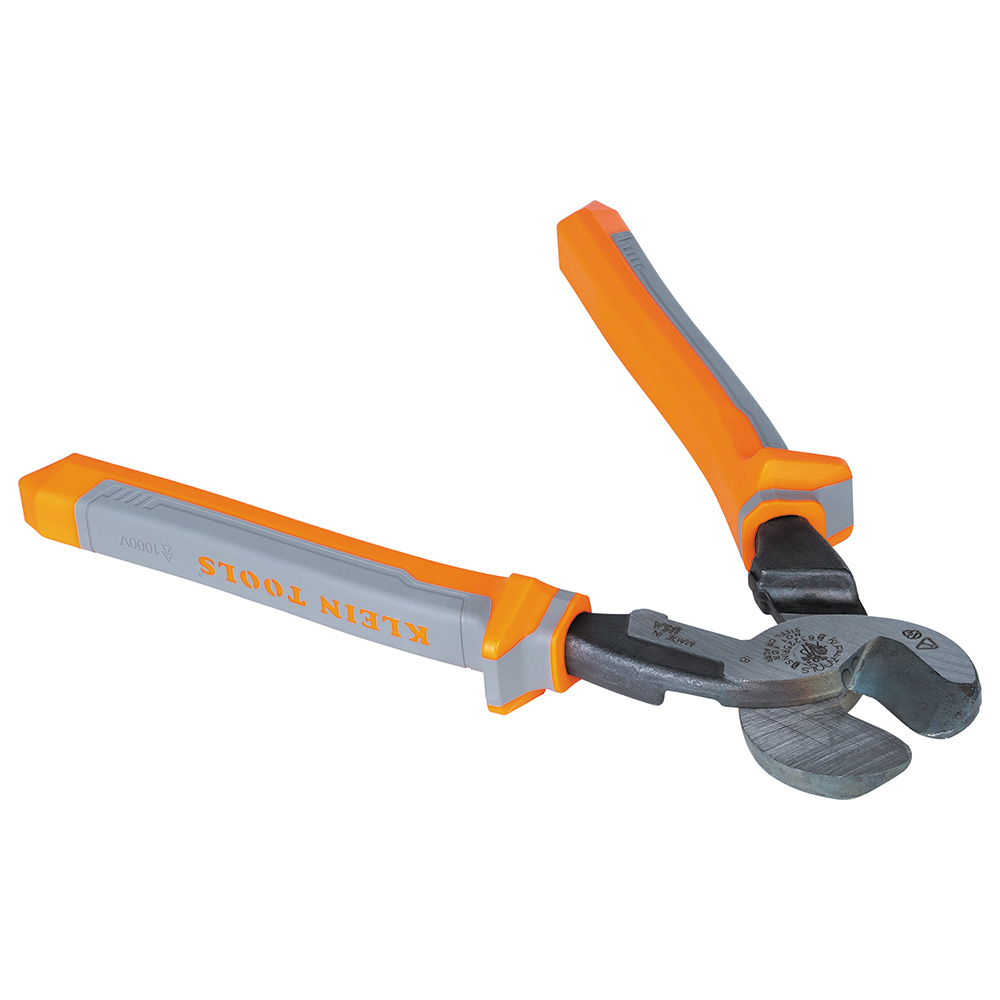

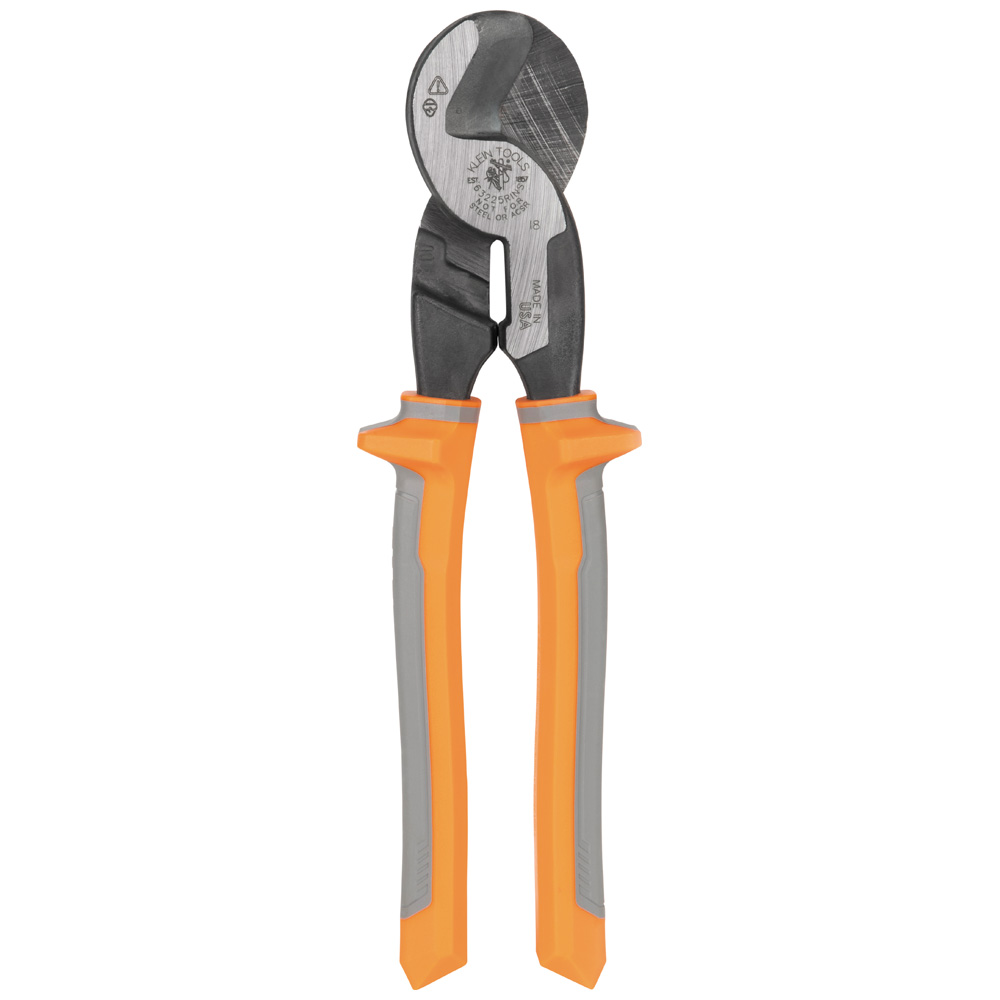

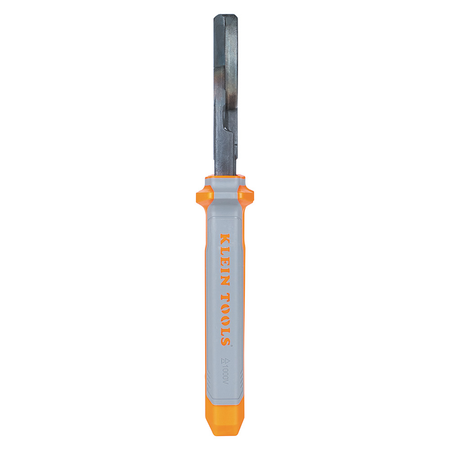

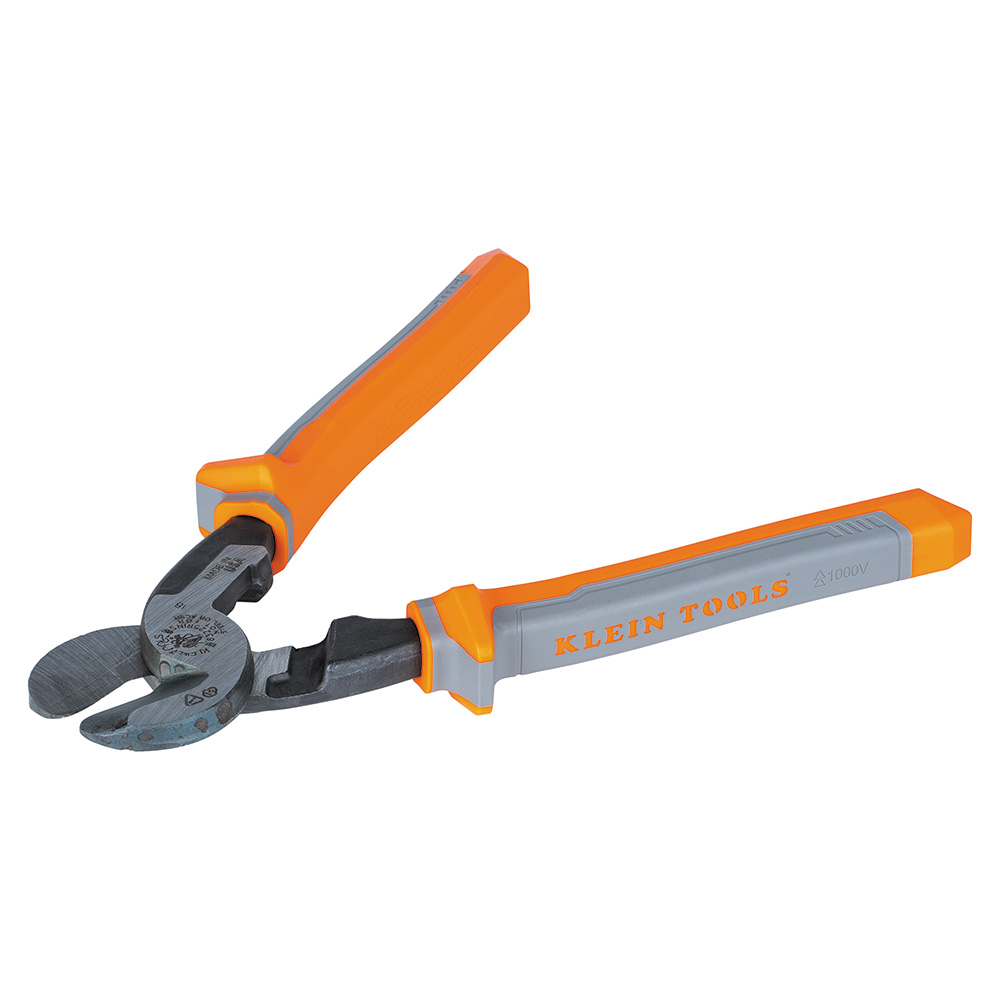

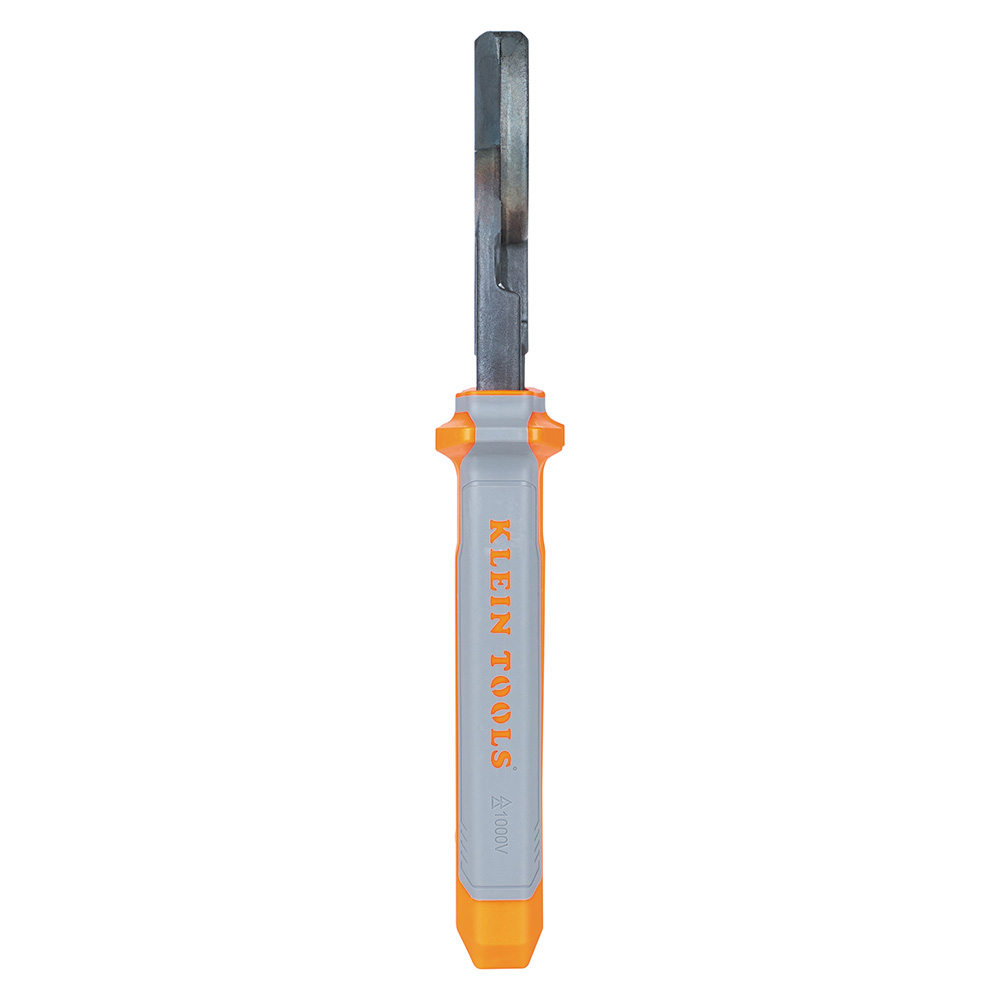

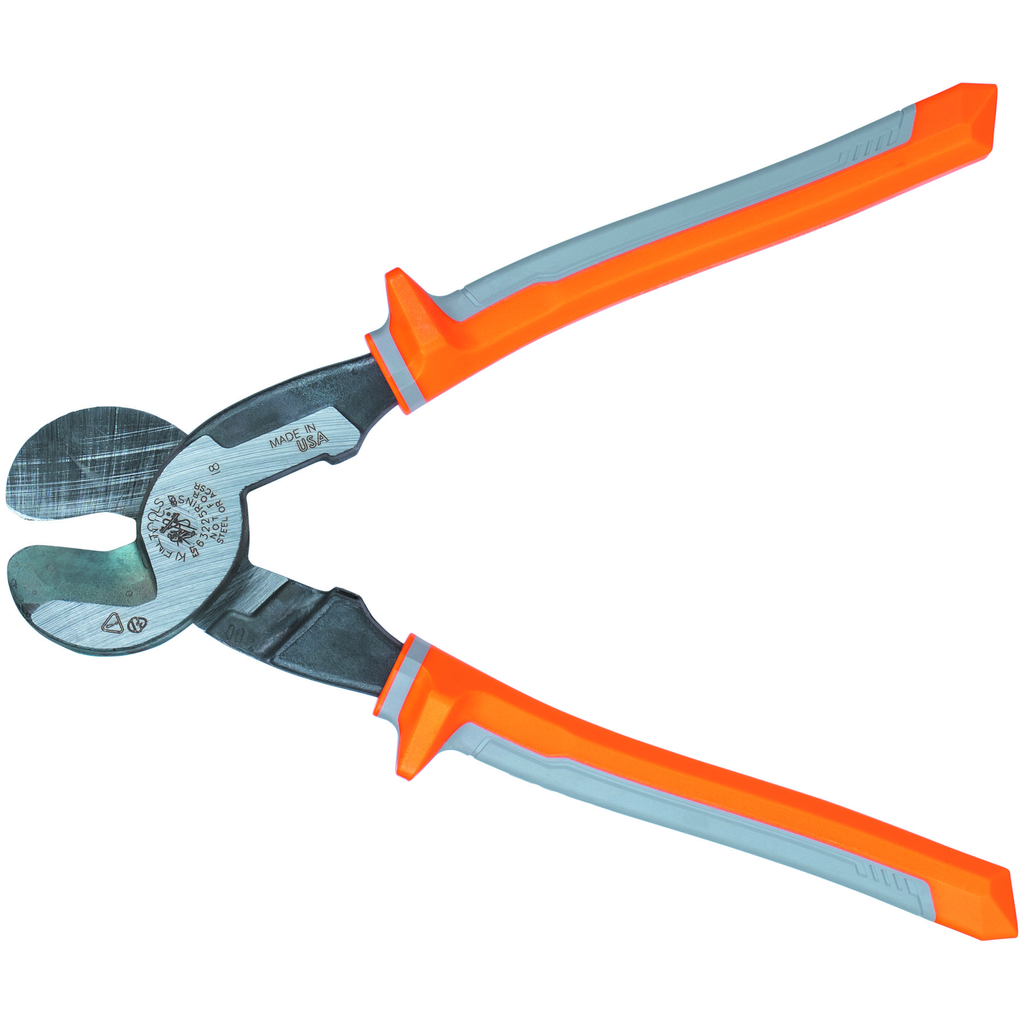

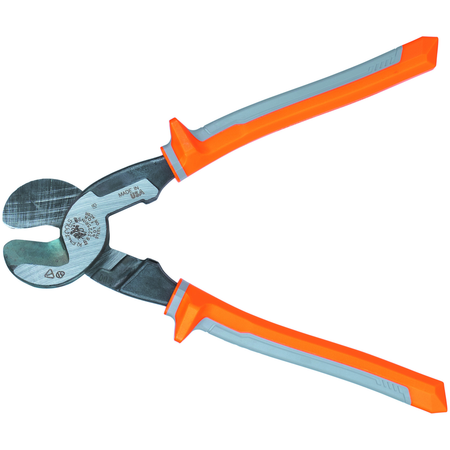

Cable Cutter, Insulated, High-Leverage, 9-Inch

This insulated high-leverage cable cutter cuts aluminum, copper and communications cable. Cable-gripping shear-type jaws and a high-leverage design translate to 30-Percent less force needed to cut as compared to Klein's 63050 model. Through-hardened, not case-hardened, cutting surfaces increase the durability and life of this tool.

Features

• Integral guards help prevent hand contact with conductive parts
• Cable cutter cuts 4/0 aluminum, 2/0 soft copper, 100-Pair 24 AWG communications cable

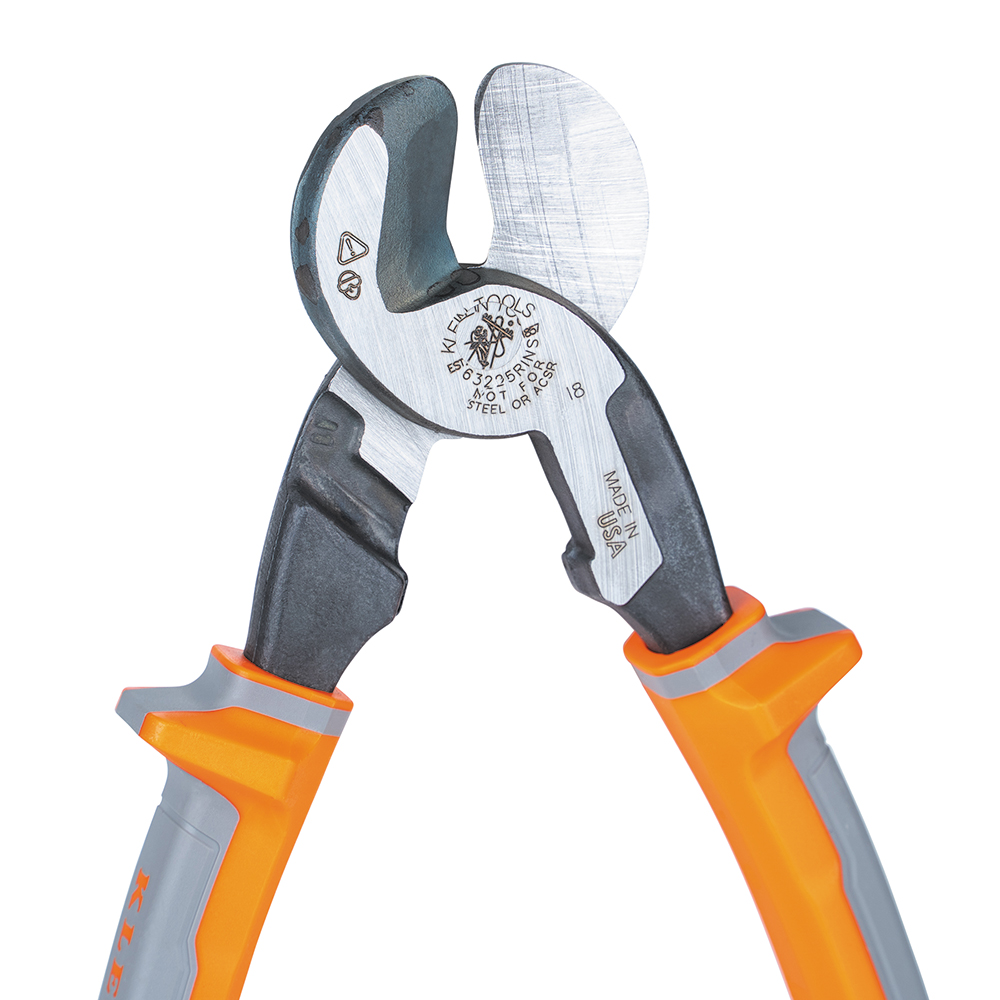

• Cable-gripping shear-type jaws
• High-Leverage; 1000V Rated
• Made in USA
• Individually tested to meet or exceed ASTM F1506-16 and IEC 60900 standards for insulated tools, and clearly marked with the official 1000V rating symbol
• Two layers of insulation on Cable Cutters provide protection against electric shock

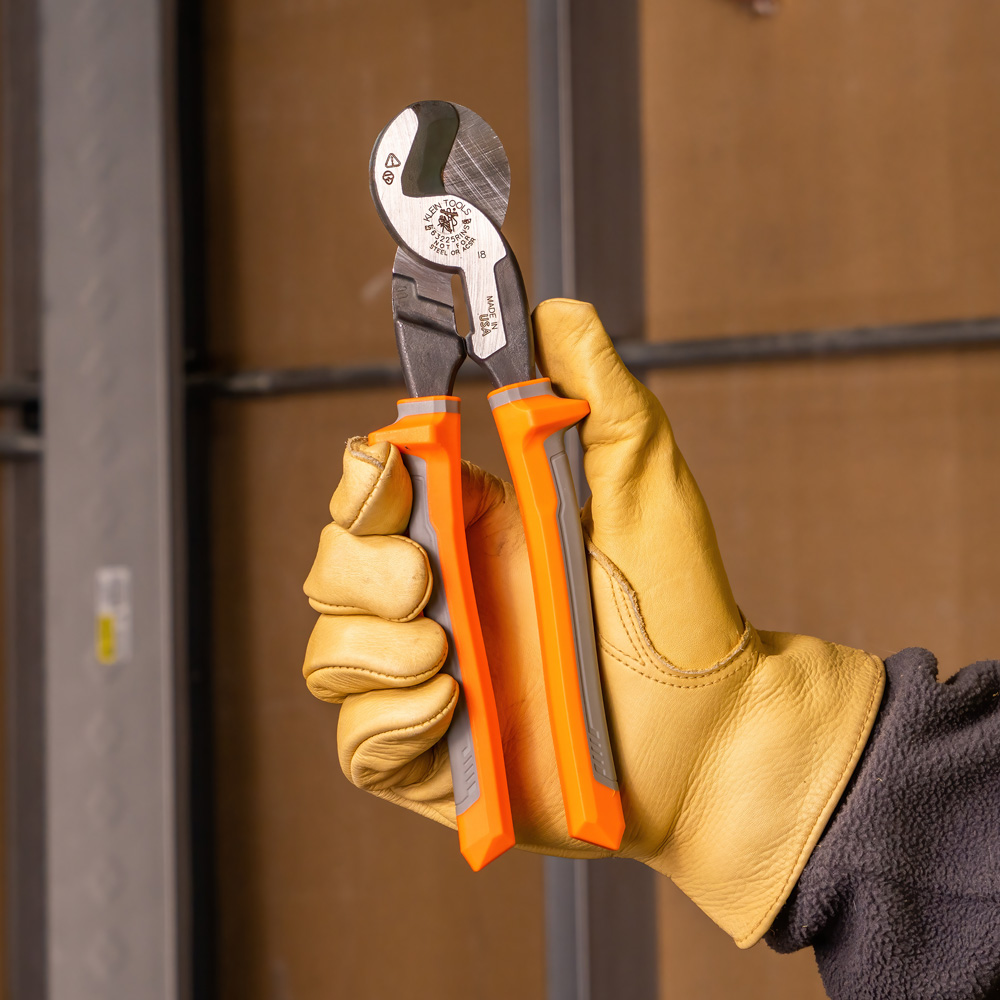

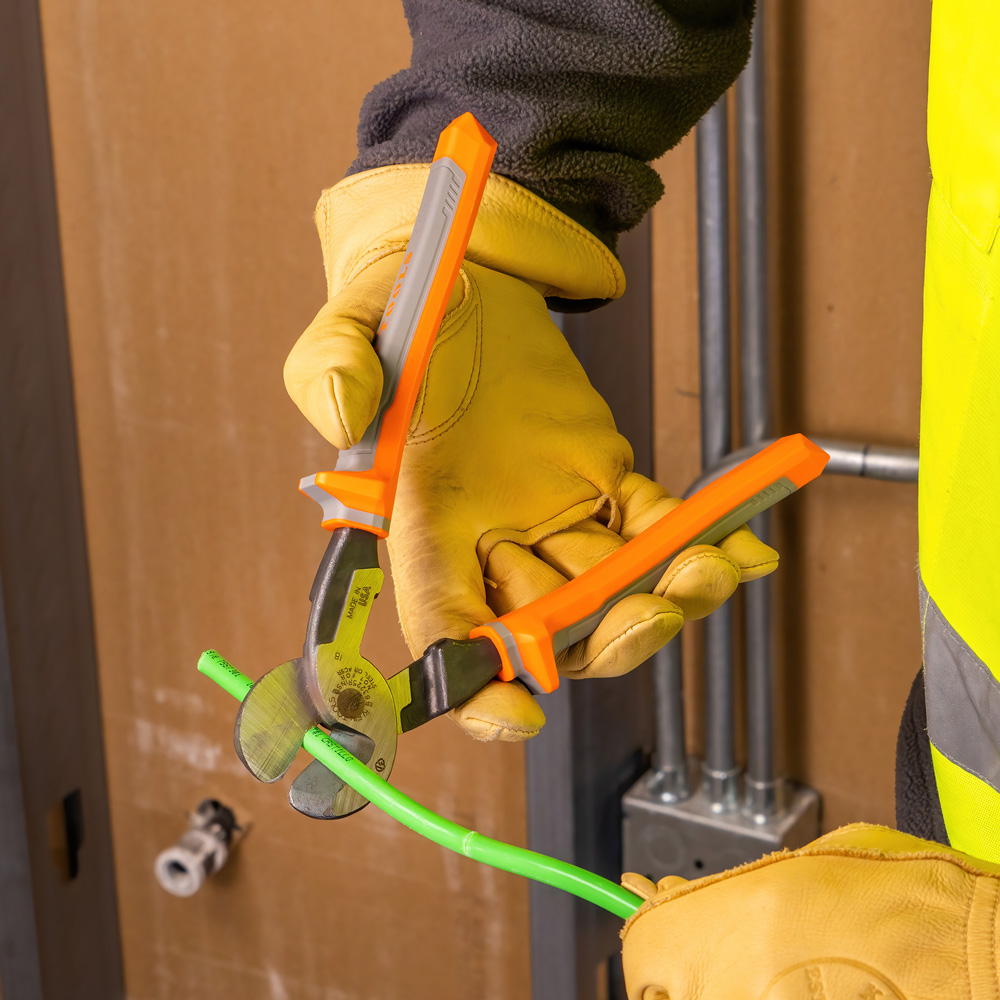

• Precision, one-hand shearing action perfect for working in confined spaces

Warnings

• DO NOT use to cut steel or ACSR.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Wear approved eye protection.

Specifications

• Overall Height (Inch): 1.28
• Weight (g): 454
• Weight (oz): 16
• Handle Material: Insulated
• Width: 2.1100 in
• Material: Induction Hardened Steel
• Jaw Capacity (cm): 2.7
• Depth: 9.6500 in
• Overall Width (cm): 7
• Weight: 1.0000 lbs
• Joint Type: Hot-Riveted
• Jaw Capacity (Inch): 1.06
• Handle Length (cm): 14.6
• Cutting Capacity: 4/0 Aluminum, 2/0 Soft Copper, 100-Pair 24 AWG Communications Cable
• Handle Color: Orange/Light Gray
• Standard: ASTM F1506-16 and IEC 60900
• Overall Width (Inch): 2.77
• Application: For Work Near Energized Sources
• Insulated: Yes
• Type: Cable Cutter
• Handle Length (Inch): 5.75
• Tether Capable: No
• Height: 1.2800 in
• Handle Finish: 2-Layer Insulation
• Overall Height (cm): 3.3
